Portable Sheet Hinge Drilling Machine Woodworking Three In One Drilling Machine Single Head Hinge Opening Machine

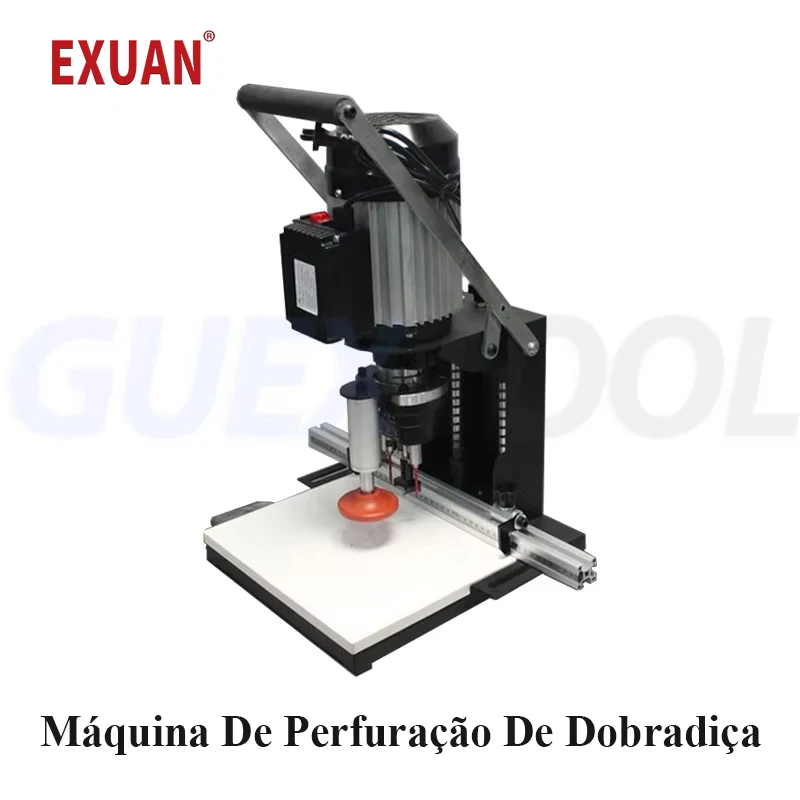

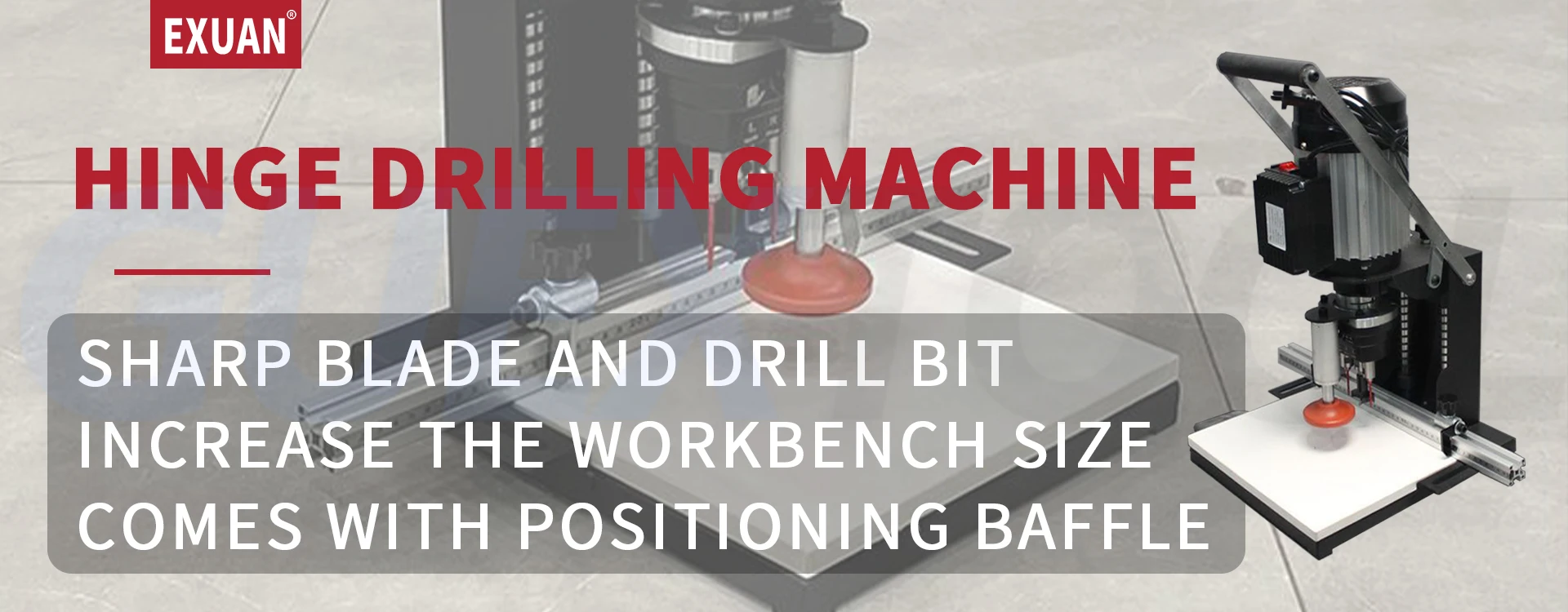

Hinge Drilling Machine

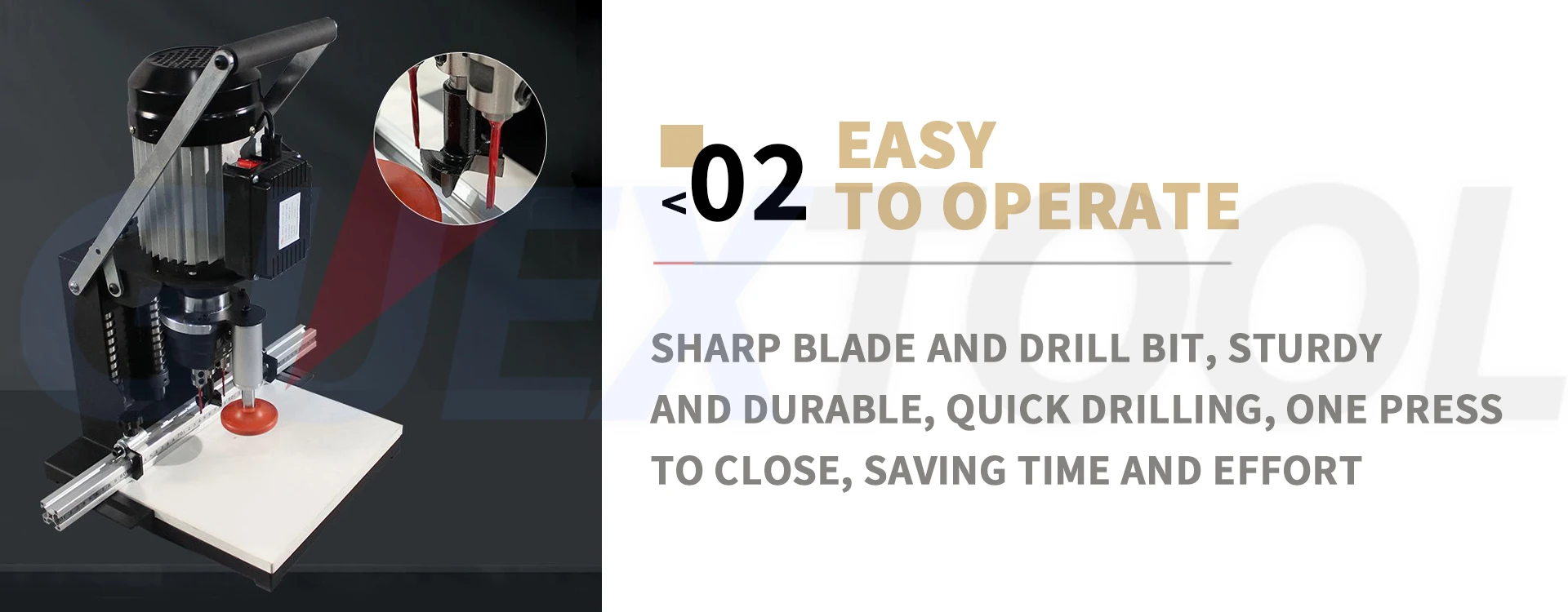

EXUAN woodworking hinge drill is a specialized equipment used for processing hinge holes on wooden boards, widely used in woodworking fields such as furniture manufacturing and door and window installation. It drives the drill bit to rotate through the driving system, while the feeding mechanism pushes the drill bit to feed towards the board. Under the combined action of rotation and feeding, the drill bit drills the required hinge holes on the board. The positioning device ensures the accurate position of the board during the drilling process, thereby ensuring the accuracy and quality of the drilling.

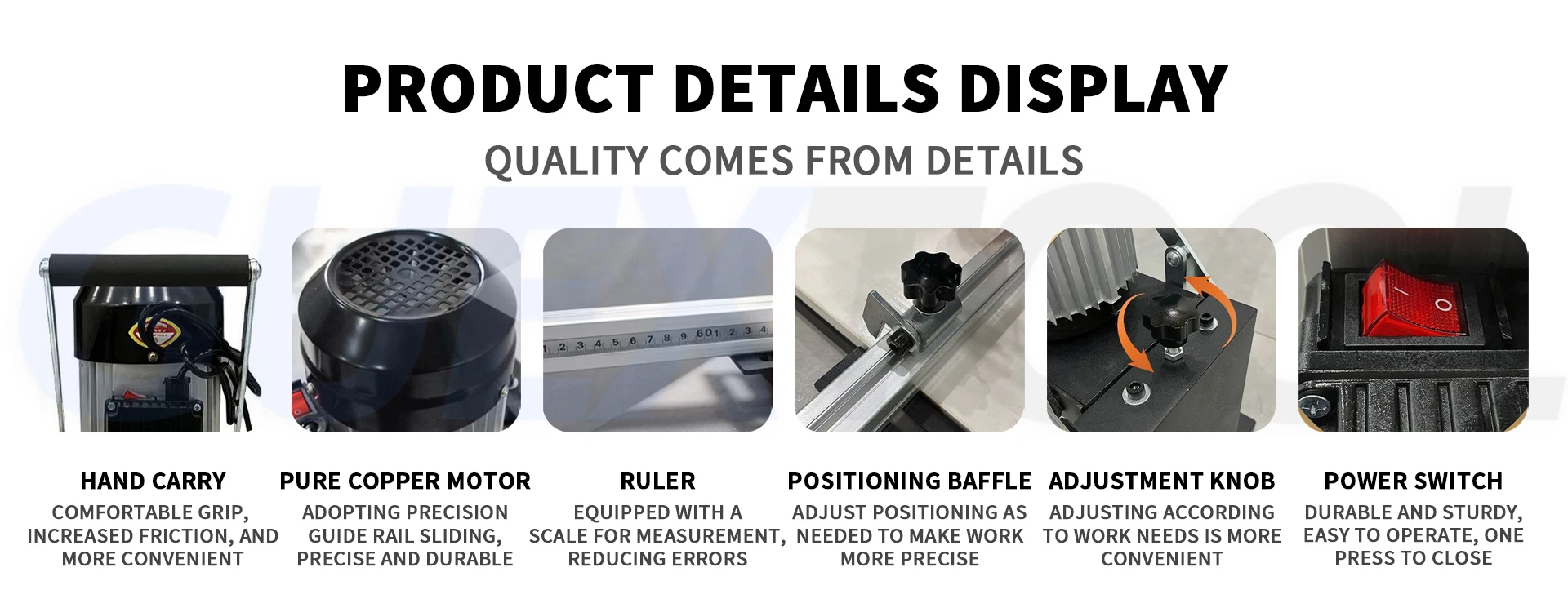

Product Advantages

• High precision: It can accurately control the position, diameter, and depth of the drilling hole, ensuring that the hinge can be used normally after installation, and doors, drawers, etc. can be flexibly opened and closed.

• High efficiency: It can quickly complete the processing of hinge holes, greatly improving work efficiency compared to manual drilling, especially suitable for mass production.

• Strong applicability: Suitable drill bits and drilling parameters can be selected according to different sheet materials to meet various processing needs.

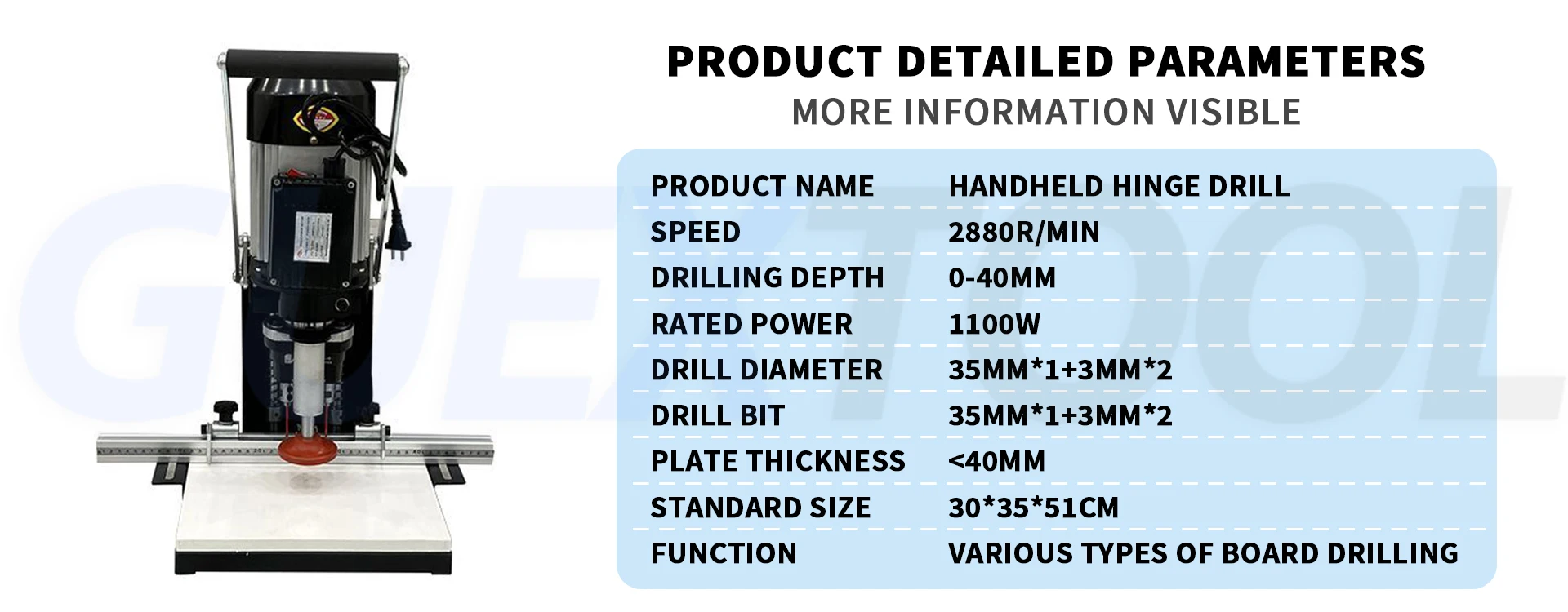

Product Parameters Description

Product Name: hinge drilling machine

Product voltage: 220V

Rated power: 1100W

Maximum drilling diameter: 35-50mm

Maximum drilling depth: 0-40mm

Drill bit: 35mm * 1+3mm * 2

Speed: 2880r/min

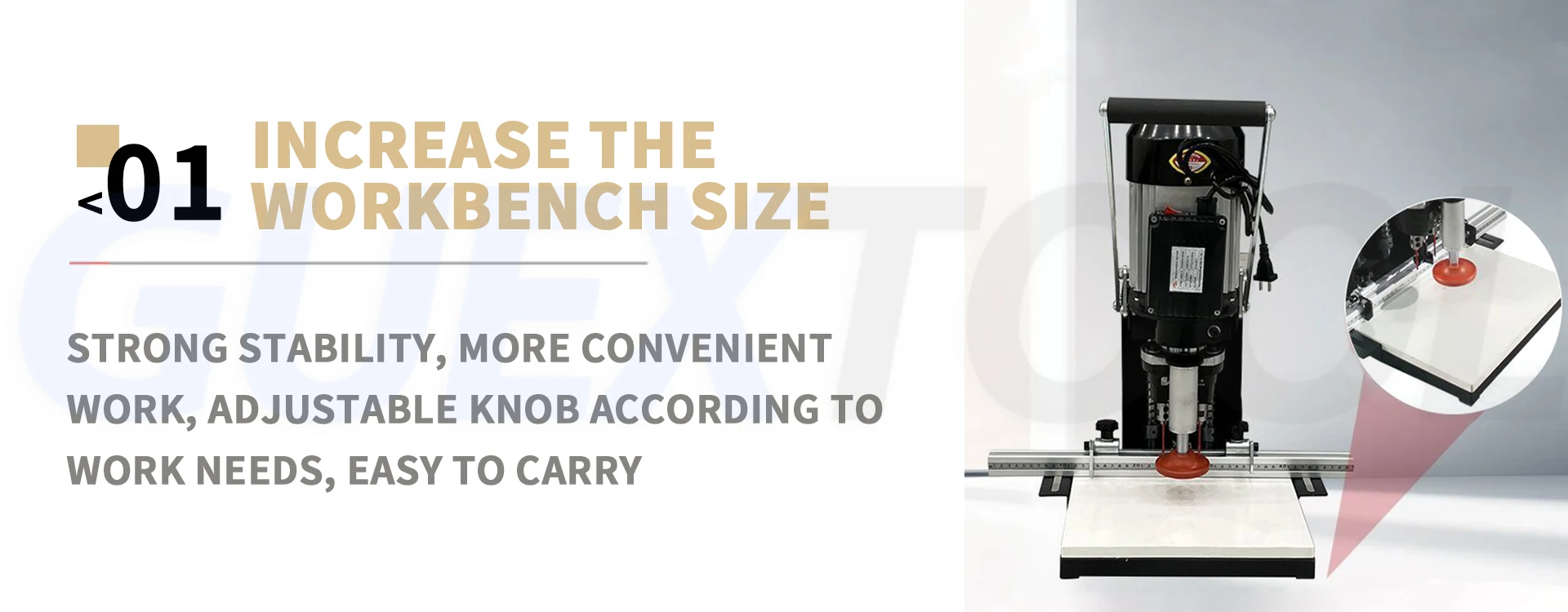

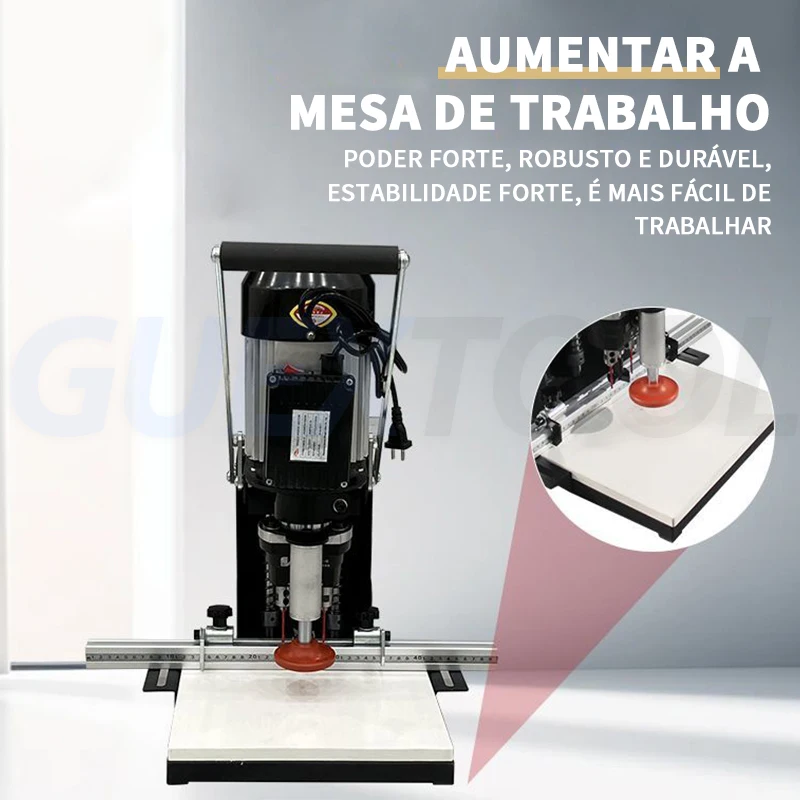

Table size: 300 * 250mm

Machine size: 30 * 31 * 51cm

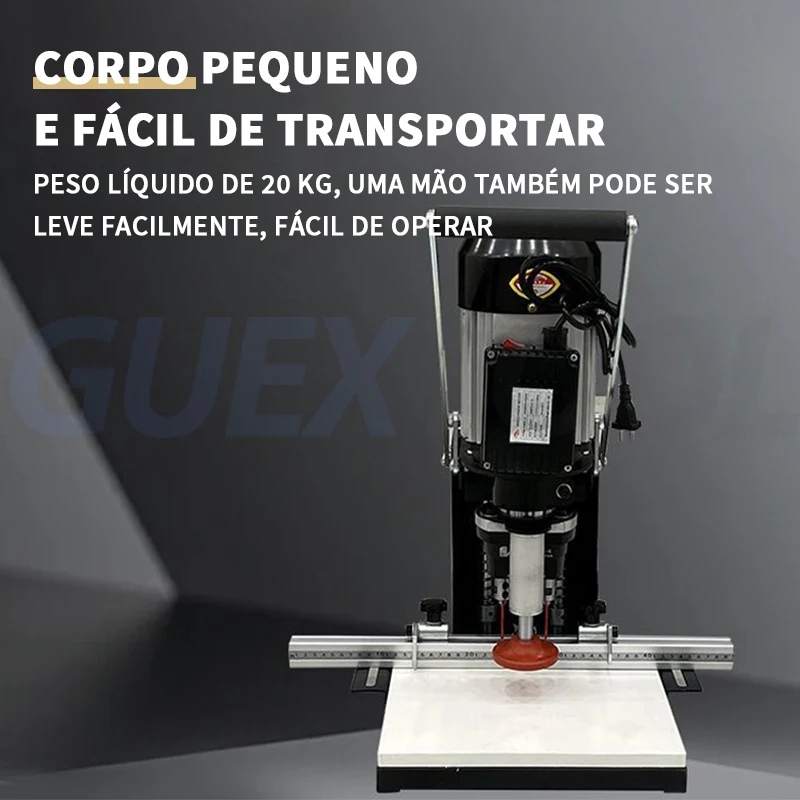

Machine weight: 22kg
