- High-concerned chemical: None
- Model Number: XF-900-BK
- Cooler Type: Tower
- Heatpipes: 6
- Supported CPU: LGA 775,LGA 1150,LGA 1151,LGA 1155,LGA 1156,LGA1200,LGA 1356,LGA 1366,LGA 1700,LGA 2011,LGA 2011-3,LGA 2066,Socket FM1,Socket FM2,Socket AM3,Socket AM5,Socket AM2,Socket AM2+,Socket FM2 +,Socket AM3 +,Socket FM2 / FM2 +,AM4
- TDP: 135W
- Fan Speed: 800 - 2000rpm
- Power Interface: 3pin/4pin
- Package: Yes
- Lines: 3Pin or 4Pin
- Fan Life: 50000 hrs
- Certification: CE,FCC
- Blade Quantity: 7
- Bearing: Fluid Bearing
- Air Volume: 60
- Origin: Mainland China
- Brand Name: XUANFENG
- Noise: 25dBA
- Fan Size: 90mm
- Series: XF-900
- 2 Heat pipes 1FAN TDP:: 90W
- 4 Heat pipes 1FAN TDP:: 120W
- 6 Heat pipes 1FAN TDP:: 135W
- Intel Socket: LGA 775/1150/1151/1155/1156/1200/1700/1356/1366 ( i3 i5 i7 )
- For 2011 Socket: LGA2011/2066/2066/ X79 / X99 / x299 / E5
- For AMD Socket: AM2/AM2+/AM3/AM3+/FM1/FM2+
- For AM4 Socket: AM4 Ryzen3 Ryzen5
Package: Color Box (CPU cooler*1, fixing bracket*1 kit, silicone grease*1 )
Packing list（Sketch Map）：①②③
AMD full series of desktop universal
AM5/AM4/AM3/AM3+/AM2/AM2+/FM1/FM2/FM2+/X2/X3/X4/A4/A6/A8/A10/FX...
For AMD motherboards, there is an original base adapter (as shown in the figure below) that we do not provide. If you need an AMD base adapter, please contact our customer service department. Thank you for your cooperation and have a wonderful day.
Declaration:
The CPU cooler comes with an Intel fixed bracket, while the AMD bracket is an original accessory for the motherboard and we will not deliver it. If you need AMD fasteners, please contact our customer service.
For choosing LGA2011-x79-x99
Product applicable platform:LGA 2011 2066 2099 E5 xeon X79 X99 x299(suitable for computer motherboards with square threaded bases)(If you have any uncertain friends, please contact our customer service)
Product applicable platform
LGA 2011 2066 2099 E5 X79 X99 2011-3 (suitable for computer motherboards with square threaded bases) as shown in the picture
Choose the Intel bracket:LGA115x-1200-1700
LGA multi-platform universal：LGA775/1150/1151/1155/1156/1200/1356/1366/1700/18xxCeler Series/Pen Series/ Cor Dual i3-i5-i7-i9 12th-14th Gen
(If you have any uncertain friends, please contact our customer service)
LGA multi-platform universal：LGA775/1150/1151/1155/1156/1200/1356/1366/1700/1851/Celer series/Pen series/ Cor Dual i3-i5-i7-i9 12th-14th Gen
3Pin and 4Pin connectors are universally compatible;installation is worry-free regardless of the interface type.

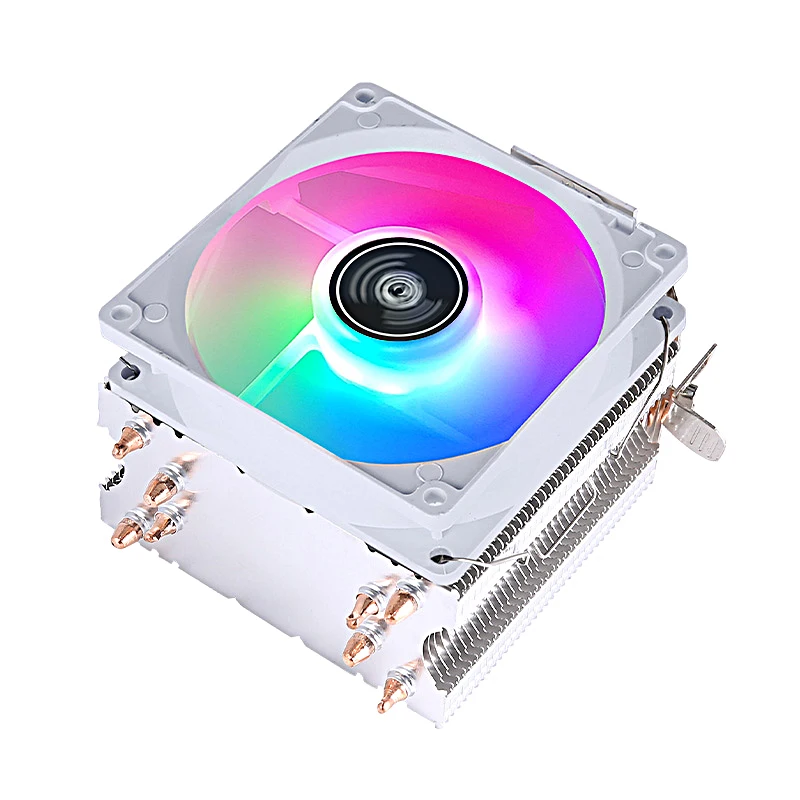

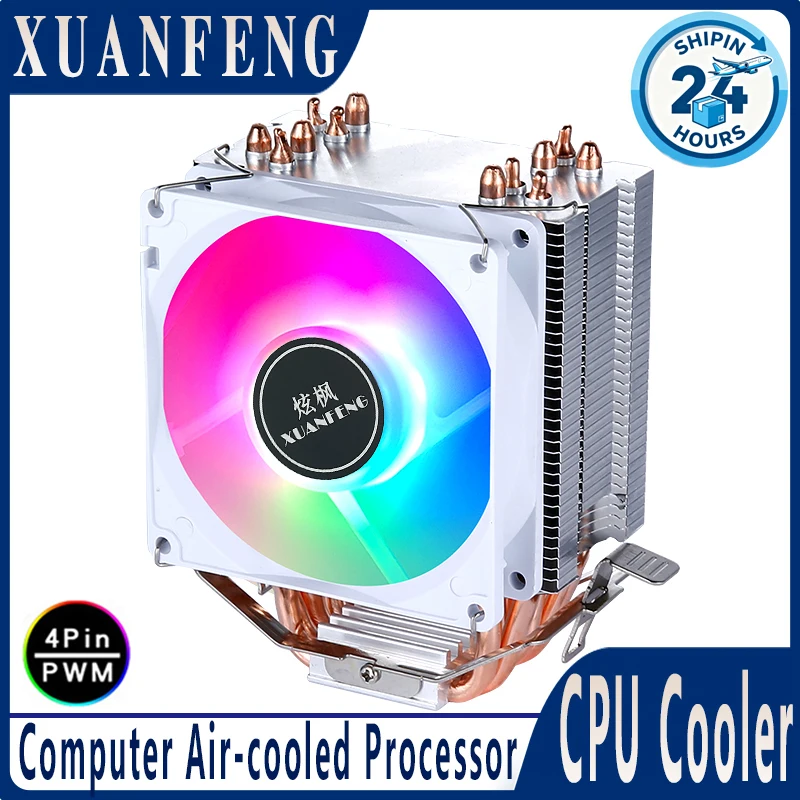

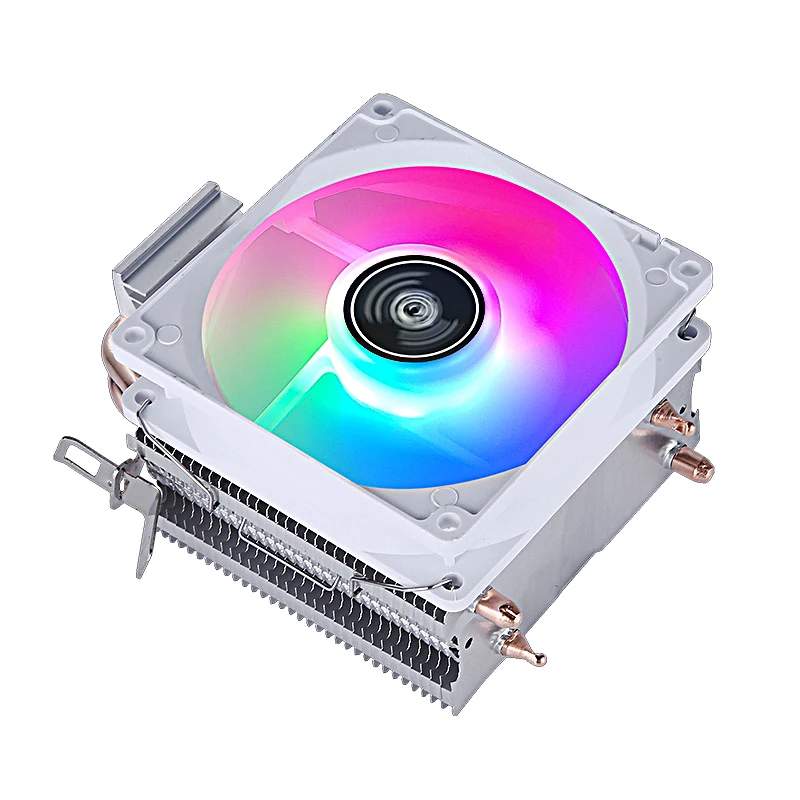

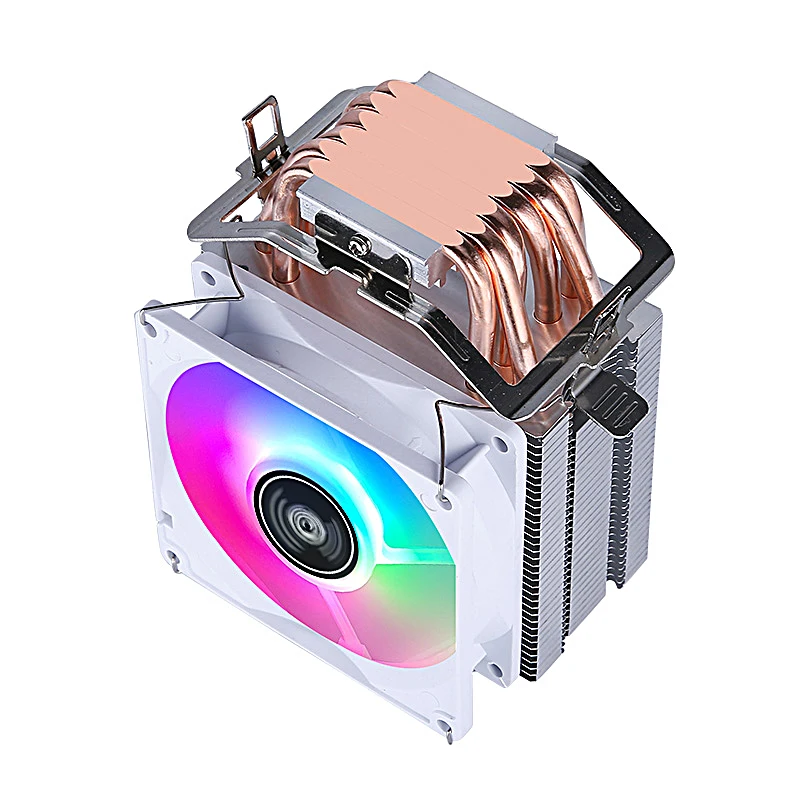

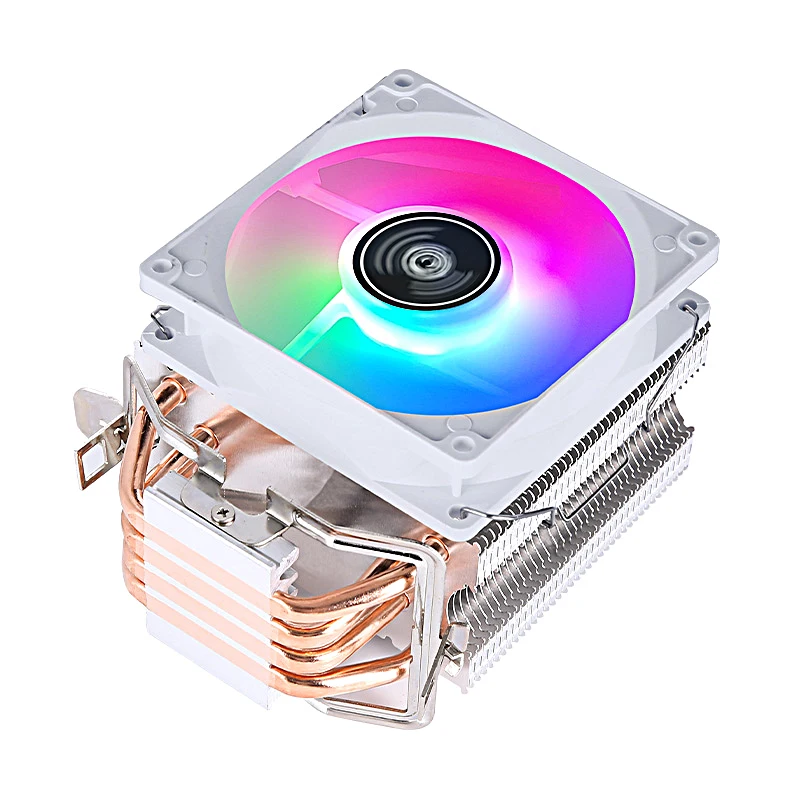

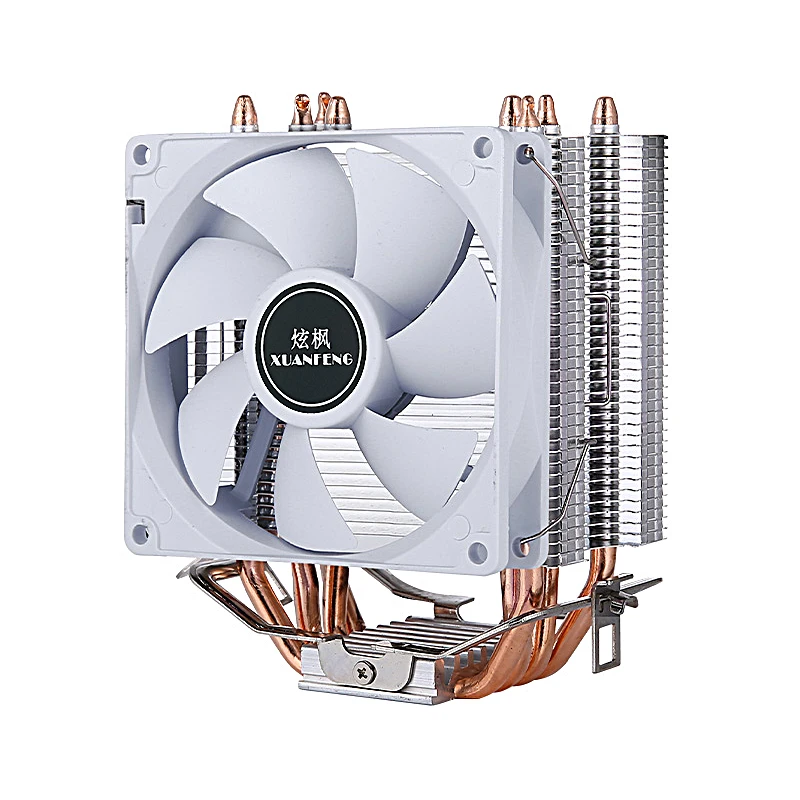

Product image display:
Brand Name：XUANFENG
Fan size: 90 × 90 × 25mm
3Pin speed: 2000 RPM ± 10%
4Pin speed: 800-2000 RPM ± 10%
Fan interface: 3Pin (3-wire constant speed)/4Pin (4-wire temperature control)
Rated voltage: 12V DC
3Pin current: No light 0.18A with light 0.28A ± 10%
4Pin current: No light 0.1A with light 0.2A ± 10%
3Pin power: 2W without light, 3.5W with light ± 10%
4Pin power: 1W without light, 2.5W with light ± 10%
The above data is for one fan, and if it is for multiple fans (air volume, noise, current, power), the data will increase in increments
Statement:
As shown in the figure below, it is an inevitable production process, not a quality problem, nor will it affect the product function and performance. Your successful purchase means that you have approved the process. If there is any dispute or refund due to this process,we will not accept it.
