- Produto Químico de Alta Preocupação: Nenhum
- Número do modelo: Mebay DC30D
- Origem: CN (Origem)
- brand: jielite

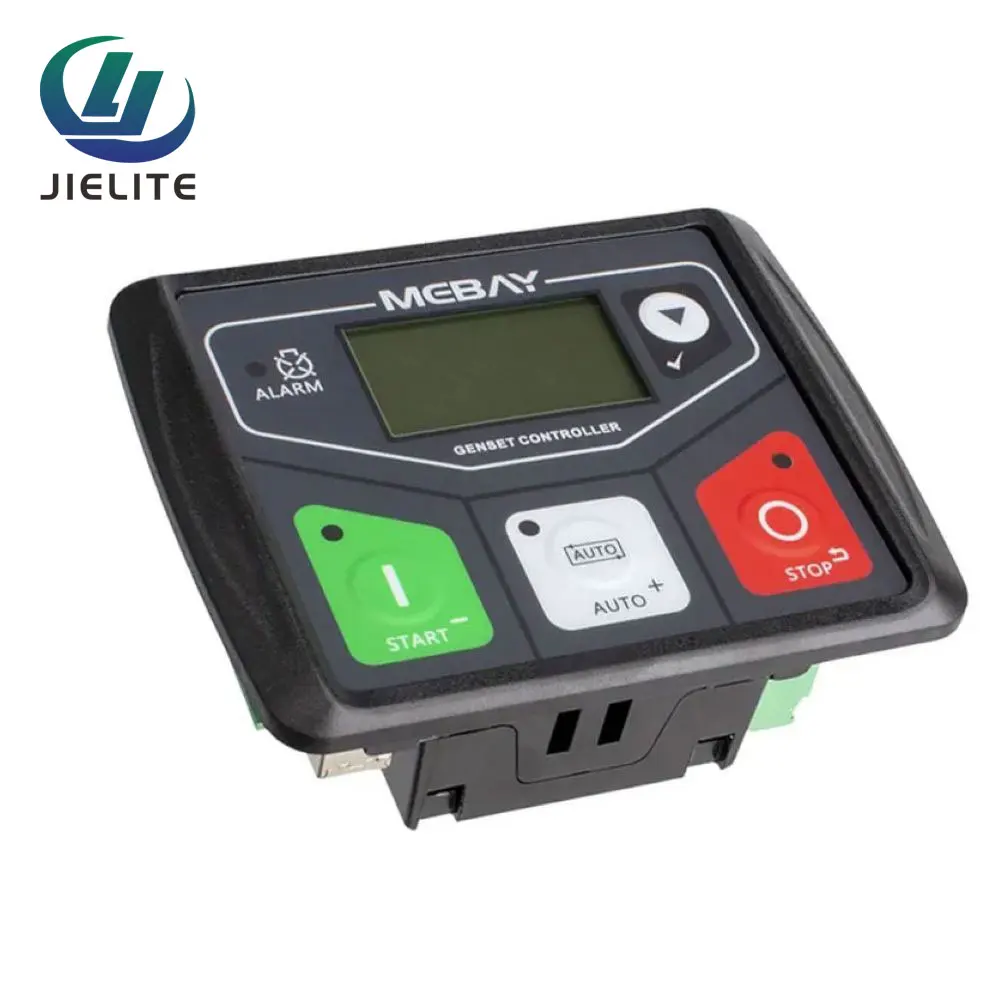

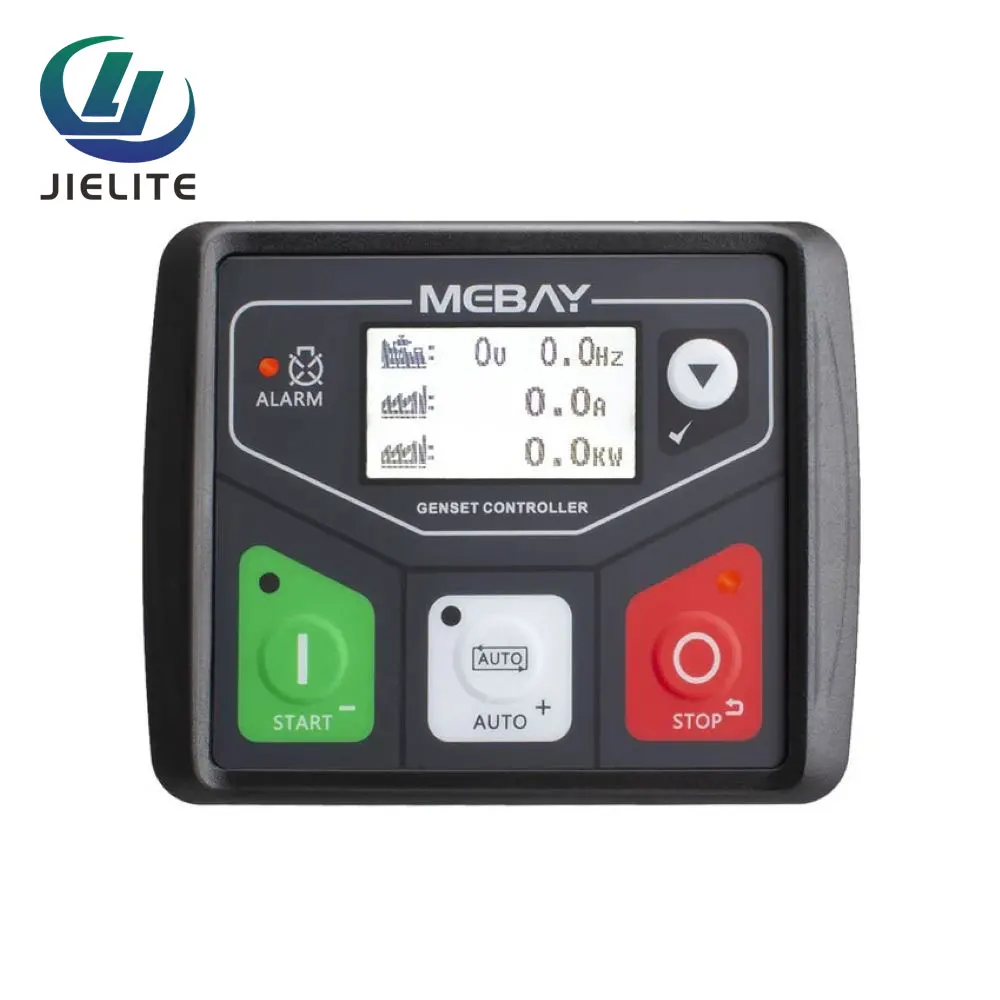

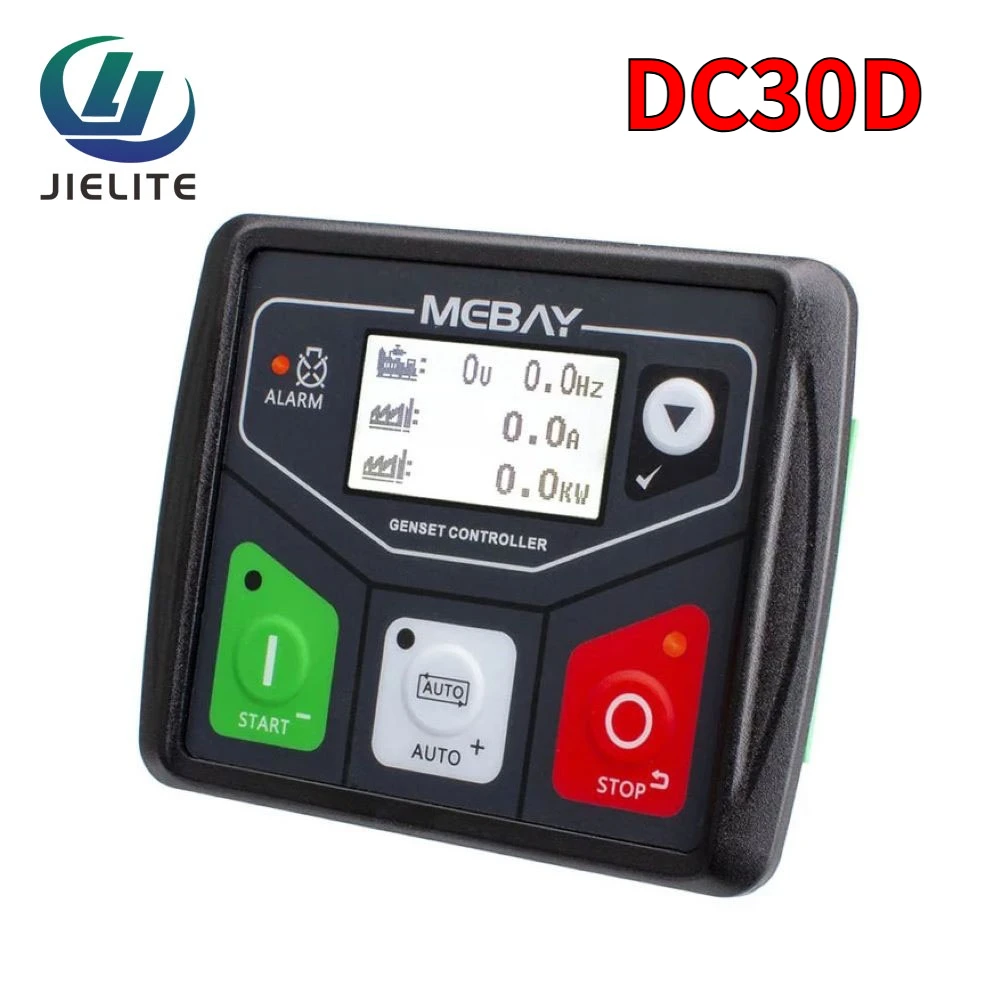

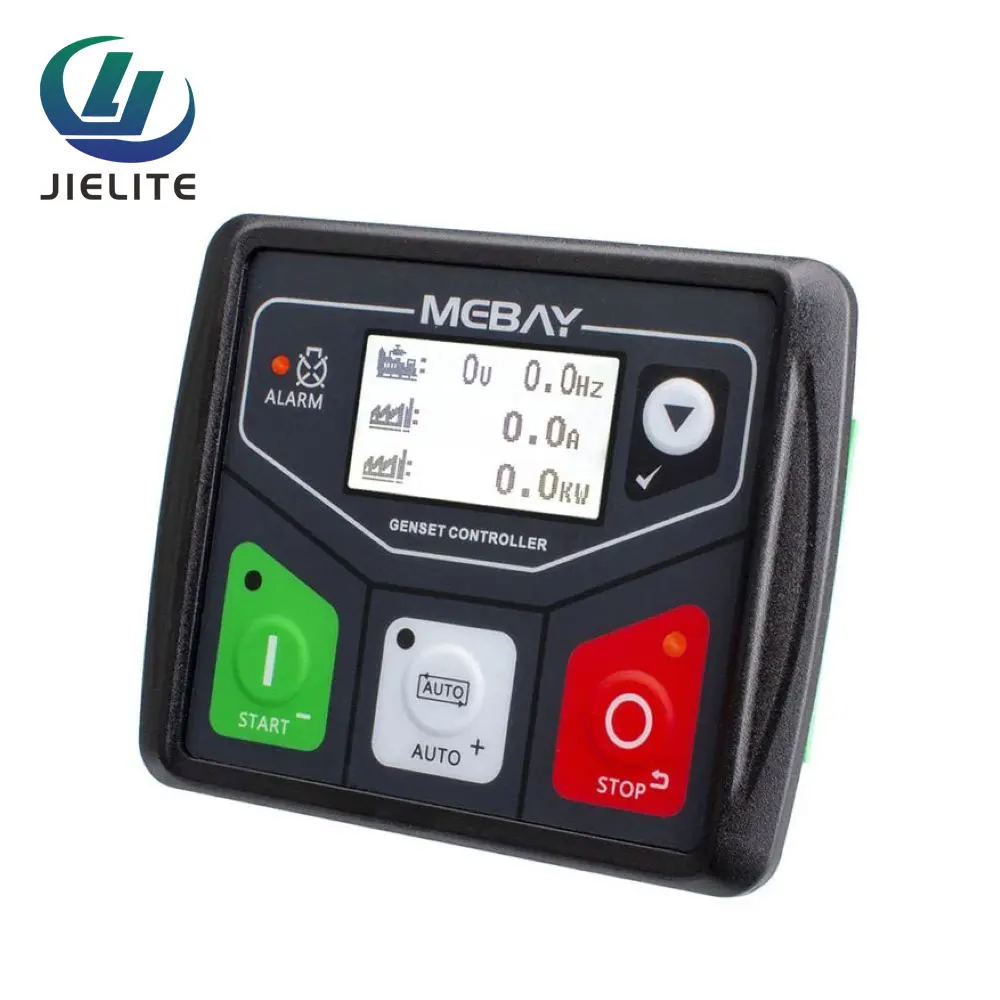

- model: Mebay DC30D controller board panel
- color: black
- Working voltage: DC8-36V continuous
Parameter
Working voltage: DC8-36V continuous
Power consumption: Standby: 24V: Max 1W Working: 24V: Max 2W AC voltage input: 1P2W (long-N input) 30V AC-360V AC (PH-N) speed sensor Frequency: 50-9000Hz Generator frequency input: 50/60Hz
Maximum cumulative time: 9999.9 hours (minimum storage time: 6 minutes)
Fuel relay output:
1 amp DC + volt supply voltage
Start-up relay output: 1A DC + VE supply voltage programmable relay output 1:1A DC + VE supply voltage
Programmable Relay Output 2:1AMP Contactless-Normally Open Normally Closed Output Programmable Relay Output 3:1AMP Contactless Normal Open Output
Switch value input: if available with battery connection
Dielectric strength: AC1.5kV voltage is applied between the high-voltage terminal and the low-voltage terminal; The leakage current within 3min does not exceed 1mA.
Working conditions: -25-65°C Storage conditions: -40-85°C
Protection class: IP54: when adding a waterproof rubber gasket between the controller and its panel
Opening: 78 mm × 66 mm
Packing size: 110*90*50mm
Package weight: 300g
Material: ABS and metal
Color: Black

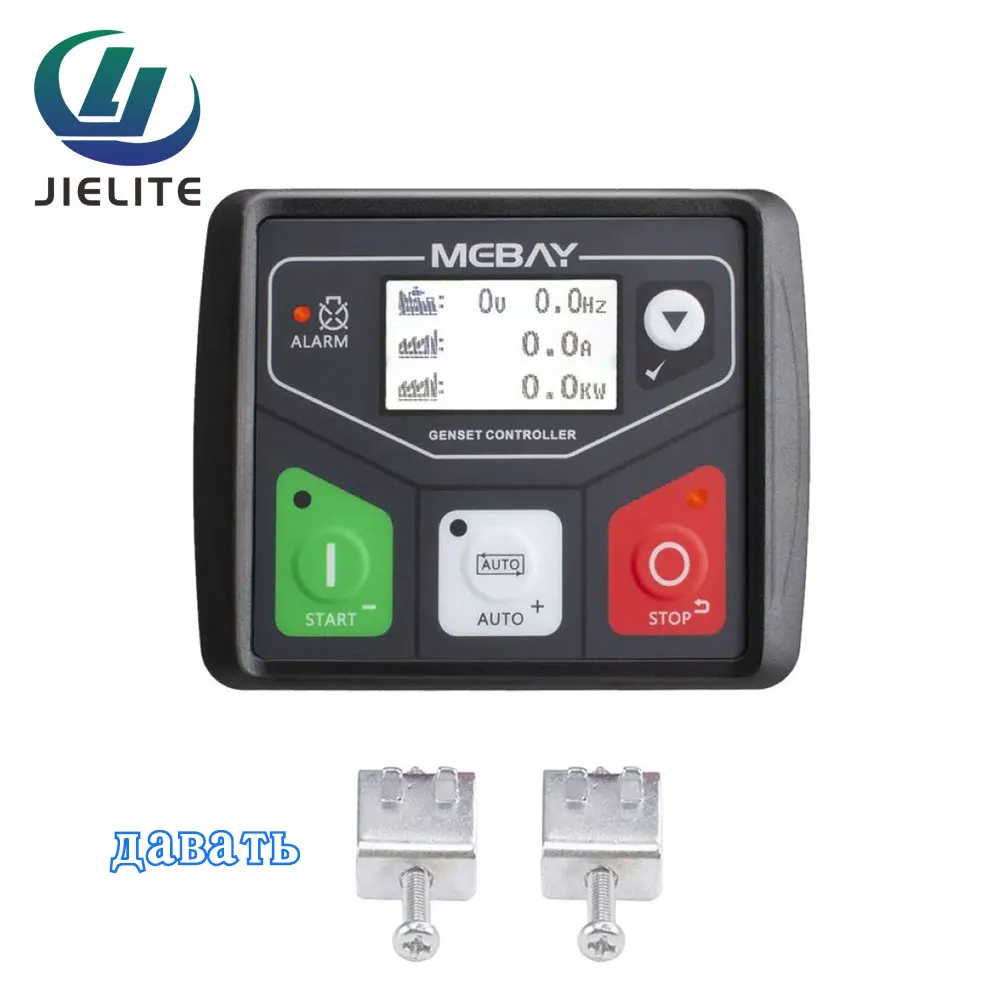

Package contents: Mebay DC30D one
