Engraving Area: Other
High-concerned chemical: None
Controller: Offline
Is Smart Device: No
Origin: Mainland China
Certification: None
Model Number: 3018 Plus2.0 CNC and Laser 2 In 1
Condition: New
Brand Name: XMSJ
CNC or Not: CNC
Machine size: Length 422mm* Width 414mm* Height 350mm
XYZ axis actual stroke: 300*180*80mm
Aluminum Table Size: 300*180mm
Stepper motor: Nema17 42mm Stepper motor. Length 48mm
Spindle hole diameter: 52mm
Laser module diameter: 40mm
Control software: Laser GRBL control, CNC CANDLE control
Spindle: 500W (ER11)
Laser: 5.5W/10W Optional
Power Supply: 48V 500W
Supported System: Windows XP/ Win 7/ Win 8/ Win10

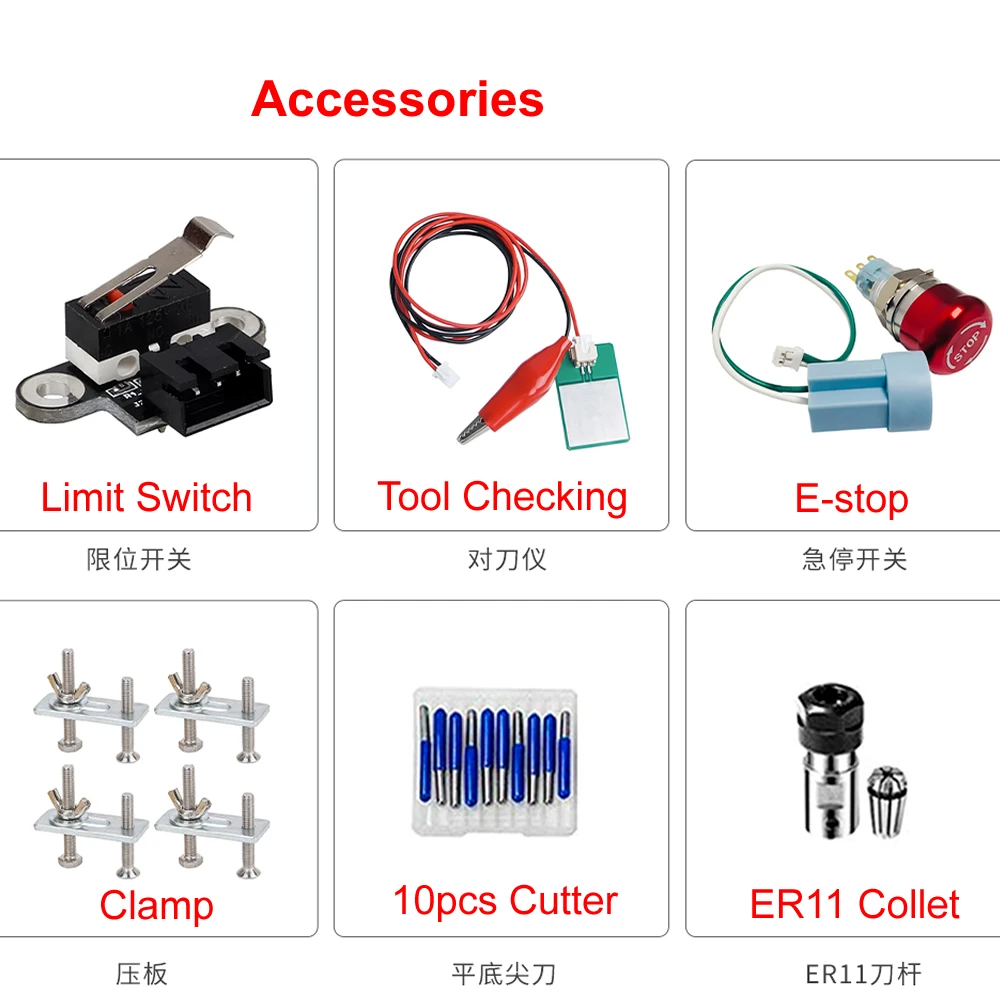

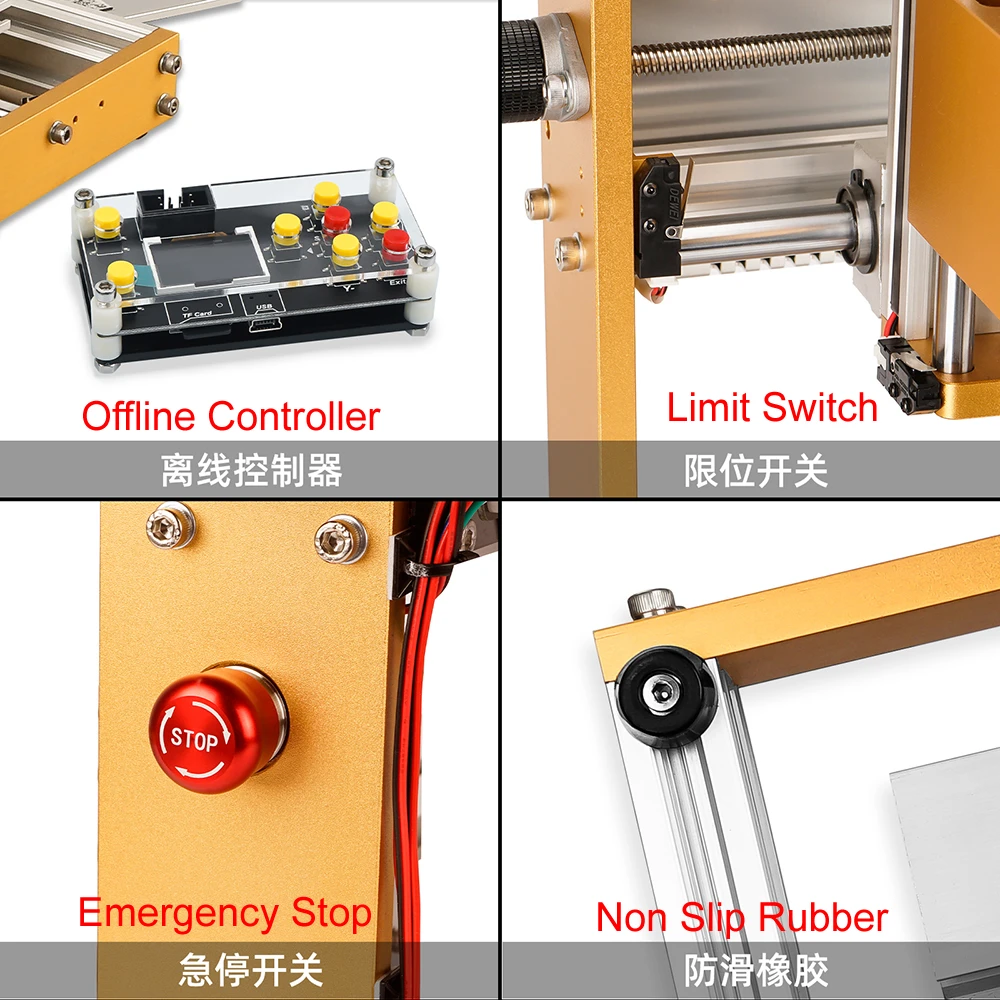

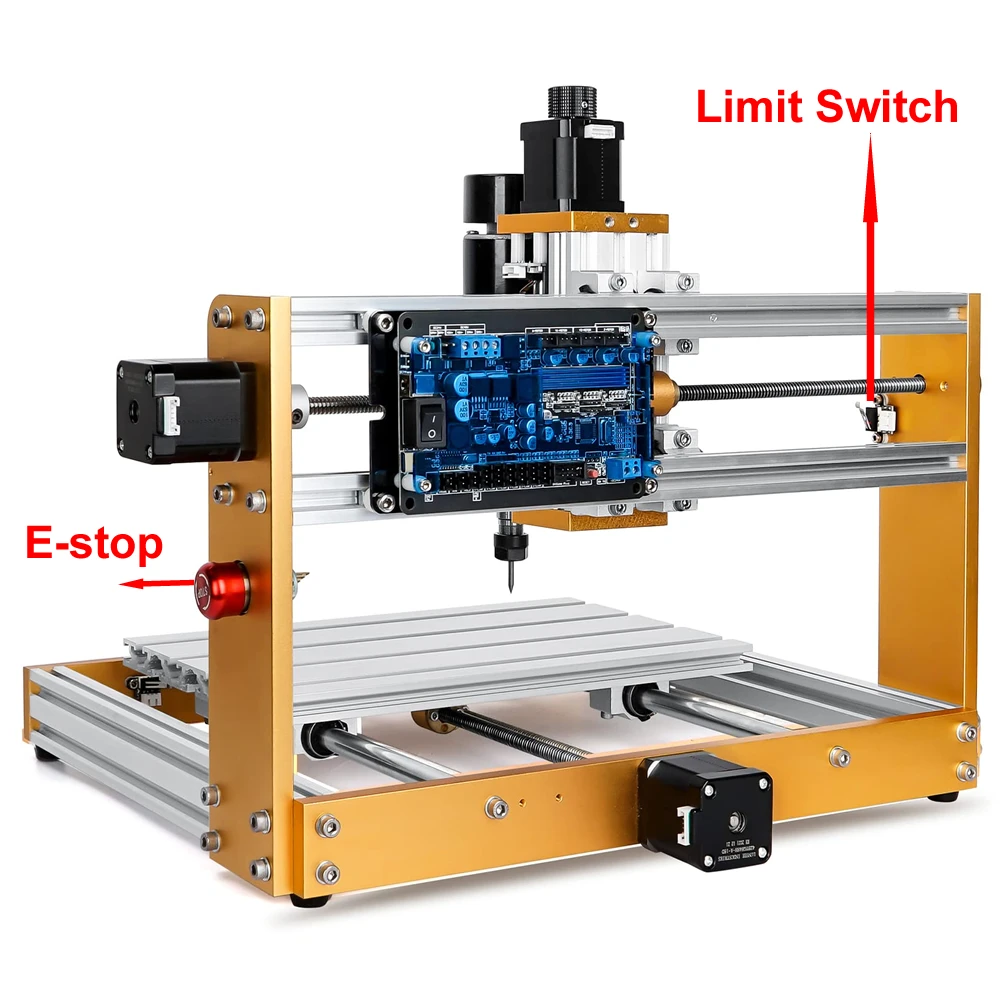

Limit Switch: Yes
Auto Tool Checking: Yes
E-stop: Yes
Manual Adjusting Knob: Yes

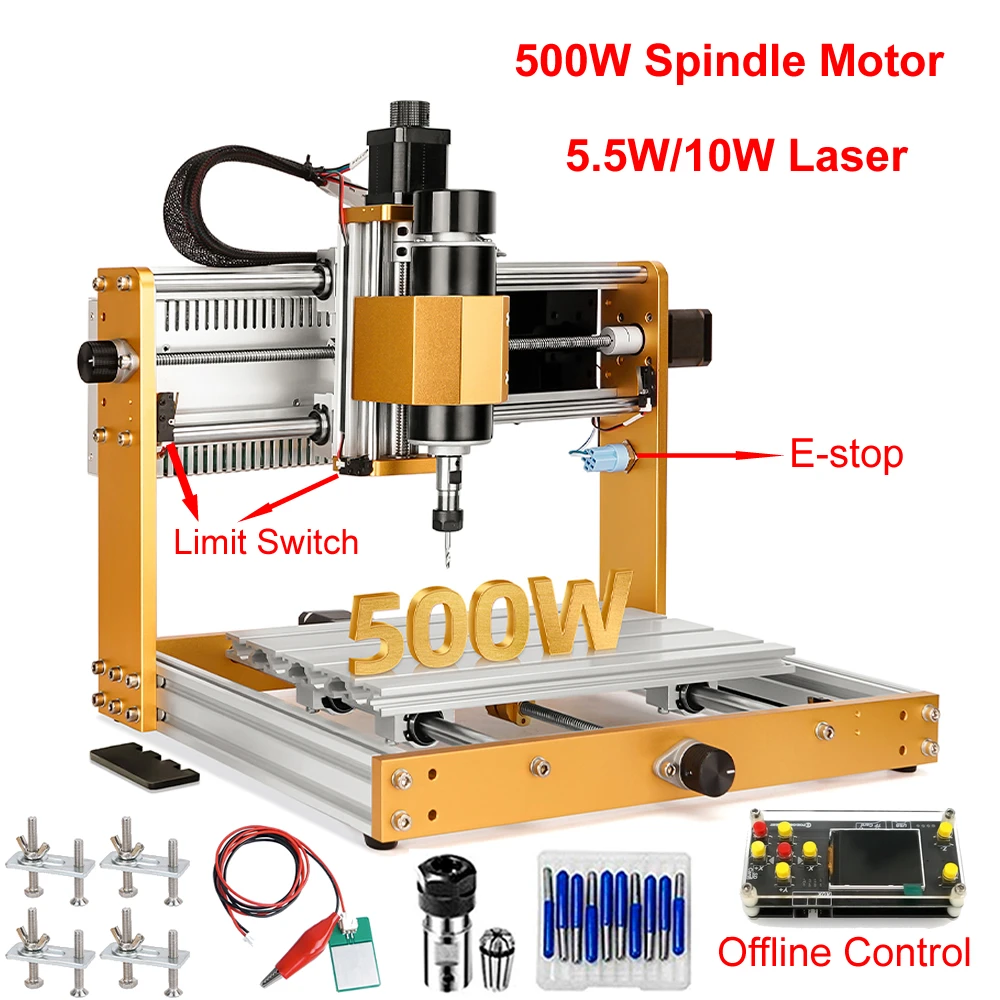

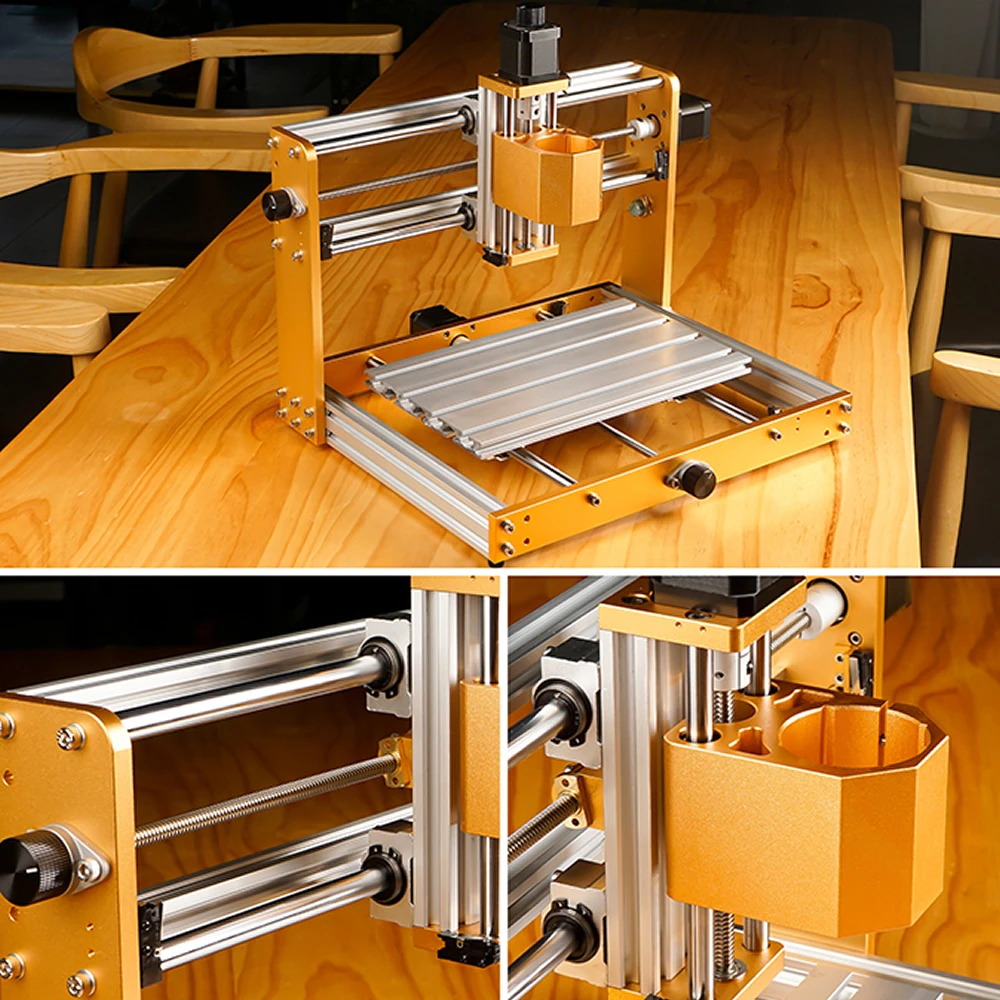

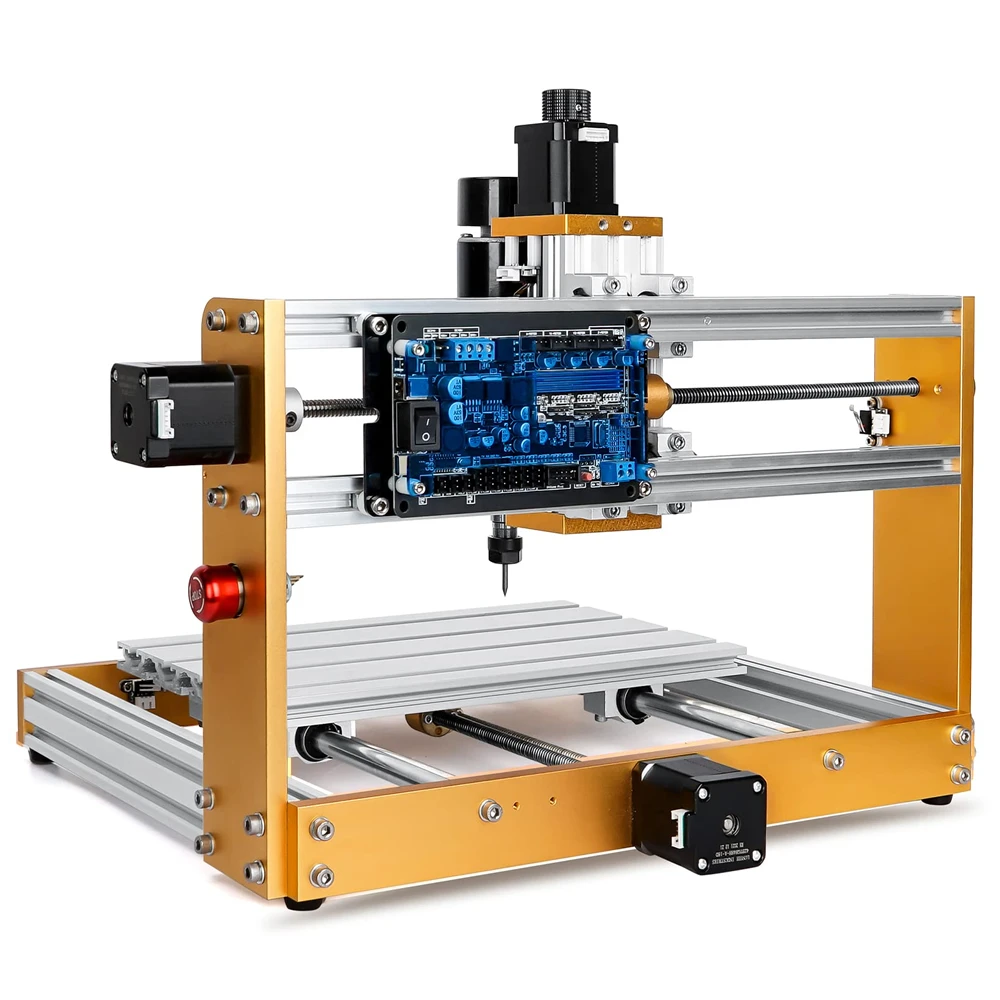

Offline Aluminum Mini CNC Router 3018 Laser Engraving Machine 3018 Plus2.0 500W Spindle 5.5W 10W Laser GRBL PCB Milling Machine

Name: Offline Aluminum Mini CNC Router 3018 Laser Engraving Machine 3018 Plus2.0 500W Spindle 5.5W 10W Laser GRBL PCB Milling Machine
SKU: 3256809569567748
Availability: InStock

Parameter

Machine size: Length 485mm* Width 415mm* Height 374mm

XYZ axis actual stroke: 300*180*80mm (If install limit switch. Z axis stroke about 78mm).

Aluminum Table Size: 300*180mm

Material: Aluminum

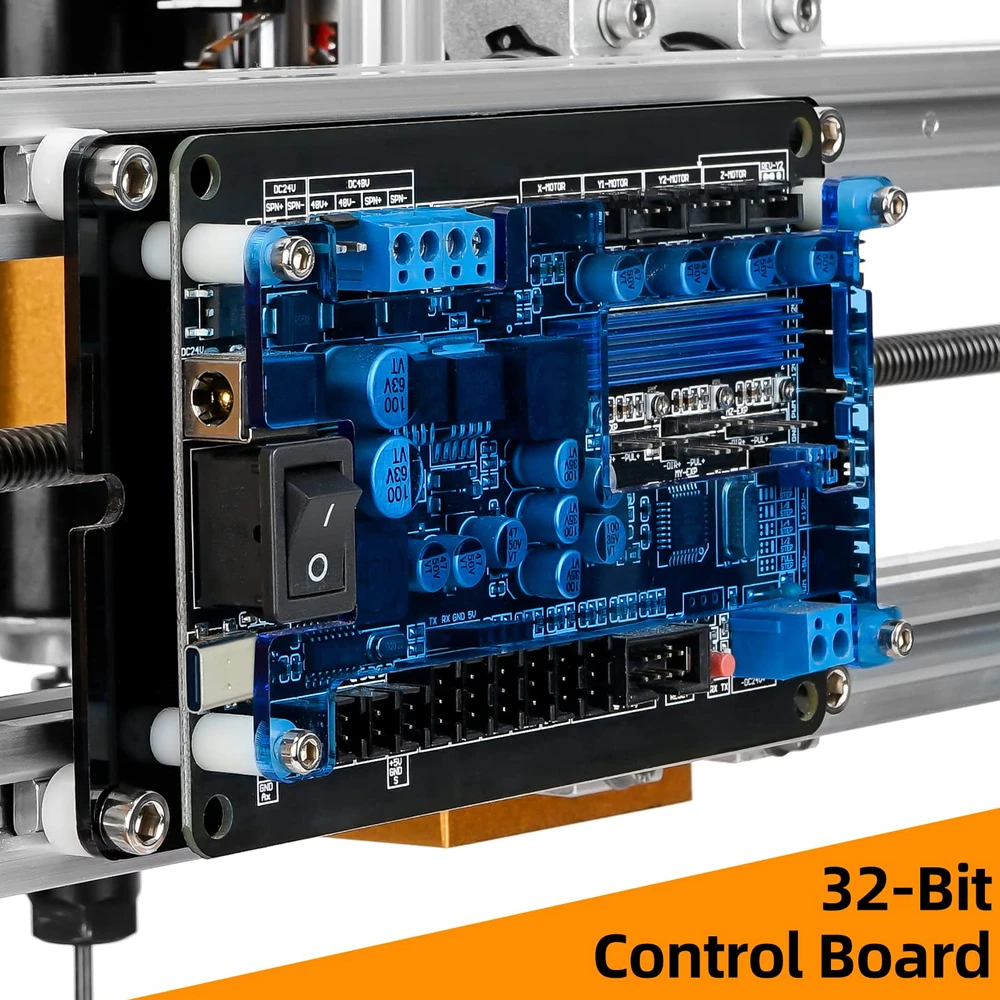

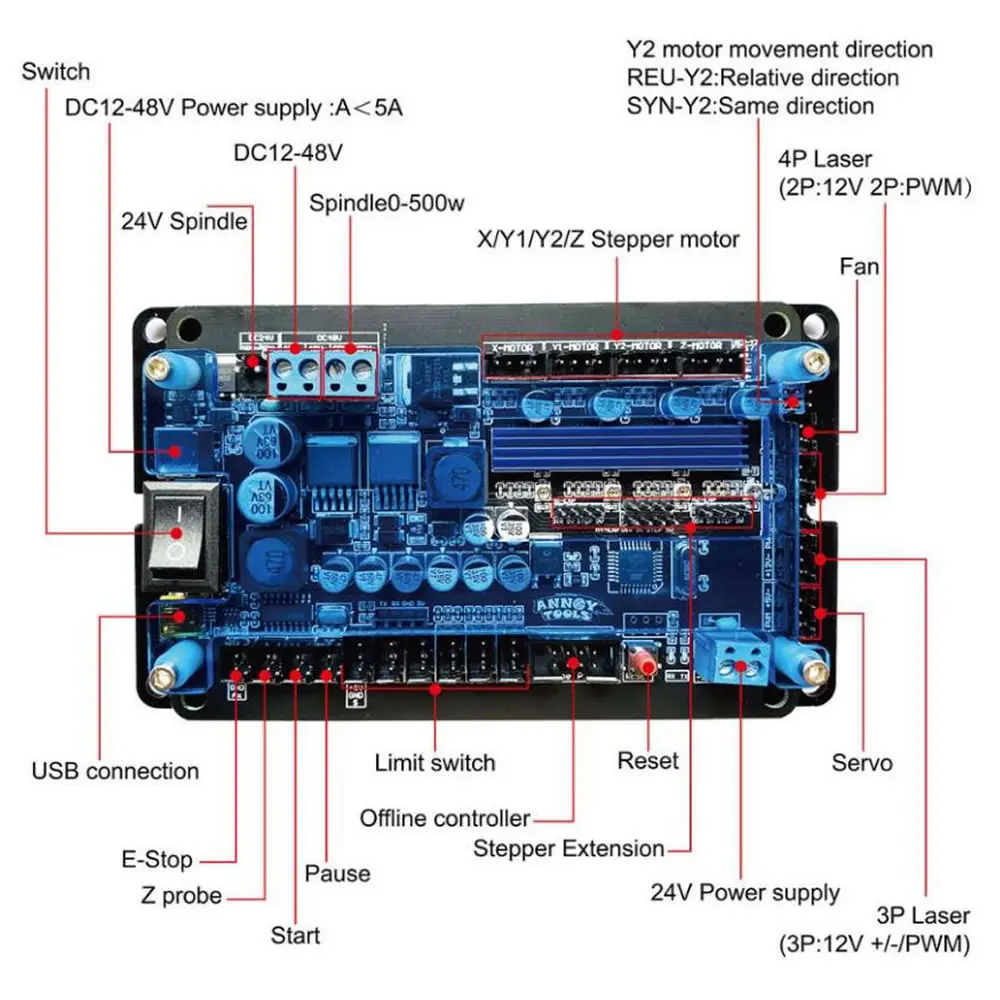

Control Card: 3 Axis 5.2 GRBL 1.1f

Driver Clip: A4988

Maximum operating speed: 5000mm/min

Maximum processing speed: 2000mm/min

Stepper motor: Nema17 42mm Stepper motor. Length 48mm

Screw: T8 stainless steel screw, lead 4MM

Screw Nut Type: Double nut clearance adjustment

Spindle hole diameter: 52mm

Laser module diameter: 40mm

Control software: Laser: GRBL control, CNC: CANDLE control

Spindle: 500W(ER11)

Laser: 5.5W/10W Optional

Power Supply: 48V 500W

Supported System: Windows XP/ Win 7/ Win 8/ Win10

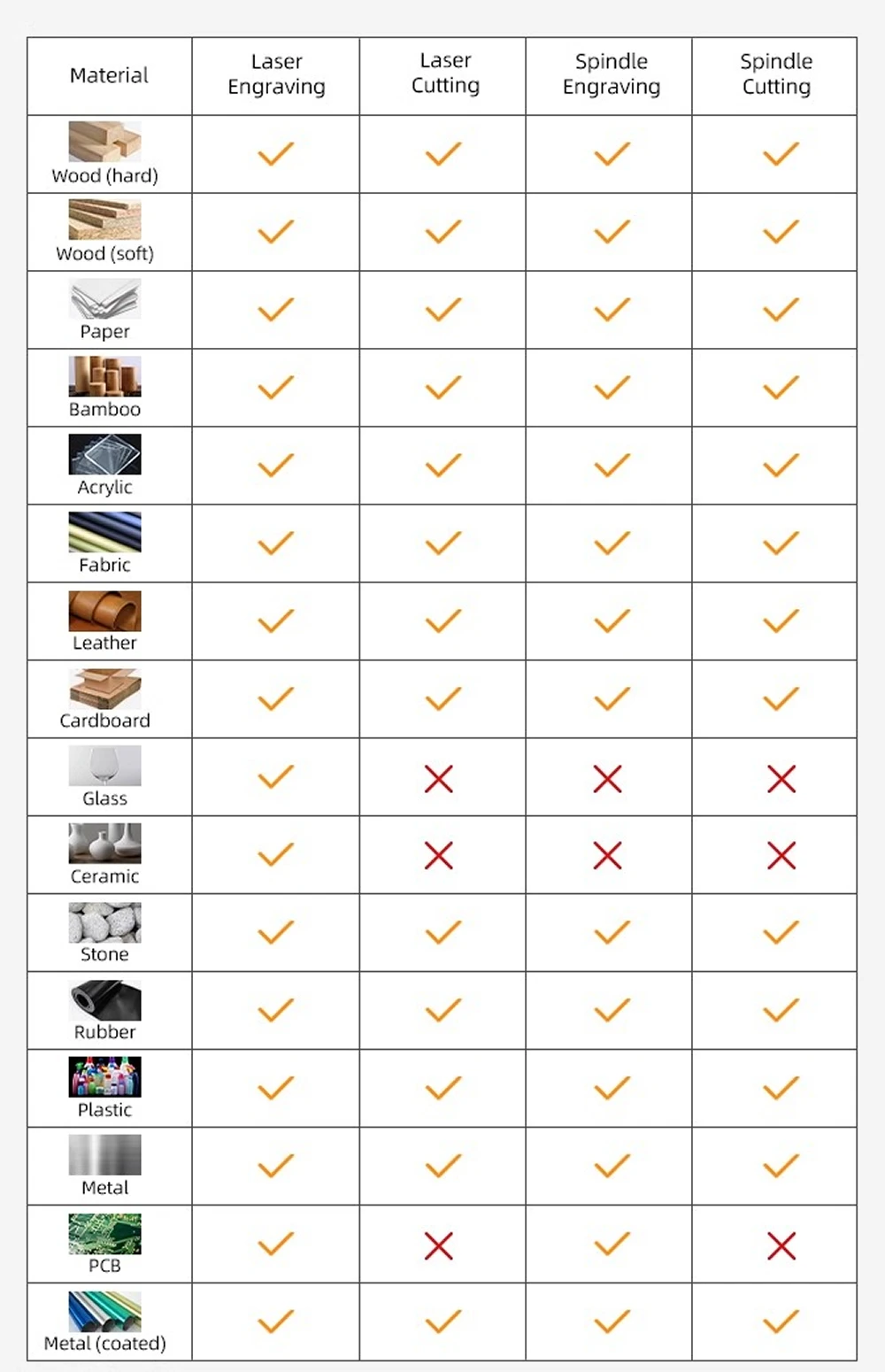

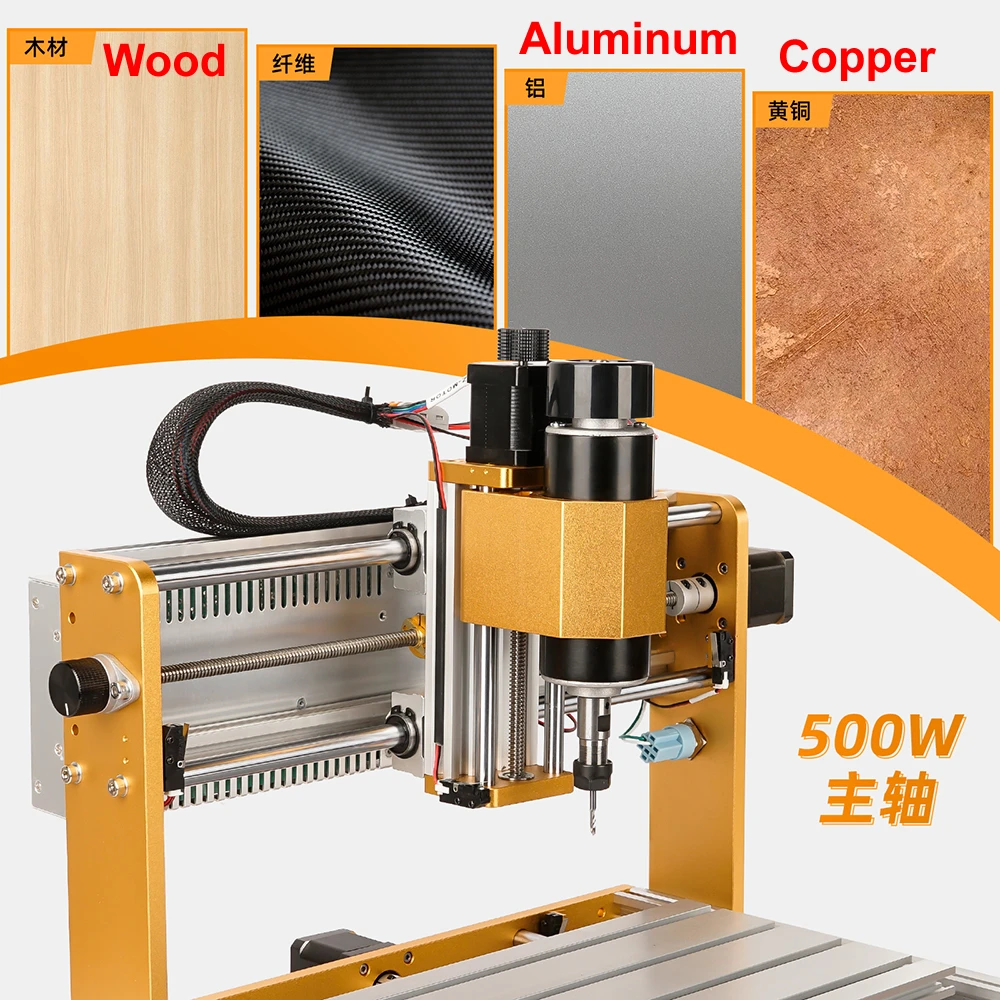

Suitable for material: CNC: Wood, Aluminum, Copper, Acrylic, PVC, Nylon, Epoxy Resin, Glass Fiber PCB, POM, Carbon Fiber Board….

Laser: Wood, Plastic, Anodized, Stainless steel(only can marking)

3018Plus2.0 Product Features

1. The installation of the control board eliminates the use of isolation columns, making it convenient for installation and use

2. The new generation of spindle wiring terminals are easy to use and not easy to loosen when pressing wires

3. Using a power supply bracket, the power supply can be fixed on the back of the machine

4. Z-axis travel is 78-80mm (with limit switch installed)

5. Use a new integrated limit switch to prevent the impact of metal debris on the false triggering of the limit switch

6. Greatly improved Z-axis strength

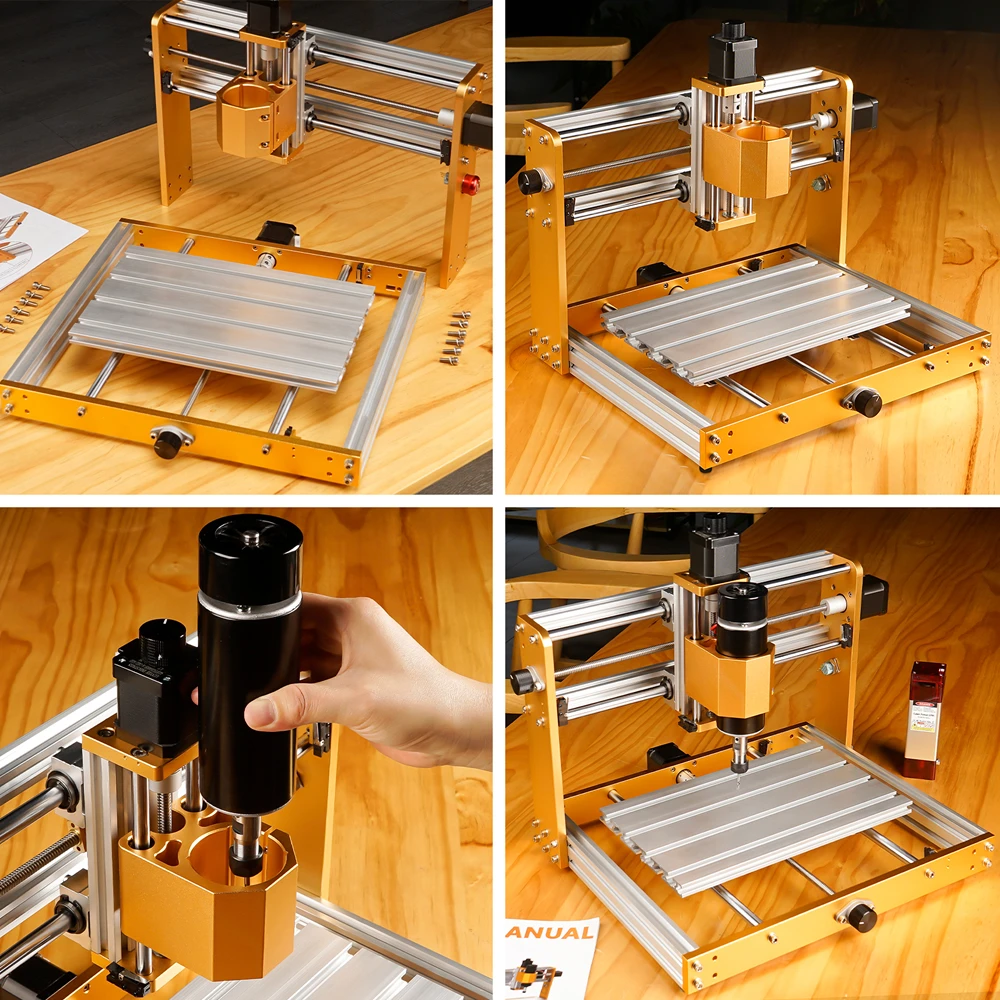

7. Convenient shipment and installation of semi-finished products, saving installation time

8. Adjusting the clearance structure of the screw nut and improving the carving accuracy

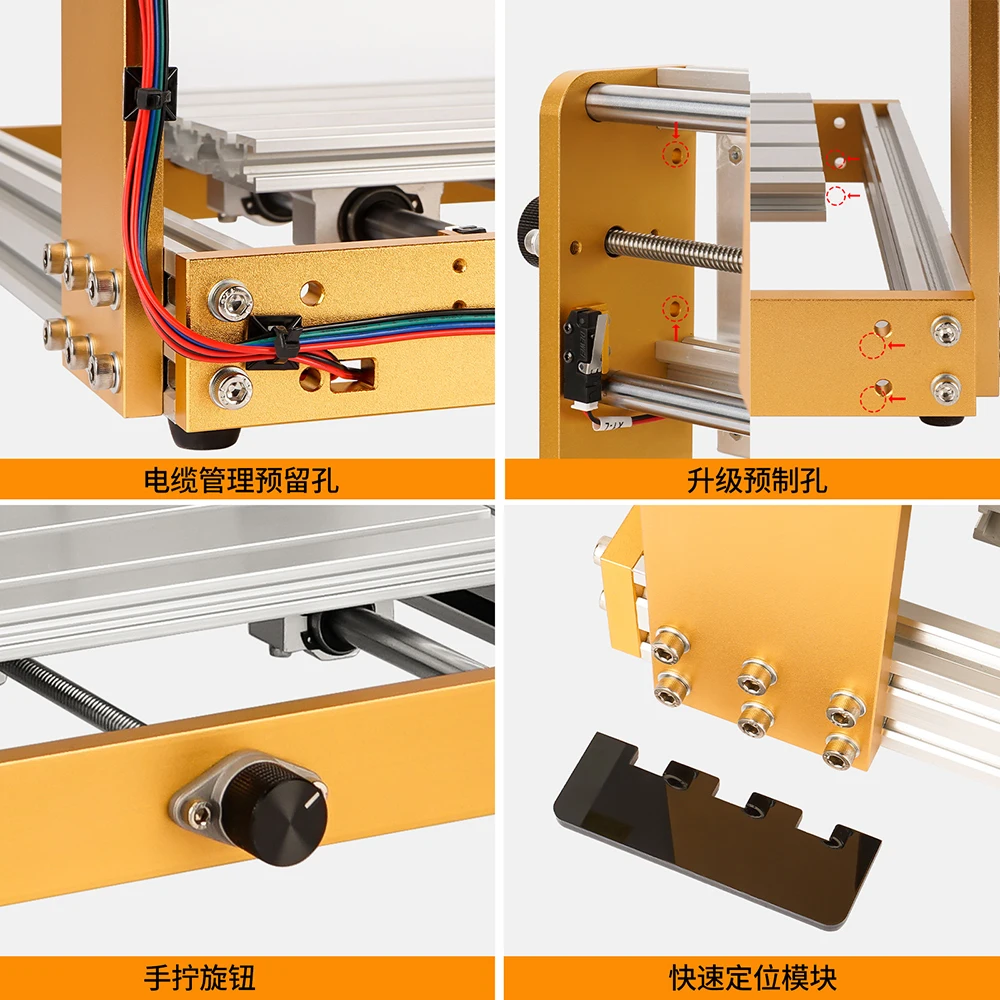

9. Auxiliary tools can sort out the spacing between slider nuts, making it convenient for machine assembly

10. Limit switch wires and motor wires are all custom lengths

11. Use tie straps to secure the base and trunking for easy wiring management
