NOVO PLACA-MÃE MLLSE X99 Dual CPU LGA 2011-3 Dual Sockets C612 Chip Mainboard SATA3 8*DDR4 M.2 NVME Intel Xeon E Series AI Kit

Notice: This link only the X99 Dual CPU motherboard and does not include the CPU and memory !

Installation precautions:

1. Dual 8PIN (4+4PIN) processor power cables are required, and adapter cables cannot be used for power connection.

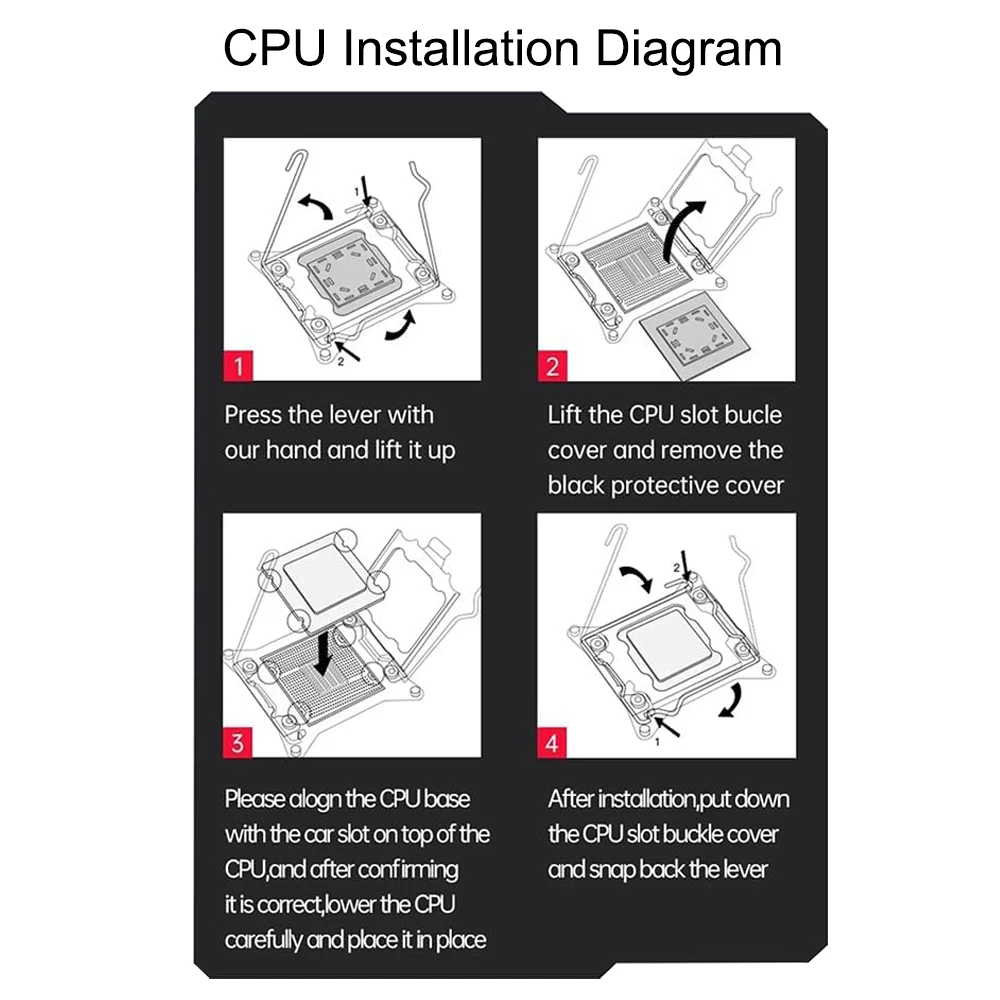

2. The processor needs to be inserted into the first slot on the left first priority.

3. The memory needs to prioritize the orange main slot on the left side of the slot.

STATEMENTS OF STORE

Engineering version of processor. Es, QS is not supported

Due to different batches of productions, there might be some difference between the pictures you've seen and the motherboard you get, for example, retail boxes, colors of DIMM slots, SATA ports, PCI or PCI-E Slots and other ports, are subject to change without prior notice. One thing for sure is that we never compromise on the quality of our products.

All products are tested before shipping?

Yes, We have 3 technical teams for testing every working days, so we can 100% guarantee that all our products are working good before being sent out from our warehouse

Memory slot marked orange color is the main slot, and black color is the sub slot, which must be inserted into the main slot first

Feature:

100% brand new and high quality!

Support REG ECC server memory.

Support M.2 NVME/M.2 SATA SSD.

High compatibility for a higher experience.

All solid capacitors, fine workmanship, professional stability.

The power socket has an 2X8-pin, 24-pin power connector.

Specification:

Condition: Full new

CPU socket: LGA 2011-3(XEON E5 V3 ,V4 CPU)

Support: same model CPU combination OR different model but same core number combination

Not supported: Mixed use of different core numbers, for example: 4 cores + 6 cores cannot be mixed, 6 cores + 8 cores cannot be mixed

Structure:E-ATX

Memory socket: 8* DDR4

Max memory supported: 8*32G DDR4

Memory type:3200/2666/2400/2133MHz

Memory type supported: non-ecc/reg ecc/ecc(The server ram can't work with the desktop ram, it has the compability problem.)

Expansion slot:

2XM.2 Interface

Integrated video card: No

Motherboard dimension: 280*295mm

Motherboard weight(including package): 1.4KG

Note:

1:The memory slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.

2:Please allow 1-3mm differs due to manual measurement.

3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

4:This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply
