- Quantity: 1
- High-concerned chemical: None
- Package: TQFP
- is_customized: Yes
- Supply Voltage: 3.3V
- Application: Electric Toy
- Type: Voltage Regulator
- Brand Name: diymore
- Origin: Mainland China
- Condition: New
- Operating Temperature: -20℃-80℃

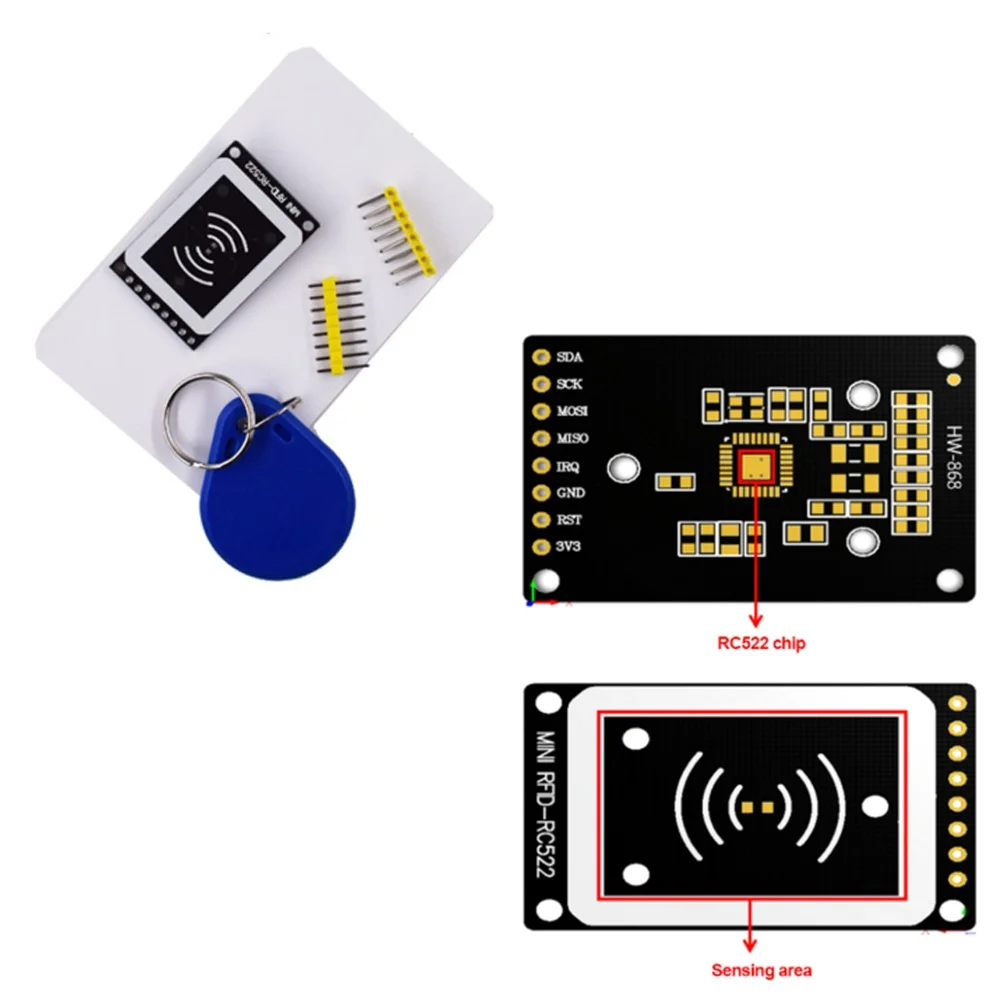

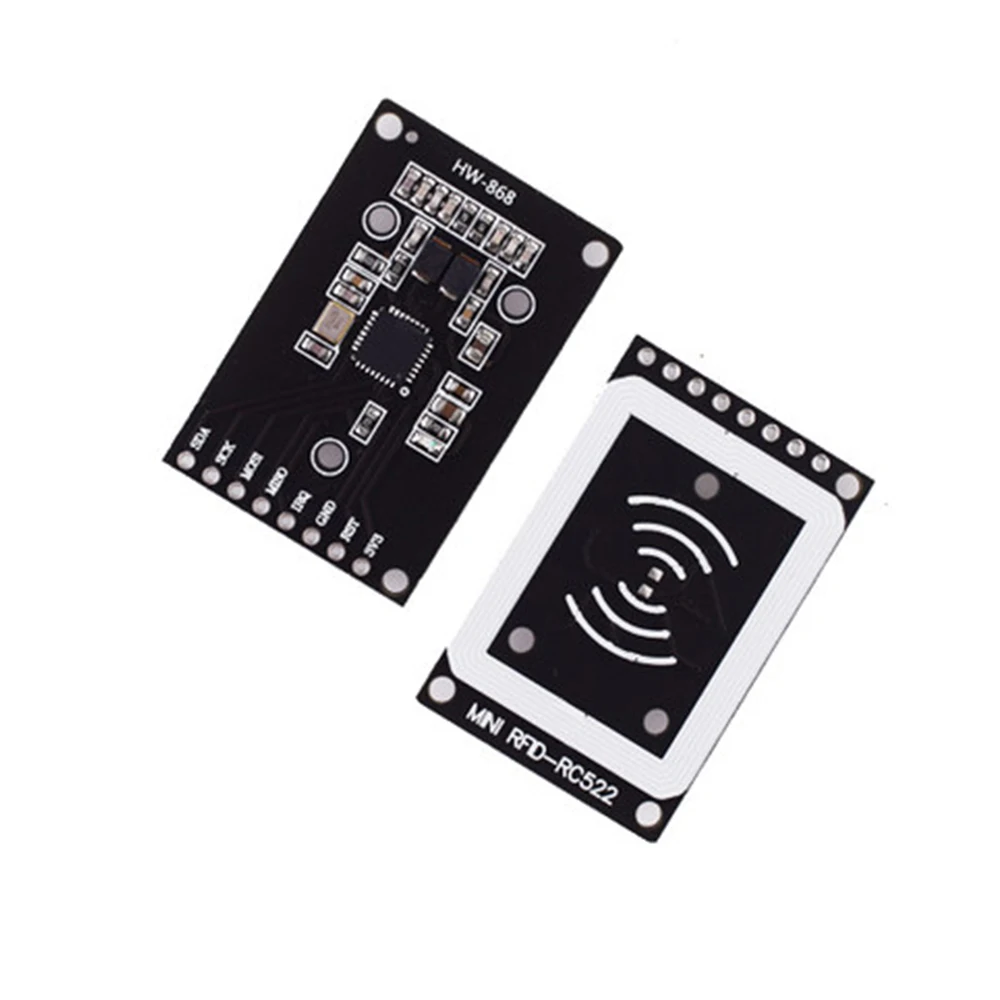

- Product Name: MINI RFID Radio Frequency Module
- Operating Frequency: 13.56MHz
- Operating Current: 13~26mA
- Operating Voltage: 3.3V
- Peak Current: <30mA
- Sleep Current: <80uA
- Baud Rate: 57600
- Reading Distance: 0~45mm
Product selling point:
1.Premium Material Construction for Reliable Quality
Built with high-grade components and precision manufacturing, the module delivers exceptional durability and consistent performance, with strict quality control to ensure long-term stable operation in diverse application scenarios.
2. Chip Card Reader Circuit
Employing a highly integrated chip-driven card reader circuit design, it improves signal recognition accuracy, reduces electromagnetic interference, and ensures fast and error-free data transmission for contactless cards.
3.Low-Voltage & Compact Contactless Card Reader Module
Features a low-voltage operating design paired with an ultra-compact form factor, making it ideal for space-constrained embedded projects and battery-powered devices without compromising functional performance.
4.SPI Communication for High-Efficiency Host Connectivity
Supports SPI communication protocol for seamless, high-speed data exchange with host controllers. This protocol ensures low latency, strong anti-interference capability, and easy integration into existing control systems.
5.UART Interface Support for Versatile Smart Device Development
Comes with a UART interface to expand compatibility, serving as an excellent solution for the development of smart meters, portable handheld terminals, access control systems, and other IoT-enabled devices.
Product parameters:
(1) Working temperature: -20℃～80℃
(2) Operating frequency: 13.56MHz
(3) Working current: 13～26mA
(4) Working voltage: 3.3V
(5) Peak current: <30mA
(6) Sleep current: <80uA
(7) Baud rate: 57600
(8) Card reading distance: 0～45mm

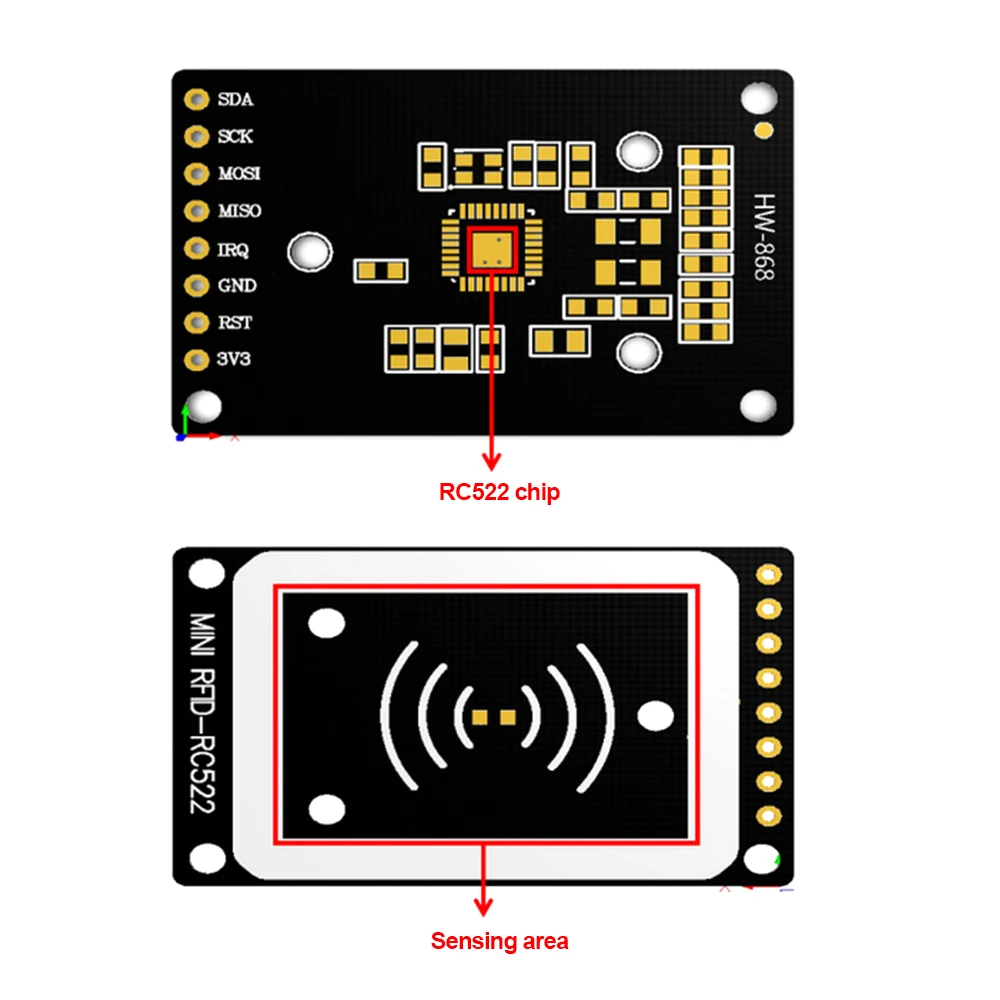

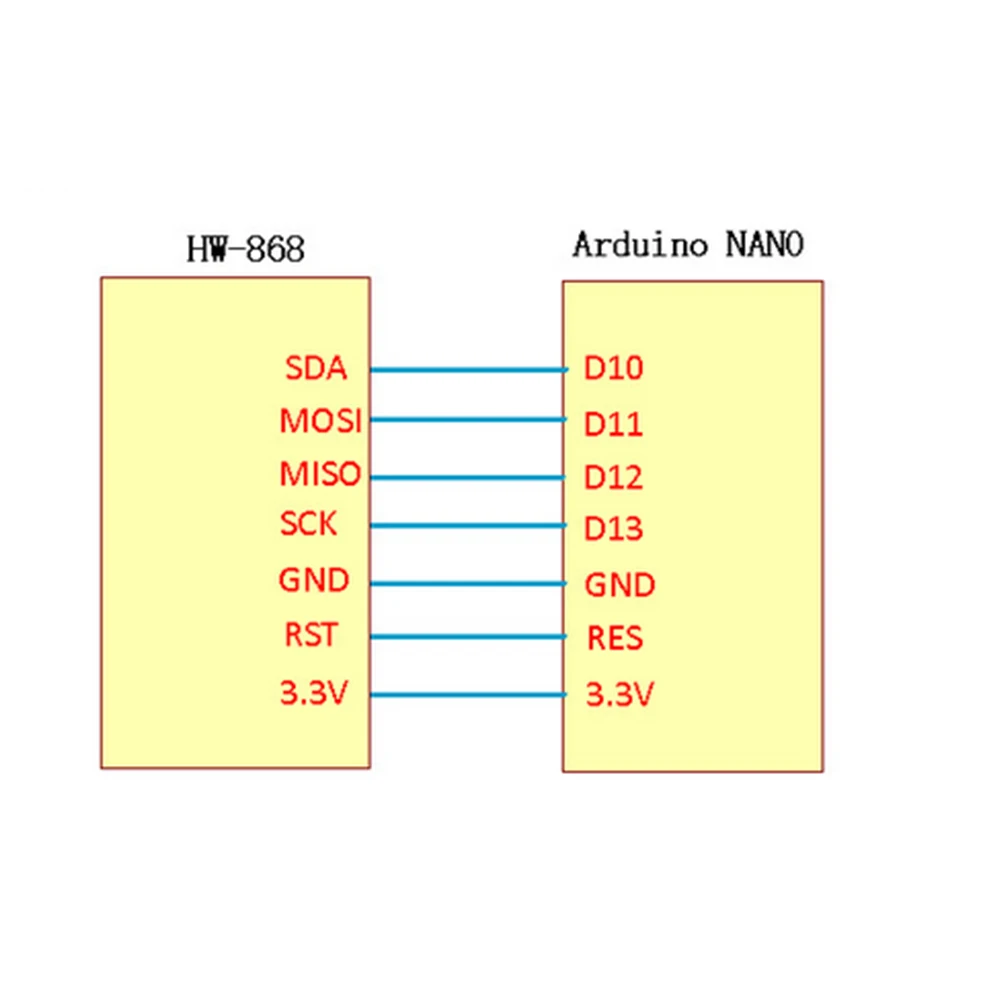

Pin function:
(1) SDA: SPI port chip select
(2) SCK:SPI clock
(3)MOSI: SPI port slave input
(4) MISO: SPI port slave output
(5) IRQ: Interrupt port
(6) RST: reset pin
(7) 3.3V: VCC
(8) GND: ground
Note: The working frequency of the card used must be 13.56MHz
Shipping list:

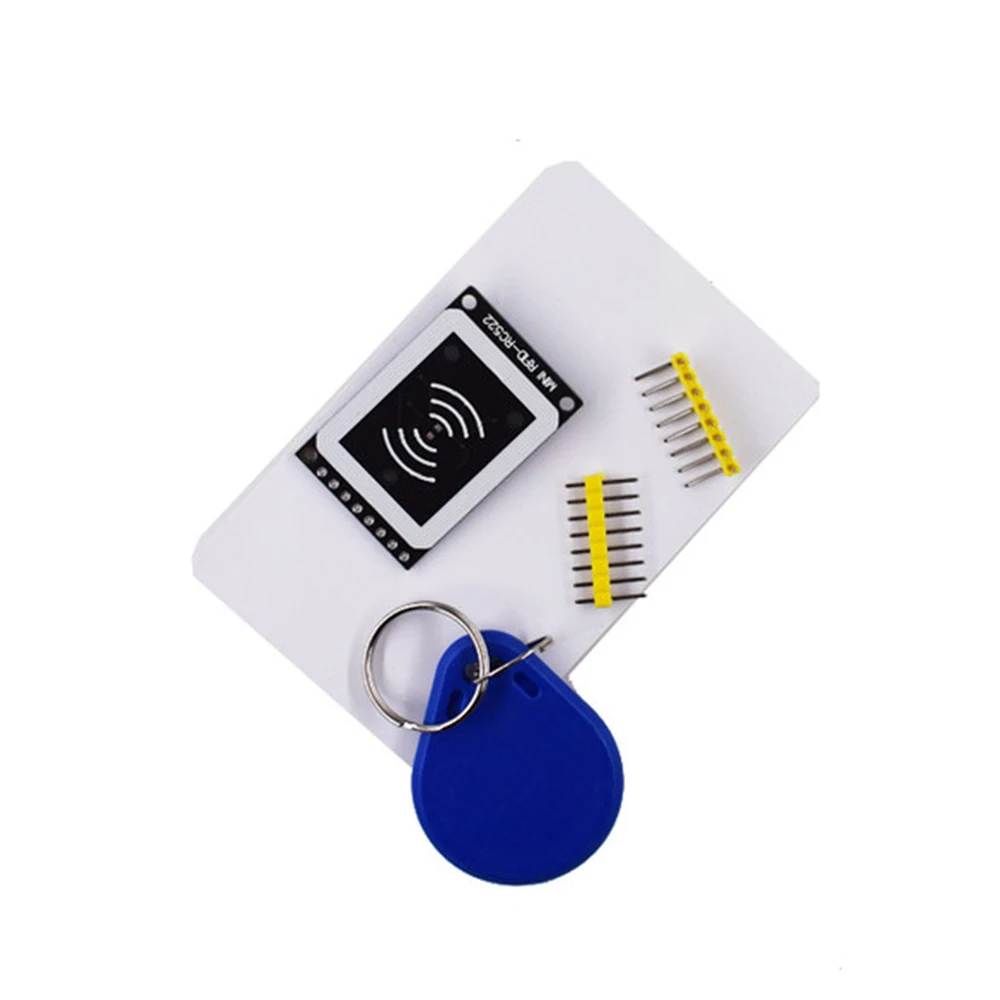

Module X1
