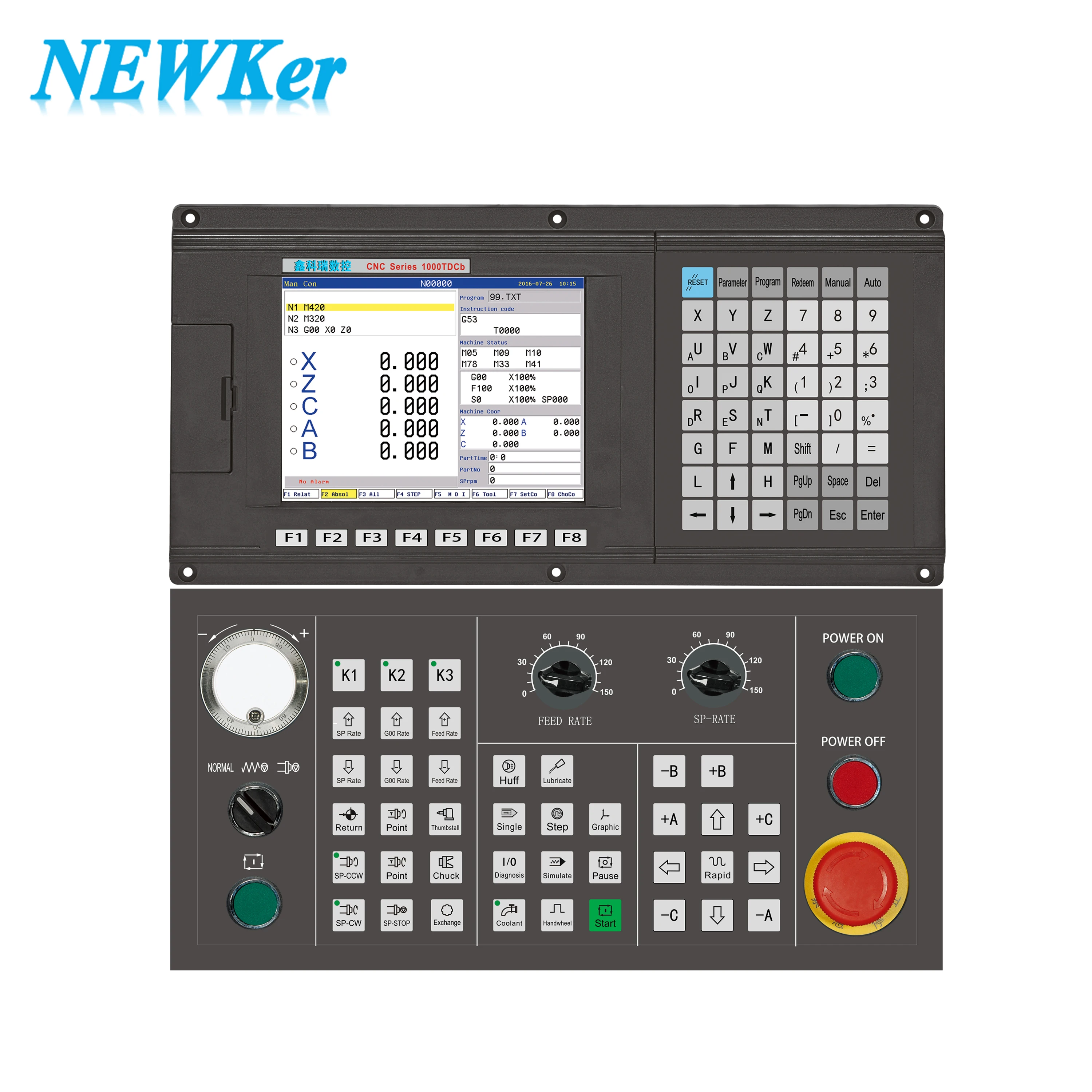

- High-concerned chemical: None
- Type: Hand Tool Parts
- Origin: Mainland China
- place of origin: Sichuan, China
- application: MILLING MACHINE
- video outgoing-inspection: Provided
- machinery test report: Provided
- brand name: NEWKer
- dimension(l*w*h): 412*205*125
- warranty: 2 years
- Memory: 128MB
- Weight (kg): 8
- Axis: 4 axis milling controller cnc system
- Speed: 60m/min
- Interface: USB+RS232 Communction Port
- Function: PLC+ATC
- Port: 56input 32output
- CPU: ARM(32bits)+DSP+FPGA
- User Store Room: 128Mb

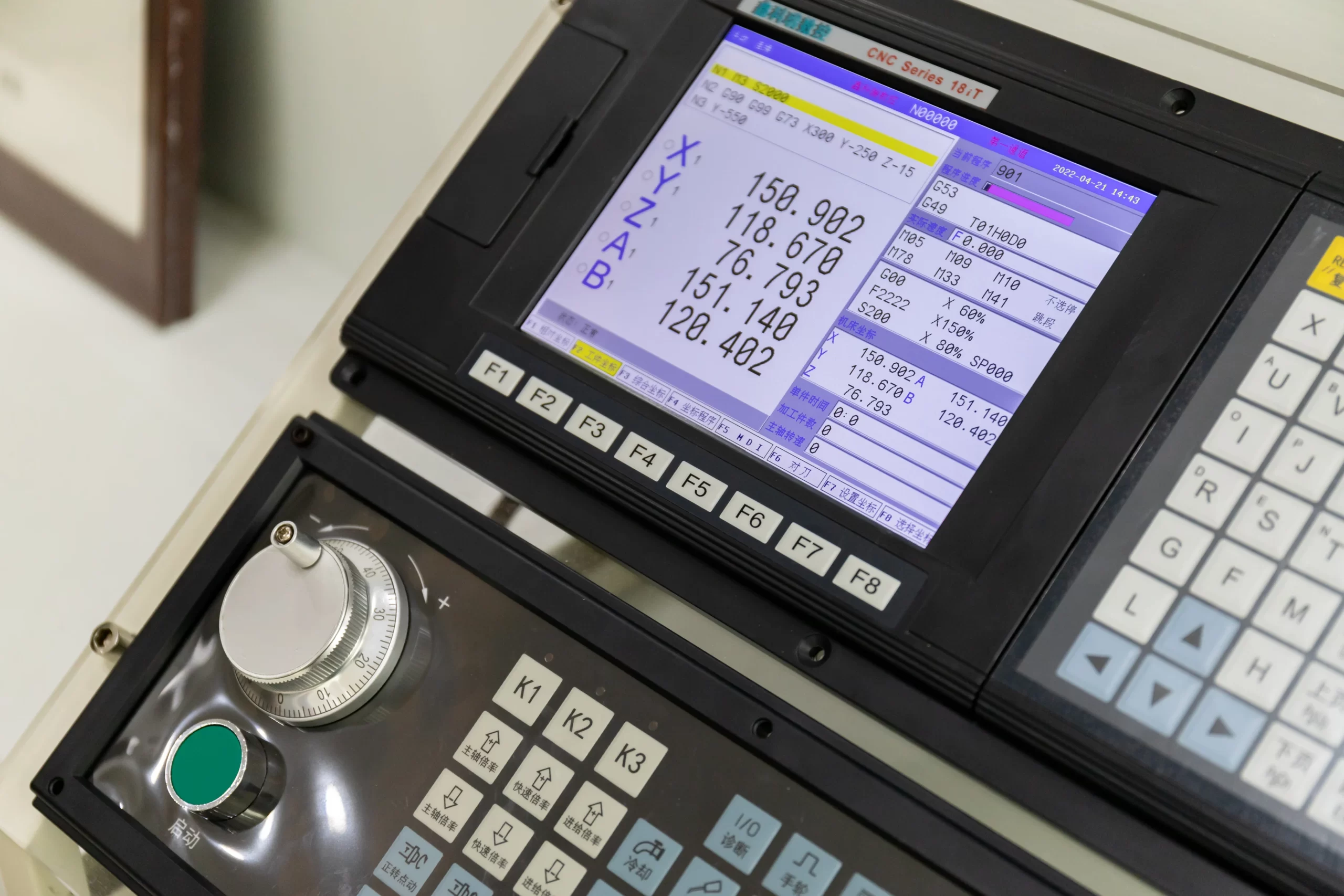

- Display: 8 Inch Real Color LCD
- Dimension for hole: 390*183
- Condition: New
1、The link price is for reference only, the specific cost will be calculated according to your shipping address. For more product details and prices, please contact us! 2、We can ship by sea to port or DDP delivery Please leave a message or contact Adam Whatsapp :+86 19083360991 And Email：yihua.adam@gmail.com
|
Parameter details
|
||||||
|
System Function
|
G code shows
|
|||||
|
number of control axis
|
2~8(X,Y锛孼,A,B,C,Xs,Ys)
|
Locate rapidly:
|
G00
|
|||
|
The smallest programming:
|
0.001mm
|
Straight line interpolation
|
G01
|
|||
|
The most programming:
|
±99999.999mm
|
Arc interpolation:
|
G02/03
|
|||
|
Feed speed:
|
0.001~30m/min
|
Thread cut:
|
G32
|
|||
|
Continuous manual:
|
one axis or multiple axis at the same time
|
Cycle of cutting cyliner or cone:
|
G90
|
|||
|
Line interpolation:
|
Straight line, arc, screw thread interpolation
|
Cycle of cutting end face:
|
G94
|
|||
|
Cutter compensation:
|
vLength of the compansation銆乶ose of tool compensation
|
cycle of cutting thread
|
G92
|
|||
|
Cutter compensation input:
|
Try to cut measuring input mode
|
Fixed cycle of tapping
|
G93
|
|||
|
Spindle function:
|
gear銆丏ouble analog control銆丷igid tapping
|
Cycle of rough cut in excircle
|
G71
|
|||
|
Handwheel function:
|
panel銆乭andheld
|
Cycle of rough cut at end face:
|
G72
|
|||
|
handwheel processing:
|
The handwheel processing function
|
Cycle of closed cut
|
G73
|
|||
|
Screen protection:
|
The screen protection function
|
Cycle of drill deep hole at end face
|
G74
|
|||
|
Communication function:
|
RS232銆乁SB interface
|
Cycle of cutting groove with external diameter
|
G75
|
|||
|
Compensation function:
|
Tool compansation銆丼pace compensation銆丼crew pitch compensation銆丷adius compensation
|
Cycle of cutting compound thread
|
G76
|
|||
|
Edit program:
|
Metric/Imperial銆丼traight thread銆乼aper thread and so on
|
Cycle of program
|
G22,G800
|
|||
|
Preread function:
|
Preread 10,000 short straight lines
|
Local coordinate system:
|
G52
|
|||
|
limit position function
|
hard limit, soft limit
|
Detect the instruction of skip
|
G31,G311
|
|||
|
Password protection:
|
Multilevel password protection
|
Pole coordinate
|
G15,G16
|
|||
|
Input/output:
|
I/O 56*24
|
Metrical/Imperial programme:
|
G20,G21
|
|||
|

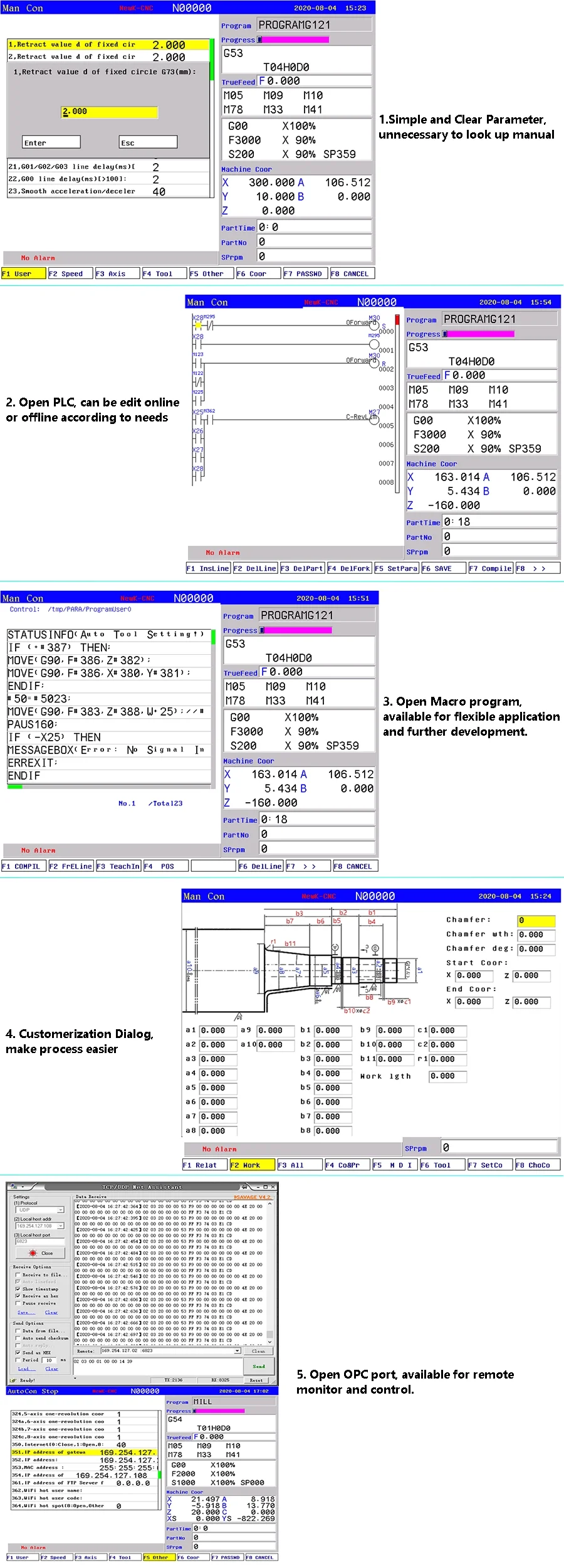

PLC programme:
|
All open PLC design
|
Set coordinate, offset
|
G184,G185
|
|||
|
Acceleration and deceleration control:
|
Straight line銆両ndex
|
Workpiece coordinate system:
|
G54~G59
|
|||
|
Number of encoder:
|
any setting
|
Tool radius C
|
G40,G41,G42
|
|||
|
User macro program:
|
Have
|
Accurate locating/continuous path process:
|
G60/G64
|
|||
|
Electrical gear function:
|
Have
|
Constant linear cutting:
|
G96/G97
|
|||
|

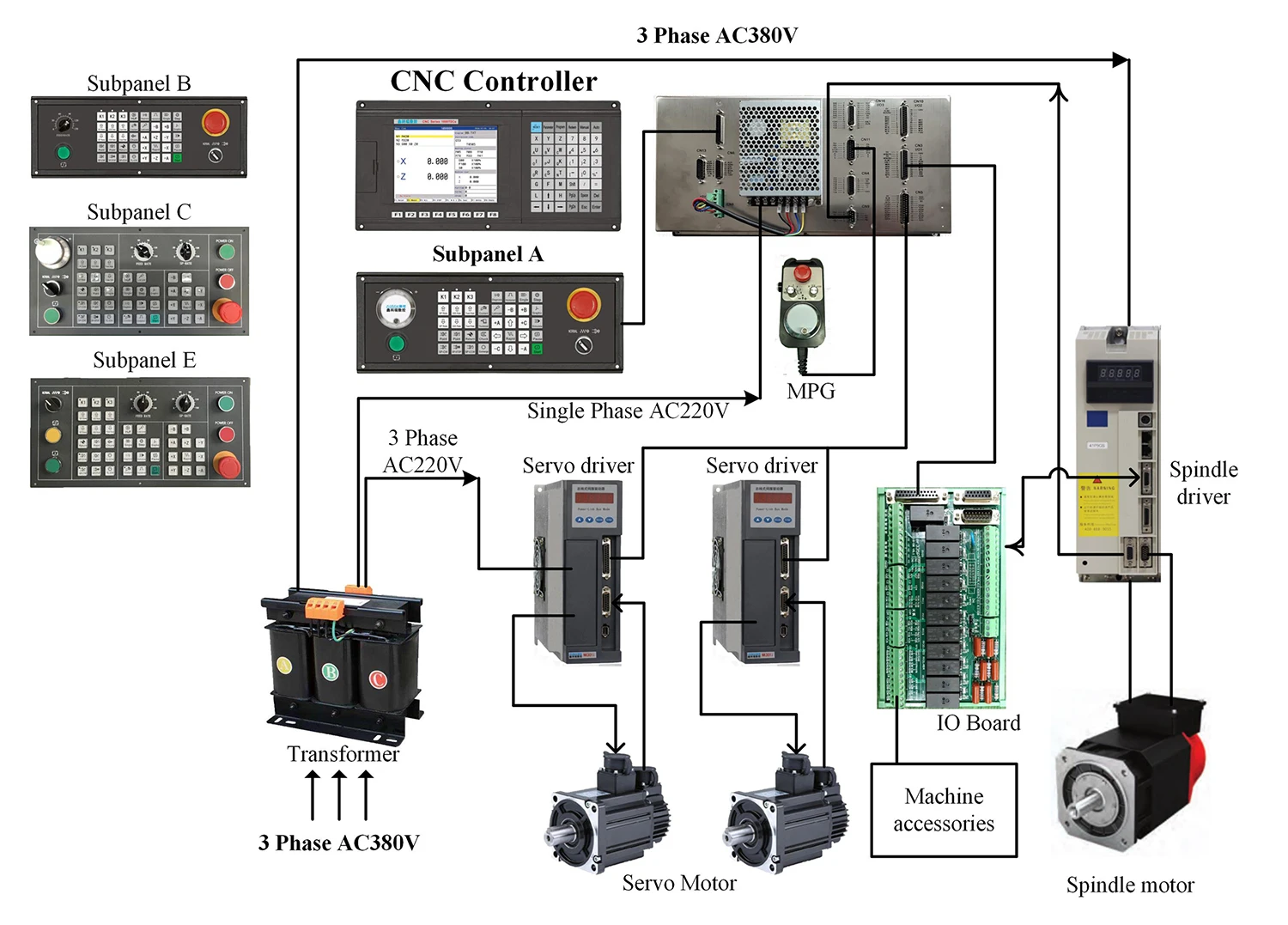

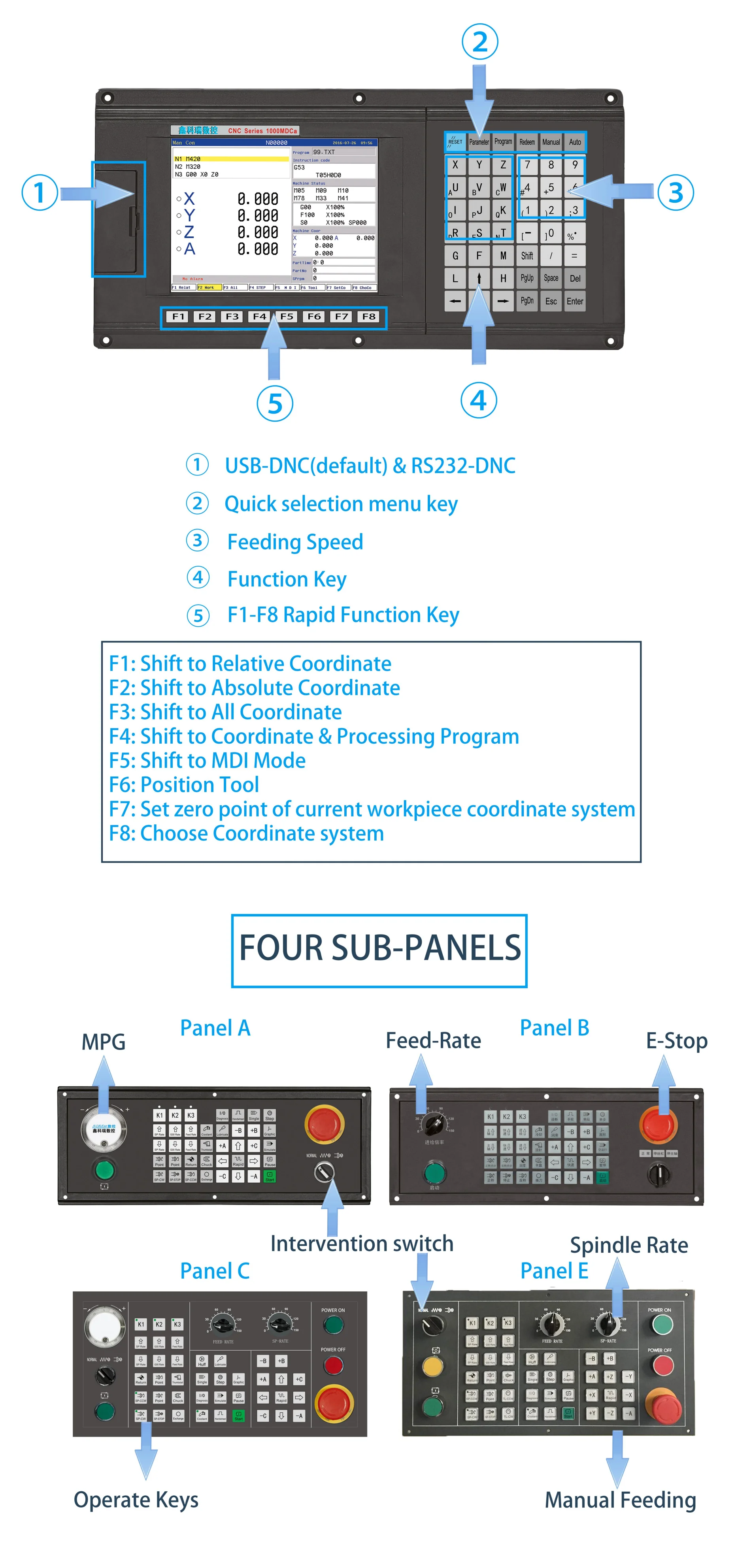

Subpanel
|
A type with handwheel; B type with band switch; C type with both A and B, E type
|
Feeding mode:
|
G98,G99
|
|||
|

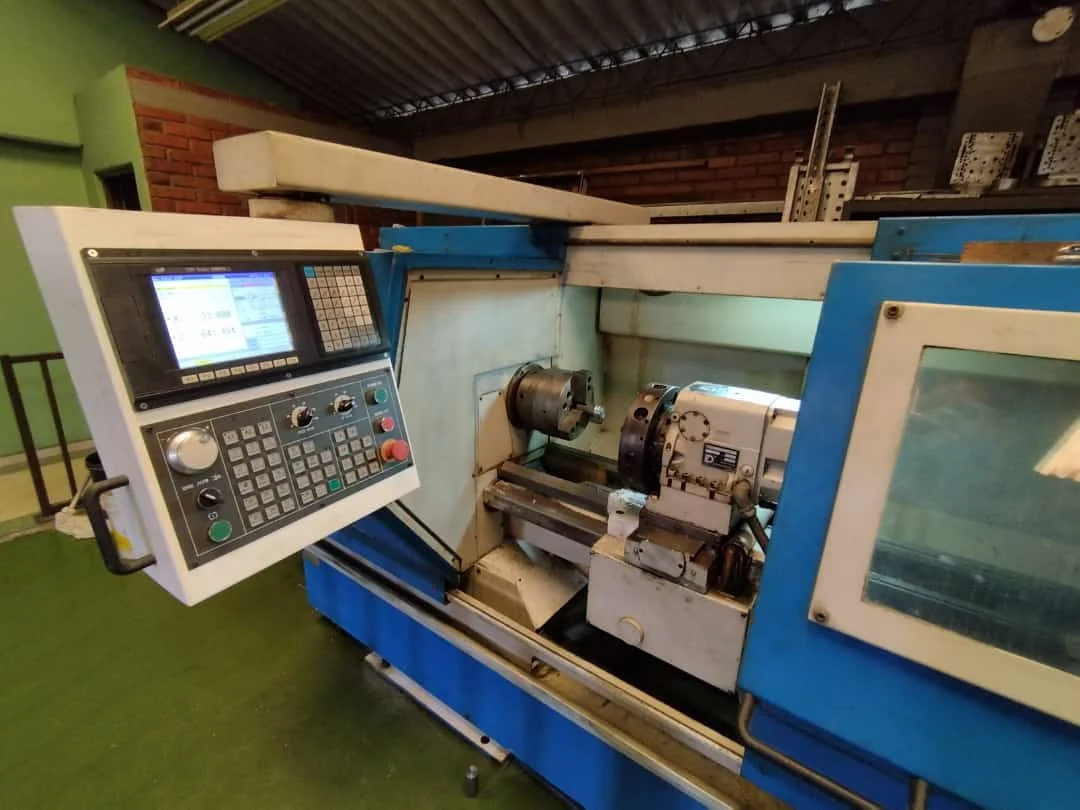

Application:
|
Lathe, turning, special machine
|
Backing to start point of program:
|
G26
|
|||
|
Tool rest function:
|
Row tool rest銆丒lectric too post 99 knife
|
Backing to the fixed point:
|
G25,G61,G60
|
|||
|
Backing to the datum point:
|
G28
|
|||||
|
Macro Program:
|
G65,G66,G67
|
|||||
|
Auxiliary function:
|
S銆丮銆乀
|
|||||
Product features
Never Crush the machine, the system with memorial function (Abosolute feature)
Needn't install hard limit with this 3 axis control wood drilling and milling machine and back to the zero point (Abosolute
feature)

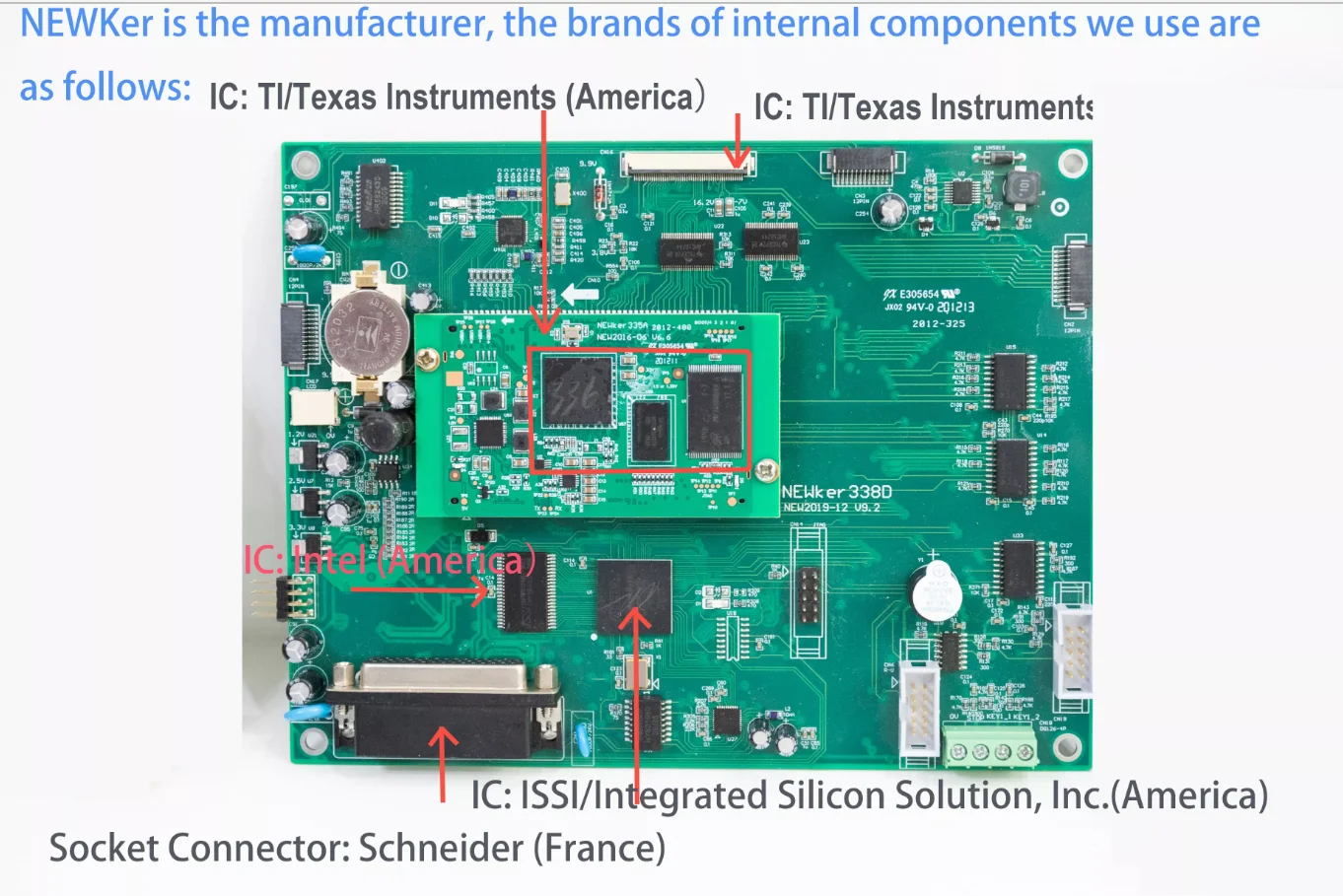

Adapt bus modbus technology, ARM + DSP + FPGA technology
USB and RS232 port, DNC function of USB (NEW)
Network remote technology and could diagnose the system online (NEW)
User's storage is 128M and could be infinite number of program (NEW)
Abosolute type of motor (17bits multi circle) controlling technology (NEW)
The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)
The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)
All closed-loop with grating ruler control and the accuracy is <2um (NEW)
Preread the short line program to satisfy with high speed engraving and cutting (NEW)
Needn't install hard limit with this 3 axis control wood drilling and milling machine and back to the zero point (Abosolute
feature)
Adapt bus modbus technology, ARM + DSP + FPGA technology
USB and RS232 port, DNC function of USB (NEW)
Network remote technology and could diagnose the system online (NEW)
User's storage is 128M and could be infinite number of program (NEW)
Abosolute type of motor (17bits multi circle) controlling technology (NEW)
The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)
The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)
All closed-loop with grating ruler control and the accuracy is <2um (NEW)
Preread the short line program to satisfy with high speed engraving and cutting (NEW)

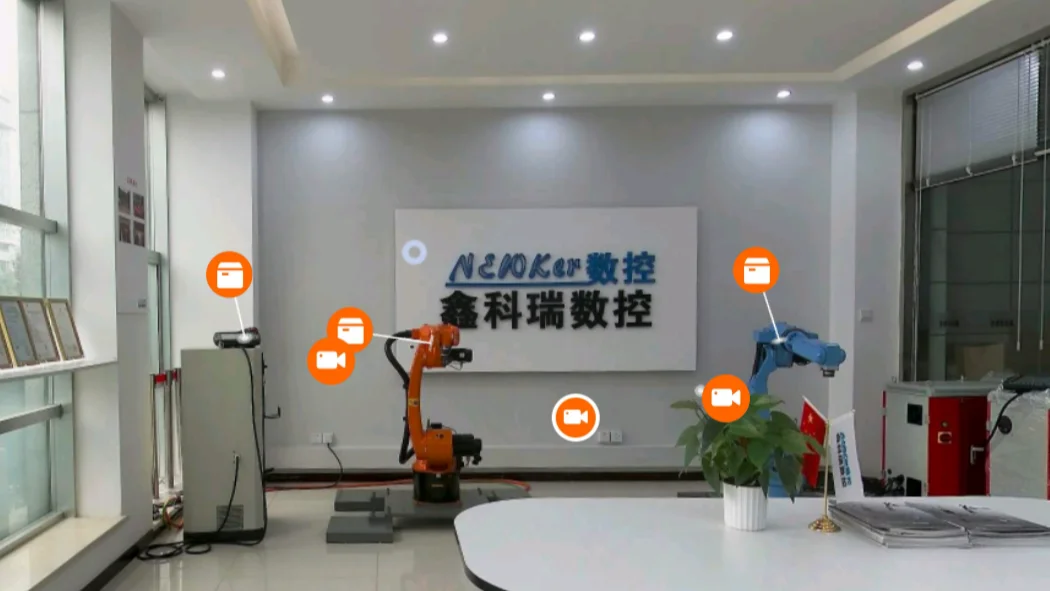

VR
