Product specification

Description:
BG6330 Worktable Mini Precision Multifunction Milling Machine Bench Drill Fixing Screw Worktable

The BG6330 is the update of the BG6300, it uses a more solid aluminum alloy material to make the end cap, it can make the plane rotate more flexible.
The base and the flexible table have the stiffer structure more robust than 6300, and the screw rod (M10x2) is stronger than before, so it can be used for a higher standard of use.

Specification:
Model: BG6330

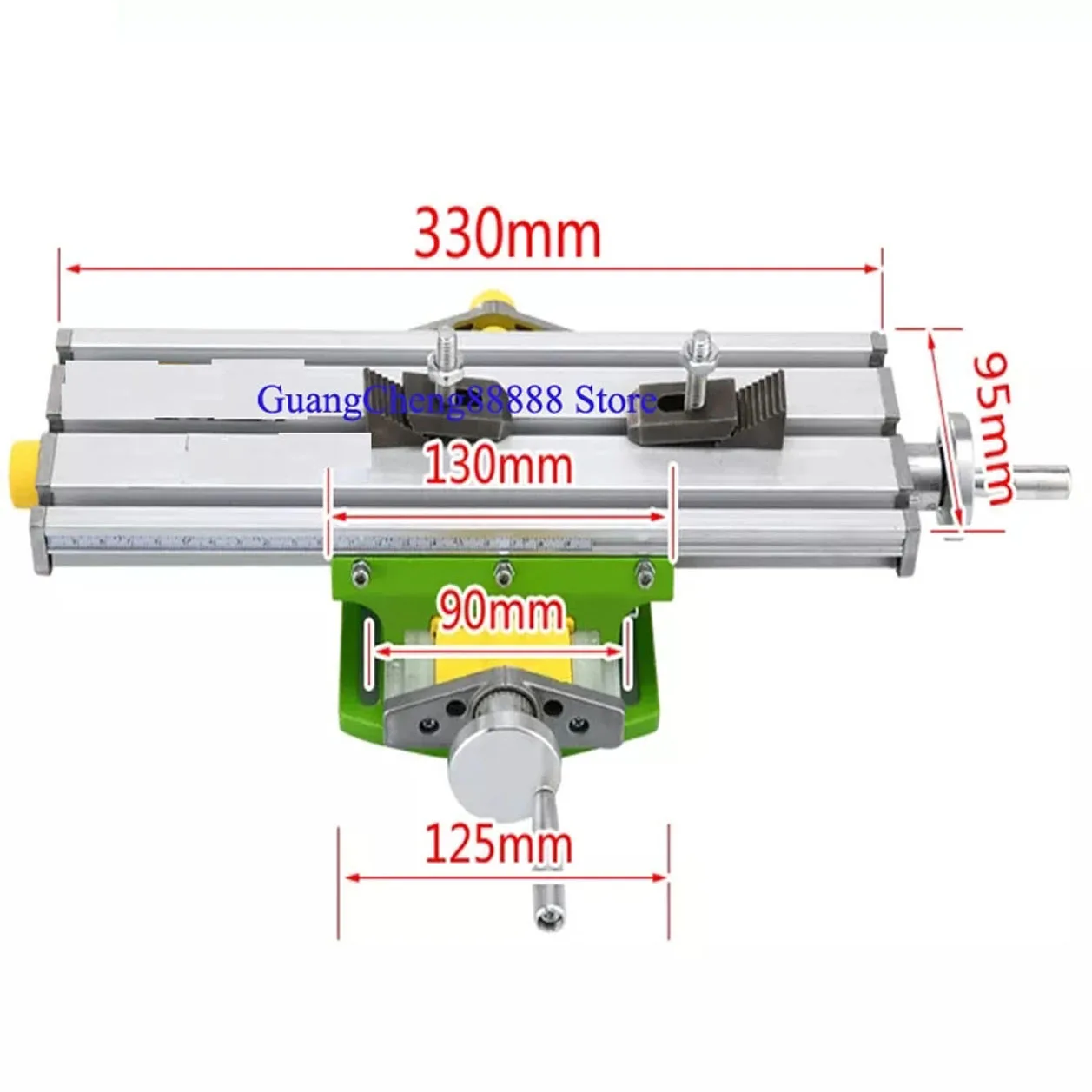

Table Size: 330 * 95mm
Adjustable for X direction: 190mm
Fit for Y direction: 67mm
X Y axis scale adjustment:
1 circle = 1.5mm
A division mark = 0.05mm
Lead screws are M10x2
Apple to: Mini drill series and drill stand and other suitable machine

Characteristics:

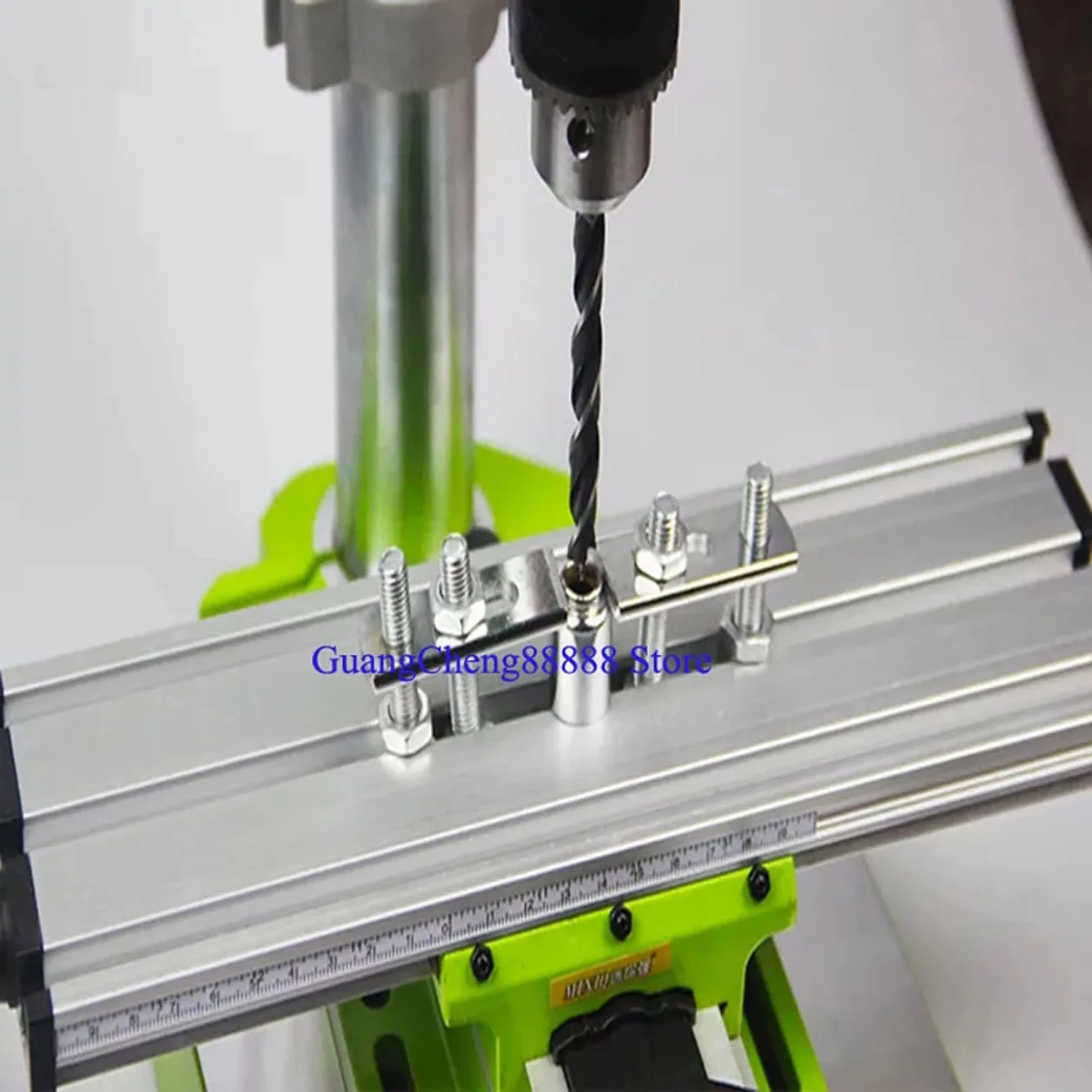

The table is suitable for series of mini drill and drill stand.
It can also be applied to another suitable machine.

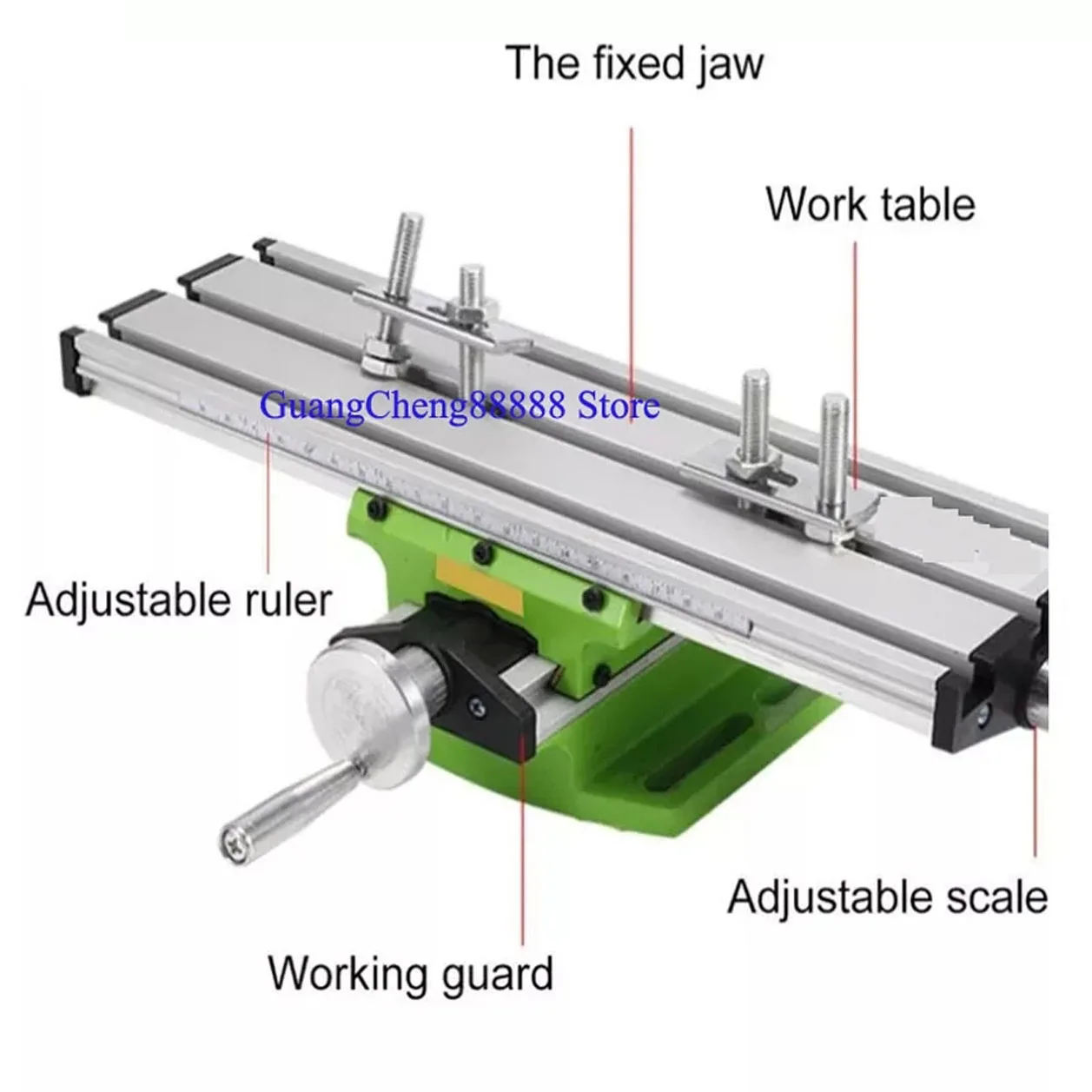

The work table is composed of several adjustable combinations of Milano tail alloy, which guarantee minimum space and precision.
Worktable with three T-shaped slots, the standard size is 15x8x6mm.
The scale is in front of the mobile positioning.
The zero adjustment handwheel rotates a 1.5mm circle. A net is equal to 0.05mm.
The distance of the X-Y axis is 190mm, the stroke is 67mm.
The size of the worktable is 330x95mm and the height of 80mm, including two work clamps.

Graphite crucible mini furnace gold torch metal melting:

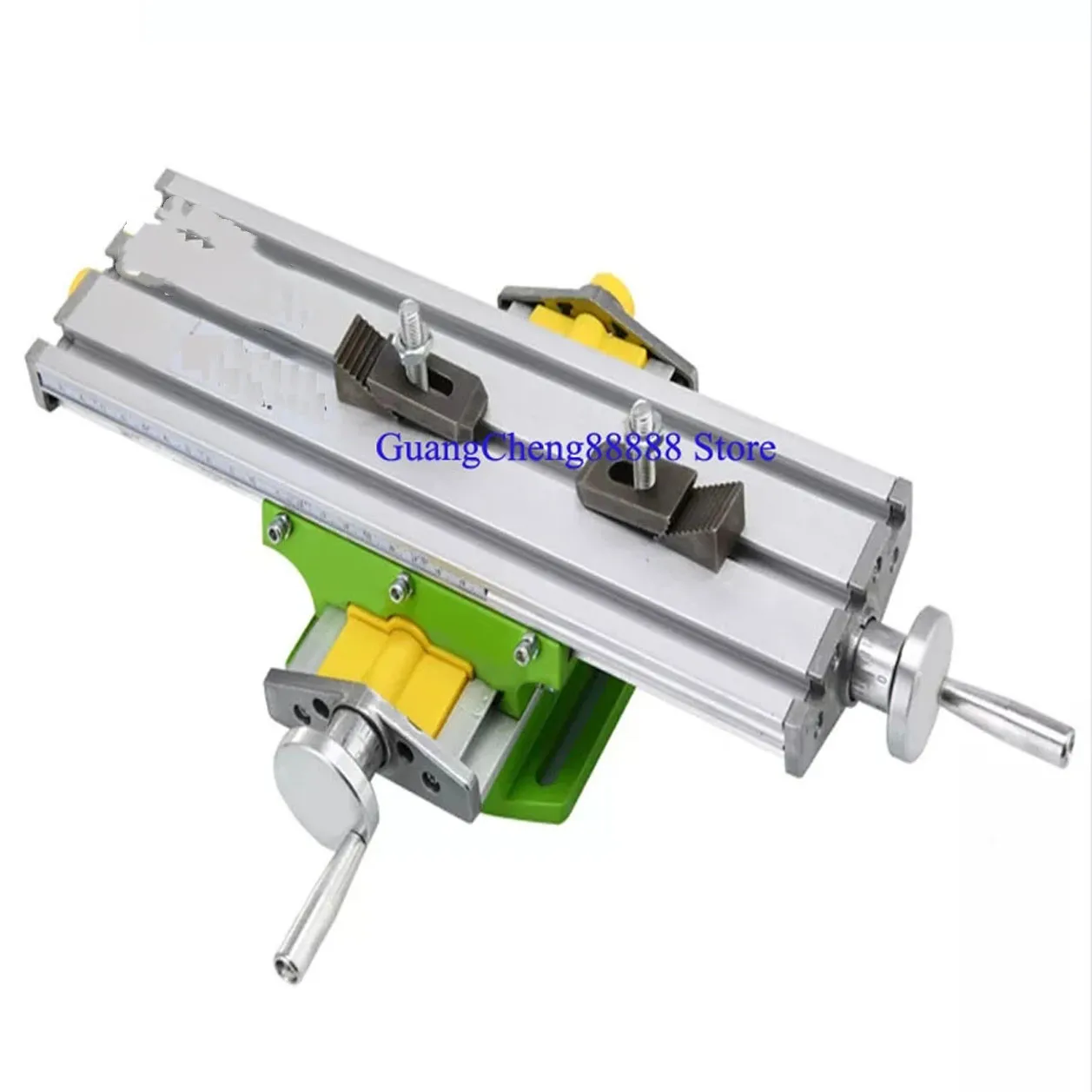

1 x BG6330 Mini Multifunctional Worktable

Notice:
1. Allow a small error due to manual measurement. Please make sure you don't mind before you bid.
2. The color may have different as the difference shows, please understand.
