Name: Nema 34 12nm driver de motor de passo servo motor 86hse12n híbrido circuito fechado unidade de passo de alto desempenho dl86 - HFG 3D
SKU: 1005008359940144
Price: 445.89 BRL
Availability: InStock

Produto Químico de Alta Preocupação: Nenhum
Corrente / Fase: --
Torque de Retenção: 12N.M
Ângulo de Passo: 1.8
Fase: 2
Número do modelo: 86HSE12N+DL86
Tipo: HYBRID
Certificado: ce
Nome da marca: MASTER JIANG
Origem: CN (Origem)
Certificado: CE
Motor Model: 86HSE12N
Motor current: 6A
Motor Axis mode: Single
Drive Model: DL86

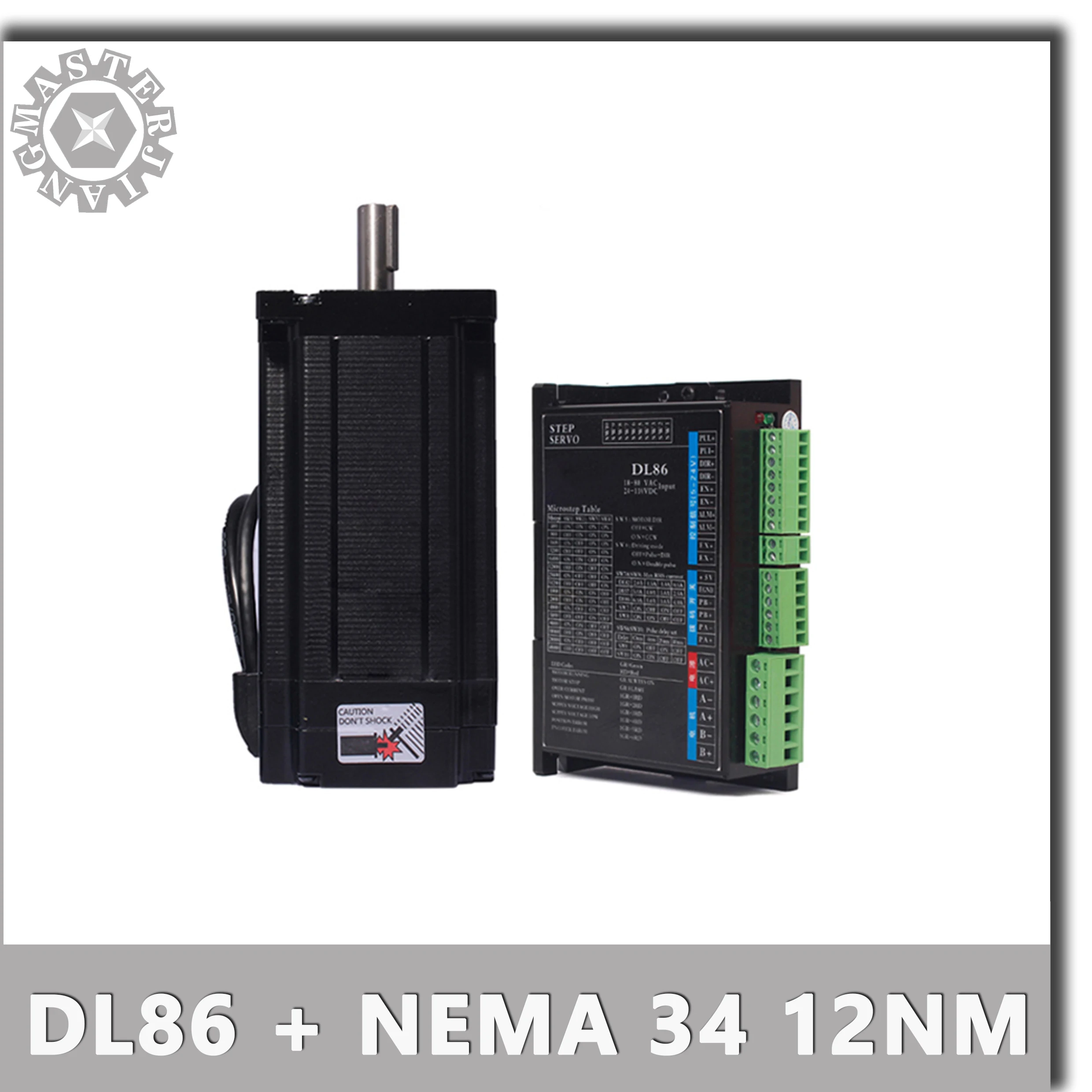

86 Closed-loop stepper motor set 12N.M high speed constant torque closed loop motor 86HSE12N+ DL86 High Performance Step Servo Driver

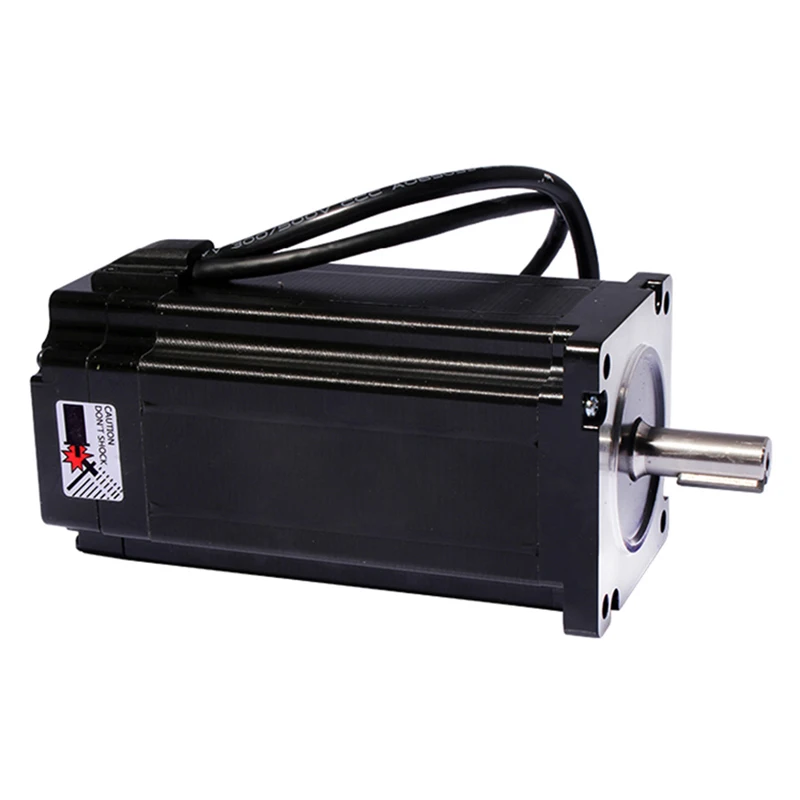

Details of Motor:

Motor model: 86HSE12N

Motor current: 6A

Output torque: 12N.m

Body length: 182MM

Shaft diameter: 14MM, keyway 5MM

Stop diameter: 73MM

Outletmode: single output shaft

Rotation speed: 0-1000 rpm (no load 3000 rpm)

Outlet mode: two-phase four-wire (must be wired according to motor label)

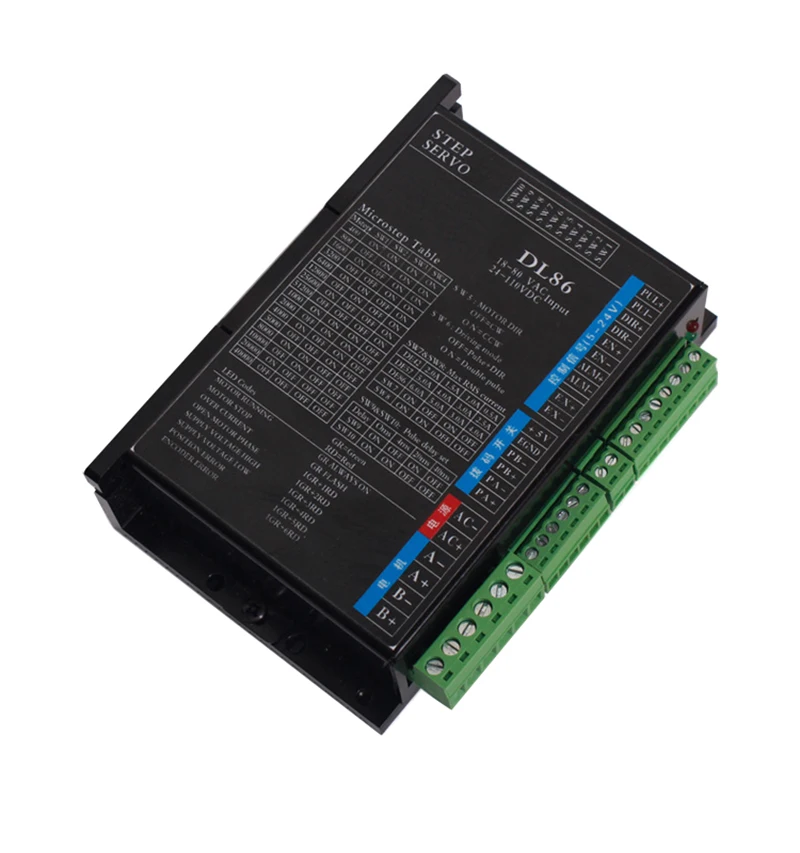

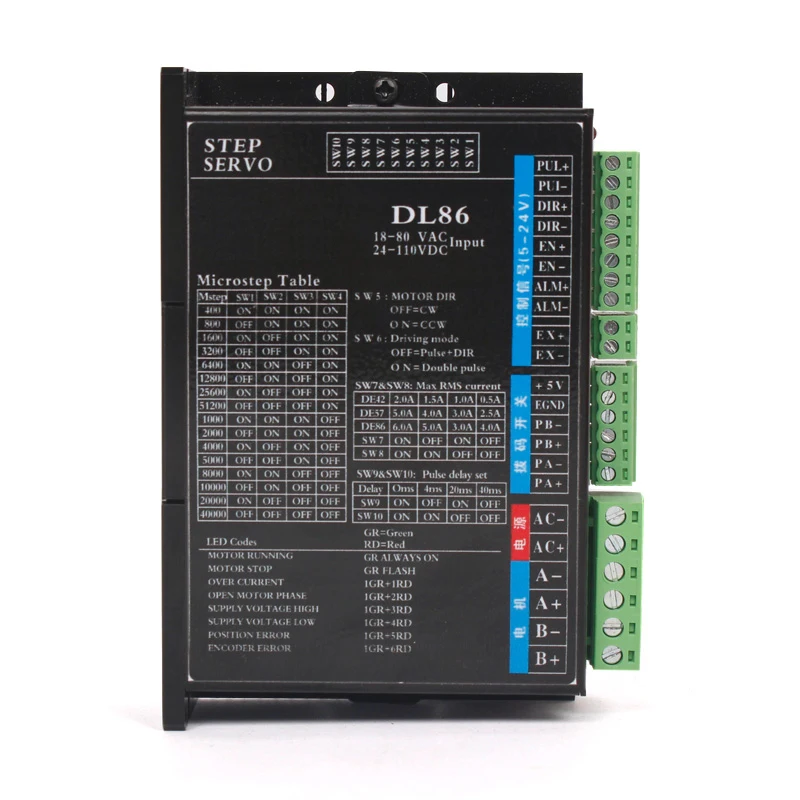

Details of DL86 High Performance Step Servo Driver:

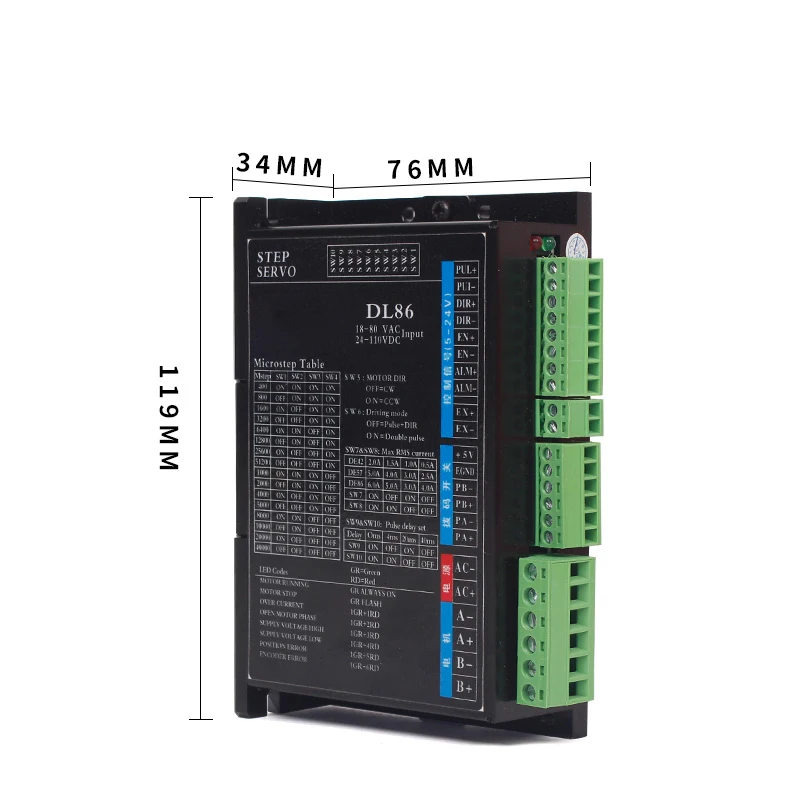

Drive Model: DL86 High Performance Step Servo Driver (Nema 34, 86 stepper motor)

Input: 18-80VAC, 24-110VDC

Advantage: More stable, higher performance, more precise

Features:

1. Low heat (static, the current is almost zero, no heat).

2.Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the traditional stepping motor troubled low frequency resonance has a very good resistance).

3. Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine / placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.

4. Large torque output in some cases can simplify the complexity of the machine.

Package Included:

1 x DL86 High Performance Step Servo Motor Drive

1 x 86HSE12N 12N.M. Motor (with about 30cm cables)

1 x 3 meters Encoder Cable

Note:

Please contact us, if you need:

1.English manuals

2.To add Longer Cable

3.To add Brake for Motor

4.Power Supply

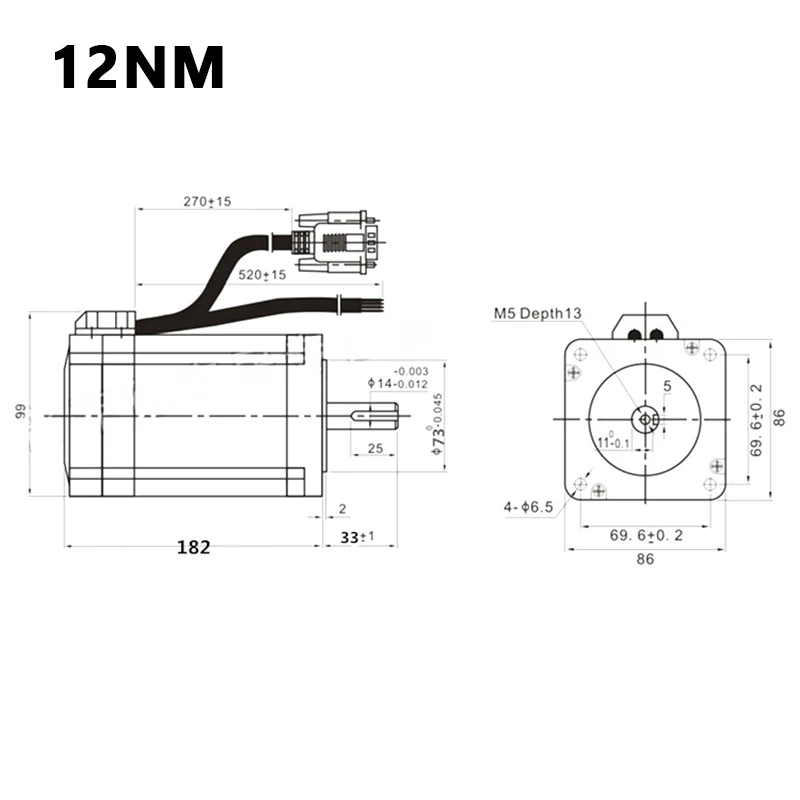

Size of 12NM Stepper motor

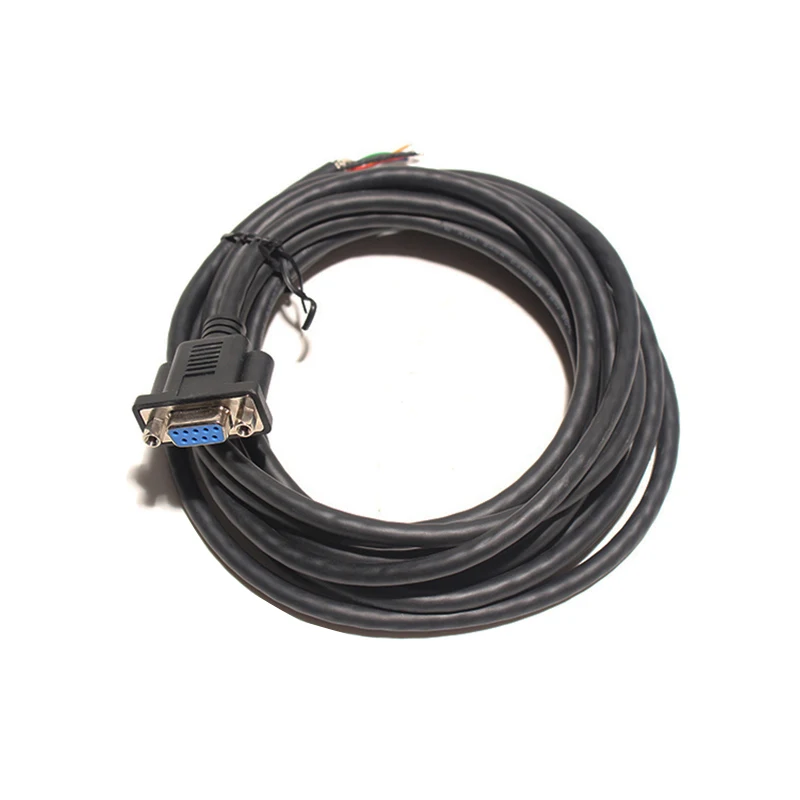

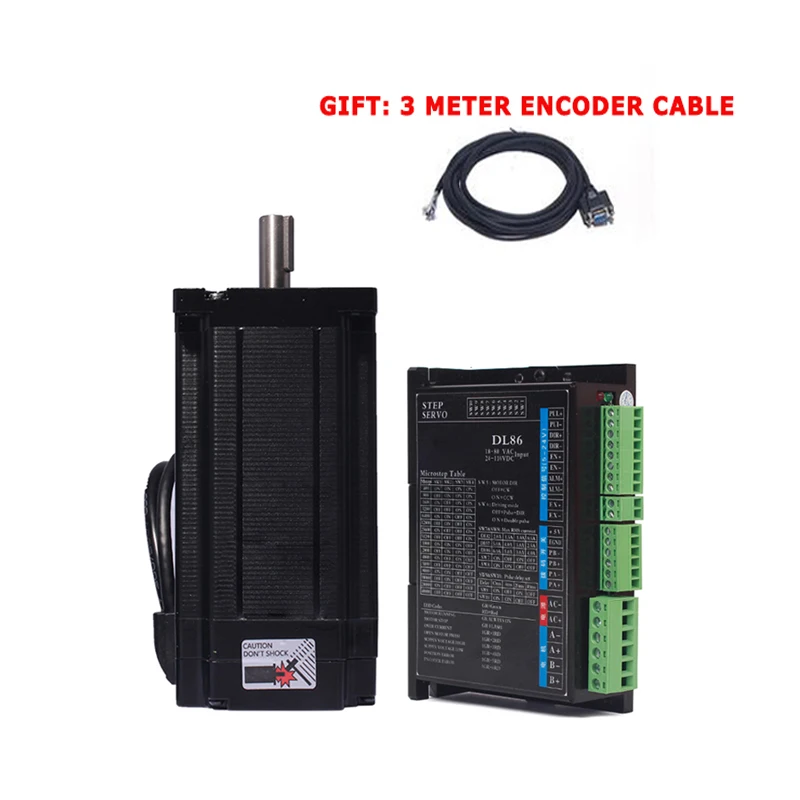

Gift: 3 Meter Encoder Cable

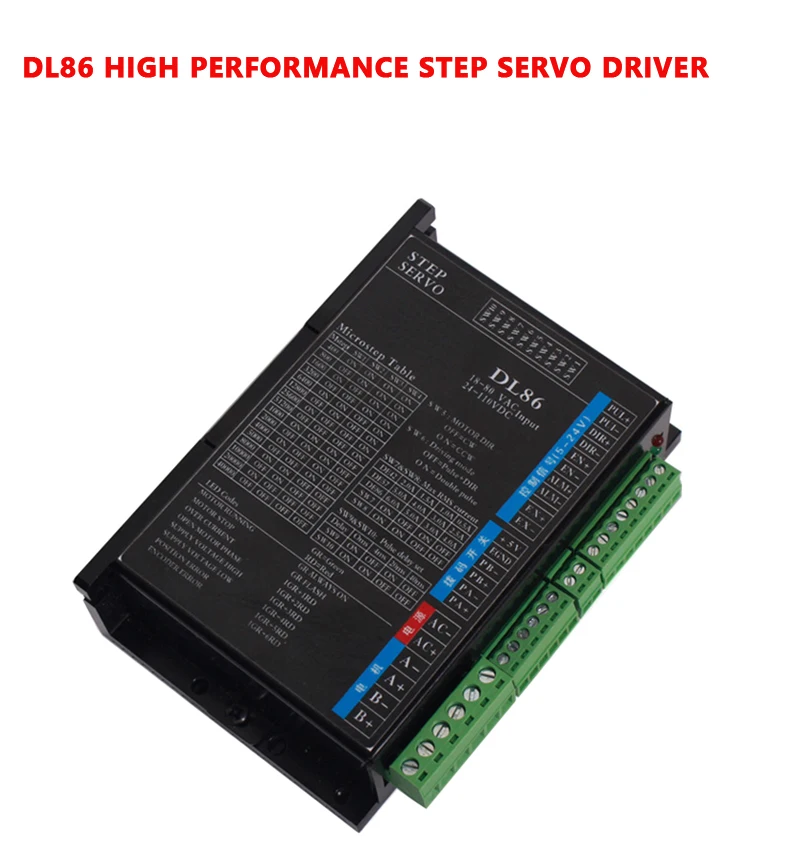

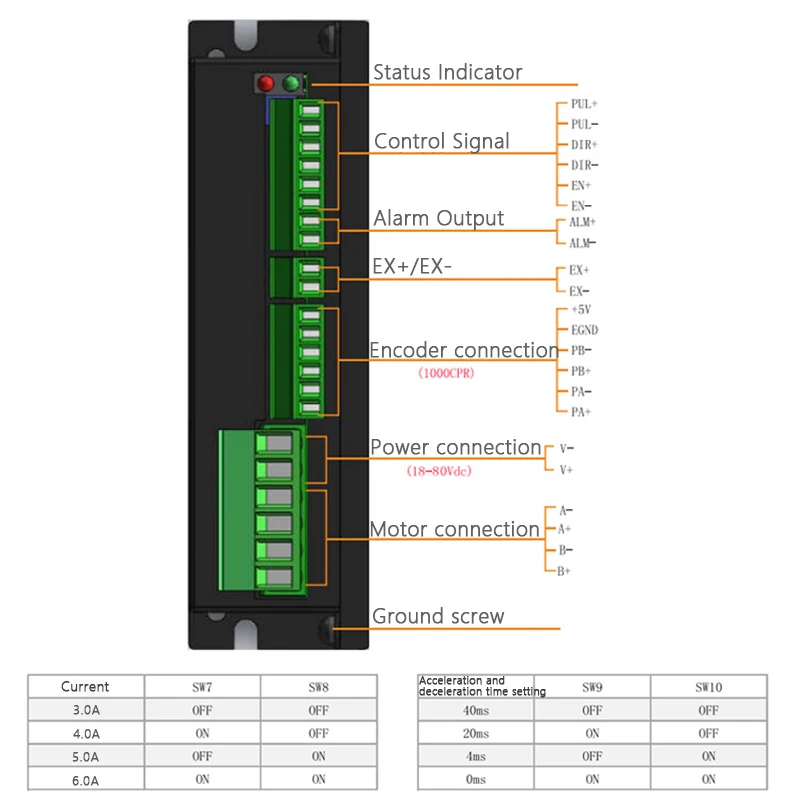

DL86 High Performance Step Servo Driver
