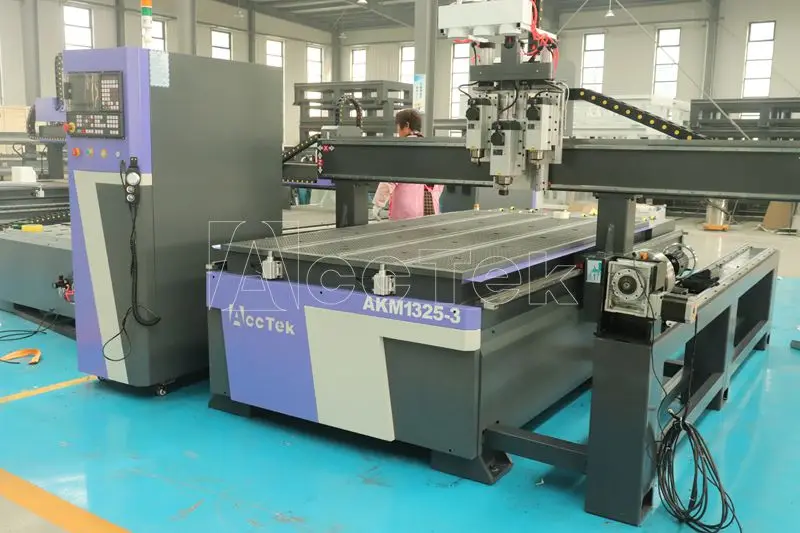

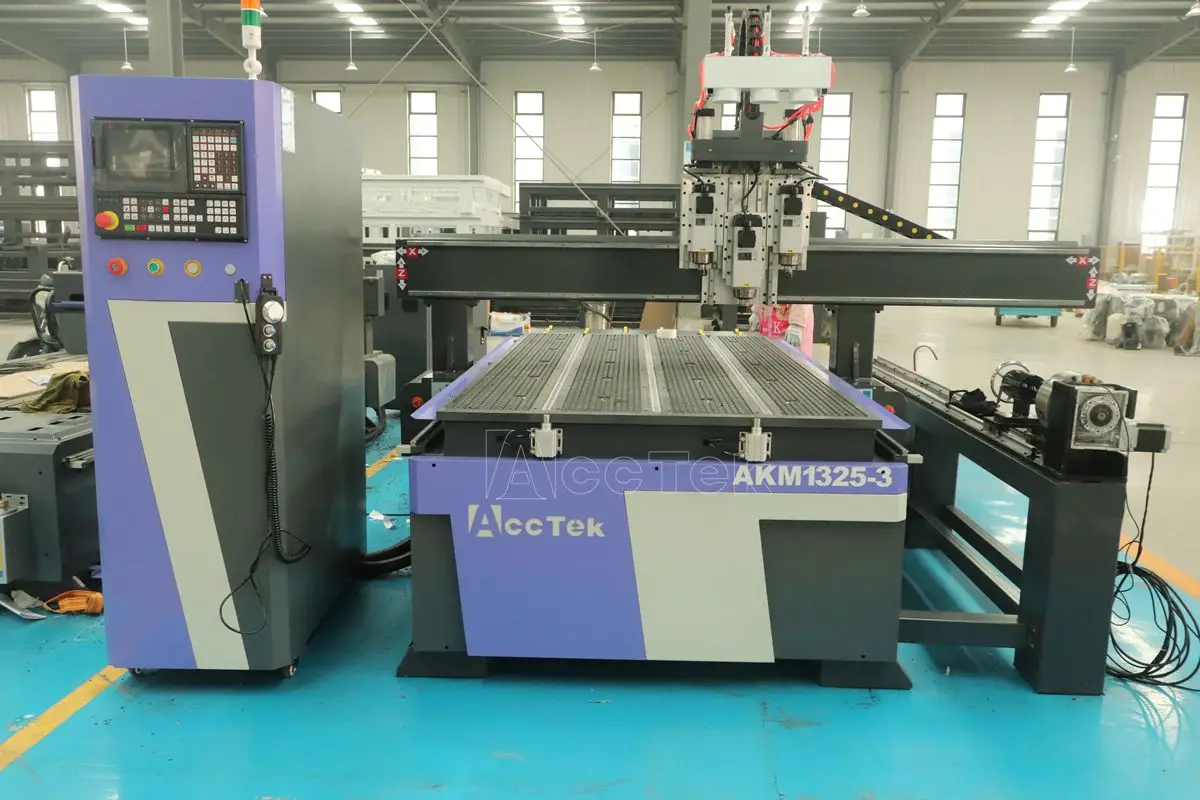

Multiple Spindles Can Be Added 1325 2040 Cnc 3 Axis Router Cnc Wood Router on Sale

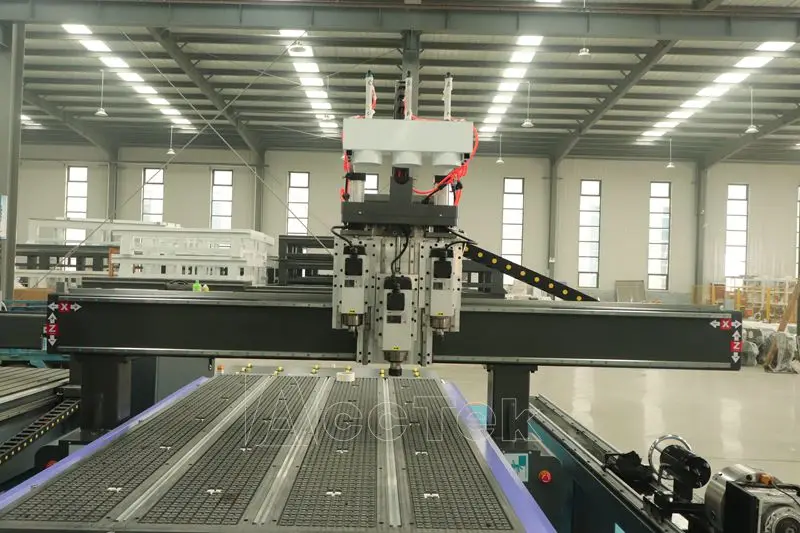

1.three-spindle linkage, integrated cutting, drilling and milling
2.High-speed four spindle, the Max.speed can reach 18000r/min.High precision drilling processing unit
3. three spindles can meet the basic cabinet requirements, one for slotting, one for cutting, and one for punching.
4.Greatly improve the processing capacity and production efficiency by shortening the auxiliary working time.


Description | Parameter |
X,Y,Z Working Area | 1300x2500x200mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
Table Surface | Vacuum&T-slot Table |
Frame | Welded Structure,heavy duty T-structure |
X, Y Structure | Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings |
Z Structure | Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings |
Max. Power Consumption | 15.0KW |
Max. Rapid Travel Rate | 45000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Power | 6.0kw air cooing |
Spindle Speed | 0-18000RPM |

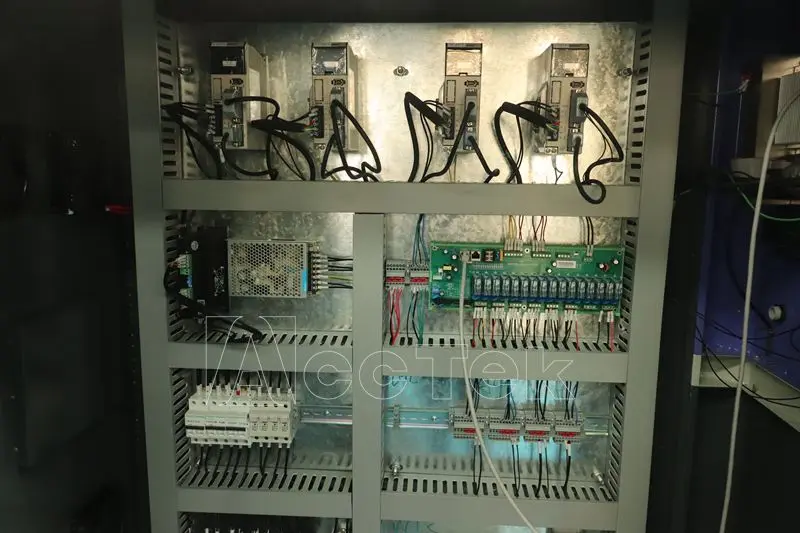

Drive Motors | servo motor and driver |
Working Voltage | AC380V/50/60Hz,3PH |

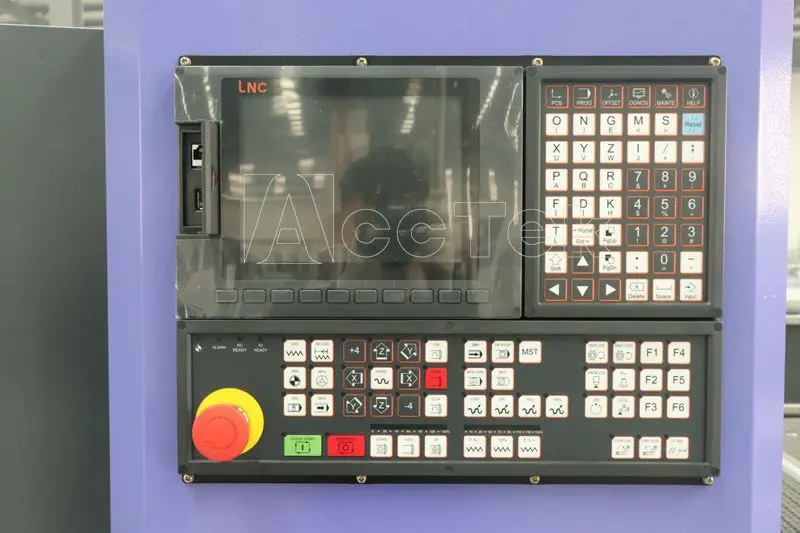

Control System | Taiwan LNC control system |
X,Y Resolution | <0.01mm |
Software Compatibility | Artcam Software |
Running Environment Temperature | 0 - 45 Centigrade |


This machine is very suitable for furniture bulk production, like sofa legs, table legs, chair legs, bed legs, bed head, stair handrails, prop guns, wooden column cylinders... it also can make 3d small statues, figures, sculptures, 360 degree human body, Buddhist statues… etc.

Jinan AccTek Machinery Co.,Ltd specializes in manufacturing CNC Router and Laser machines. Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty. Components for our machines are sourced from world class suppliers and innovators in machine control.
Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence.
Now we own two workshops,one for cnc router and another for laser machines. Which covers 3000,00 square meters. There are 40 members in manufacturing and 21 members for marketing and service.



1.three-spindle linkage, integrated cutting, drilling and milling
2.High-speed four spindle, the Max.speed can reach 18000r/min.High precision drilling processing unit
3. three spindles can meet the basic cabinet requirements, one for slotting, one for cutting, and one for punching.
4.Greatly improve the processing capacity and production efficiency by shortening the auxiliary working time.


Description | Parameter |
X,Y,Z Working Area | 1300x2500x200mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
Table Surface | Vacuum&T-slot Table |
Frame | Welded Structure,heavy duty T-structure |
X, Y Structure | Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings |
Z Structure | Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings |
Max. Power Consumption | 15.0KW |
Max. Rapid Travel Rate | 45000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Power | 6.0kw air cooing |
Spindle Speed | 0-18000RPM |
Drive Motors | servo motor and driver |
Working Voltage | AC380V/50/60Hz,3PH |
Control System | Taiwan LNC control system |
X,Y Resolution | <0.01mm |
Software Compatibility | Artcam Software |
Running Environment Temperature | 0 - 45 Centigrade |


This machine is very suitable for furniture bulk production, like sofa legs, table legs, chair legs, bed legs, bed head, stair handrails, prop guns, wooden column cylinders... it also can make 3d small statues, figures, sculptures, 360 degree human body, Buddhist statues… etc.

Jinan AccTek Machinery Co.,Ltd specializes in manufacturing CNC Router and Laser machines. Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty. Components for our machines are sourced from world class suppliers and innovators in machine control.
Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence.
Now we own two workshops,one for cnc router and another for laser machines. Which covers 3000,00 square meters. There are 40 members in manufacturing and 21 members for marketing and service.
