LASER TREE 80W TTL Laser Module with Air Assist Laser Head for CNC Laser Engraving Cutting Machine 450nm Blue Light Wood Tools

LT-80W-AA-PRO：

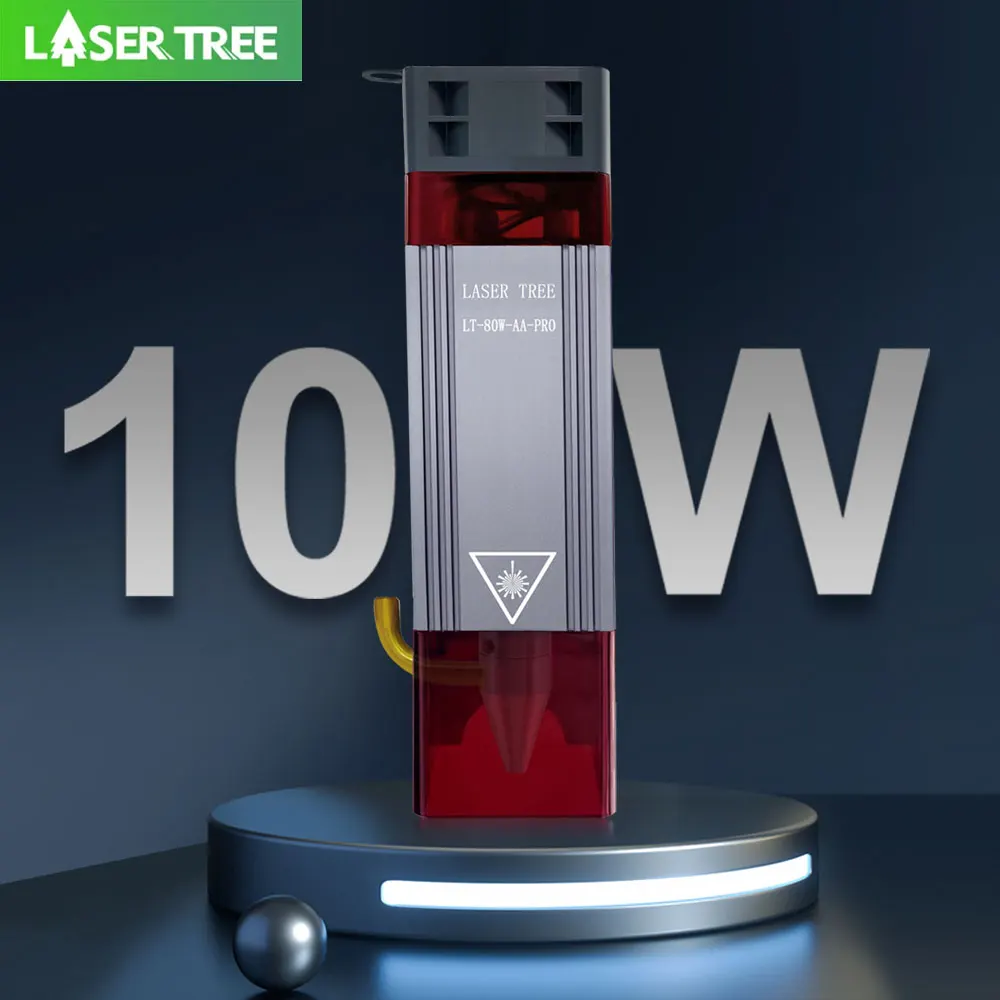

10W Laser Module Head with Air Assist for Laser Engraver

Product Description：

1. High Power Laser Module--- 2-Beam compression technology, 10W optical power laser module

2. Powerful Cutting Ability
Cut 8mm bass plywood: 120mm/min, 100% power, by one pass
Cut 5mm black acrylic: 50mm/min, 100% power, by one pass
Cut 5mm MDF: 150mm/min, 100% power, by 2 passes

3. Professional Air Assist--- Blowing through the air nozzle to get clean-cut edges, improve cutting performance

4. Super Fast Engraving Speed--- ultra-fast engravingon stainless steel-30mm/s

5. Widely Compatibility--- Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

Specification:

Material: aluminum alloy

Effect output power: 80W

Optical Power：10W (±1W)

Wavelength: 450nm (±10nm)

Light color: blue

Focus Length: 45mm

Spot form: Punctiform, fixed focus

Electric power: 12V 3.2A(3A-3.5A); 24V
1.7A(1.5A-2A)

PWM Modulation: 0/3-12V 0-5kHz TTL/PWM

Input port: XH2.54-3P socket

Item size: 40*40*147mm

Laser module net weight: 250g

Professional Air Assist

Upgraded 6mm diameter air nozzle has an advanced hydrodynamic design, which better reduces air resistance and faster jet airflow.
Recommended inner diameter of air tube: Φ4mm, outer diameter: 8x6mm

Air pump suggestion:Air pressure and capacity: ≥0.027kPa, 27L/min

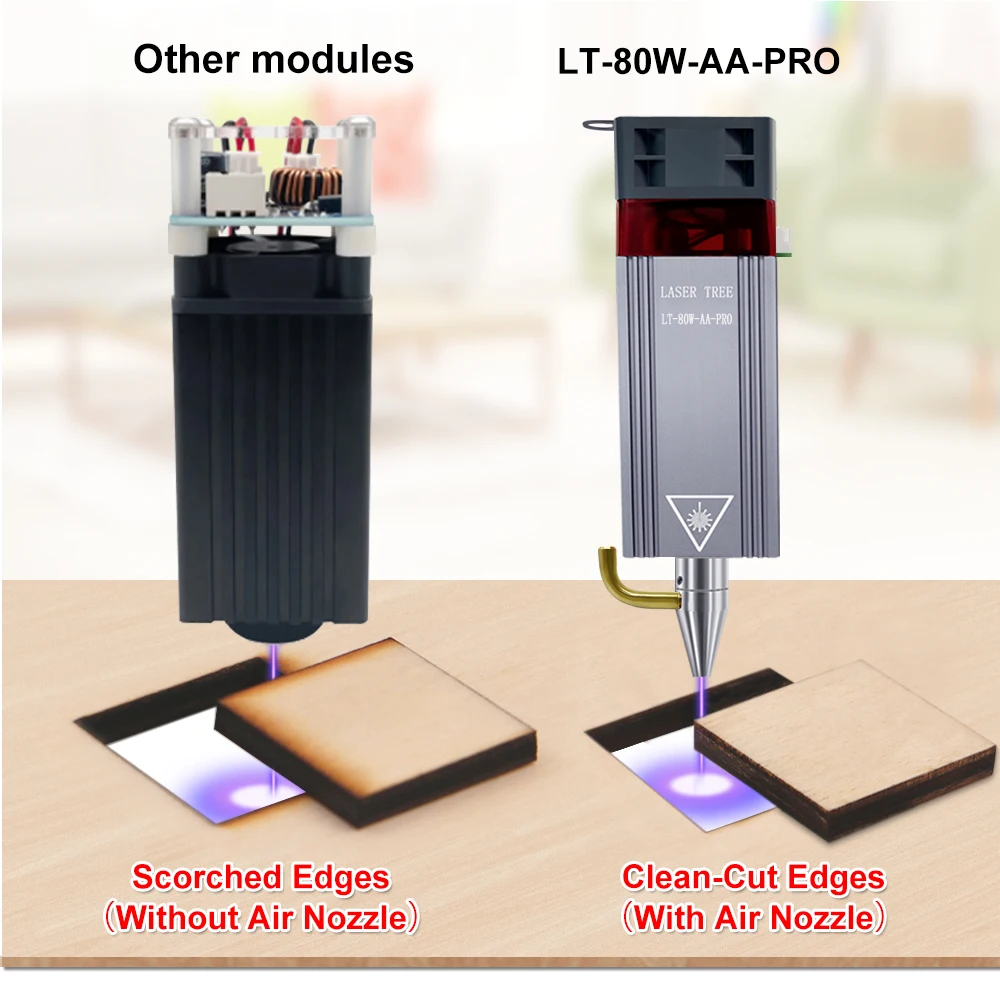

With Air Assist VS No Air Assist

Blowing through the air nozzle to get clean-cut edges, improve cutting performance

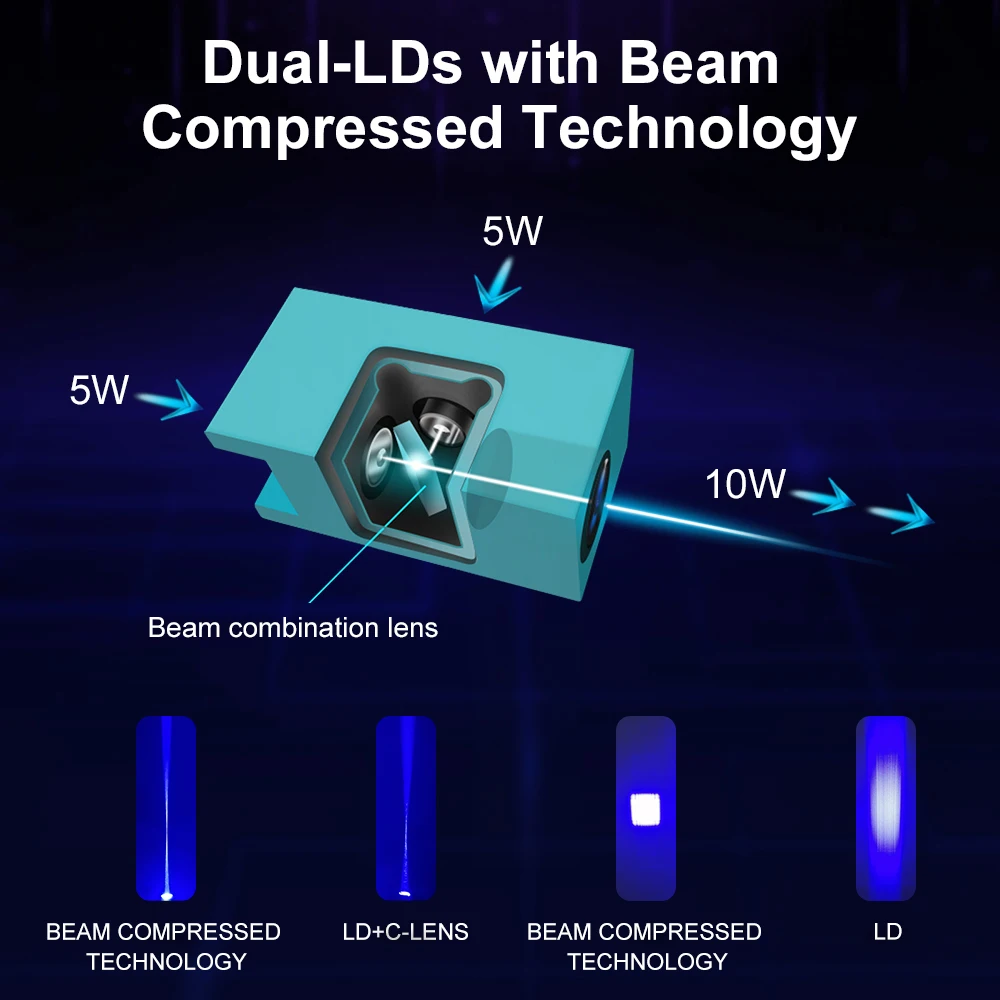

Dual-LDs with Beam Compressed Technology

One laser module has two built-in laser diodes.The optical power of each diode is 5W.

With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.

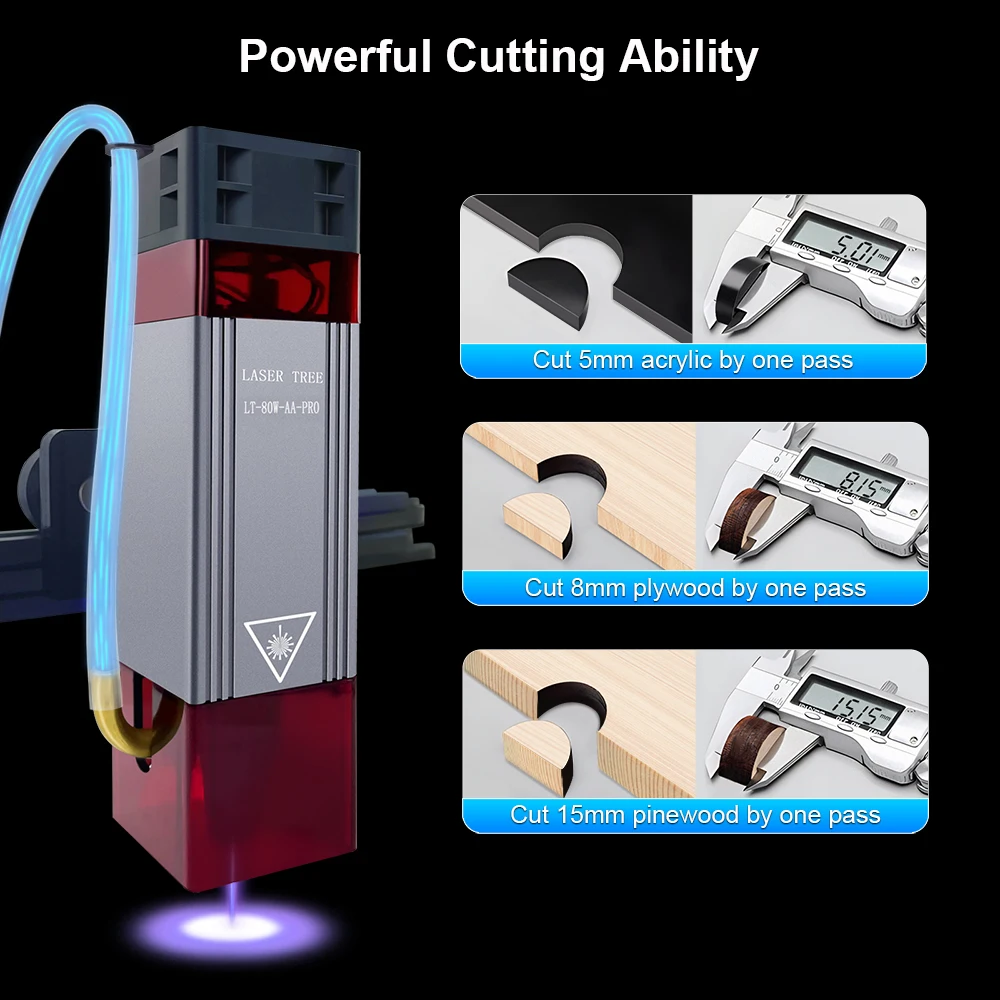

Powerful Cutting Ability

Cut 8mm bass plywood: 120mm/min,100% power,by one pass
Cut 5mm black acrylic: 50mm/min,100% power,by one pass
Cut 5mm MDF: 150mm/min,100% power,by 2 passes

Minimum 0.08mm Ultra-thin Beam

Ultra-fast engraving on stainless steel-30mm/s

Widely Compatible Design

Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines

Magnetic Protective Cover

With a laser protective cover, it can effectively filter blue light when engraving or cutting with laser head, safe and convenient

Air Assist Pump:

Description：

The air pump is an essential part of the laser module with air assisted.
It provides a steady high-pressure airflow to blow away smoke and obtain clean-cut edges;
Protecting the laser head's lens from contamination and extending the laser head's service life.
In addition, it can improve the efficiency of laser processing and thus save your time.

Features:

1. High-quality Materials: metal nozzle, resisting high temperature.

2. Large and Steady Air Output: Adjustable airflow of 0-30L/min, blowing away smoke and residue produced during laser processing, cut deeper、faster and cleaner.

3. Low Noise & Low Vibration: Anti-slip& damping feet keep the body stable and reduce the vibration noise effectively.

4. Rapid Heat Dissipation: Aluminum alloy shell, strong heat dissipation, long lasting and more durable.

5.Wide Compatibility: With two sizes of nozzles (PC6-M8 & PC8-M8)and hoses( φ8x6mm & φ6x4mm), compatible with most of the laser module‘s nozzle interfaces on the market. If it is a special size module air inlet nozzle just need to replace the appropriate air tube and air outlet nozzle.

6. Plug and Play: please select the correct version of EU/US/AU plug.

Specification:

Voltage: 110V/220V
Power: 16W
Exhaust Pressure: 0.03Mpa
Exhaust Volume: 30L/min
Outlet diameter: 8mm
Item Weight: 1.6kg
Item Size: 14.5*13*8cm
Application: Air assist laser module
