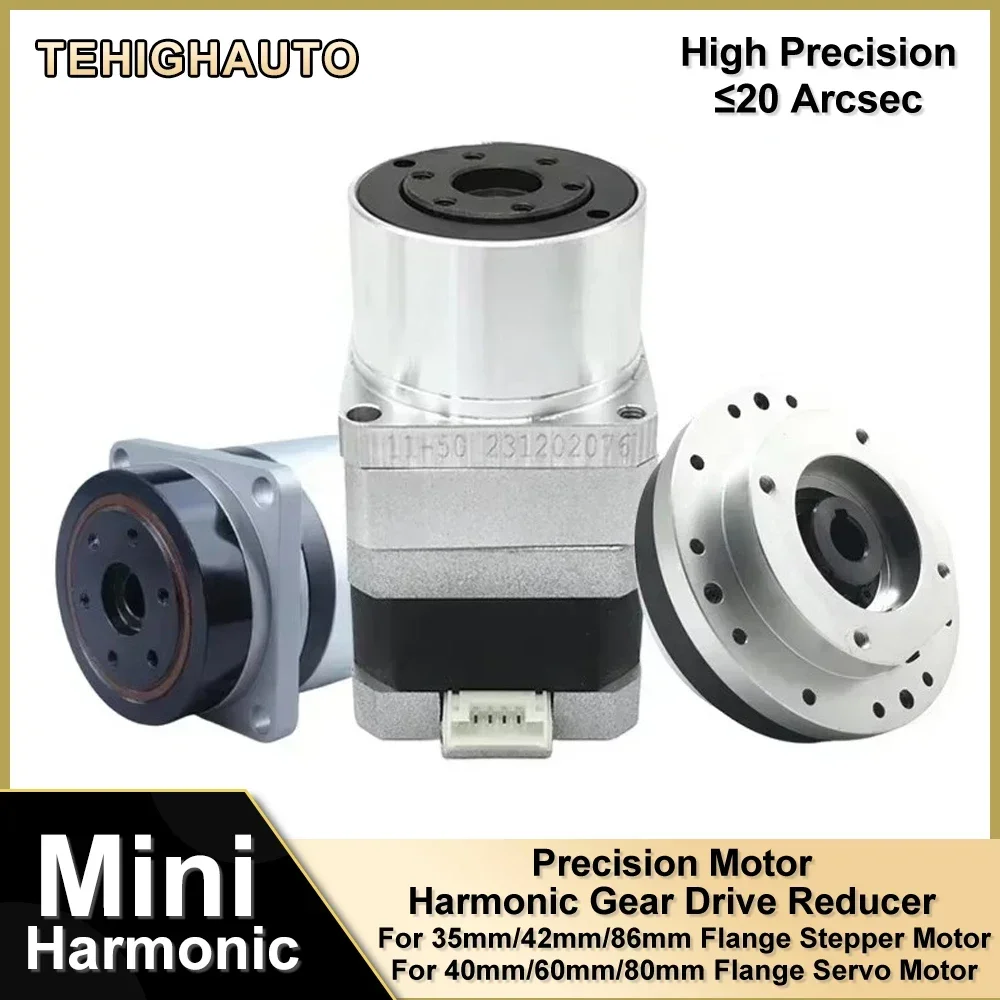

Name: Mini atuadores rotativos de acionamento harmônico, braço manipulador de robô redutor harmônico de alta precisão, substituição de motor DD para equipamentos CNC
SKU: 1005008140543547
Availability: InStock

Produto Químico de Alta Preocupação: Nenhum
Cutomizado: Sim
Número do modelo: MINIF/PG/FA
Tipo: Outros
Origem: CN (Origem)
Use: Fabricação comercial
Backlash: ≤20 arcsec
Product type 1: Harmonic Reducer
Product type 2: Harmonic Gear Drive
Product type 4: Industrial Robot Reducer
Product type 5: Strain Wave Gear
Product type 7: Manipulator Reducer
Product type 8: Precision Motor Reducer
Product type 9: High Precision Harmonic Gearbox
Product type 10: Industrial robot Harmonic reducer
Product type 11: robot arm reducer

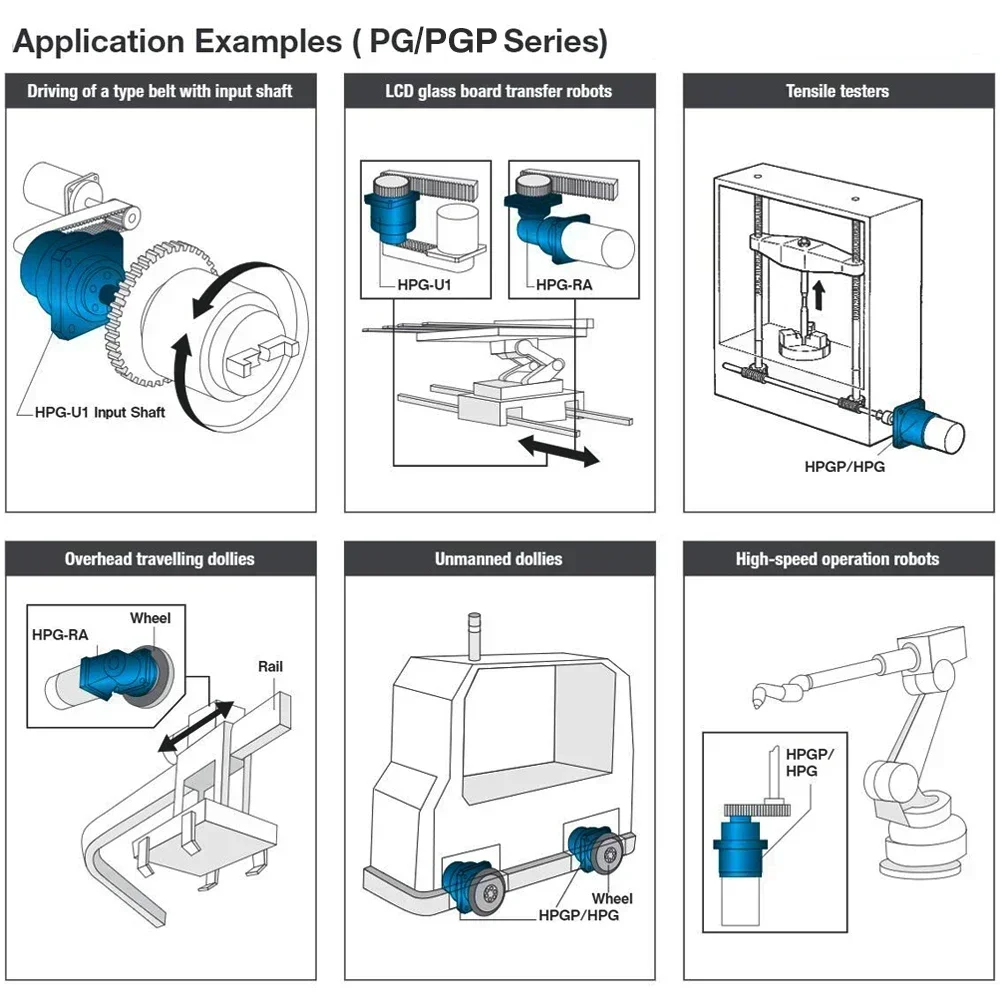

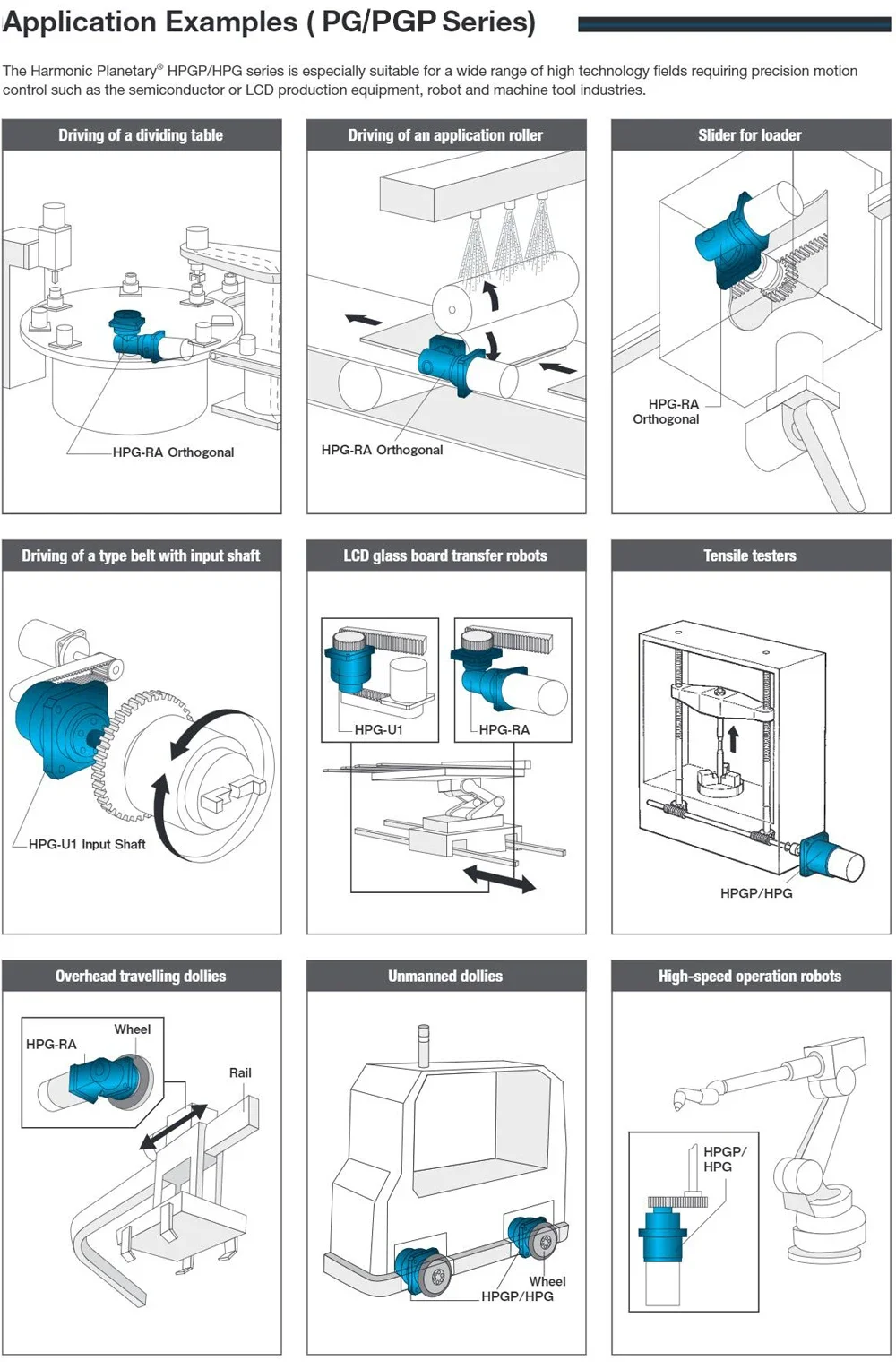

Scope of application:
Used in various precision motion occasions, such as robotic arm joints, robots, machine tool CNC rotary tables, laser
marking machines, dispensing machines, rotary testing tables, optical testing tables, high-precision gear direct drive, fourth
axis, indexing head, military radar, printing machinery, paper machinery, tape making machinery, papermaking machinery,
wire and cable machinery, winding machinery, cable machinery, woodworking machinery, testing equipment, simulated
loads Equipment in fields such as automation, measurement, and testing that require high accuracy.

Model	Ratio	Backlash	Input 2000r/min	Max Torque at start and stop	Average load torque	Max Instantaneous torque	Max Input Speed
			Rated output torque
		Arcsec	N.m	N.m	N.m	N.m	R/Min

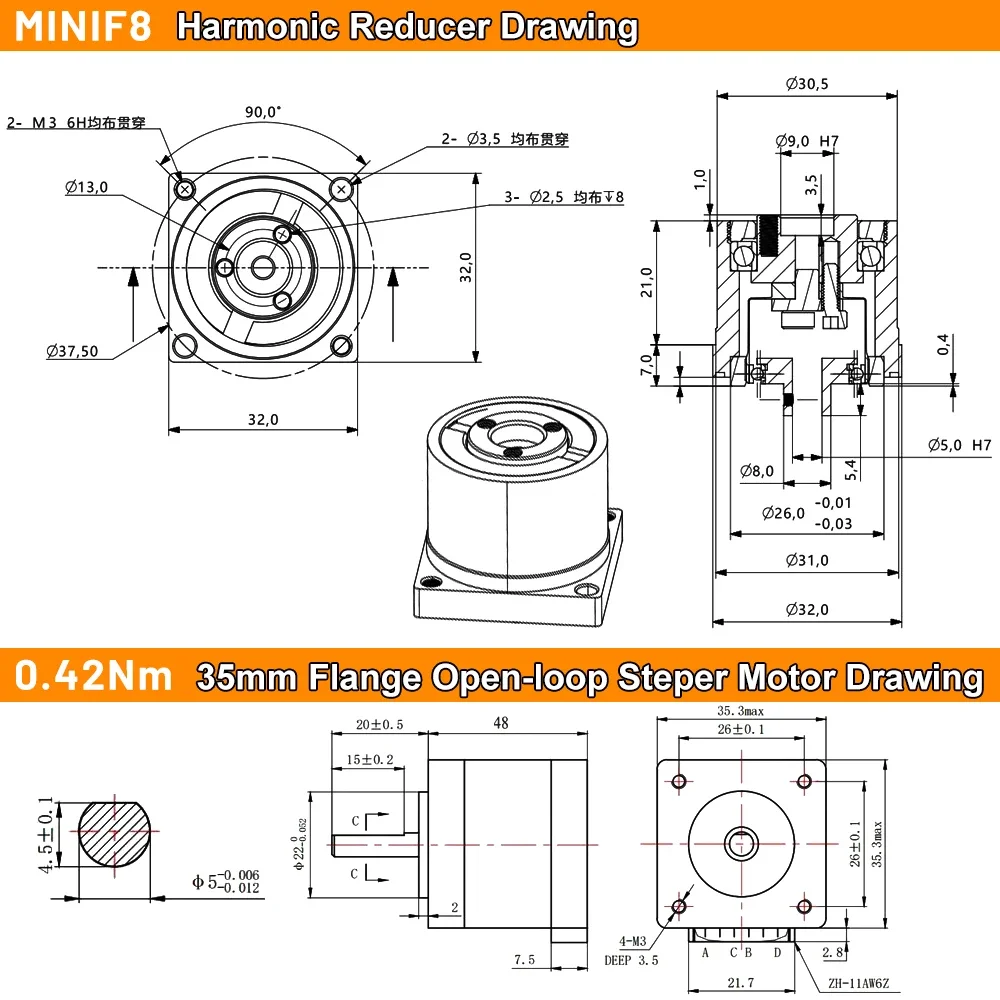

MINIF8	30	≤20	0.9	1.8	1.4	3.3	8500
	50		1.8	3.5	2.3	6.6

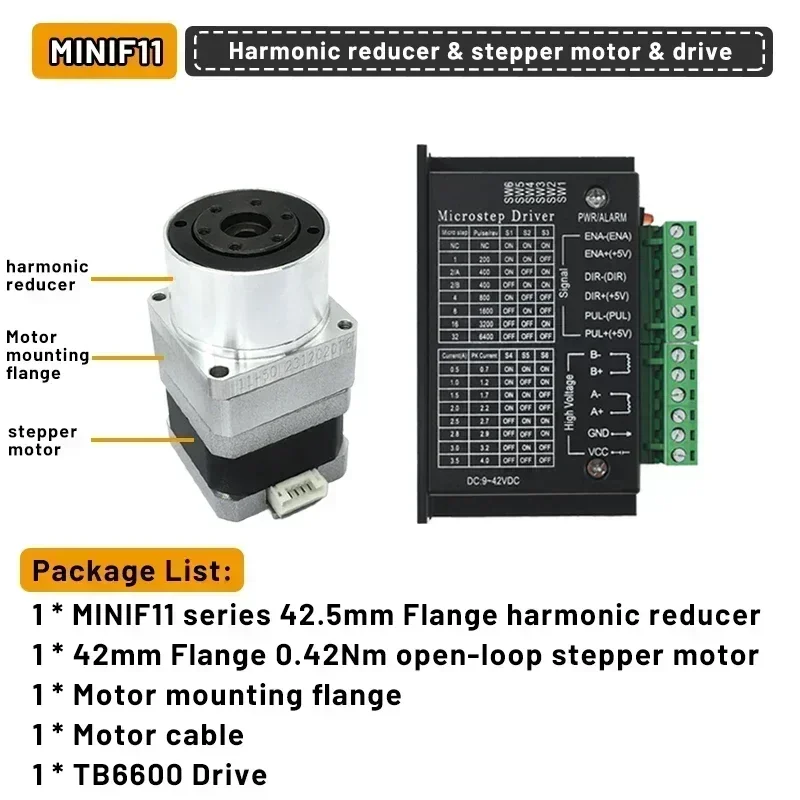

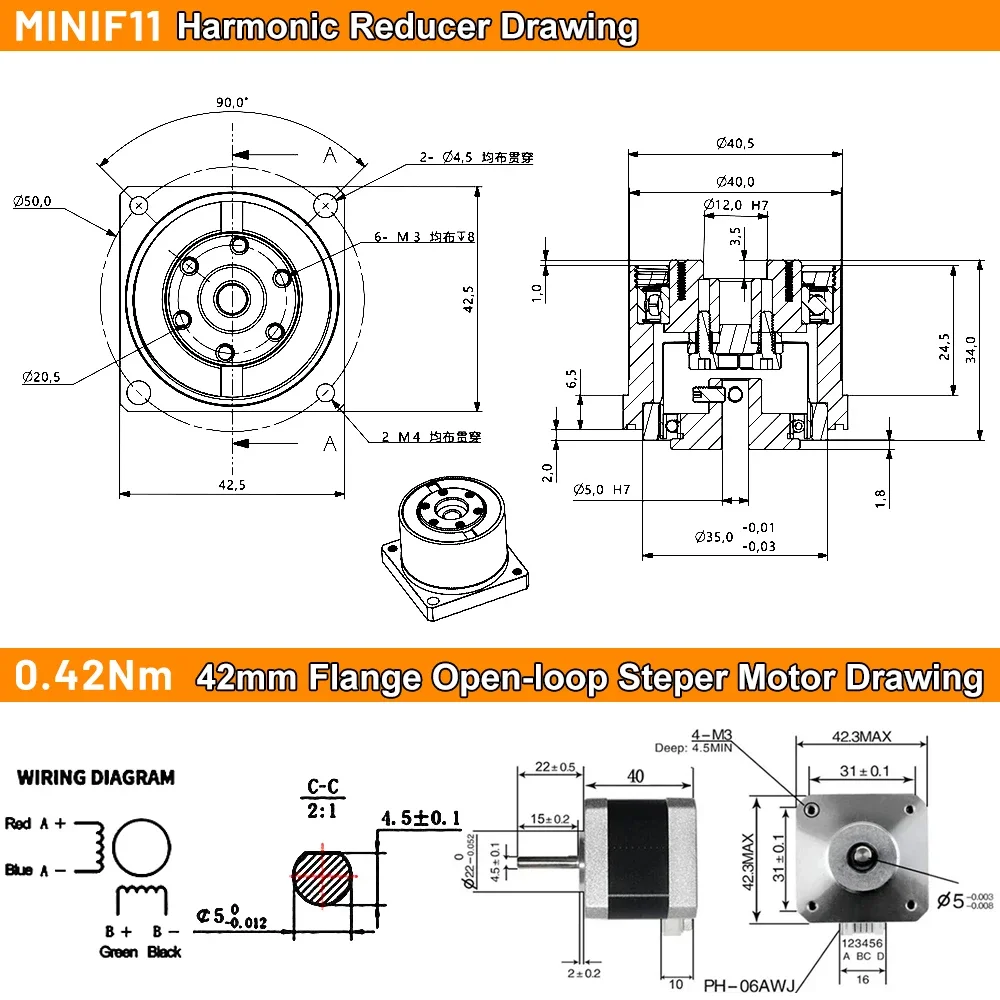

MINIF11	30	≤20	2.2	4.5	3.4	8.5	850
	50		3.5	8.3	4.5	17

Model	Ratio	Backlash	Input 2000r/min	Input 3000r/min	Average load torque	Max Torque at start and stop	Max Instantaneous torque	Rated Input Speed	Max Input Speed
		Backlash	Rated output torque	Rated output torque	Average load torque	Max Torque at start and stop	Max Instantaneous torque	Rated Input Speed	Max Input Speed
		Arcsec	N.m	N.m	N.m	N.m	N.m	R/Min	R/Min

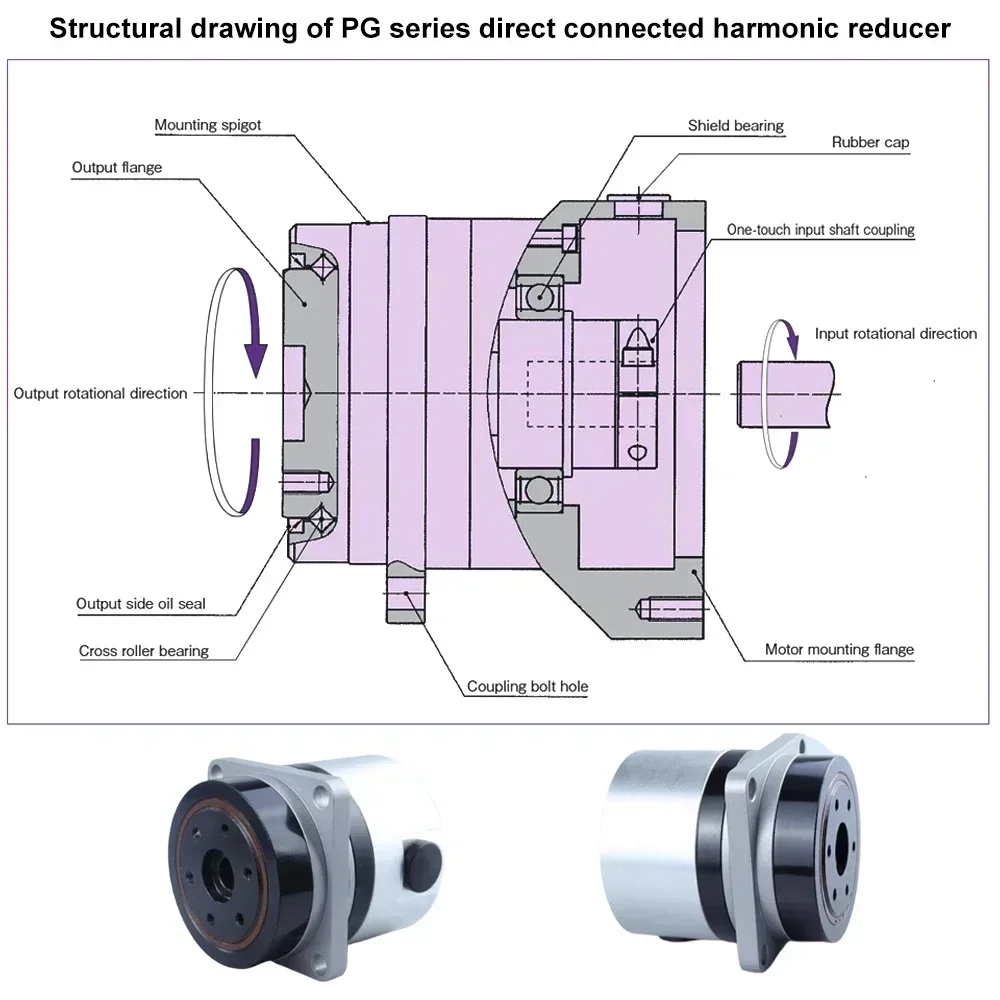

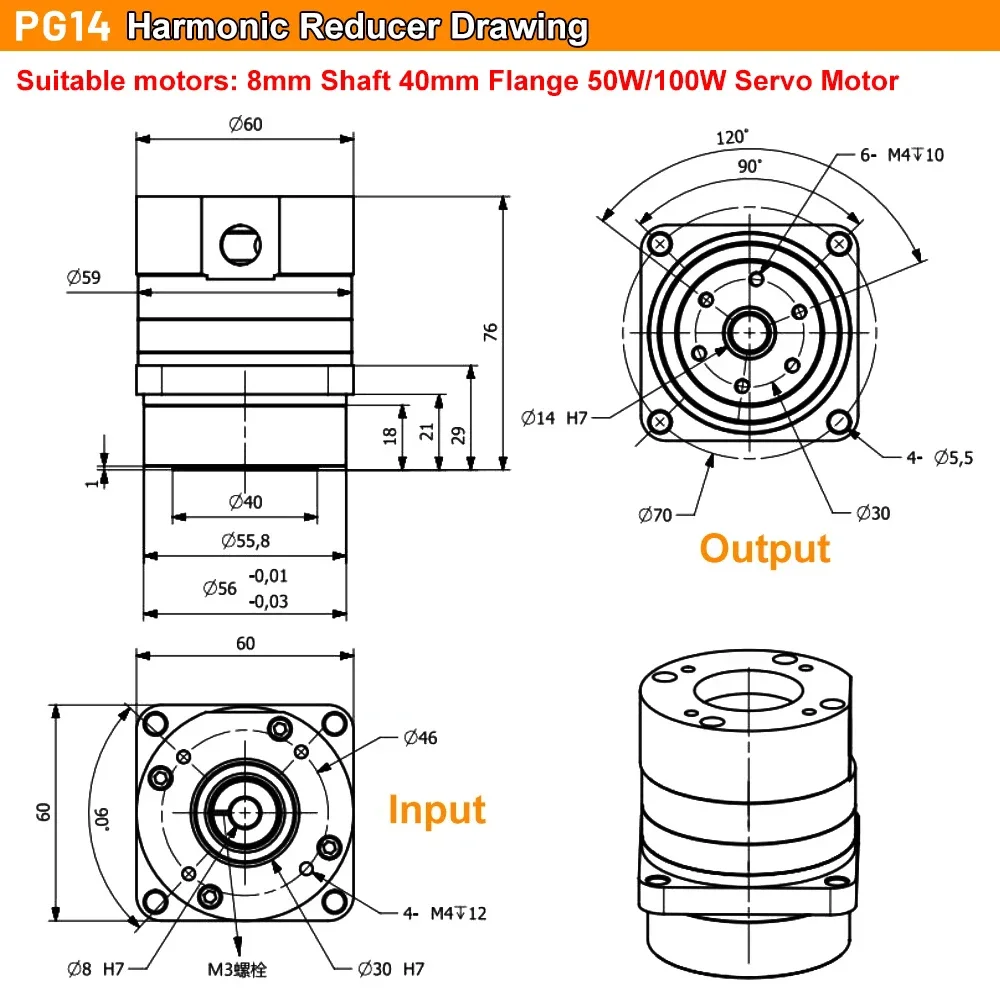

PG14	50	≤20	7	6.1	9	23	46	3500	8500
	80		10	8.7	14	30	61
	100		10	8.7	14	36	70

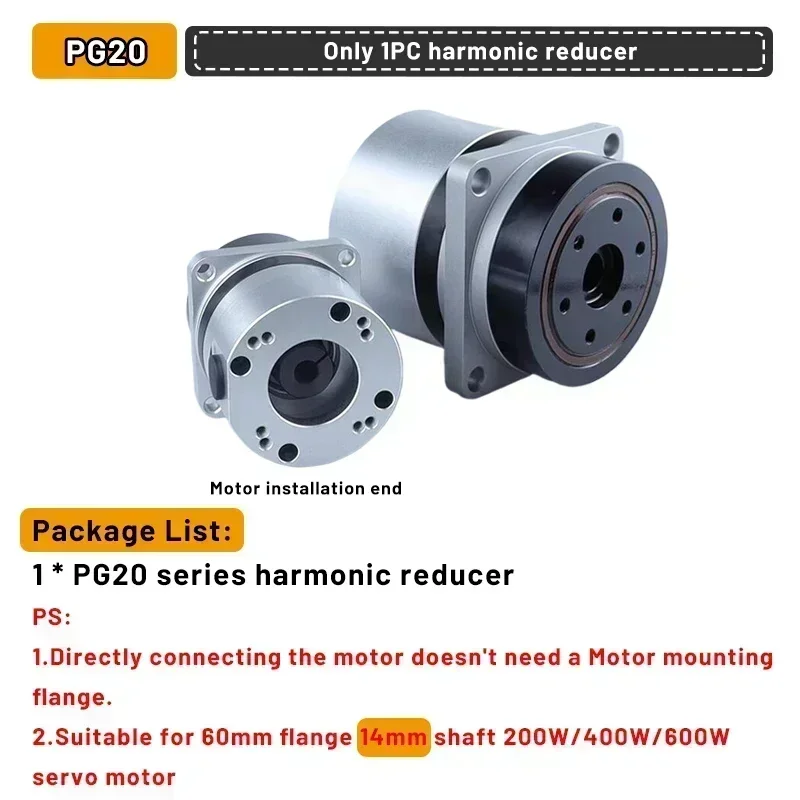

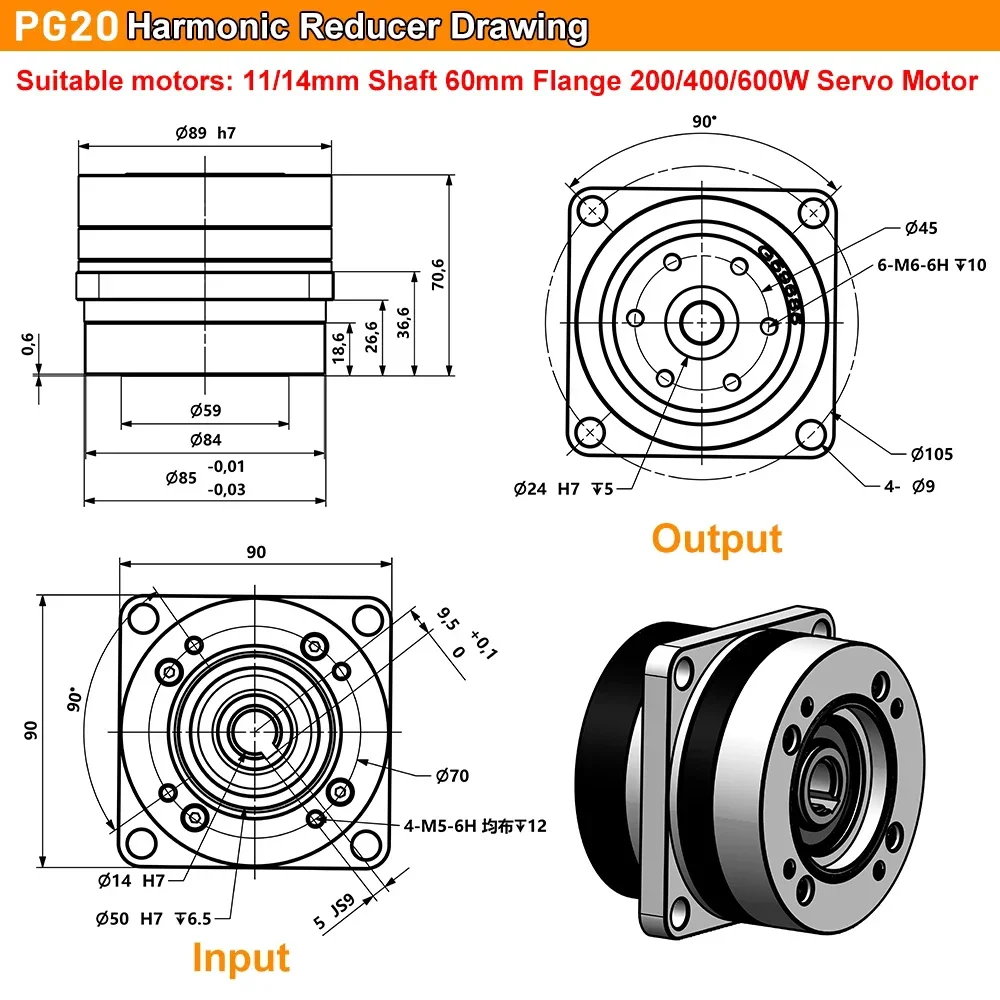

PG20	50	≤20	33	29	44	73	127	3500	6500
	80		44	38	61	96	165
	100		52	45	64	107	191

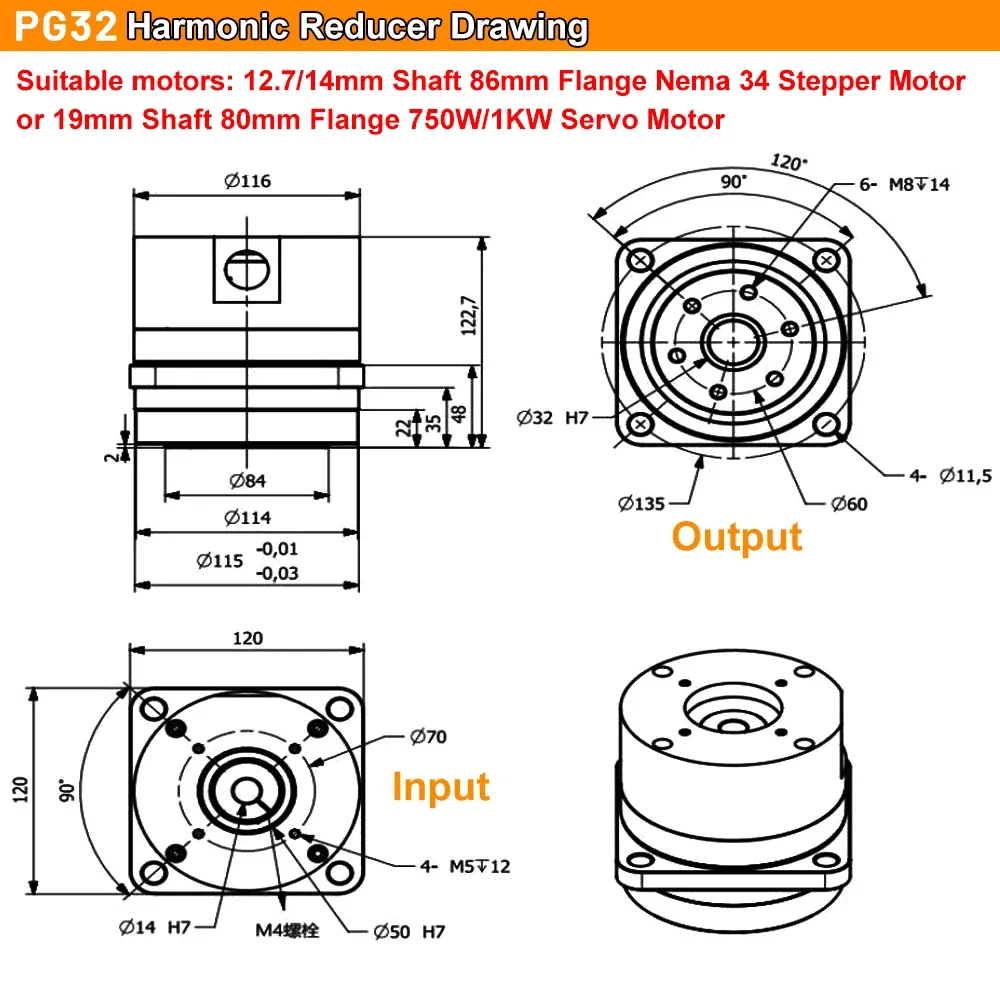

PG32	50	≤20	99	86	140	281	497	3500	4500
	80		153	134	217	359	738
	100		178	155	281	433	812
