- Battery Included: Yes
- High-concerned chemical: None
- is_customized: None
- Model Number: CS-300S
- Brand Name: CHNSpec
- Origin: Mainland China
Product Introduction
1). Extra Small Measurement Aperture

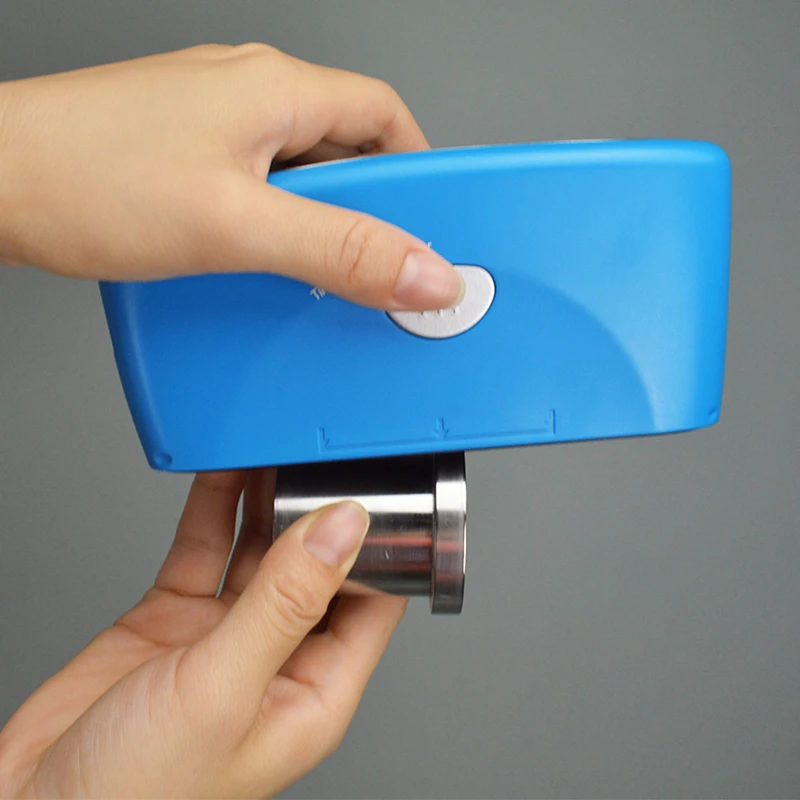

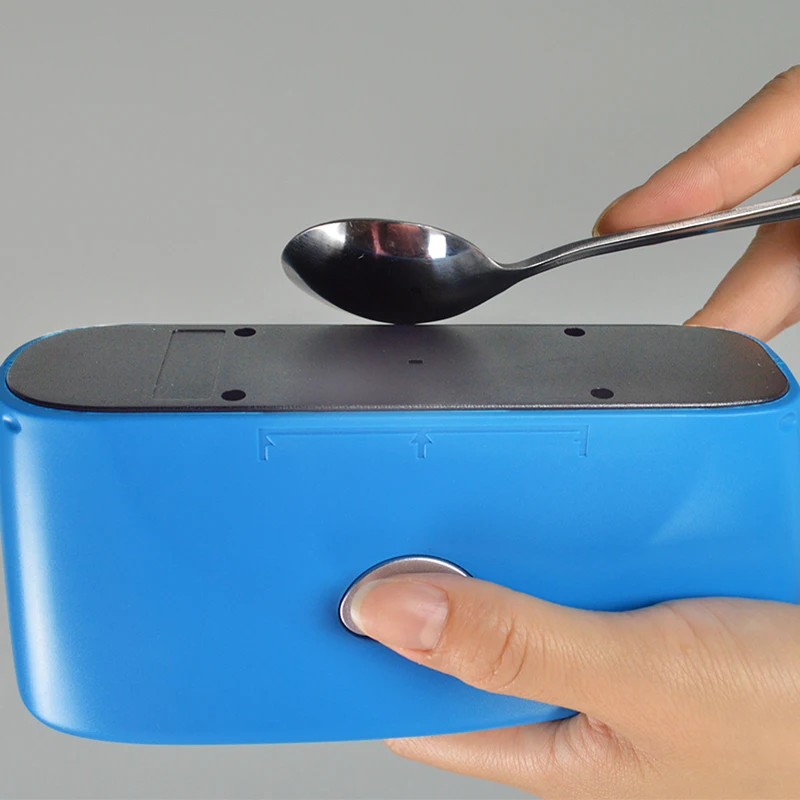

2*3mm measurement aperture makes it suitable to measure gloss for curve and irregular objects.
2). International Repeatability
Optimal design of the light source ensures the test result stability from the beginning of the measurement.
Dual-optical path technology, Japanese sensors, U.S. processor chips ensure accuracy for every gloss detection
3). Different test modes to meet the need of different requirement from customers.
Instrument is with both simple and statistic test modes.
Simple Mode: display the gloss test result
Statistic Mode:Comparegloss difference between target and standard samples.
4). Powerful PC Software
Instrument can connect with PC by USB cable, test result can be transfer into software for future analysis and generate test report.
5).Large Battery Capacity
We fully utilized every space of the device and specially custom made advanced high density lithium battery in 3000mAH , which ensures continuous testing for 54300 times.

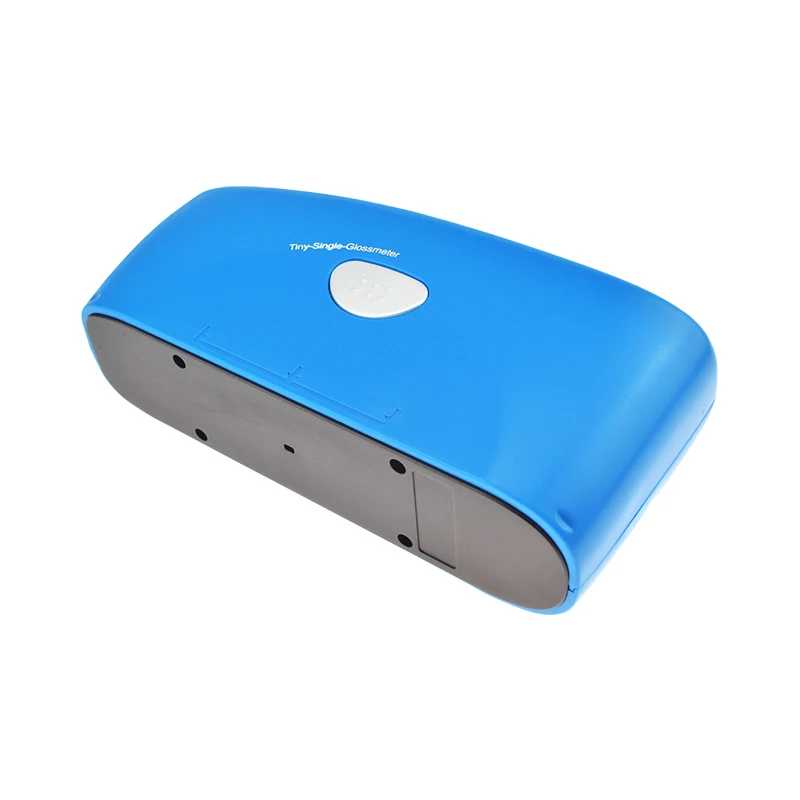

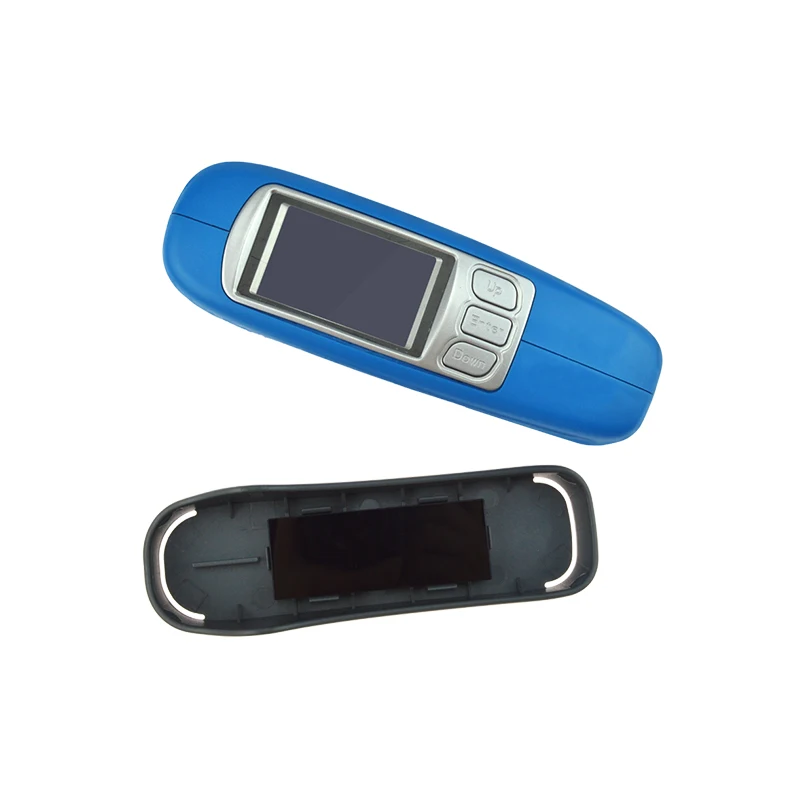

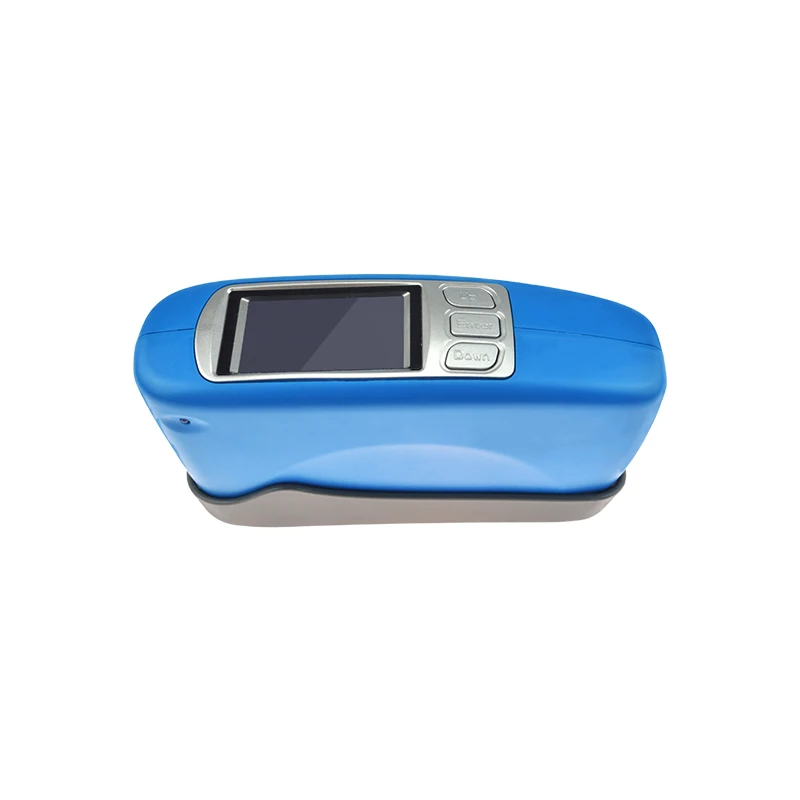

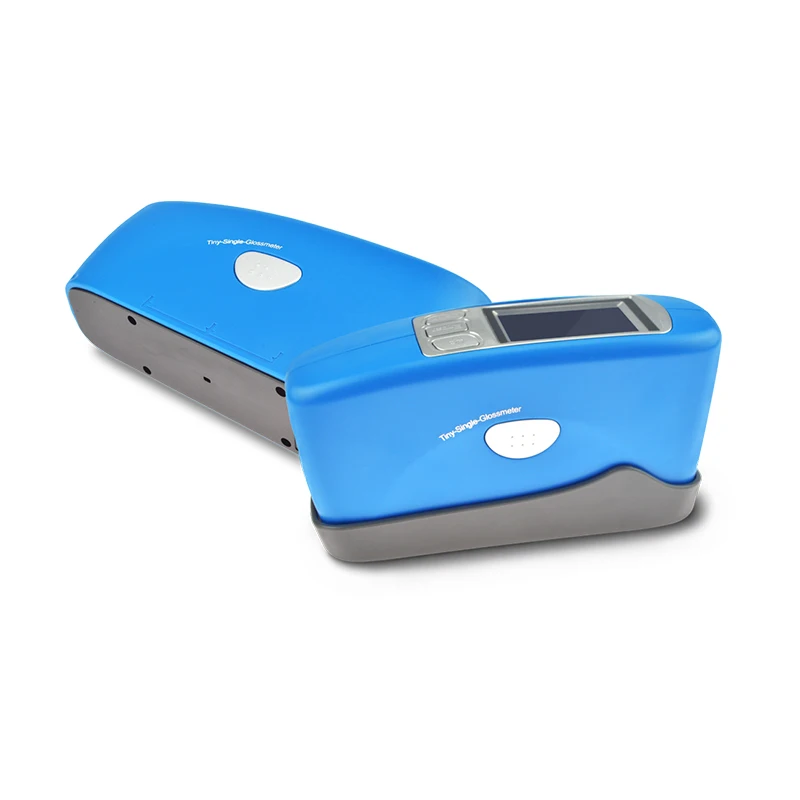

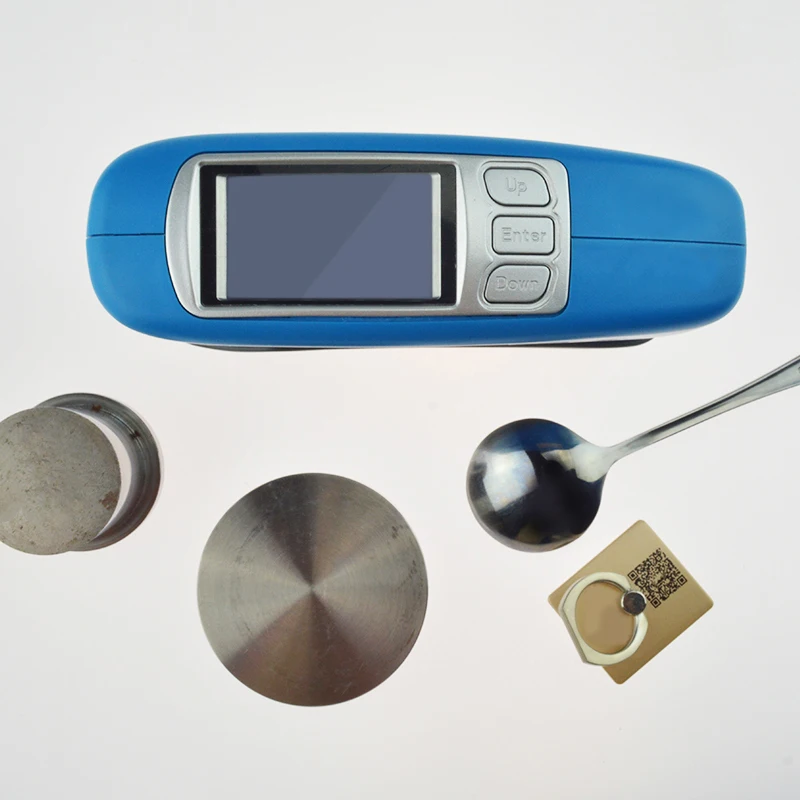

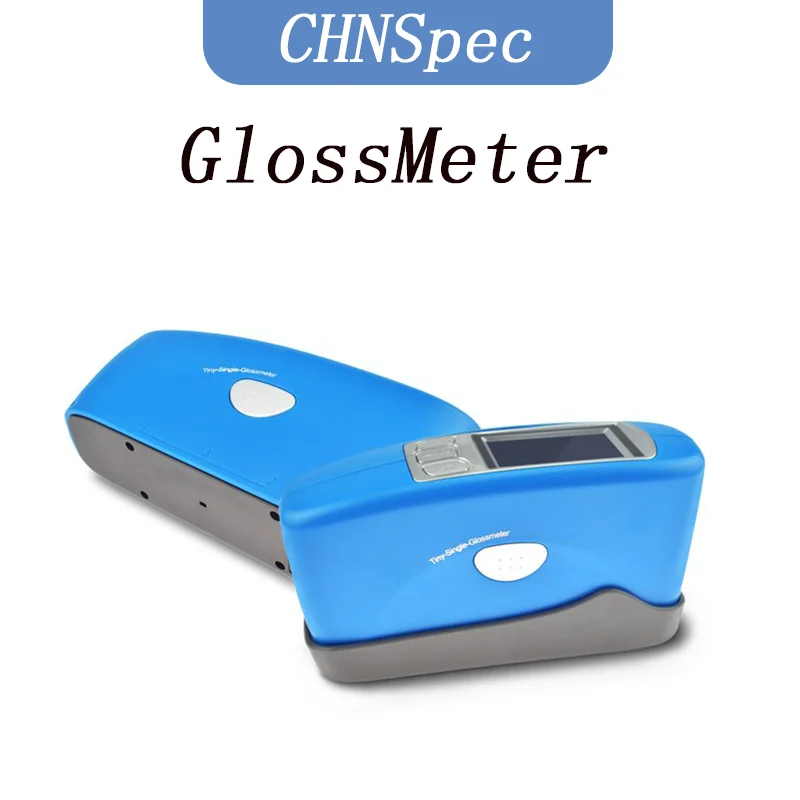

Instrument Pictures
Technical Data
Model | CS-300S |
Test Angle | 60° |
Measrement Aperture (mm) | 2 x 3mm |
Test range | 60°:0-600GU |
Resolution | 0.1GU |
Test modes | Simple mode, standard mode and sample testing mode |
Repeatability | 0-100GU:0.2GU 100-600GU:0.2%GU |
Accuracy | Conform to JJG 696 standard for first class gloss meter |
Test time | Less than 1s |
Data storage | 100 standard samples; 10000 test samples |
Size(mm) | 165*51*77 (L*W*H) |
Weight | About 400g |
Language | Chinese and English |
Battery capacity | 3000mAh lithium battery |
Port | USB, Bluetooth (optional) |
Upper-PC Software | Include |
Working Temperature | 0-40℃ |
Working Humidity | <85%, no condensation |
Accessories | 5V/2A charger, USB cable, operating manual, software CD, calibration boards, metrology accreditation certification |
Application
