- Produto Químico de Alta Preocupação: Nenhum
- Nome da marca: YUN DUAN
- Número do modelo: RS60-L
- Largura ou diâmetro do guia: 40mm-125mm
- Origem: CN (Origem)
- Certificação: CE
- Package List: 1 X Manual Sliding Table
- Moving Direction: R Axis
- Material: Aluminum Alloy

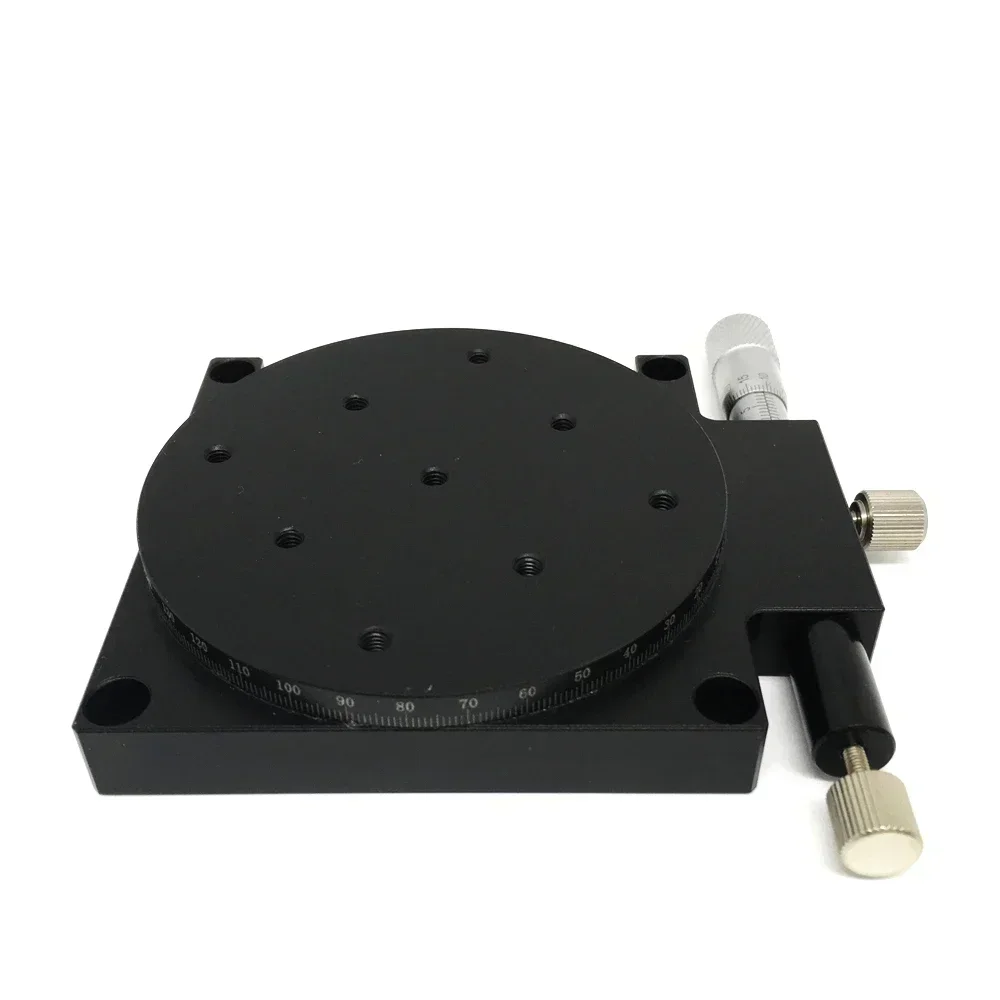

- Type: Rotary Sliding Table,Rotary Linear Stage,R Axis Linear Stage,Adjust Angle Platform
★Package List:1 X Manual Sliding Table
★Table Size:
RSP40-L: Φ38mm
RS60-L/ RSP60-L: Φ60mm
RSP80-L: Φ80mm
RS90-L/ RSP90-L: Φ90mm
RSP100-L: Φ100mm
RS125-L/ RSP125-L: Φ125mm
★Table Thickness:
RS60-L: 15mm
RS90-L/ RS125-L/RSP40-L: 20mm
RSP60-L/ RSP80-L/ RSP90-L/ RSP125-L: 25mm
★Moving Direction: θ Axis Rotary
★Stroke: 360° Coarse Adjustment, ±5° fine Adjustment
★Load:
RS60-L/ RS90-L/ RS125-L: 29.4N (3kgf)
RSP40-L: 9.8N (1kgf)
RSP60-L: 29.4 (3kgf)
RSP80-L/ RSP90-L/ RSP100-L: 39.2N (4kgf)
RS125-L: 49N (5kgf)
★Minimum Scale:
RS60-L: 10′
RS90-L/ RS125-L: 5′
RSP40-L/ RSP60-L/ RSP80-L/ RSP90-L/ RSP125-L: 5′
★Material:Aluminum Alloy
★Drive mode:Micrometer Head
Model | RSP40-L | RSP60-L | RSP80-L | RSP90-L | RSP100-L | RSP125-L | RS60-L | RS90-L | RS125-L |
R Axis Accuracy | Precision Type | Standard Type | |||||||
Moving | θ/R Axis One Direction | ||||||||
Table Size | Φ38mm | Φ60mm | Φ80mm | Φ90mm | Φ100mm | Φ125mm | Φ60mm | Φ90mm | Φ125mm |
Table Thickness | 20mm | 25mm | 15mm | 20mm | |||||
Stroke | 360° coarse adjustment, ±5° fine adjustment | ||||||||
Load | 9.8N (1kgf) | 29.4N (3kgf) | 39.2N (4kgf) | 49N (5kgf) | 29.4N (3kgf) | ||||
Minimum Scale | 5′ | 10′ | 5′ | ||||||
Parallelism | 0.03mm | 0.04mm | 0.05mm | 0.03mm | 0.04mm | 0.05mm | |||
Concentricity | 0.03mm | ||||||||
