- Hign-concerned Chemical: None
- Zoom type: Optical zoom
- Zoom: 50x
- Lens Quantity: Single Lens
- AI Functions: Smart Tracking
- Color Night Vision: Other
- Operating Temperature: -50°- +60°
- IP Rating: IP66
- App name: Other
- Power Mode: Mains Electricity
- Rechargeable Battery Capability: Other
- Rechargeable Battery: None
- Scene: Indoor and outdoor
- Movement Range(Tilt): Other
- Movement Range(Pan): Other
- Megapixels: 8MP
- TF Card: None
- Power Supply: With POE
- Internal Storage: 512GB
- Installation: Wall Mounted
- Color: White
- is_customized: Yes
- Audio Output: Two Way Audio
- Minimum Illumination(Lux): 0.01LUX-0.0001LUX
- Viewing Angle : 360°
- Video Compression Format: H.265
- IR Distance(m): 200m-300m/400m-500m
- Power Supply(V): 12V
- Alarm Action: FTP Photo,Local Alarm
- Power Consumption(W): 0-30W
- Supported Mobile Systems: iOS,Android
- Sensor Brand: Sony
- Sensor: CMOS
- Model Number: TP-PTZ08W-54X/90X
- Supported Operating Systems: Windows 10,Windows 8,Windows 7,macOS,Windows XP
- Lens (mm): 2mm
- Connectivity: IP/Network Wired
- High Definition: 8.0 Megapixels
- Style: Dome Camera
- Brand Name: TVPSii
- Origin: Mainland China
- Special Features: Waterproof / Weatherproof
- Certification: CE,FCC,RoHS
- Alarm Type: Local Alarm,FTP Photo,Email Photo

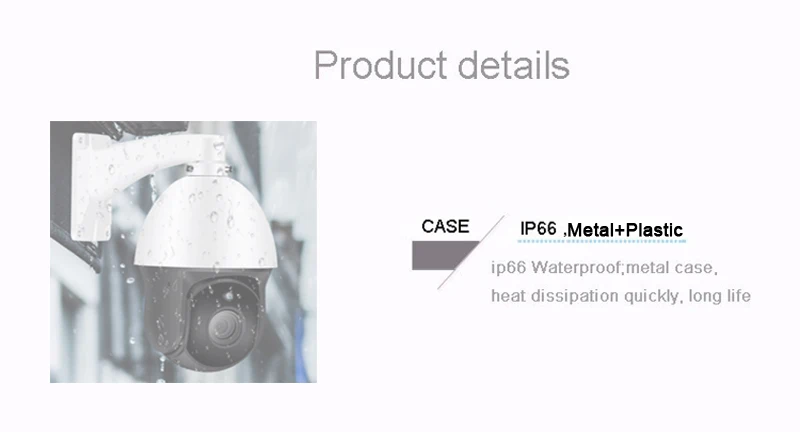

- Shell Material: Metal
- Smart home platform: Other
- Optical Zoom: None
- Power Source: With Poe
- Protocol: Onvif,Hikvision
- Camera IR LED: Laser Infrared
- Warranty: 3 years
- APP: Videolink
- POE function: support
- Rotation: Horizontal: 360 degrees, Vertical: 90 degrees
- Auto Tracking/Cruise: Support
- Auto Zoom: Supporrt
Friendly reminder:
Compatible With Network Work Video Recorders Such as Dahua NVR;Hikvision NVR;XMeye NVR,TVPSII NVR and other Onvif protocol NVR.
This Camera of link is POE PTZ Camera ,it can powered by 12V Power adapter,POE Switch,Poe injector or POE NVR.it can be controlled by phone(APP),PC(Web Browser,PC Software) and DVR NVR.
Support automatic tracking,automatic cruise,and SD storage(so can choose buy camera with 512GB, 256GB SD Card).
Support multiple cruise settings, fixed-point cruise, cruise between two points, cruise between multiple points and 360-degree cruise.
Automatic cruise and automatic zoom( Lens auto Zoom in and out) are the basic functions of the PTZ Camera. Many other brands of PTZ Camera do not support them, so Becarful!

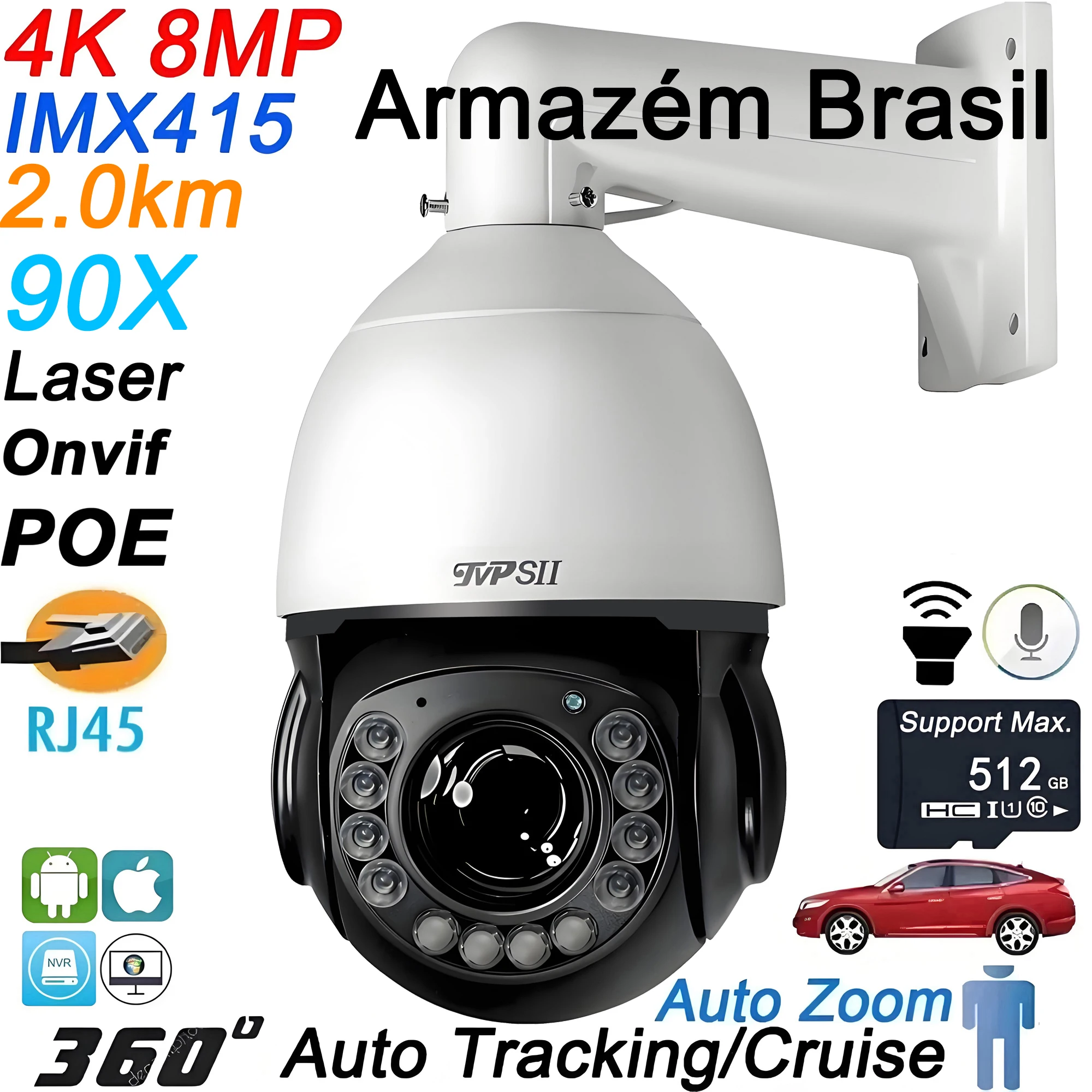

Mstar338Q+1/2.8" Sony IMX415:8MP 4K ,3840px*2160px,20fps (support SD Card,Auto Tracking)
Support Auto Zoom,Auto Tracking human

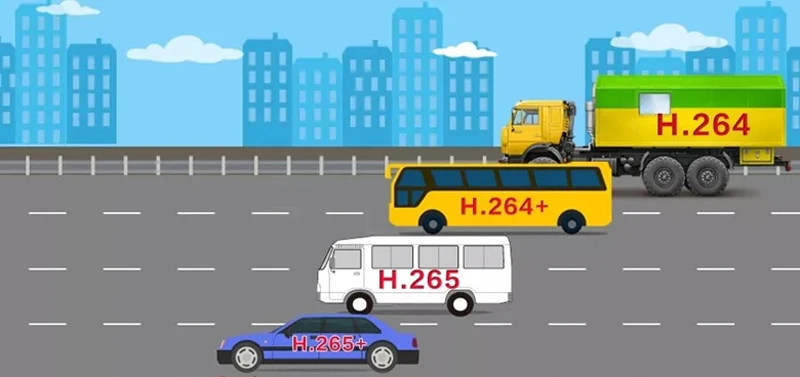

Q:What is H.265+ Compression?
A:H.265+ is the newest compression format of surveillance video , it not only runs faster and smoother but also takes up less storage capacity.
Q:There are many ommand statement in PTZ Menu.
A:Support AB preset scan, patrol scan, idle function, focus zoom, timer function, subject of dome camera and so on......

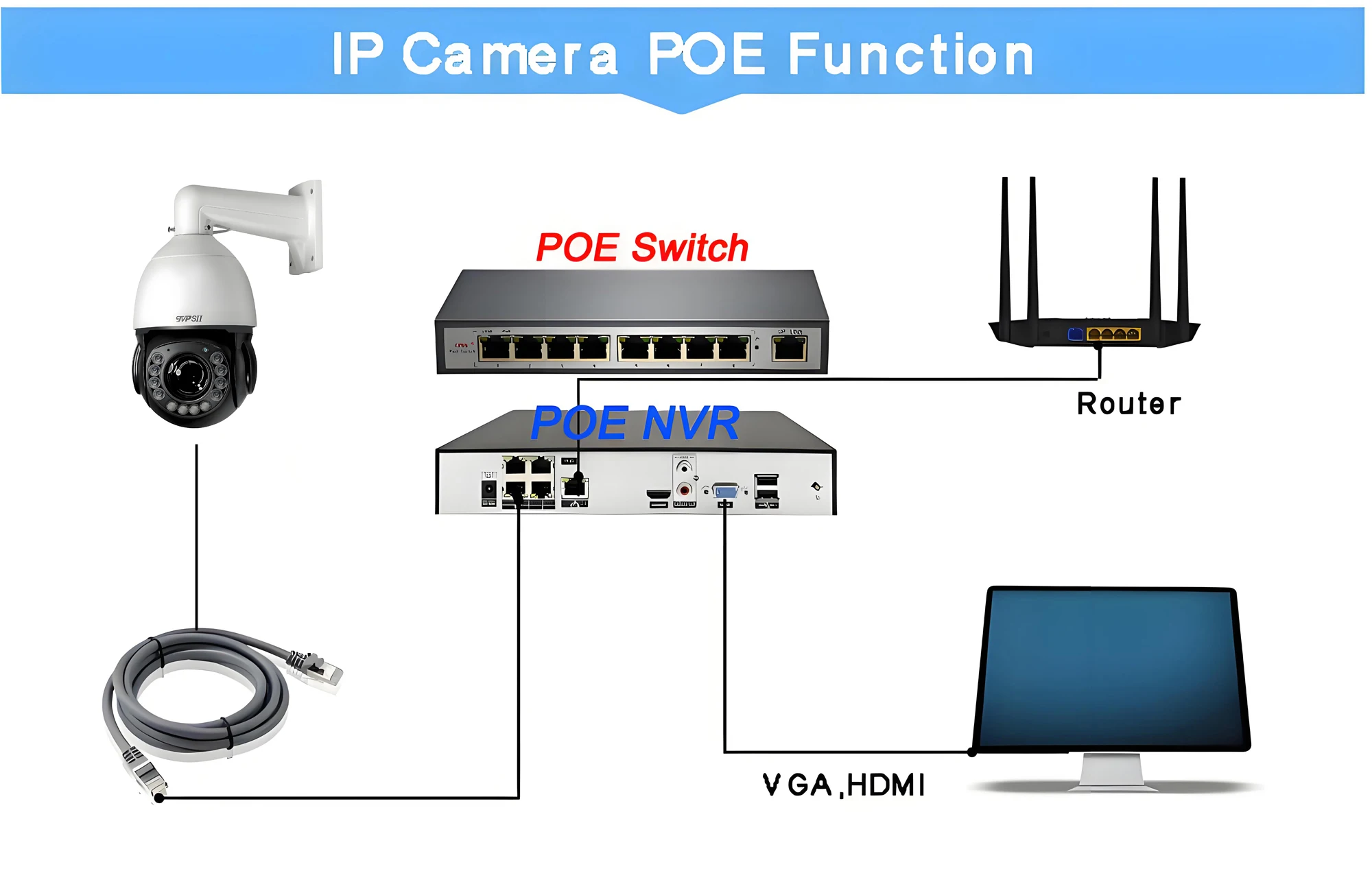

Q:What is POE function for IP Camera?
- 54X infrared distance(200m-300m)
- 90X infrared distance(400m-500m)
Resolution | 8MP 4K | |||
system structure | Mstar339Q | |||
CMOS Sensor | 4K 8MP 1/2.8" Sony IMX415 | |||
Min illumination | Low illumination 0.001Lux | |||
Video processing | H.265AI / H.265 + (compatible with H.265 / H.264) encoding, dual stream, AVI format | |||
Image output | 8MP 3840*2160@20fps | |||
Shutter | 1/50 (1/60) seconds to 1/10000 seconds | |||

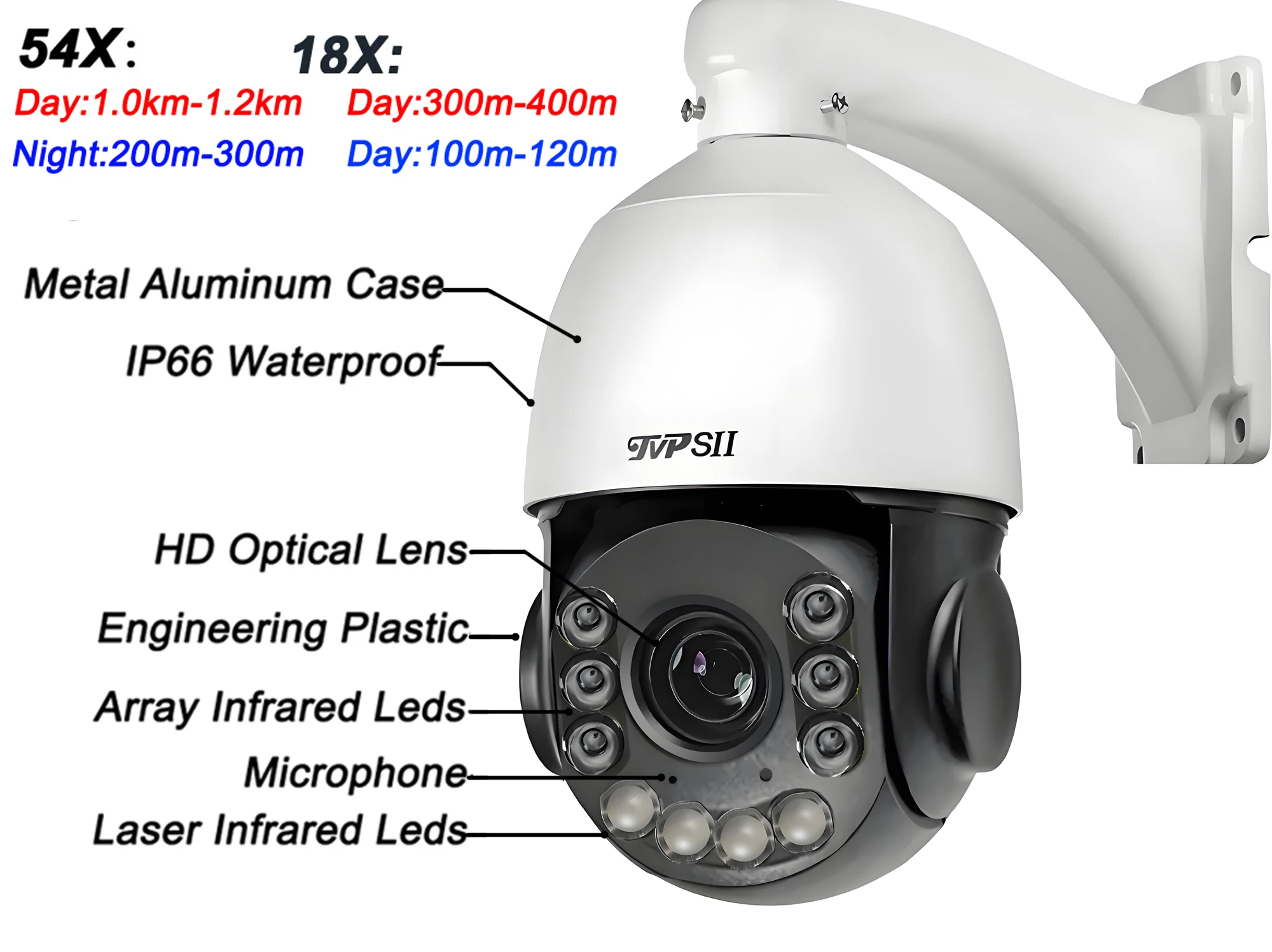

Infrared Led Light | 6pcs infrared Array Led +4pcs laser led light(54X)/8pcs infrared Array+4pcs laser led light(90X) | |||
IR Distance | 54X:200m-300m,90X:400m-500m | |||
Conversion mode | Day and night conversion mode | |||
Noise reduction | Support 2D/3D noise reduction | |||
Wide dynamic | digital wide dynamics | |||

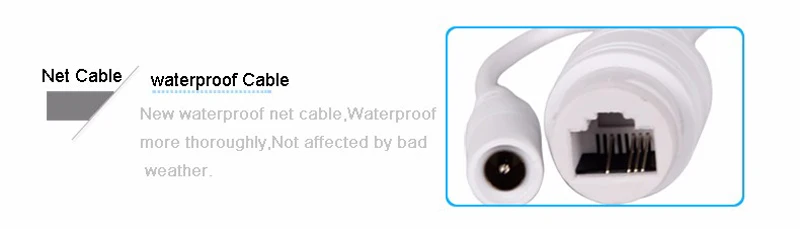

Network Interface | 1*RJ45 network interface,10/100M adaptive | |||
Reliability | Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours -50 ℃ ～ 65 ℃ test is stable and reliable | |||
Cruise settings | Support(Fixed-point cruise, cruise between two points,360° cruise,......) | |||
automatic tracking | Support | |||
SD Card | Support(Max:512GB) | |||
POE Function | Support | |||
Network protocol | TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPN,RTMP | |||
Presets | 255 | |||
Optical focus | 54X,90X | |||
protocol | Hikvision,Dahua,Onvif | |||
Rotation | 90 degrees vertical,360 degrees horizontal | |||
Water resistance | IP66 | |||
Work Temperature | -50°C ~ +60°C | |||

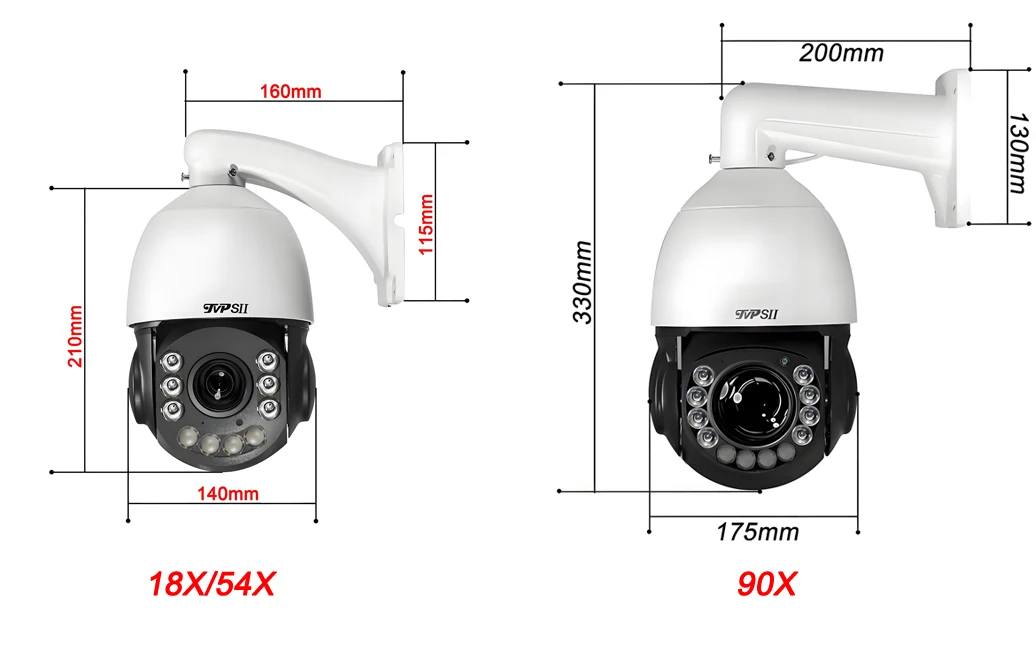

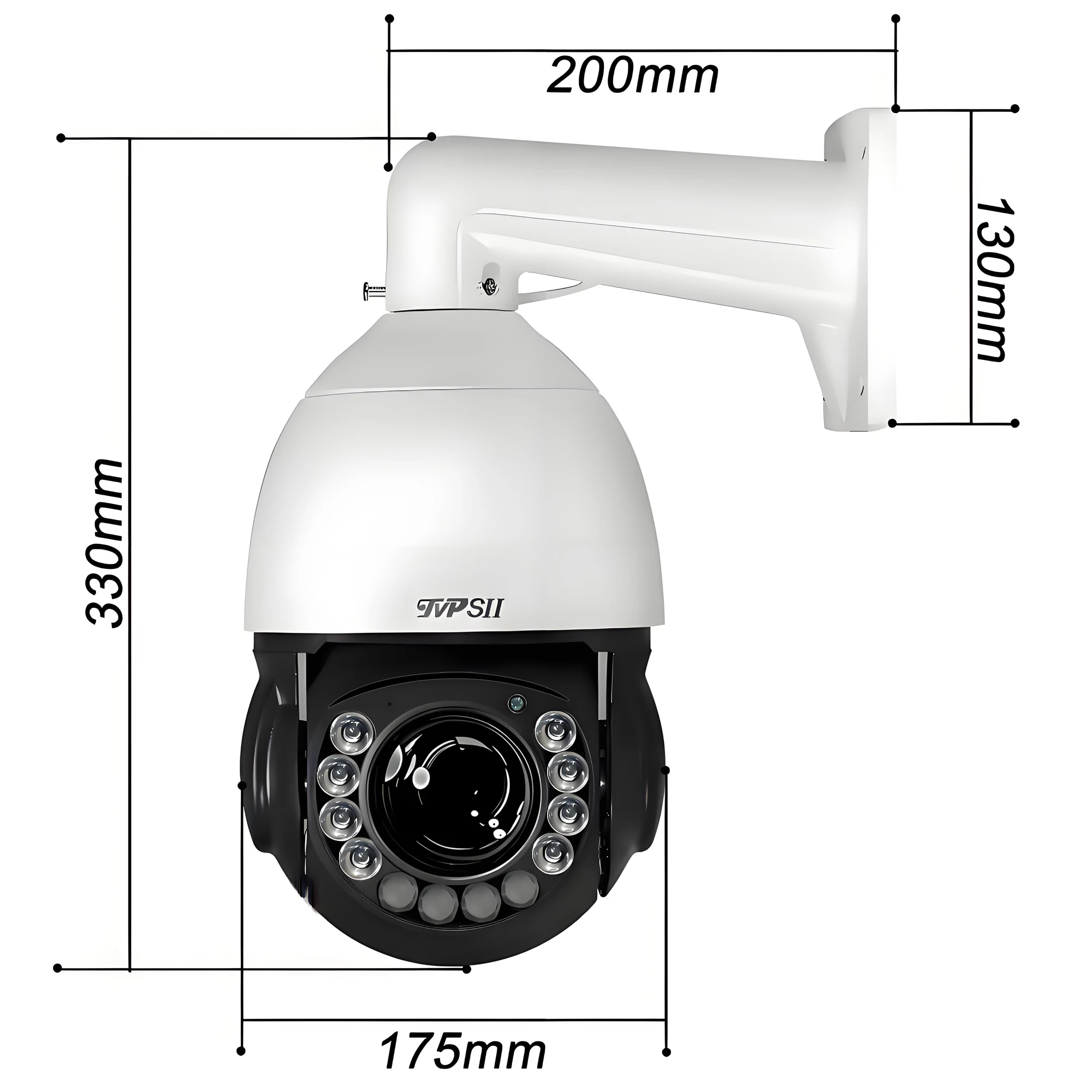

Weight | 1.95kg(54X)/3.5kg(90X) | |||
Phone monitoring | Videolink | |||
Power Supply | Power by POE | |||
Friendly Reminder:
the default ip address is 192.168.1.XXX please use PC Software or NVR find ip address.
if choose buy poe ip camera, this camera support 12V DC and 48V POE
we only spent two days (48 hours) for sent parcel , have tracking number and tracking number information.
if you choose DHL for sent goods, please make sure that your address is not in remote areas for DHL,because it will produce huge transportation costs for remote areas, this also need pay by buyer.
NOTICE:
if you have any question about this Goods and Logistics,Contact us in the above manner,we will try our best to help you,if you input dispute or give negative feedback without responsible ,we not welcome unfriendly client,Thanks!
