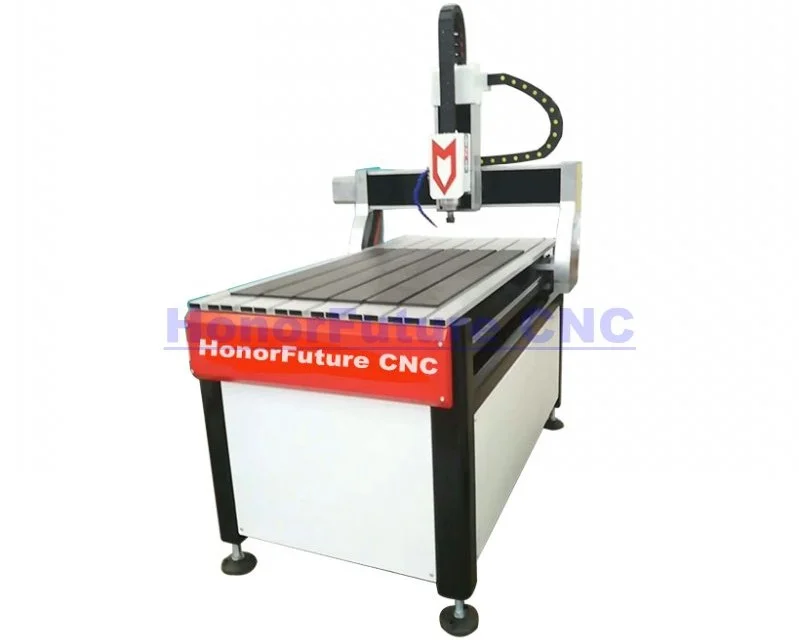

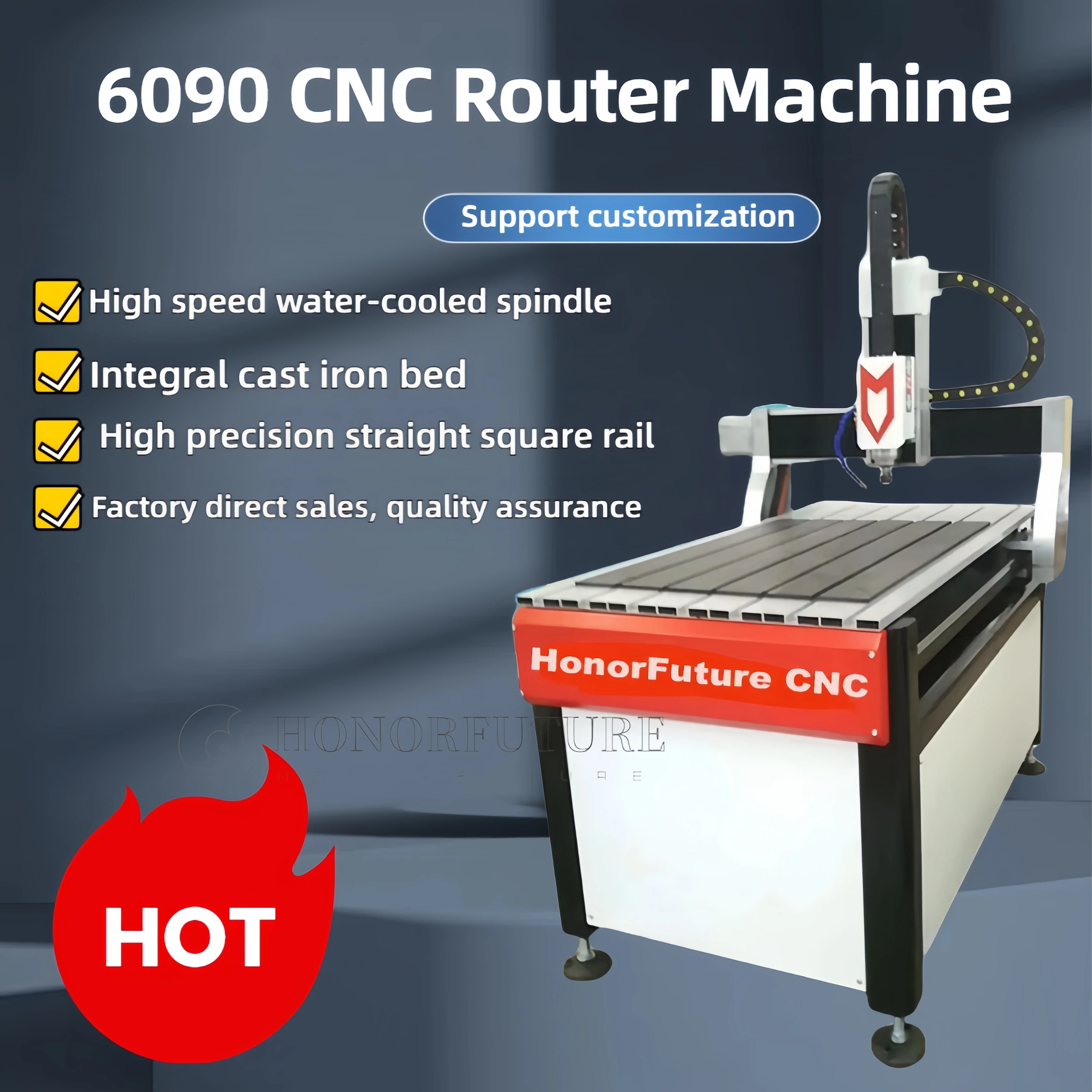

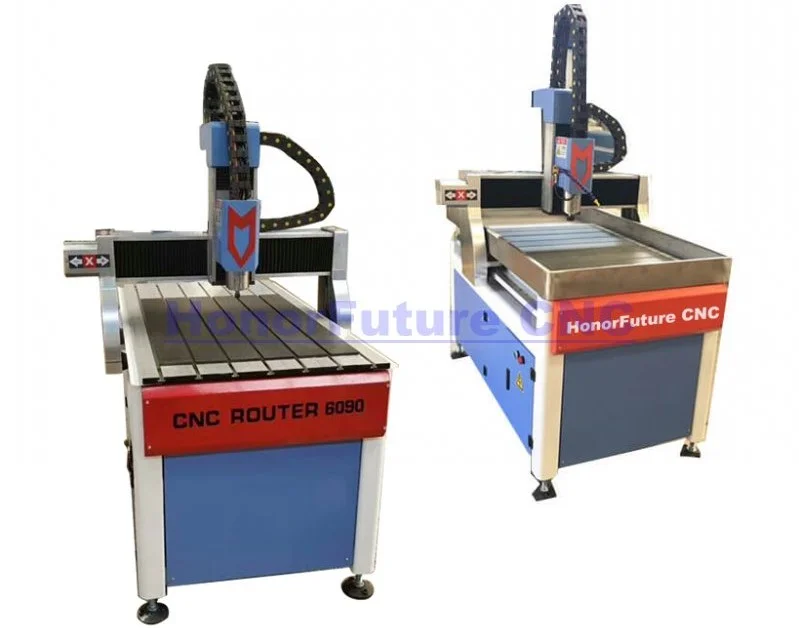

Metal Aluminum Iron Wood PVC Engraving and Cutting Machinery 6090 Cnc Router Carving Milling Machine for Metal

Name: Metal Aluminum Iron Wood PVC Engraving and Cutting Machinery 6090 Cnc Router Carving Milling Machine for Metal
SKU: 1005009233765769
Availability: InStock

Product Features

(1) Machine body design with high strength , which have more reasonable design,

fast processing speed, easy-operated maintenance, and low fault rate.

(2) Advanced CNC processing system has powerful functions and humanized operation, as well as can receive data through U disk or network.

(3) Imported and high precision linear guide ralls have features such as stable operation, high precision and steady support, which prolong the service life of machines.

(4)Z-axis adopts imported ball screw with industrial level can positioning accurately and make processing effects more perfect.

(5) Energy-saving vacuum absorption table function and dust collectors can protect the environment.

(6) Software has good compatibility. The machine can be compatible with various CAD/CAM designs &making software, such as Type3 / Artcam / UG / Pro-E /Mastercam/UcancamV8 etc.

Technical Parameters

Description	Parameters
Model	HF6090	HF1212	HF1224
Working area	600x900mm	1200×1200mm	1200×2400mm
Working precision	0.05mm/300mm
Feeding height	150mm
Spindle power	1.5/2.2KW water cooling spindle
Spindle Speed	0-24000 RPM
Rail type	Taiwan linear guide rails
Control system	NC Studio controller/ DSp
Drive type	Stepper
Inverter	Tailan inverter
Transmit	Ball screw
Table type	Aluminum profile T slot clamping
Max travel speed	12000mm/min
Power	AC220V±10%/50~60Hz
Compatible Software	Type3/Artcam/UG/Pro-E/Mastercam/UcancamV8 etc
Command code	HPGL, G code
Machine/packing size	140014001500mm	180017001600mm	305019501600mm
Net/Gross weight	300kg/350kg	700kg /800kg	800kg /900kg

Products details

Application Material& Sample

1. Woodworking

Processing of various furniture such as door, window, cabinet, craft wood door, screen, etc.

2.Advertisement

Engraving and cutting various labels and number plates.

3. Art craft

Engraving characters of any language and graphics on gifts and souvenirs. Balustrade, furniture legs stair railing, cylinder items, handrail, desk or chair legs, the human body, avatar, 3D cylinder mold. and avariety of rotational symmetry.

Applicable Materials

Wood. aluminum board. plastic, density board, wave board, PVC, acrylic, crystal, light marble, and other non-metal materials and light metal materials.
