- Product keyword: Electric Sliding Table
- Slide type: Trapezoidal lead screw sliding table
- Motor type: Nema11 2PH Open-loop Stepper Motor
- Horizontal load: 5KG (Max)
- Vertical load: 2.5KG (Max)
- Motor Holding torque: 0.07N.m

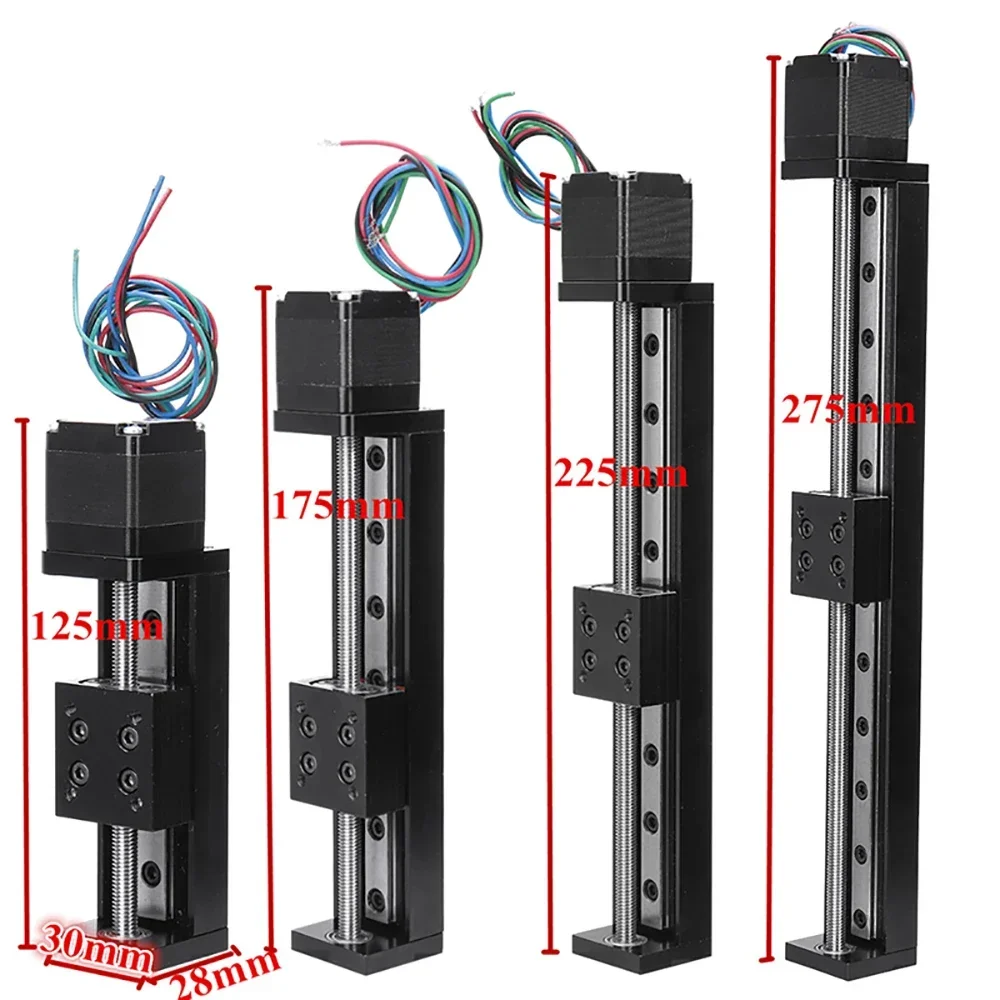

- Effective stroke: 50mm-300mm
- Mobile panel size: 30mm*32mm
- Repeat positioning accuracy: 0.02mm-0.03mm
- Base plate material: Aluminum profile
- Rail material: Bearing steel
- Maximum speed: 80mm/s
- Screw Precision: C7
- Current: 0.6A
- Step angle: 1.8degree
- Drive Input voltage: DC 9-42V
1* Sliding Table
1* Nema11 2PH Open-loop Stepper Motor
1* TB6600 Drive (If you choose the drive kit)
PS:
1.If you need a power supply, please place an order through this link: https://www.aliexpress.com/item/4000149262537.html
One S-200-24 power supply can run up to 3PCS T06 electric sliding tables simultaneously.
Sliding Table Specifications:
Model: T06
Slide type: Trapezoidal lead screw sliding table
Horizontal load: 5KG (Max)
Vertical load: 2.5KG (Max)
Effective stroke: 50mm-300mm
Total Length: Effective Stroke+75mm
Mobile panel size: 30mm*32mm
Repeat positioning accuracy: 0.02mm-0.03mm
Base plate material: Aluminum profile
Rail material: Bearing steel
Maximum speed: 80mm/s
Rail width: 6MM
Block: MGN8H
Screw Precision: C7
3D model: https://drive.google.com/file/d/1ERFa84sdnamx8LlSu18T0Cpqk4oCq9RK/view?usp=share_link
Pitch: 1mm(If the pitch your choose is 1mm, it means that the motor rotates once and the moving panel moves 1mm.)
Video of measuring pitch: https://drive.google.com/file/d/12YSnp_fQlsHfOi4Rk869w7r9ZZpgFI18/view?usp=share_link
The T06 slide has a self-locking function, which is related to the pitch.

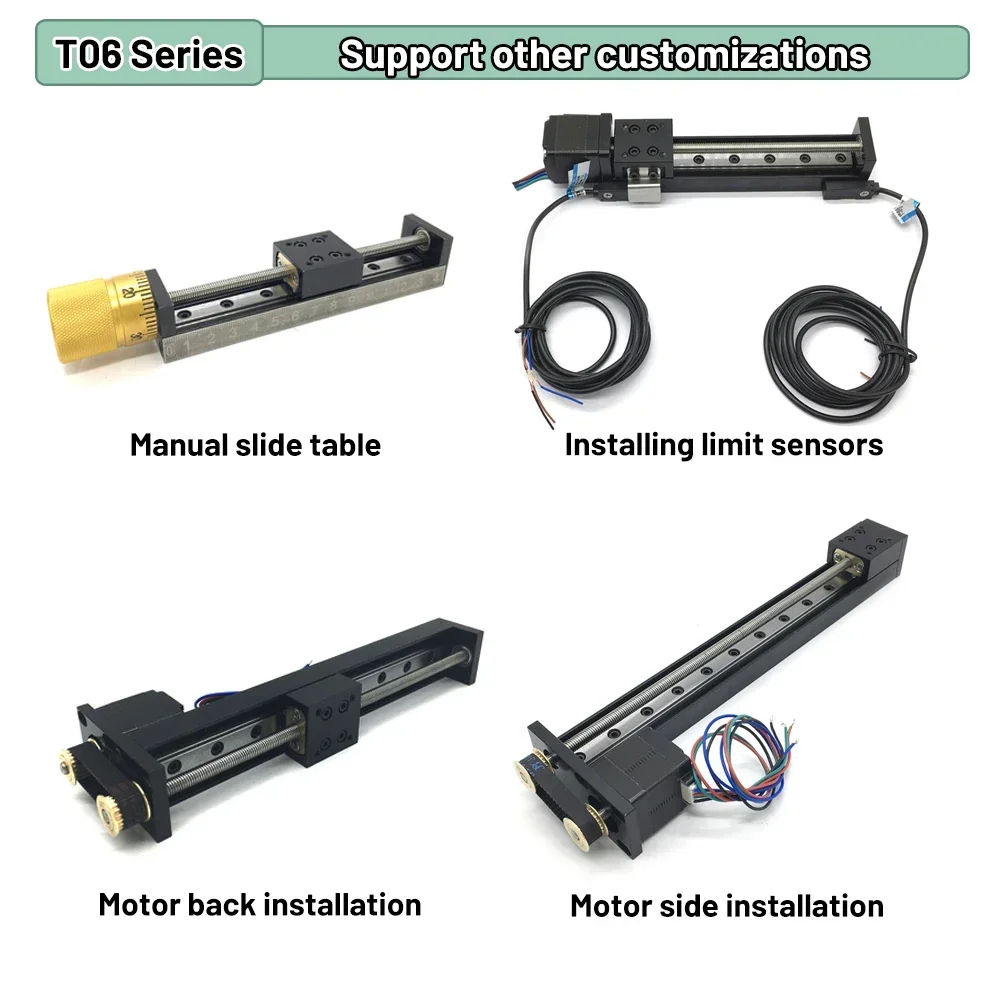

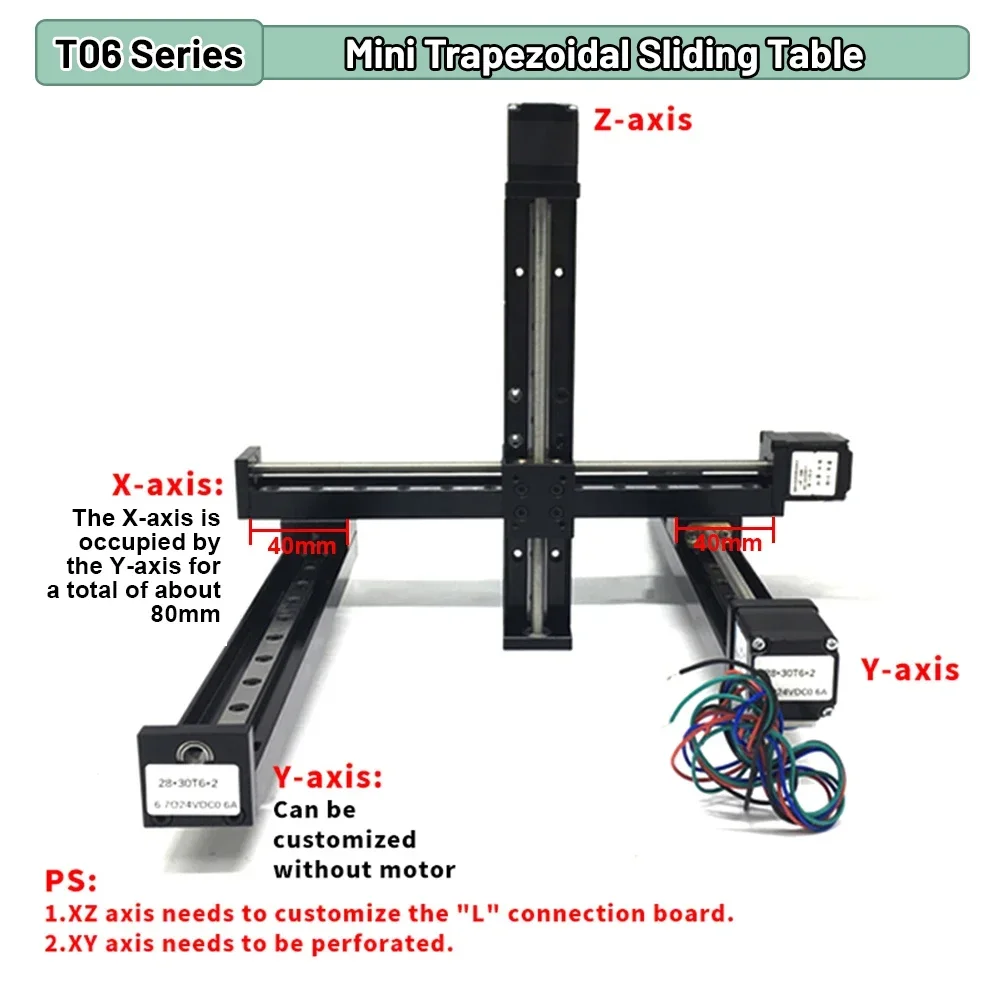

PS: We support customized connecting plates for multi-axis systems.

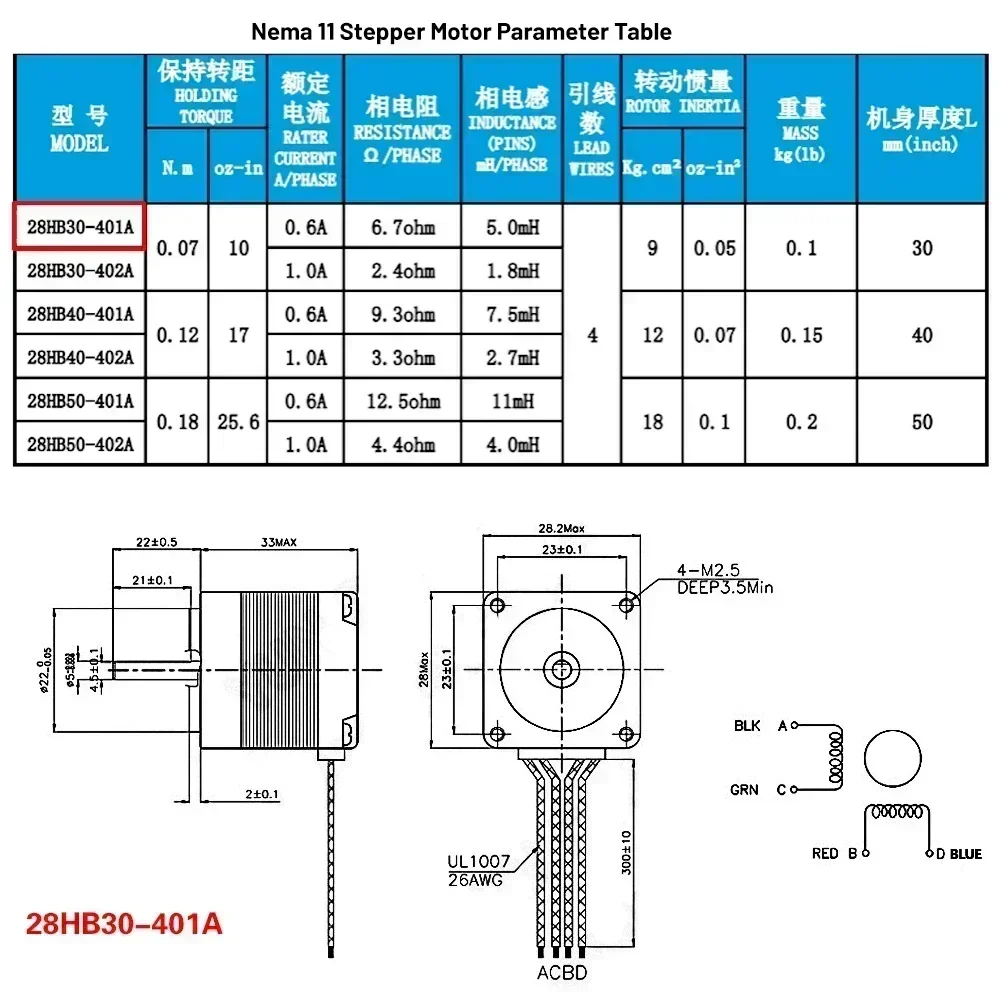

Stepper Motor Specifications :
Model: 28HB30-401A (Support customized 28HB40-401A motor)
Motor Flange Size: NEMA 11(28MM)
Holding torque: 0.07N.m
Body length: 30mm
Shaft diameter: 5mm
Type:Hybrid Motor
Phase: 2 Phase
Current : 0.6A
Certification: CCC,CE, ISO
Step angle: 1.8degree

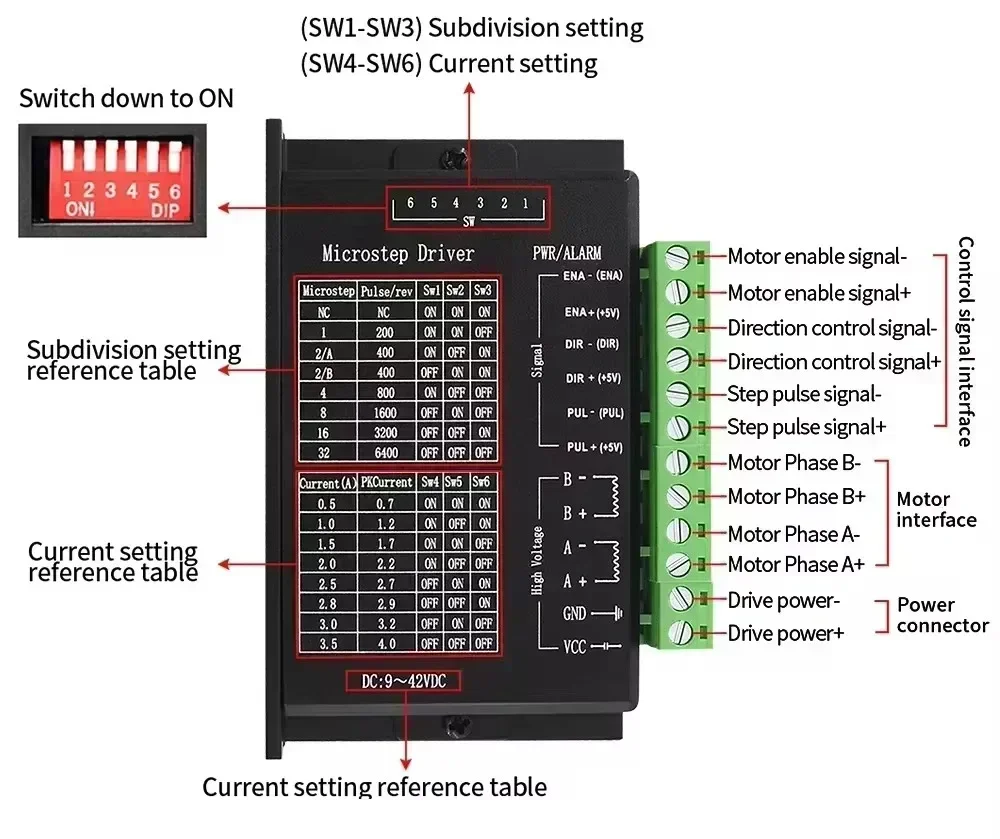

Drive Specifications:
Model: TB6600
Manual: https://drive.google.com/open?id=1NHNwZy4P7mjvHdQcrkXWJ-gS2cBF_tMk
Input voltage: DC 9-42V
Input/ Output current: 0.5-3.5A
Maximum power: 150W
Subdivision: 1,2,4,8,16,32
Operating environment temperature: -10～45℃
Storage temperature: -40℃～70℃
