CNC Router Machine 4040-PRO for Woodworking Metal Acrylic MDF Nylon Cutting Milling, GRBL Control, 3 Axis CNC Engraving Machine, Working Area 400 x 400 x 78mm (15.7" x 15.7" x 3.1")

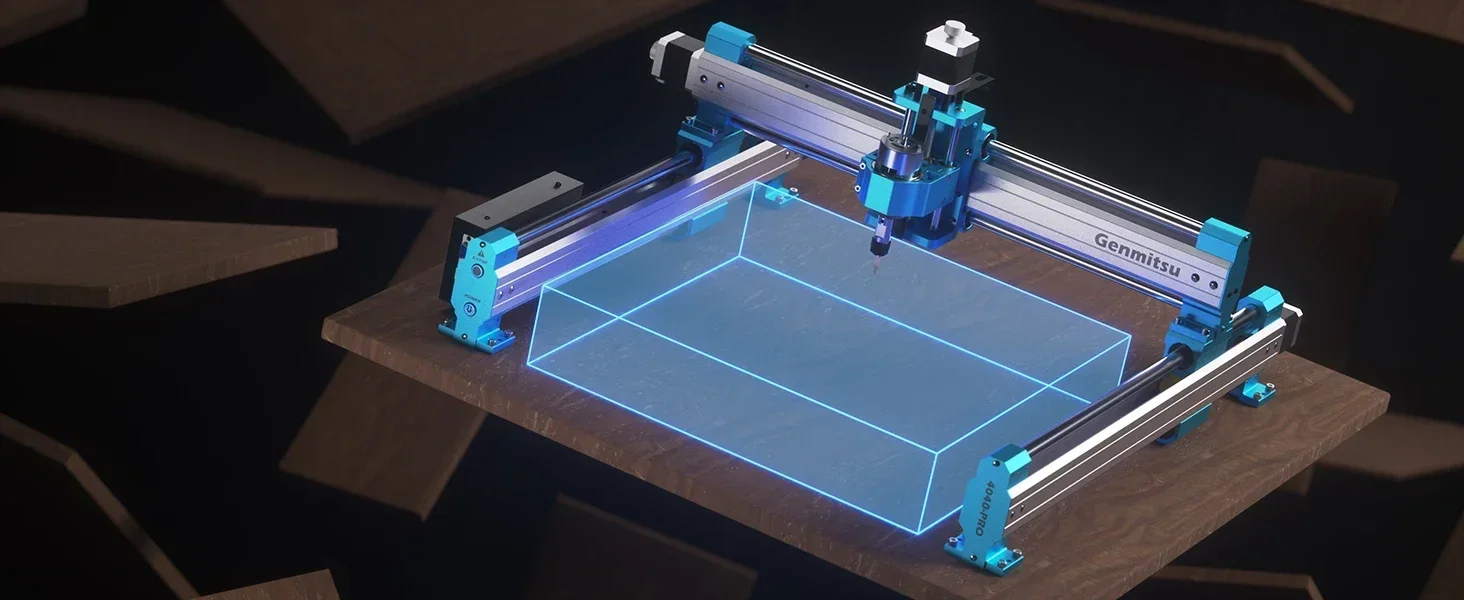

An effective working area of 15.7" x 15.7" x 3.1" is large enough for most daily wood carving projects. The redesigned Z-axis carriage makes swapping a spindle easier. Adding more screw holes on the non-all-in-one Z-axis carriage allows you to install the larger spindle higher for extra overfeed height.
New Steel HSS Frame - all new redesigned frame structure, each axis is composed of two 16mm Steel HSS linear tubes and a lead screw motion drive, dual Y axis rails, and all metal frame. This new high-rigidity structure ensures the stability and accuracy of the milling machine.

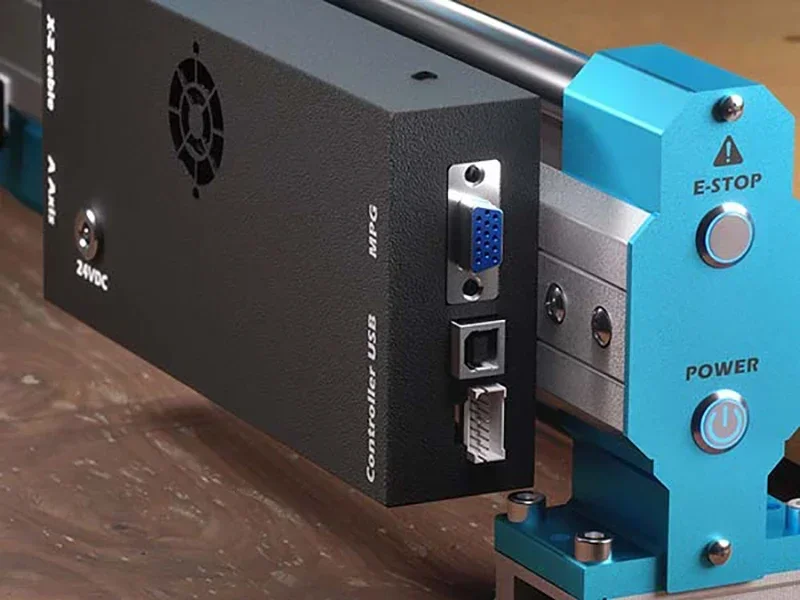

Still based on open-source Grbl v1.1, the 4040-PRO CNC router has stepped up to more powerful but silent Toshiba TB6S109 drivers with 32-bit chips. Upgrades include extended function ports like a dedicated 3 Pin Laser Port, Air Assistance Pump Port, and MPG Port.
All main parts are pre-assembled and it just takes about 15 minutes to finish the whole machine assembly. The spoilboard is combined by two pieces of MDF boards. Each MDF board could be replaced individually. You don't need to replace the whole spoilboard when a panel gets damaged.
The 4040-PRO CNC machine is supplied with 42mm and 52mm spindle mounts. The additional 65mm (B0BRZSY475), 69mm (B0BRZSVVK3) spindle mount, laser module, and other upgraded accessories are available to order. You can easily upgrade the machine according to your needs. If you get stuck, check out the SainSmart Resource Centre (see User Guide) or contact us with any questions you may have.
It supports adding the 4th-axis rotary module kit. The 4th-axis kit enables your 4040-PRO desktop CNC to carve from different angles and positions or with the right software full 3D rotary caving.
Here at SainSmart we have been serving the maker community for years, starting in the early days with high-quality electronic parts and into today with our Genmitsu line of CNC mills for every experience level.
We love making, we are just a bit different than the people we make our products for. Our passion is making the best, most affordable tools available and getting them out to the maker community at large to do their thing!
Genmitsu Router Bits Database
Download the database and start your engraving easily. (Check at the Product Guide and Documents of the product page)
CNC Machine
CNC Machine

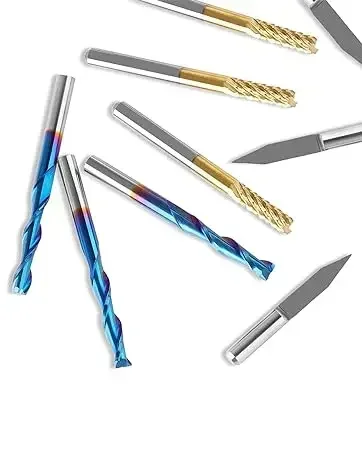

CNC Router Bits
CNC Upgrade Accessories
Product Description
Genmitsu 4040-PRO CNC Machine
Increase your work output with faster milling and increased stability. Whether you're a CNC beginner, a hobbyist, or a small business owner looking for enterprise quality for commercial purposes, this is an excellent choice.
15-Min Frame Assembly
All main parts are pre-assembled and it just takes about 15 minutes to finish the whole machine assembly. Adding more grooves and locating pins on the main assembly parts will help you to locate the parts, avoid inaccurate alignment, and makes assembly easier.
New Structure

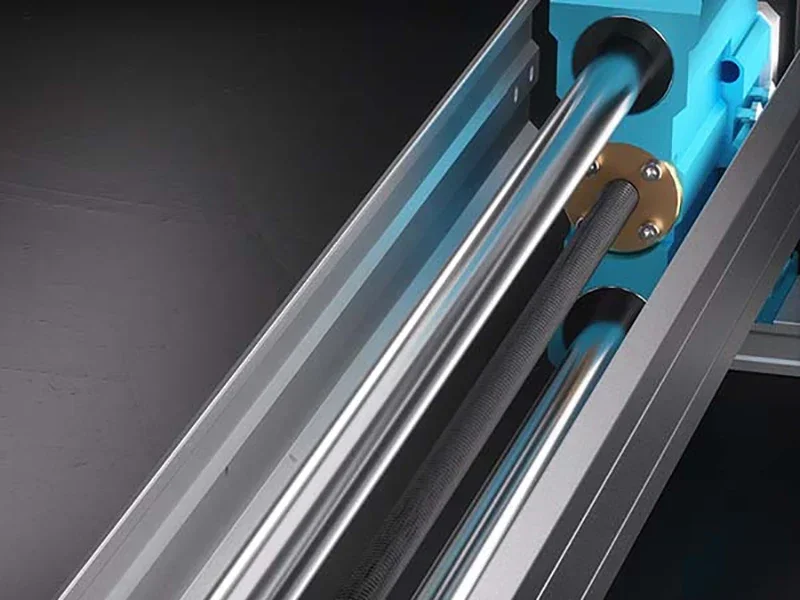

Each axis is composed of two 16mm Steel HSS linear tubes and a lead screw motion drive. The design of a dual Y axis makes the CNC machine run with higher accuracy and better rigidity than Belt-driven.
No Additional Parts Required
The 4040-PRO CNC machine includes all of the essential accessories and components you need to get started, including X, Y, Z axis limit switches, emergency stop switches, and Z-probe. The Z-probe that comes with the 4040-PRO CNC machine is the Photoelectric Z-probe, which works more accurately.

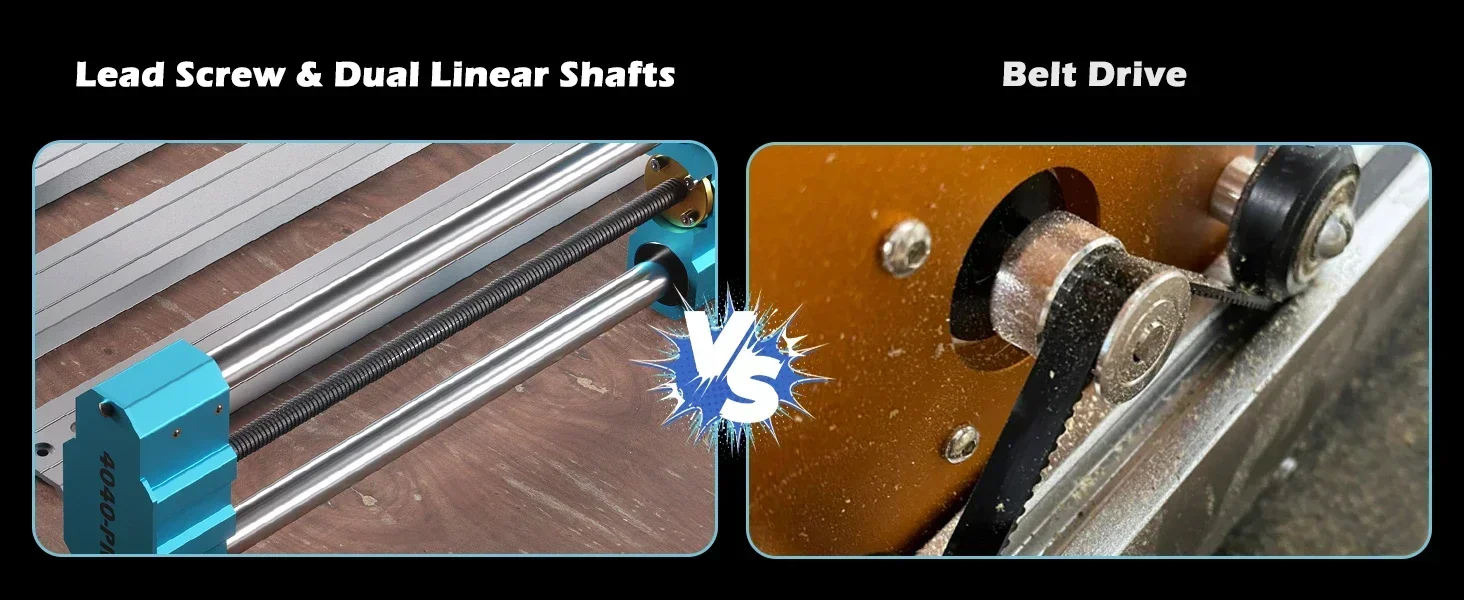

Screw drives provide better positioning accuracy compared to belt drives, as they are less affected by elastic deformation and swing clearance. Additionally, screw drives are easier to maintain during use, eliminating the need for tedious belt leveling and offering greater durability.
Specification Comparison
XY Axis Effective Working Area
15.7 x 15.7 inch 15.7 x 11.8 inch 15.7 x 11.8 inch 15.7 x 15.7 inch 15.7 x 15.0 inch
Z Axis Effective Working Range
3.1 inch 4.3 inch 4.3 inch 2.4 inch 2.2 inch
Body Material
All Aluminum All Aluminum All Aluminum All Aluminum Aluminum & Acrylic
Drive System
Lead Screw+ Dual Linear Shafts C Beam Structure &Linear Rails C Beam Structure & Ballscrew Belt & Linear Rail Belt & Lead Screw
Stepper Motors
NEMA 17 NEMA 23 NEMA 23 (Closed-Loop Motor) NEMA 17 NEMA 17
Spindle Motor
75W 300W 300W 60W 60W
4 Axis Support
MPG Support
Secure Locking Feet
Compatible Accessories

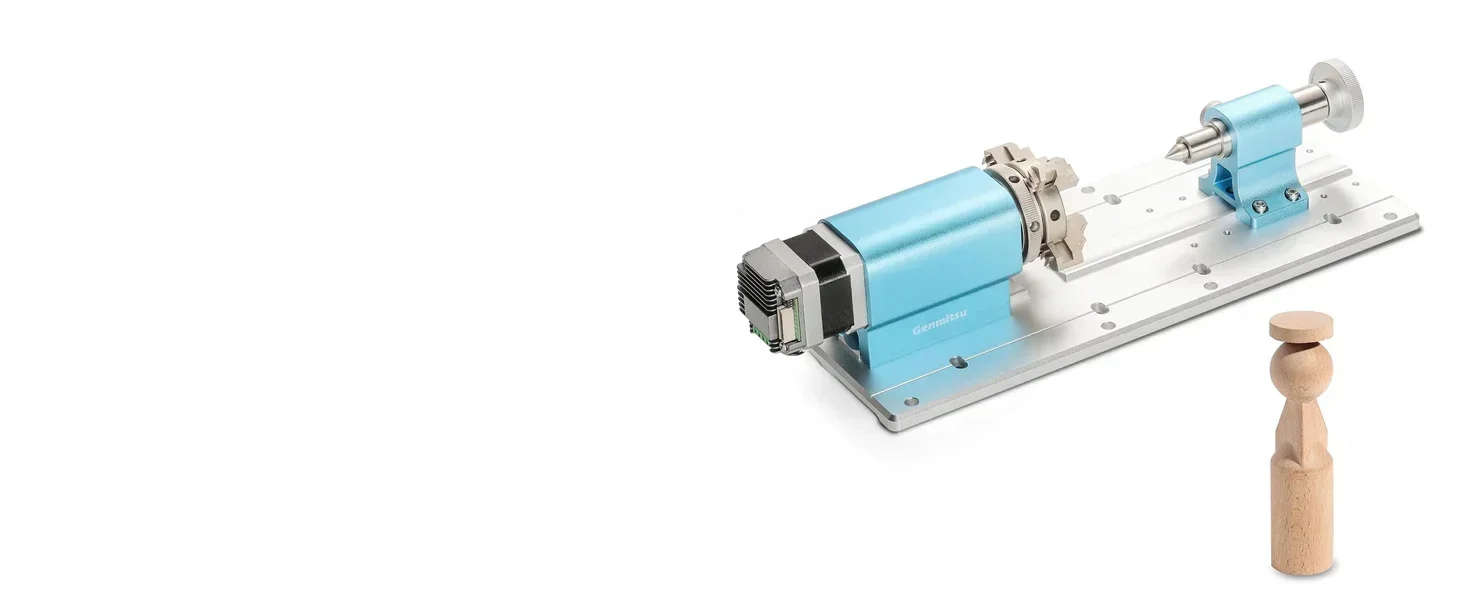

4th Axis Rotary Module Kit
The 4th Axis Rotary Module Kit is a drop in upgrade that enables your 4040-PRO CNC machine to carve from different angles and positions or with the right software full rotary carving.

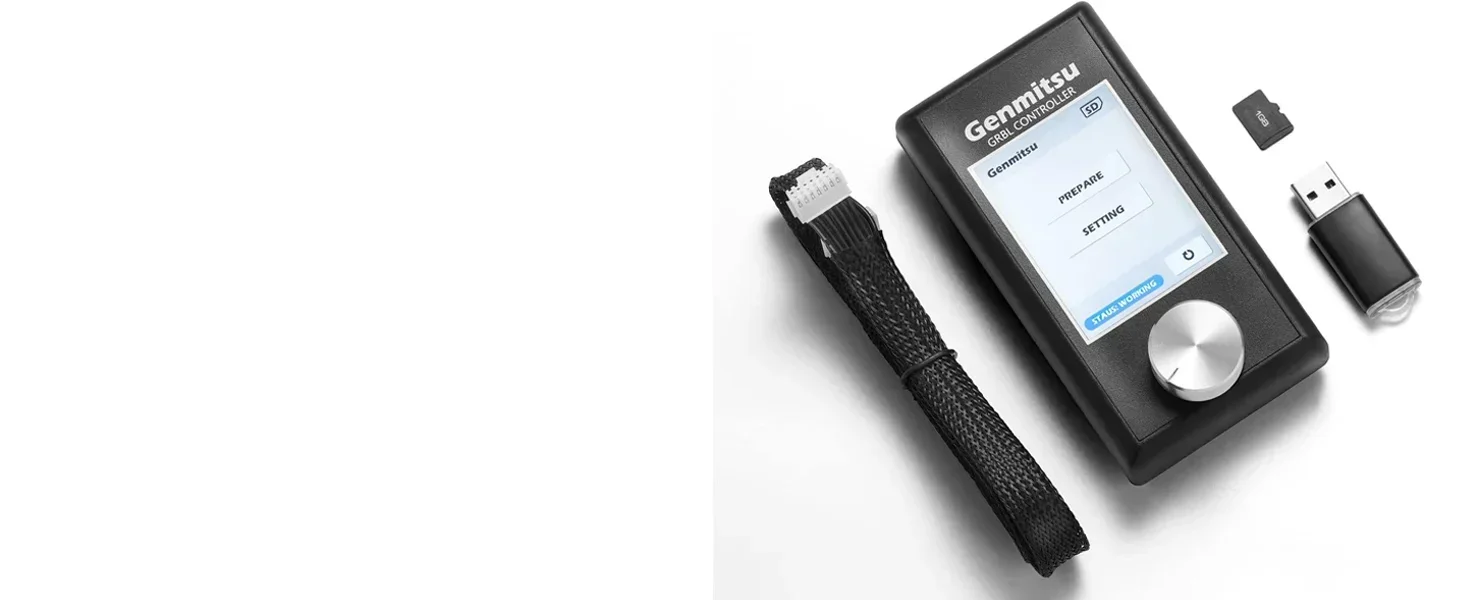

Offline Controller
Designed exclusively for use with the Genmitsu 4040-PRO: Maximize the potential of your Genmitsu 4040 Pro with this specially designed control module.

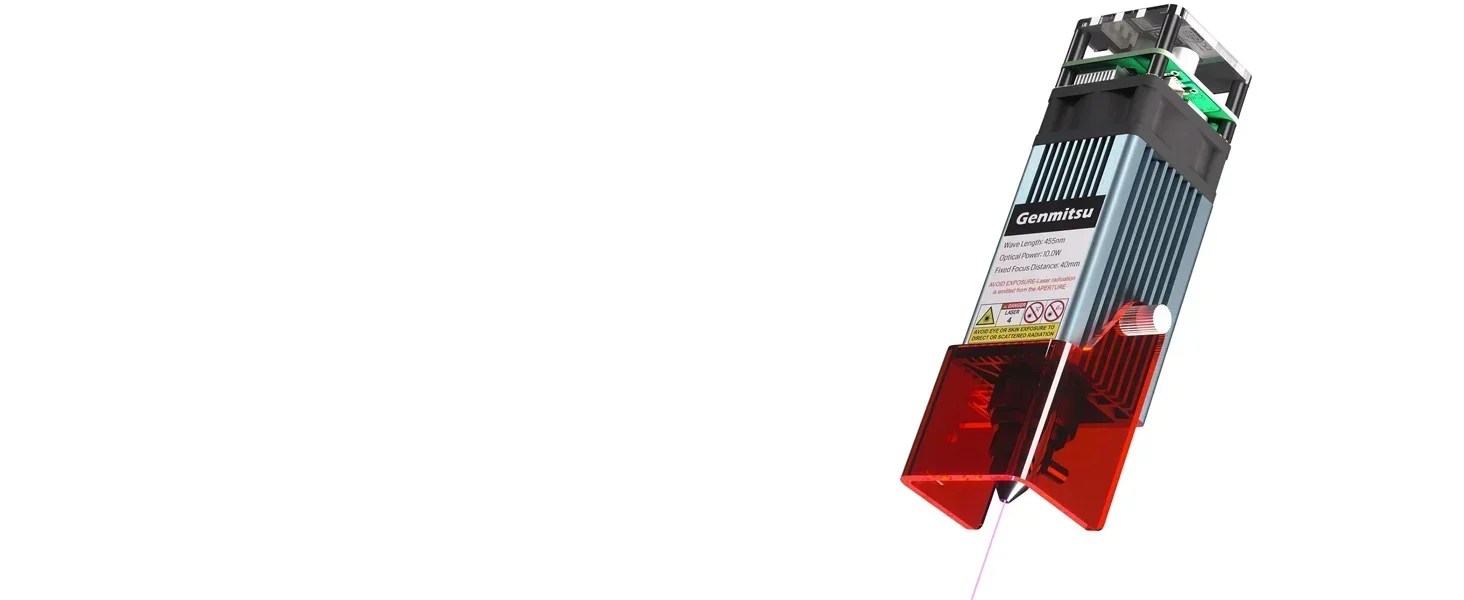

10W Compressed Spot Laser Module
Adopting a laser spot compression technology, this new laser module has 10 W continuous output power and a focal spot of 0.08mm x 0.05mm, allowing for a leap in power and accuracy.

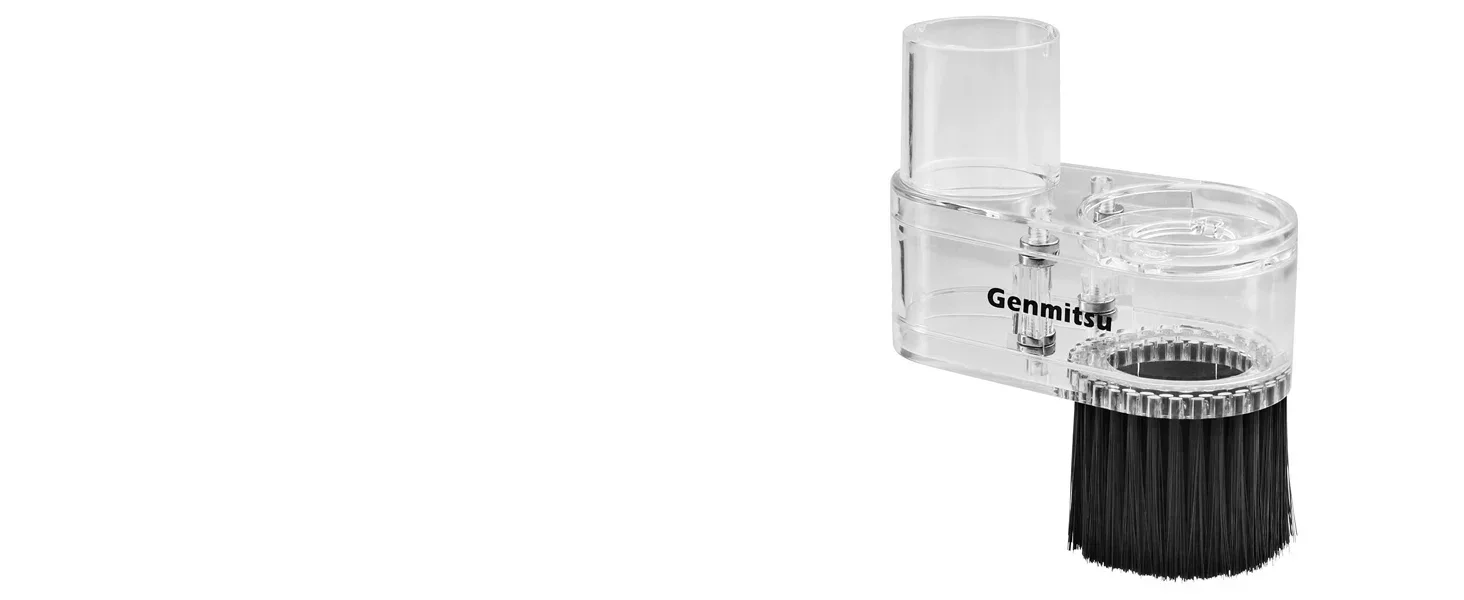

Dust Shoe
This dust shoe is made of high-quality transparent ABS . The transparent design helps you keep an eye on your operations. Keep your machine and work area clean while cutting, drilling, and carving.

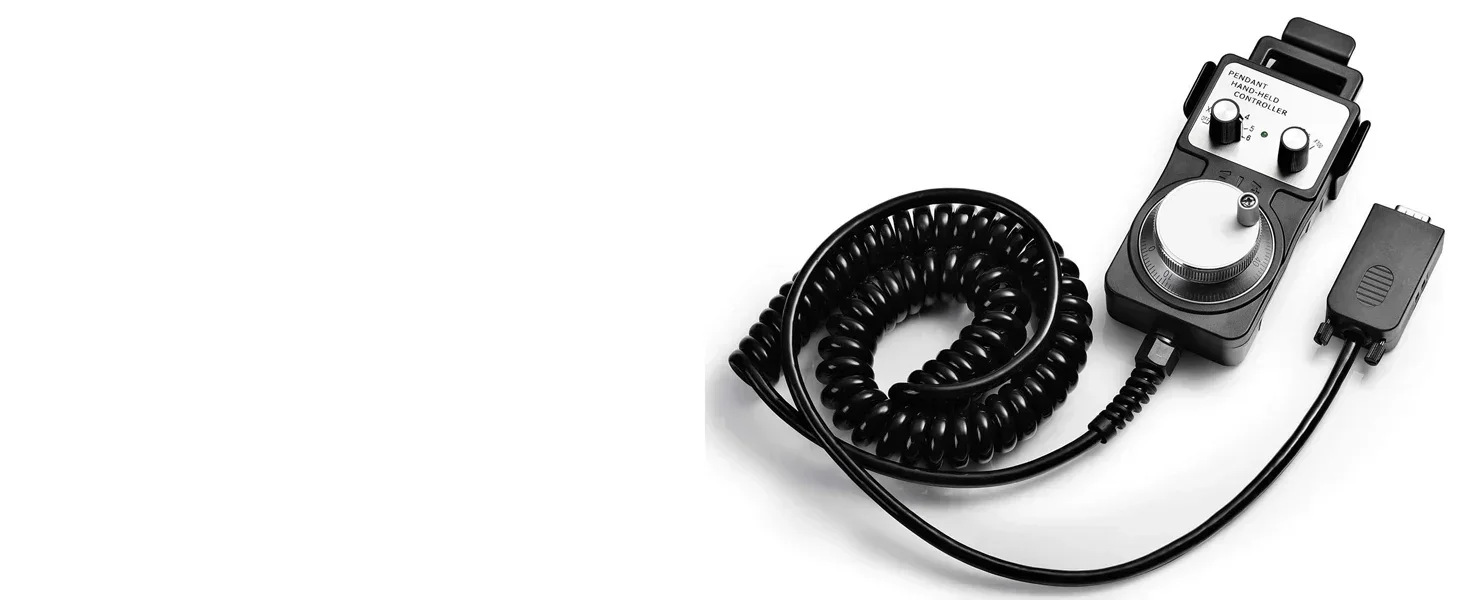

MPG Handwheel Controller
This controller can manually control the XYZ-Axis to run. The hand wheel is made of metal and 100PPR high-quality encoder, durable and simple to operate.

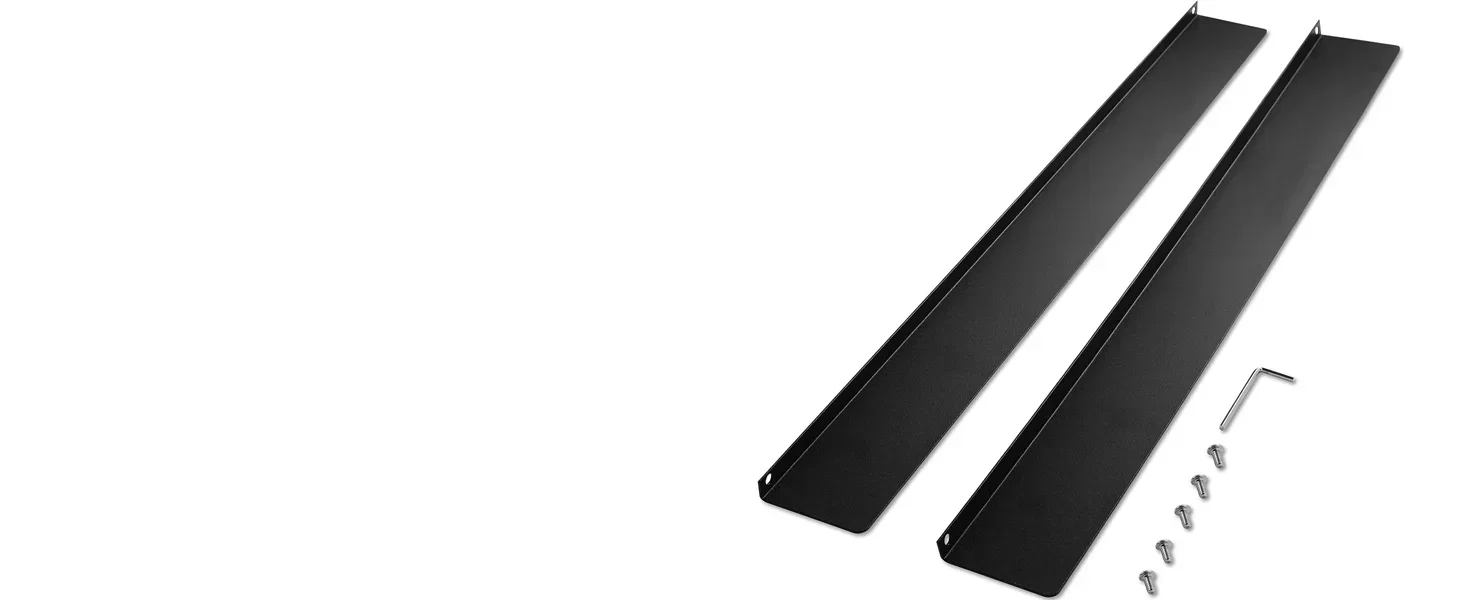

Metal Dust Baffles
The dust baffle can be mounted in the position between the spoilboard and the Y axis to keep out the dust and protect the lead screws.
The extension kits for 4040-PRO will come soon!
The extension kits for 4040-PRO will be available for purchase in Q1 2024. Get ready to take your CNC projects to the next level with this innovative product.
We will be offering three different expansion sizes to meet your varying needs.
