Máquina de corte plasma cnc mini mesa plasma portátil cortador plasma controlador offline sem contato para metal alumínio 1525 1530

Please Notice:

The shipping charge is not included in the price,please contact Emily before order.We will quote you several optional shipping method and provide you the best shipping cost.We will offer you gifts and coupon.

Whatsapp: +86 15927681796 Email: emily@raylinenc.com

Product Information:

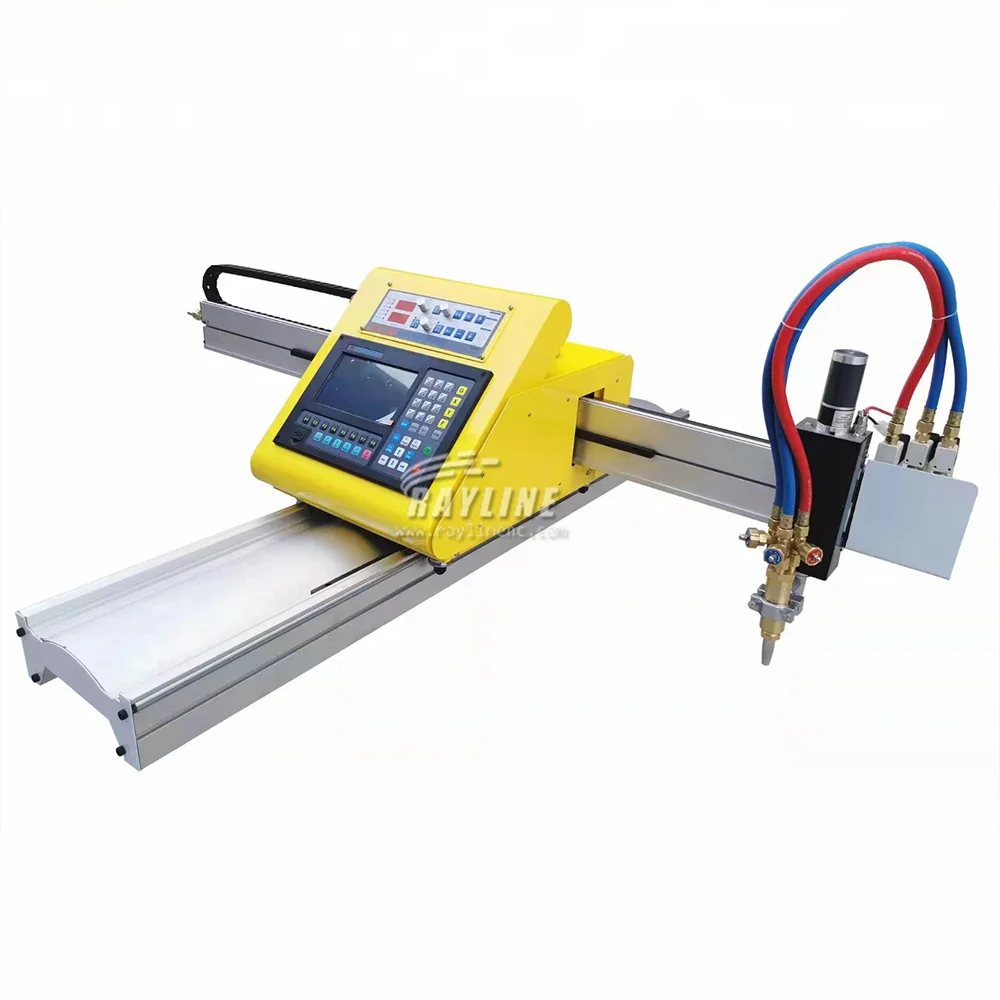

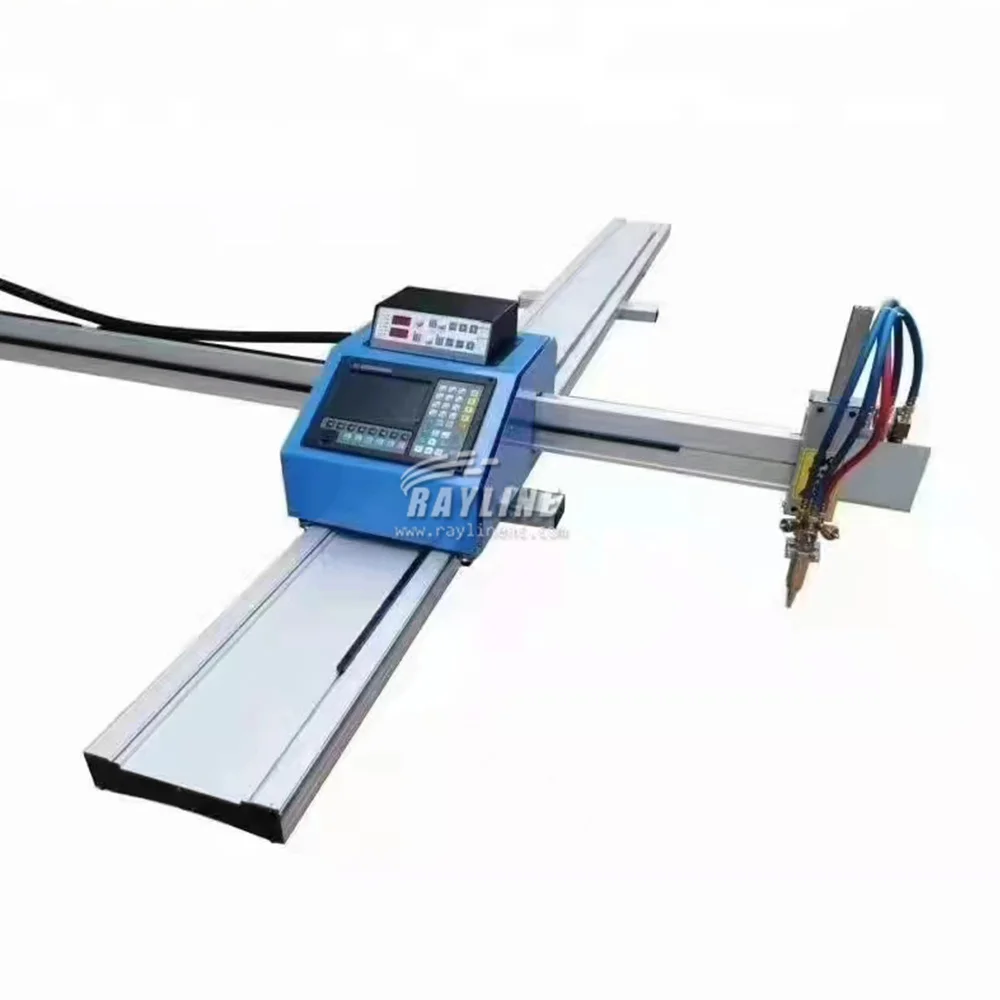

Portable CNC cutting machine, also known as micro CNC cutting machine. From the perspective of model characteristics, the portable cutting machine has the characteristics of high-speed and high-efficiency CNC cutting machine, and its processing accuracy is also much higher than that of general handheld or copying equipment. It is precisely by virtue of the above characteristics that the portable CNC cutting machine is the most widely used type of cutting machine in the domestic market, with a market share of more than half.

Advantages:

1. Low Noise And High Running Accuracy.

2. Occupies A Small Place.

3. Operates With High Efficiency.

4. Cuts Automatically With High Precision And Uses Materials Effectively.

5. It Is Of Compacted Design, Light Weight And Is Small In Size.

6. It Is Easy To Move, Suitable For The Site Indoor Or Outdoor.

7. The Control System Is Independently Designed And Developed With Optimized Programming,Easy To Learn And Operate.

8. The Operation Interface, Simple And Clear, Can Store Over 80 Programs.

9. LCD Screen Of Dynamic And Static Display Of Graphics Can Convert The CAD File To The machine.

Parameters:

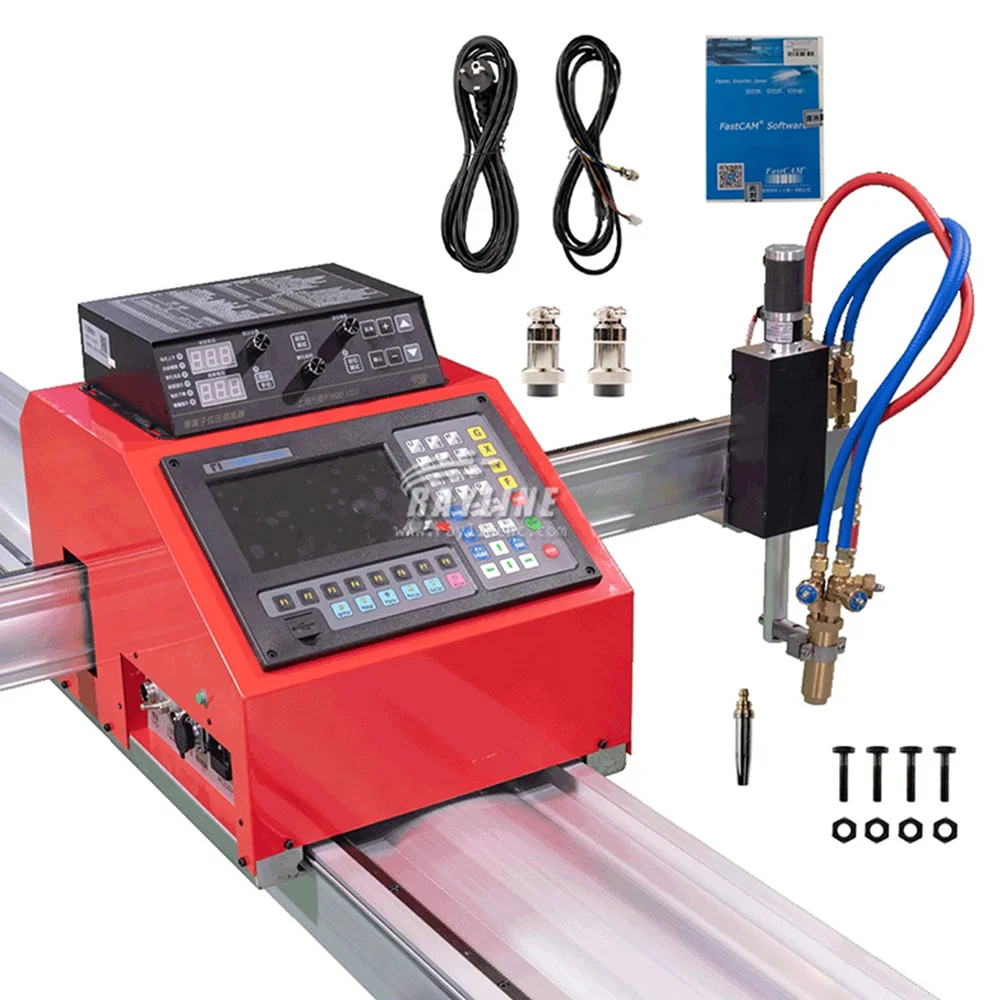

Product Name	Portable CNC Cutting Machine
Brand	RAYLINE
Model	RA-F1525	RA-F1530	RA-F2530

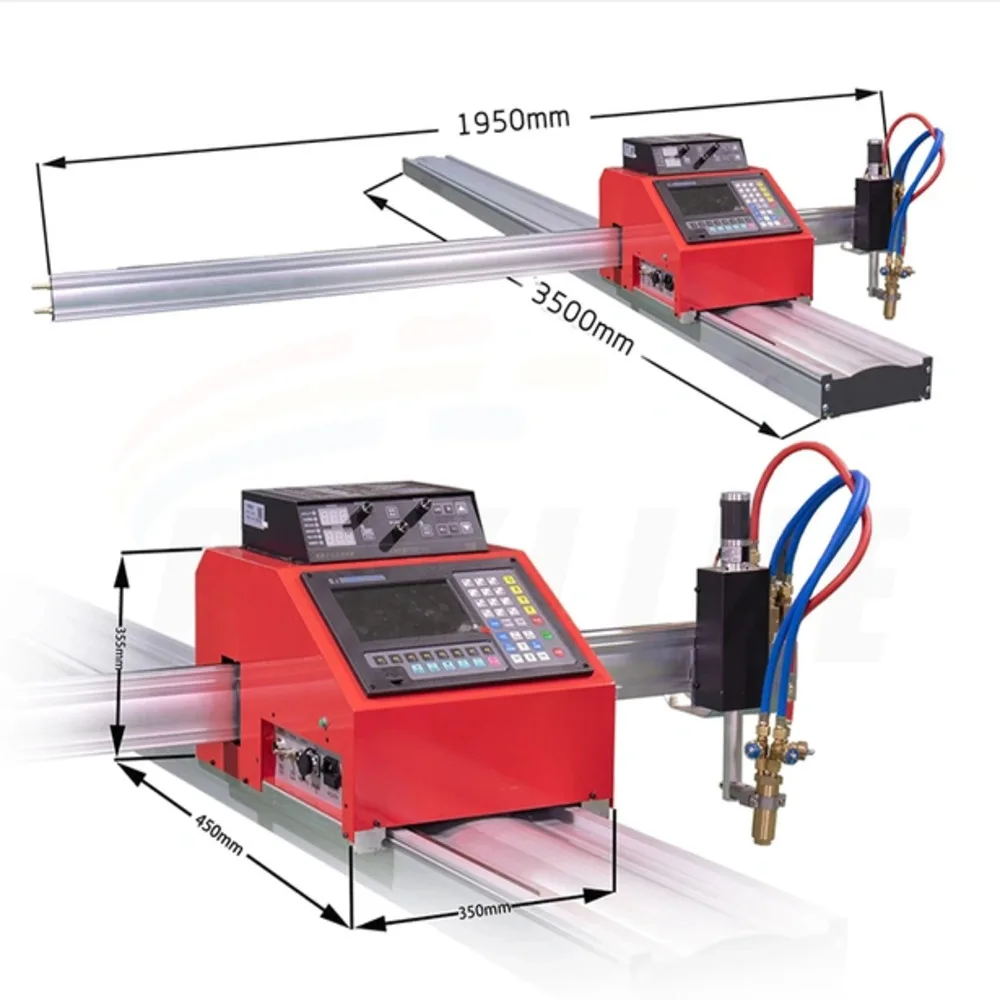

Effective Cutting Range(mm)( Customized)	1500*2500	2500*3000	2500*3000
Total Weight (KG)	110	120	120
Max. Cutting Speed	15000mm/min	15000mm/min	15000mm/min
Cutting Thickness(Flame)(mm)	6-160 (O2/C3H8 or C2H2)	6-160 (O2/C3H8 or C2H2)	6-160 (O2/C3H8 or C2H2)
Torch Flame	Electric height adjustment(±60mm)	Electric height adjustment(±60mm)	Electric height adjustment(±60mm)
Control System	STARFire plasma cutting system	STARFire plasma cutting system	STARFire plasma cutting system
Type of Gas	C3H8 C2H2	C3H8 C2H2	C3H8 C2H2
Working Voltage  ( Customized)	AC220/50HZ	AC220/50HZ	AC220/50HZ
Software Support	FASTCAM,AutoCAD,etc	FASTCAM,AutoCAD,etc	FASTCAM,AutoCAD,etc
Drive System	Stepper motor	Stepper motor	Stepper motor
Instruction Format	G code	G code	G code
Move Precision	±0.2mm/m	±0.2mm/m	±0.2mm/m
Emergency Stop	YES	YES	YES
ARC	Untouched arc striking	Untouched arc striking	Untouched arc striking
Plasma Power Supply	China Huayuan 63/100/160/200A(Optional Hyper therm --45A,65A,85A,105A,125A,200A)

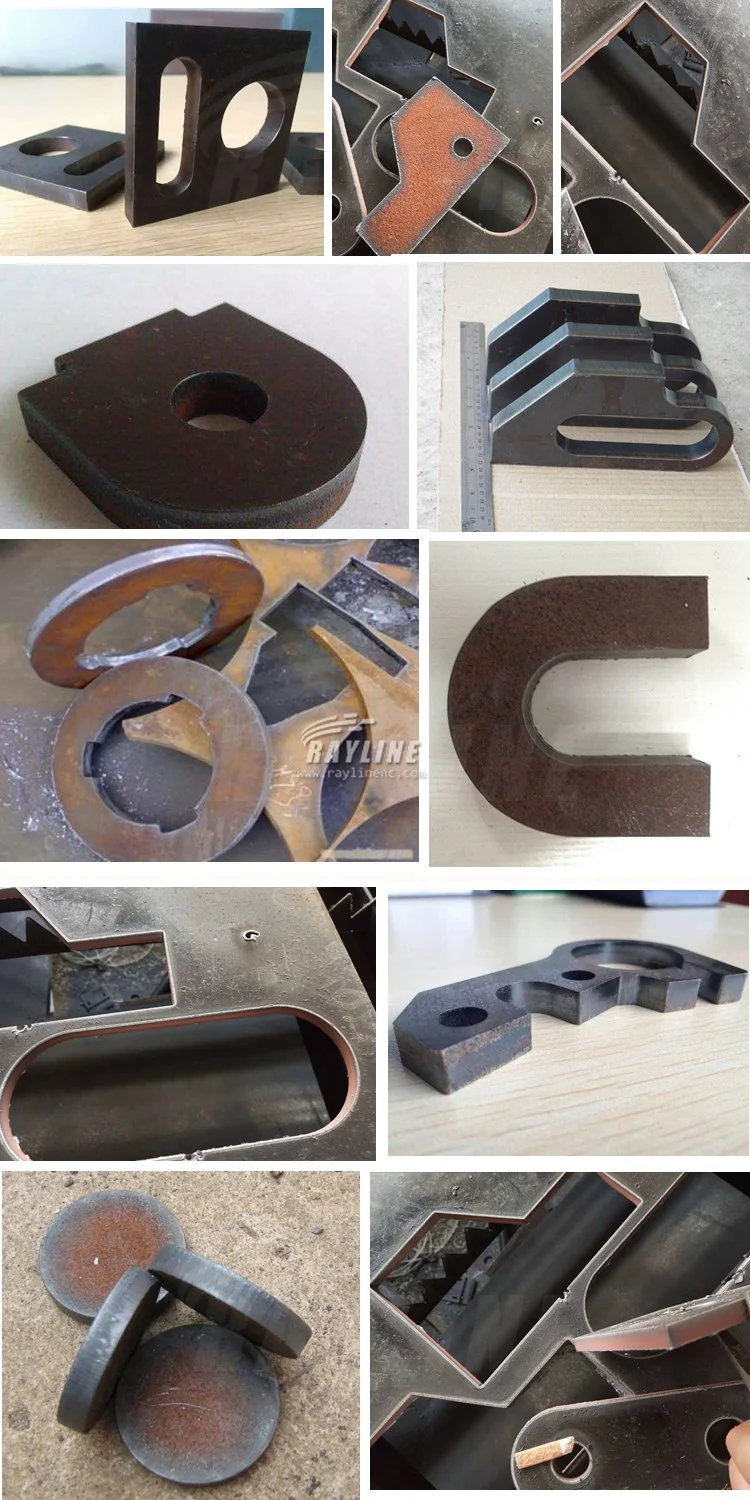

Processing Materials	Iron, steel aluminum sheets, galvanized sheets, Titanium plates
