- Químico Hign-em causa: Nenhum
- Suprimentos para bricolagem: elétrico
- Nome da marca: LanYuXuan
- Origem: CN (Origem)
- Certificado: CE
- Condition: New
- Positioning Accuracy (mm): 0.01 mm
- Number of Axes: -
- No. of Spindles: Single
- Machine Type: CNC Router
- Travel (X Axis)(mm): 1300 mm
- Travel (Y Axis)(mm): 2500 mm
- Repeatability (X/Y/Z) (mm): 0.01 mm
- CNC or Not: CNC
- Place of Origin: China
- Brand Name: Yunneng
- Voltage: 220V or 380v
- Dimension(L*W*H): 1200*2400*200mm
- Power (kW): 12
- Weight (KG): 1200
- Warranty: 1 Year
- Key Selling Points: High Rigidity
- Applicable Industries: hotels, Garment Shops, Machinery Repair Shops, Farms, Restaurant, Food
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel
- After-sales Service Provided: Engineers available to service machinery overseas
- Type: cnc metal
- Keyword: CNC Router
- Working area: 1200*2400*200mm
- Spindle power: 4.5kw
- Working materials: Nonmetal and thin metal materials
- Main markets: Europe, USA, Middle East, Southeast Asia
- Driver motors: Stepper
- Controls: DSP A 11(Digital signal Processor)
- Software: Artcam/Type3
welcome to our store! Please confirm the product model, cost and shipping method with me before purchasing the product! If you have any questions, please add my WHATS APP (+86 176 736 22604)
01
03
05

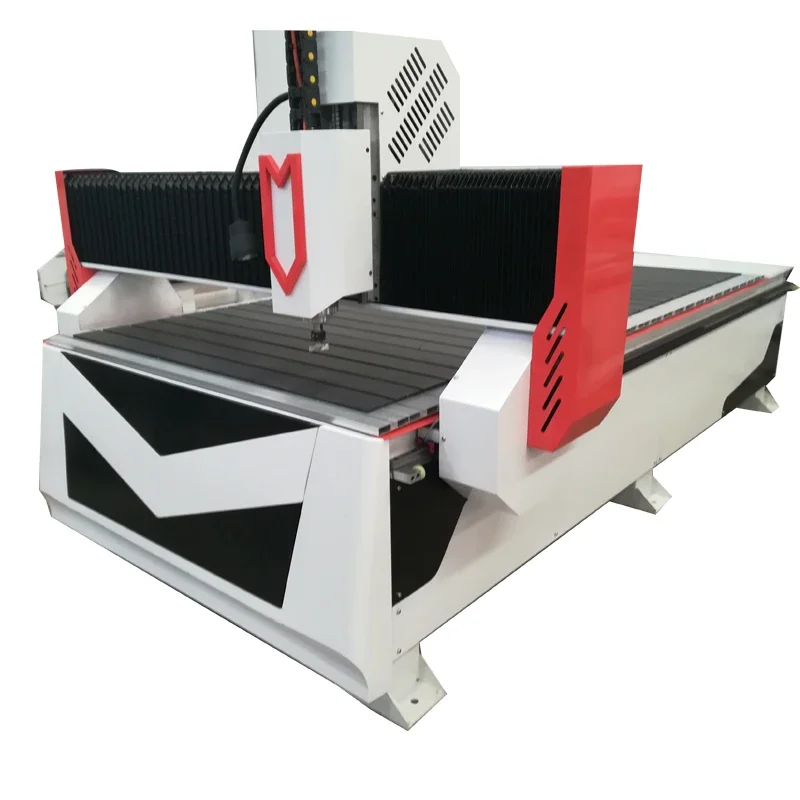

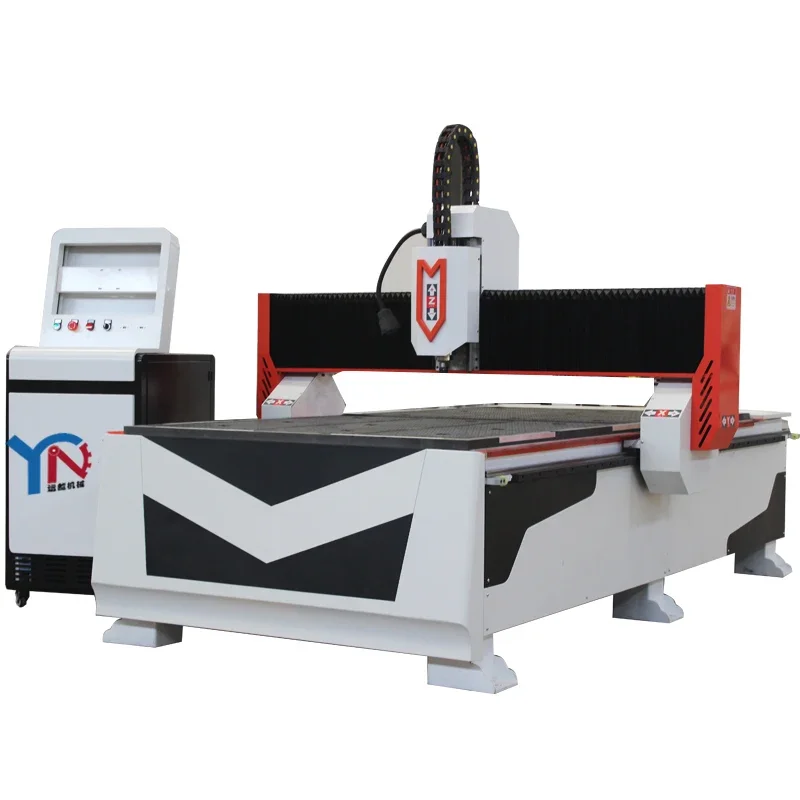

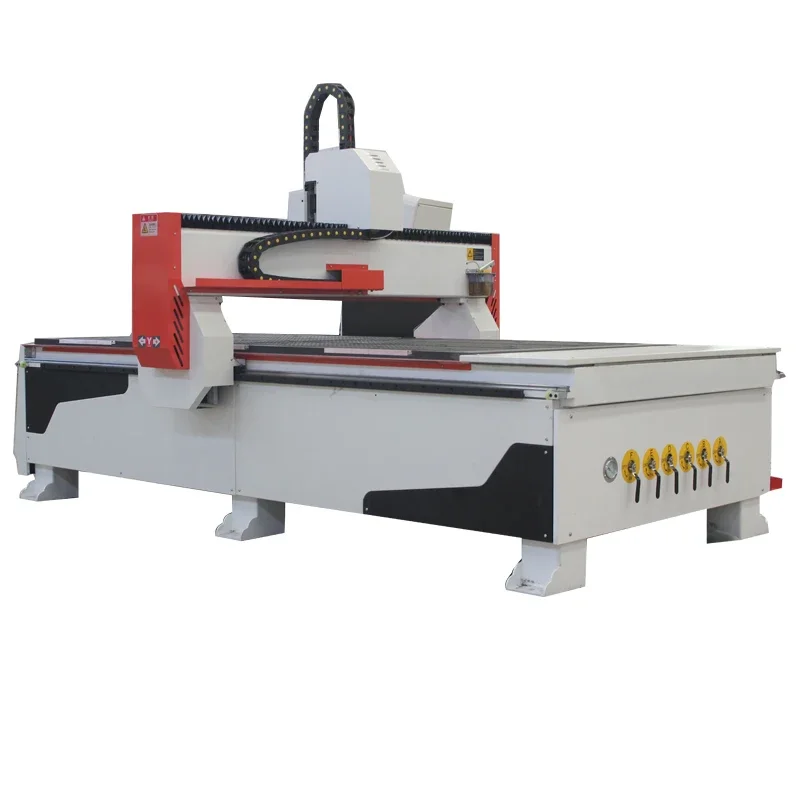

Product Introduction
The surface is fully automatic electrostatic powder spraying or spray painting treatment, so that the use of the equipment is longer, and the vacuum adsorption platform is optional.
Technical Parameters
|
Model
|
YN-1325W
|
YN-1224W
|
YN-1212W
|
YN-1530W
|
YN-2030W
|
||||
|
X-Y-Z axis working area (x-y-z)
|
1,300x2,500x200mm
|
1200*2400*200MM
|
1200*1200*200MM
|
1500*3000*200MM
|
2000*3000*200MM
|
||||
|
Machine Size
|
2,150x3,150mm
|
|
|
|
|
||||
|
Resolution
|
0.0025mm
|
|
|
|
|
||||
|
Z axis height
|
200mm, (300mm, 400mm optional)
|
|
|
|
|
||||
|
X.Y movement
|
Rack and pinion
|
|
|
|
|
||||
|
Z movement
|
Ball screw driver/Germany
|
|
|
|
|
||||
|
Guide
|
Linear 20 square/Taiwan
|
|
|
|
|
||||
|
Max. speed
|
35,000mm/min
|
|
|
|
|
||||
|
Max. cutting speed
|
25,000mm/min
|
|
|
|
|
||||
|
Spindle
|
4.5KW (water cooling)/ China Qiancheng brand 4.5kw
|
|
|
|
|
||||
|
Spindle speed
|
24000rpm
|
|
|
|
|
||||
|
Driver motors
|
Stepper
|
|
|
|
|
||||
|
Inverter power
|
7.5KW /Sunfar
|
|
|
|
|
||||
|
Rotary axis (Optional)
|
Working length 1500mm, diameter 100mm
|
|
|
|
|
||||
|
Working voltage
|
AC380V, 50/60HZ 3 phase
|
|
|
|
|
||||
|
Command code
|
G code G
|
|
|
|
|
||||
|
Computer interface
|
USB 2.2
|
|
|
|
|
||||
|
Collect
|
ER25-12.7mm,6MM, 3.175MM
|
|
|
|
|
||||
|
Software
|
Router software/France
|
|
|
|
|
||||
|
Controls
|
DSP A 11(Digital signal Processor)
|
|
|
|
|
||||
|
Packing dimensions
|
2260x3250x1960mm, 1350KGS
|
|
|
|
|
||||
|
Equipments included
|
1). Oil lubrication system
2). Auto adjusting device 3). 6 zone vacuum system with 5.5KW air cooled vacuum pump 4). Double bags dust collector 3KW |
|
|
|
|
||||
|
Warranty
|
24 month for whole machine
|
|
|
|
|
||||
|
Delivery time
|
7 days
|
|
|
|
|
||||
|
Certificate
|
CE
|
|
|
|
|
||||
1.OR 1224 CNC router with 4 axis, is specially for 4D work,the A axis can rotate 100 degree
3.With this machine, you can make different surface carving, arc-surface milling,bending surface machining for 4D jobs,like special shaped arts, bended doors or cabinets.
4.It can work on foam ,MDF,Acrylic,wood,and soft metal etc.
3.With this machine, you can make different surface carving, arc-surface milling,bending surface machining for 4D jobs,like special shaped arts, bended doors or cabinets.
4.It can work on foam ,MDF,Acrylic,wood,and soft metal etc.
Product Advantage

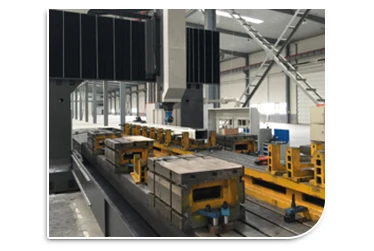

FUSELAGE DESIGN
Adopt heavy duty machine frame forming by CNC planer-type milling machine, more stronger, stability.
02

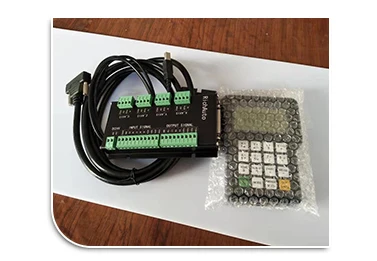

DSP CONTROL SYSTEM
Configured advanced DSP control system
on line special controlling system
calculation, strong anti-interference
independent power supply, quick
performance, Own more powerful
application performance
PROCESSING DIVERSITY
Large working size1300*2500*200mm
(X,Y,Z axis),suit to many kinds of materials04

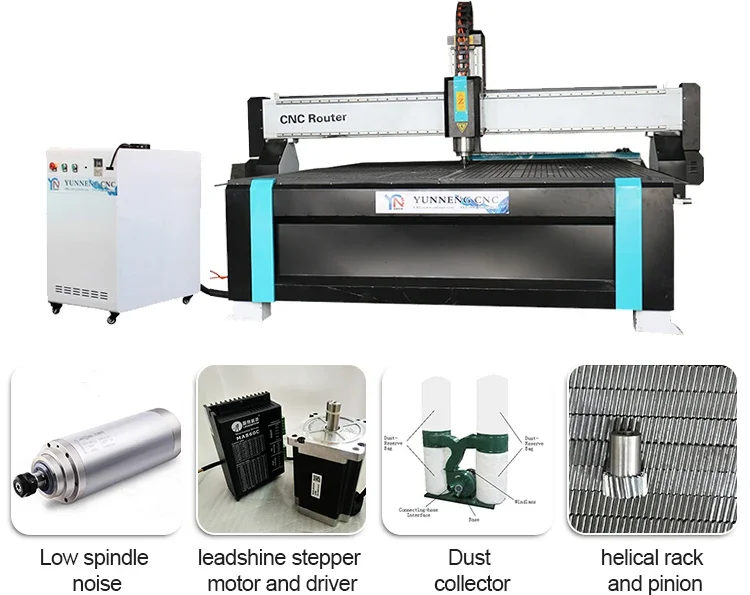

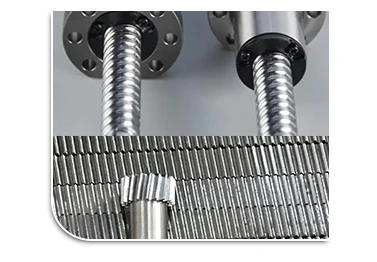

DRIVE MODE
Drive System
X and Y axis: Rack and Pinion
Z axis adopt Taiwan TBI Ball screw

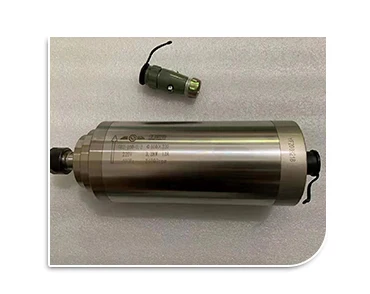

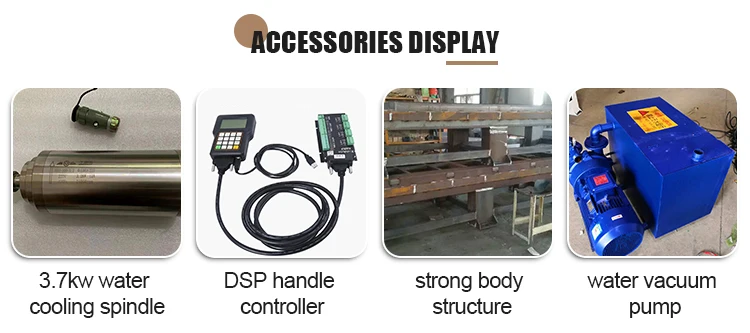

ELECTRIC MACHINE
Standard configured 380V 3KW air
cooling spindle motor, high power high efficiency.06

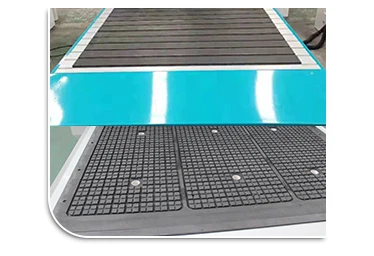

WORKING PLATFORM
Vacuum table, can
adsorb different size materials
and has strong suction.

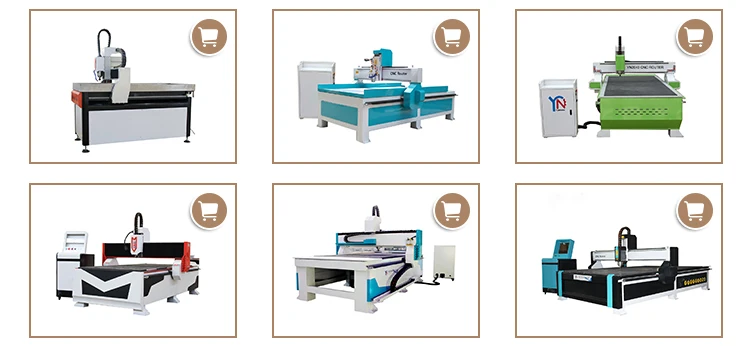

Product Categories

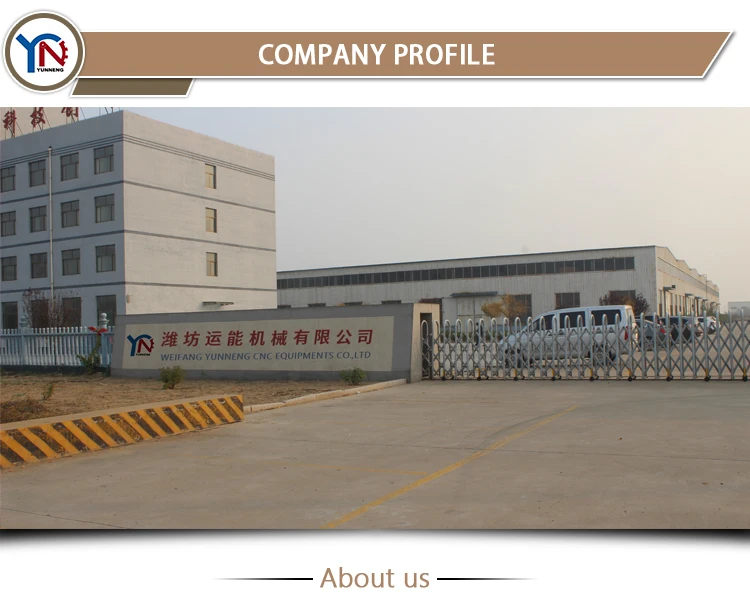

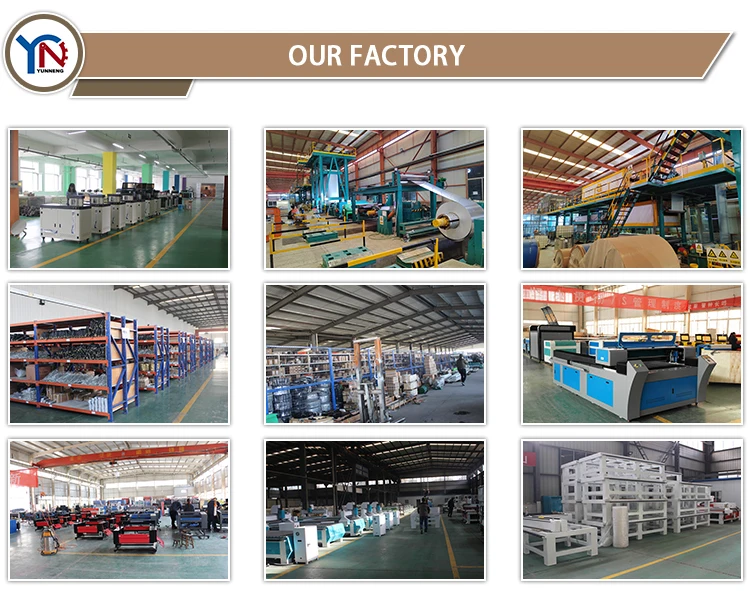

Company Profile
Established in 2001 and headquartered in China, we are a production enterprise focusing on CNC machinery and consumables for the advertising industry. With an independent production workshop and a professional R&D team, we can produce CNC letter bending machines, CNC engraving machines, laser machines vacuum forming machines and other products, as well as provide some consumables for the advertising industry.We always adhere to the customer-centric principle, providing customers with the best solutions with high-quality products reasonable prices, and excellent services. Our products have gained a high reputation in domestic and foreign markets, and our customers are distributed all over the world.Since 2014, we have been engaged in export business and have established long-term cooperative relationships with customers from multiple countries and regions. We continuously improve our technical level and innovation ability to meet the ever-changing needs of customers and provide them with more competitive products and services.
FAQ
1.I want to buy a cnc router,what suggestion can you give? Please confirm the following questions, then the most suitable machine is provided. a. What is your materials? (wood, MDF, acrylic, stone, metal etc.) b. What is your materials size? (Including the length,width, cutting or engraving thickness etc) c. If you have any sample pictures, it is more useful for us. 2. If the machine has any problem after we receive it, how can we do ? We will provide manual and video. And online technical support. Free parts will be sent to you within warranty time, and there is technical support from our professional engineer. 3. How long can the machine be finished? The standard machine bed is in stock. The delivery time is 5 working days. The customized machine delivery time is 15 working days. 4.Do you accept OEM/ODM ? Yes. ODM/OOEM are available . Exact solutions are offered by YN CNC team.
