Mais recente SIBOOR Voron Trident [junho, 2024] Estrutura de metal CNC 4AWD CoreXY DIY Impressora 3D Componentes de alta qualidade Kits completos 3D

Our Trident JUNE product description:

https://docs.siboor.com/siboor-trident-june/bill-of-materials

Installation guide instructions can be found below:

https://docs.siboor.com/siboor-trident-june

①Product Introduction

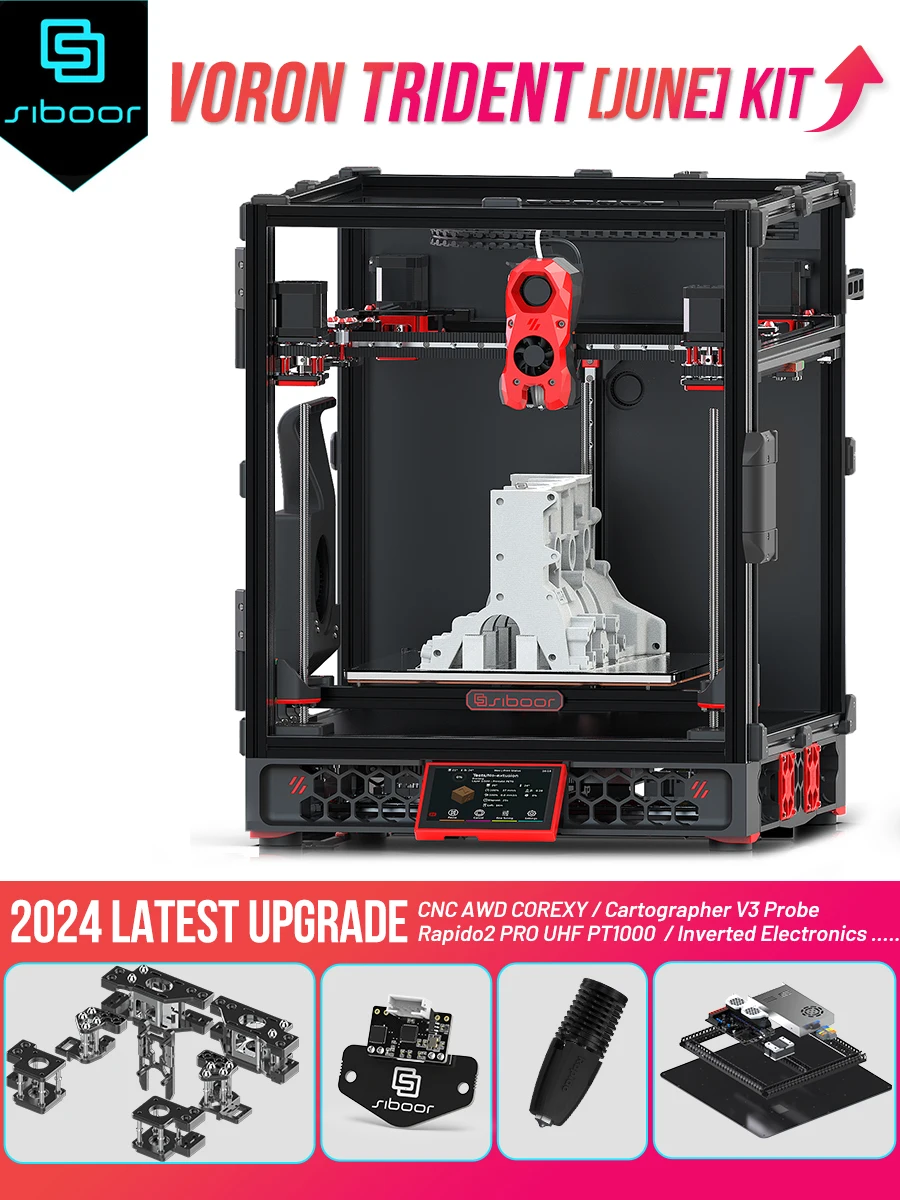

SIBOOR Trident Overview

The SIBOOR Trident is an advanced 3D printer that stands out for its exceptional performance and precision. Here’s a detailed look at its key features and components:

Key Features:

Robust Metal Gantry: Provides a stable and sturdy printing framework.

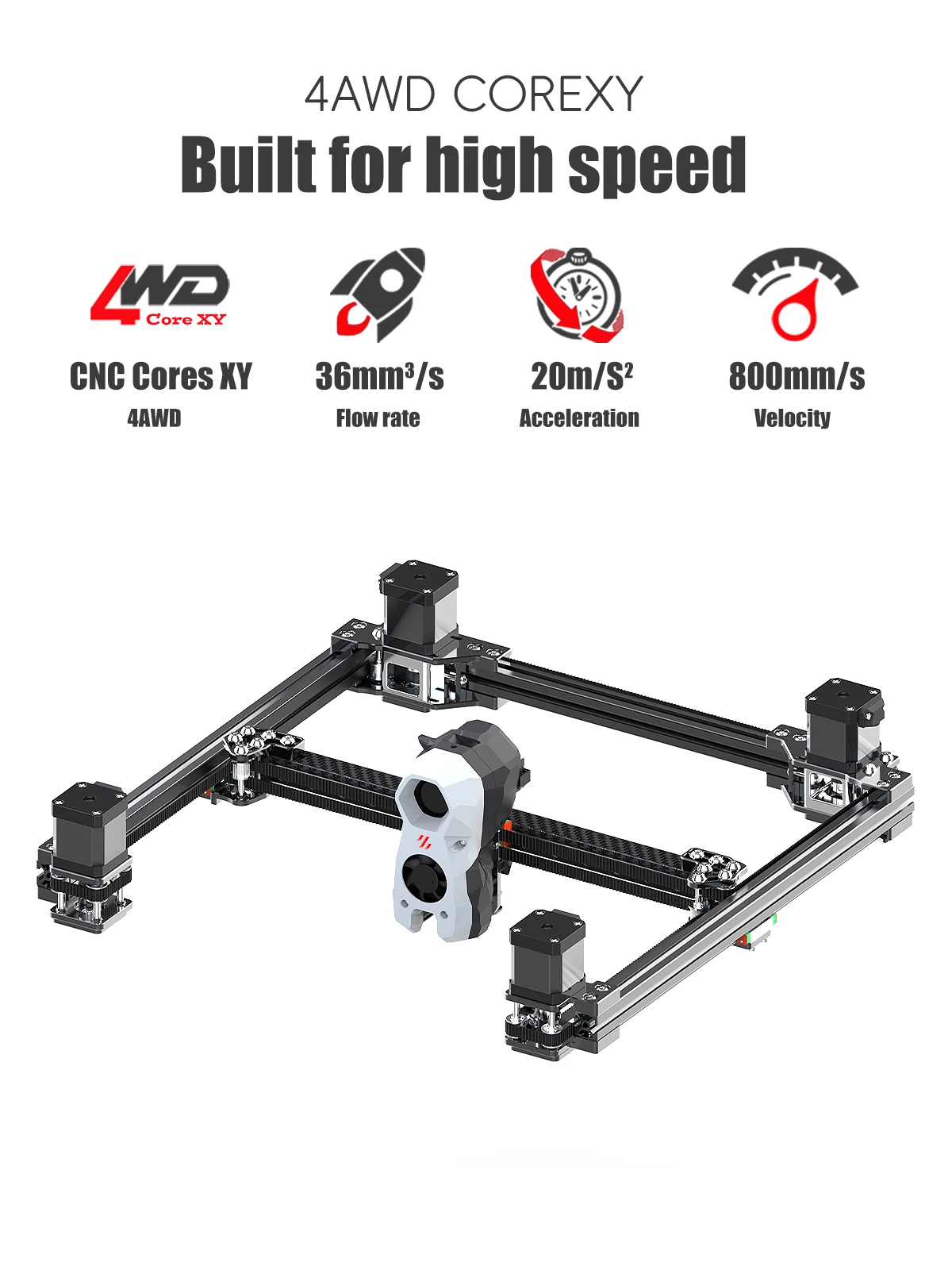

AWD Four-Wheel Drive: Ensures smooth operation with a 9mm synchronous belt.

Reinforced X-Axis: Utilizes a carbon fiber tube for added strength and rigidity.

Rapido 2.0 UHF Hotend: Capable of reaching up to 320°C, with a flow rate up to 36 cubic millimeters per second, for high-performance printing.

Performance:

Acceleration: Achieves up to 20,000 mm/s² for rapid and precise movements.

Printing Speed: Delivers up to 800 mm/s for high-speed printing.

Advanced Technology:

Cartographer Eddy Current Sensor: Generates a bed mesh in just 10 seconds, complemented by a 3Z full gantry leveling system for accurate calibration.

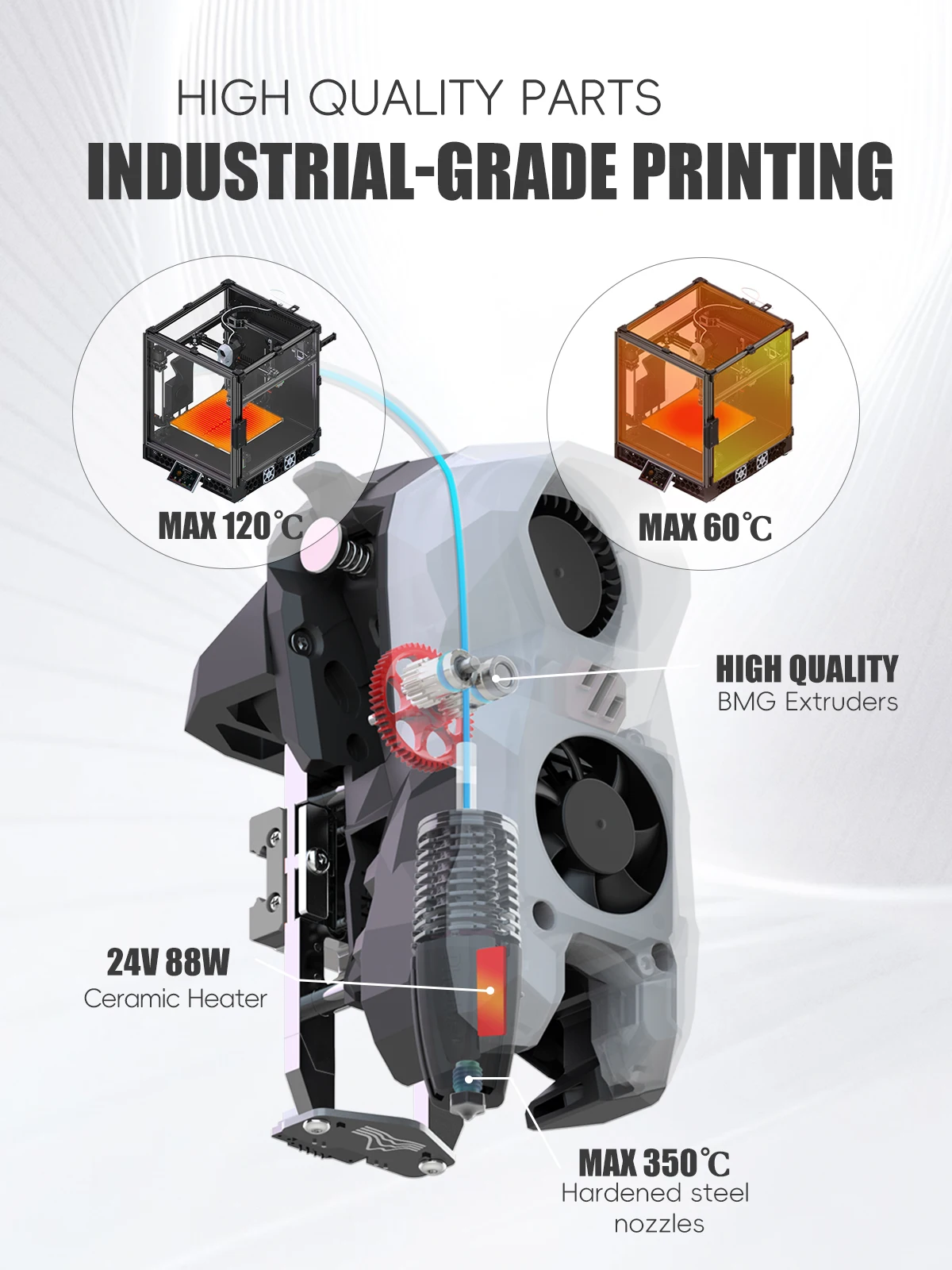

Stealthburner Extruder: Supports high-performance printing with chamber temperatures up to 60°C.

Electrical Components:

MANTA M8P 2.0 Mainboard: Provides robust control with a 350W high-power supply.

CB2 PI: Features powerful processing capabilities, enhancing the printer’s overall performance.

TMC2240 Drivers: Ensures smooth and quiet XY movements.

SB2209 RP2040 Tool Board: Efficiently manages the hotend.

Power Supply and Filtering:

350W High-Power Supply: Delivers reliable power for optimal performance.

Filtered Power Switch: Provides additional protection and stability.

Additional Mods:

12032 Side-Blowing Fan: Enhances part cooling and improves print quality.

ClickyClacky Door: Aids in maintaining a clean and controlled environment.

FumePack Air Filtration Module: Reduces airborne particles and maintains a healthier workspace.

Advanced Drive Cooling Solutions: Ensures efficient cooling of drive components.

Design Features:

Inverted Electronics Compartment: Facilitates easy maintenance with an accessible design.

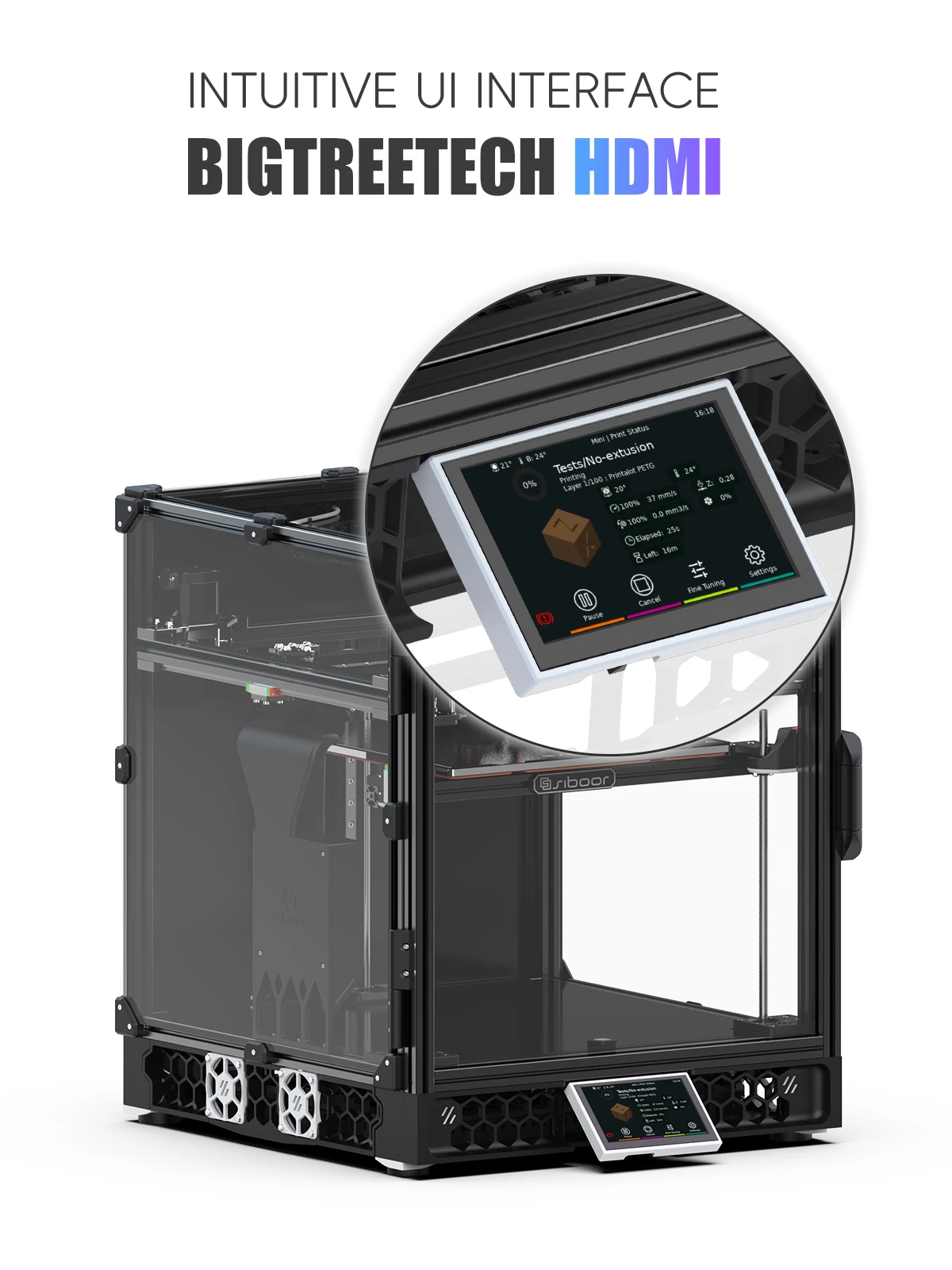

HDMI Touchscreen: Offers a high-definition interface for intuitive control.

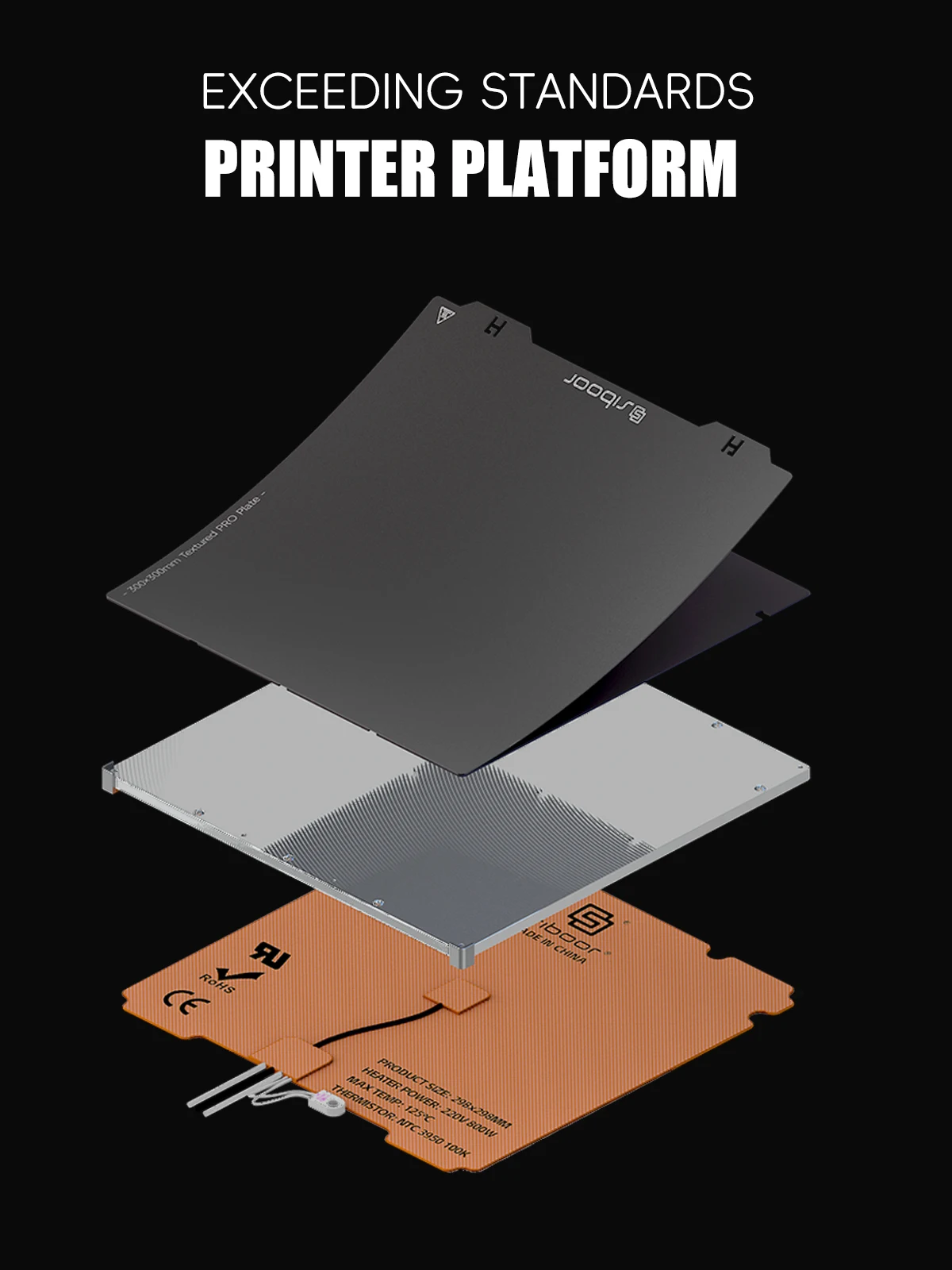

MIC6 Aluminum Platform: Features a black matte PRO print surface for superior build quality.

The SIBOOR Trident combines cutting-edge technology with high-speed performance, making it a premier choice for high-quality and reliable 3D printing.
