- High-concerned chemical: None
- RAID Supported: No
- Processor compatibility: Intel Xeon
- Ports: M.2
- Usage Scenario: Gaming,Audio & Video,others

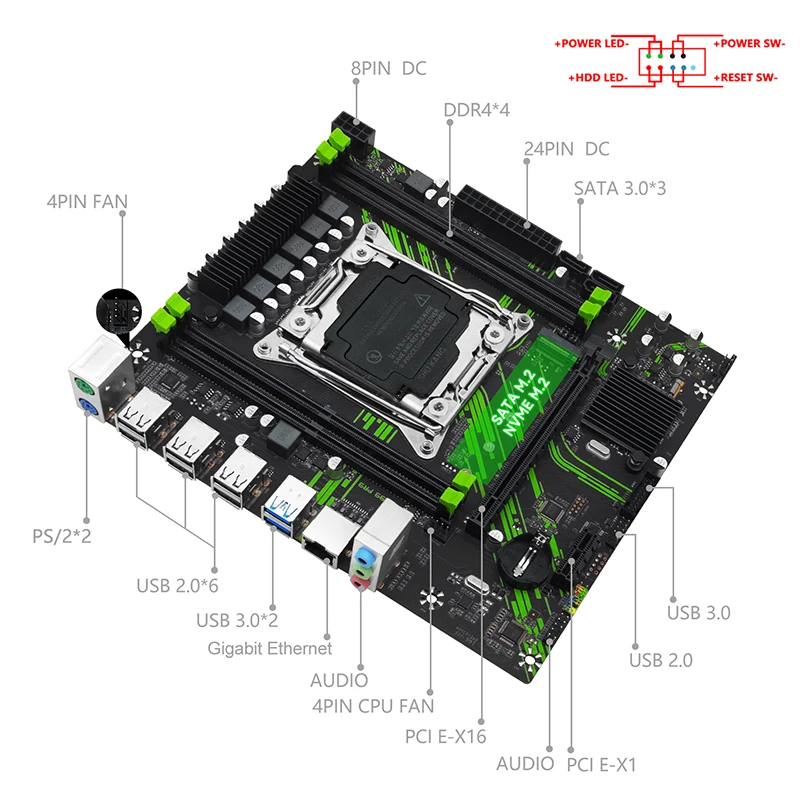

- Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector
- Back I/O Ports: 1x RJ45
- Support USB Type: USB 2.0,USB 3.0
- Max LAN Speed: 1000Mbps
- Onboard LAN: 1x RJ45
- Audio Channels: 5.1
- SATA RAID: 0
- Supports M.2 SSD: 2280
- Number of M.2: 1
- Storage Interface Type: SATA
- Number of PCI: 0
- Number of PCIe x 1: 1
- Number of PCIe x 4: 0
- Number of PCIe x 8: 0
- Number of PCIe x 16: 1
- PCI - E standards: PCI-E 3.0
- Number Of Memory Slots: 4
- Support Memory Type: DDR4
- Quality Certification: ce,ROHS
- Memory channel: Double
- Package: Yes
- Maximum Ram Capacity: 128 GB
- Form Factor: Micro-ATX
- Chipset Manufacturer: Intel
- Battery Included: Yes
- With CPU: Yes
- Chipset: Intel B85
- Application: Desktop
- Socket Type: LGA 2011-3
- Brand Name: MACHINIST
- MACHINIST Model: X99 PR9
- Special Features: None
- Origin: Mainland China
- Certification: RoHS,CE
>> Please note the bundle options before purchasing. Purchase a single motherboard. We do not send CPU and memory. Please check it carefully.

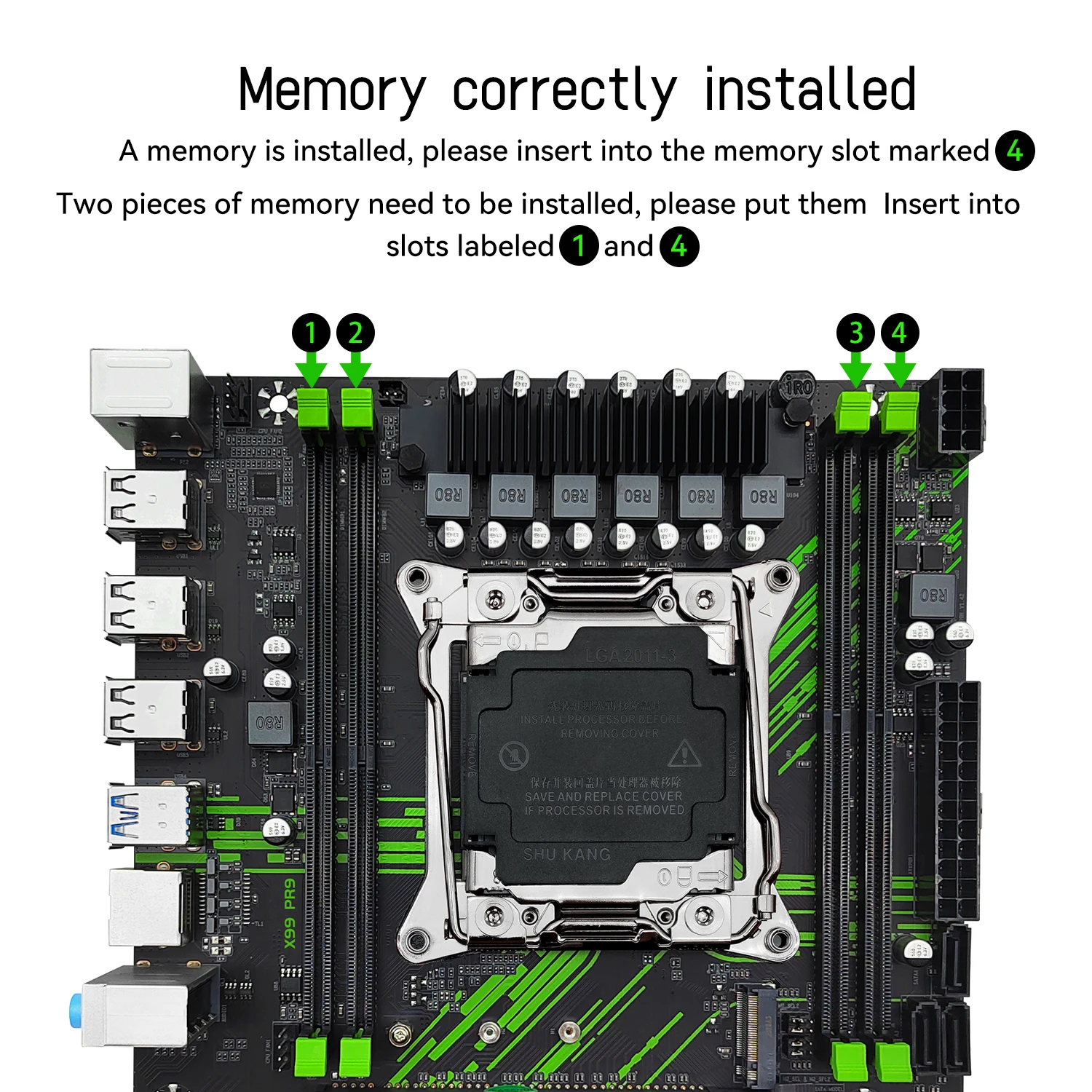

>> The motherboard memory slot needs to be properly installed in the fifth picture. Motherboard middle memory slot (#2/#3) does not work alone. A single RAM needs to be installed in slot #1. Both RAM needs to be installed preferentially in slot #1 and slot #4.)
# #Bundle: Motherboard: MACHINIST X99 PR9 2011-3 Motherboard *1Pcs.
# #Bundle: Motherboard+CPU:
Motherboard: MACHINIST X99 PR9 2011-3 motherboard *1Pcs.
Processor: Intel Xeon E5 2680 V4 x 1Pcs.

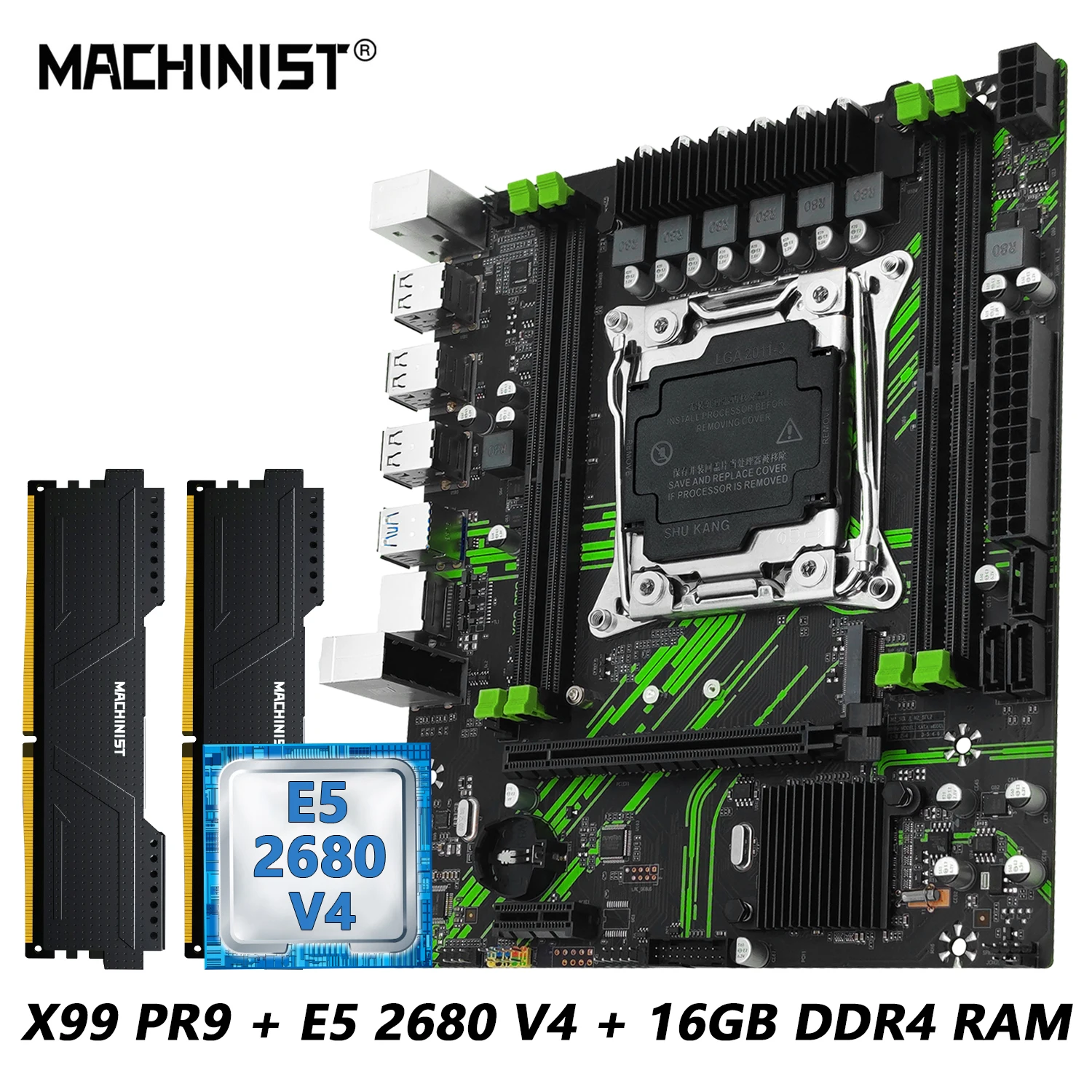

# # #Bundle: Motherboard+CPU+RAM:
Motherboard: MACHINIST X99 PR9 2011-3 motherboard *1Pcs.
Processor: Intel Xeon E5 2680 V4 x 1Pcs.
RAM: DDR4 8GB 2133MHz desktop memory *2PCS;
> > Motherboard information:
Brand :MACHINIST.
Motherboard model :X99 PR9.
Processor: Support LGA 2011-3 series,
Chipset :B85/Q87/C226 Chipset.

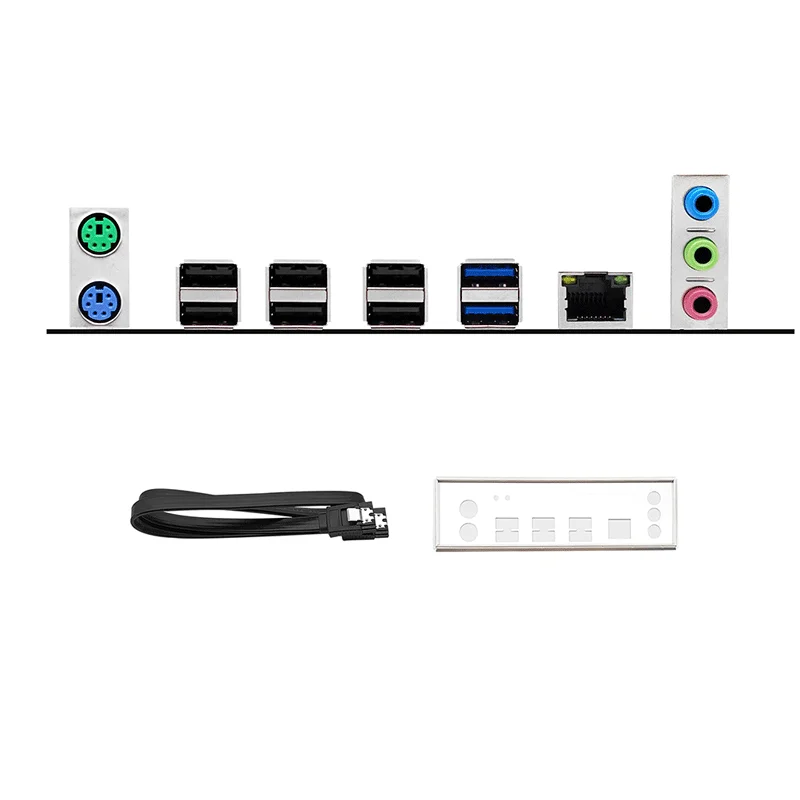

(Complimentary accessories: I/O shield *1, SATA cable *1, lga 2011 cooling bracket *1.
(>> Packaging is carried out after manual testing before sending. If there is any missing gift, it cannot be used as a reason for refund. Please understand!)
> > Memory:
Technology: Dual channel DDR4. Support 2133/2400/2666/3000/3200 MHZ.
The maximum capacity is 128GB (32G x 4).
Memory slot :4 x 288 PIN DDR4.
Note #1: Please use international brands such as Samsung, Kingston, Sandisk, Micron etc. Other brands are incompatible.
>> Regarding the tariff issue, please make sure that you can solve the customs clearance problem yourself, if you can't solve it, we do not recommend that you buy products in our store. We are not responsible for tariffs. Thank you for your understanding.
>> Note:
(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are constantly optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1-3mm.
(3) Due to different displays and different lighting, the picture may not show the actual color of the item. Thank you for your understanding.
(4) The platform needs a powerful power supply. Make sure your power supply is sufficient to support this platform. (At least 500w brand power supply)
