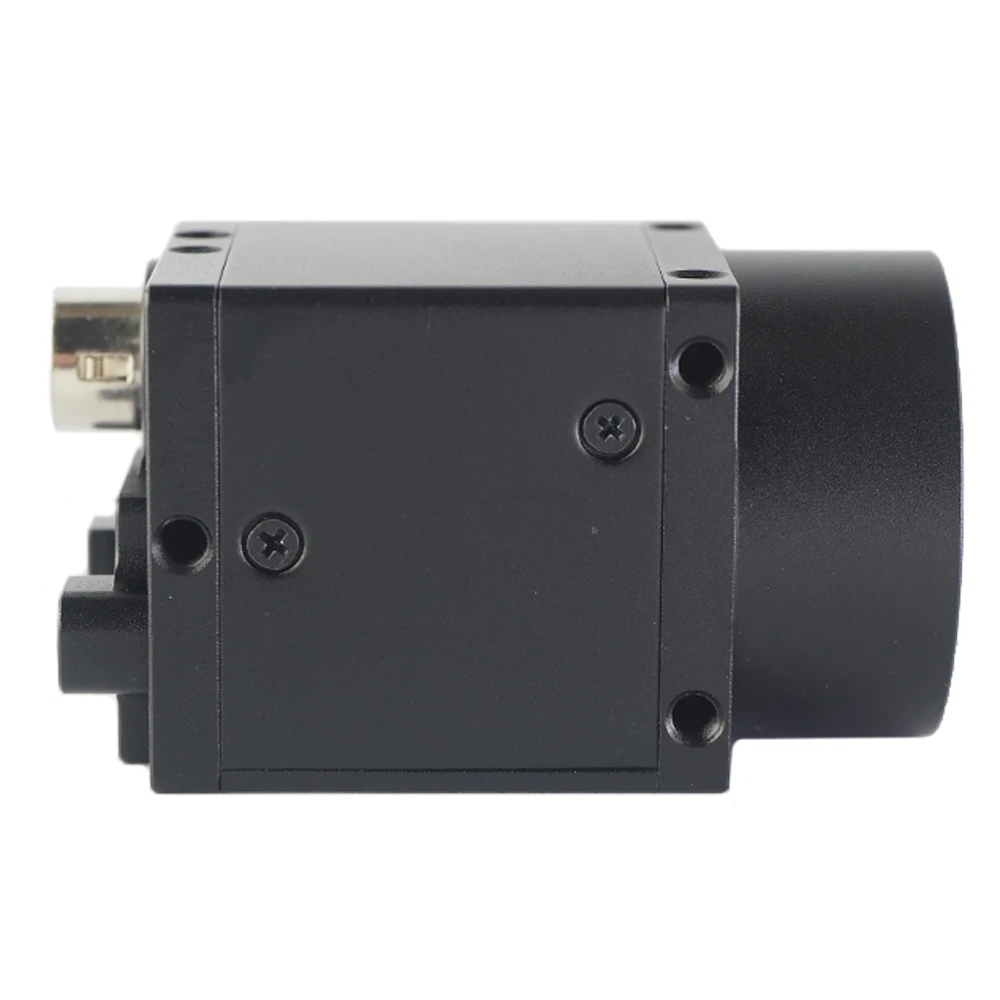

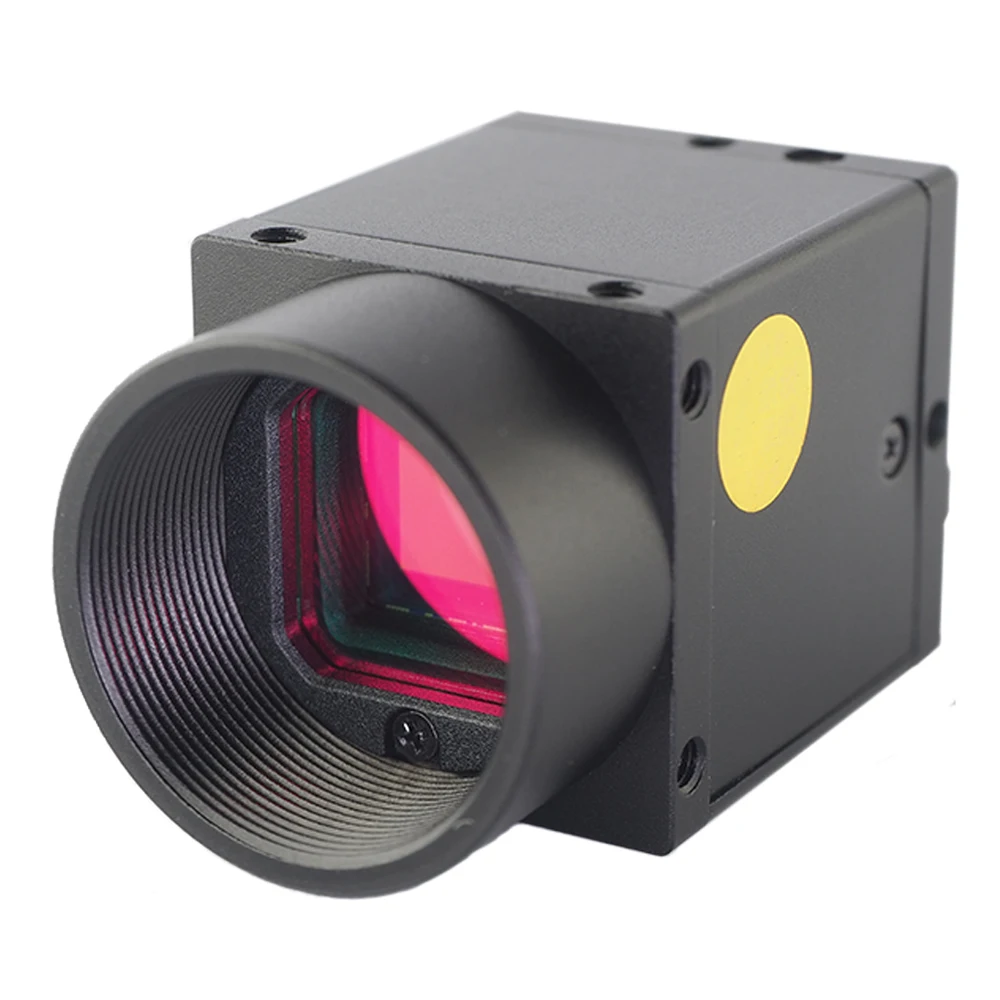

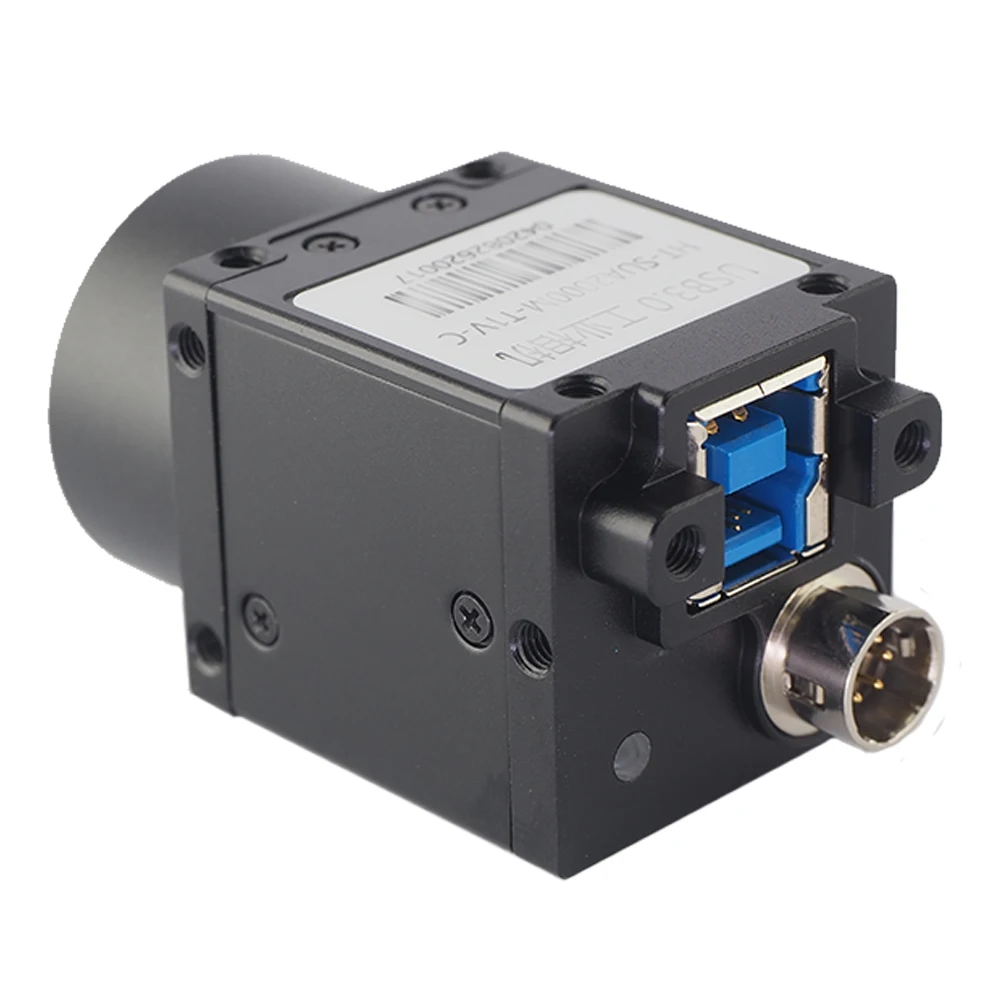

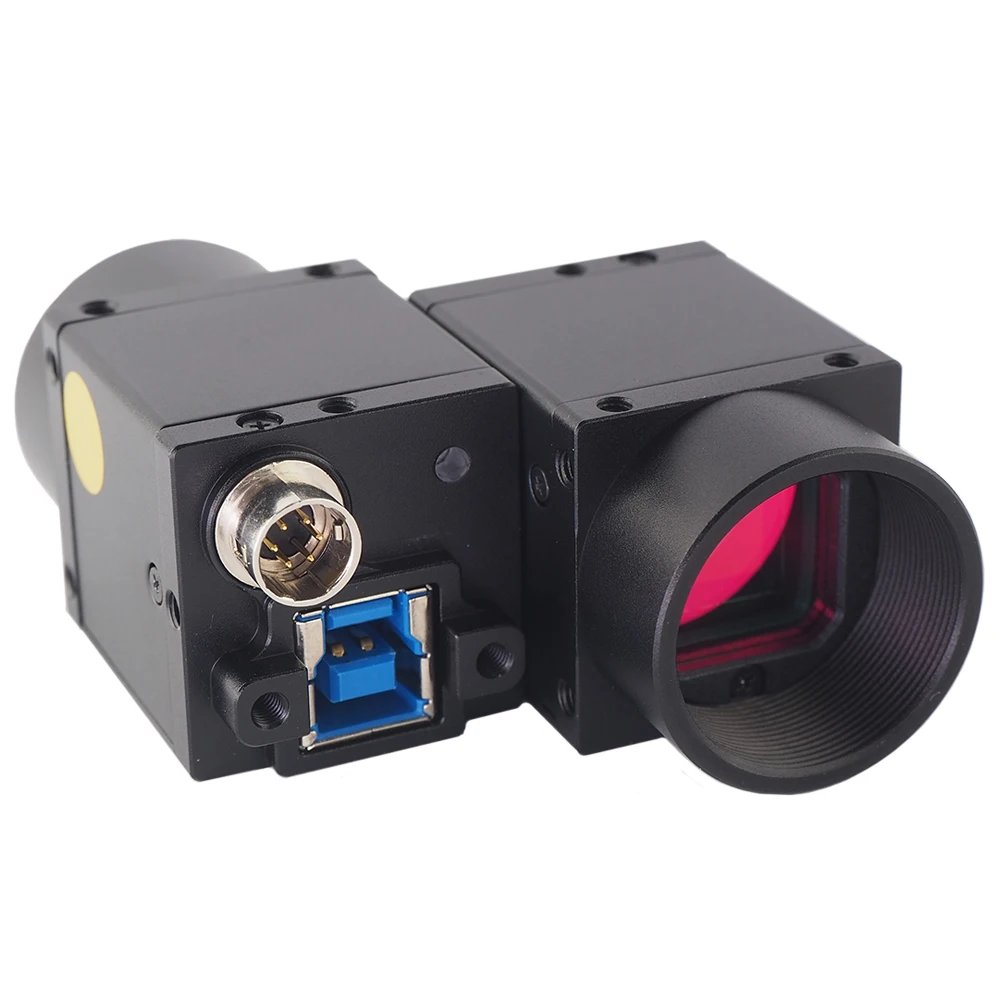

Name: Machine Vision Camera Global Shutter High Speed USB3.0 Monochrome C-Mouth AI Automation Industrial Digital Cameras OpenCV Python
SKU: 32891034037
Availability: InStock

Battery Included: No
High-concerned chemical: None
Magnification Ratio: 500X & Under
Drawtube: N
Certification: None
Material: Metal
Origin: Mainland China
Model Number: HT-SUA31~501GM-T
Brand Name: HUATENGVISION
Theory: Video Microscope
Is Smart Device: No
Features: High Definition
Pixel: 0.3~5.0 Megapixels
Connection Method: USB 3.0
Colour: Color/Monochrome
Shutter Type: Global Shutter
Lens Interface: C Mouth
Chip Type: CMOS
Housing Dimensions: 29mm x 29mm x 32.7mm
Support System: Windows 7/10/11 32/64bits and Linux 32/64bits

USB3.0 Series Features:

1) Camera transfer speed is fast.

2) Compatible with U3VISION vision standard.

3) High frame rate camera, 0.3MP 790FPS, 1.3MP 210FPS, 4.0MP 88FPS, 20.0MP 20FPS.

4) Support multiple cameras to work at the same time.

5) Data packet retransmission technology to ensure reliable data transmission.

6) Provide SDK, easy to use and convenient.

7) Support external trigger and flash.

8) SDK supports Windows and Linux systems.

9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.

Product Feature:

1) Camera parameter archive is saved as a file.

2) Camera name can be modified to easily distinguish multiple cameras.

3) With a maximum of 16K bytes of data storage.

4) Support 8bit, 24bit, 32bit image format output.

5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

Package Incluede:

1 x Industrial Camera ( No Include Lens )

1 x 3 Meters Cable

1 x Trigger line

Industrial Camera Parameters：

Model	Pixel	Resolution	Frame rate	Shutter Type	Sensor	Pixel Size	Bit Depth	Color
HT-SUA33GC	0.3MP	640X480	790 FPS	Global Shutter	1/5.6" OEM	4.0μm	8 bit	Color
HT-SUA33GM	0.3MP	640X480	790 FPS	Global Shutter	1/5.6" OEM	4.0μm	8 bit	Mono
HT-SUA34GC	0.3MP	640X480	431 FPS	Global Shutter	1/4" PYTHON	4.8μm	8 bit	Color
HT-SUA34GM	0.3MP	640X480	431 FPS	Global Shutter	1/4" PYTHON	4.8μm	8 bit	Mono
HT-SUA40GC	0.4MP	720X540	523 FPS	Global Shutter	1/2.9" IMX287	6.9μm	12 bit	Color
HT-SUA40GM	0.4MP	720X540	523 FPS	Global Shutter	1/2.9" IMX287	6.9μm	12 bit	Mono
HT-SUA31GC	0.36MP	752X480	108 FPS	Global Shutter	1/3" MT9V024	6.0μm	12 bit	Color
HT-SUA31GM	0.36MP	752X480	108 FPS	Global Shutter	1/3" MT9V024	6.0μm	12 bit	Mono
HT-SUA133GC	1.3MP	1280X1024	245 FPS	Global Shutter	1/2.7" SC130GS	4.0μm	8 bit	Color
HT-SUA133GM	1.3MP	1280X1024	245 FPS	Global Shutter	1/2.7" SC130GS	4.0μm	8 bit	Mono
HT-SUA134GC	1.3MP	1280X1024	211 FPS	Global Shutter	1/2" PYTHON1300	4.8μm	8 bit	Color
HT-SUA134GM	1.3MP	1280X1024	211 FPS	Global Shutter	1/2" PYTHON1300	4.8μm	8 bit	Mono
HT-SUF401GC	4.0MP	2048X2048	88 FPS	Global Shutter	1" CMV4000	5.5μm	8 bit	Color
HT-SUF401GM	4.0MP	2048X2048	88 FPS	Global Shutter	1" CMV4000	5.5μm	8 bit	Mono
HT-SUA202GC	2.3MP	1920X1200	165 FPS	Global Shutter	2/3" PYTHON2000	4.8μm	10 bit	Color
HT-SUA202GM	2.3MP	1920X1200	165 FPS	Global Shutter	2/3" PYTHON2000	4.8μm	10 bit	Mono
HT-SUA230GC	2.3MP	1920X1200	165 FPS	Global Shutter	1/1.2" IMX174	5.86μm	8 bit	Color
HT-SUA230GM	2.3MP	1920X1200	165 FPS	Global Shutter	1/1.2" IMX174	5.86μm	8 bit	Mono
HT-SUA231GC	2.3MP	1920X1200	40 FPS	Global Shutter	1/1.2" IMX249	5.86μm	12 bit	Color
HT-SUA231GM	2.3MP	1920X1200	40 FPS	Global Shutter	1/1.2" IMX249	5.86μm	12 bit	Mono
HT-SUA300GC	3.0MP	2048X1536	55.6 FPS	Global Shutter	1/1.8" IMX265	3.54μm	12 bit	Color
HT-SUA300GM	3.0MP	2048X1536	55.6 FPS	Global Shutter	1/1.8" IMX265	3.45μm	12 bit	Mono
HT-SUA501GC	5.0MP	2448X2048	40 FPS	Global Shutter	2/3" IMX264	3.45μm	12 bit	Color
HT-SUA501GM	5.0MP	2448X2048	40 FPS	Global Shutter	2/3" IMX264	3.45μm	12 bit	Mono
HT-SUA505GC	5.3MP	2592X2048	42 FPS	Global Shutter	2/3" XGS5000	3.2μm	12 bit	Color
HT-SUA505GM	5.3MP	2592X2048	42 FPS	Global Shutter	2/3" XGS5000	3.2μm	12 bit	Mono
Data Interface		USB3.0
Synchronization		Via free run Via software trigger Via hardware trigger
Exposure Control		Programmable via the camera API Via hardware trigger

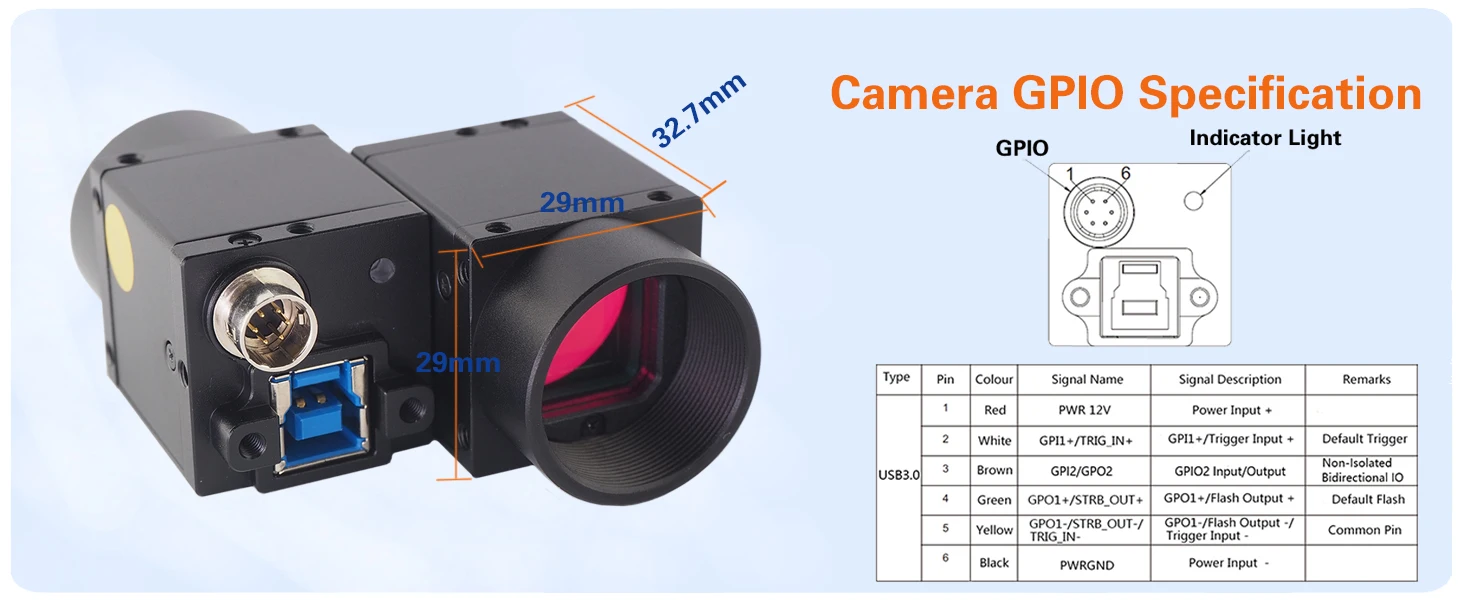

GPIO Digital Input		x1
GPIO Digital Output		x1
General I/O		x1
Power Supply		9~24V, Supports USB Power Supply.
Power Requirements		2.8W @ 5 VDC ( USB Powered )
Support System		Windows 7/10/11 32/64bits and Linux 32/64bits
Vision Standard Protocol		USB3 Vision v1.2, GenlCam
Programming Language		C/C /C#/VB6/VB.NET/Delphi/BCB/Python/Java
Housing Dimensions		29mm x 29mm x 32.7mm
Lens Mount		C- Mount
Operating Temperature		0 - 50°C
Weight		75g
Function		ROI Custom Resolution, Contrast and Gamma Adjustment, Saturation Adjustment,3D Noise Reduction, Custom Camera Name, Etc.

Machine Vision Software:

Industrial Camera Parameters：

Model	Pixel	Resolution	Frame rate	Shutter Type	Sensor	Pixel Size	Bit Depth	Color
HT-SUA502C	5.0MP	2592X1944	59 FPS	Rolling Shutter	1/2.5" AR0521	2.2μm	10 bit	Color
HT-SUA502M	5.0MP	2592X1944	59 FPS	Rolling Shutter	1/2.5" AR0521	2.2μm	10 bit	Mono
HT-SUA630C	6.3MP	3088X2064	60 FPS	Rolling Shutter	1/1.8" IMX178	2.4μm	8 bit	Color
HT-SUA630M	6.3MP	3088X2064	60 FPS	Rolling Shutter	1/1.8" IMX178	2.4μm	8 bit	Mono
HT-SUA1000C	10.0MP	3664X2748	8 FPS	Rolling Shutter	1/2.3" MT9J003	1.67μm	12 bit	Color
HT-SUA1000M	10.0MP	3664X2748	8 FPS	Rolling Shutter	1/2.3" MT9J003	1.67μm	12 bit	Mono
HT-SUA1201C	12.0MP	4000X3000	32 FPS	Rolling Shutter	1/1.7" IMX226	1.85μm	8 bit	Color
HT-SUA1201M	12.0MP	4000X3000	32 FPS	Rolling Shutter	1/1.7" IMX226	1.85μm	8 bit	Mono
HT-SUA1600C	16.0MP	4608X3456	12 FPS	Rolling Shutter	1/2.3" IMX206	1.34μm	12 bit	Color
HT-SUA1600M	16.0MP	4608X3456	12 FPS	Rolling Shutter	1/2.3" IMX206	1.34μm	12 bit	Mono
HT-SUA2000C	20.0MP	5488X3672	19.5 FPS	Rolling Shutter	1" IMX183	2.4μm	8 bit	Color
HT-SUA2000M	20.0MP	5488X3672	19.5 FPS	Rolling Shutter	1" IMX183	2.4μm	8 bit	Mono
HT-SUA800C	8.0MP	3840X2160	45 FPS	Rolling Shutter	1/1.8" OEM	2.0μm	12 bit	Color
HT-SUA800M	8.0MP	3840X2160	45 FPS	Rolling Shutter	1/1.8" OEM	2.0μm	12 bit	Mono
Data Interface		USB3.0
Synchronization		Via free run Via software trigger Via hardware trigger
Exposure Control		Programmable via the camera API Via hardware trigger
GPIO Digital Input		x1
GPIO Digital Output		x1
General I/O		x1
Power Supply		9~24V, Supports USB Power Supply.
Power Requirements		2.8W @ 5 VDC ( USB Powered )
Support System		Windows 7/10/11 32/64bits and Linux 32/64bits
Vision Standard Protocol		USB3 Vision v1.2, GenlCam
Programming Language		C/C /C#/VB6/VB.NET/Delphi/BCB/Python/Java
Housing Dimensions		29mm x 29mm x 32.7mm
Lens Mount		C- Mount
Operating Temperature		0 - 50°C
Weight		75g
Function		ROI Custom Resolution, Contrast and Gamma Adjustment, Saturation Adjustment,3D Noise Reduction, Custom Camera Name, Etc.
