Machine Fixed Precision Vise Double Side OK Fixture Vise CNC Machining Multi-station Wedge Clamping Block Element Vise M6 M8 M10

Description:

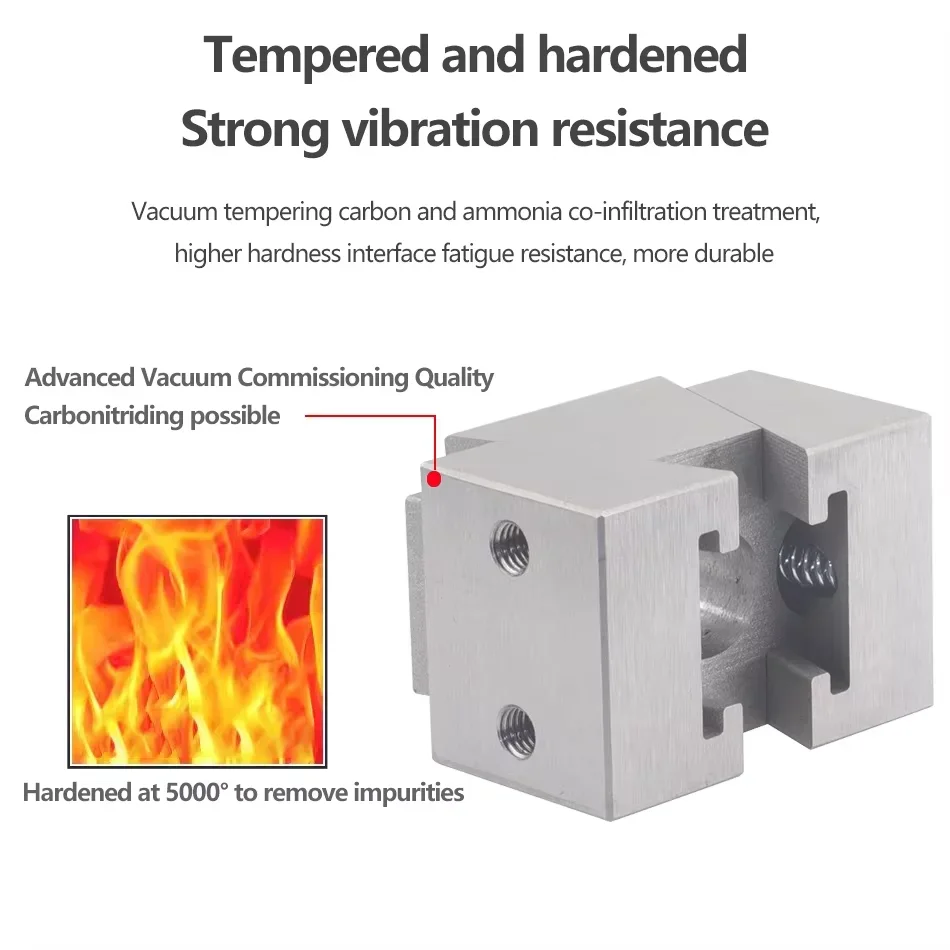

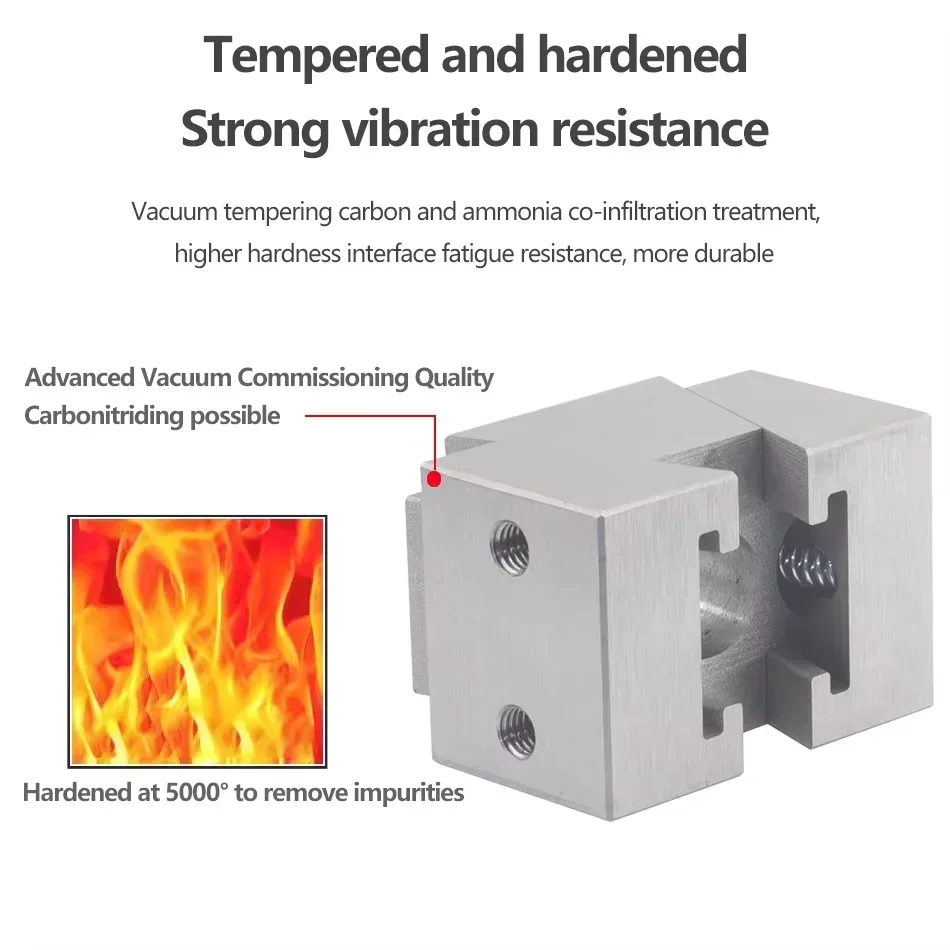

DURABLE: Made of aluminum alloy metal material,durable.

Multiple pieces can be used side by side, saving time and labor and high efficiency.

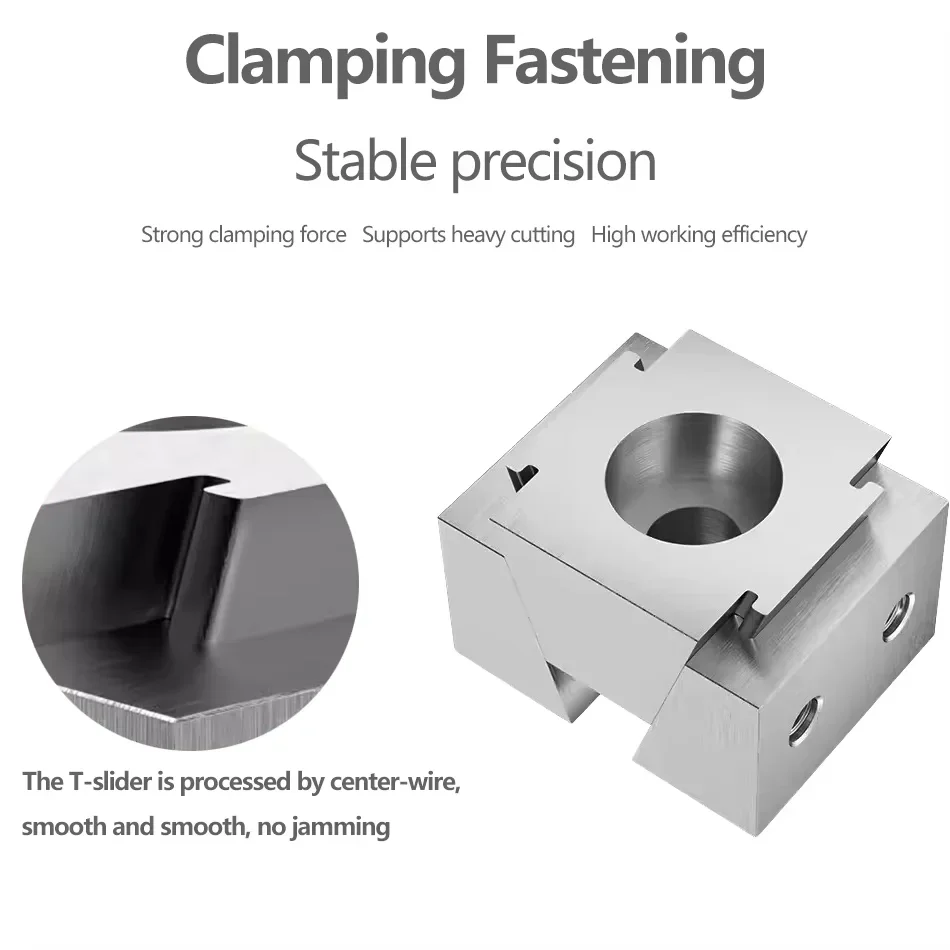

FEATURE: CNC Multi Station OK Clamp Wedge Expansion Block Machining Center Side Fixed Precision Vice.

Scope of use: steel parts, aluminum parts, quick change pallet.

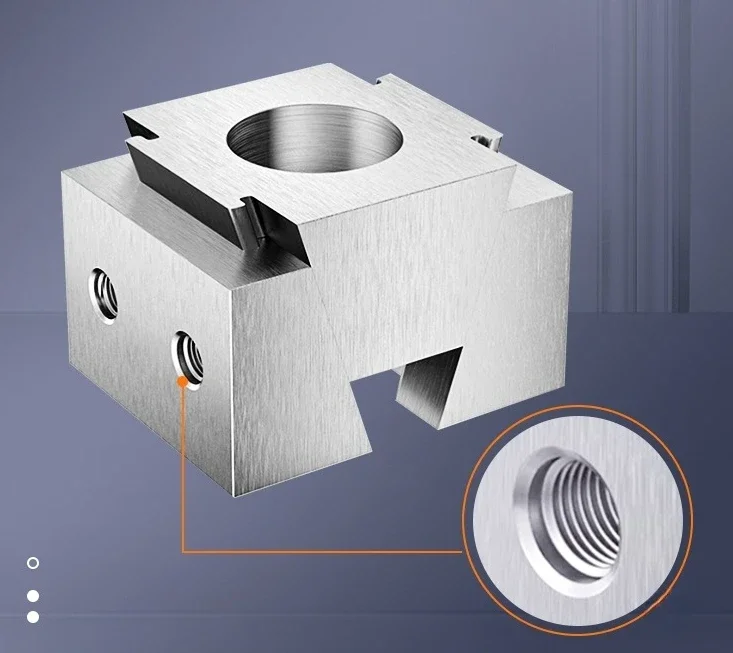

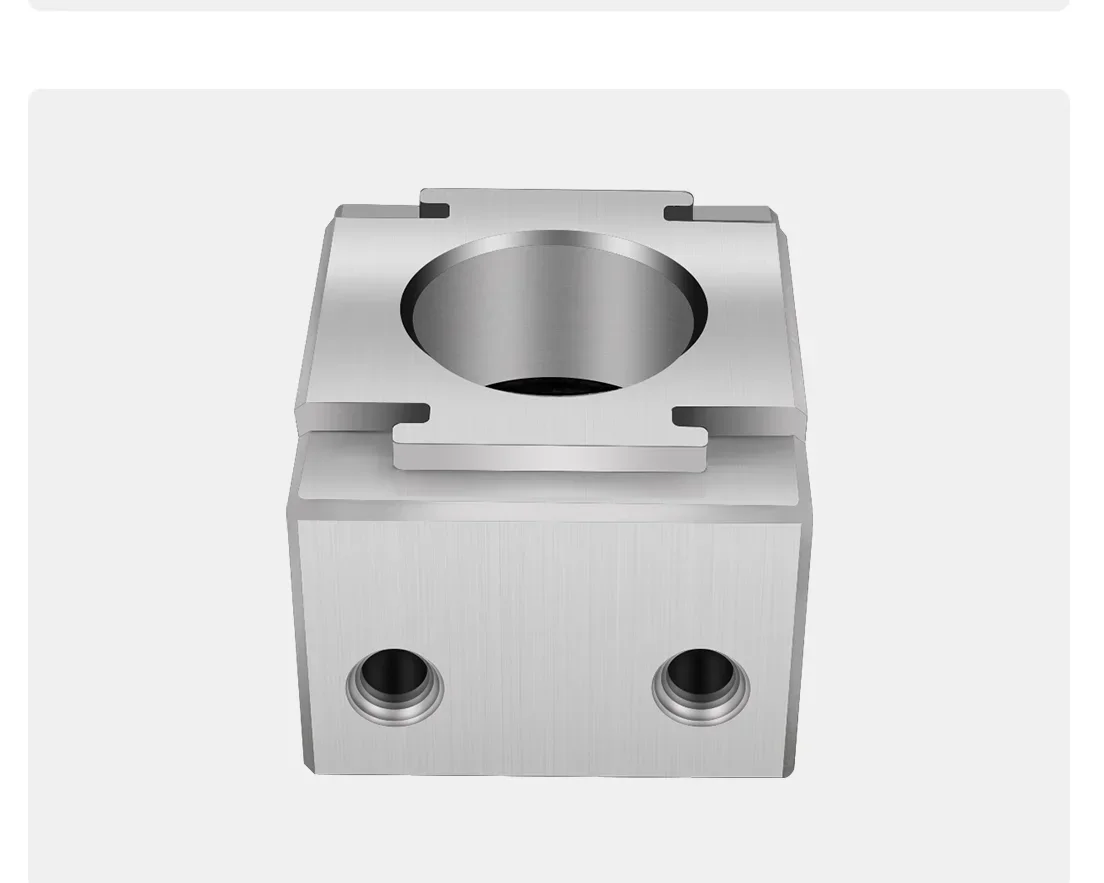

The side threaded hole can be equipped with a semicircular jaw to clamp square workpieces and cylindrical workpieces.

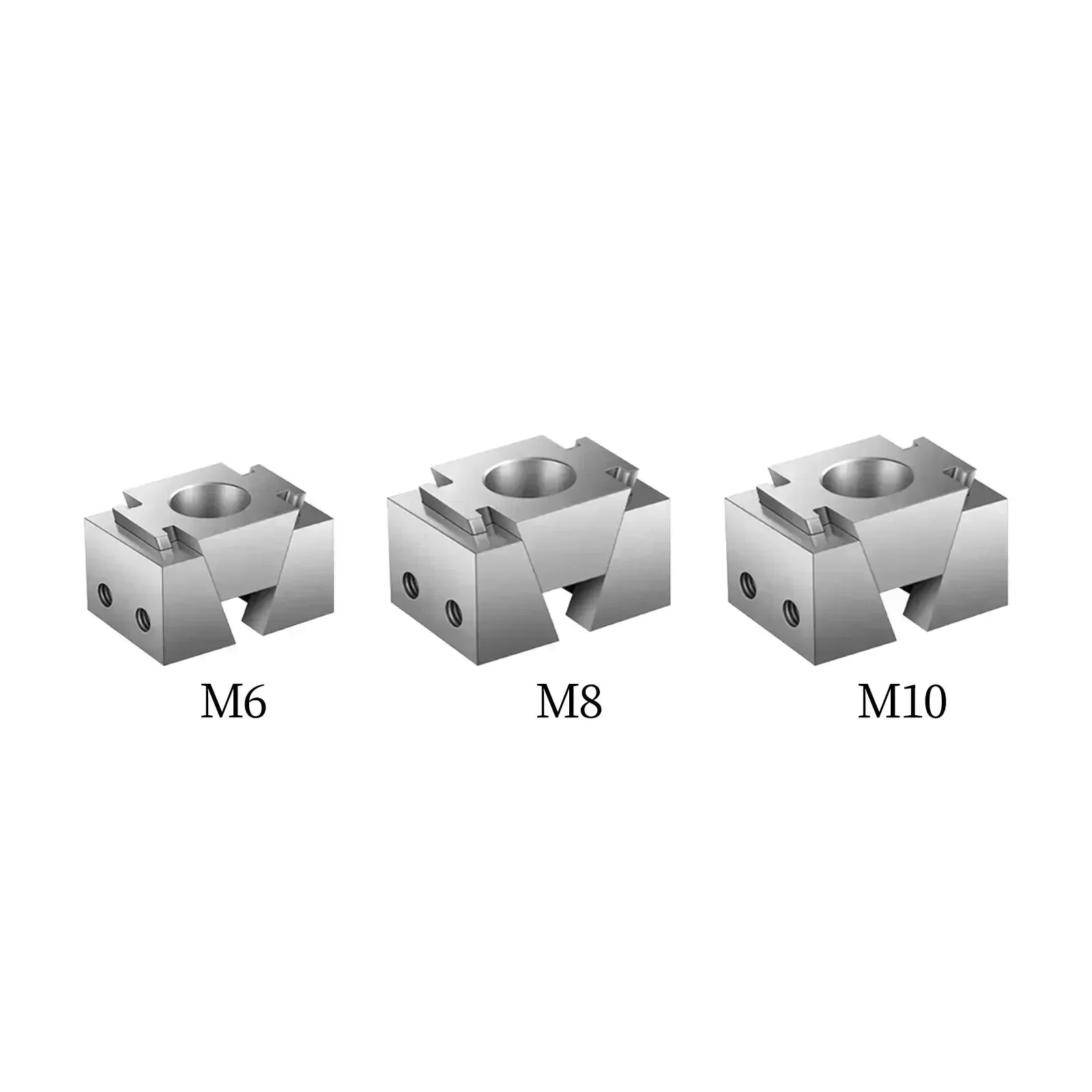

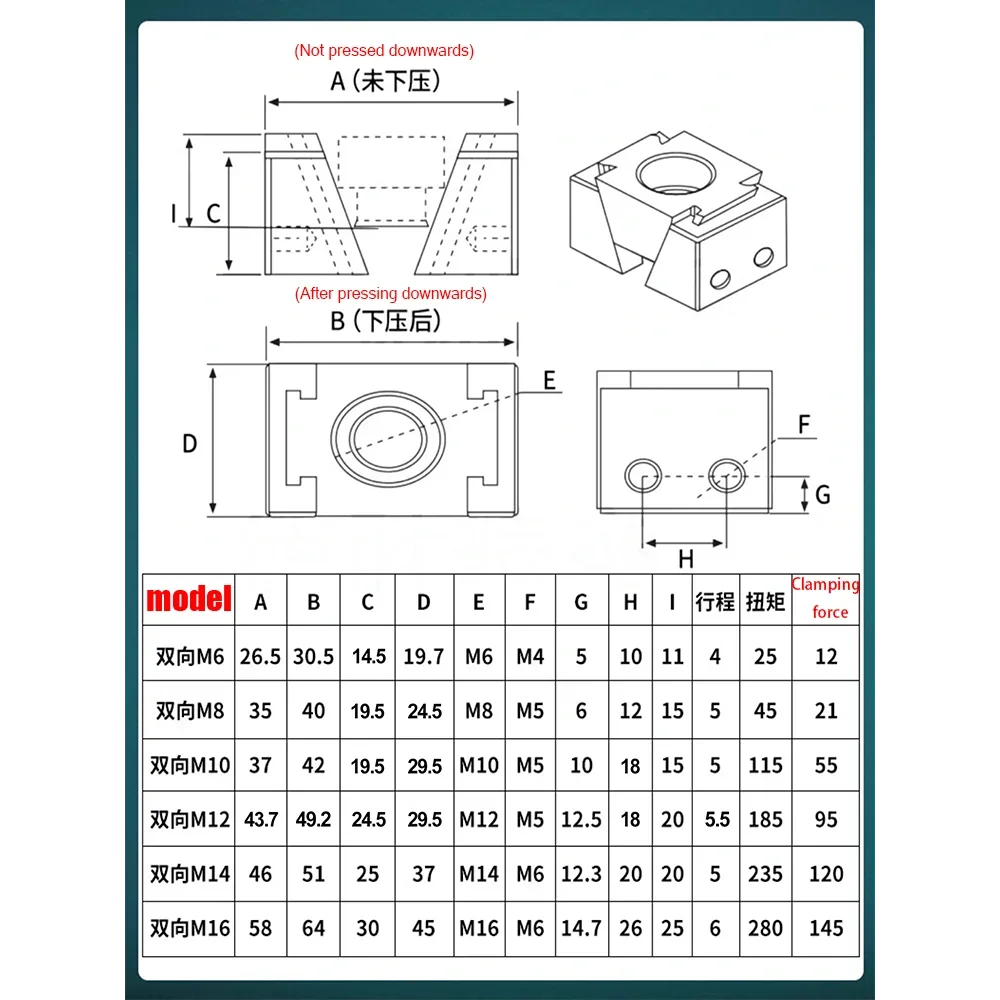

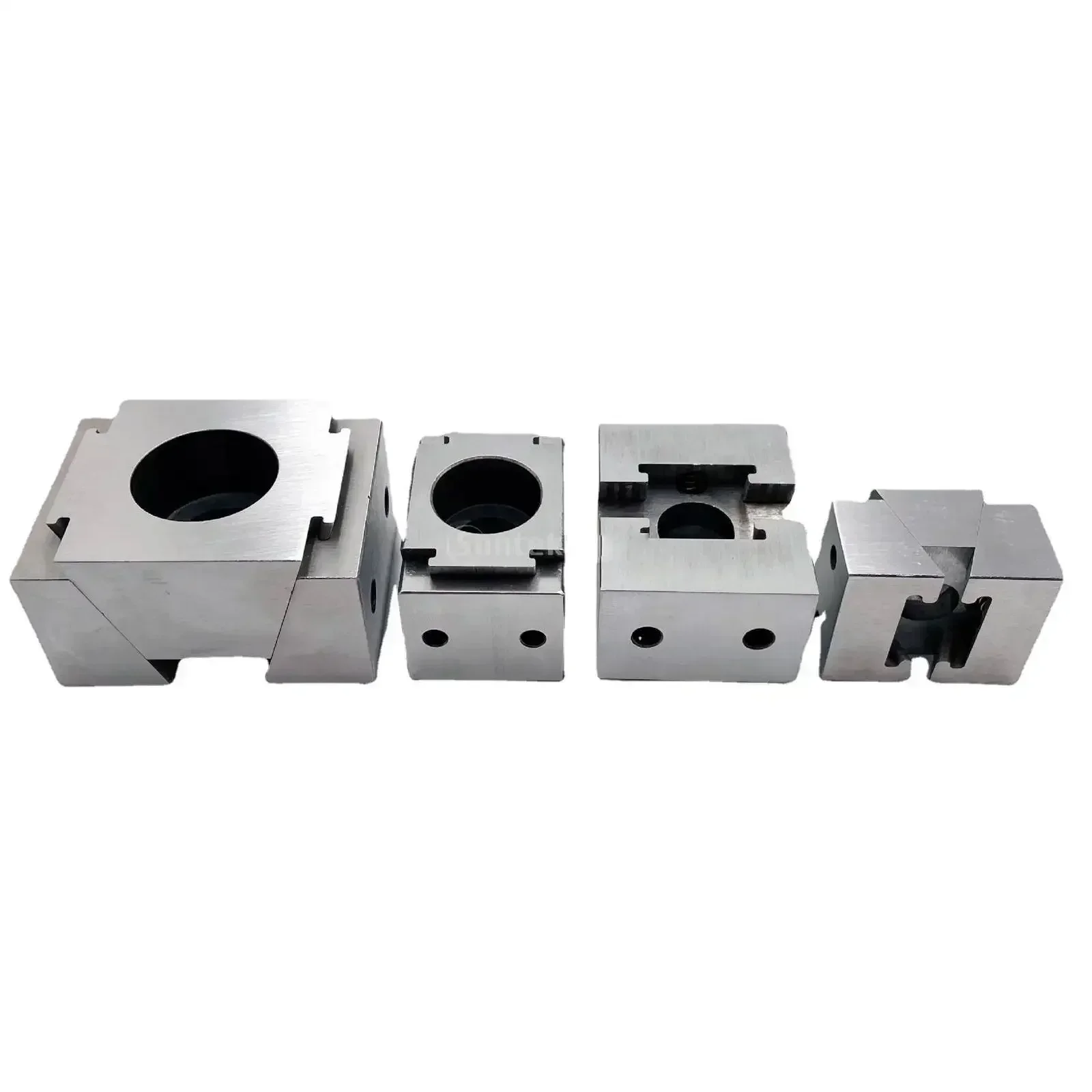

Size Chart:

M6: 26.5*19.7*14.7mm/10.43*7.76*5.79inch

M8: 35*24.7*19.7mm/13.78*9.72*7.76inch

M12: 44*29.7*24.7mm/1.73*1.17*0.97inch

M14: 47*37.7*24.7mm/1.85*1.48*0.97inch

M16: 59*44.7*29.7mm/2.32*1.76*1.17inch

1 OK Fixture

Note:

Please allow slightly errors due to manual measurement and different monitors.

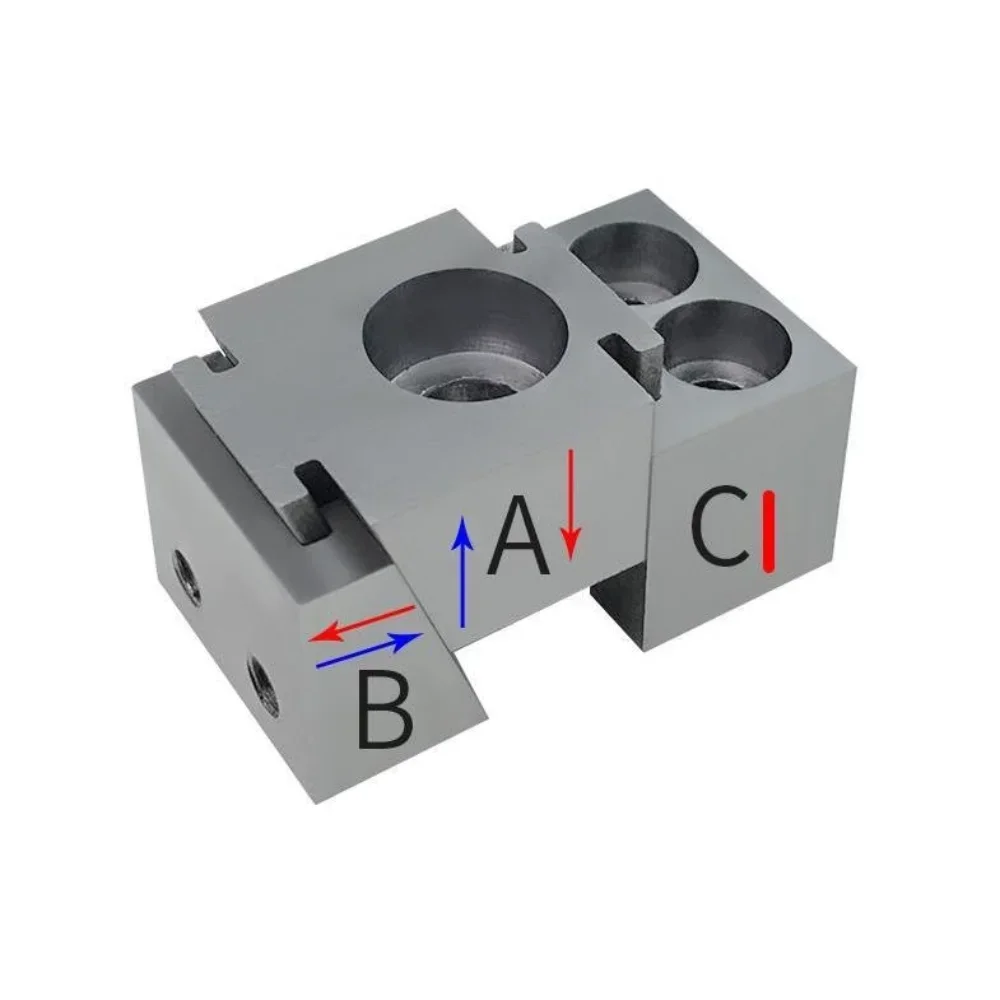

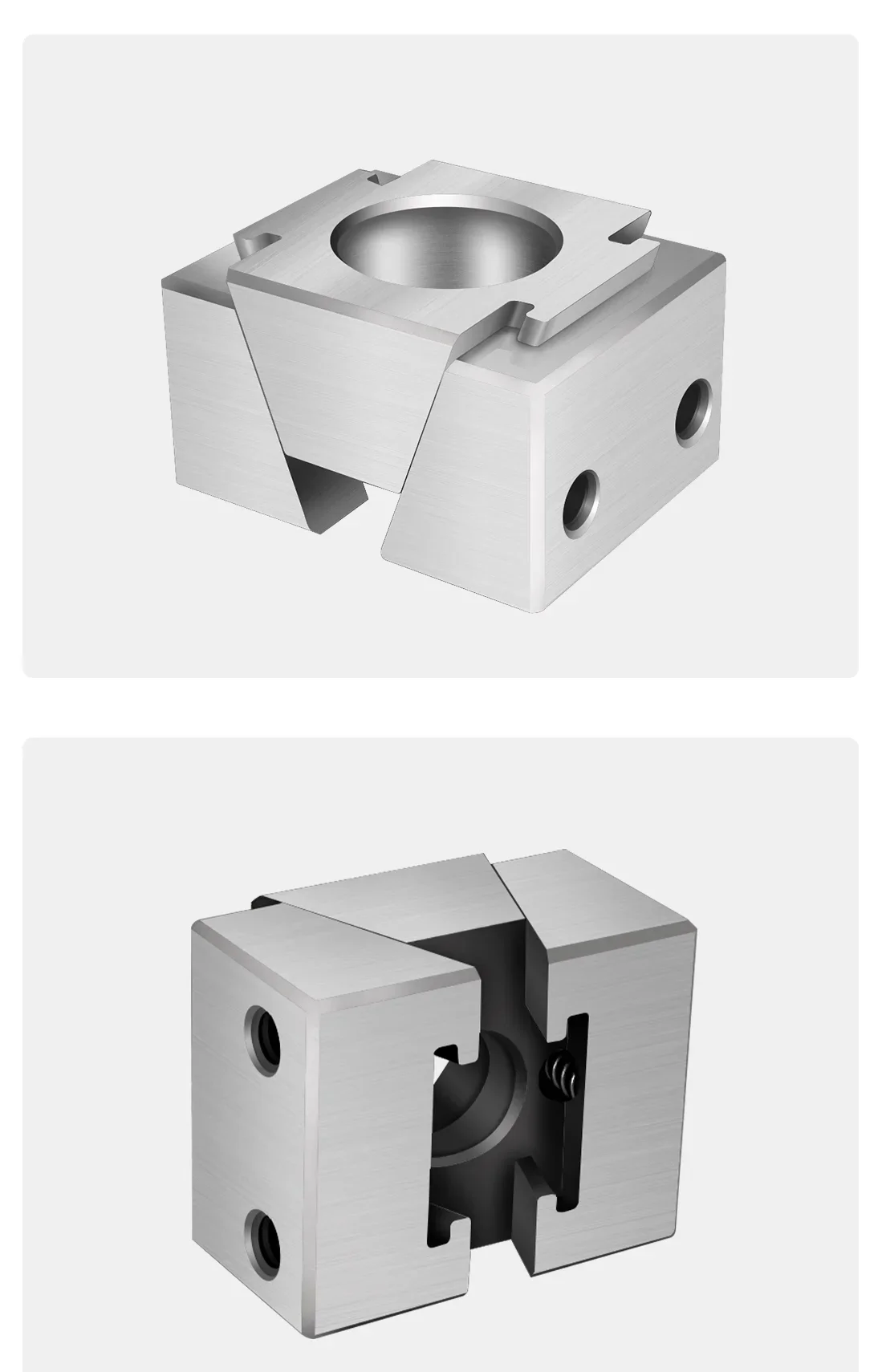

1. When A is pressed down, B. C simultaneously pushes outward in parallel to the ground, achieving the purpose of clamping the workpiece

2. When A loosens upwards, B. C moves inward and parallel to the bottom, achieving the purpose of unlocking the workpiece

Note: When A is loosened upwards, due to the built-in stainless steel spring B C will not move upwards with A, but will move inward and parallel to the bottom at the same time
