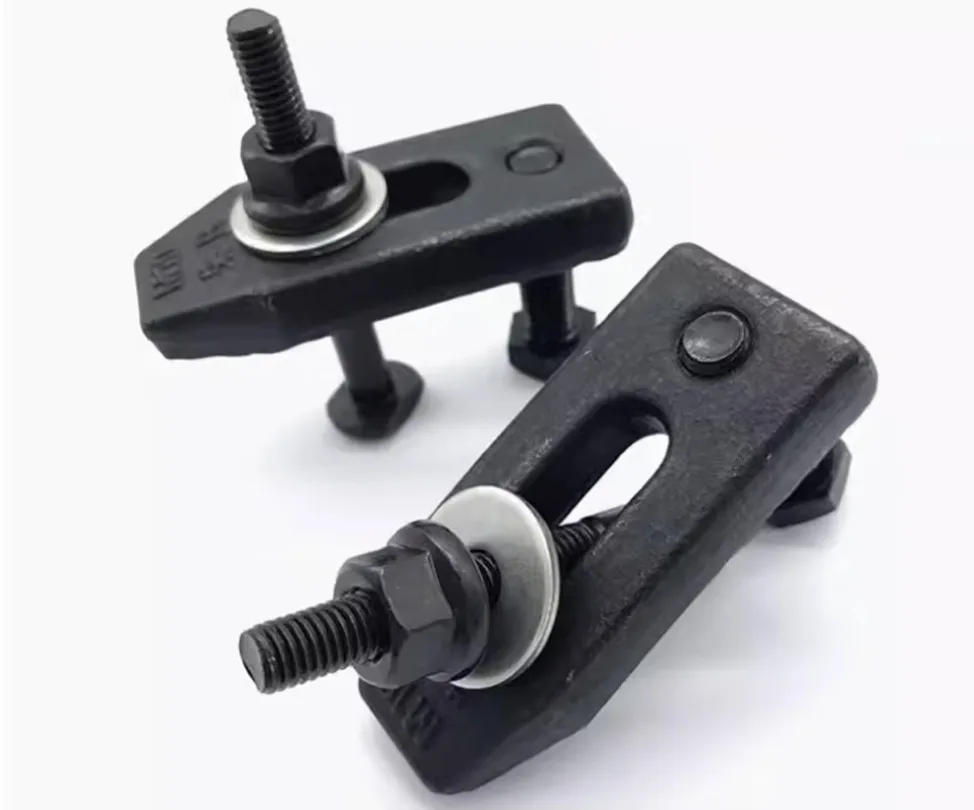

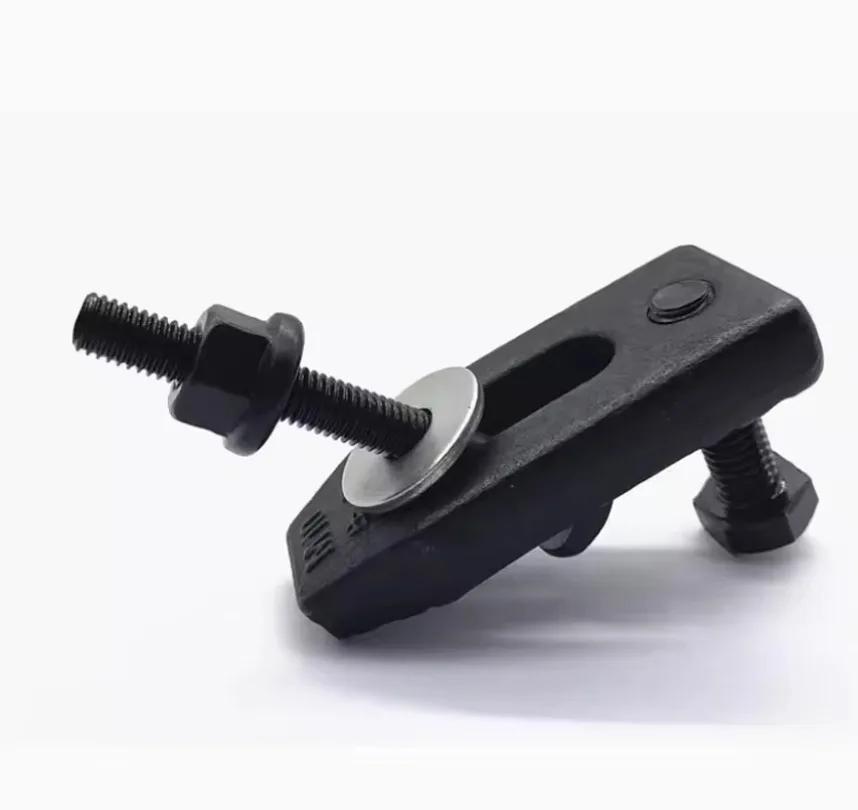

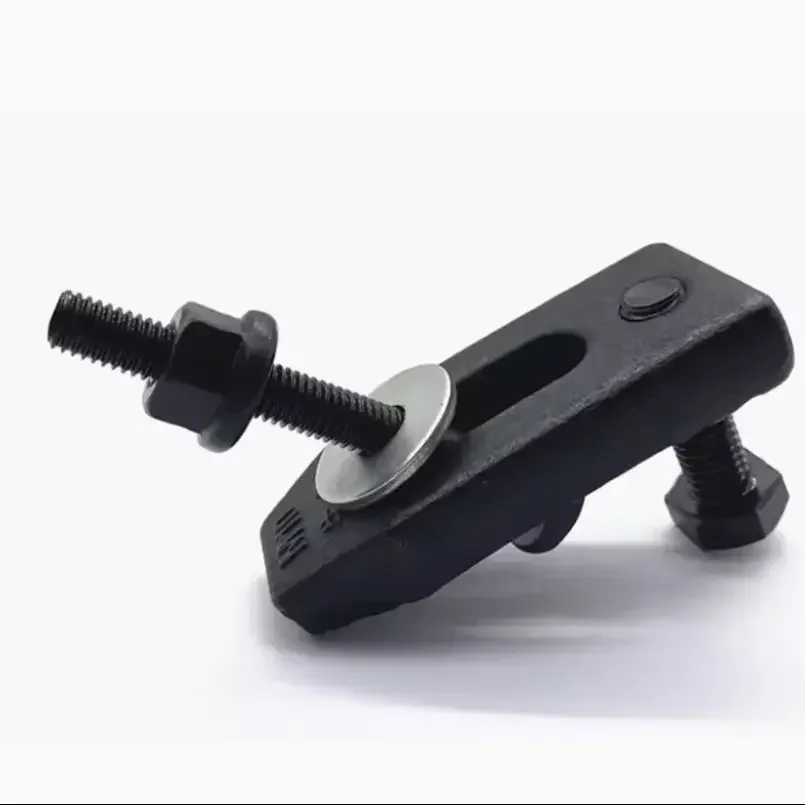

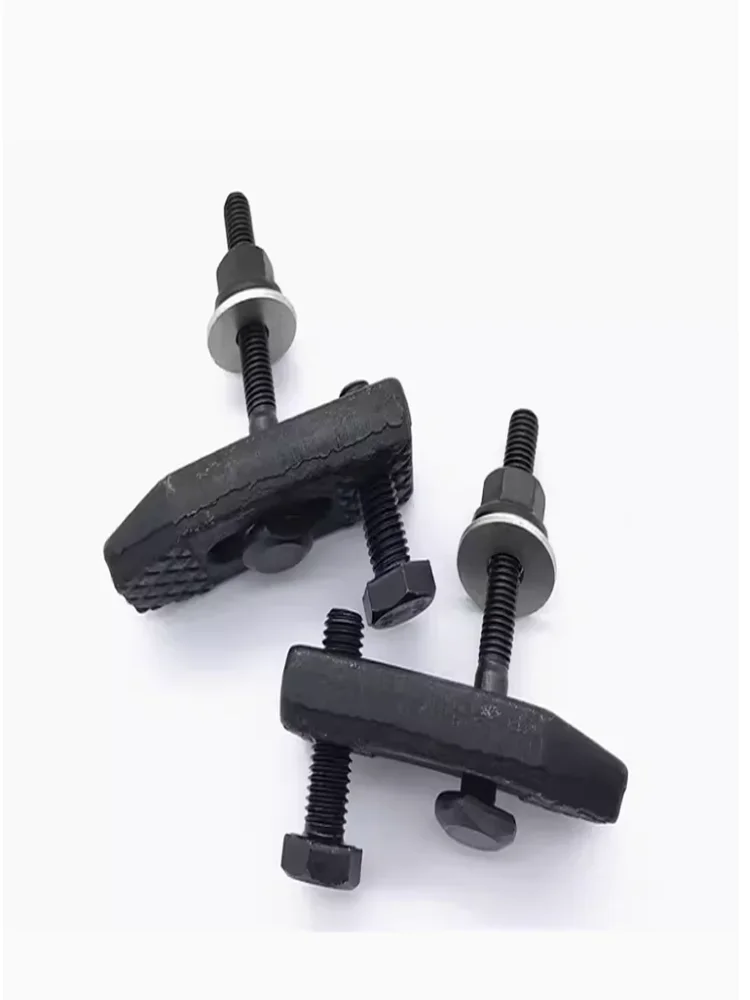

M8/M10 Milling Engraving Machine Parts Pressure Plate Clamp Fixture Plate for T-slot Working Table brand new

Features:

brand new and high quality.

Product Name: Engraving Machine Fixed Platen M8/M10

Color: black

Material: 45 # steel

Surface Treatment: black oxide

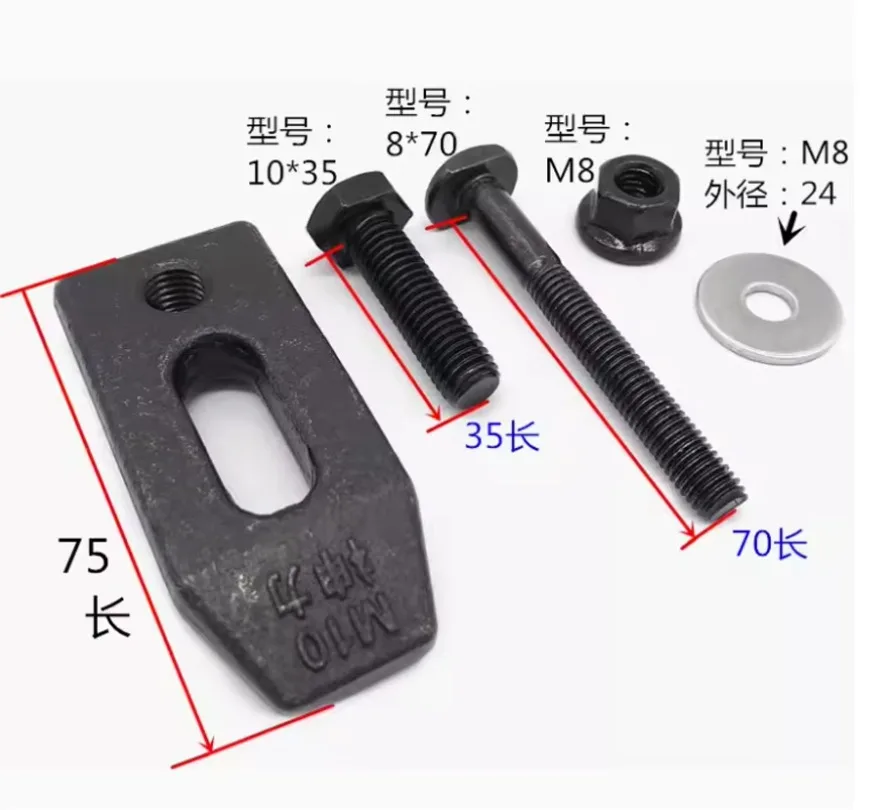

T8 screw M8 screw head size 18mm long, 14mm wide, 5mm thick

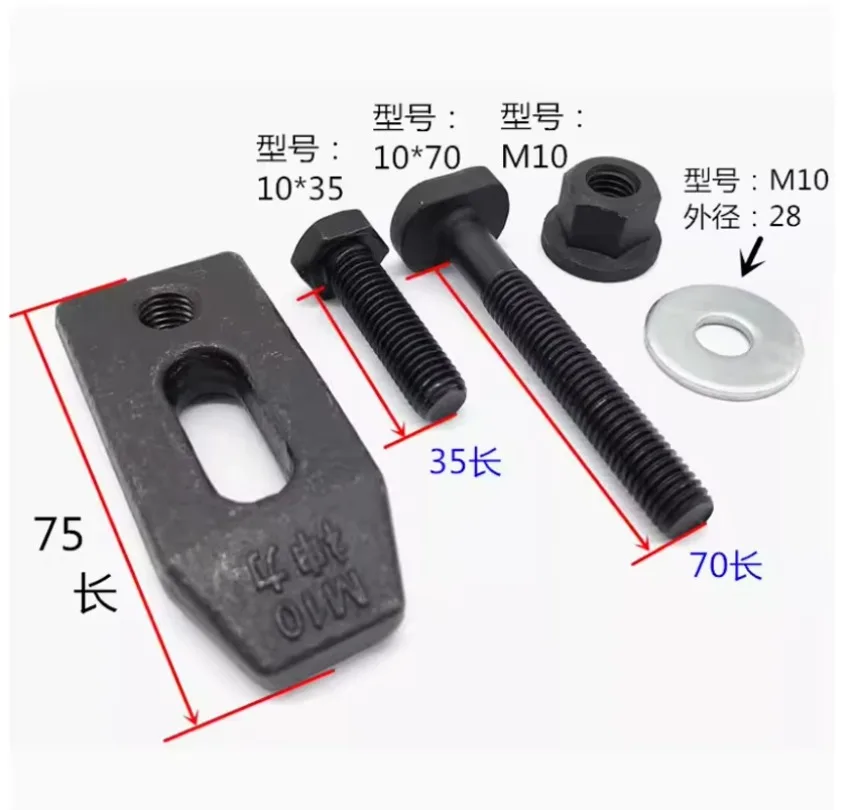

T10 screw M10 head size 23mm long, 17.6mm wide, 6.5mm thick

(The pressure plates are all M10) Please note (there is no M8 pressure plate)

Application: fasteners for machinery industry

Note:

Some customers previously reported that our screws were too small and measured with a tape measure to be 6mm (there is an error in the tape measure).

If measured with a caliper, it is 7mm (the caliper has an error, the standard measurement here is 7.67mm)

I actually don't have M6 and M7 T-type screws here.

You can also judge the size of the screw by measuring the head size.

Or measure the opposite side of the nut. The opposite side of the M8 nut is about 14mm.

Use a No. 14 wrench. If the nut is matched, it can prove that the screw is M8.

Package Includes:

1 set × Pressure Plate Clamp
