- Nome da marca: YUN DUAN
- Número do modelo: DXG6042
- Largura ou Diâmetro da Guia: 12mm
- Origem: CN (Origem)
- Certificado: CE
- Effective Stroke: 100mm-1000mm Optional
- Ballscrew type: SFU1204/SFU1605/SFU1610
- Horizontal load: 60KG (Max)
- Vertical load: 30KG (Max)
- Module material: Industrial Aluminum Profile
- Module width: 42mm
- Repeat positioning accuracy: 0.02mm-0.03mm
- Ballscrew accuracy: C7
- Guide Type: MGW12R
- Slider Type: MGW12C
- Guide diameter: 12mm

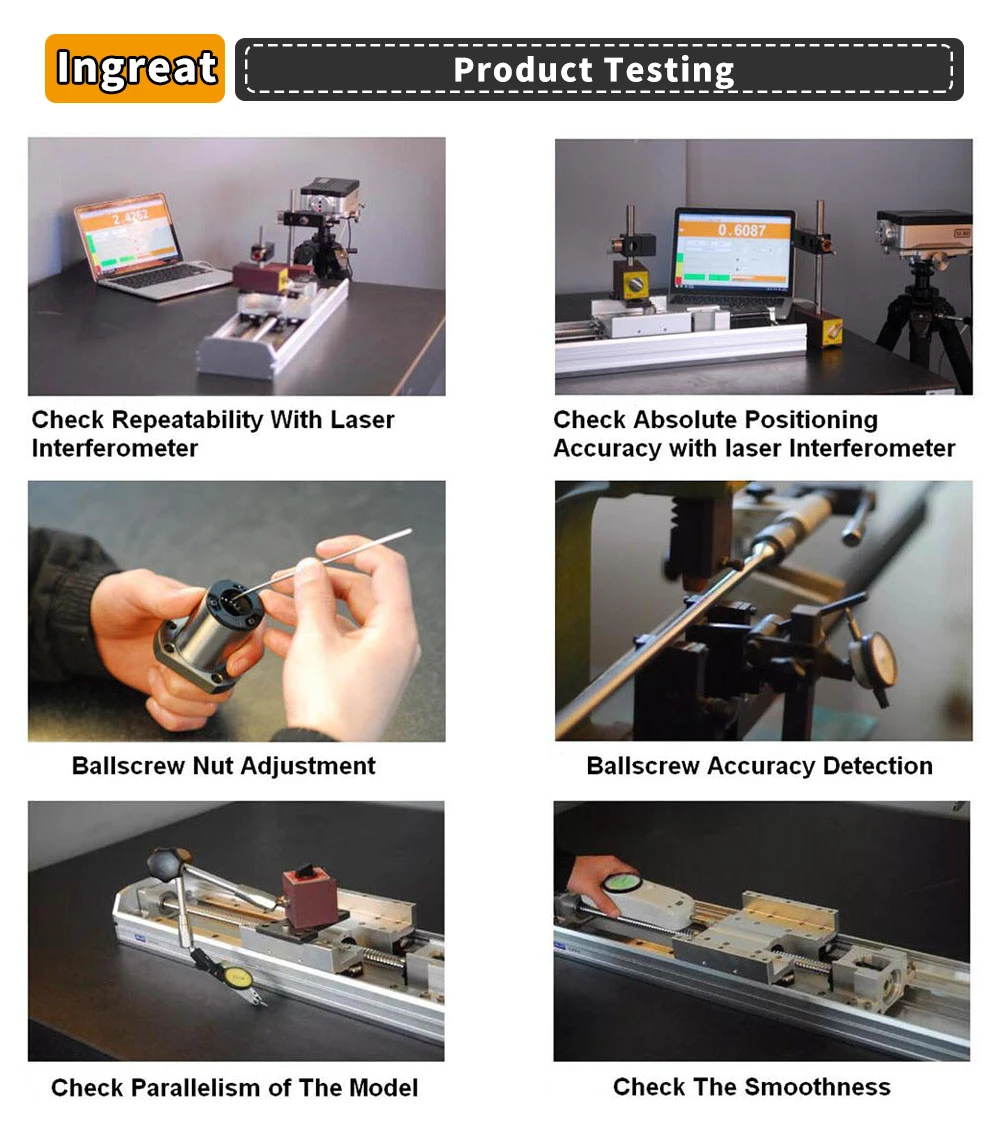

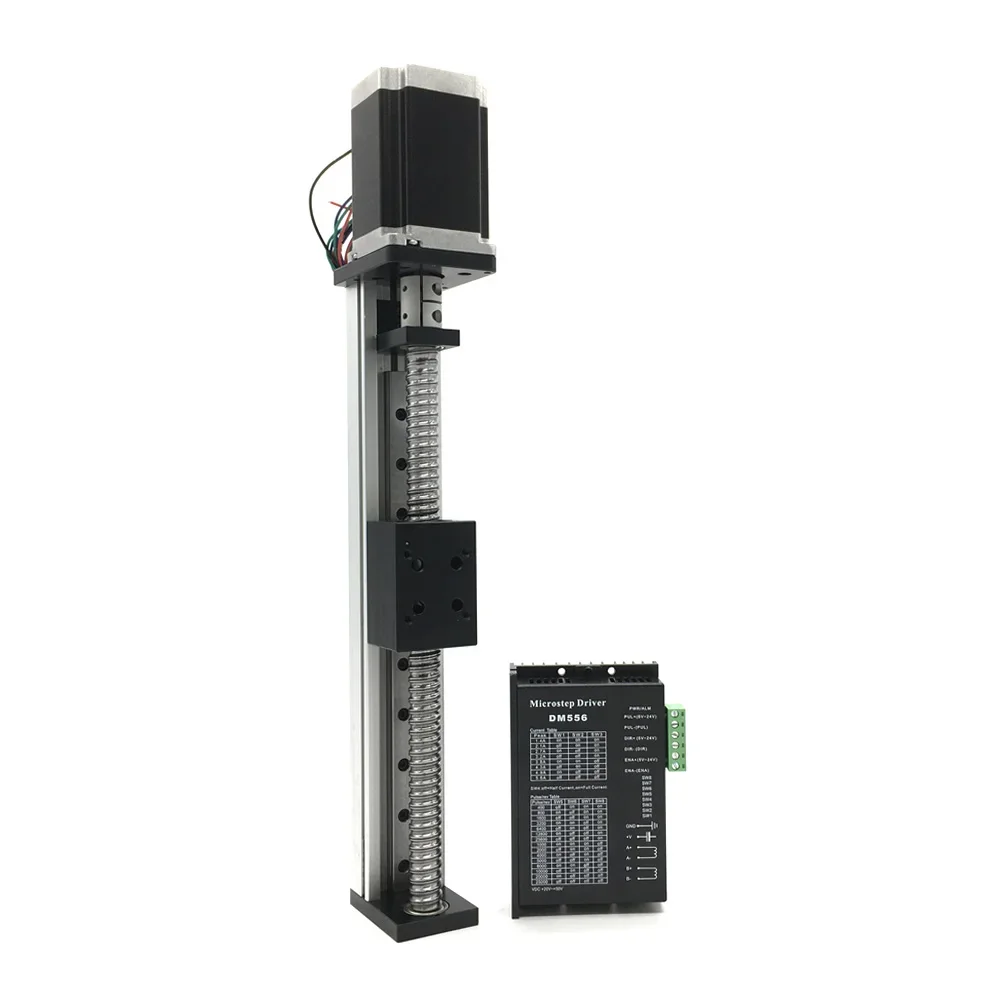

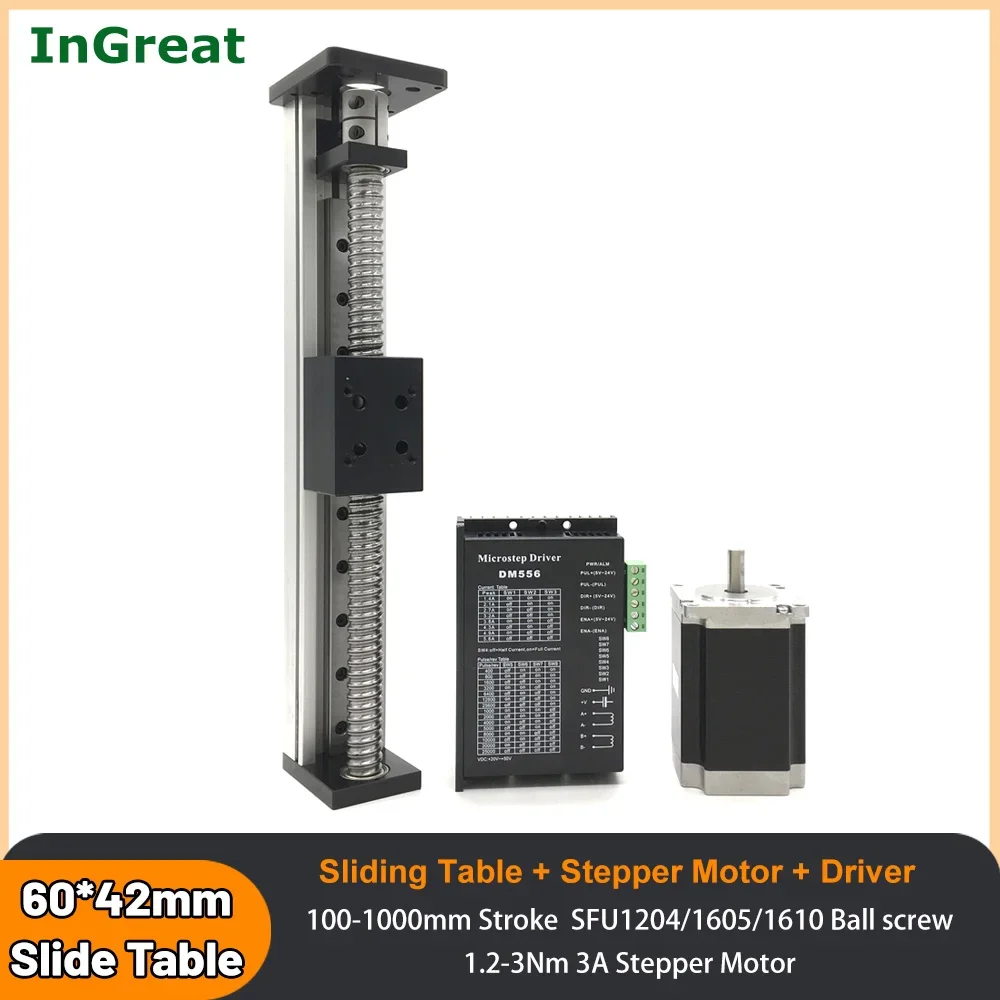

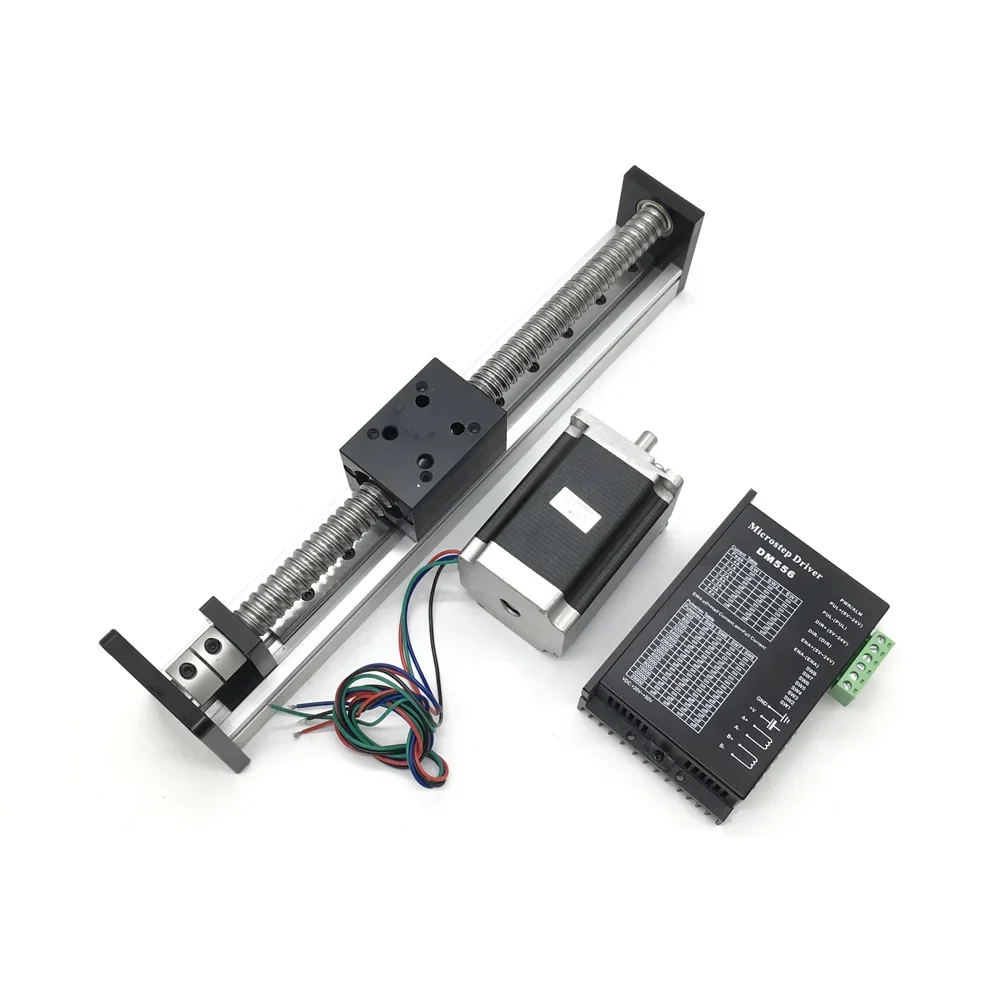

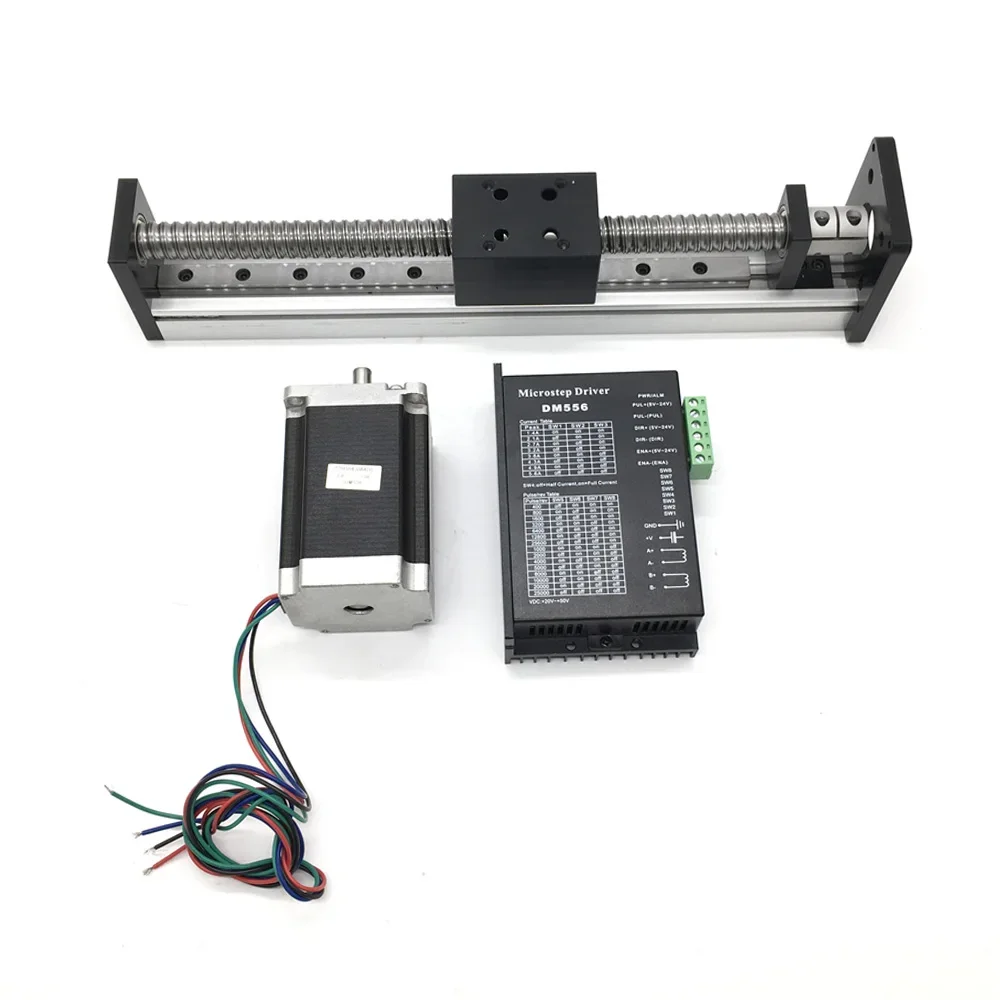

● With Motor Kit:
1* Sliding Table
1* Nema 23 Stepper Motor
1* DM556 Driver
1* 8mm to 8mm Coupling

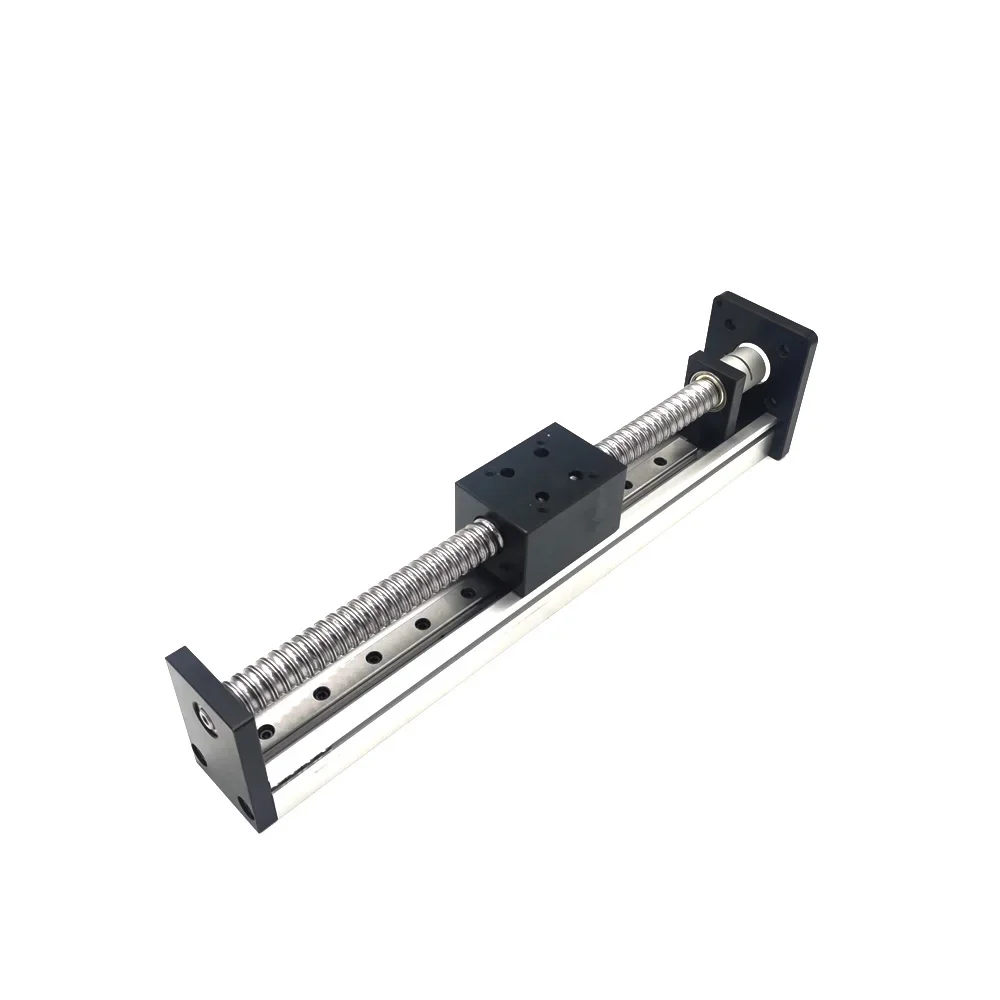

● Only Slide Table:
1* Sliding Table
1* 8mm to 8mm Coupling

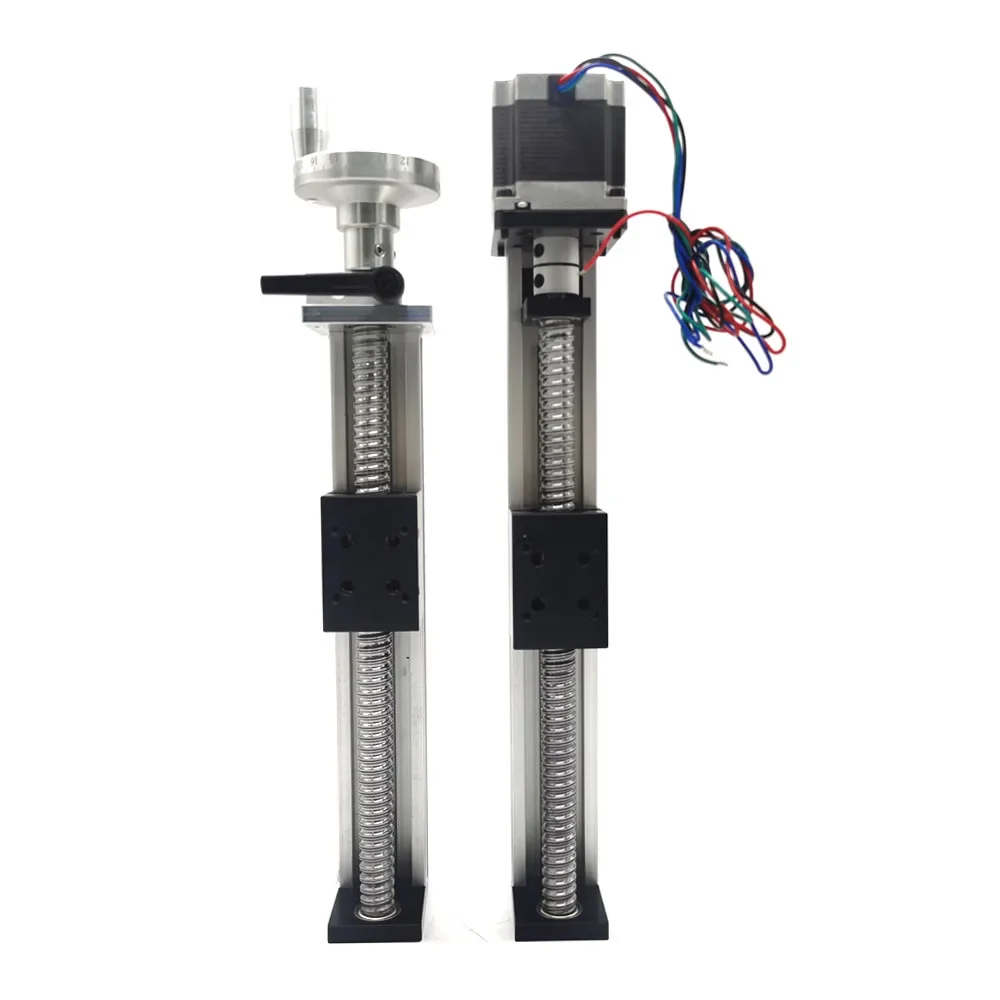

● Handwheel Table:
1* Sliding Table
1* Handwheel

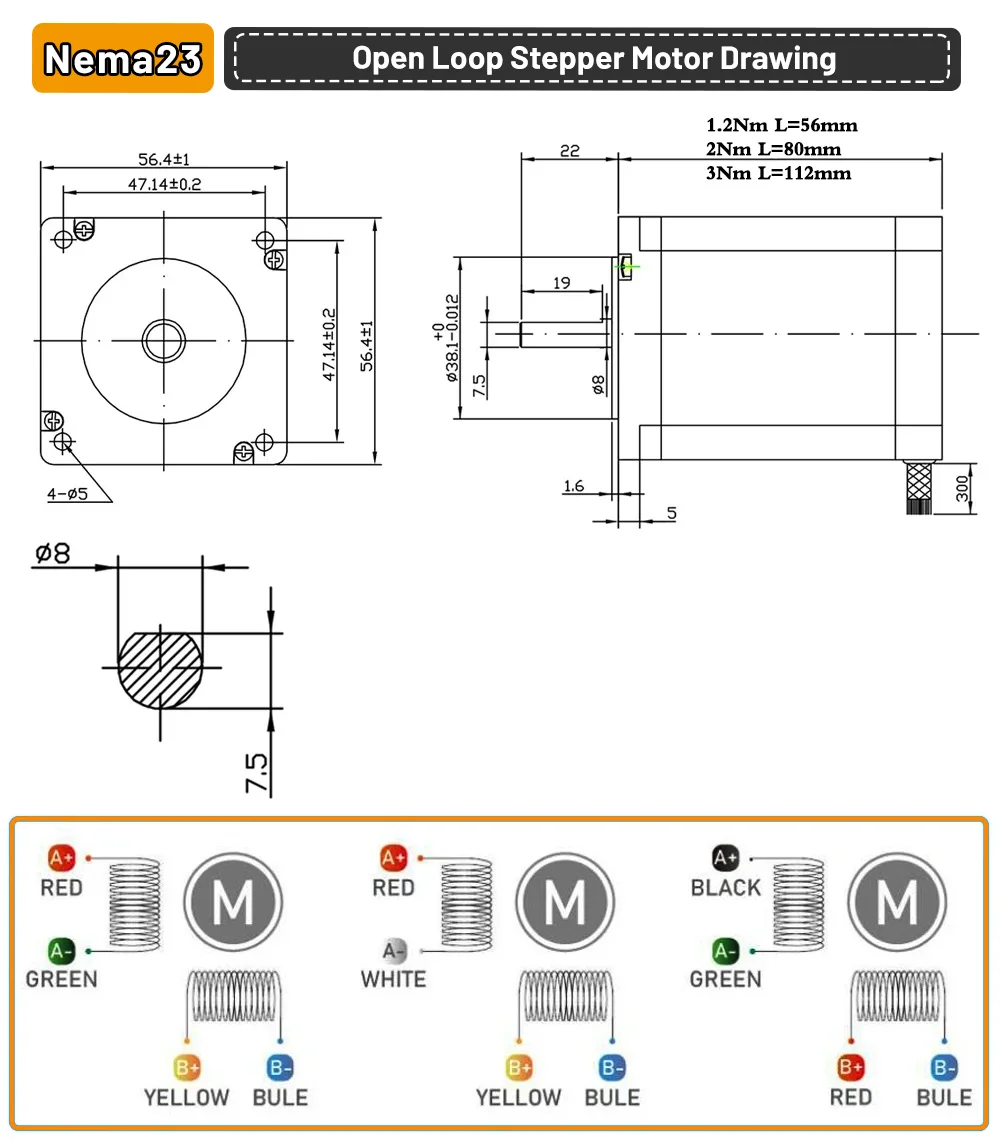

| Nema23 57mm Flange Stepper Motor | ||||||||||
| Model | Holding torque (N.m) |
Body length (mm) |
Current (A) |
Phase resistance (Ω) |
Phase inductance (mH) |
Detent torque (N.cm) |
Moment of inertia (g.cm⊃2;) |
Step angle (°) |
No. of leads | Output diameter (mm) |
| 57HS5630A4 | 1.2 | 56 | 3 | 0.8 | 2.4 | 3.5 | 280 | 1.8 | 4 | 8 |
| 57HS8430A4 | 2.2 | 84 | 3 | 1.2 | 4.6 | 8 | 580 | 1.8 | 4 | 8 |
| 57HS11230A4 | 3.0 | 112 | 3 | 0.9 | 3.8 | 12 | 800 | 1.8 | 4 | 8 |

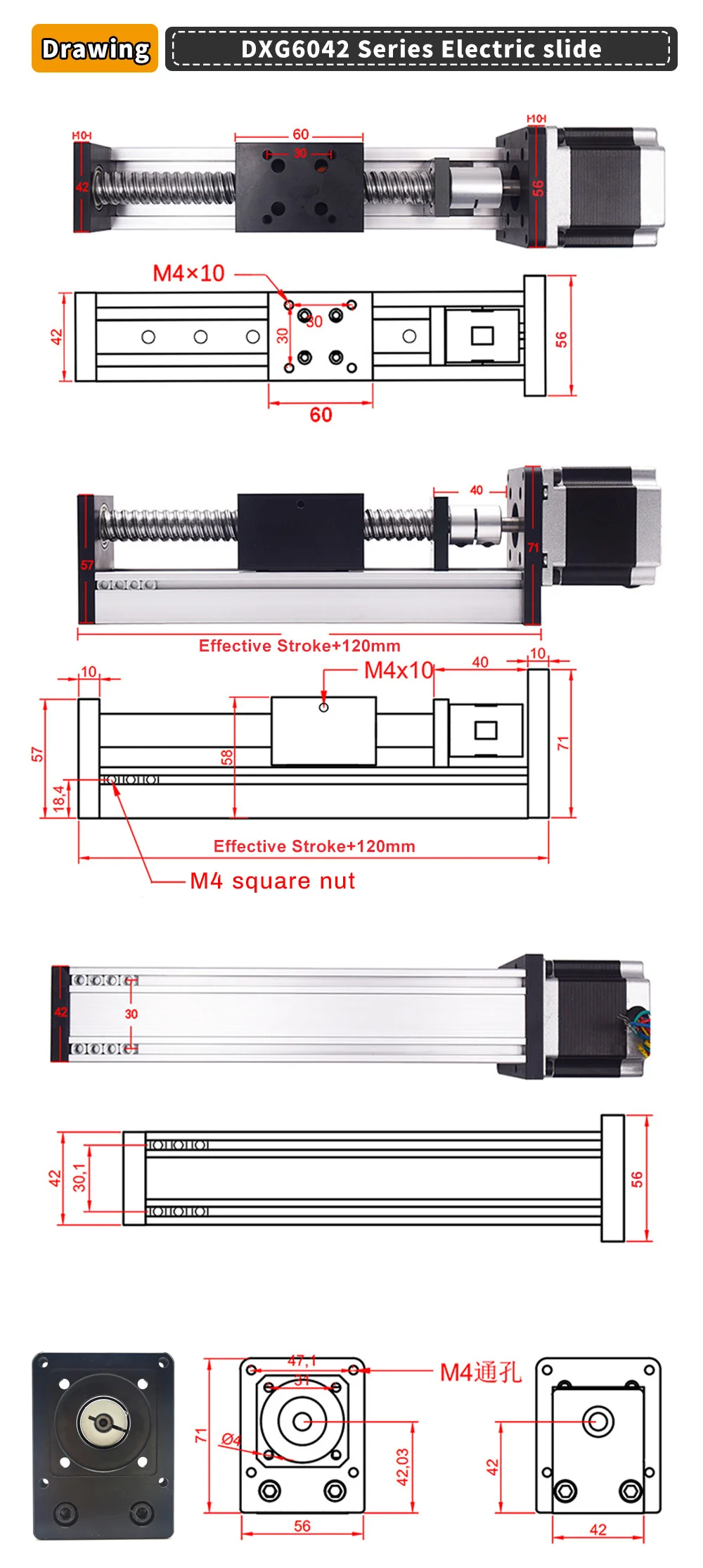

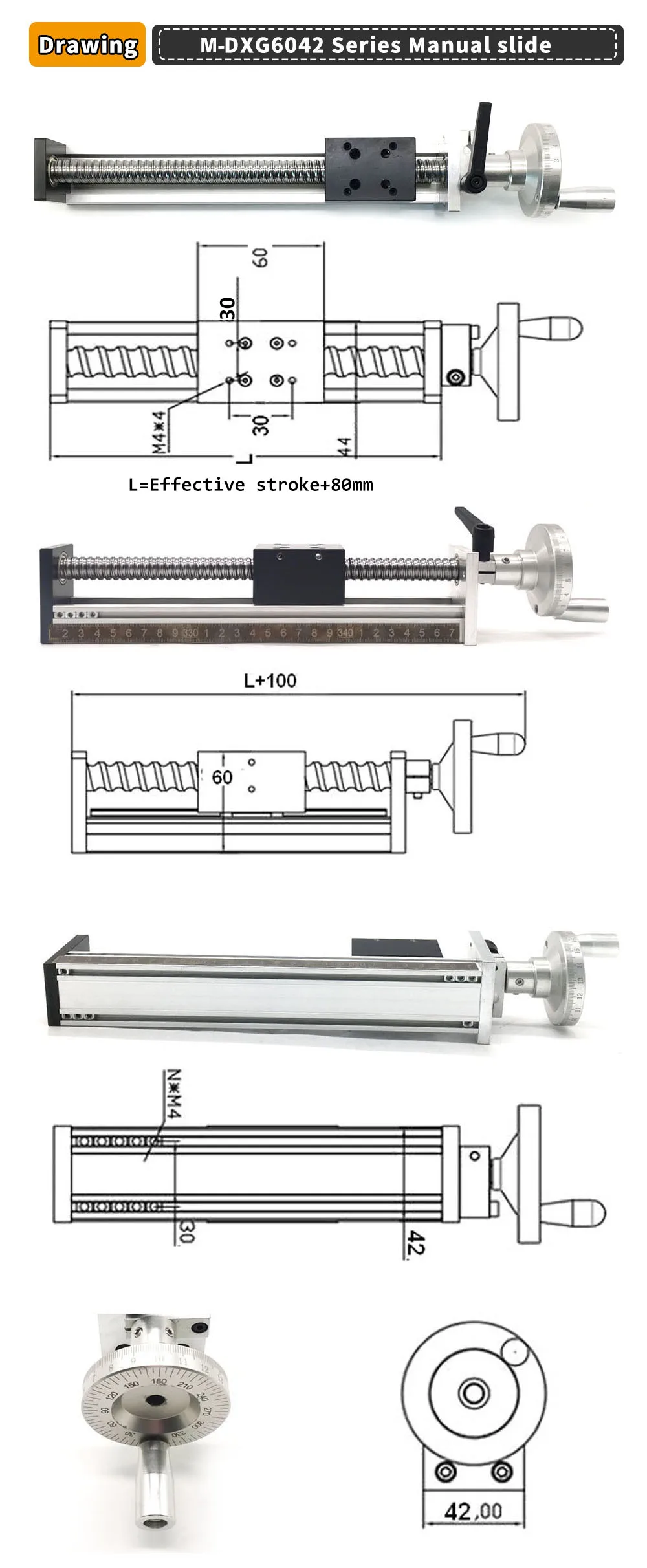

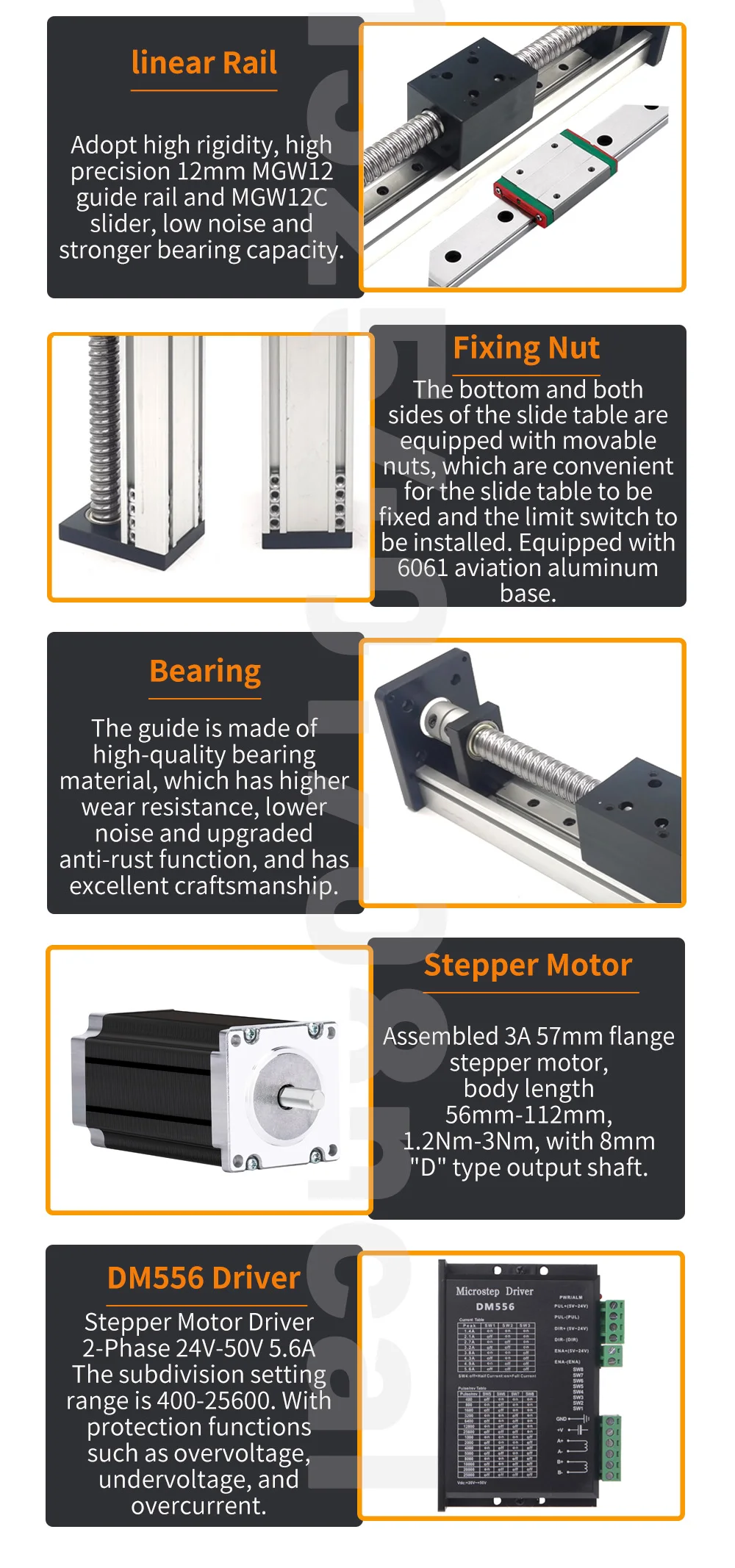

●Sliding Table:
Model: DXG6042 Series
Ballscrew type: SFU1204 (Screw Diameter 12mm, Pitch 4mm,the screw rod rotates once and the panel moves 4mm) / SFU1605 / SFU1610
Ballscrew accuracy: C7 level
Effective stroke: 100mm-1000mm Optional
Total length: Effective Stroke+120mm(Electric slide)/ Effective Stroke+180mm(Manual slide)
Motor bracket Matching type: For Nema 17/ Nema 23 Stepper motor
(send Nema 23 motor bracket by default, if you need it for Nema17 motor , please contact us)
Mobile panel size: 60*42mm
Guide diameter: 12mm
Guide Type: MGW12R
Slider Type: MGW12C
Horizontal load: 60KG (Max)
Vertical load: 30KG(Max)
Maximum speed: 500mm/s
Ballscrew Repeat positioning accuracy: 0.02-0.03mm
Material: Industrial Aluminum Profile

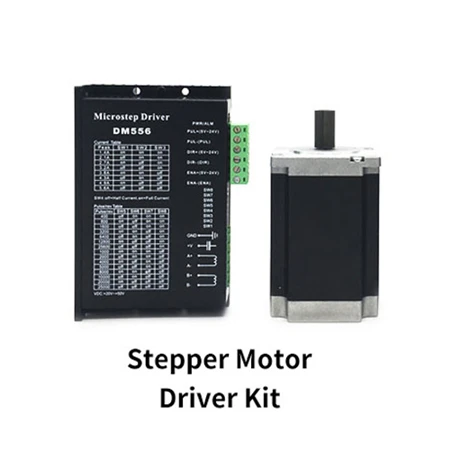

●Driver:
Model: DM556
Input voltage: DC 20-50V
Subdivision: 400-25600 steps/turn
Output current: 1.0-5.6A, 8 level adjustable, 0.5A resolution
Driver method: Bipolar constant current PWM driver
Pulse response frequency: 200kHz(Max)
Insulation resistance: 500MΩ
Insulation strength: 500V/min
Dimensions: 118*75.5*34mm / 4.6*3.0*1.3 inch
Cooling method: Natural cooling or Forced air cooling
Operating environment temperature: -5℃ ～ +50℃
