- Químico Hign-em causa: Nenhum
- Espessura do corte: 0.1
- Velocidade de impressão: 150mm/s
- Conectividade sem fio: Nenhum
- Fonte de alimentação: AC110-220V
- Autonivelamento: Não
- Velocidade máxima de impressão: 40/s
- Velocidade operacional máxima: 100/S
- Temp. do fundo: 0
- Software de corte: cura
- Formato de arquivo: G
- Filamento: clay
- Diâmetro do bico: 1.6
- Tamanho máximo de impressão: 500*430mm
- Tecnologia de moldagem: Contorno de função
- Tipo de Interface: USB
- Certificado CE: Sim
- Nome da marca: HE3D
- HE3D Model: TC-500
- Origem: CN (Origem)
- Precisão: 0.1
- Tensão: 110-220 V
TC500 parameters:

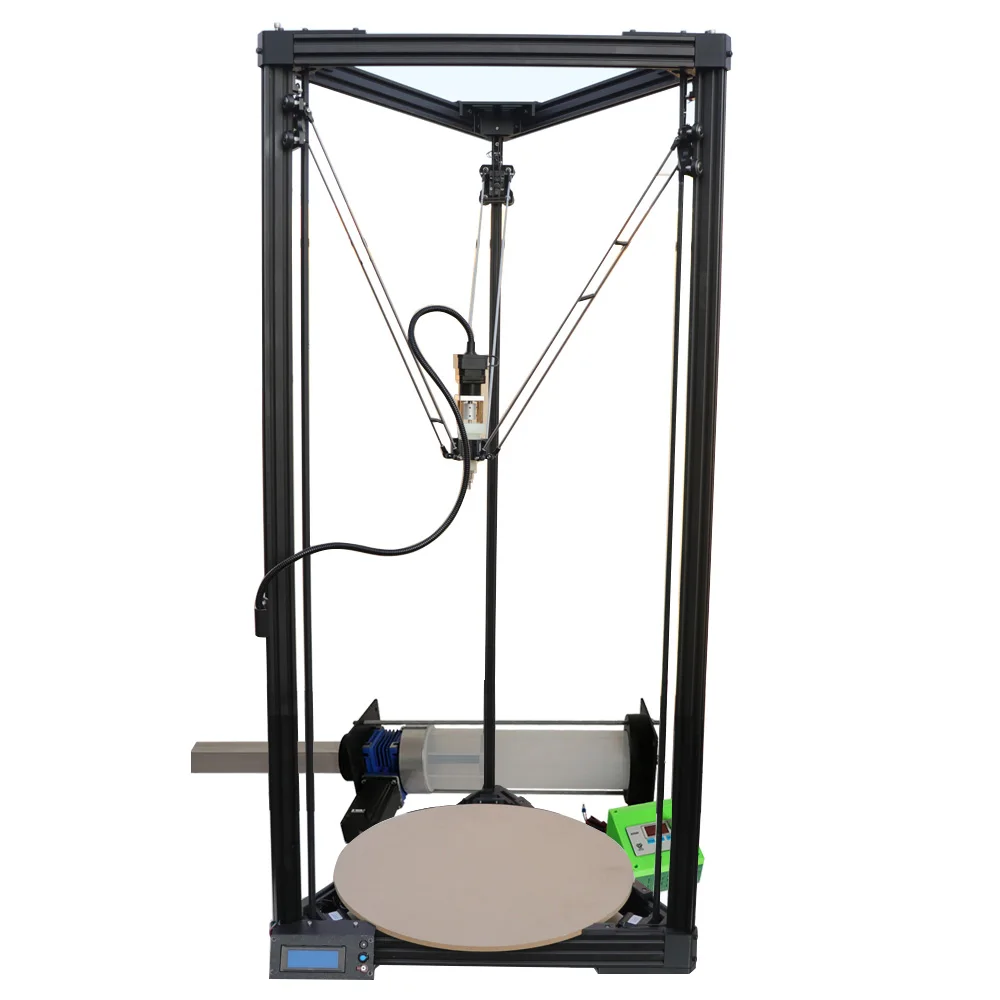

TC500 clay (ceramic) 3D printer
0: 2040mm,2060mm thick Aluminium profile
1: Printing size: diameter 500*430mm
2. Overall dimensions: height 1120,*610*610mm
3 Product weight 22KG
4 Printing layer thickness: 0.2~2mm
5Printing speed: 30~150mm/s
6 printing mode: TF card offline printing
7 Compatible formats: STL. OBJ. STP. PRT. SLD. PRT. 3DM. IGS
8 Software support system: Windows XP / WIN7 / WIN8 / WIN10
9 Extrusion control: twin-screw extrusion method is required. The remote closed-loop servo motor controls the screw to provide strong and stable power; the proximal screw is precisely controlled.
10. Packaging: 2 packages shipped
11 Input power: AC110-AC220
12 barrel capacity: 2L
13 Printing materials: ceramic clay/porcelain clay/purple clay/silicone rubber/cement and other materials with certain fluidity, viscosity and plasticity
14 controllers, which can freely control the extrusion amount (feed speed) and make fine adjustments during the printing process
The controller can be used alone, operates independently, and is not controlled by the motherboard
15 Equipped with nozzles: 12 stainless steel nozzles (short type) and 12 plastic nozzles (long type), each 1.5mm 2.0mm 2.4mm 3.0mm
16 customer groups: clay manufacturers, R&D personnel, research institutions, laboratories, 3D printing enthusiasts
TC-500 (2 Liter barrel Clay 3D Printer )
