- Certificado: CE
- Origem: CN (Origem)
- Nome da marca: YUN DUAN
- Número do modelo: 86HS8060A4J14+HB860C+S-400-60+Mach3-card-5axis
- Holding torque: 4.5/8.5/12N.m
- Motor Current: 6A
- Driver: HB860C
- Power Supply: S-400-60

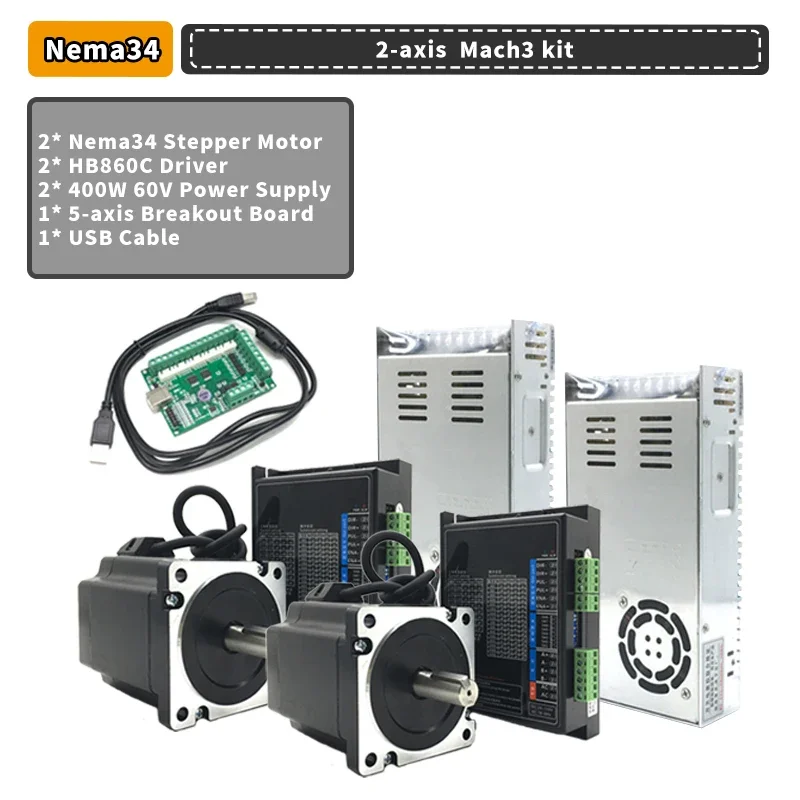

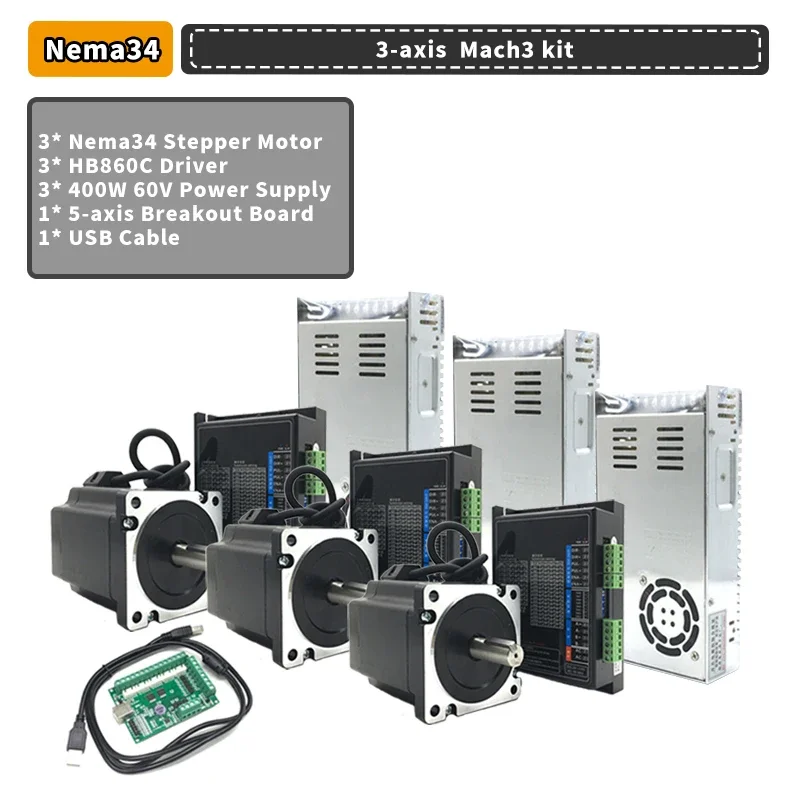

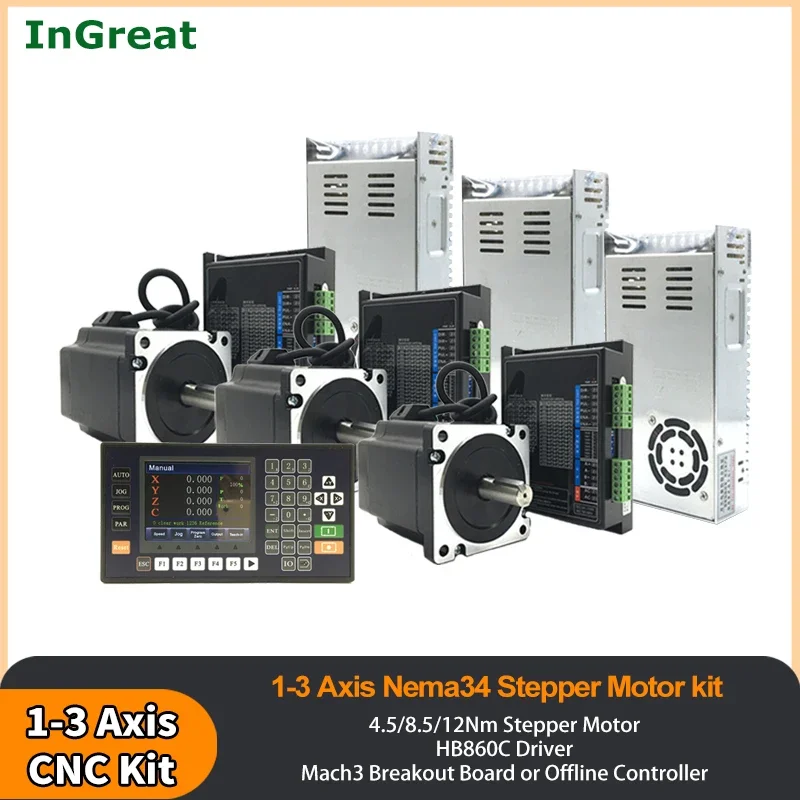

N* Stepper Motor
N* Drive
N* Power Supply
1 * Mach3 control card or offline controller
PS: 1. We will send according to your choice.
2. Some countries in this link enjoy free shipping. If your address does not show free shipping, we will provide the service of re shipping quotation.

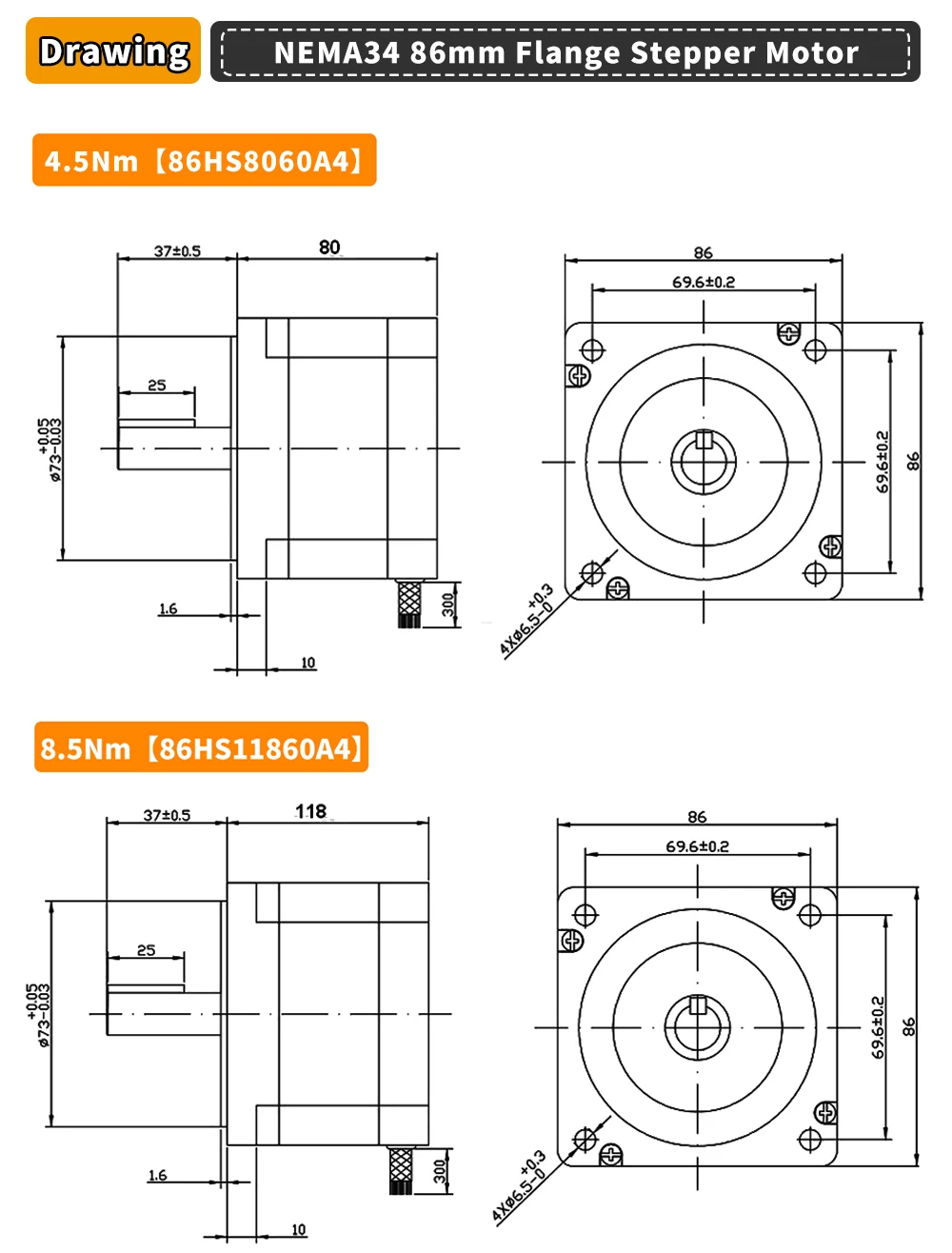

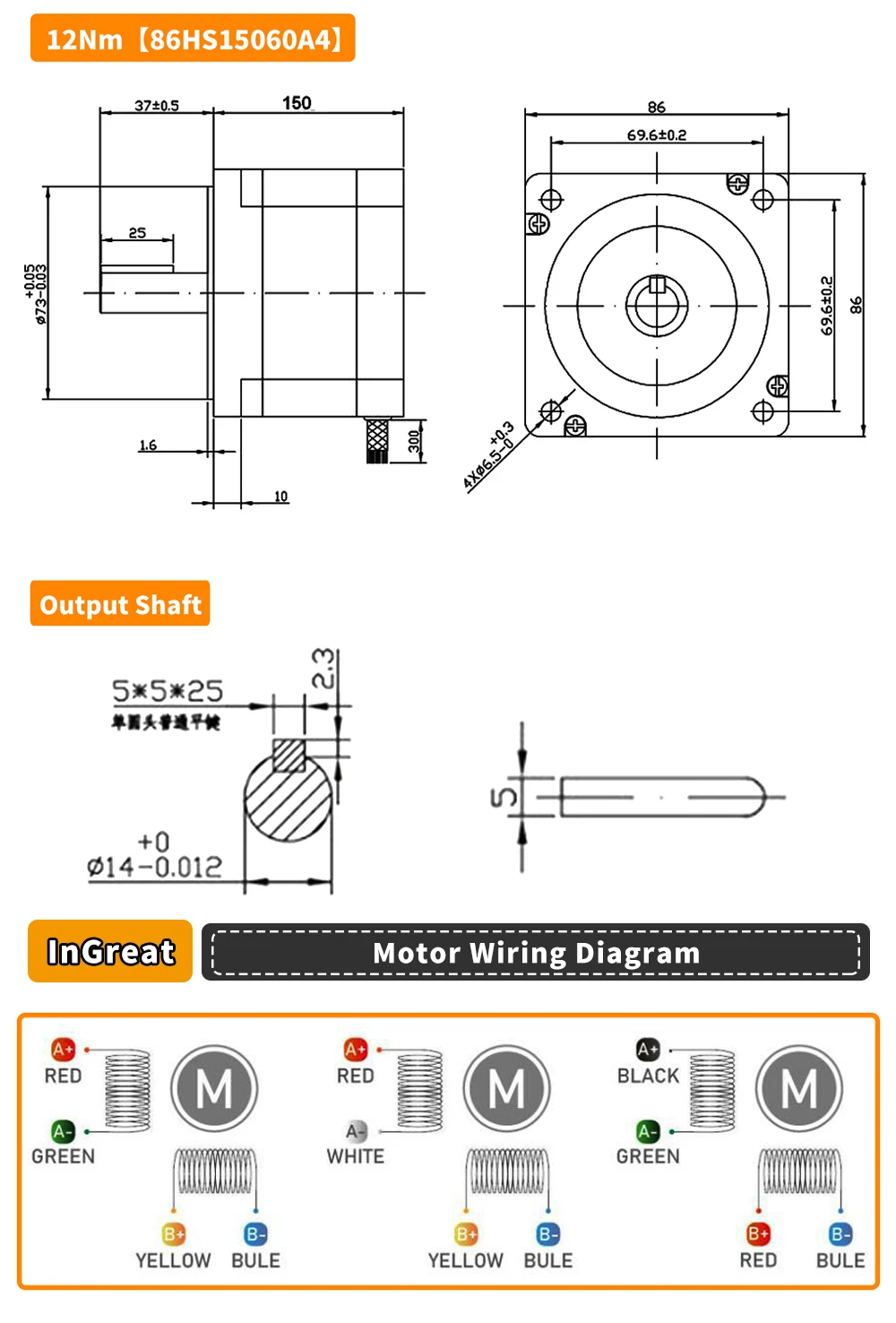

| Stepper Motor Specification | ||||||||||
| Model | Holding torque (N.m) |
Body length (mm) |
Current (A) |
Phase resistance (Ω) |
Phase inductance (mH) |
Detent torque (N.cm) |
Rotor of inertia (g.cm⊃2;) |
Step angle (°) |
No. of leads | Shaft diameter (mm) |
| 86HS8060A4J14 | 4.5 | 80 | 6 | 0.75 | 5.6 | 4 | 1.05 | 1.8 | 4 | 14 (Key) |
| 86HS11860A4J14 | 8.5 | 118 | 6 | 0.5 | 2.1 | 12.5 | 1.8 | 1.8 | 4 | 14 (Key) |
| 86HS15060A4J14 | 12 | 150 | 6 | 0.5 | 5.2 | 24.5 | 2.5 | 1.8 | 4 | 14 (Key) |

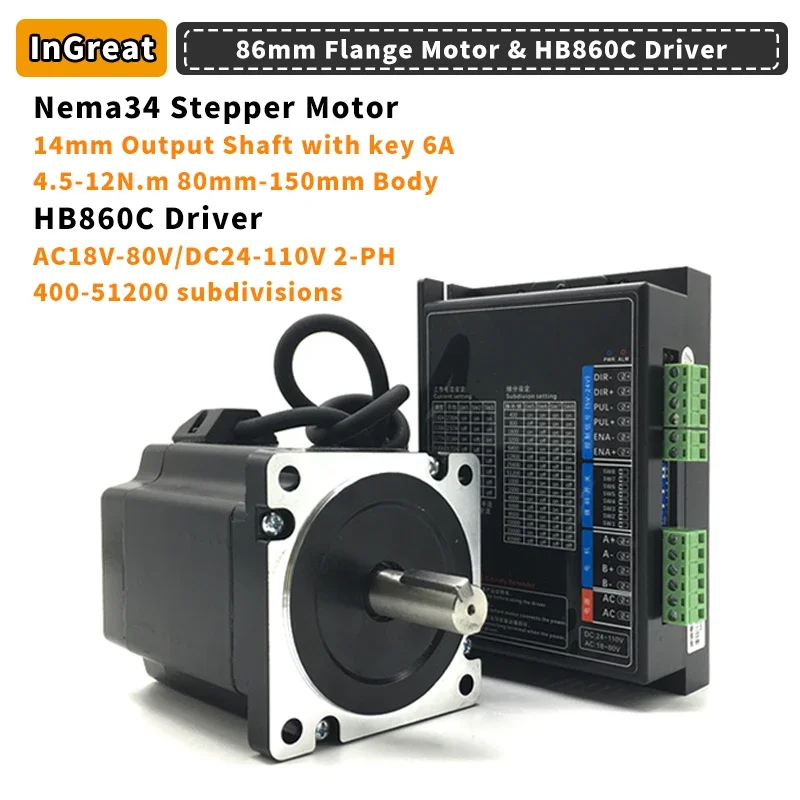

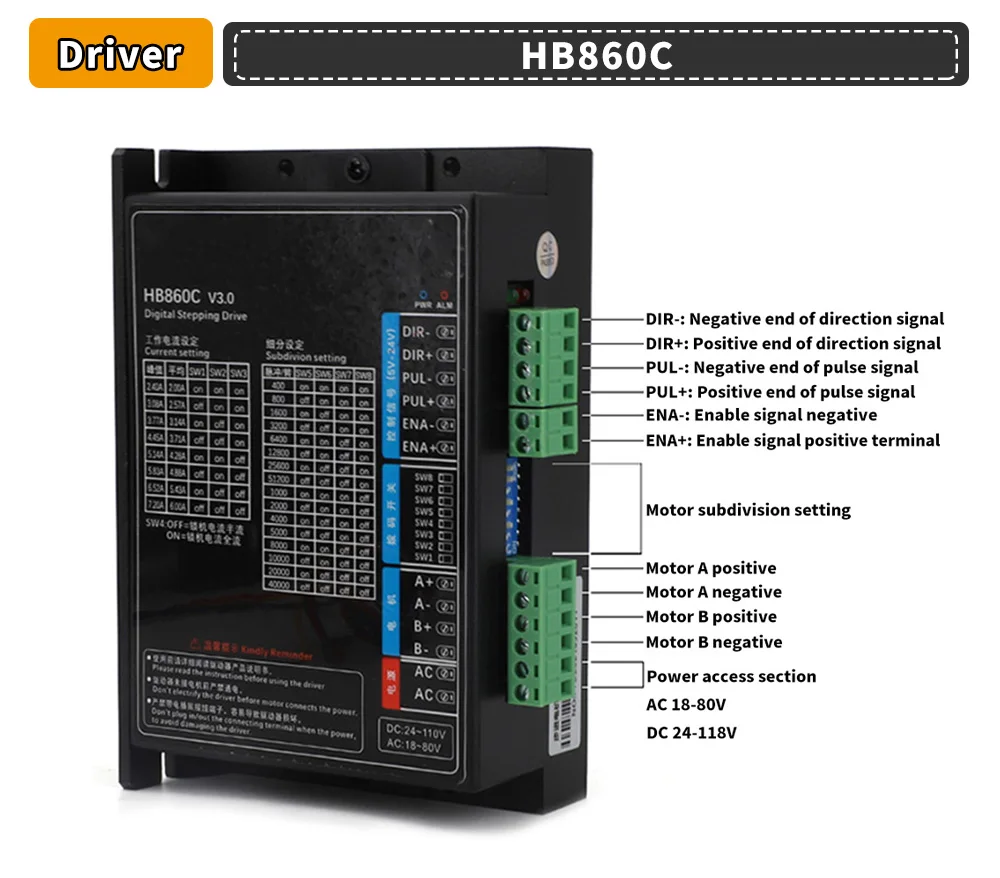

Model: HB860C
Input voltage: AC18V-80V/ DC24-110V
Subdivision: 400-51200 steps/turn

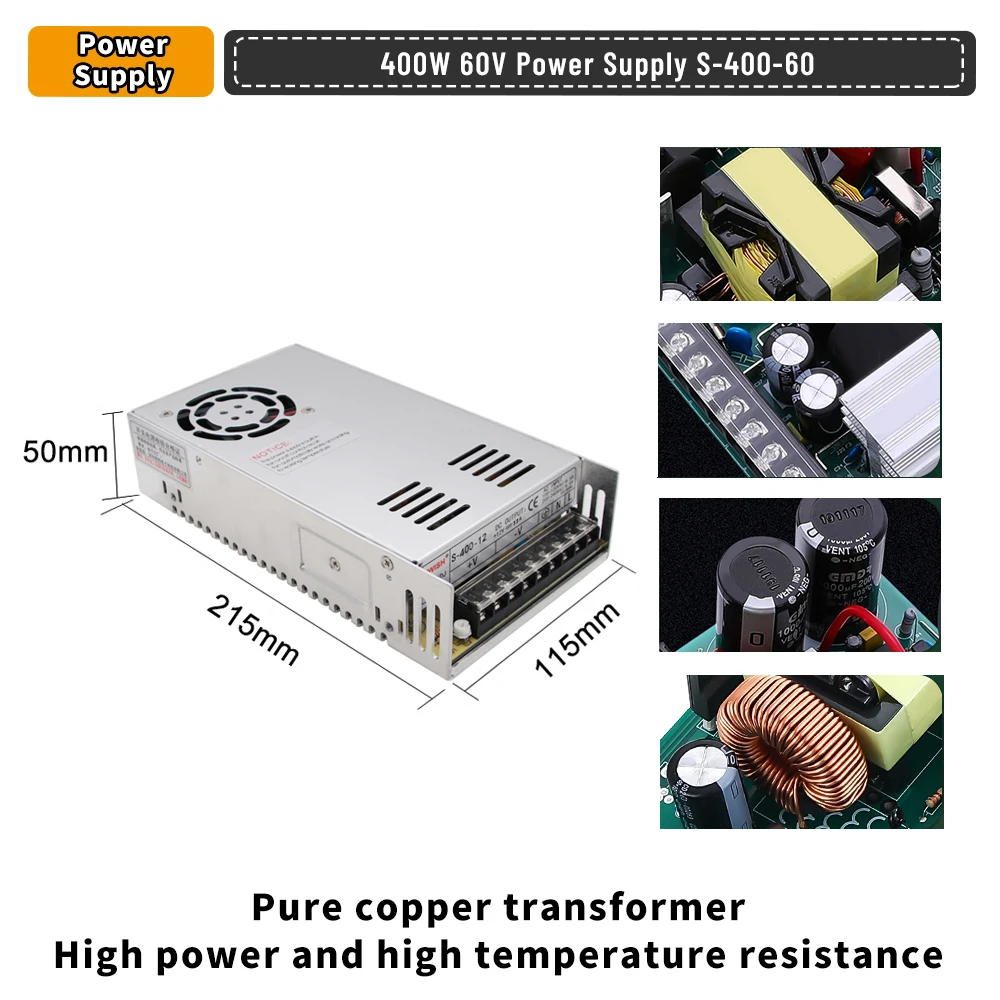

Model: S-400-60
Rated Load: 400W (Max Load)
Input Voltage: AC100-120V/200-245VAC 50/60Hz
Output Voltage: DC 24V (Constant Voltage)
Output Current: 6.6A
Cooling type: Fan Cooling

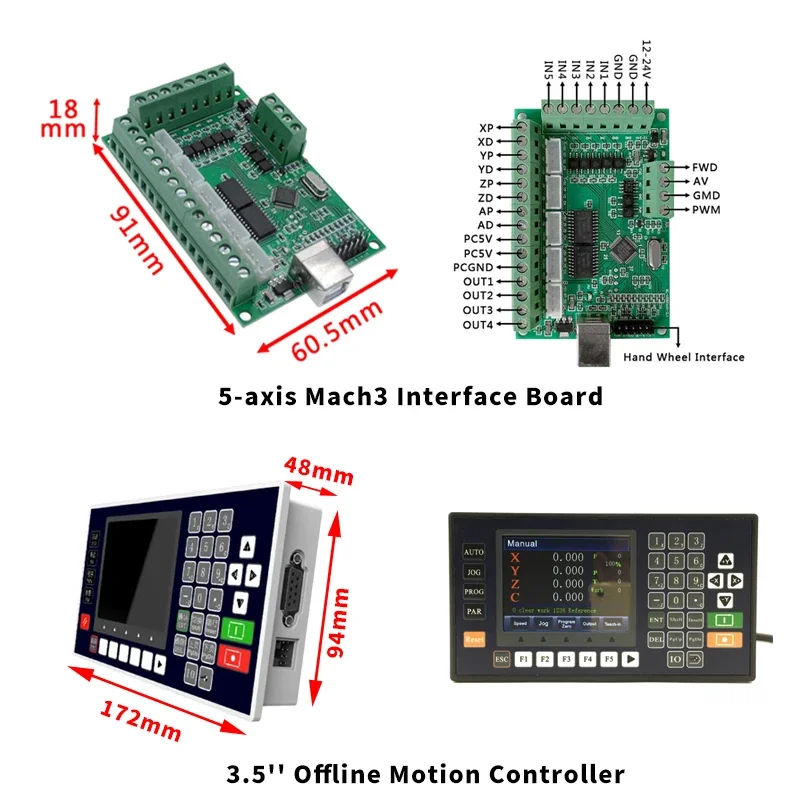

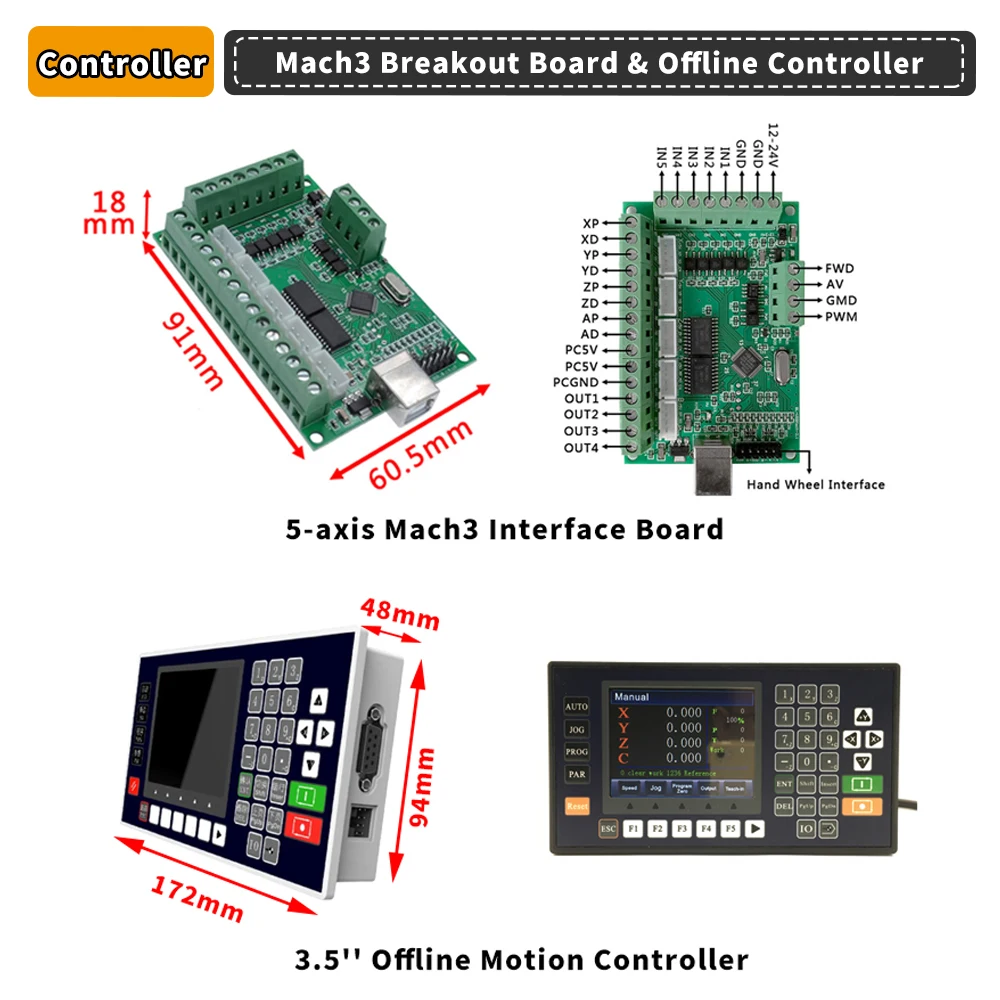

Mach3 breakout board software: Click here to open

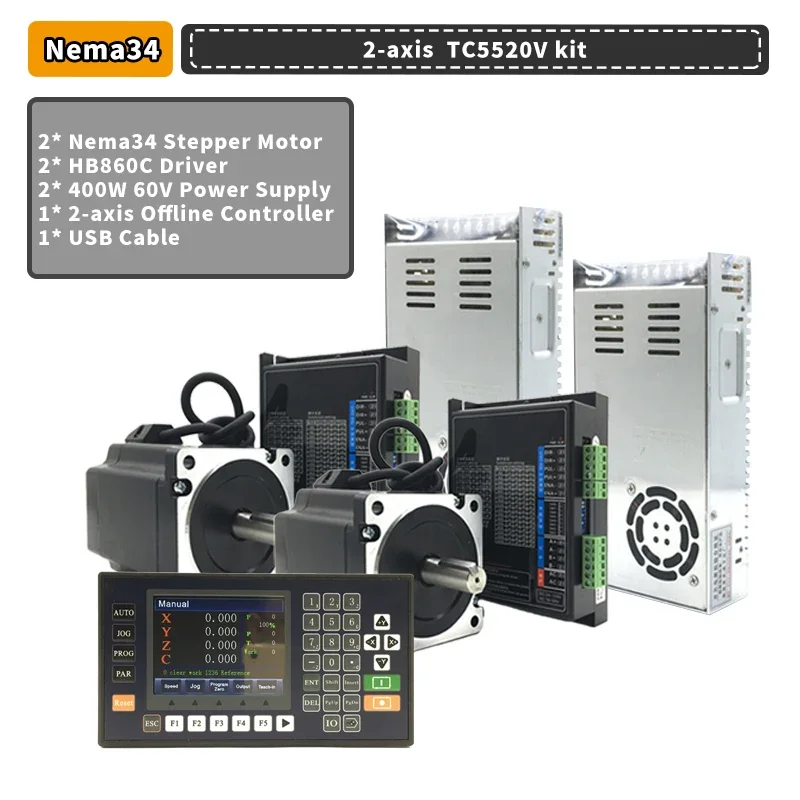

Offline motion controller: Click here to open
