- is_customized: No
- Weight: 1000g
- Origin: Mainland China
- Model Number: GL043 GL043E GL070 GL070E GL100 GL100E GL150E

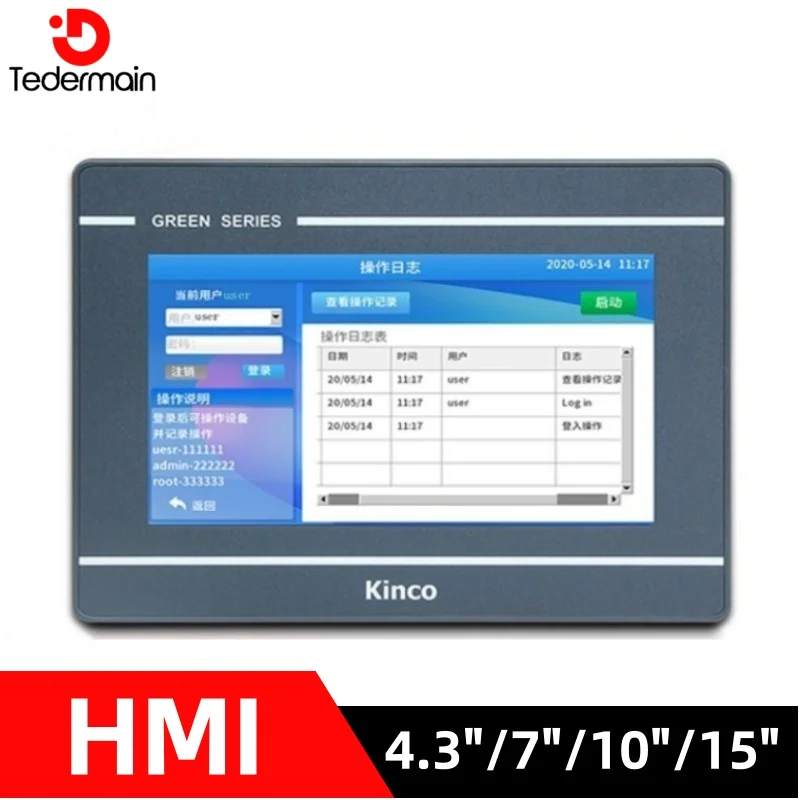

1 X HMI
(TIPS: If you need cable for HMI and PLC communication, Please tell us t the brand and model of your PLC,
we will provide you with the best price.)

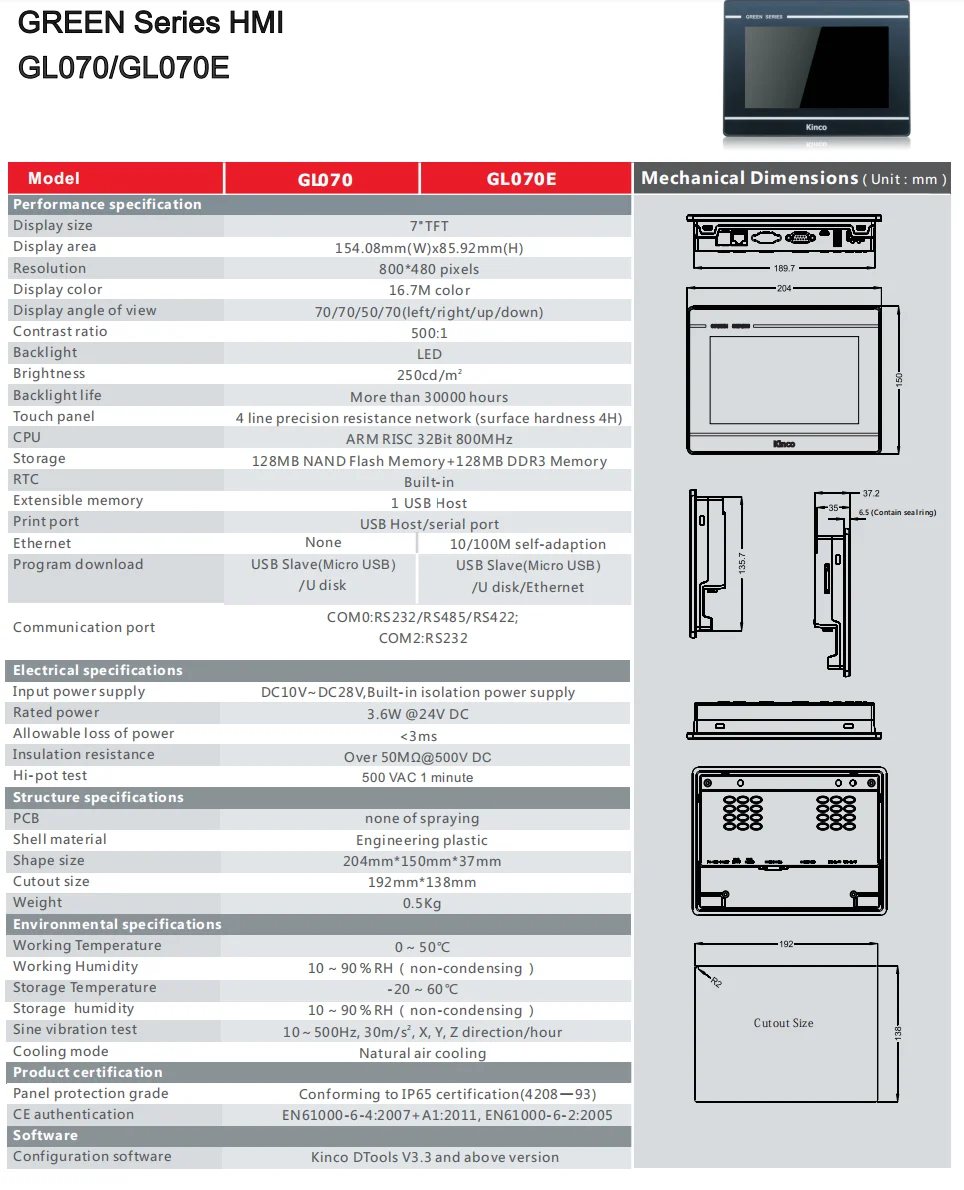

GL070 : no Ethernet,can replace MT4434T,it`s the same hole size
GL070E : have Ethernet,can replace MT4434TE,it`s the same hole size

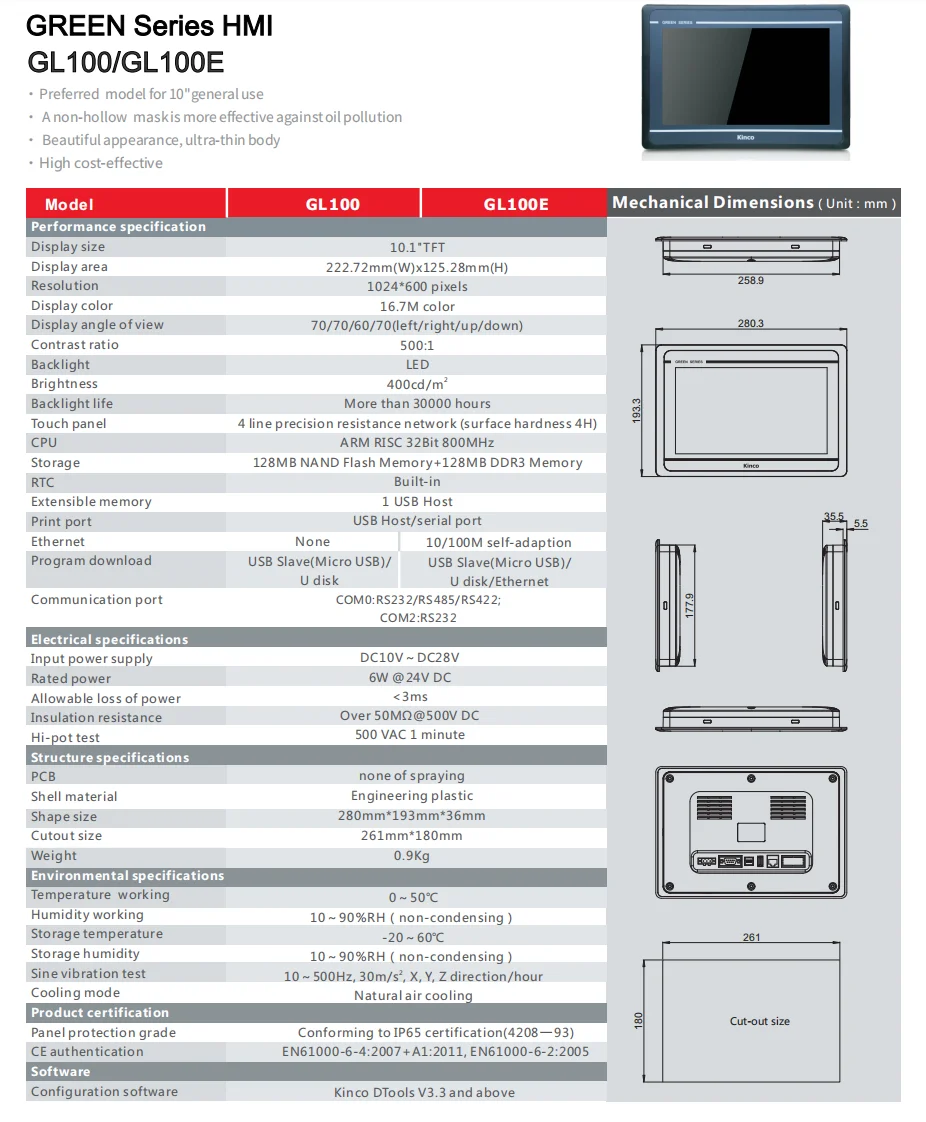

GL100 : no Ethernet,can replace MT4532T,it`s the same hole size
GL100E :have Ethernet,can replace MT4532TE,it`s the same hole size

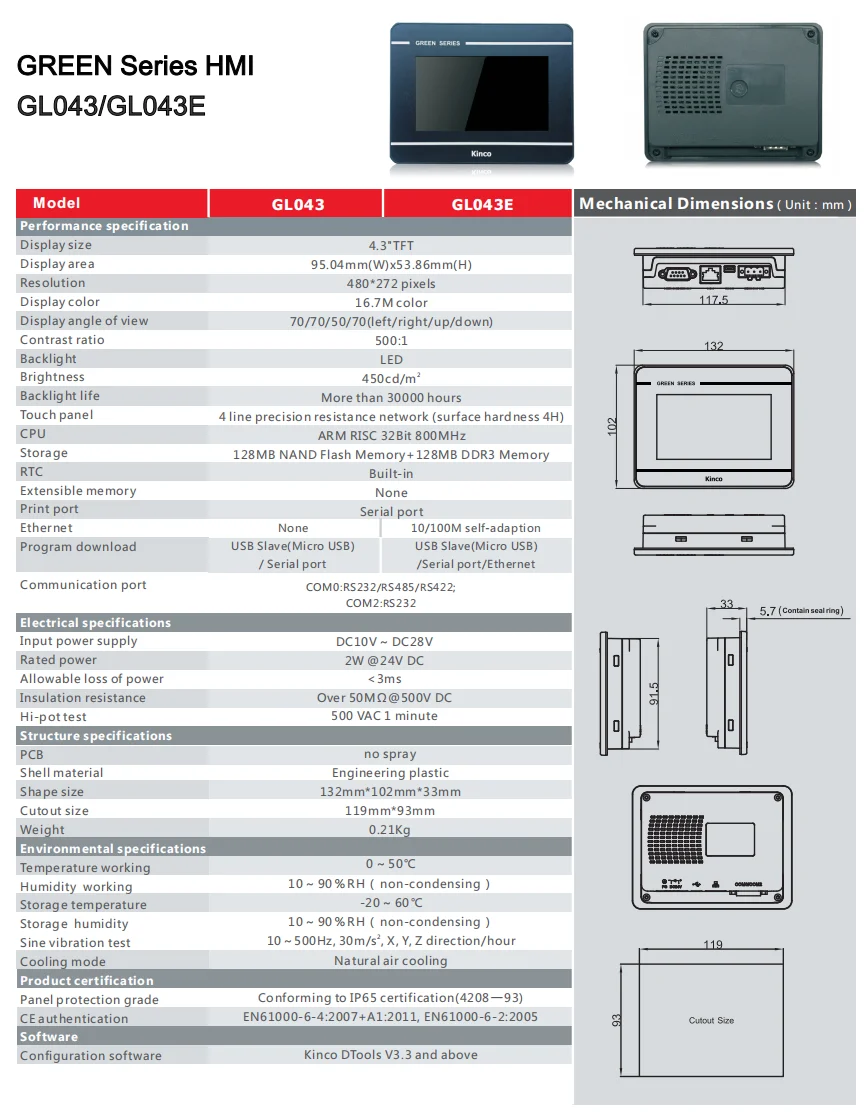

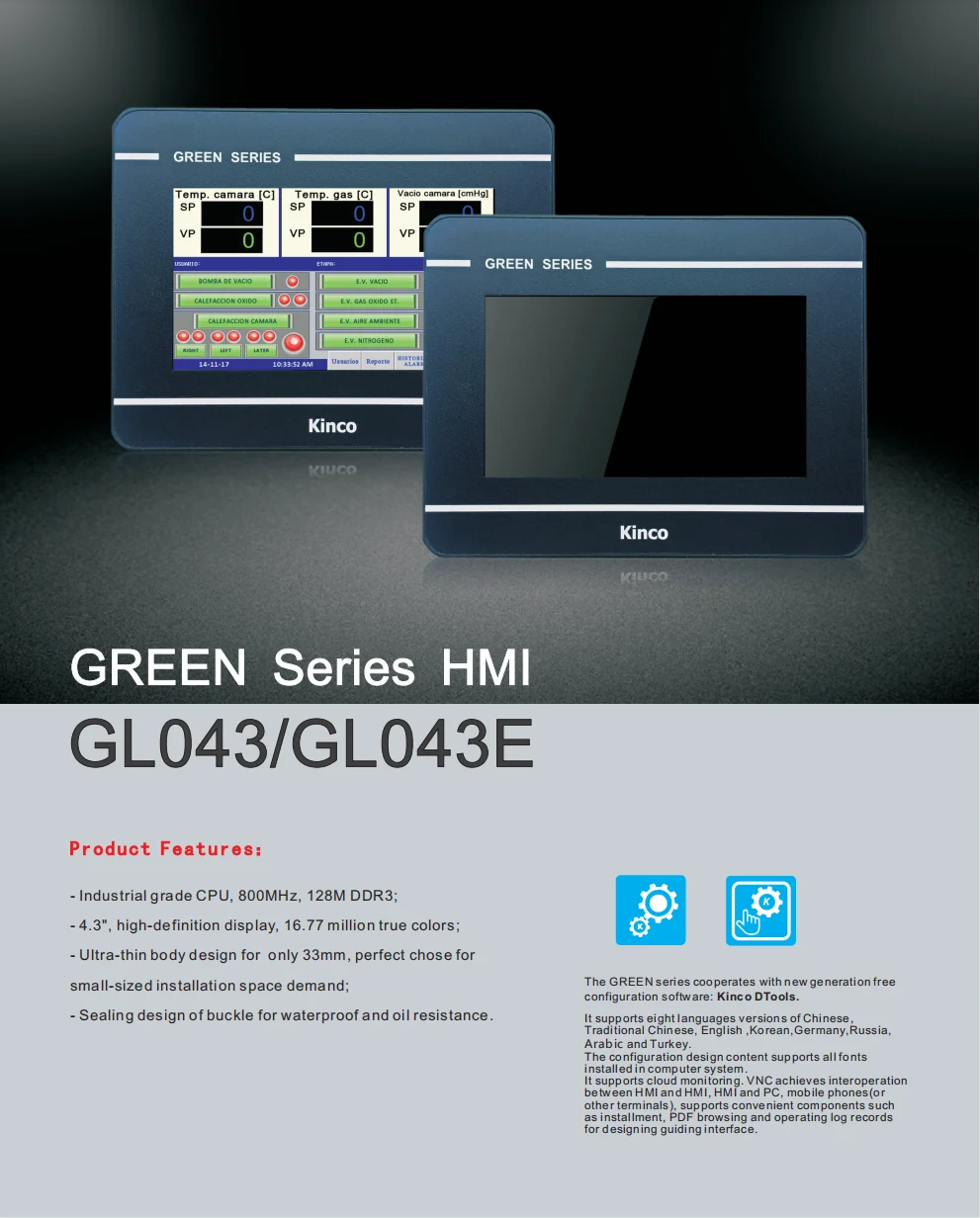

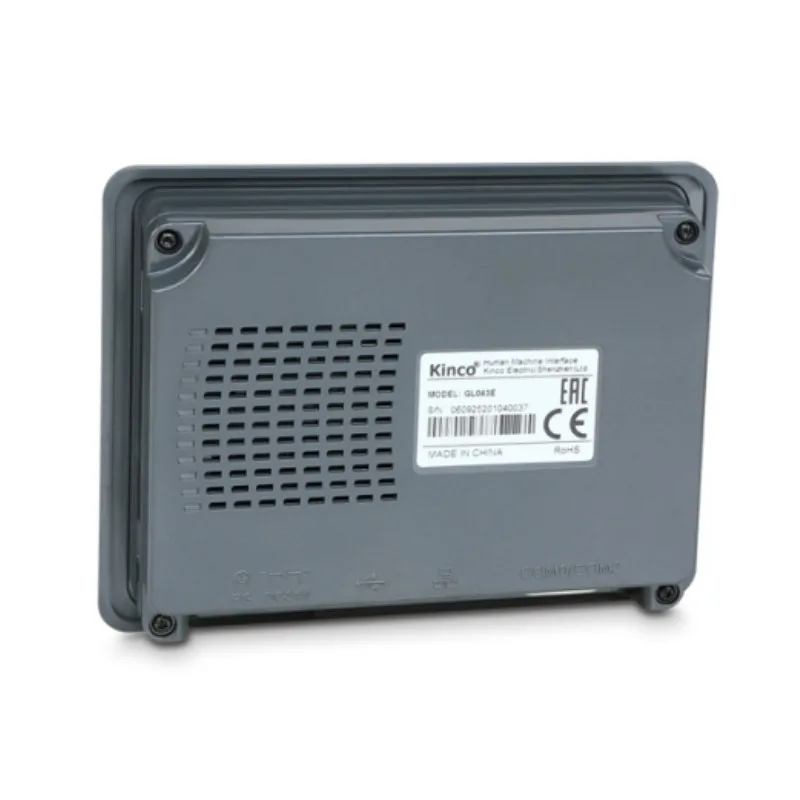

Display:4.3″TFT
Resolution:480*272 pixels
CPU: ARM RISC 32Bit 792MHz

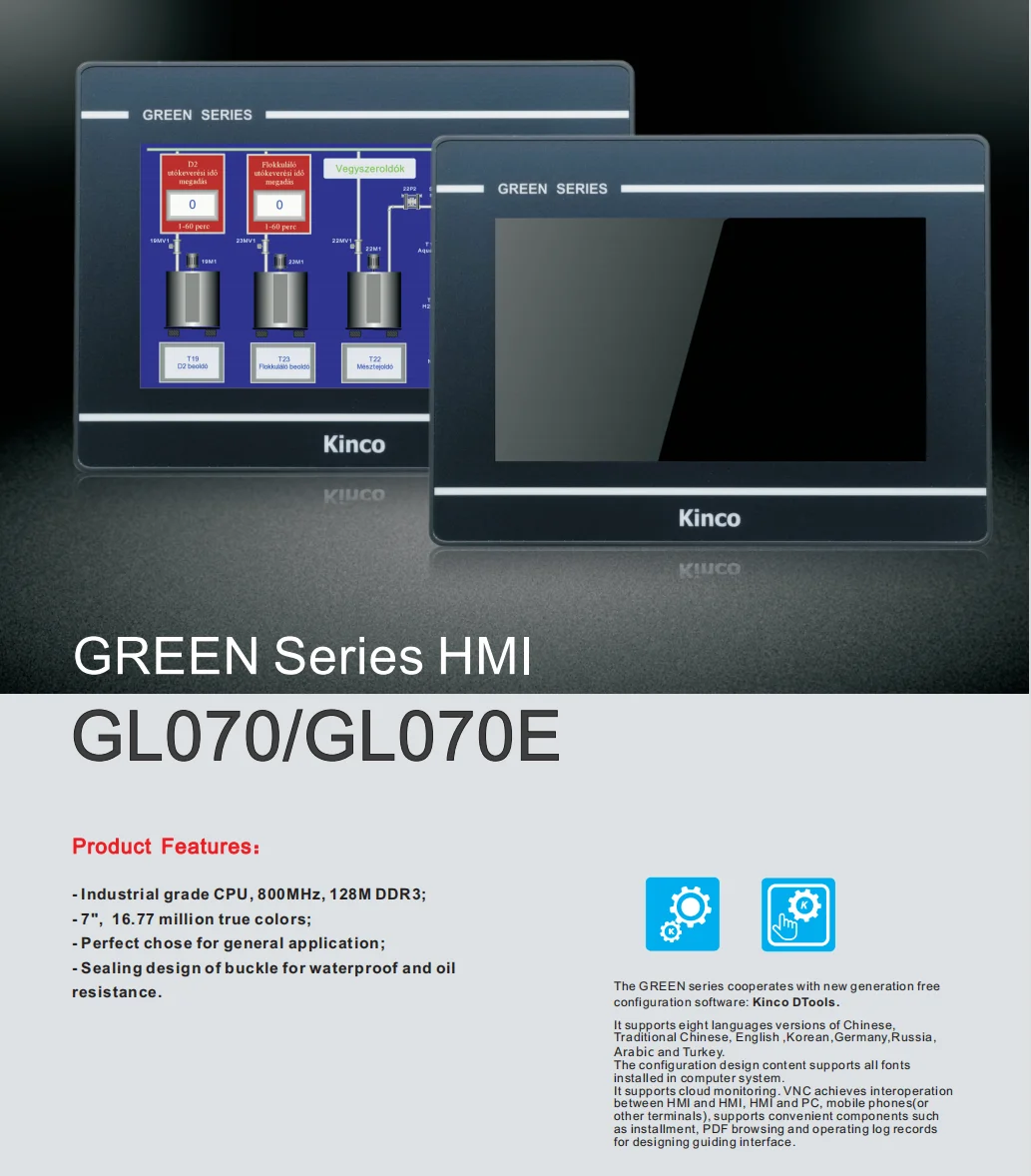

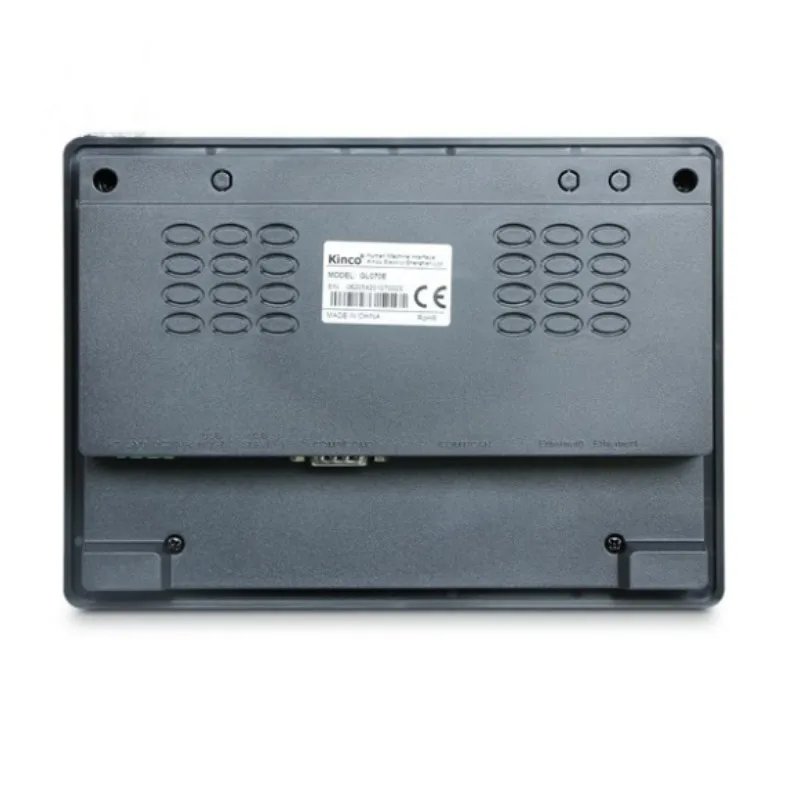

Display:7″TFT
Resolution:800*480 pixels
CPU: ARM RISC 32Bit 800MHz

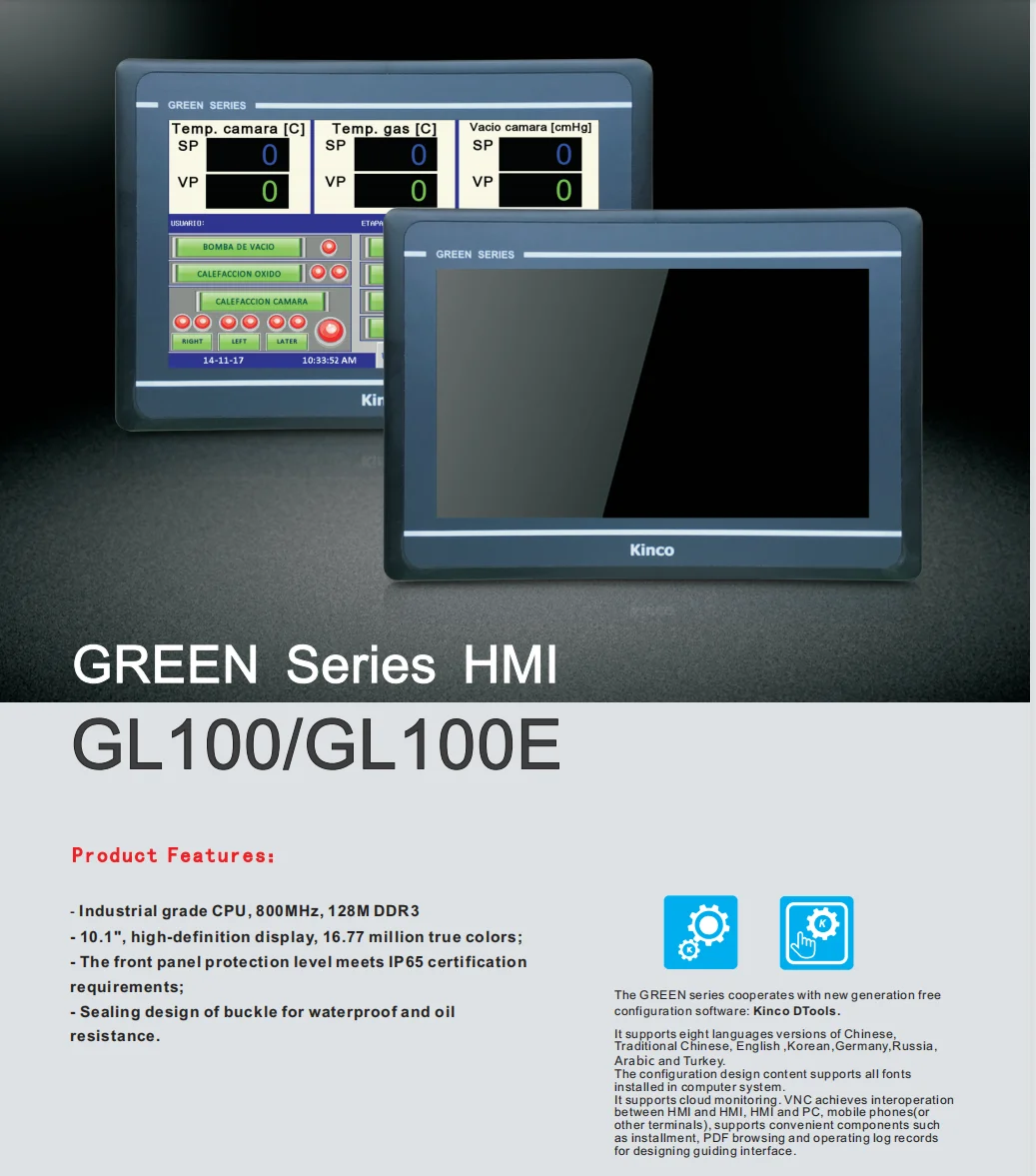

Display:10″TFT
Resolution:1024*600 pixels
CPU: ARM RISC 32Bit 800MHz

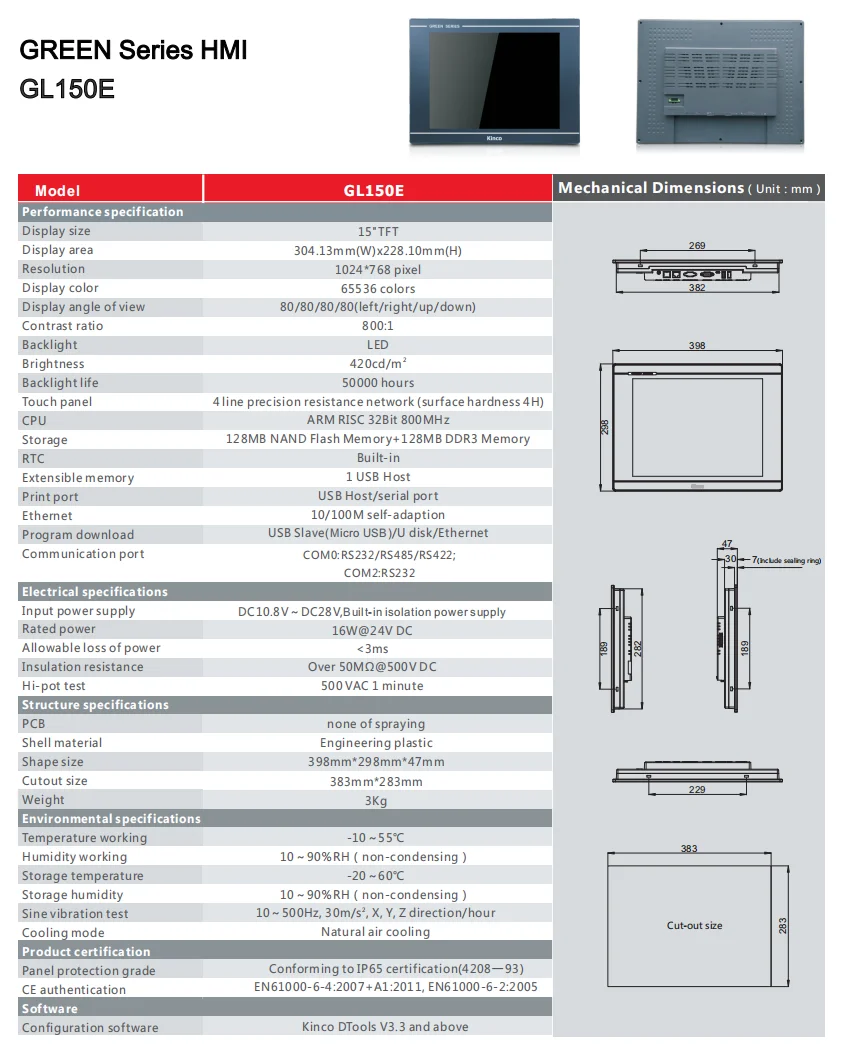

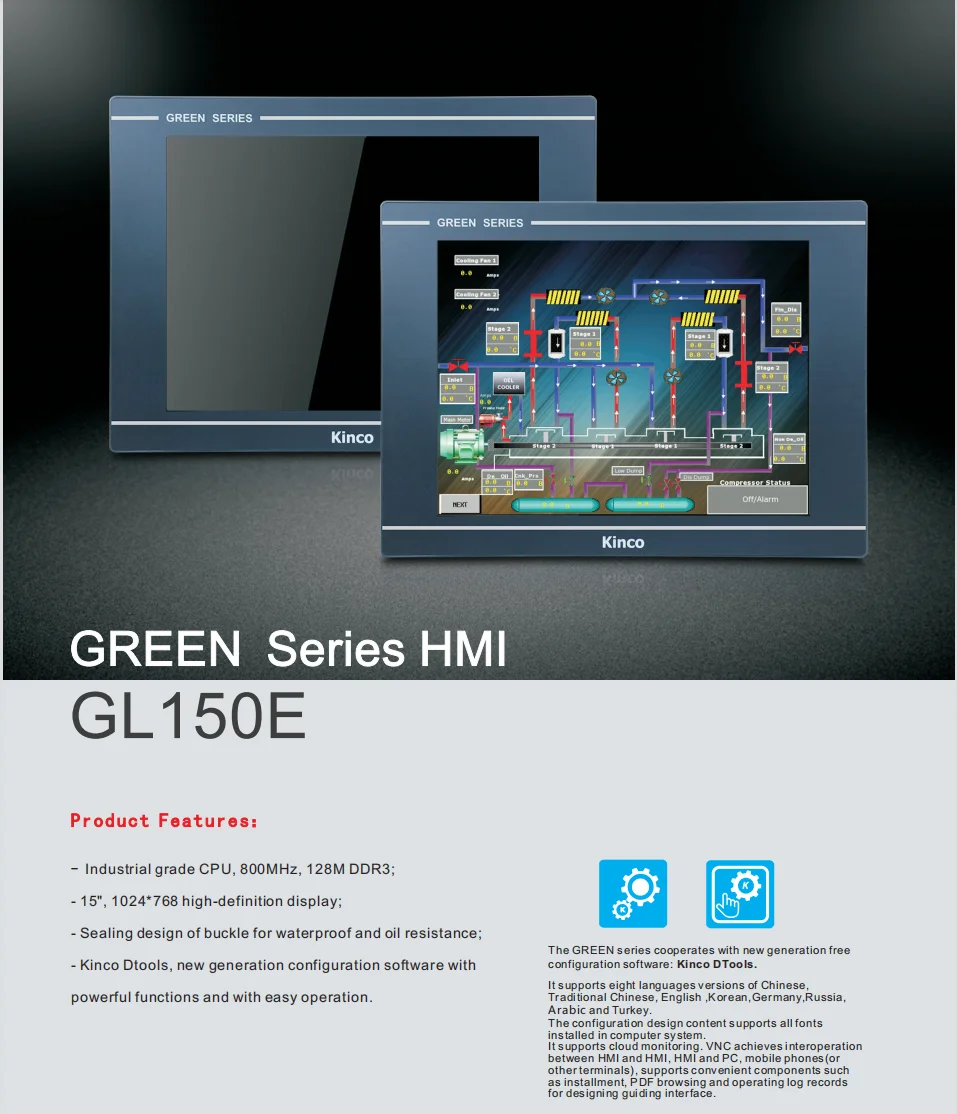

Display:15″TFT
Resolution:1024*768 pixels
CPU: ARM RISC 32Bit 800MHz

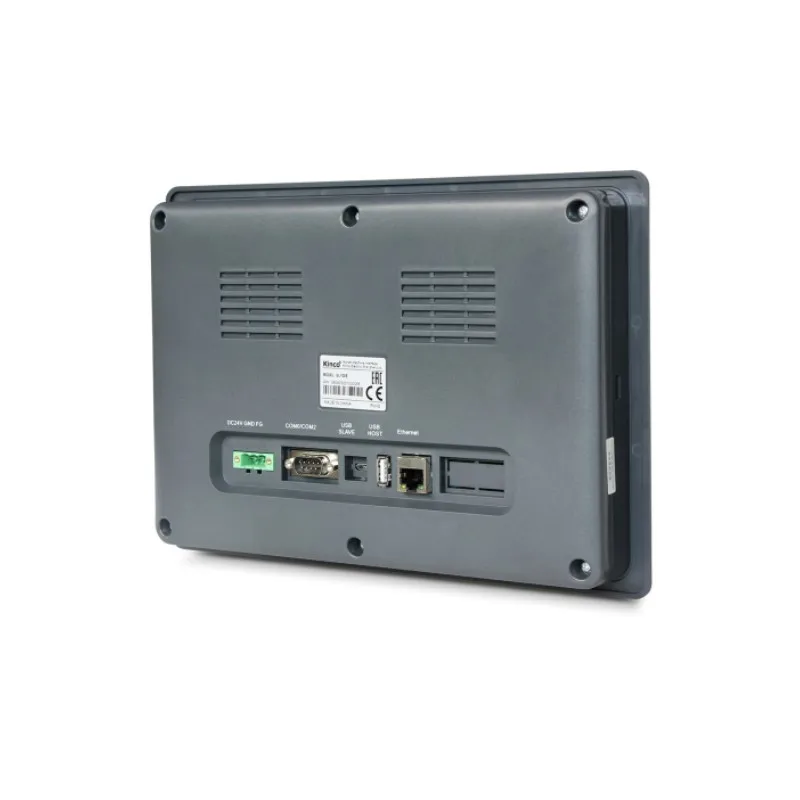

COM port:COM0:RS232/RS485/RS422; COM2:RS232
Program download : USB Slave/U disk/Ethernet
Tips:
1.For new projects, Kinco strongly suggest our customers to choose the Green series
products and don't suggest to choose the MT 4000 series.

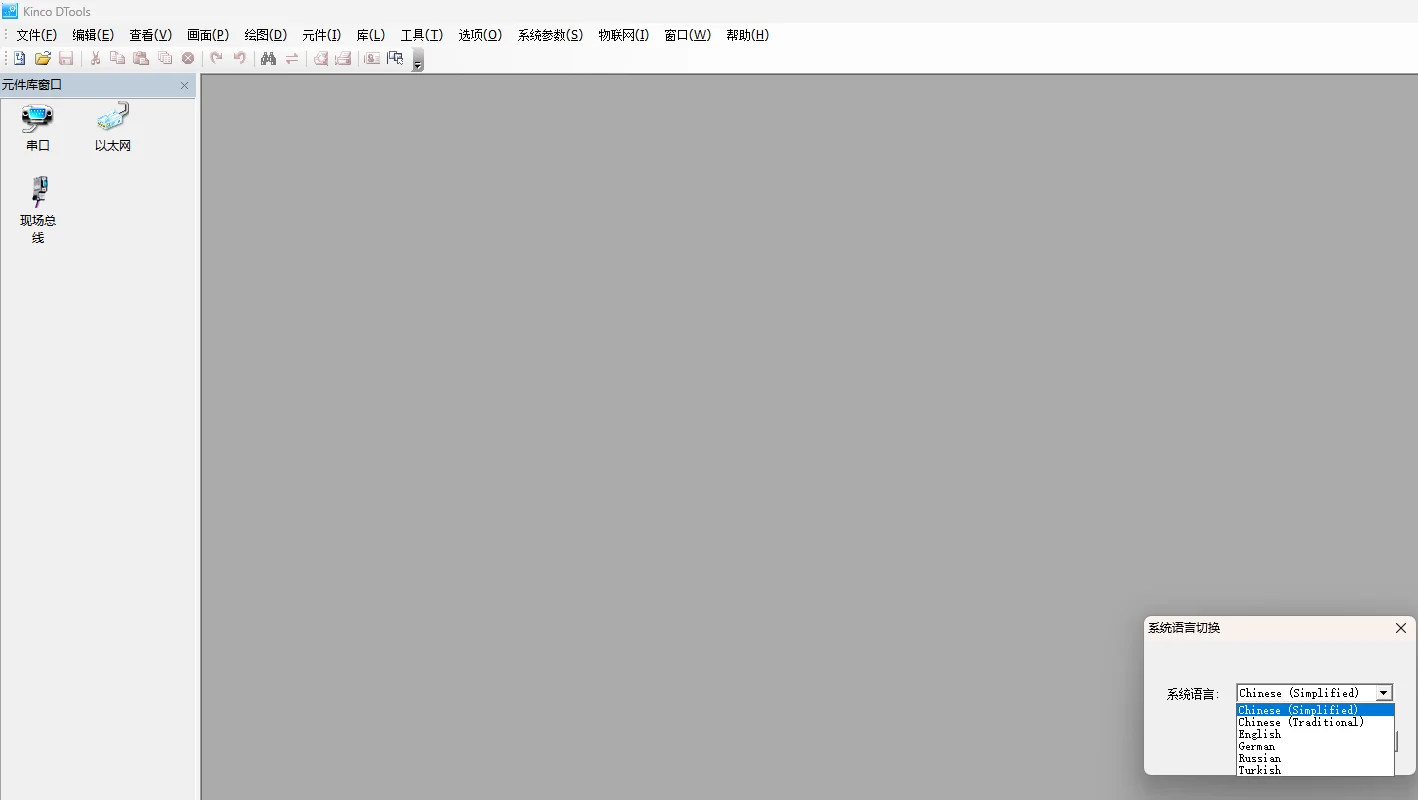

2.The old projects in MT4000 series products can be opened directly in DTools. After
Simulation, they can downloaded to corresponding new type HMIs
