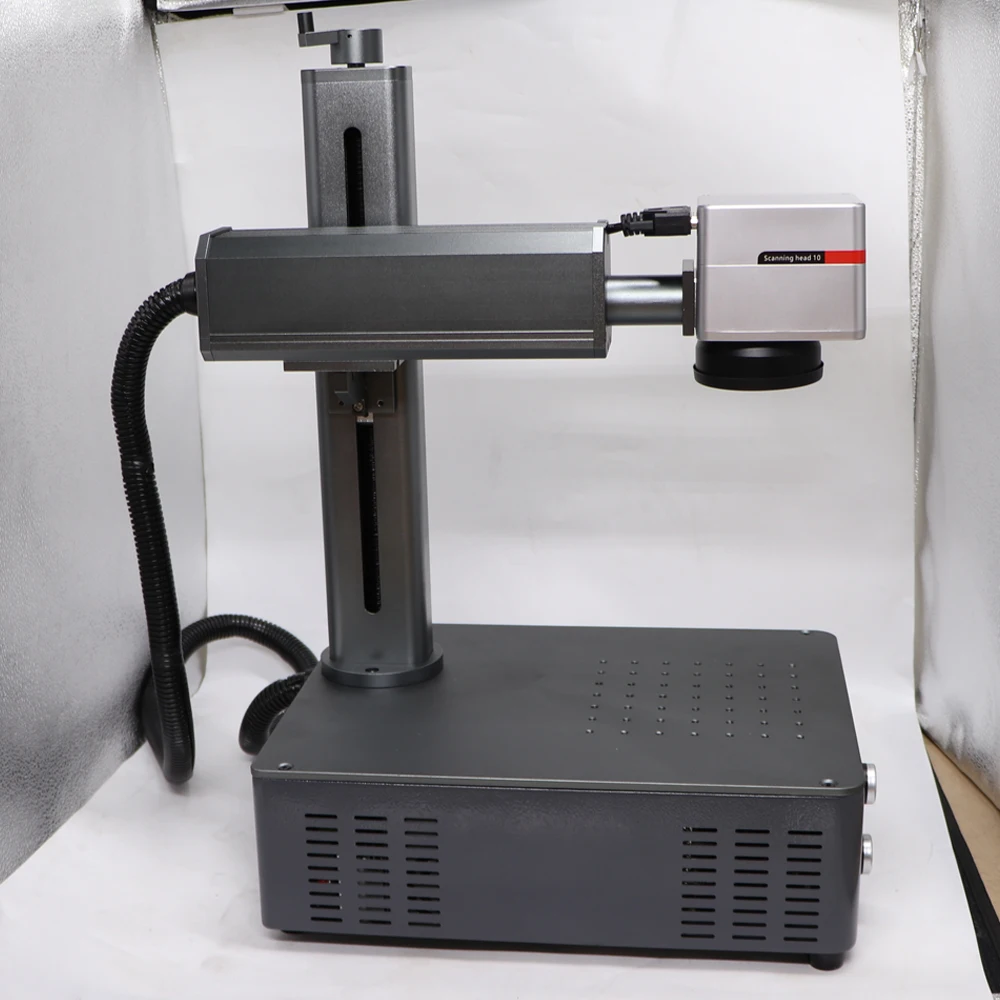

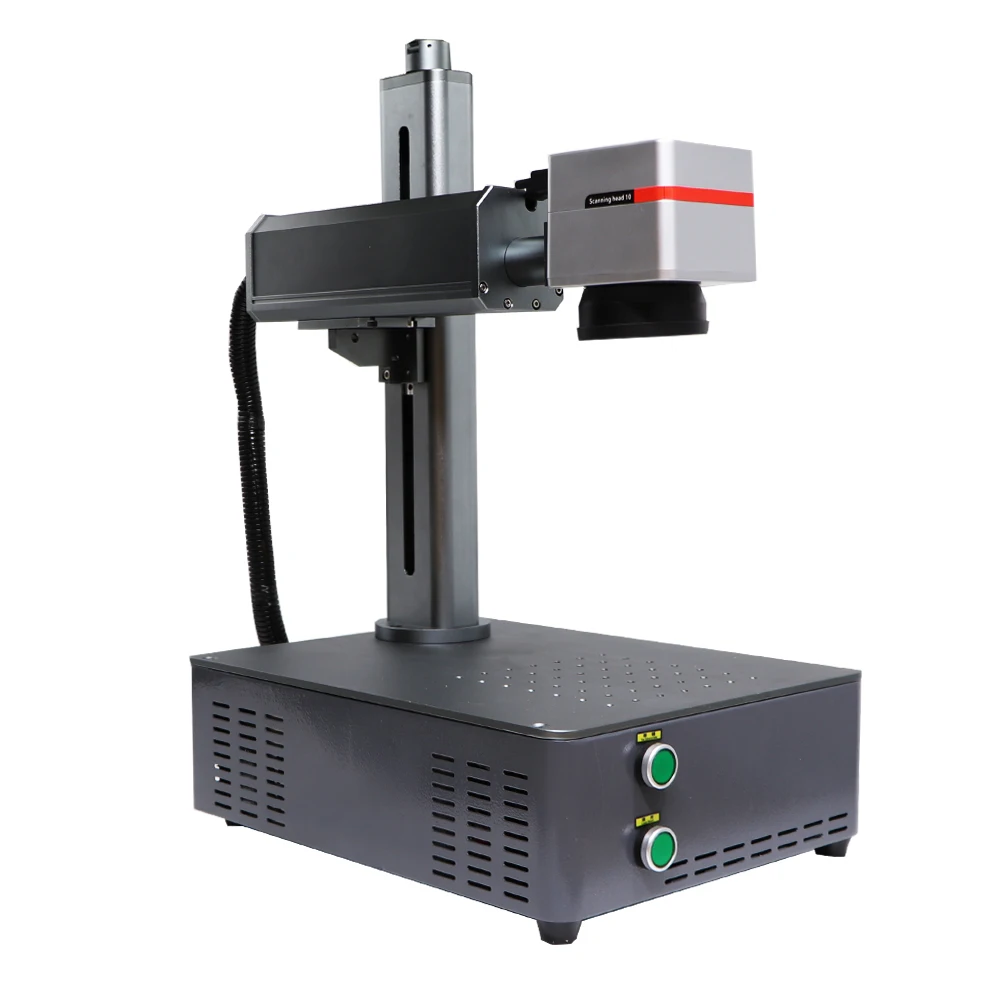

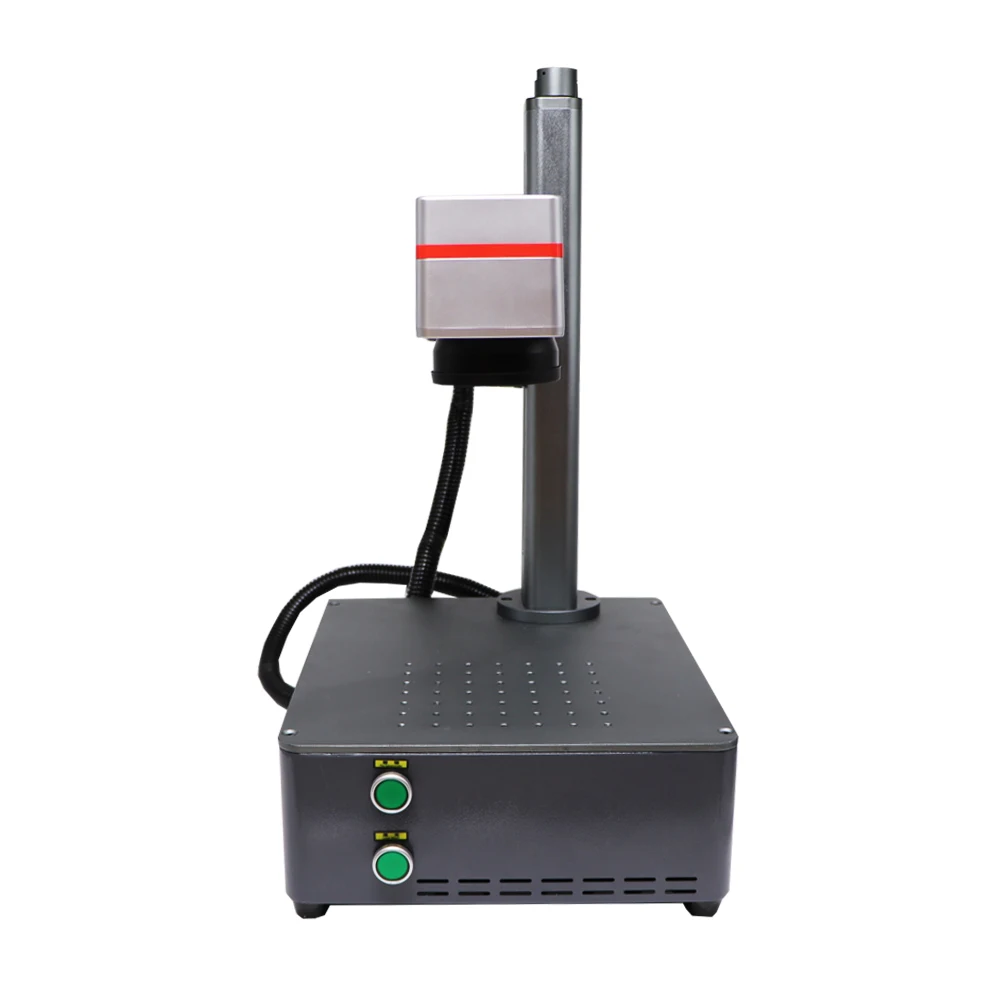

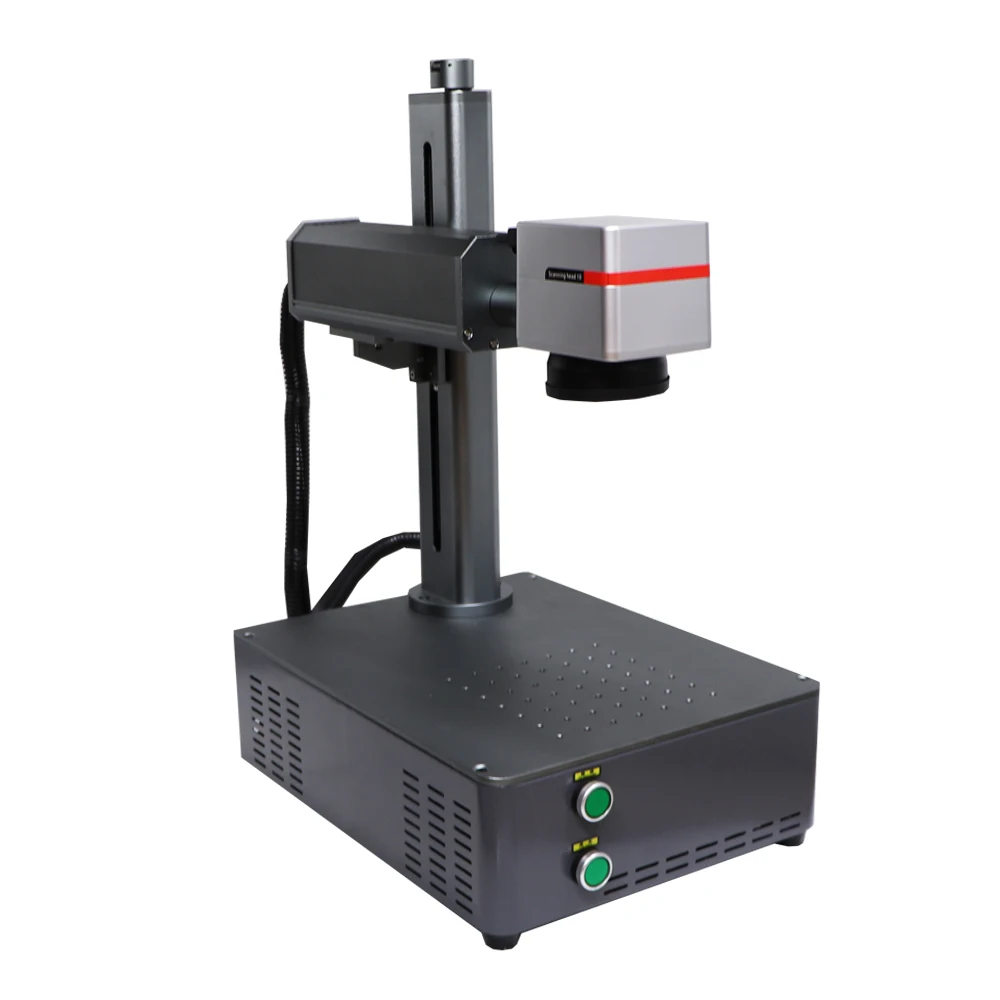

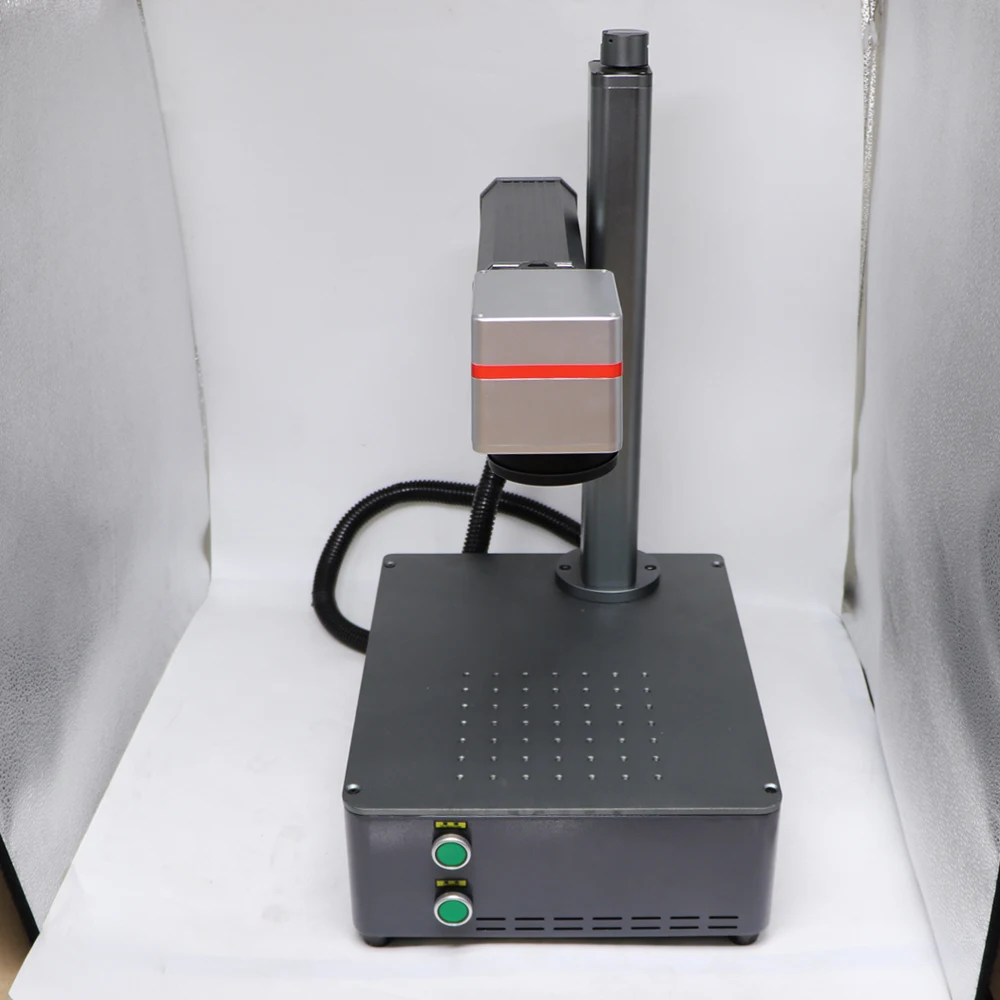

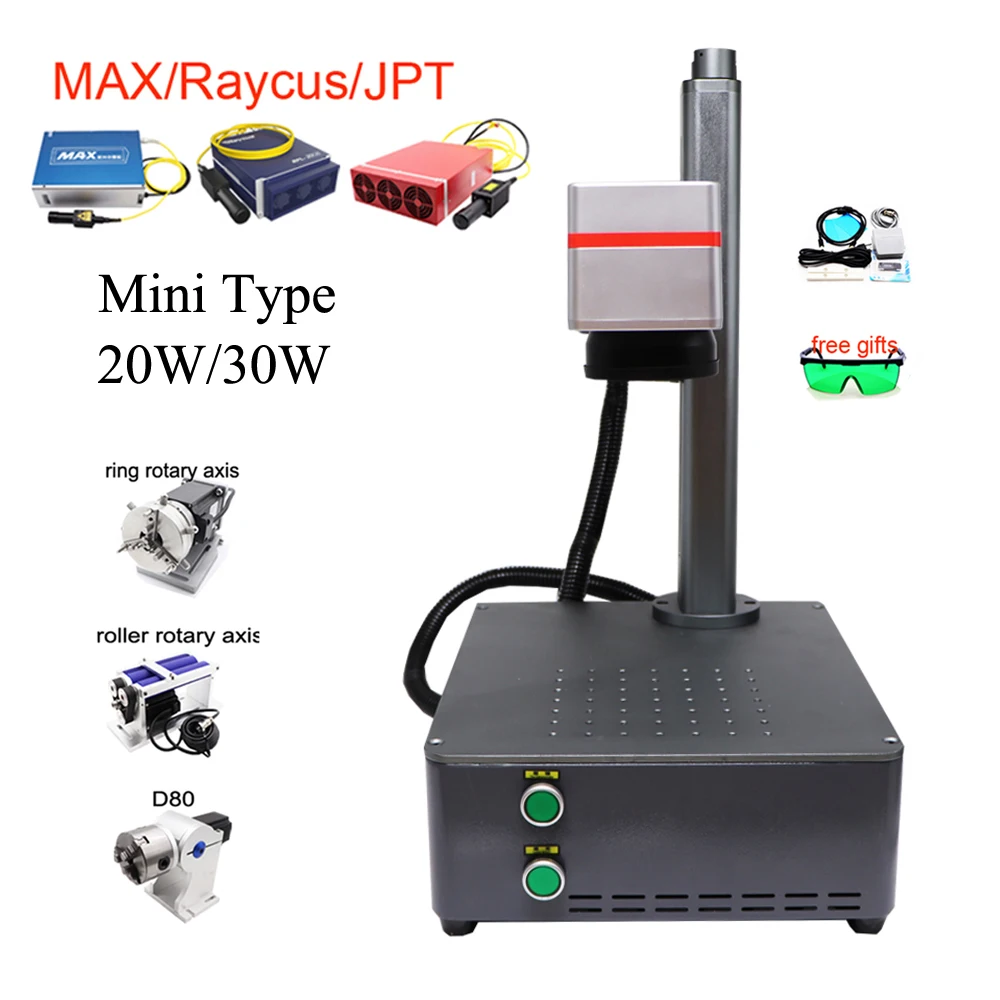

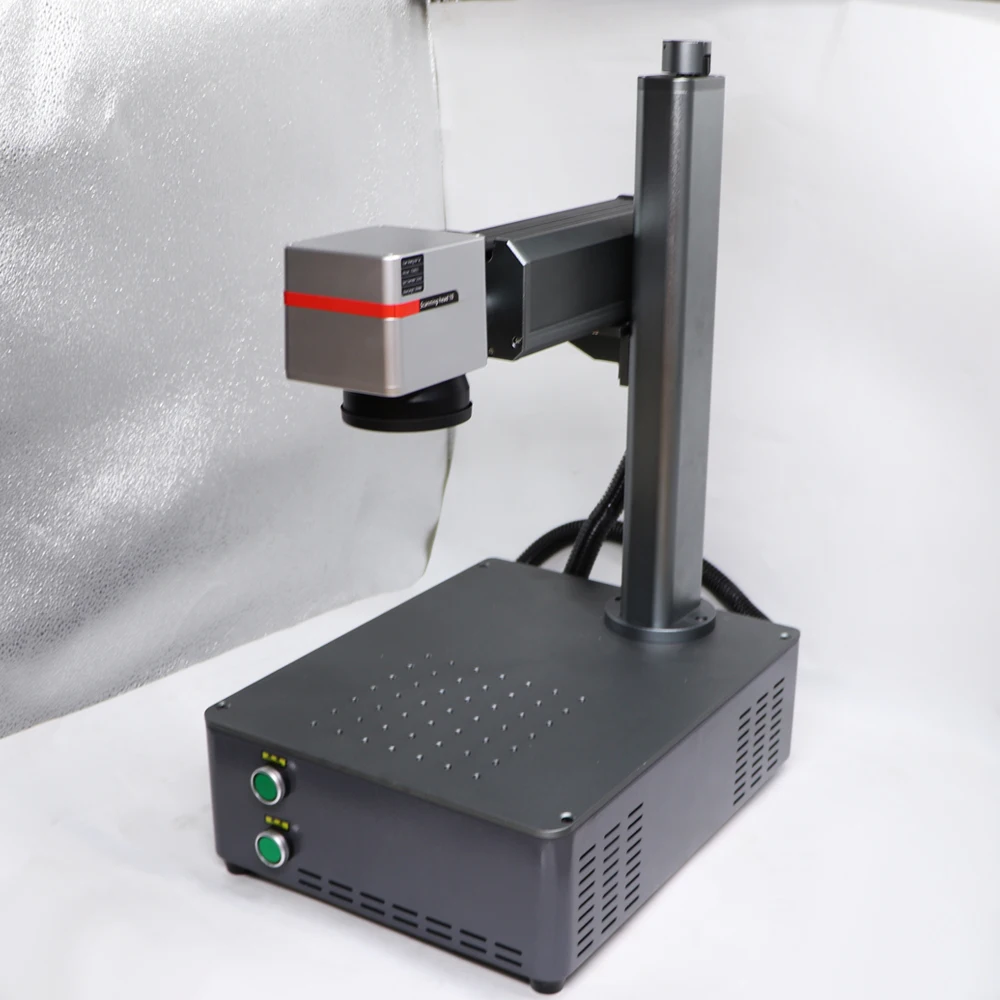

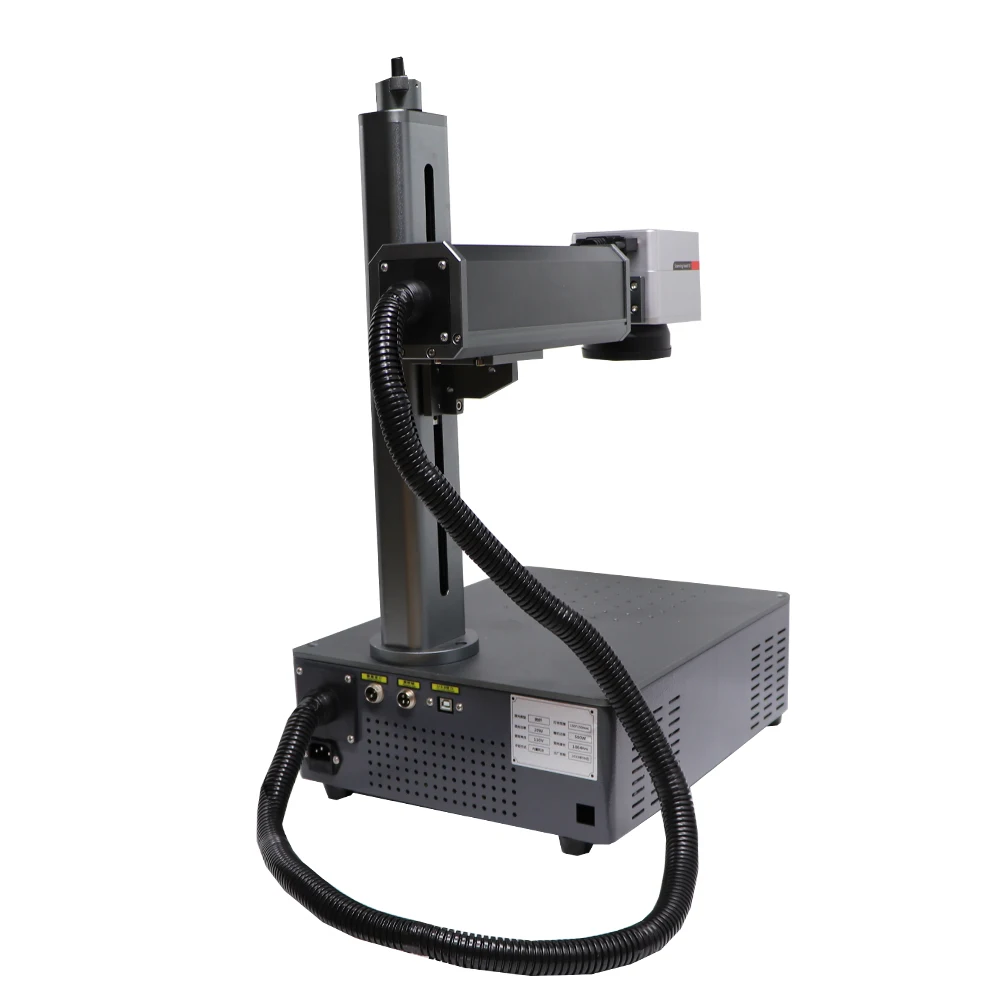

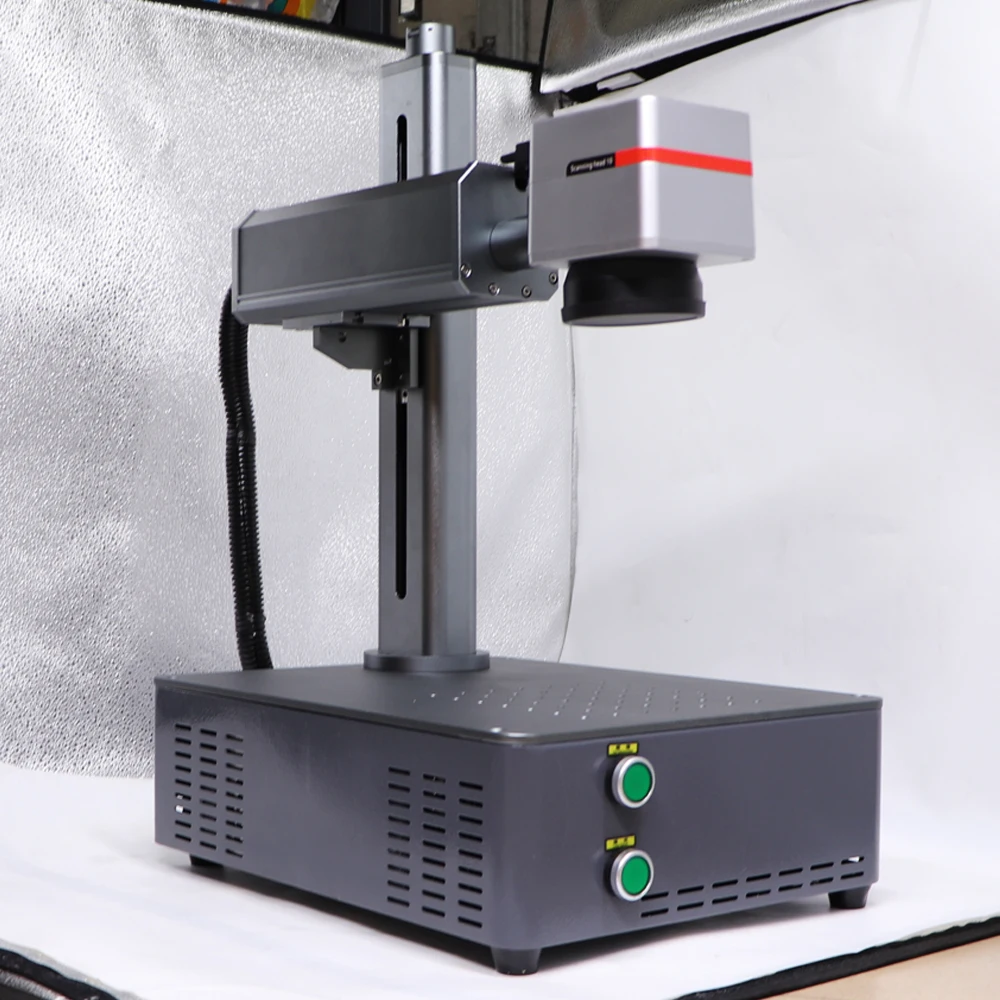

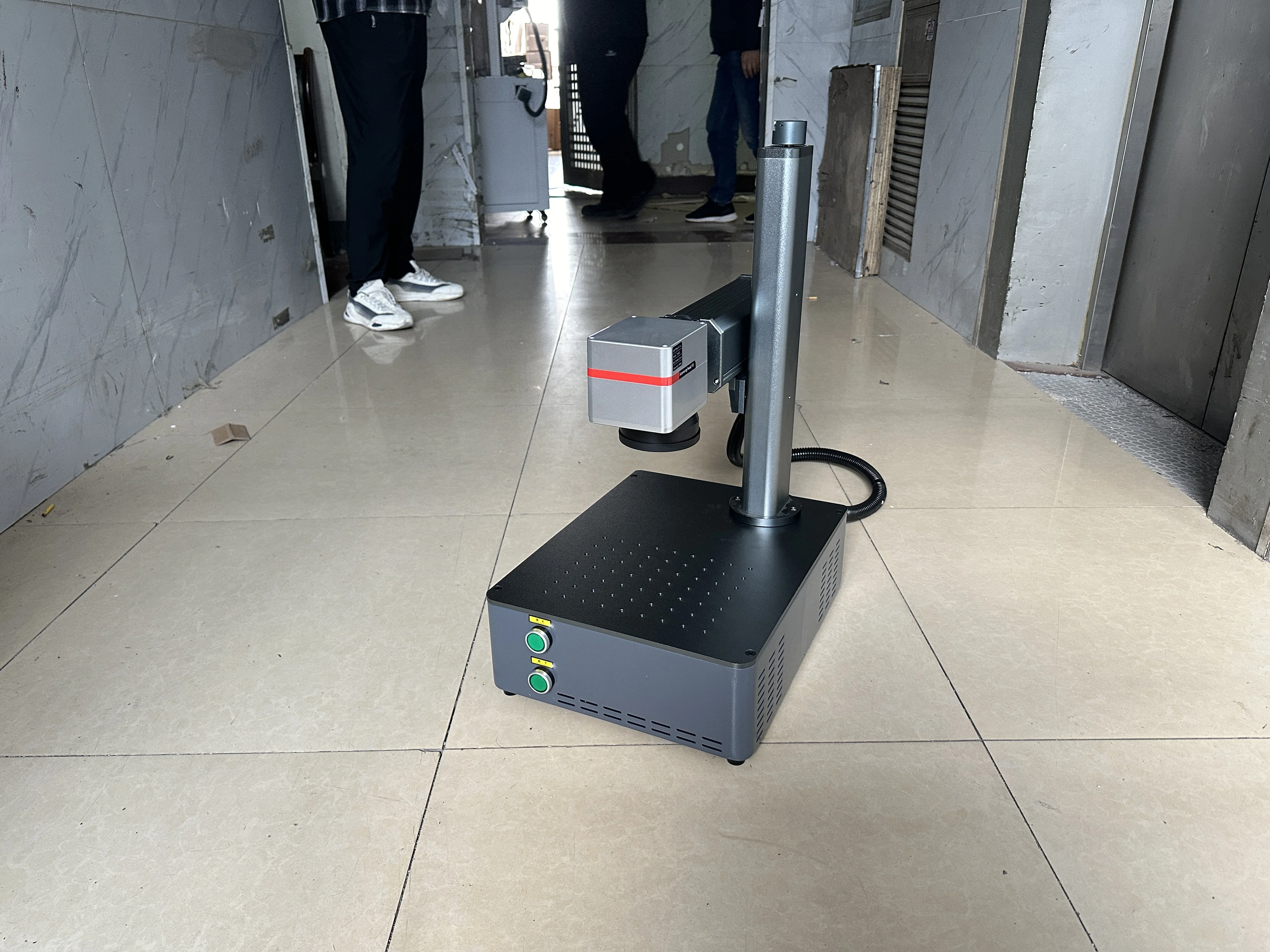

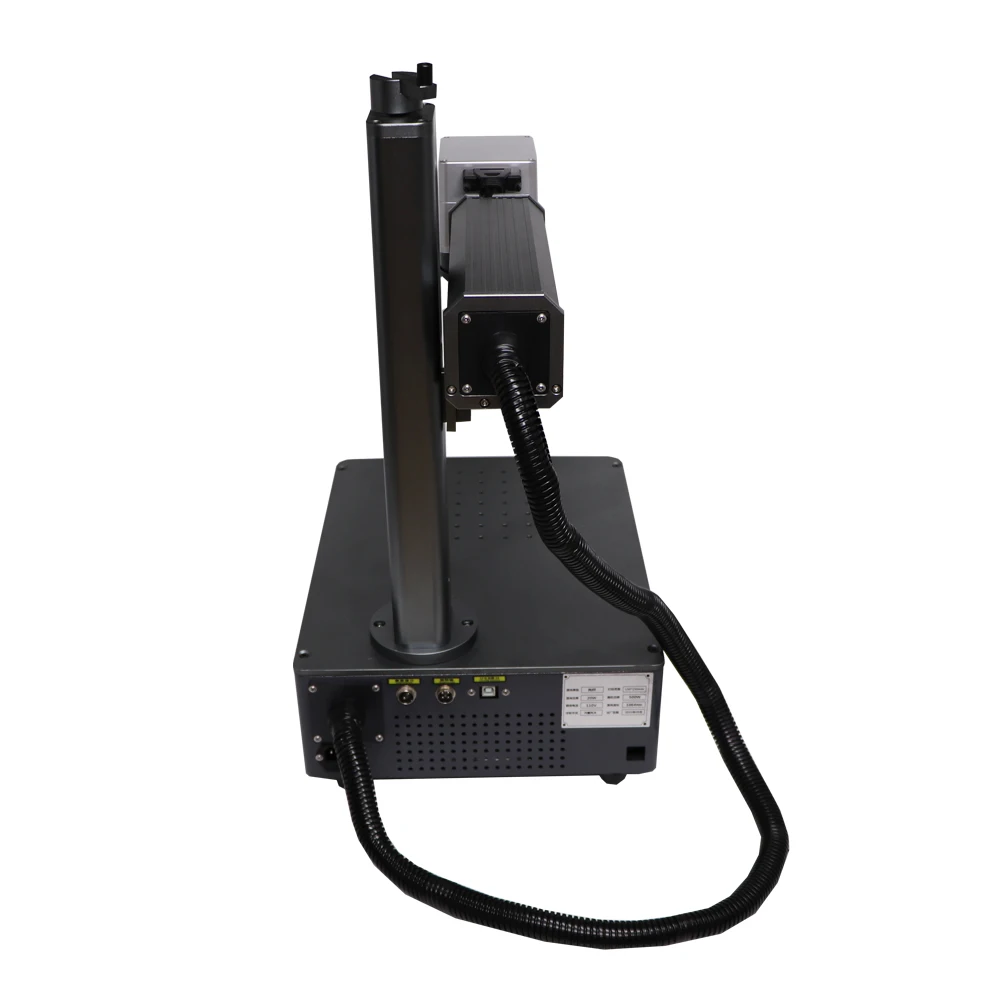

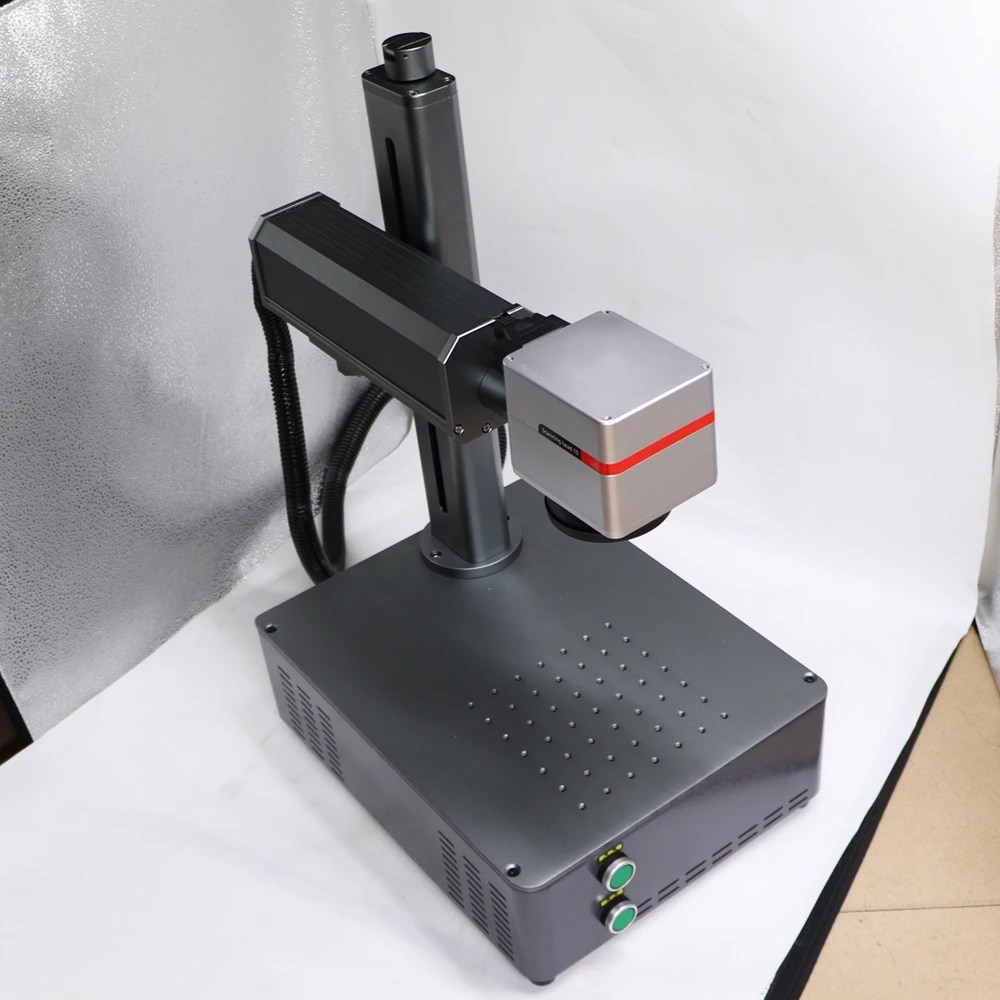

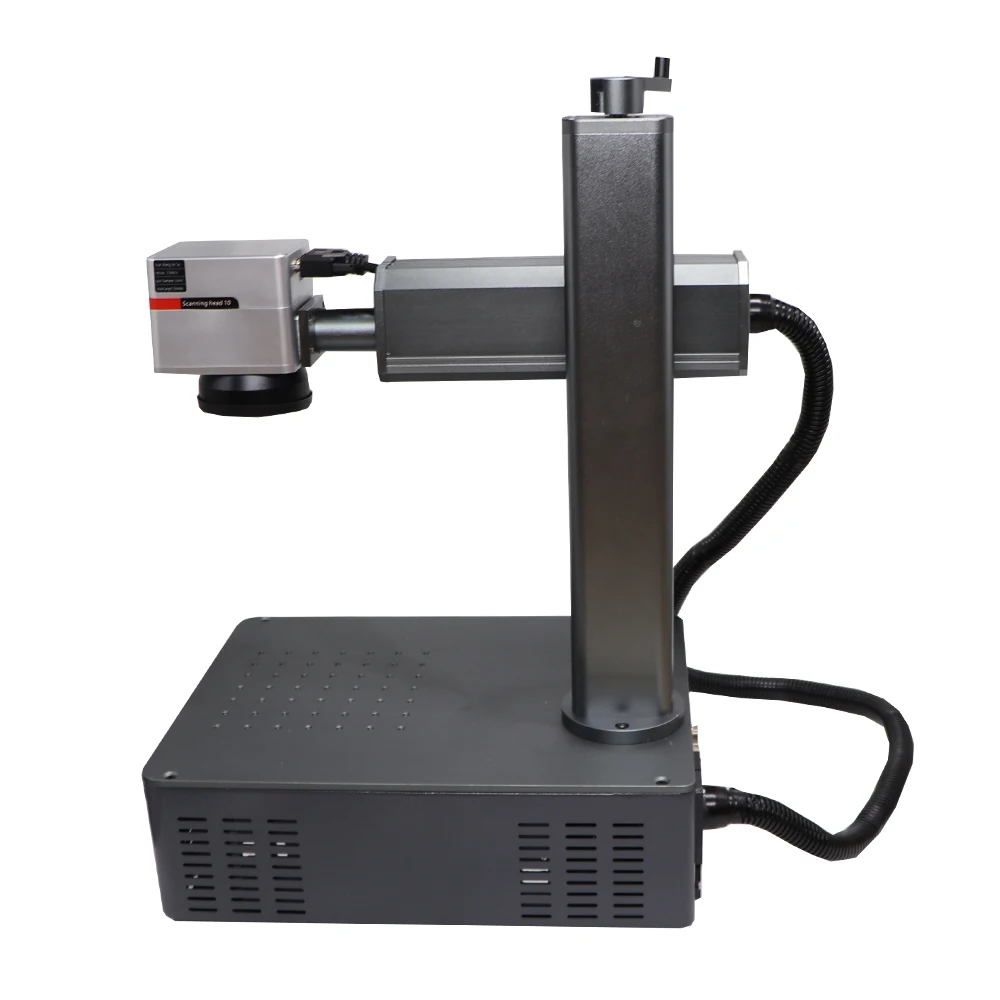

Support Lightburn JPT Mopa M7 20W 30W Fiber Laser Marking Machine Raycus Deep Engraving for All Metals Jewelry Engraver Ezcad2
Specification

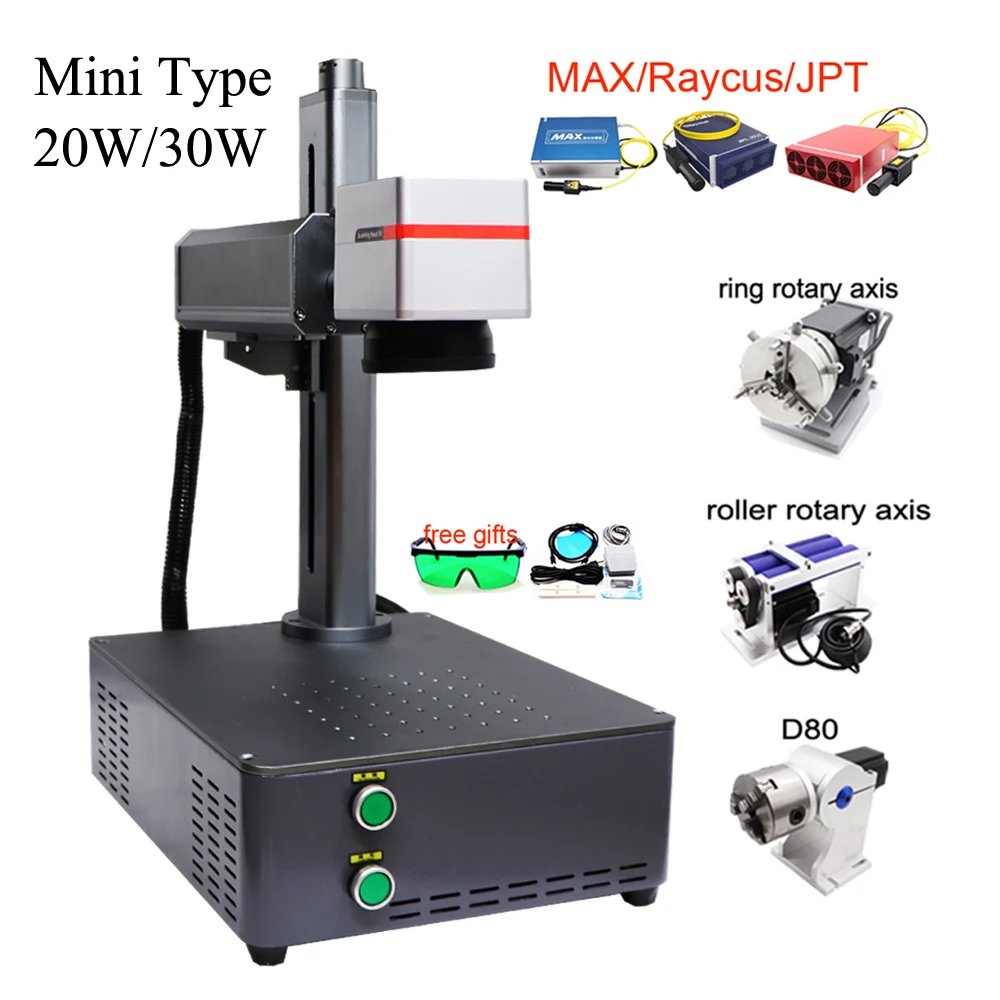

Laser Source Brand | RAYCUS /JPT / MAX |
Laser power | 20W/30W |
WorkingArea | 110*110mm(Optional 70x70mm/110x110mm/150x150mm/175x175mm/200x200mm) |
Cooling Mode | Air Cooling |
Laser Wavelength | 10.64 um |
Frequency of pulse | 20-100 KHz |
Marking Depth | ≤0.3 mm |
Marking Speed | ≤18000 mm/s(if need SG7110 add USD180) |
Marking Lines | 1-10 lines |
Minimum Line Width | 0.01 mm |
Minimum Character | 0.15 mm |
Repeatability Accuracy | ±0.002 mm |
Resolution Ratio | 0.1 mm |
Marking Content | Text, pattern, date, bar code, etc |
Operation System | Microsoft Windows XP or Windows 2000 WIN 7 WIN8 WIN 10 |
Control Software | EZCAD ENGLISH Control Software |
Graphic Format Supported | BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
Unit Power | ≤0.9 KW |
Operation Temperature | 5°C-40°C |
Relative Moisture | ≤ 90%, no fog |

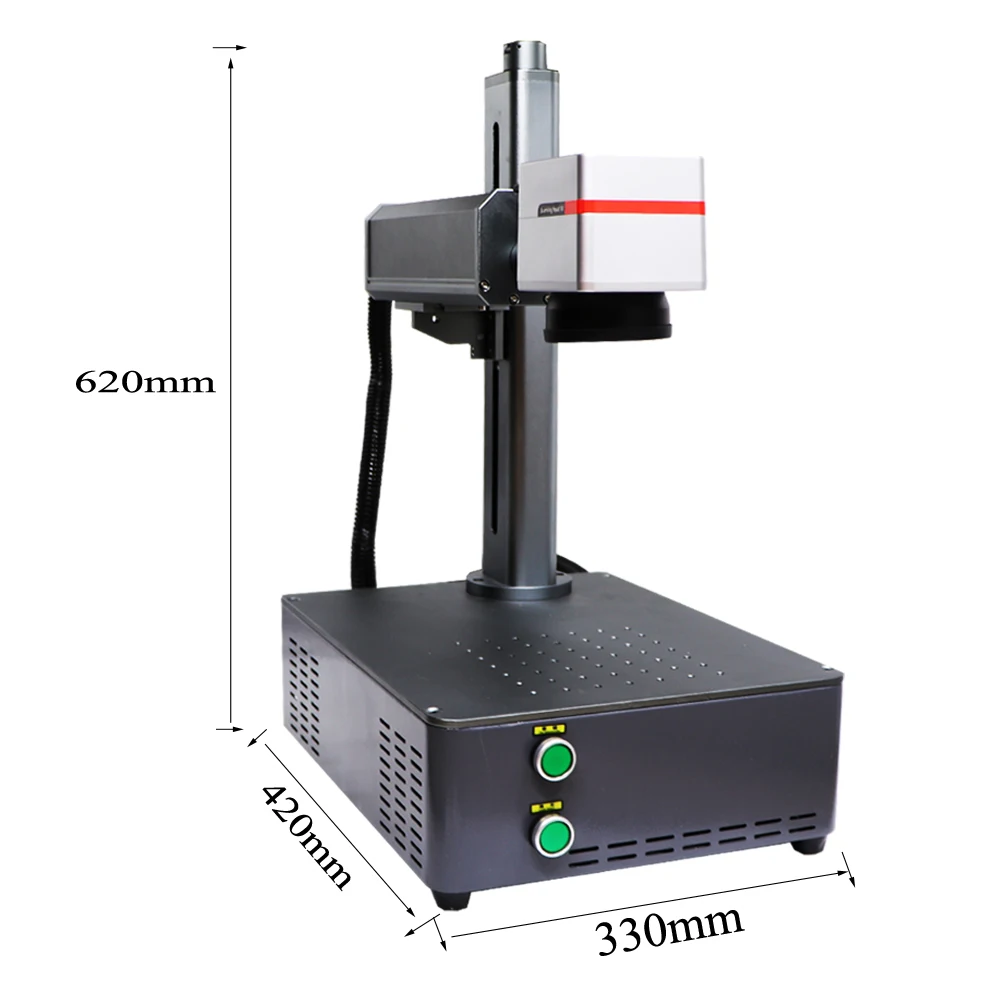

Dimensions(L*W*H) | 95 x 78 x 55 cm |
Power supply requirements | 220 V or 110V |
Weight | 30KG |
Warranty | 24 months |
How to choose lens?
With Same Lens , The Higher Power , The Deeper Engrave .
With Same Power, The Smaller Lens, The Deeper Engrave ，
Bigger Lens Engrave Bigger Area ，
Smaller Lens Engrave Deeper Depth,
if 20w laser choose 200mm*200mm lens , that means your focus distance is very tall ,power come to mark object is cery very weak , so not biggest lens area is best ,but choose suitable lens.
Below is our suggestion:
20w choose 70mm*70mm , 110mm*110mm, 150*150mm
30w choose 70mm*70mm , 110mm*110mm , 150mm*150mm, 200*200mm
50w choose 70mm*70mm , 110mm*110mm ,200mm*200mm, 300*300mm
