- Hign-concerned Chemical: None
- Model Number: IX101FL80128-IC-A133P
- Screen Type: Capacitive Screen
- Compatible Brand: Universal
- Product Type: Panel LCD Combo
- Origin: Mainland China
- Display Size: 10.1 Inch
- Certification: CE,FCC,RoHS
- Brand: IXHUB
- Memory: 8GB
- Storage: 64GB
- Brightness: 500nit/1000nits optional
- Colors: 16.7M Colors
- Touch mode: 5-point touch
- Resolution: 800*1280
- Serial Ports: 2*TTL/RS232/RS485 Header
- WiFI: Standard WiFi6 2.4GHz single band (Optional WiFi6 2.4GHz and 5GHz dual band)
- Bluetooth: 5.2
- Ethernet: 10/100/1000M RJ45 Gigabit
- System: Linux/Andriod/Ubuntu
- Bulk customization: Screen printing and logo
- Panel type: IPS

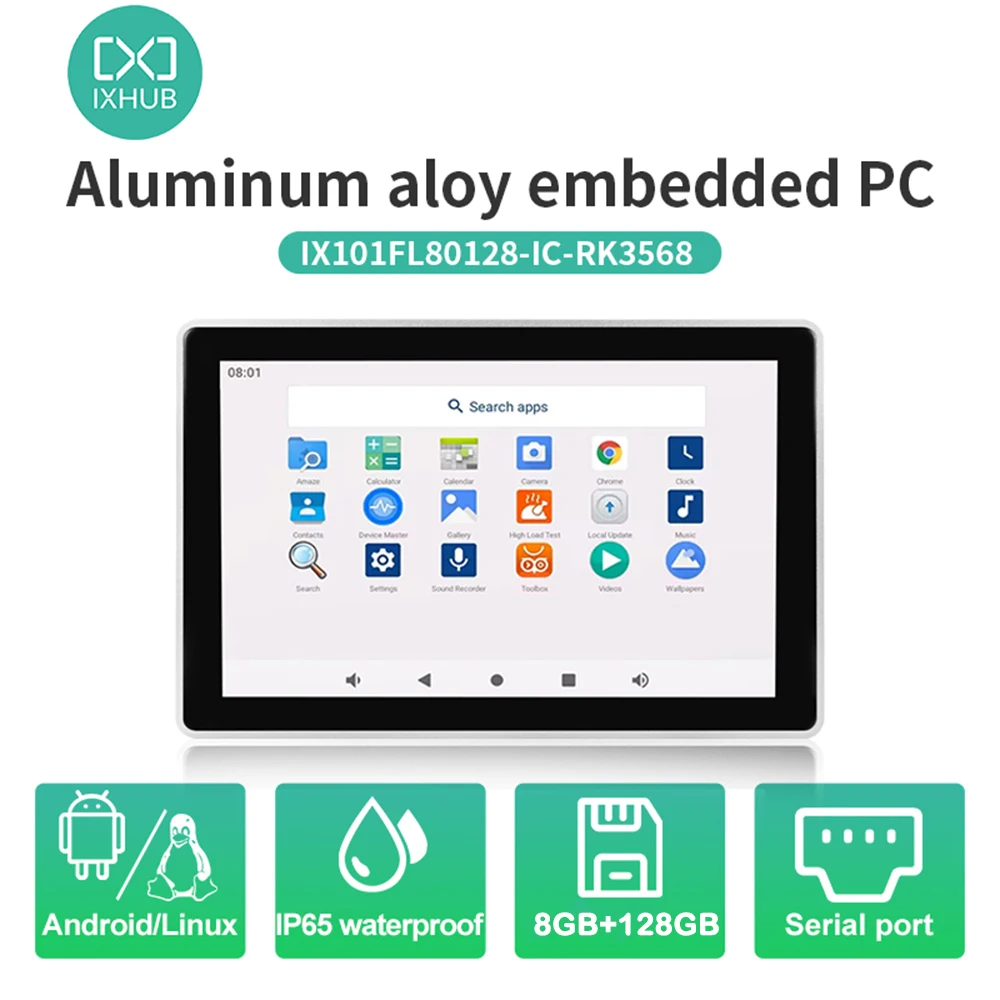

IXHUB 10.1 Inch Linux Panel tablet PC Industrial All In One Computer Capacitive Touch with RS232/485 Ubuntu Android wifi Screen for Smart Home
Specification:

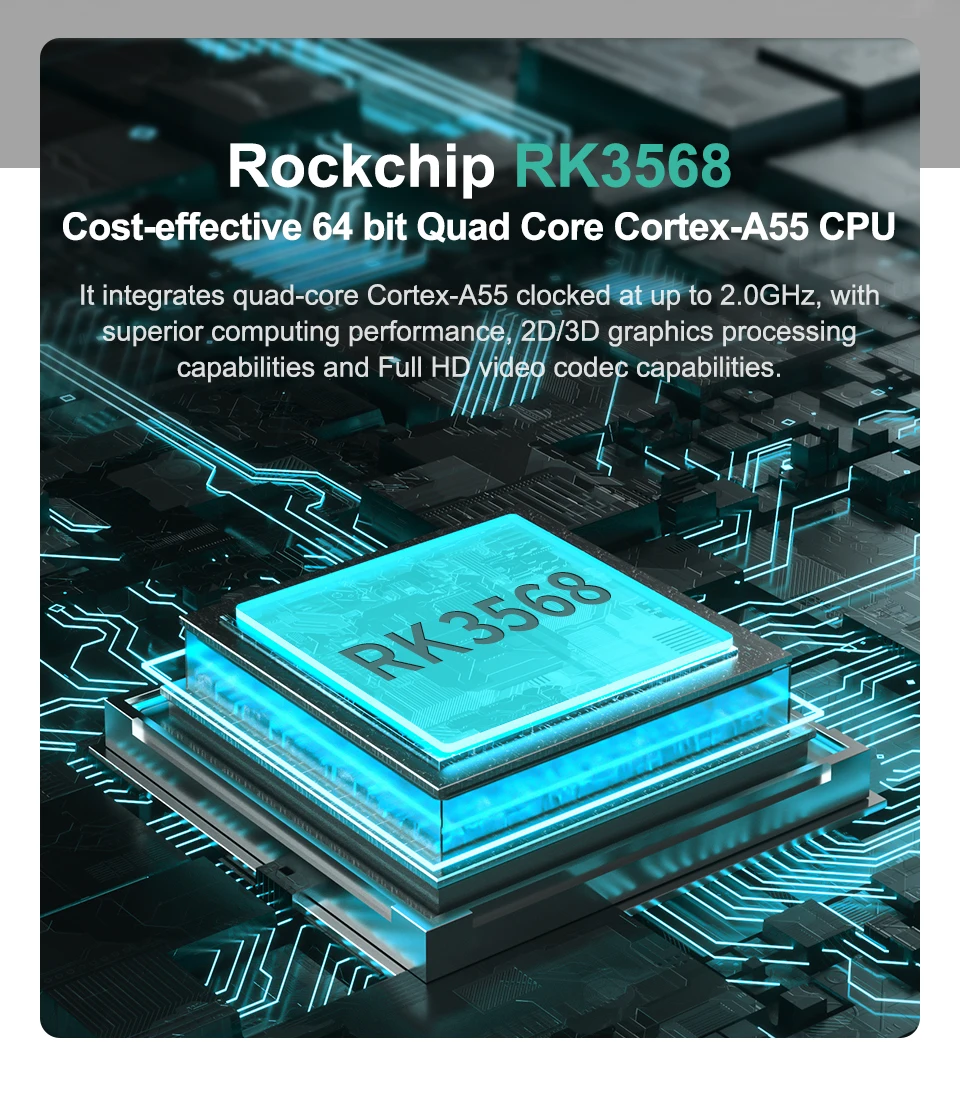

Rockchip RK3568, ARM quad-core A55
Up to 8GB memory, 128GB storage

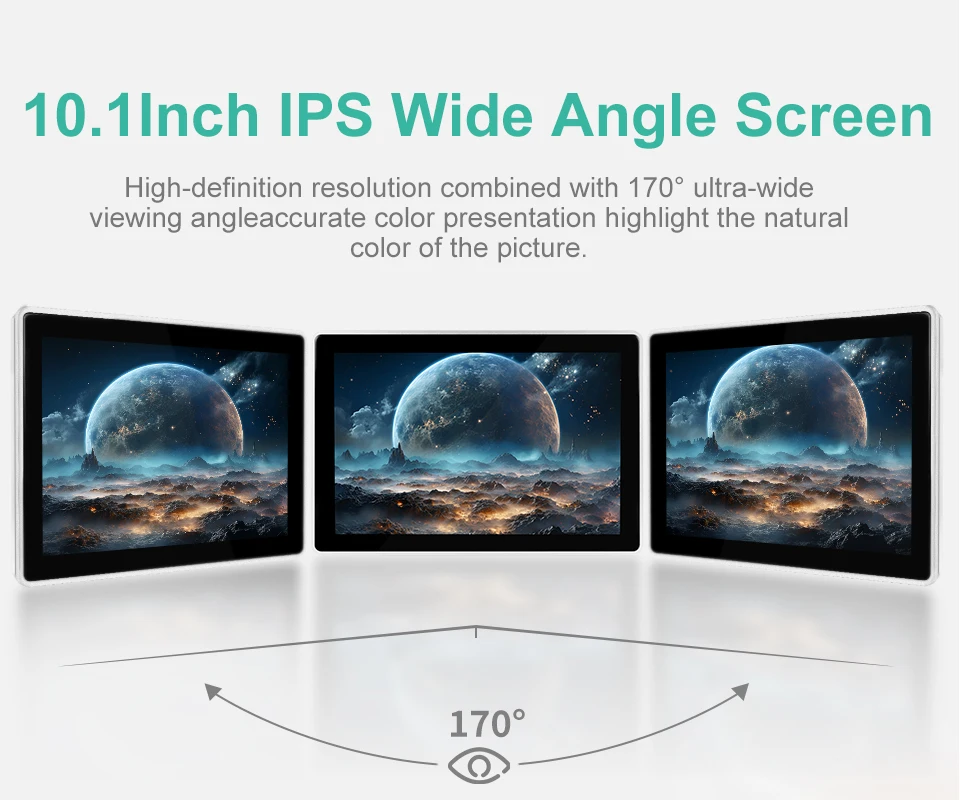

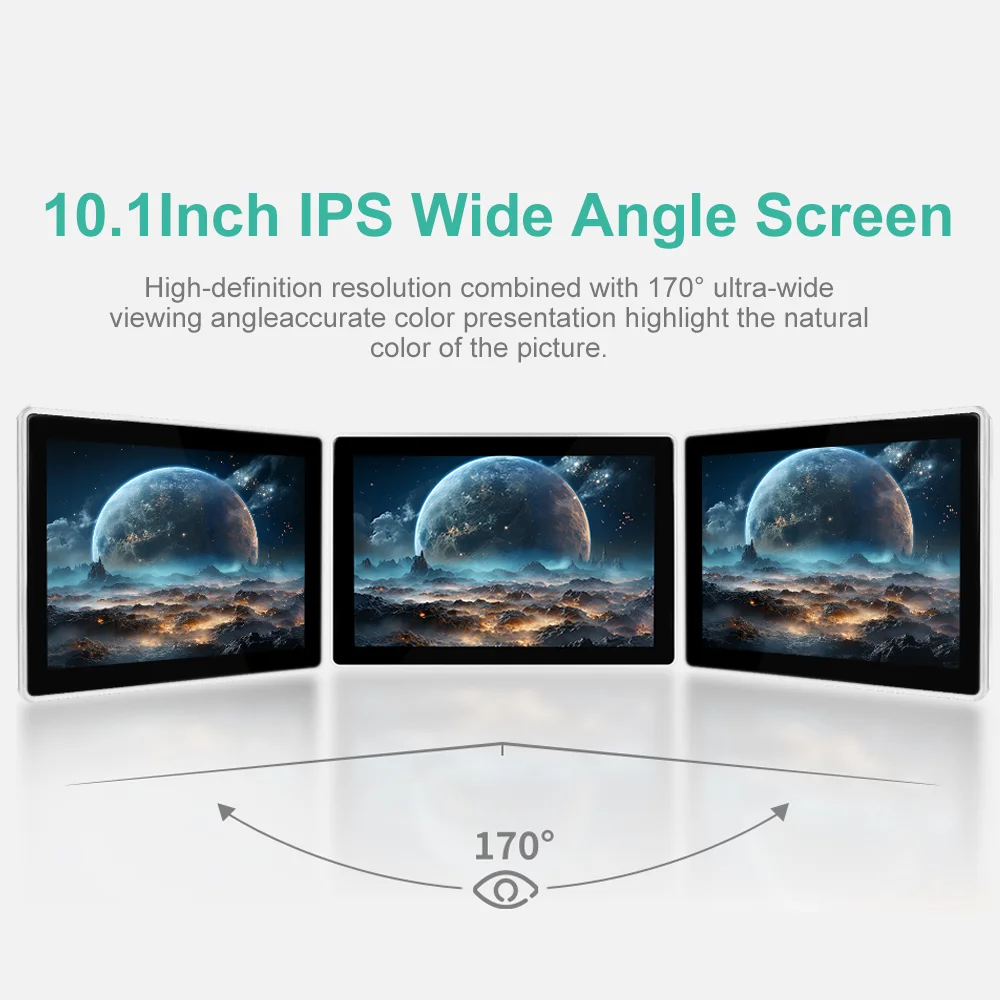

10.1 Inch 1280*800, IPS Screen with 5-Point Touch

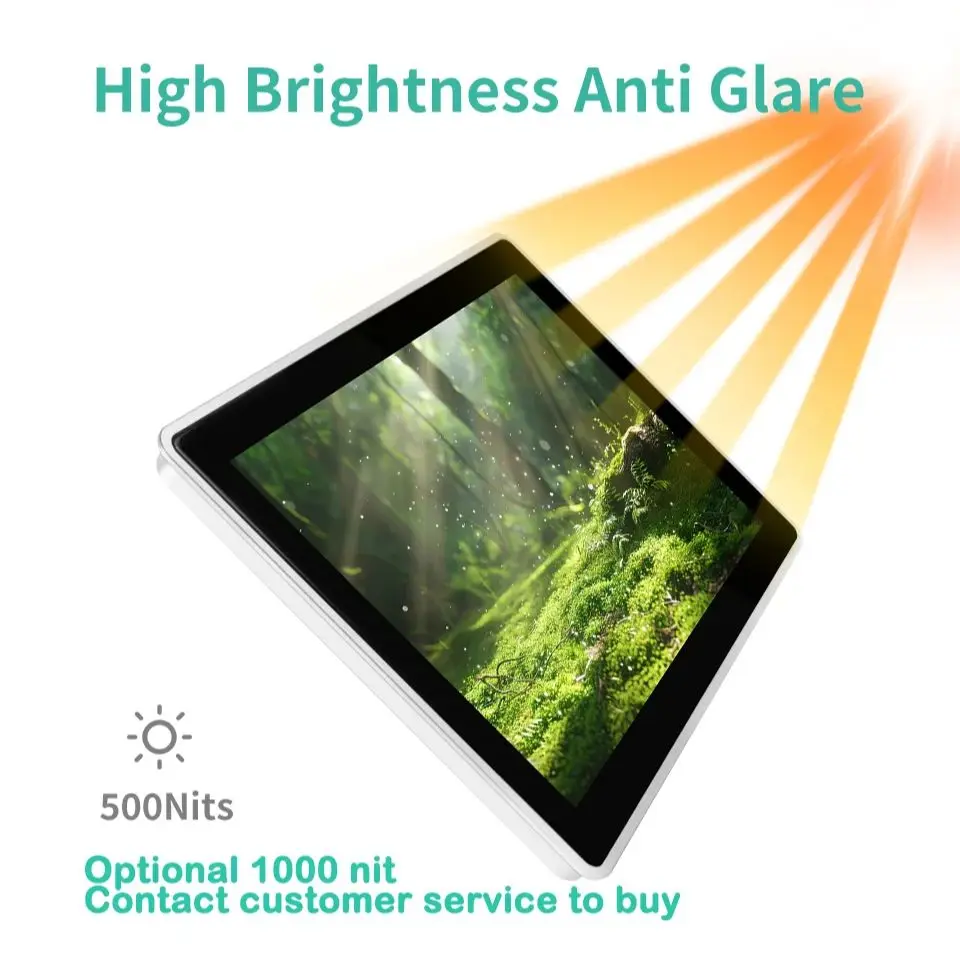

Brightness 500nits/1000nits optional

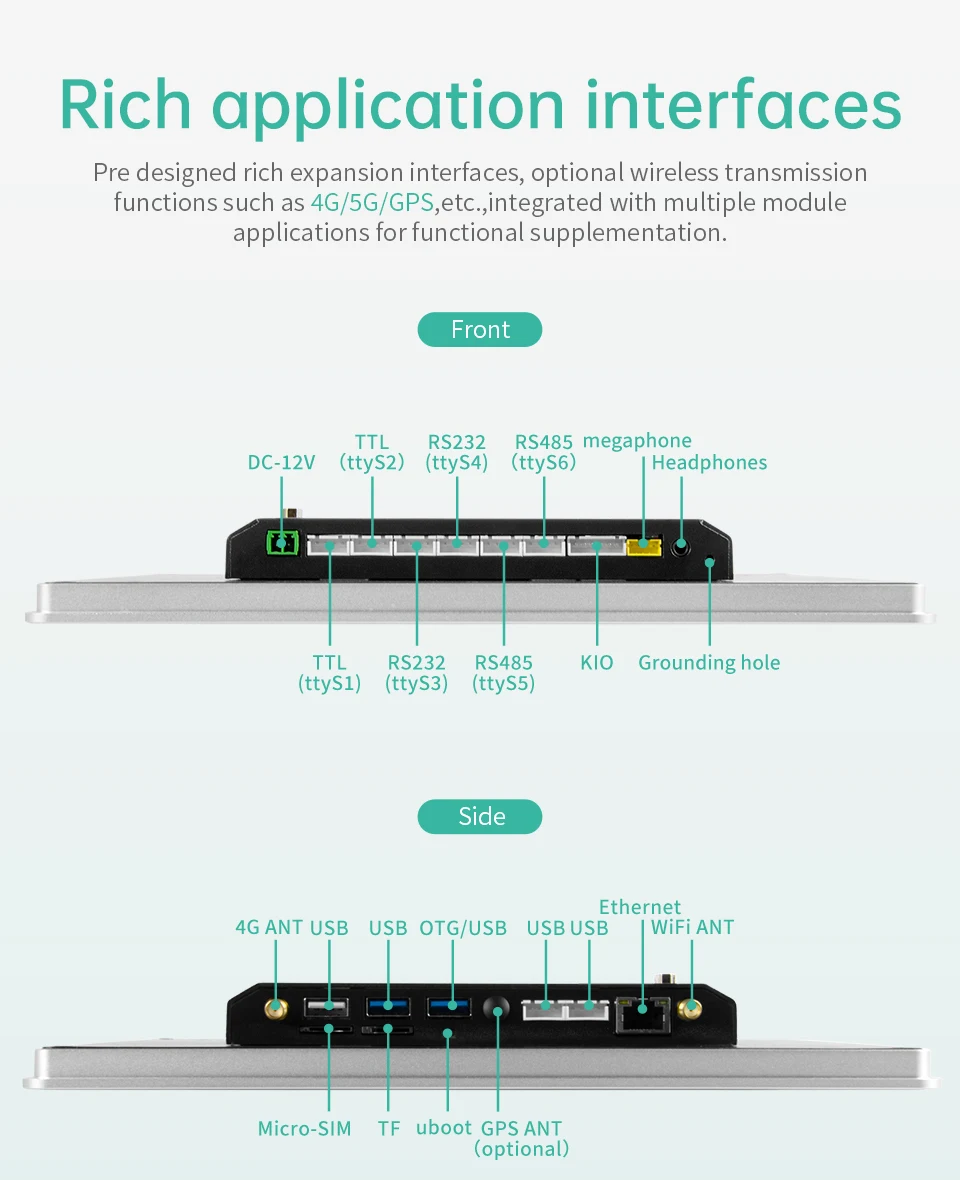

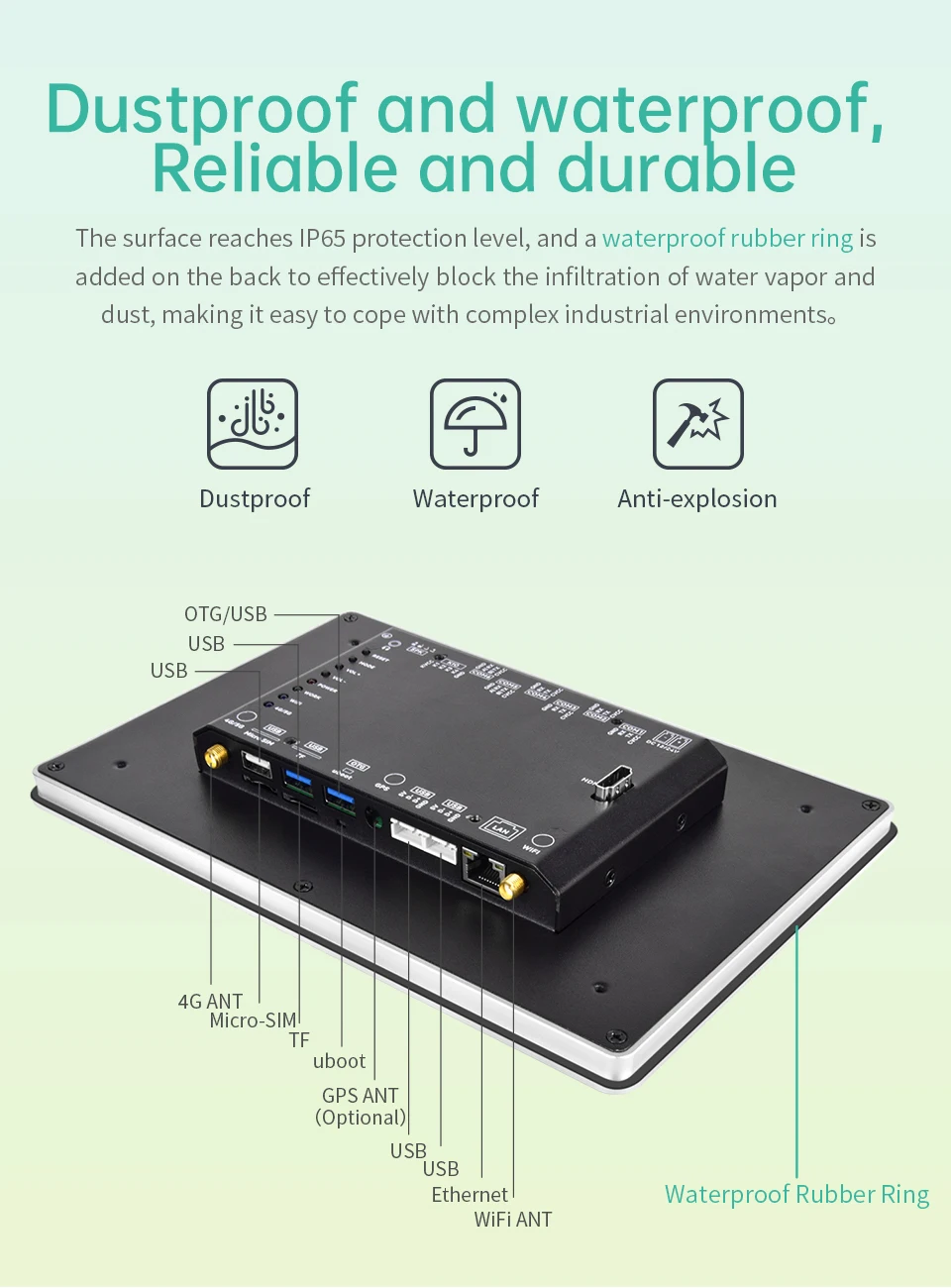

2 RS232, 2 RS485 , 2 TTL, 2*USB2.0, 2*USB3.0, 4-way GPIO
1 Gigabit Ethernet Port, Support WIFI BT
Support 12V-24V Wide Voltage Input
Support Android 11/ Linux Ubuntu 20.04 / Debian 10(Note OS, default Android 11.0)

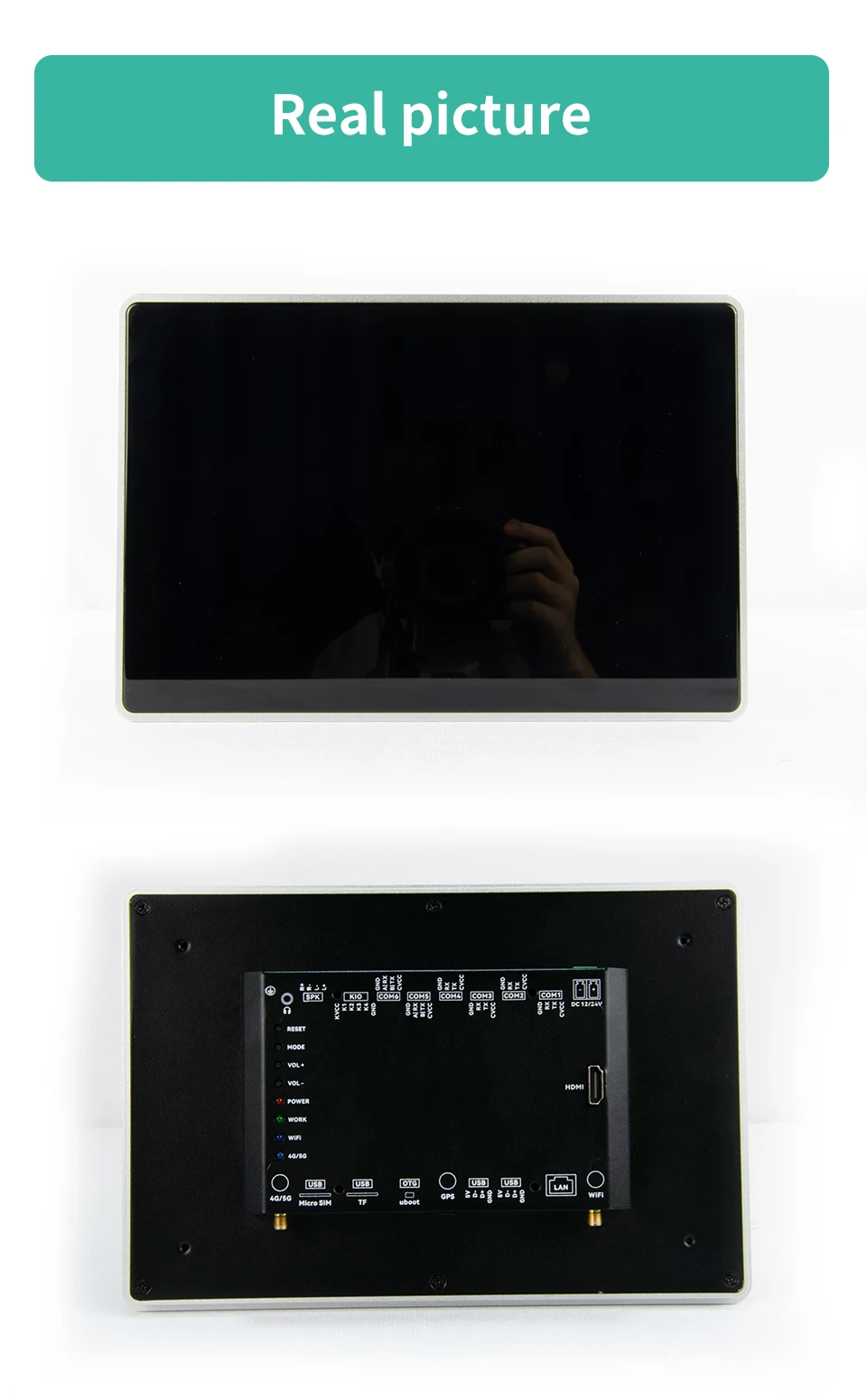

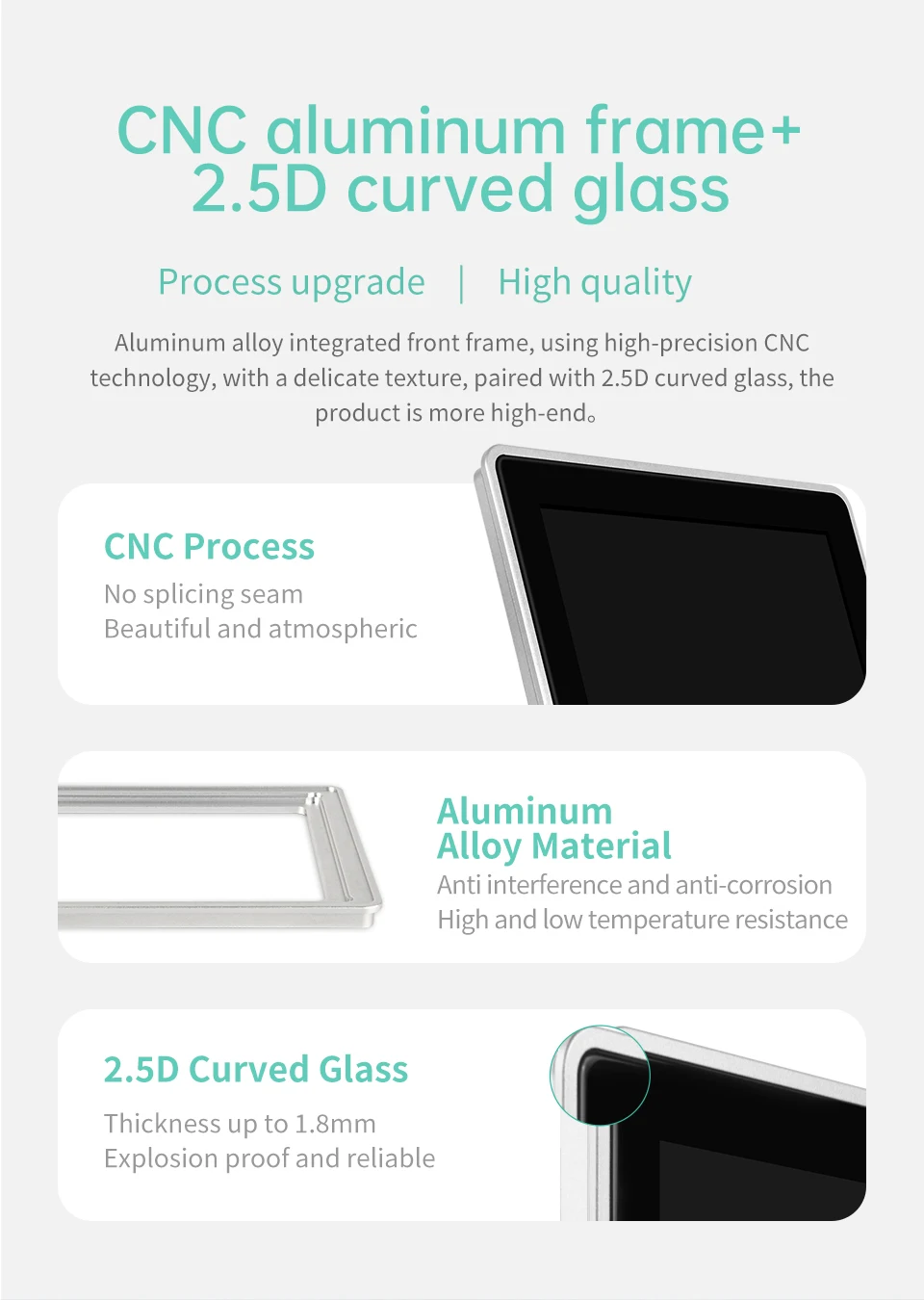

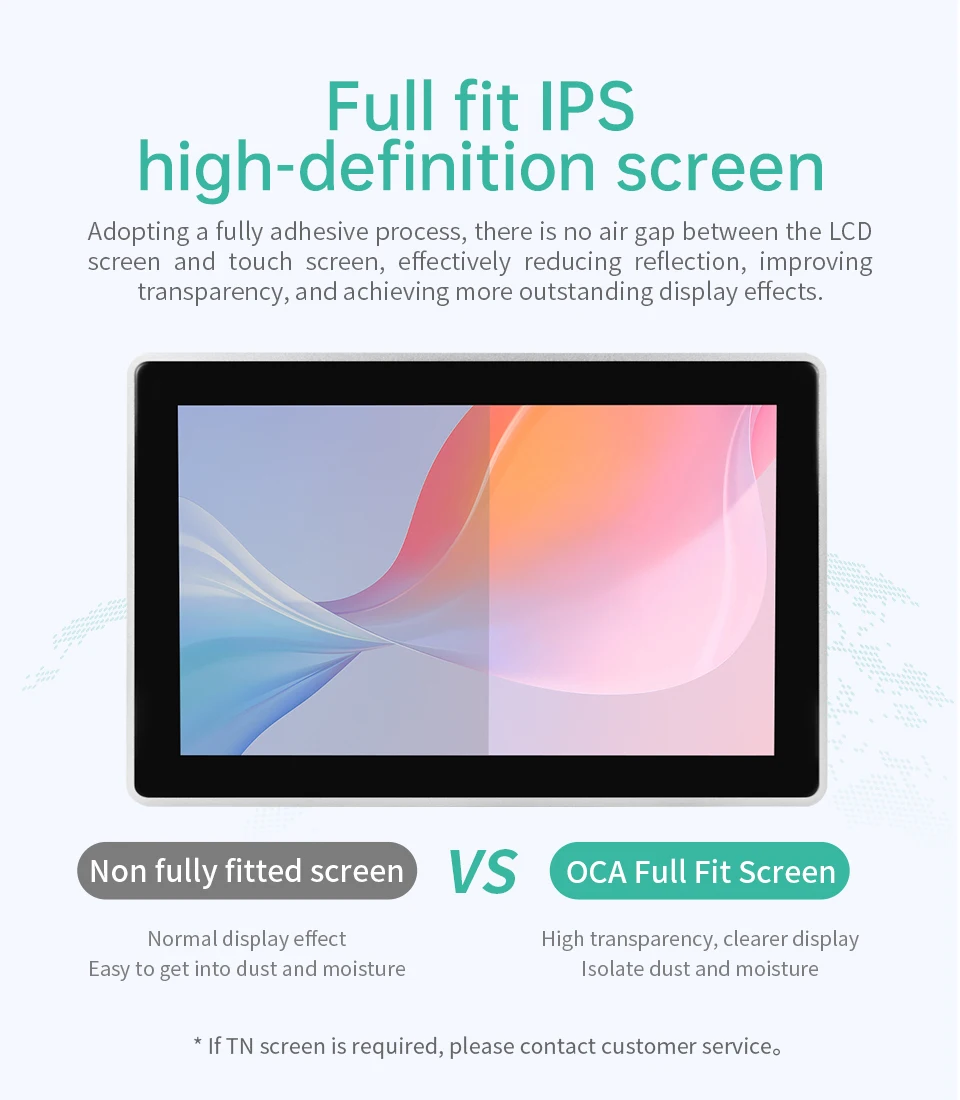

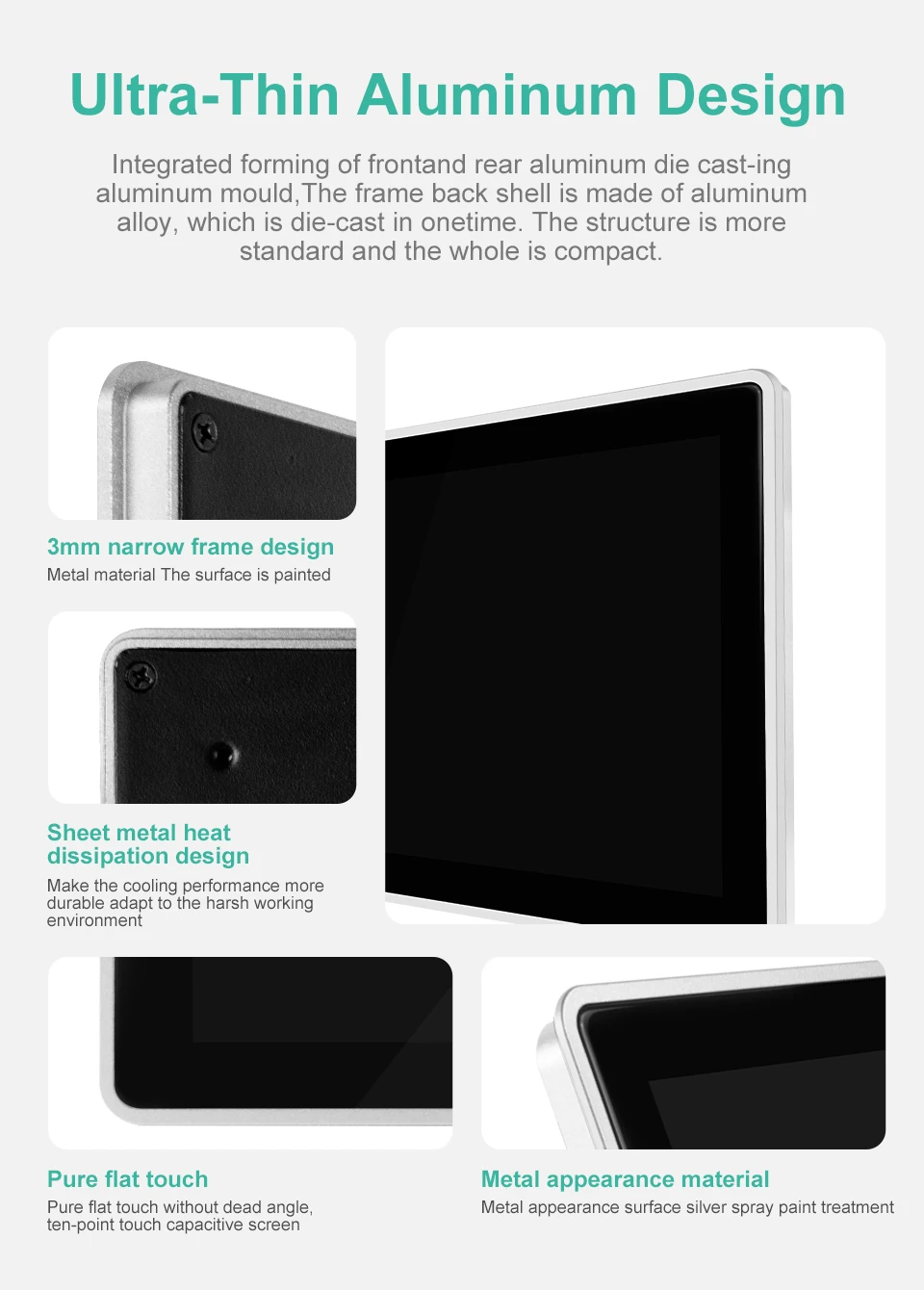

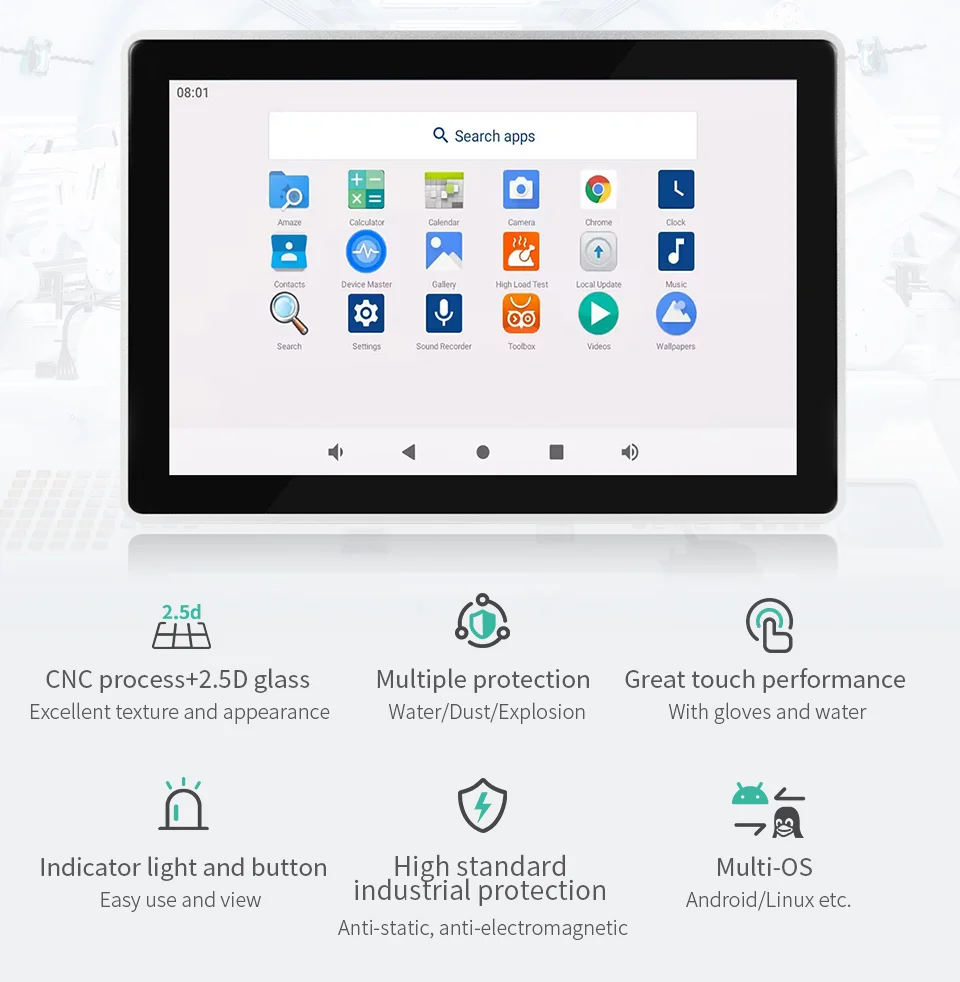

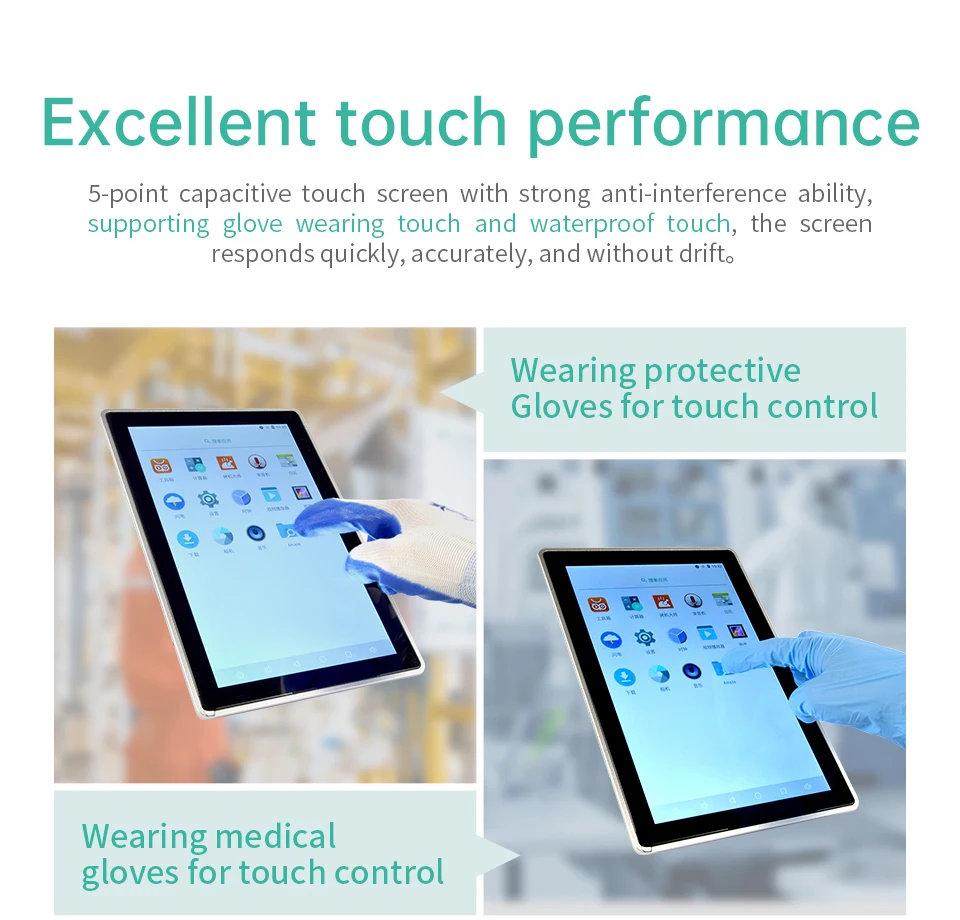

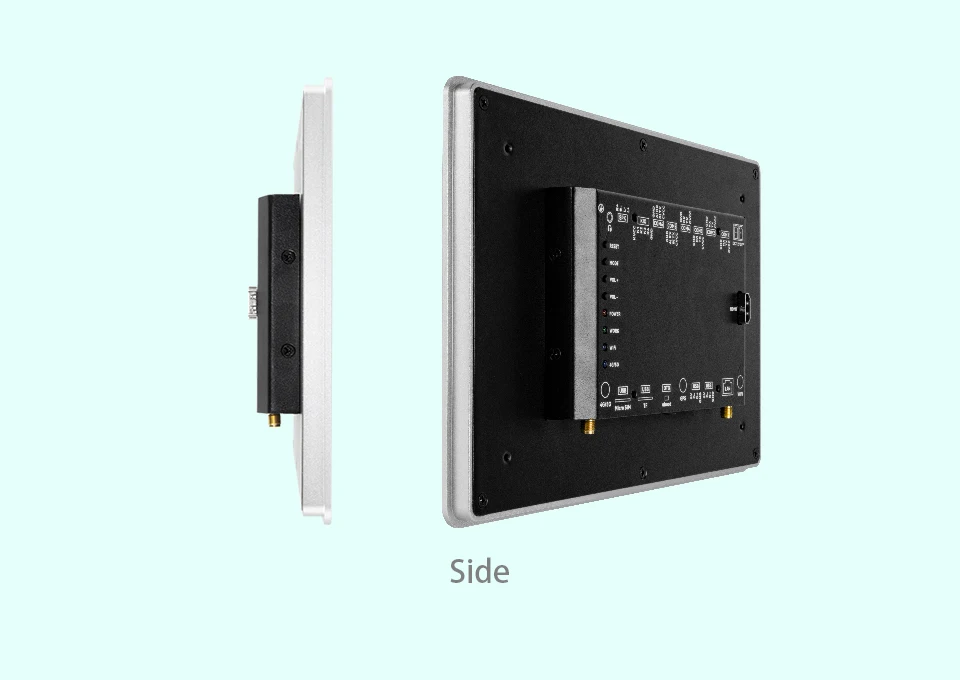

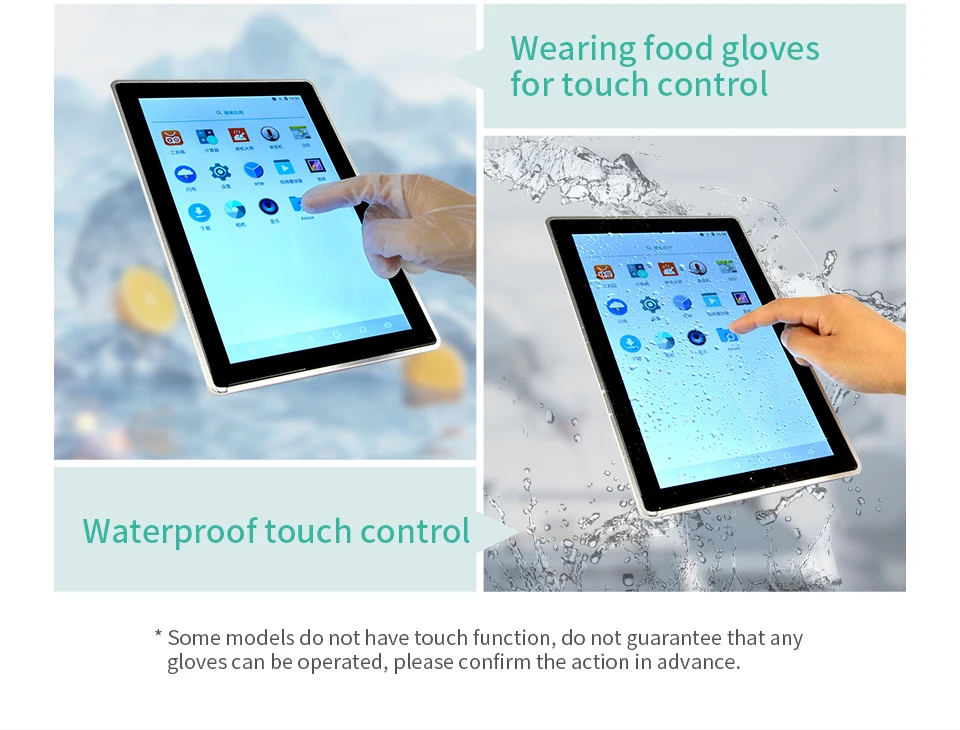

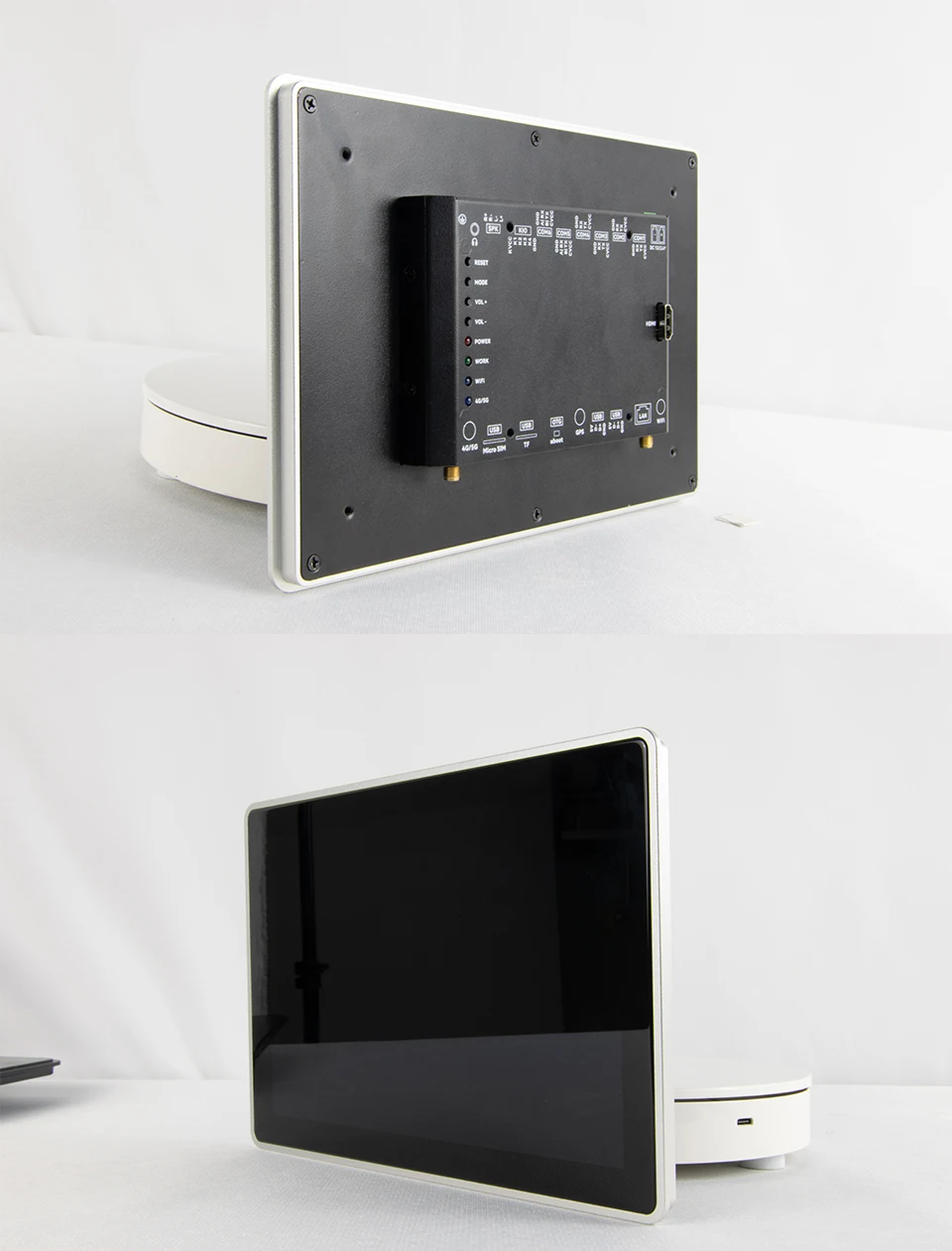

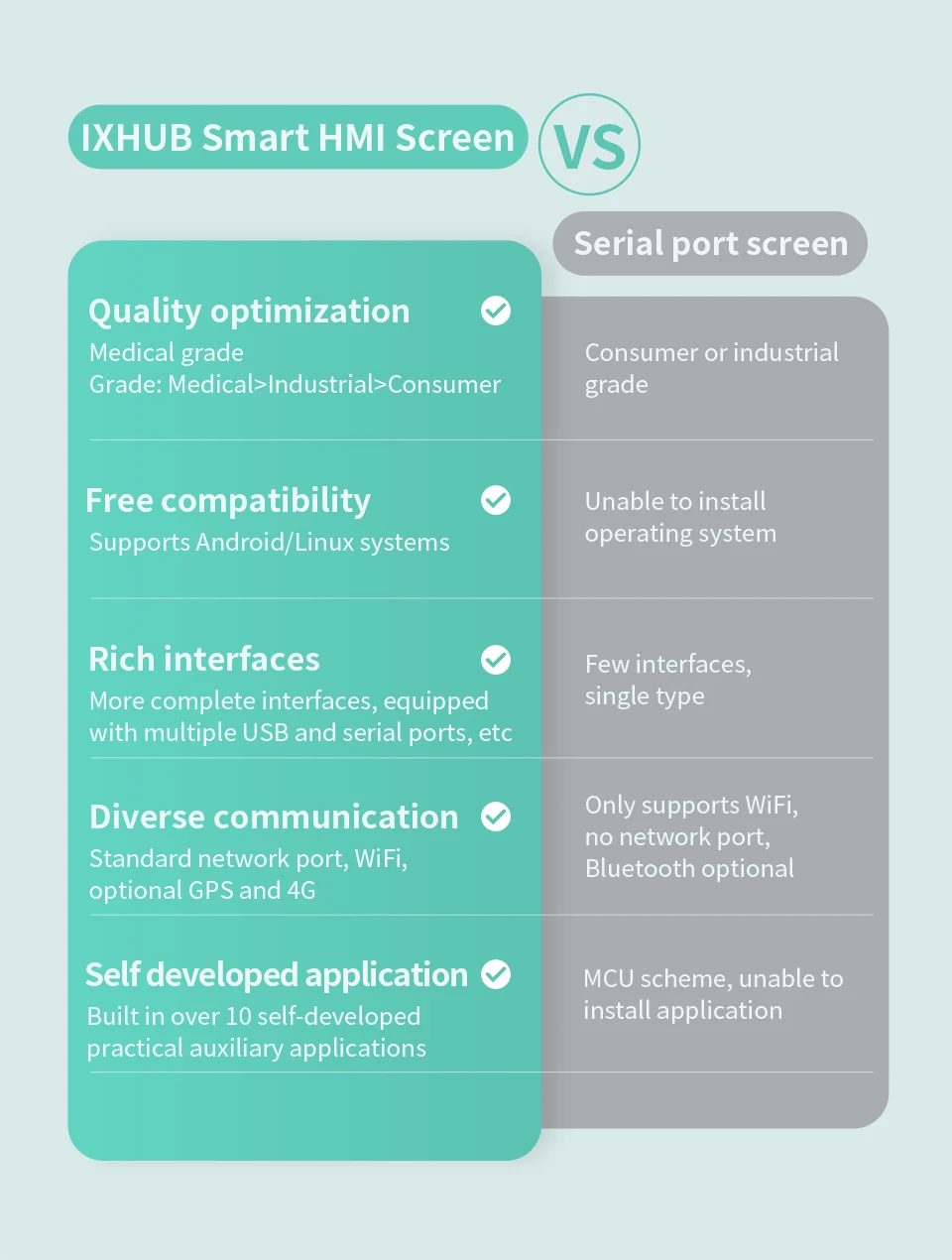

L1 series intelligent HMI Screen is based on an ARM processor, with powerful performance and compatible with multiple operating systems. It uses a 10.1-inch fully laminated IPS screen, with optional capacitive touch, and supports touch with gloves and waterproof touch.CNC aluminum alloy integrated center frame, paired with 2.5D curved glass, balancing functionality and aesthetics.The embedded shell design and VESA mounting holes allow for flexible and diverse installation methods. There are abundant peripheral interfaces to meet the needs of more scenarios.
