- Número do modelo: NMRV030
- Arranjo de Orientação: Verme
- Nome da marca: YUN DUAN
- Origem: CN (Origem)
- Input: 11mm (4mm keyway)
- Output shaft: 14mm (5mm key)
- Speed ratio: 5:1/ 7.5:1/ 10:1/ 15:1/ 20:1/ 25:1/ 40:1/ 50:1/ 60:1/ 80:1
- Backlash: About 100Arcmin
- Worm wheel material: Nodular cast iron and bronze
- Worm shaft material: 20Cr steel
- Surface hardness: 56-62HRC, carbonized layer 0.3-0.5mm
- Housing: Aluminum with oven painting
- product keyword 1: Turbo-Worm Gearbox
- product keyword 2: Worm Gearbox
- product keyword 3: Worm reducer
- product keyword 4: Worm Gear Reducer
- product keyword 5: NEMA 23 reducer
- product keyword 6: NEMA 23 Gearbox
- product keyword 7: speed reducer
- product keyword 8: DC motor gearbox
- product keyword 9: motor Speed controller

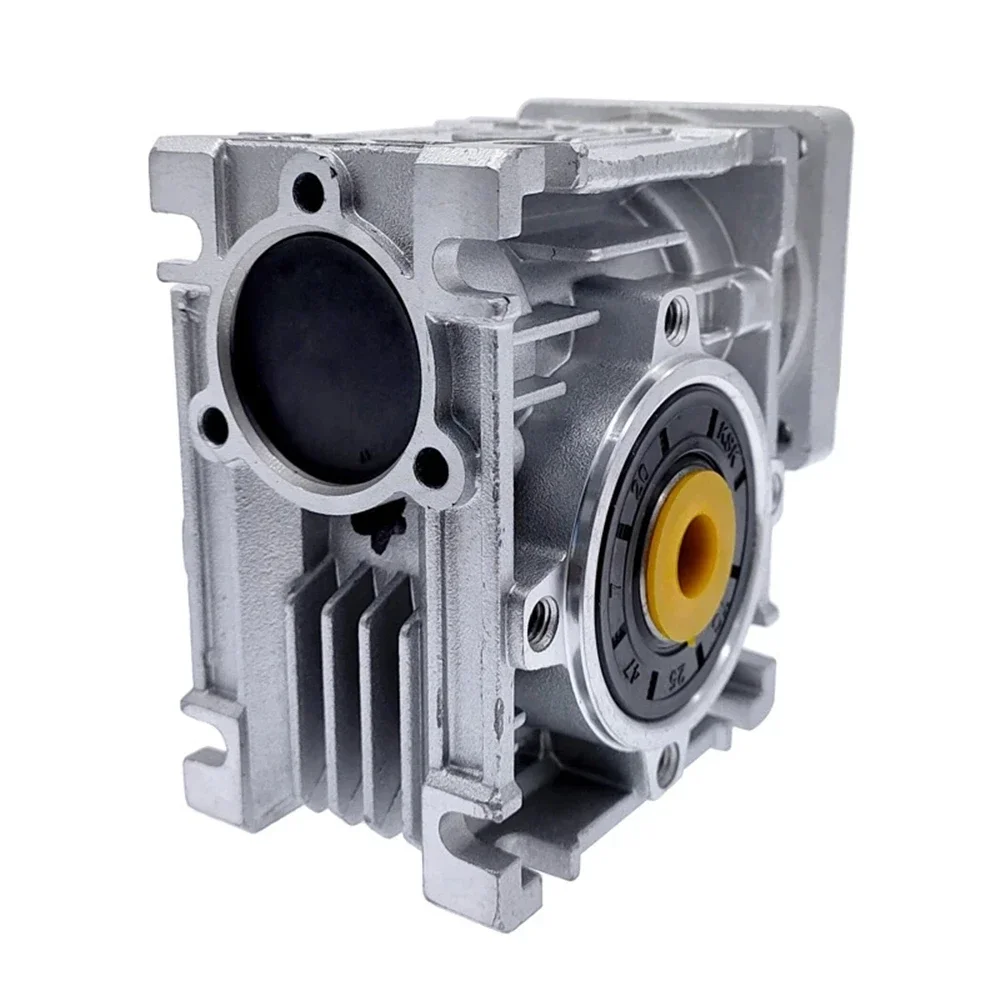

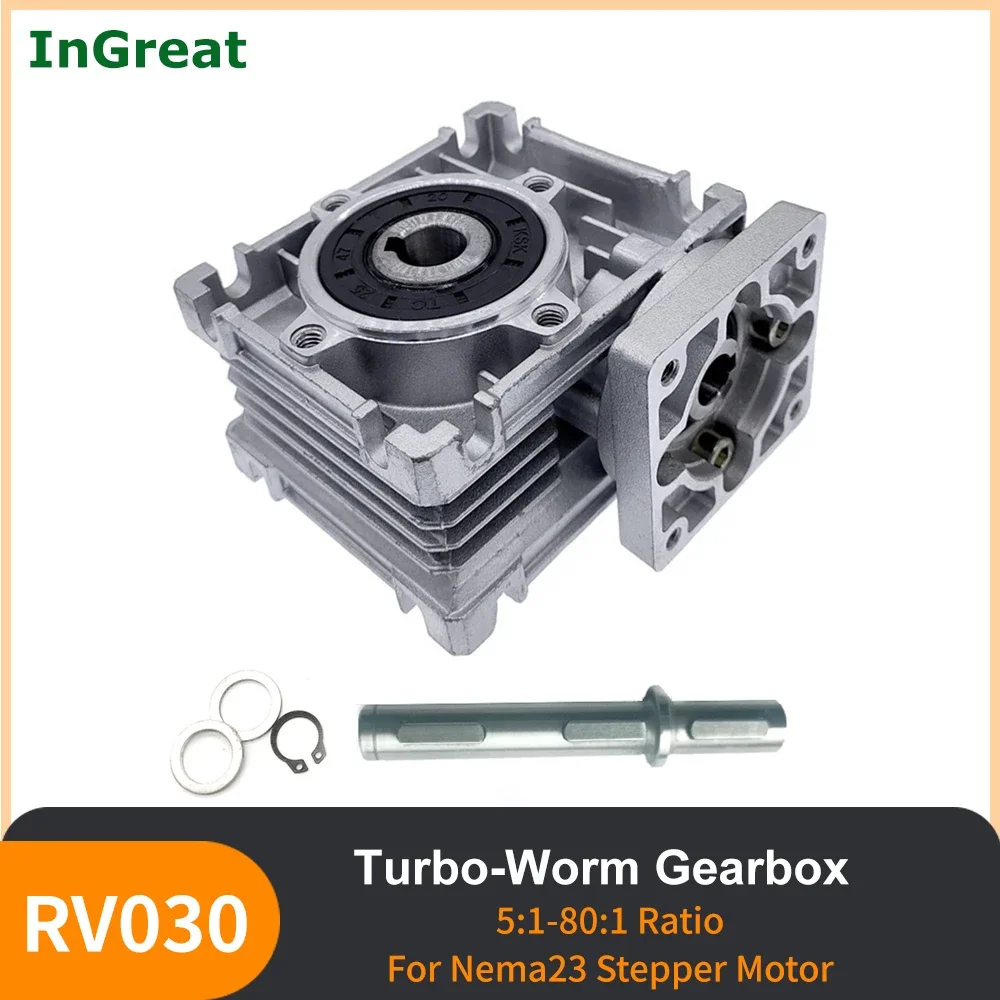

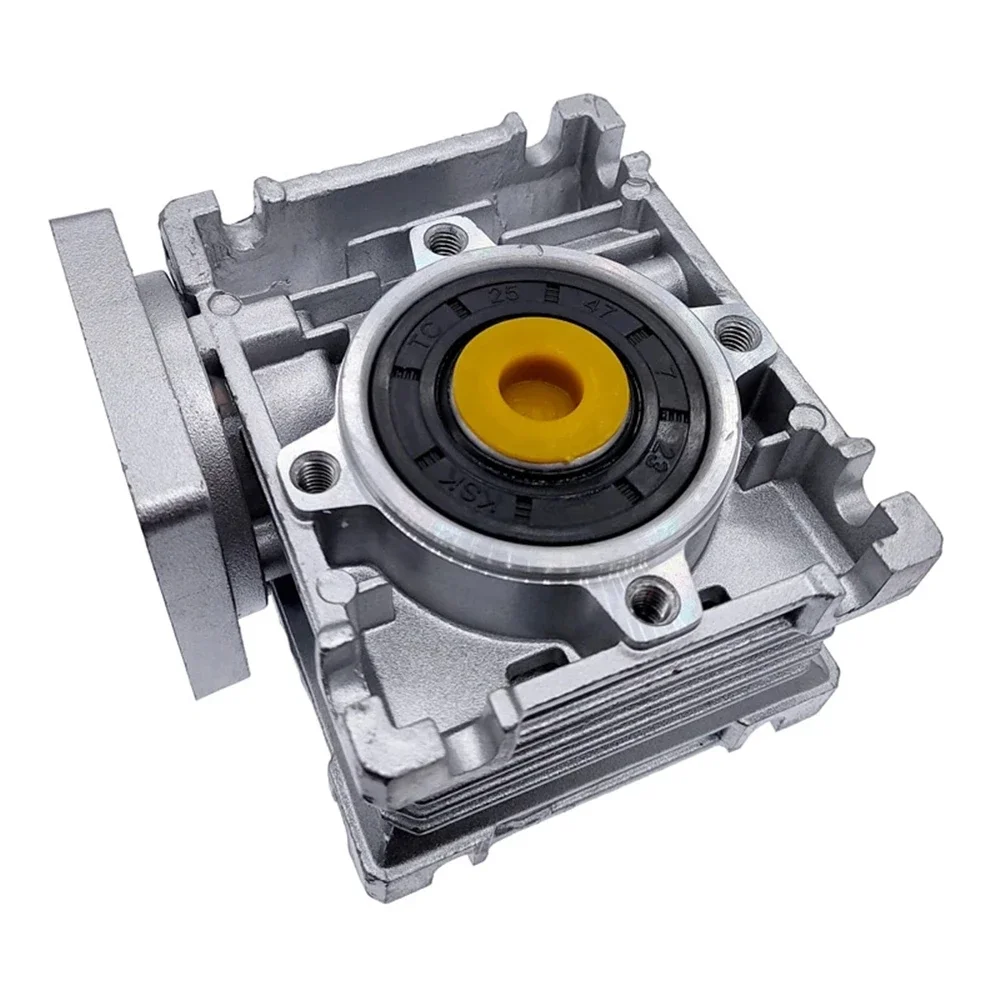

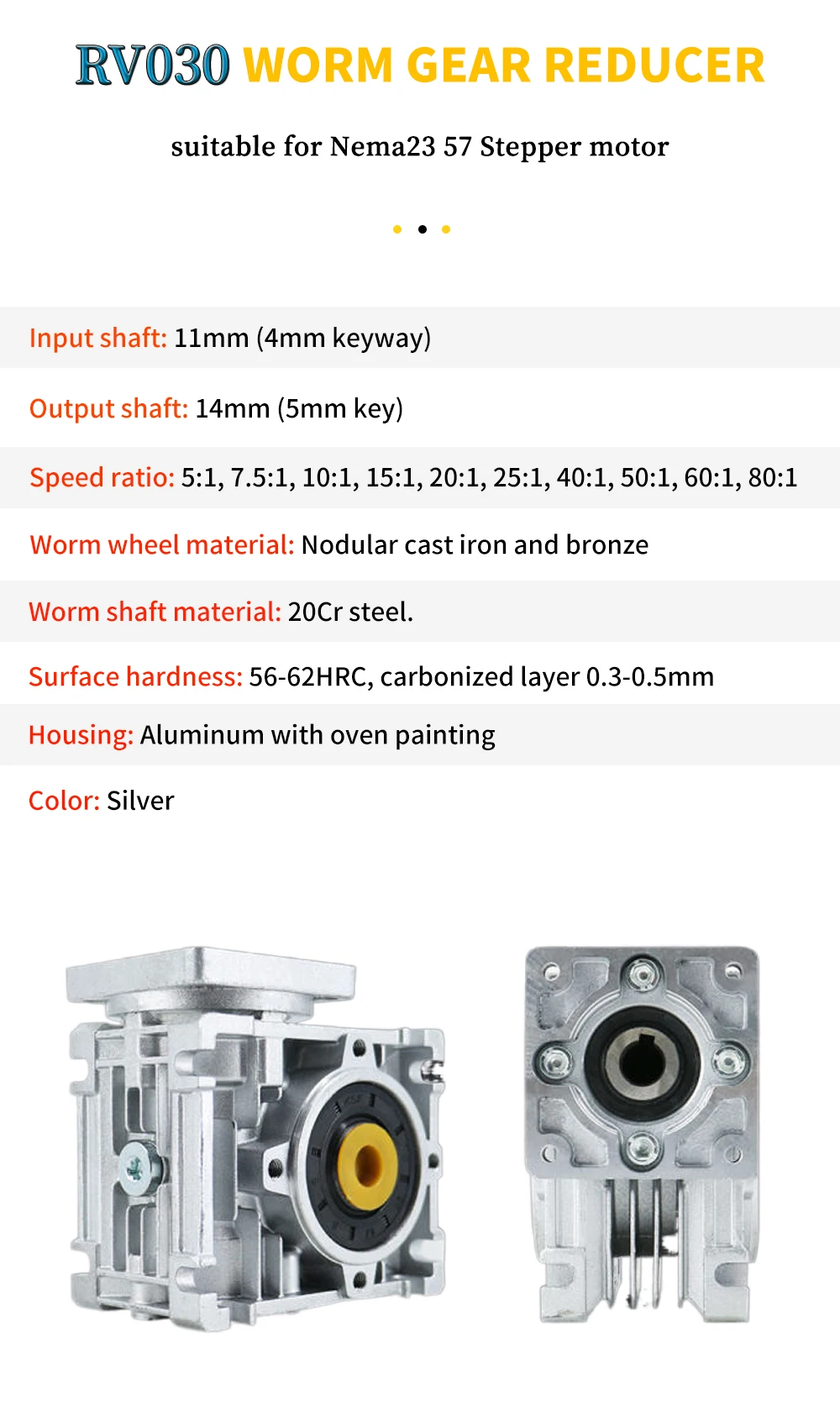

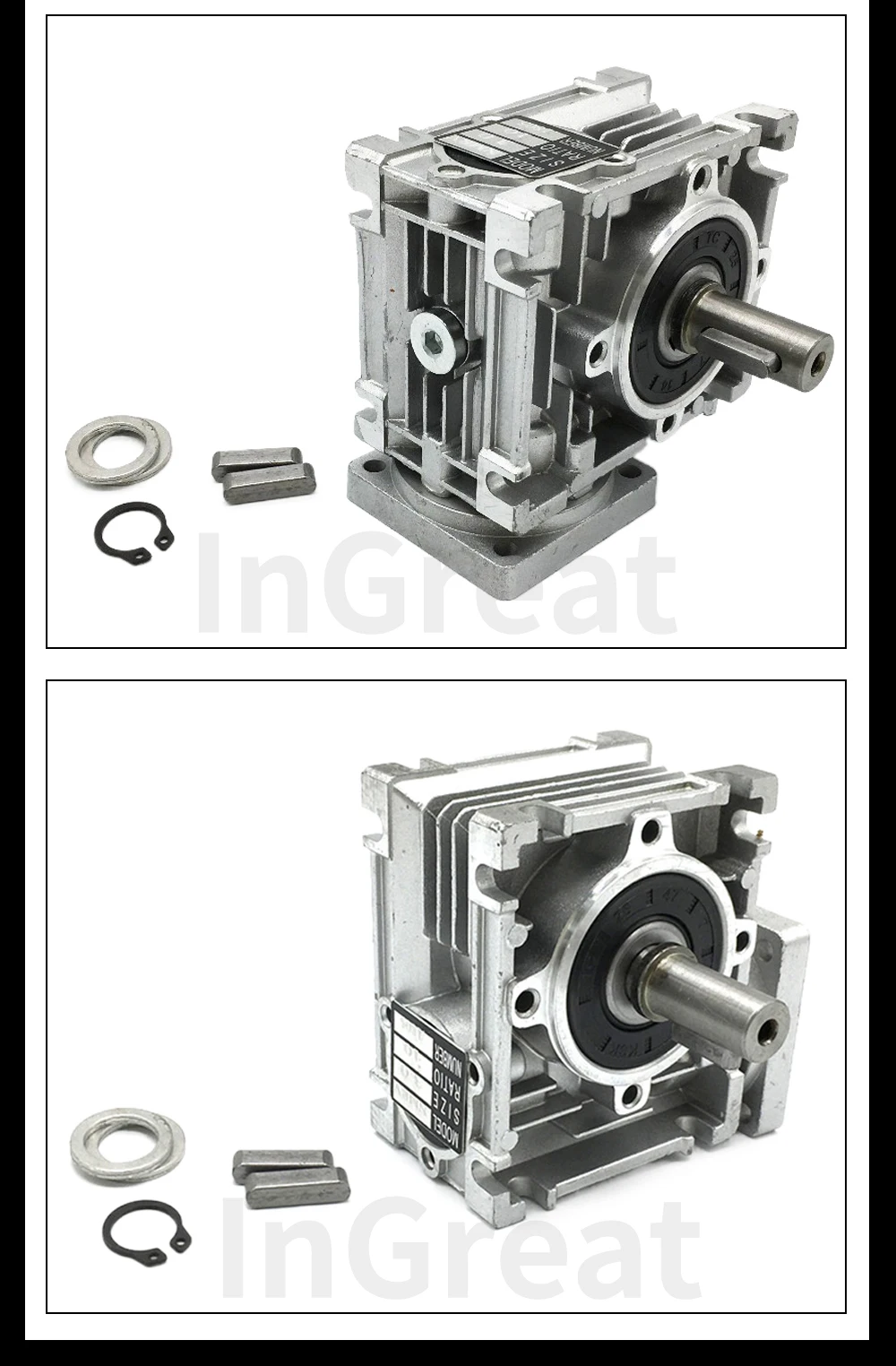

1* RV030 Worm Gearbox

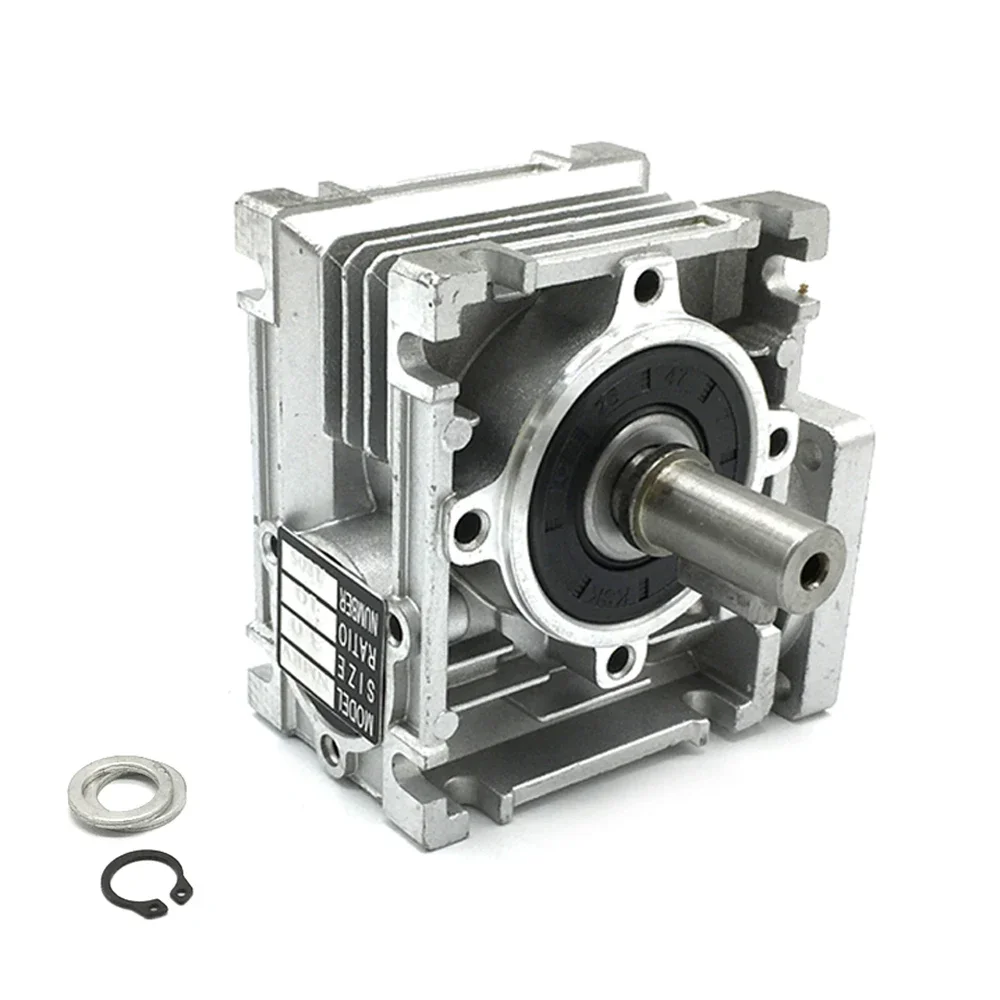

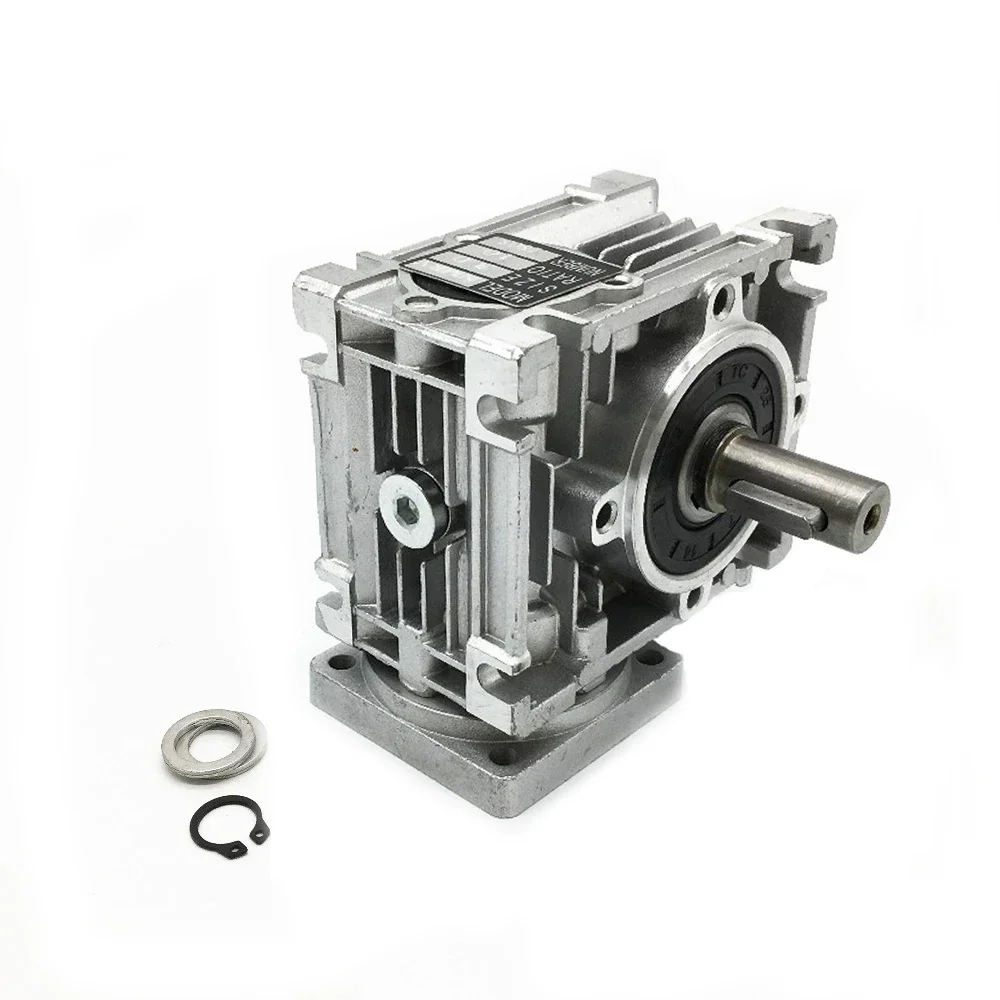

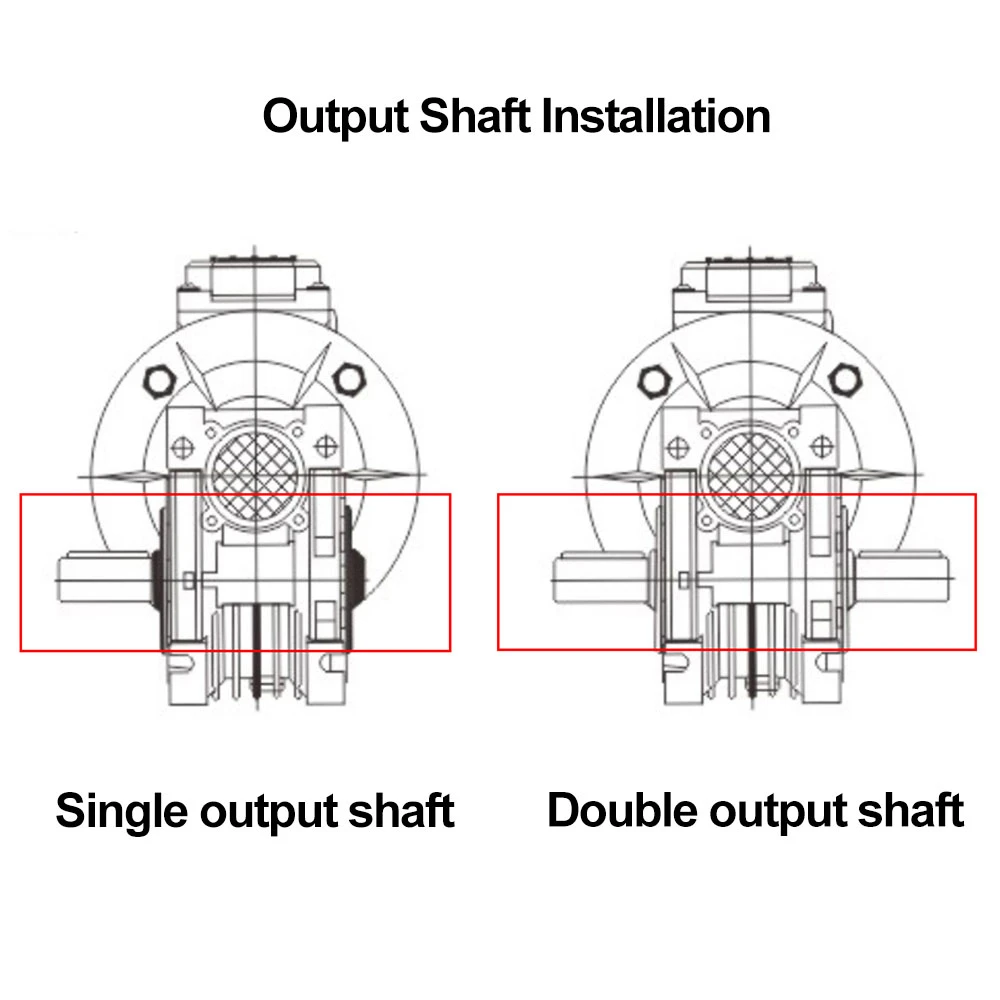

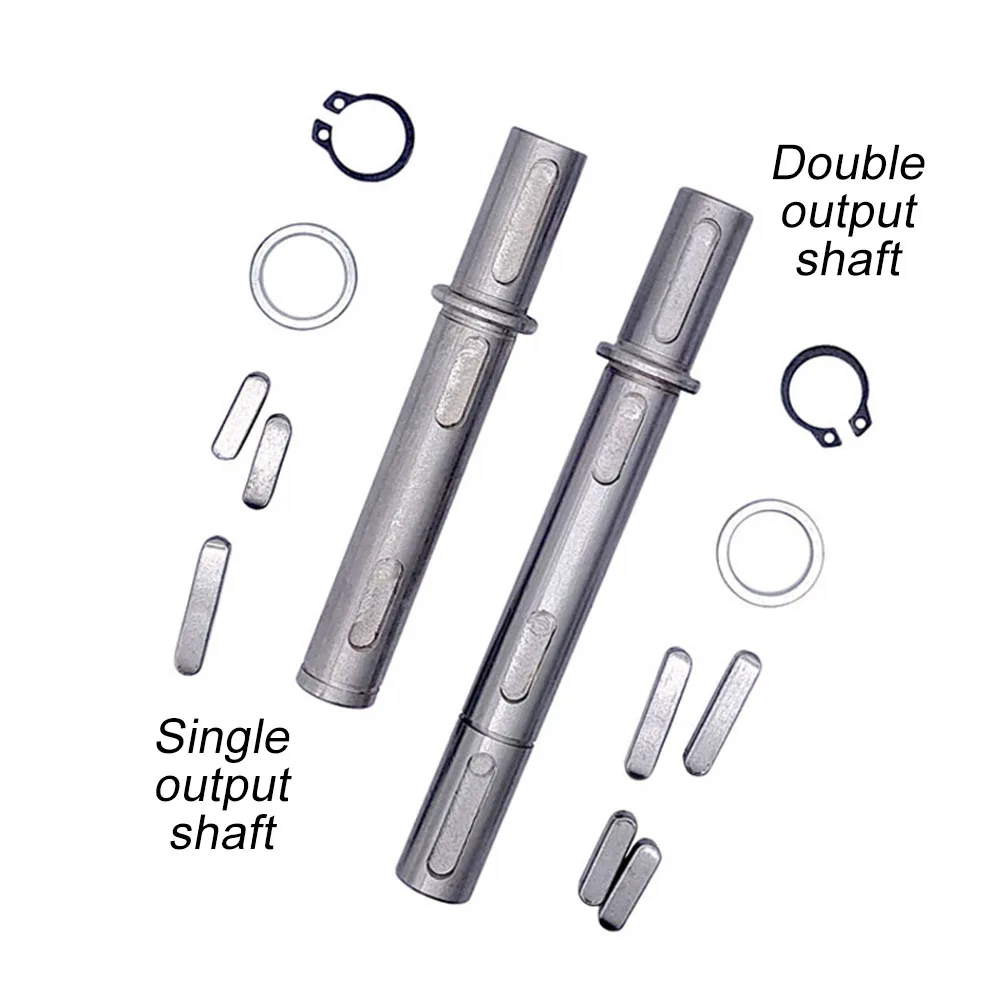

1* 14mm Single/ Dual Output Shaft (Send output shaft according to your choice)

Model: NMRV030
Input : 11mm (4mm keyway)
Output shaft: 14mm (5mm key)
Speed ratio: 5:1/ 7.5:1/ 10:1/ 15:1/ 20:1/ 25:1/ 40:1/ 50:1/ 60:1/ 80:1
Worm wheel material: Nodular cast iron and bronze
Worm shaft material: 20Cr steel
Surface hardness: 56-62HRC, carbonized layer 0.3-0.5mm
Housing: Aluminum with oven painting
Backlash: About 100Arcmin
Note: The relationship between output torque (To) and input torque (Ti):
To=Ti x Reduction ratio
Between output speed (Ro) and input speed (Ri):
Ro=Ri/Reduction ratio
