- High-concerned chemical: none
- Certification: ce
- Origin: Mainland China
- Brand Name: Maycool
- Model Number: MC3015F
- Certification: CE
- Applicable materials: Stainless Steel, Carbon steel, aluminum, brass
- Operation system: Raytools
- Transmission: Helical rack and pinion
- Drive system: Servo motor and driver
- Cooling system: Water cooling by chiller
- Cutting thikness: 0.5-30mm depends on different powers
- Laser source: MAX/Raycus
- Product name: Fiber laser metal cutting machine MC3015F
This is fiber laser cutting machine for metal, can cut stainless steel/carbon steel/aluminum, etc.
The price is different if have different power. Also need to check exact shipping to your port.
So, Please contact me before you make payment.
Welcome to contact me to get quotation:
Sales Manager: Betty Yin
Whatsapp: 0086 13365319785
Email: sales13@maxcoolcnc.com

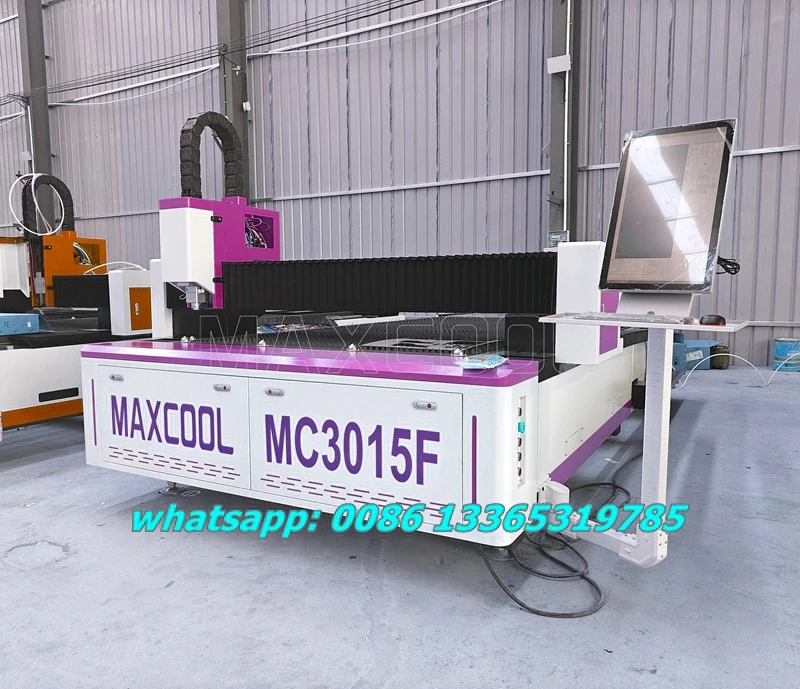

Fiber laser sheet metal cutting machine MC3015F.
Specifications for steel cutting fiber laser machine AKJ1530F.
1 | Model | MC3015F |
2 | Working area | 1500*3000mm |
3 | Laser power | 1.5KW/2KW3KW/6KW/12KW |
4 | Control System | Raytools with auto focus |
5 | Transmission | Rack and pinion transmission |
6 | Guide rail | China linear guide rail |
7 | Motor | Chinese Leadshine 750w servo motor |
8 | Electronic Components | French Schneider |
9 | Max Speed | 20m/min |
10 | Repeat positioning accuracy | ±0.02mm/m |
11 | Maximum Acceleration | 0.5G |
12 | Min line width | 0.1mm |
13 | Graphic Format Supported | AI, BMP, DST, DXF, DXP, PLT |
14 | Cooling Way | Water cooling |
15 | Machine Operating temperature | 0 ℃ -40 ℃ |
16 | Power Requirements | 220V/380V, 50Hz/60Hz |
Applications for laser cutter machine 3015.
1. Application industry.
Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,Aerospace technology, rocket, plane, robot, elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc.
2. Application materials.
Our fiber cutting machine can work on the following materials : steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal.
MaxCool Service for fiber laser metal plate cutting machine.
# 3-year warranty for the whole machine, non-human damage, excluding consumables. 2-year for the generator.
# During the warranty period, free replacement or maintenance; free technical advice, and services are provided outside the warranty period. Lifetime free software upgrades.
# The English version of the manual or video will be sent with the machine.
# After-sales personnel can support 24-hour after-sales service, WhatsApp, email, WeChat, or remote control.
# Engineers or third-party cooperative service providers can repair machinery overseas
If you want to get more technical information, welcome to contact me freely !
Sales Manager: Betty Yin
Whatsapp: 0086 13365319785
Email: sales13@maxcoolcnc.com
