Name: hydraulic motor OMM8 OMM12.5 OMM20 OMM40 OMM50 hydraulic pump HMM series low speed high torque BMM type - HFG 3D
SKU: 4001297194279
Price: 386.65 BRL
Availability: InStock

Theory: gear pump
Structure: Gear Pump
Model Number: HMM
Standard or Nonstandard: Standard
Pressure: Low Pressure
Power (W): Hydraulic
Model Number:: BMM
Material:: Case Iron

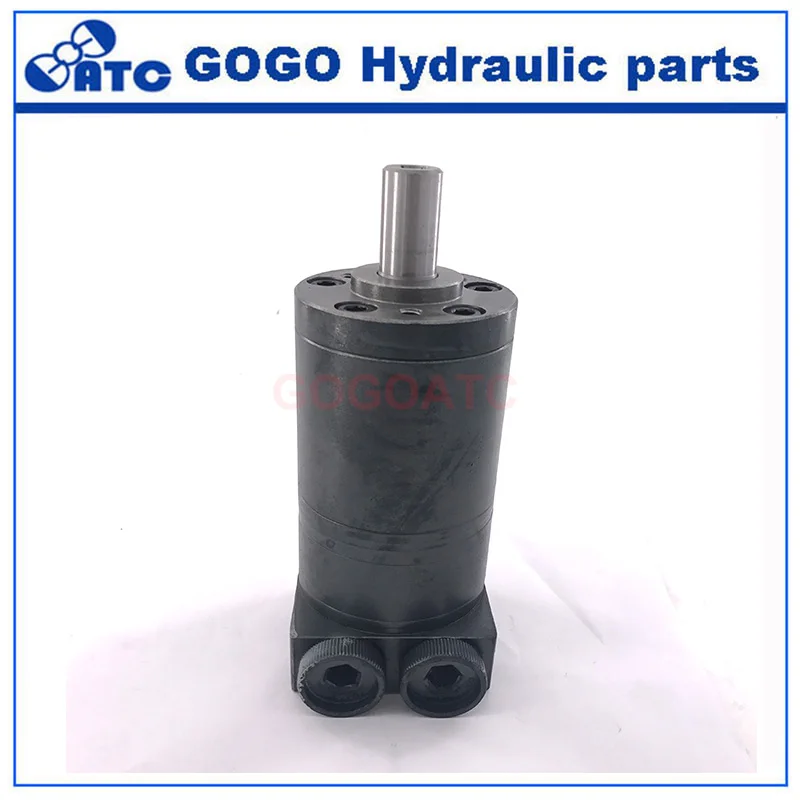

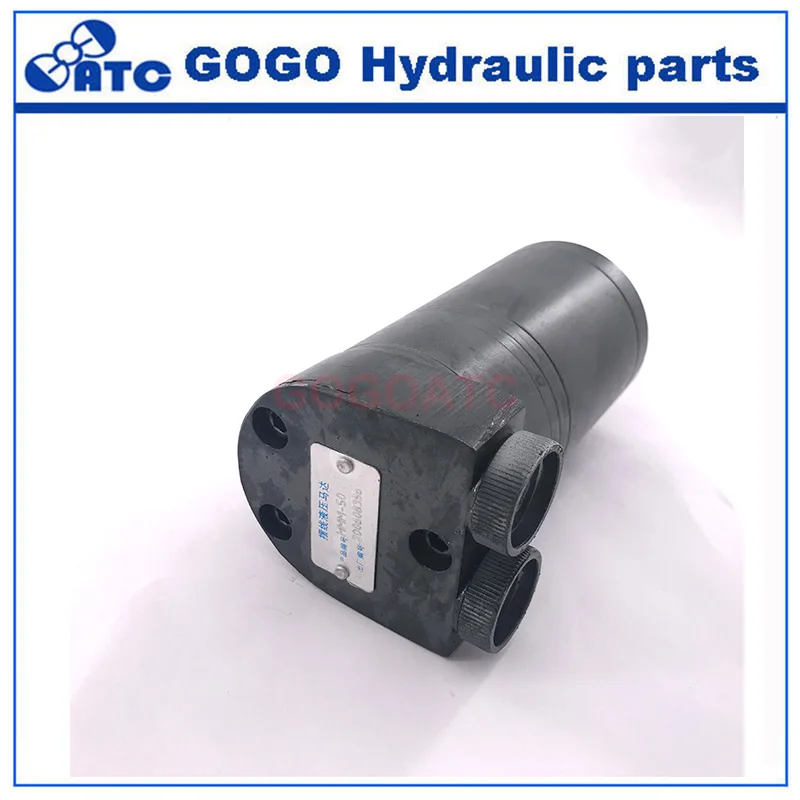

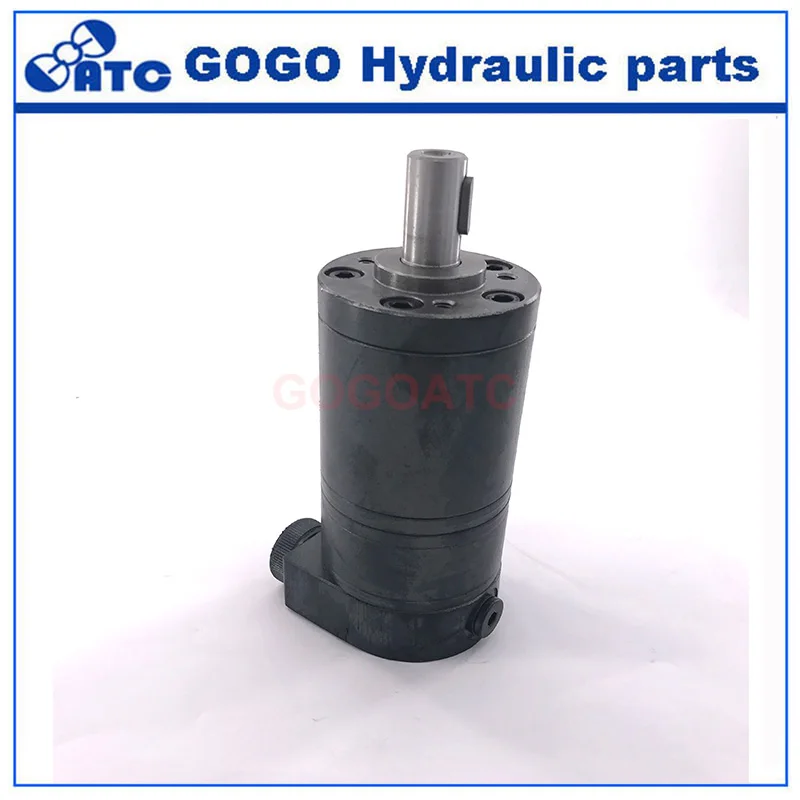

Product name: Orbit Hydraulic Motor
Power: Hydraulic System

hydraulic motor OMM8 OMM12.5 OMM20 OMM40 OMM50 hydraulic pump HMM series low speed high torque BMM type

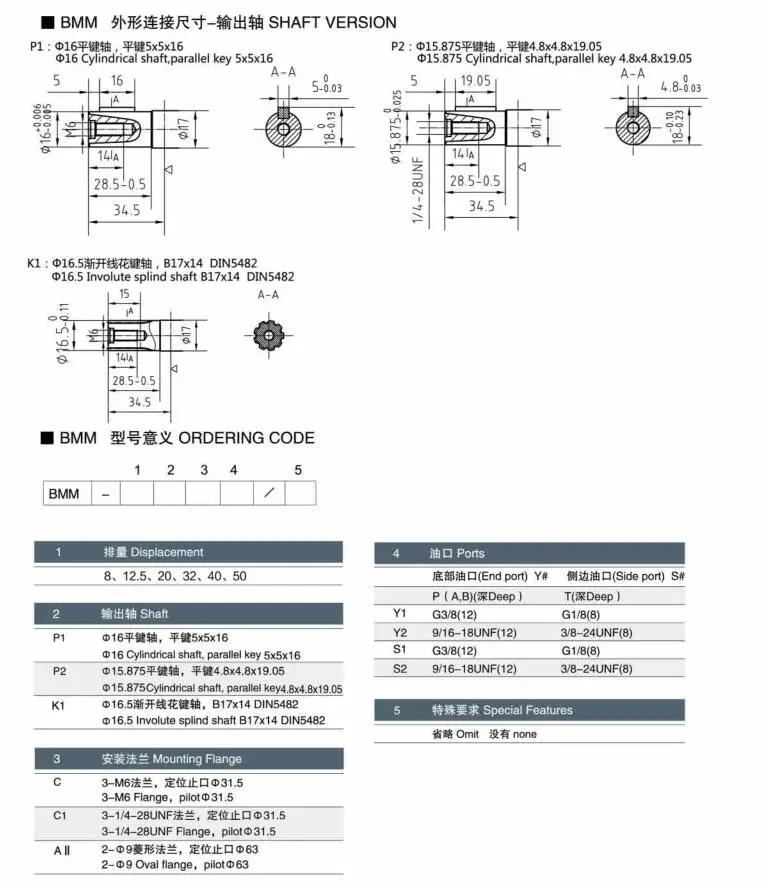

Please remark details about motor oil port (port size , end port or side port ) , Shaft and mounting flange .

You can find this details in this link !

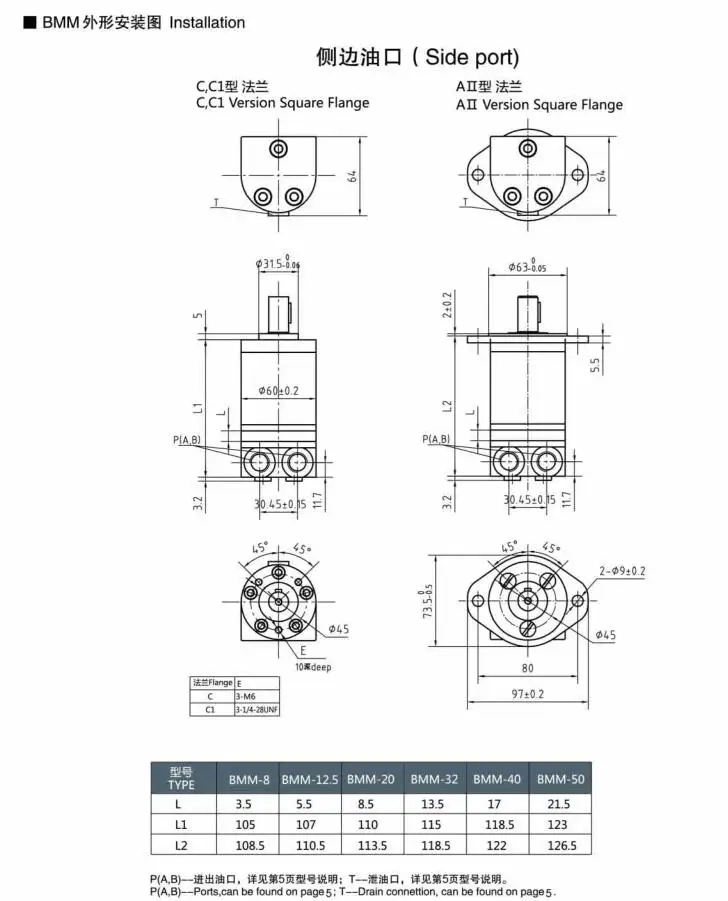

1. 2-φ9 Oval flange 63X2,φ16 cylindrical shaft 5X5X16 ,G3/8 G1/8 beside oil port

2. 3-M6 flange ,polot31.5X5,φ16 cylindrical shaft 5X5X16 ,G3/8 G1/8 beside oil port

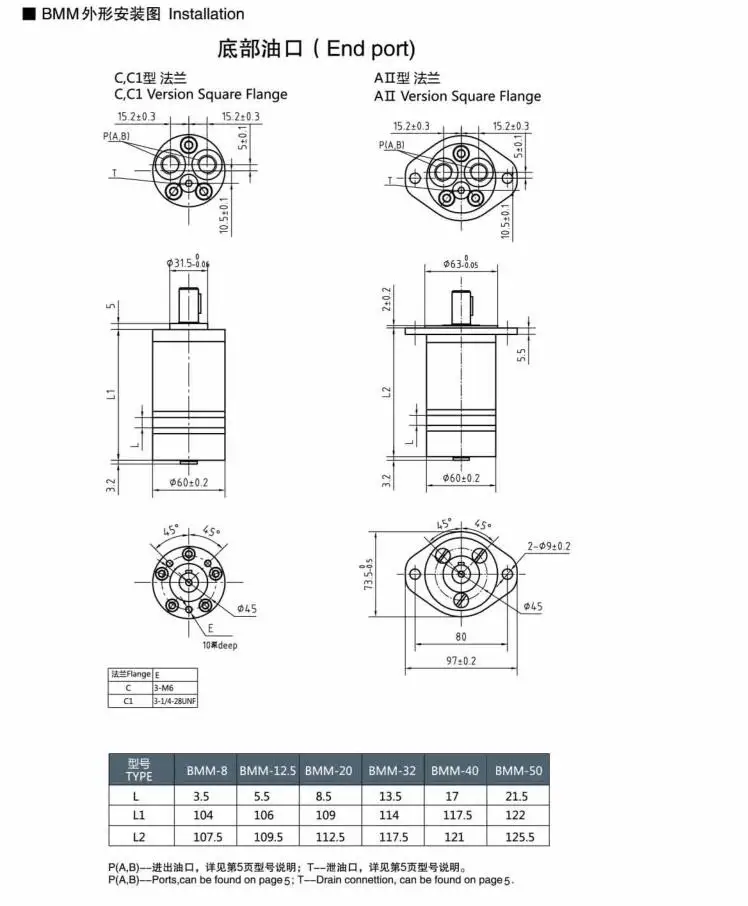

3. 2-φ9 Oval flange 63X2，φ16 cylindrical shaft 5X5X16， G3/8 G1/8 end oil port

4. 3-M6 flange,polot31.5X5,φ16 cylindrical shaft 5X5X16 ,G3/8 G1/8 end oil port

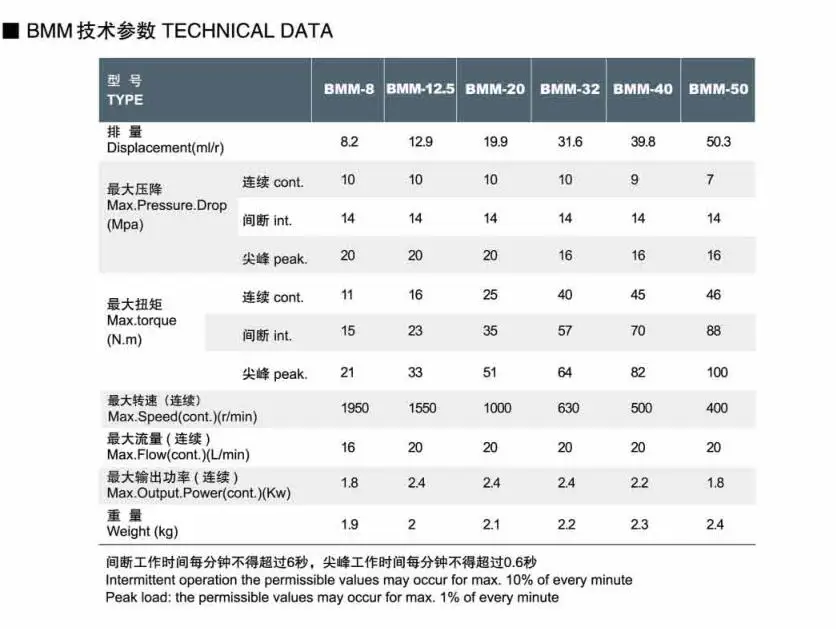

Type		BMM 8	BMM 12.5	BMM 20	BMM 32	BMM 40	BMM 50
Geometric displacement (cm³/rev.)		8.2	12.5	19.9	31.6	39.8	50.3
Max.speed (rpm)	cont.	1950	1550	1000	630	500	400
Max.speed (rpm)	int.	2450	1940	1250	800	630	500
Max. torque (N•m)	cont.	11	16	25	40	45	46
Max. torque (N•m)	int.	15	23	35	57	70	88
Max.output (kW)	cont.	1.8	2.4	2.4	2.4	2.2	1.8
Max.output (kW)	int.	2.6	3.2	3.2	3.2	3.2	3.2
Max. pressure drop (MPa)	cont.	10	10	10	10	9	7
Max. pressure drop (MPa)	int.	14	14	14	14	14	14
Max. flow (L/min)	cont.	16	20	20	20	20	20
Max. flow (L/min)	int.	20	25	25	25	25	25
Weight (kg)		1.9	2	2.1	2.2	2.3	2.4

the Gerotor gear set design and provide compact volume, high power and low weigth.

Characteristic features of OMM series small hydraulic motors
* Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
* Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
* Advanced construction design, high power and low weight.
