Description
We promise, two-year warranty！！！

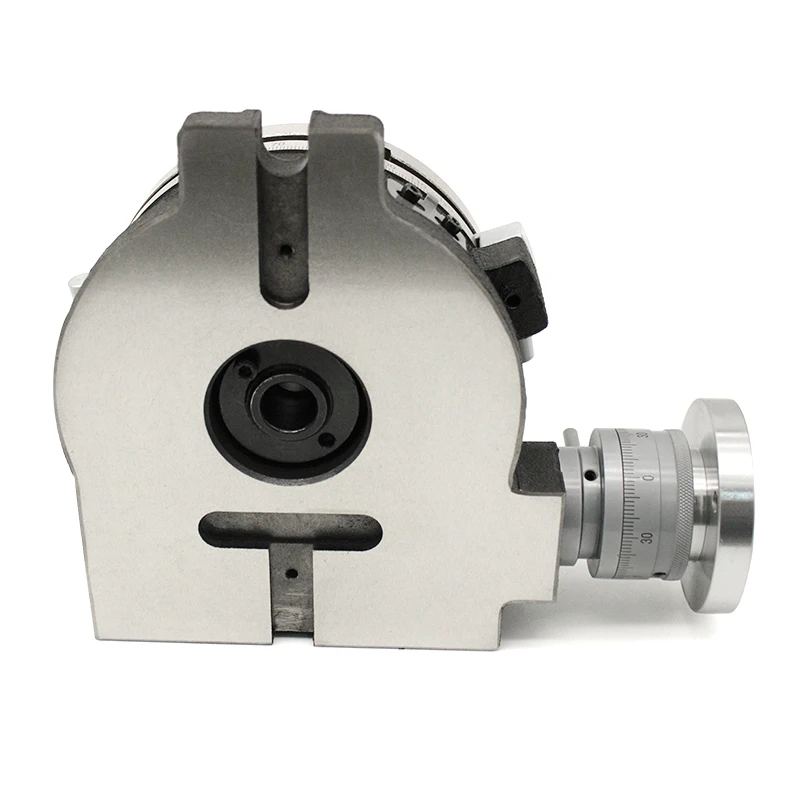

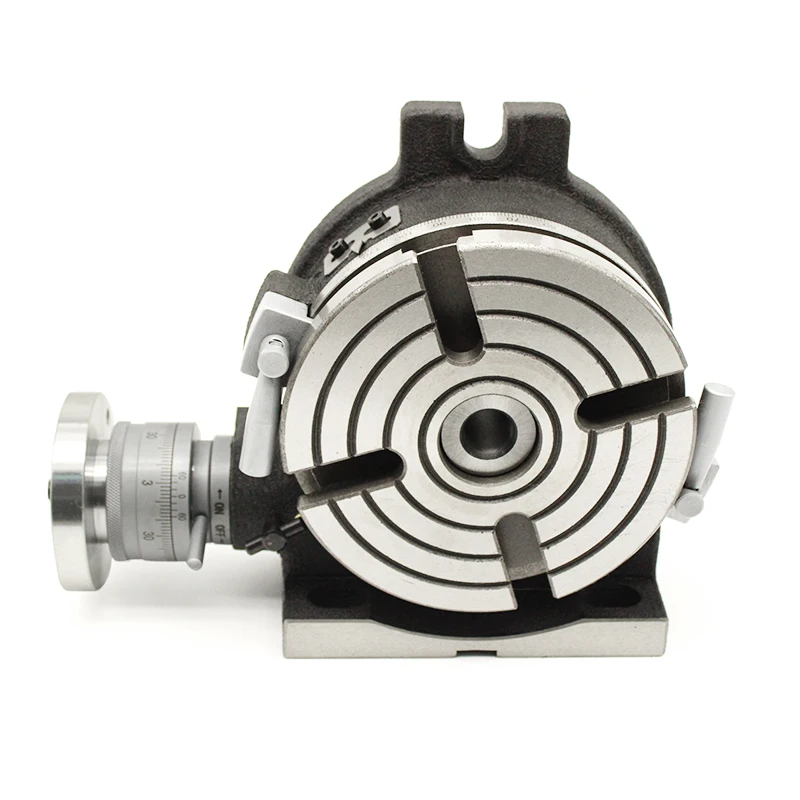

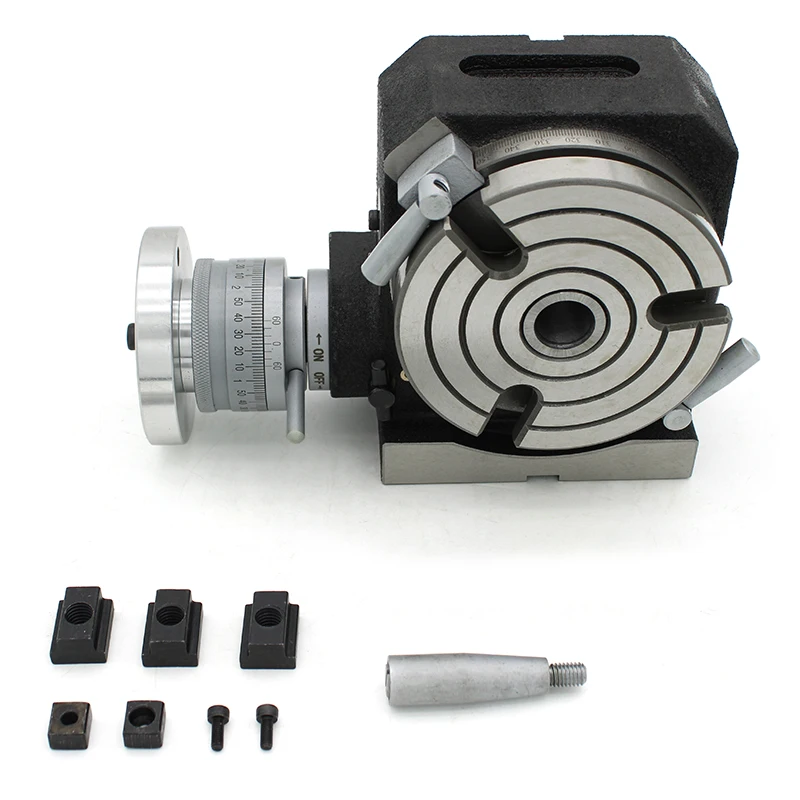

HV series horizontal-vertical indexing plate (vertical-horizontal rotary table) is one of the main accessories of the milling machine, which can be used for indexing drilling or milling, circumferential cutting, boring, countersinking and other work on the milling machine.

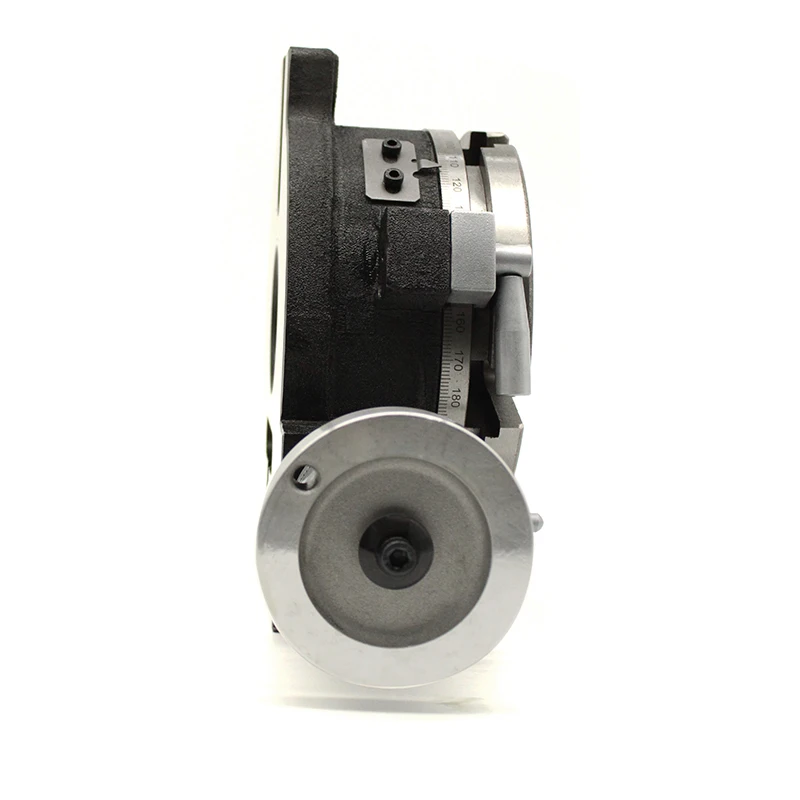

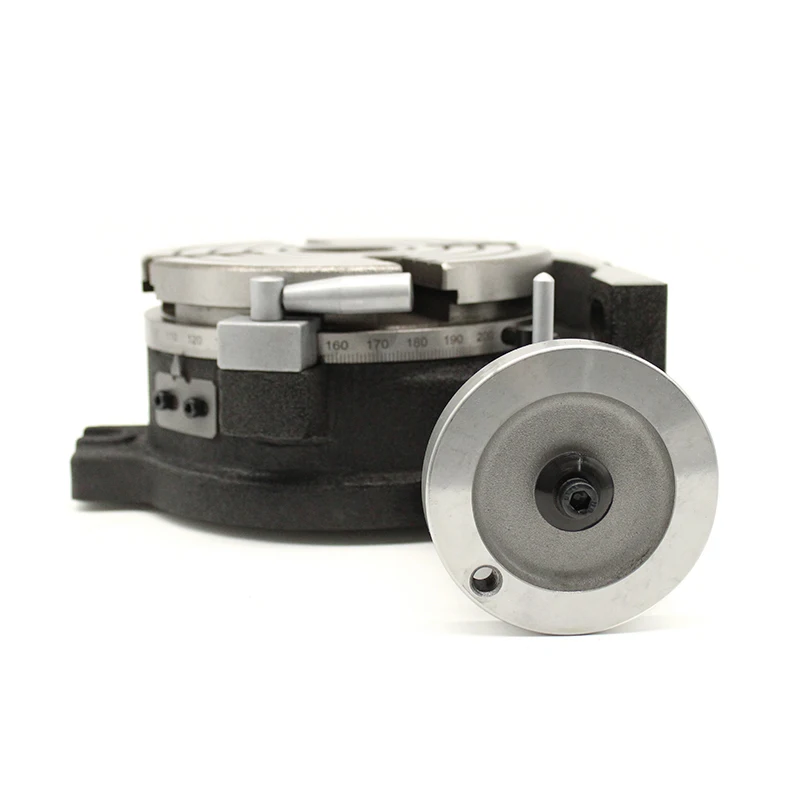

The worktable has a 360° scale line, a scale ring with a scale value of 1' and a vernier ring with a minimum differentiation value of 10". The rotary table has a braking and indexing worm shedding mechanism.
When the HV series vertical and horizontal turntable is in the vertical position, it can be used in conjunction with the tailstock (special order) to perform circular indexing drilling and milling of more complex workpieces.
1. Technical description
1. Made of high-strength FC30 cast iron
2. Suitable for milling machines or other special machines for cutting and cutting
3. The new spindle locking system, compared with the traditional bilateral platen type, has stronger locking and more stable cutting
4. It can be rotated 360 degrees, the handle is rotated 4 degrees, and the minimum scale is drawn for 10 seconds

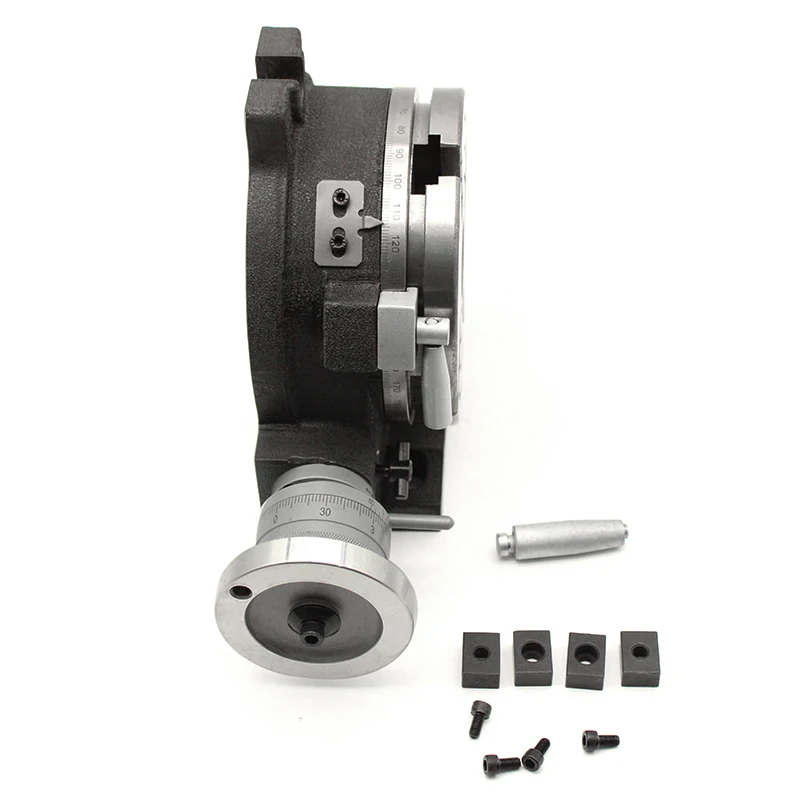

5. Can be used in horizontal and vertical directions
6. Additional special accessories can be made: honeycomb plate and tailstock
7. Deceleration ratio 1:90
