- Battery Included: No
- High-concerned chemical: None
- Color: GRAY
- Package: Yes
- Model Number: QJ-MGC070
- Type: Industrial Monitor
- Brand Name: Huaqingjun
- Origin: Mainland China
- RAM: 2 GB
- Plug Type: EU Plug
- Certification: CE

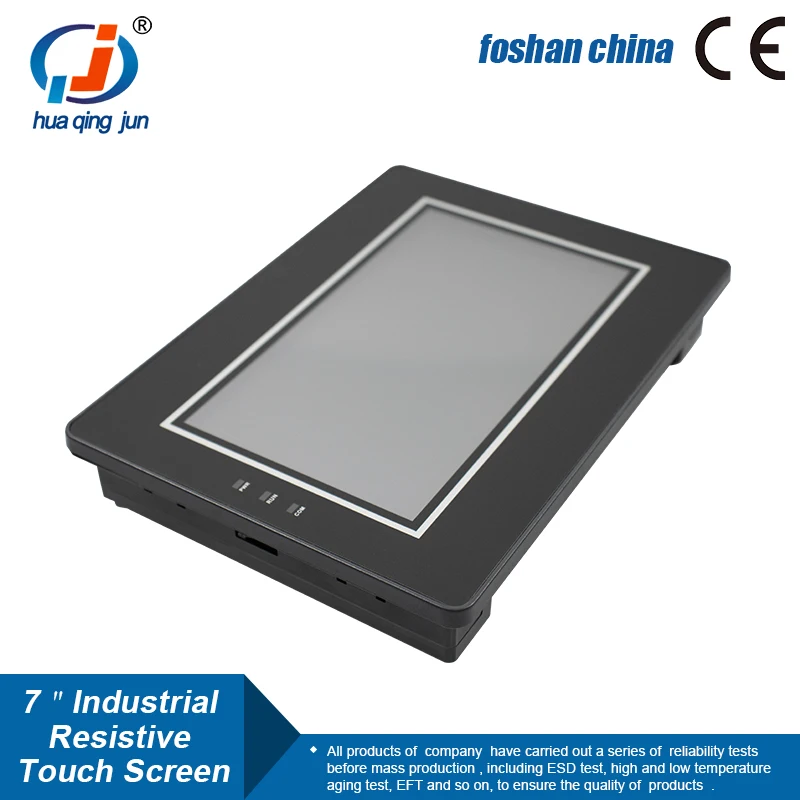

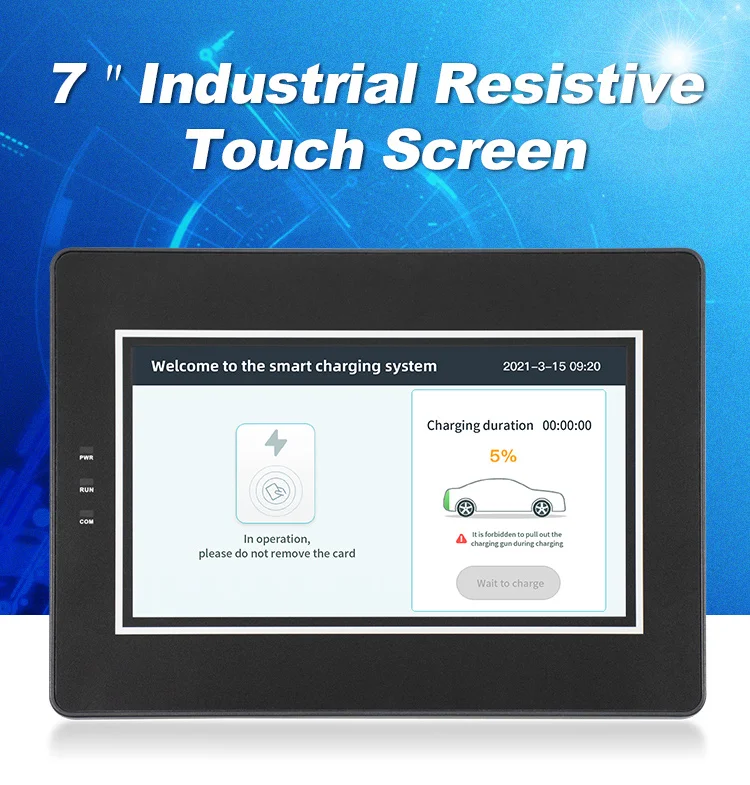

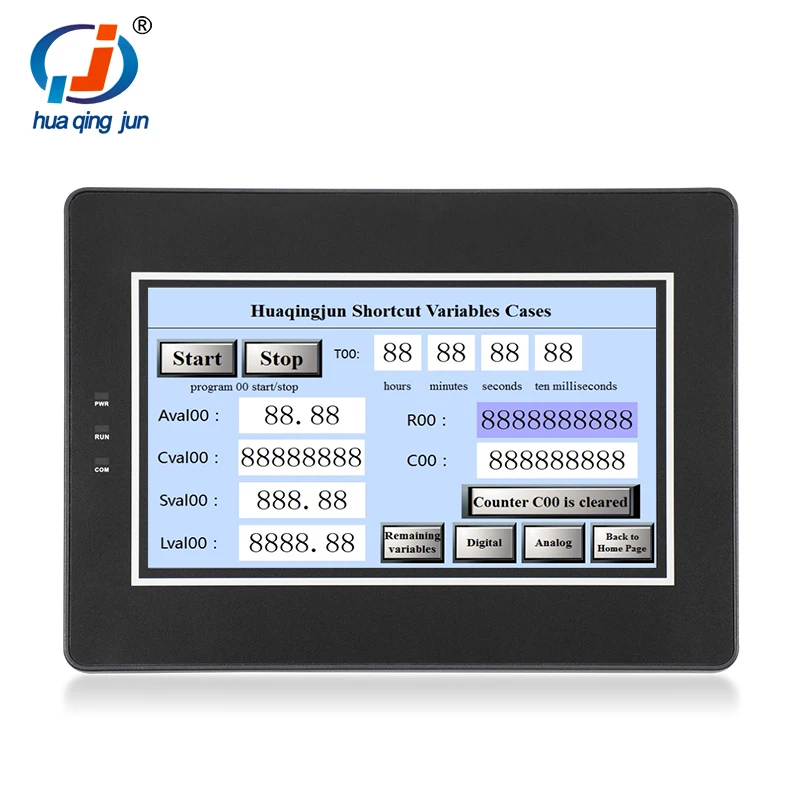

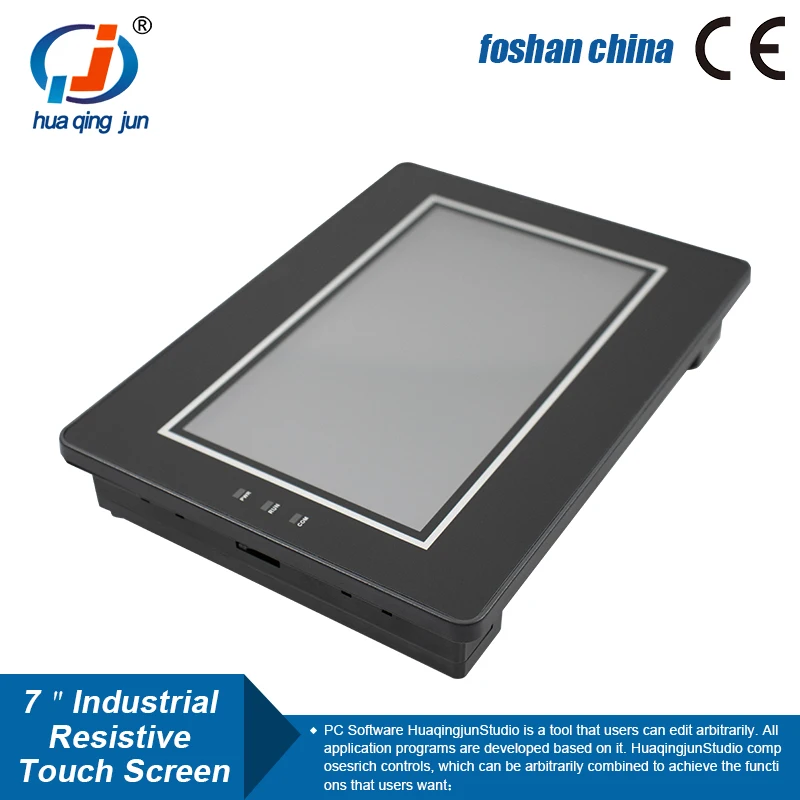

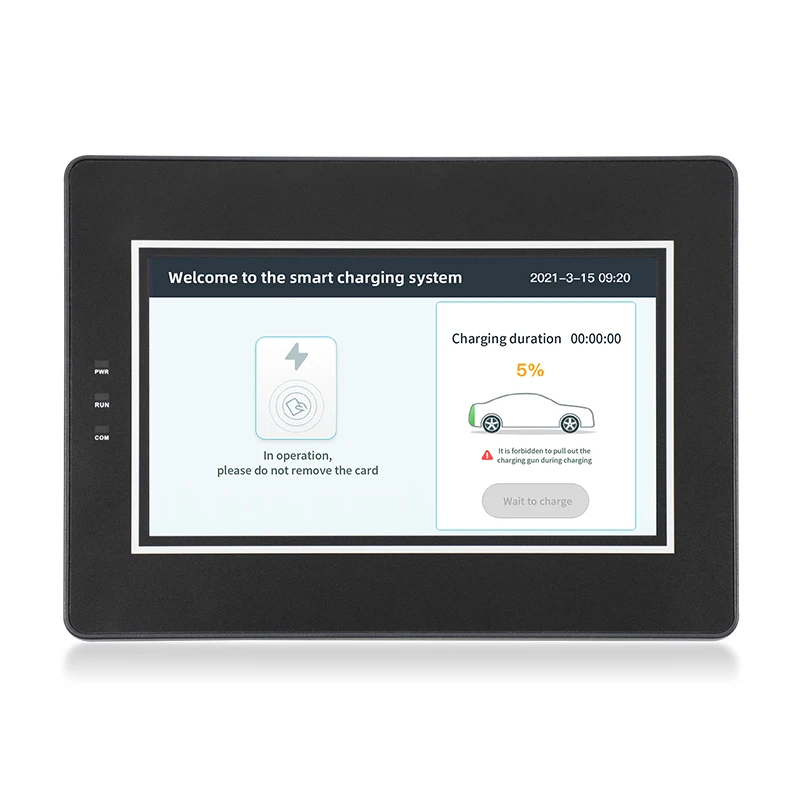

- Product Name: 7 Inch Ethernet RS485 232 HMI
- Power Voltage: DC19-30V

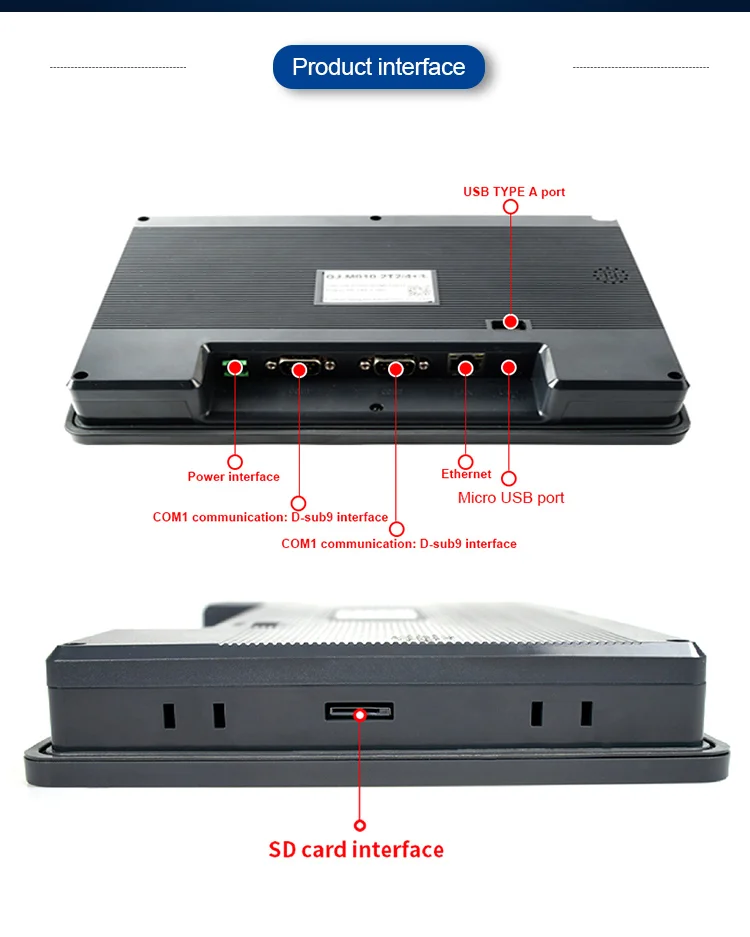

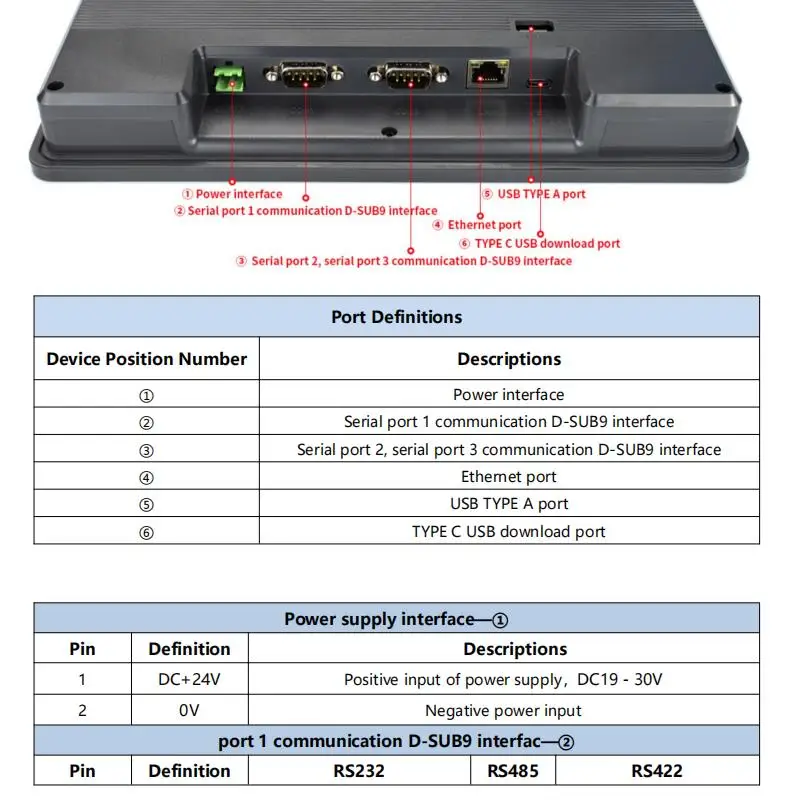

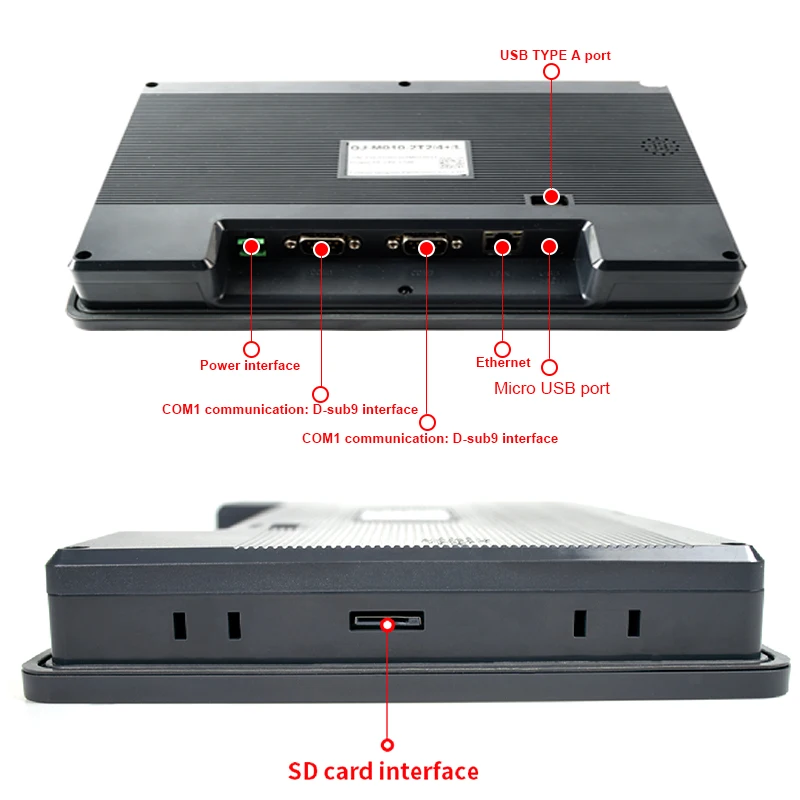

- Network: Ethernet,COM1:RS232,RS485,RS422 COM2:RS485
- Backlight Adjustment: Support
- LAN: RJ45, Ethernet
- Touch: 4-wire resistive touch screen
- LCD resolution: 800X480
- LCD: TN TFT LCD,450cd/m2
- COM1 communication: RS422,RS232/RS485 communication(3 choose 1)
- COM2 communication: RS485 communication
- HMI software model number: MGC070
- Program download method: USB,U disk, Ethernet
- Storage: 128Mbyte SPI NAND FLASH
- Protocol: Modbus RTU, Modbus TCP
- Operating temperature: -10℃~50℃
- Storage temperature: -30℃~70℃

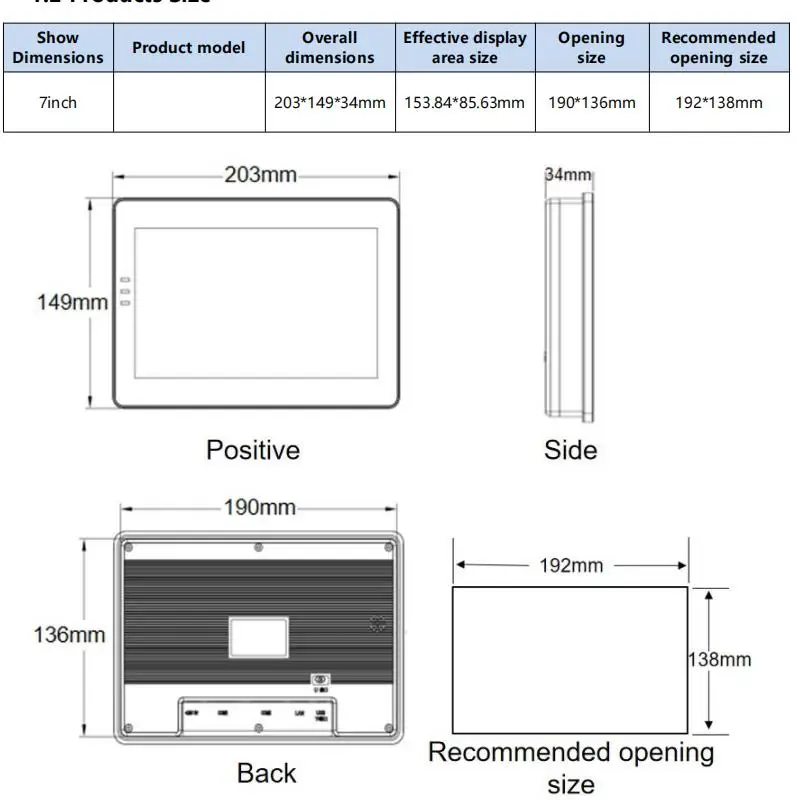

- Display Visual Area: 154.1mm*85.9mm
- Panel Cutout: 194mm*140mm
- Overall Thickness: 38mm
- Warranty: 1 year
Samples Testing Video
You could download the HMI software and manuals via this link:
https://drive.google.com/drive/u/0/folders/1wJdgCbw_fqyLJOnjgTrG0YQgIGJQFTXr
Link of HMI Manual and Software
Product Description

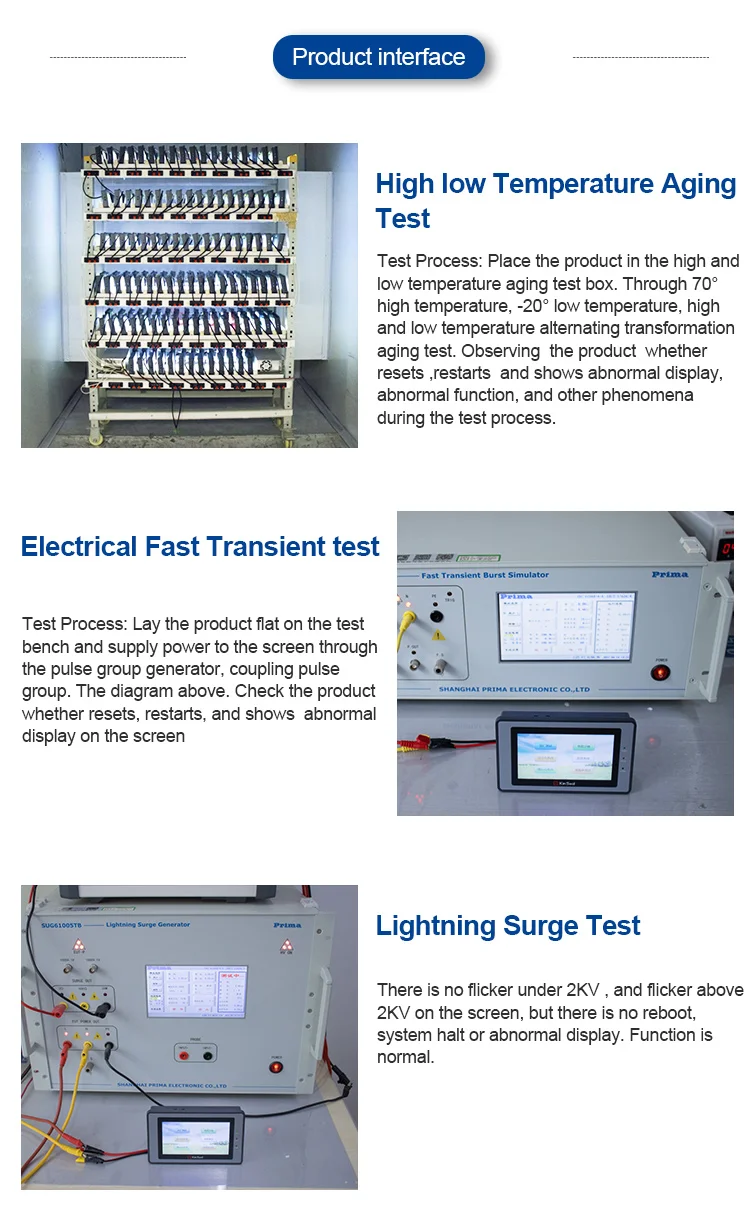

1. CE&ROHS: Comply with EN61000-6-2:2005, EN61000-6-4:2007 standards;Lightning surge +/ -2kV, EFT: +/ -4kV;Electrostatic contact discharge.
+/-8KV;Electrostatic air discharge +/-15KV.
2. Protection grade: The front panel conforms to IP65 (with flat plate cabinet installation), and the rear panel conforms to IP20.
3. Power protection: +/-2KV lightning surge protection capability.
4. Environmental humidity: 10~90%RH(non-condensing).
5. Operating temperature: -10℃~50℃
6. Storage temperature: -30℃~70℃

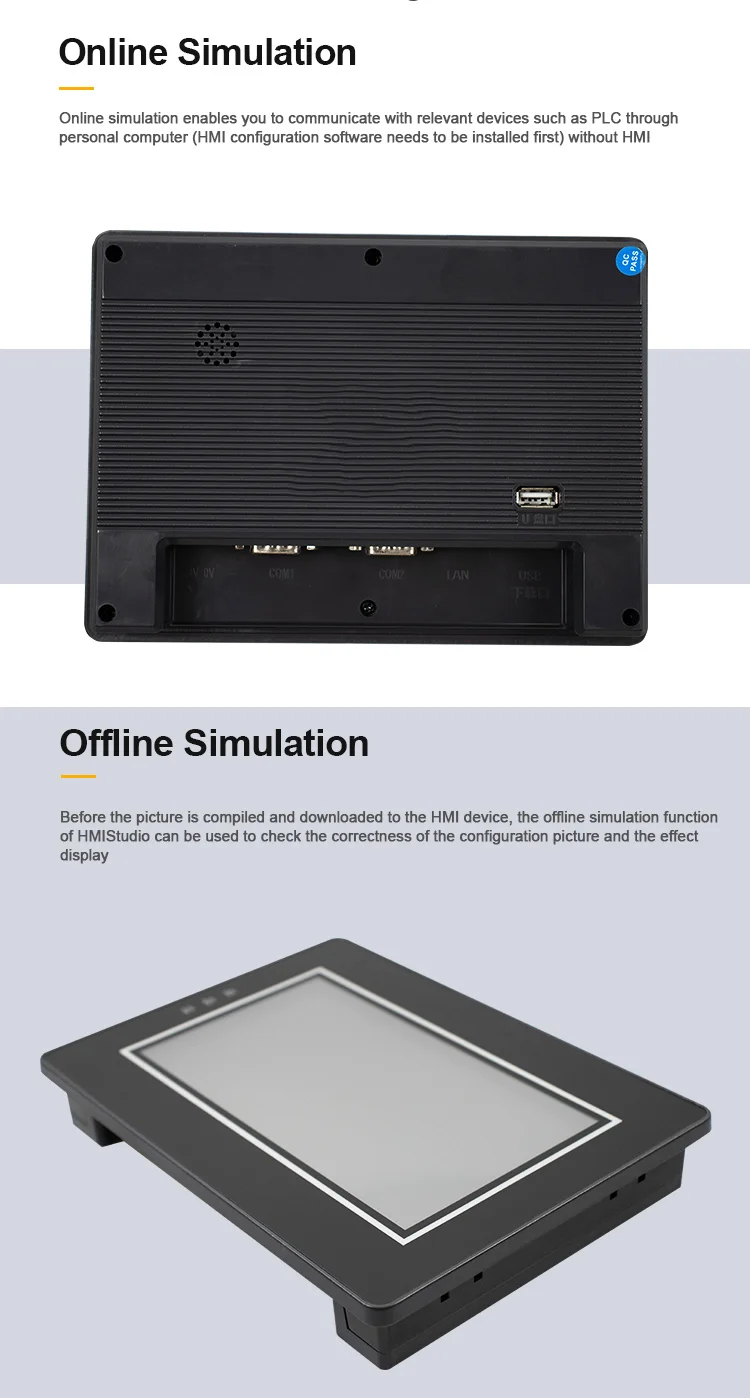

HMI PC Configuration Software
Customers' Reviews
Company Description

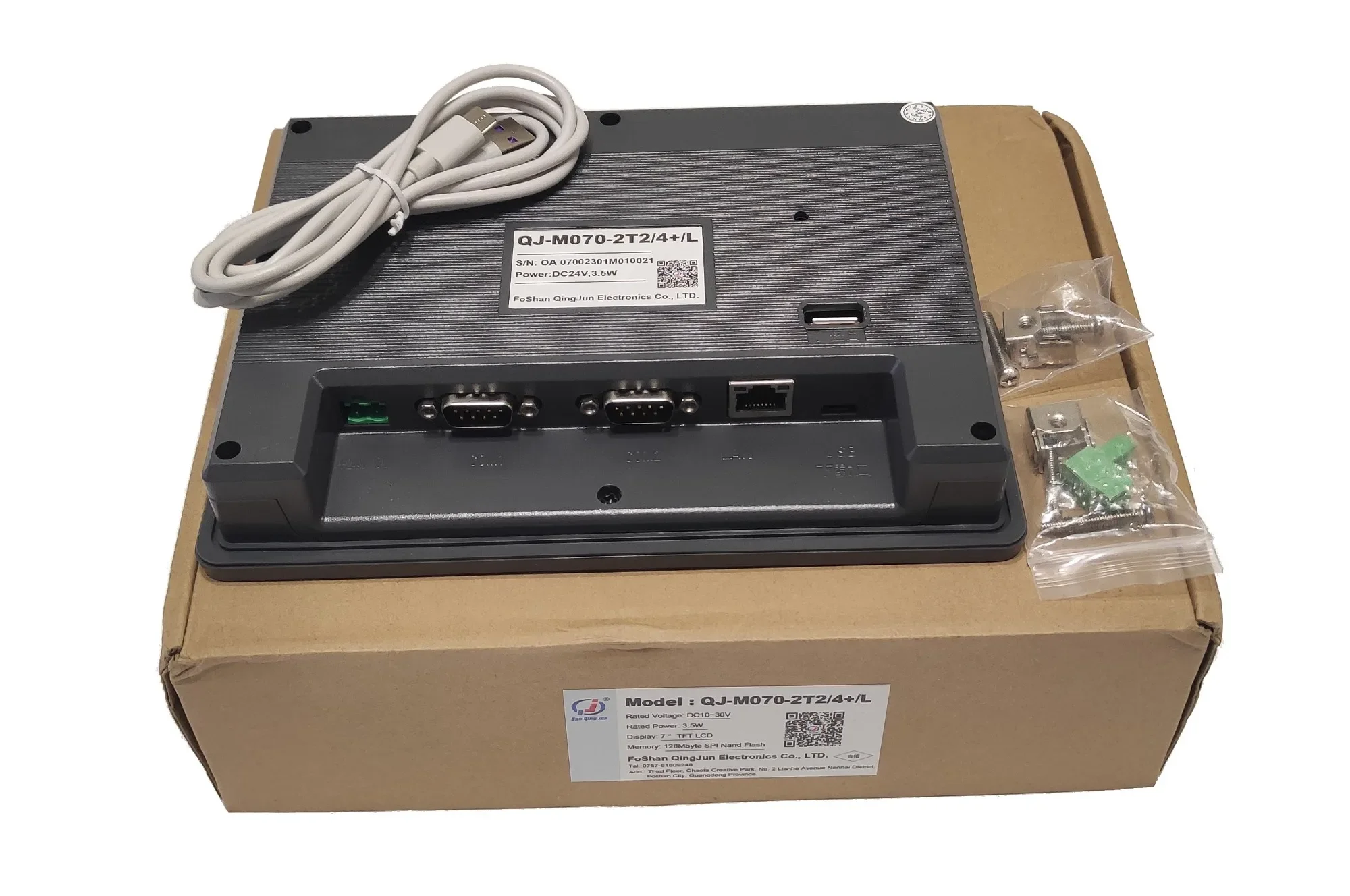

PACKING & DELIVERY
Packaging Details: standard paper box
Delivery Time: 3-5 days after payment for sample order
10-25 days after payment for big order
FAQ
Q1. What advantages do you have?
A: We have independent products, good quality products, excellent technical support and service.
Q2. How long is the quality guarantee?
A: Product quality warranty is one year.
Q3. What is the delivery time?
A: Normally, it is about 3-7 days after payment. It needs to be negotiated to special requirement orders.
Q4. How about the quality of your product?
A: Before shipping out, we will check for quality, including check the function of products, the appearance, the packing, the
necessary accessories and power adapter plug standard.
Q5. How do you keeping our long-term business and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
3. We could customize modules according to customer's requirements.
