VEHO 800 Hot Selling Large Format FDM Manufacturing Impresora 3d Printer Marlin Stable Structure Single Color Fast 3d Printer
New Upgrade VEHO 800 With Marlin Firmware Direct Drive 3D Printer Large 3D printer 800*800*800mm
Using Marlin system,
Powerful integrated motherboard, board-to-board design, rich expansion interface,
Automatic leveling
Print head maximum moving speed 150mm/s,

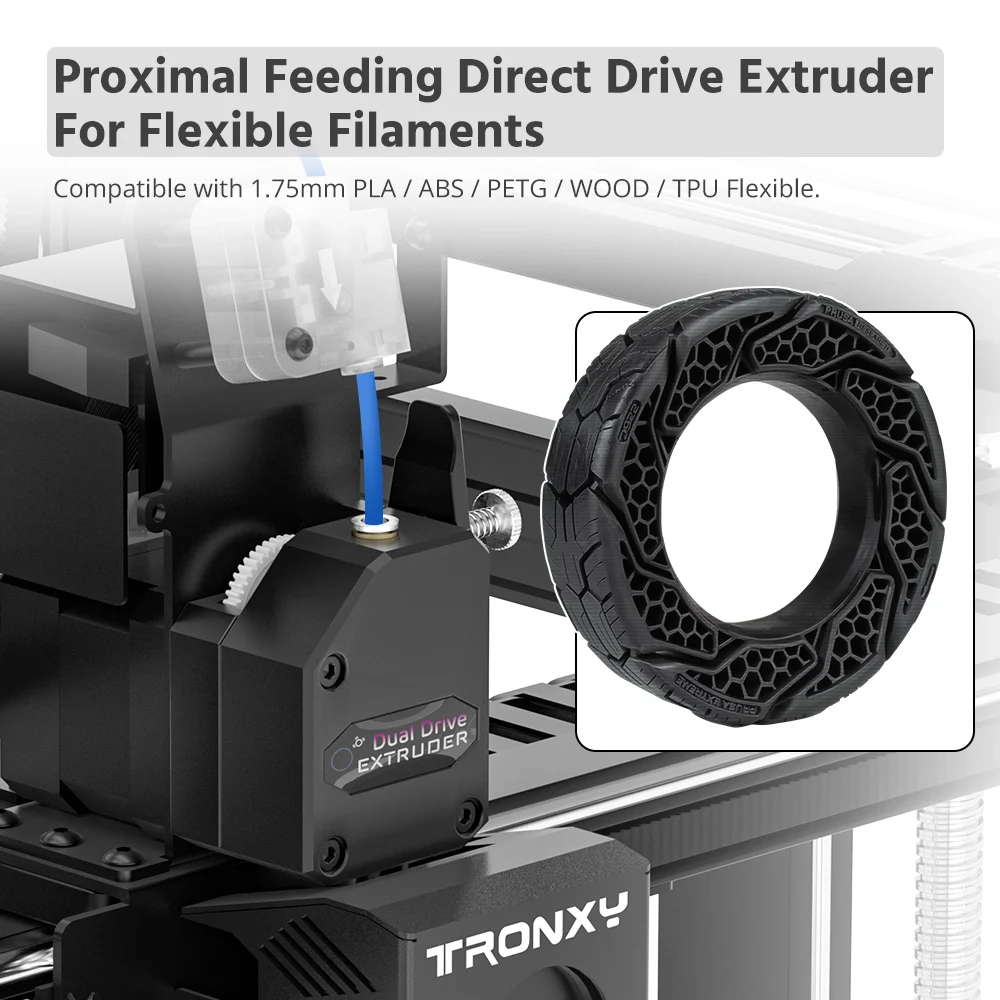

Large gear dual-drive proximal extruder, stable and fast extrusion of consumables, compatible with 1.75mm and 2.85mm,
7-inch full-color touch screen, sensitive touch, capacitive touch 5-point touch tempered glass panel,
All-metal detachable integrated print head Ceramic heating Stable heating and fast heating speed Maximum temperature 320℃ .
VEHO 800 Marlin 3D Printer
New Upgrade VEHO 800 With Marlin Firmware Direct Drive 3D Printer Large 3D printer 800*800*800mm
Using Marlin system,
Powerful integrated motherboard, board-to-board design, rich expansion interface,
Automatic leveling
Print head maximum moving speed 150mm/s,
Large gear dual-drive proximal extruder, stable and fast extrusion of consumables, compatible with 1.75mm and 2.85mm,
7-inch full-color touch screen, sensitive touch, capacitive touch 5-point touch tempered glass panel,
All-metal detachable integrated print head Ceramic heating Stable heating and fast heating speed Maximum temperature 320℃ .
|
Model
|
VEHO 800
|
|
VEHO 1000-16
|
|
|||
|
Print Size (mm)
|
800*800*800(mm)
|
|
1000*1000*1600
|
|
|||
|
High temperature head
|
320 Degree
|
|
|
|
|||
|
Machine structure
|

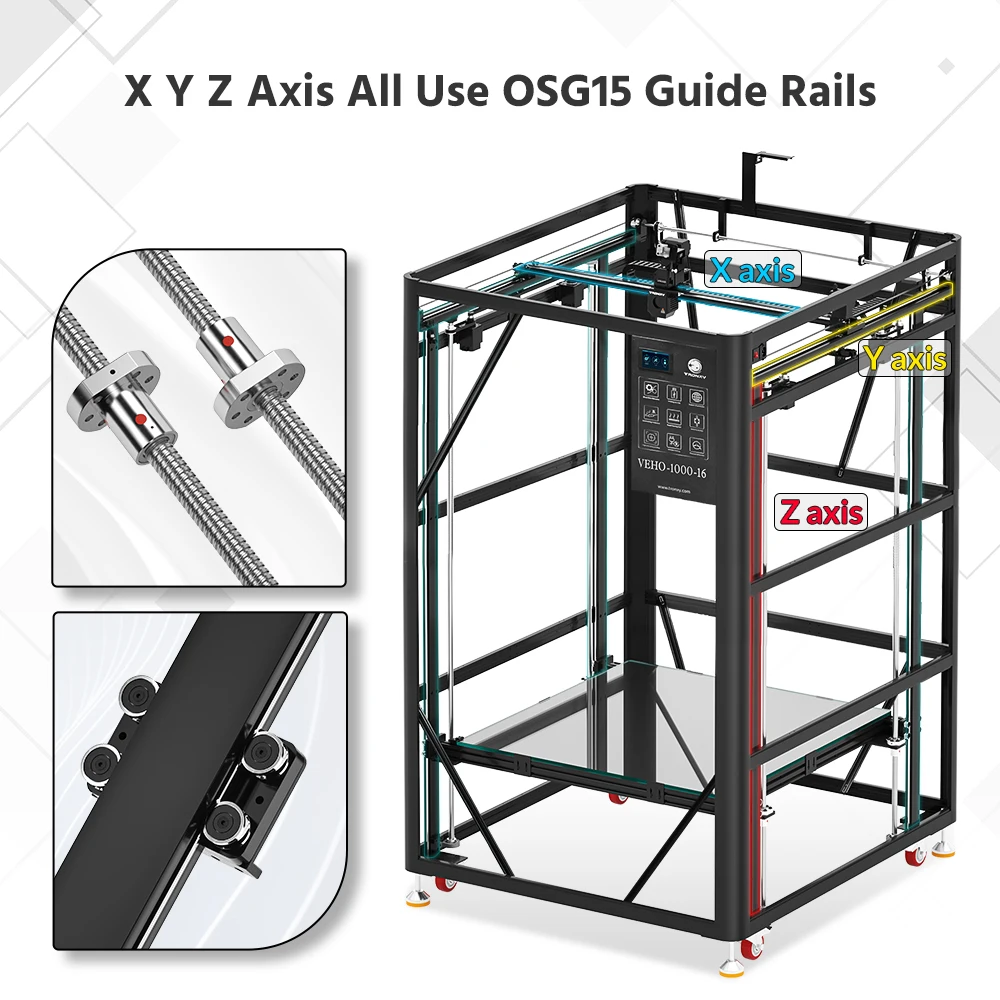

Linear Guide rails + Ball screws
|
|
|
|
|||
|
Heating bed
|
Glass + AC power silicone heating pad
|
|
|
|
|||
|
Print color
|
Single color
|
|
|
|
|||
|
Print Principle
|
FDM (Fused Depositioning Molding)
|
|
|
|
|||
|
Extrusion
|
Direct Drive
|
|
|
|
|||
|
Print Speed
|
20- 150mm/s (advs 60mm/s)
|
|
|
|
|||
|
Nozzle Size (mm)
|
0.6
|
|
|
|
|||
|
Layer Thickness (mm)
|
0.1-0.5
|
|
|
|
|||
|
Heatbed Temperature
|
100 Degree
|
|
|
|
|||
|
Firmware
|
Marlin
|
|
|
|
|||
|
Positioning Accuracy
|
XY-0.0125mm, Z-0.0625mm
|
|
|
|
|||
|
Filament printable
|
PLA / ABS(Enclosed) /PETG / TPU / WOOD
|
|
|
|
|||
|
File Format
|
Input: .stl /.obj; Output: .gcode
|
|
|
|
|||
|
Connection
|

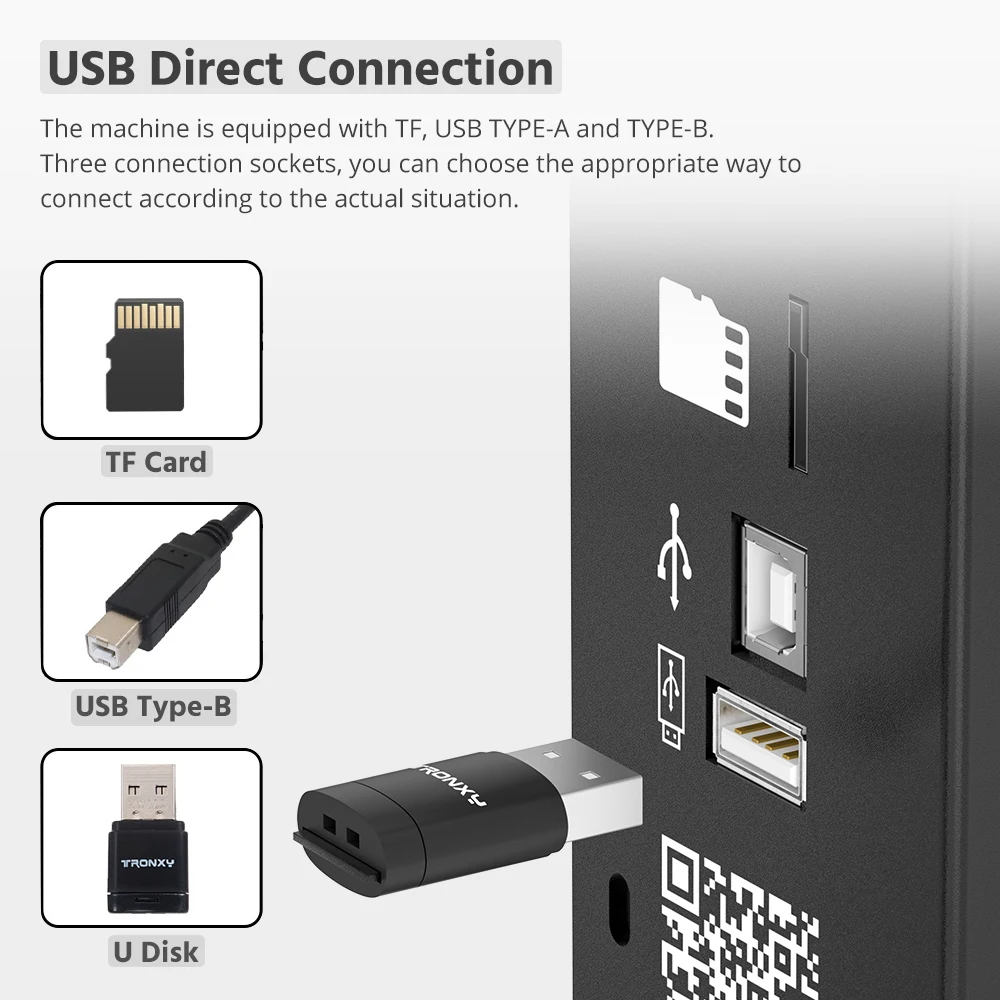

U Disk, TF Card, Type-B Socket
|
|
|
|
|||
|
Software
|
Cura, Repetier- Host, Simplify3D, Prusa
|
|
|
|
|||
|
Power Supply
|
AC 110/220V, DC 24W
|
|
|
|
|||
|
Certificates
|
CE, FCC, Rohs
|
|
|
|
|||
FAQ
1. Q: Do I have access to the code of the printer to tweak settings deeper than via touchscreen?
A: In the online state, you can use the Marlin code to access the printer and modify some parameters, but it is not possible to modify the parameters through the firmware source code.
2. Q: Do you have printer profile for Simplify3D?
A: It is recommended to use cura slicing software, we have the corresponding configuration files.
3. Q: How to use Ultimaker Cura for Software for VEHO series 3d printers?
A: Tronxy units are listed on there but not the VEHO models, you can just pick the X5sa/X5st and just re-configure the print bed size.
4. Q: Would it be possible to use a 1mm or larger nozzle with this printer?
A: Yes, it is possible to use a 1mm nozzle, the larger nozzle needs a 2.85 extruder, 1.75mm filaments will not work for the larger nozzle, need with the 3.0mm filaments. If you need the larger nozzle, can contact us to purchase 2.85 extruder and 3.0mm filaments.
5. Q: What firmware do the printers ship with? Are there any slicer profiles setup for the machines at all?
A: The firmware has been flashed, and the configuration file will be provided with the machine.
6. Q: Are the firmware marlin? We currently run our print farm on klipper so I was just wondering if it was possible to change the firmware to klipper in the future?
A: Yes, they are marlin, it is possible to change the firmware to klipper in the future.
7. Q: What is the flow rate?
A: 0.6 nozzles, the recommended printing speed is 30-60.
8. Q: How quickly the table heats up. What are the capacities of the table?
A: Heat the bed to 100 degrees for 10 minutes.
9. Q: What is the size of the thread on the hotend nozzle?
A: The nozzle is mk8 nozzle and the thread is M6.
10. Q: What materials are the way to use the extruder, flex is interested, very soft can be 45A or 60A?
A: The extruder is BMG, which cannot print 45A and 60A consumables.
11. Q: What accelerations are possible on this printer?
A: The acceleration of the machine is 500.
12. Q: We would like to see the print of a bencha, a boat, at maximum speed, with a nozzle of 0.4 mm and a layer height of 0.1mm, as well as a nozzle of 1.2 mm and also a layer height of 0.1 mm?
A: Need to see the model printed at the fastest speed.
13. Q: Why is there only one 50w heater in hotend?
A: 50W heating rod power is enough.
14. Q: What are the software limitations, the board is 32 bit?
A: The slicing software of cura and prusa can be used, and the motherboard is 32-bit
15. Q: Is it possible to install klipper?
A: Temporarily does not support klipper firmware.
16. Q: What is the version with magnetic lining? Why is the table made of glass?
A: Glass has better flatness, so use glass.
17. Q: What tolerance can the 3d printer print to? Why is the table made of glass?
A: The tolerance is about 0.2mm, but the shrinkage rate of different consumables should also be considered.
18. Q: Can we with Prusa slicer? We need it because we use it as the main slicer.
Yes, you can use Prusa, but Prusa only can set the maximum height of 1200mm.
19. Q: Can we use the printer to print at a speed of 120mm/s with a 0.8mm nozzle and 2.85mm plastic?
With a 0.8mm nozzle and 2.85mm plastic no problem, but the print maximum speed is 50mm/s,because the extrusion volume cannot keep up, if the speed exceeds 50mm/s, the printing effect will be intermittent.
20. Q: Hi, I wanted to ask you how many hours it takes to print a cube measuring 100 x 100 x 150 in height, and the maximum print resolution, thanks.15% infill, printing speed 50, about 10 and a half hours, nozzle 0.6, layer height 0.3.
A: In the online state, you can use the Marlin code to access the printer and modify some parameters, but it is not possible to modify the parameters through the firmware source code.
2. Q: Do you have printer profile for Simplify3D?
A: It is recommended to use cura slicing software, we have the corresponding configuration files.
3. Q: How to use Ultimaker Cura for Software for VEHO series 3d printers?
A: Tronxy units are listed on there but not the VEHO models, you can just pick the X5sa/X5st and just re-configure the print bed size.
4. Q: Would it be possible to use a 1mm or larger nozzle with this printer?
A: Yes, it is possible to use a 1mm nozzle, the larger nozzle needs a 2.85 extruder, 1.75mm filaments will not work for the larger nozzle, need with the 3.0mm filaments. If you need the larger nozzle, can contact us to purchase 2.85 extruder and 3.0mm filaments.
5. Q: What firmware do the printers ship with? Are there any slicer profiles setup for the machines at all?
A: The firmware has been flashed, and the configuration file will be provided with the machine.
6. Q: Are the firmware marlin? We currently run our print farm on klipper so I was just wondering if it was possible to change the firmware to klipper in the future?
A: Yes, they are marlin, it is possible to change the firmware to klipper in the future.
7. Q: What is the flow rate?
A: 0.6 nozzles, the recommended printing speed is 30-60.
8. Q: How quickly the table heats up. What are the capacities of the table?
A: Heat the bed to 100 degrees for 10 minutes.
9. Q: What is the size of the thread on the hotend nozzle?
A: The nozzle is mk8 nozzle and the thread is M6.
10. Q: What materials are the way to use the extruder, flex is interested, very soft can be 45A or 60A?
A: The extruder is BMG, which cannot print 45A and 60A consumables.
11. Q: What accelerations are possible on this printer?
A: The acceleration of the machine is 500.
12. Q: We would like to see the print of a bencha, a boat, at maximum speed, with a nozzle of 0.4 mm and a layer height of 0.1mm, as well as a nozzle of 1.2 mm and also a layer height of 0.1 mm?
A: Need to see the model printed at the fastest speed.
13. Q: Why is there only one 50w heater in hotend?
A: 50W heating rod power is enough.
14. Q: What are the software limitations, the board is 32 bit?
A: The slicing software of cura and prusa can be used, and the motherboard is 32-bit
15. Q: Is it possible to install klipper?
A: Temporarily does not support klipper firmware.
16. Q: What is the version with magnetic lining? Why is the table made of glass?
A: Glass has better flatness, so use glass.
17. Q: What tolerance can the 3d printer print to? Why is the table made of glass?
A: The tolerance is about 0.2mm, but the shrinkage rate of different consumables should also be considered.
18. Q: Can we with Prusa slicer? We need it because we use it as the main slicer.
Yes, you can use Prusa, but Prusa only can set the maximum height of 1200mm.
19. Q: Can we use the printer to print at a speed of 120mm/s with a 0.8mm nozzle and 2.85mm plastic?
With a 0.8mm nozzle and 2.85mm plastic no problem, but the print maximum speed is 50mm/s,because the extrusion volume cannot keep up, if the speed exceeds 50mm/s, the printing effect will be intermittent.
20. Q: Hi, I wanted to ask you how many hours it takes to print a cube measuring 100 x 100 x 150 in height, and the maximum print resolution, thanks.15% infill, printing speed 50, about 10 and a half hours, nozzle 0.6, layer height 0.3.
