Hot Selling 9060 Cnc Router With Low Price

Dear customer, I am in charge of this series of products and I serve as the company manager. You can contact me to obtain more discounts and other new product information. I can arrange training and use of the products for you to ensure that you can use them quickly and efficiently. This is my contact information. Please contact me before placing an order to obtain the correct price, which includes details of transportation and shipping costs. This is my business card information: Manager: Violet Ms WhatsApp:+86 15073113615 Email:ericqianrui@gmail.com



TECHNICIAL PAREMETER
Product Type	YN-6090 Engraving machine
Machine body:	Whole cast iron
Guideway:	XYZ-4 axis use square guideway
Driving mode :	XYZ-axis use ball screw
X,Y-axis working area :	600*900mm
Z-axis working area:	80-100mm
Max. Feeding height:	100mm or bigger
Cut thickness of material:	80mm
Max. Speed:	8000mm/min
Working speed :	0-4000mm/min
Mechanical precision:	0.04mm/300mm
Compatible Software:	Type 3 software , Artcut software , Artcam software
Max. Power consumption:	2.2KW
Power source:	AC220/50HZ
Driver type:	542 prime mover
Memory:	>256M
Spindle:	1.5KW(80mm)or3.0KW(100mm)variable speed , water-cooled motor
Spindle speed:	0-24000rpm
Blade diameter:	3.175mm,4mm,6mm
Control system:	DSP control system
Command:	G code
Running circumstance temperature:	0-45C
Relative humidity:	30%-75%
Optional:	Rotary axis , vacuum table and dust collector

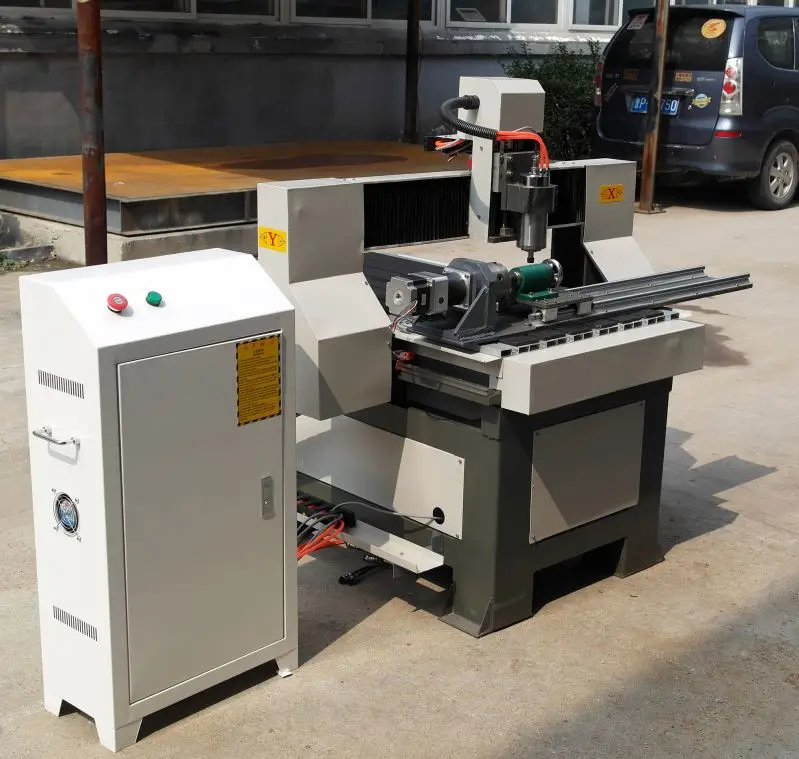

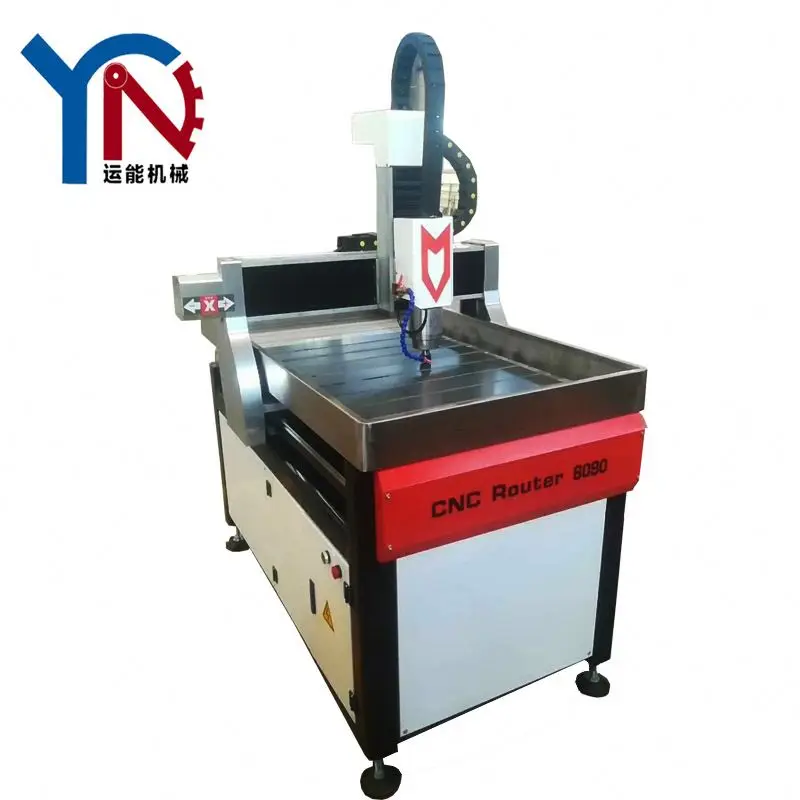

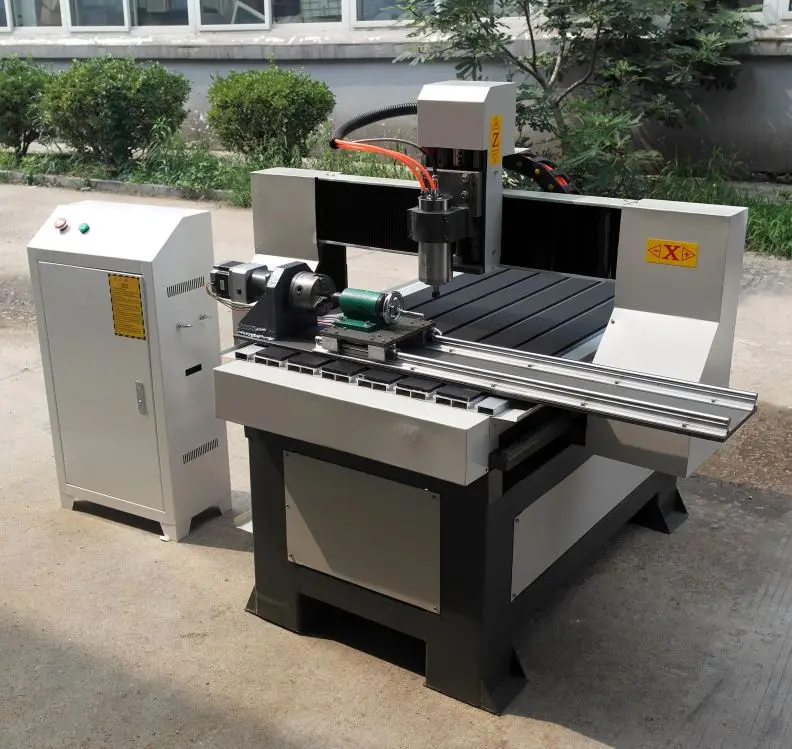

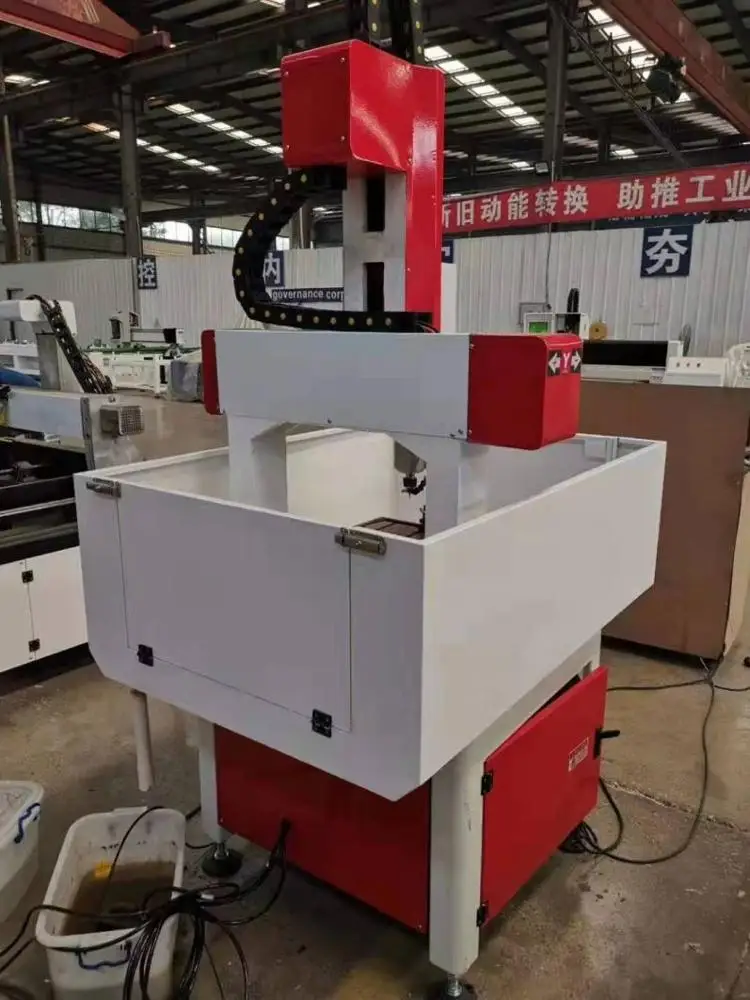

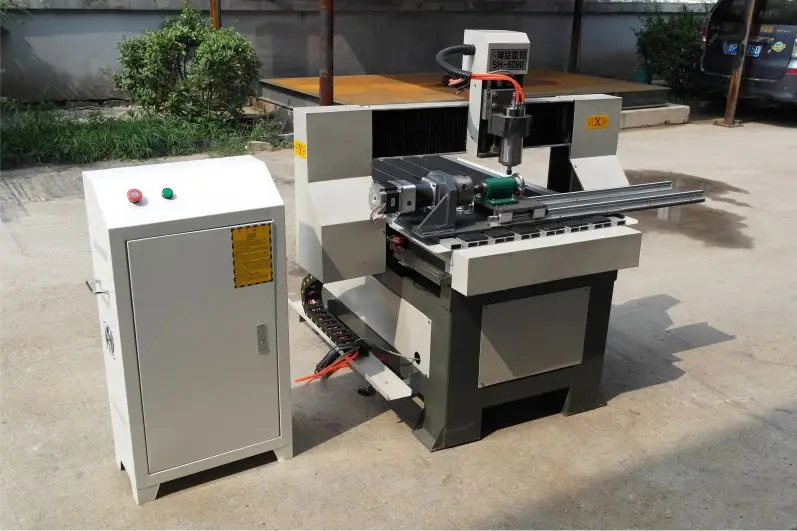

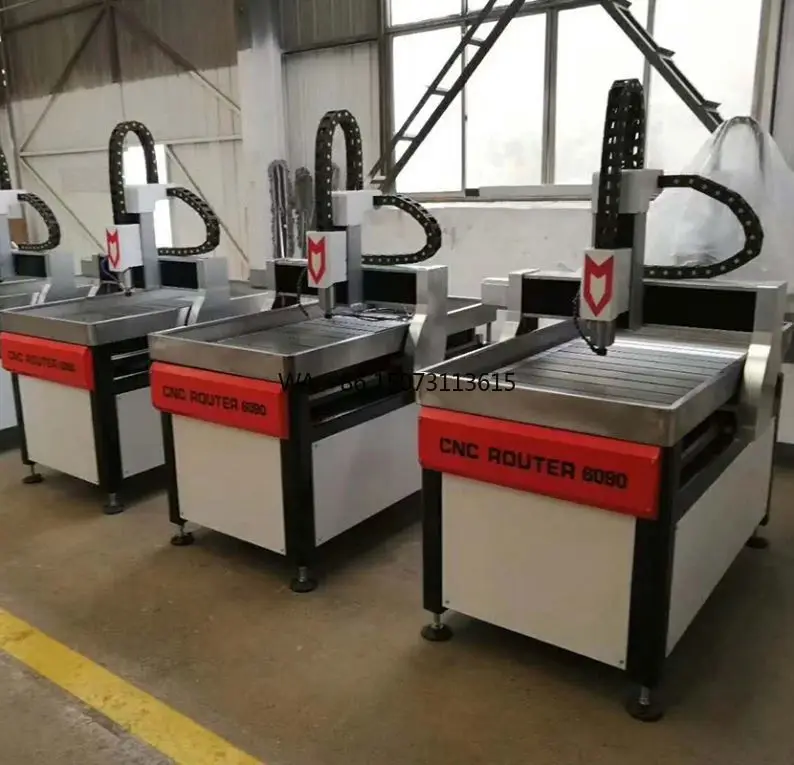

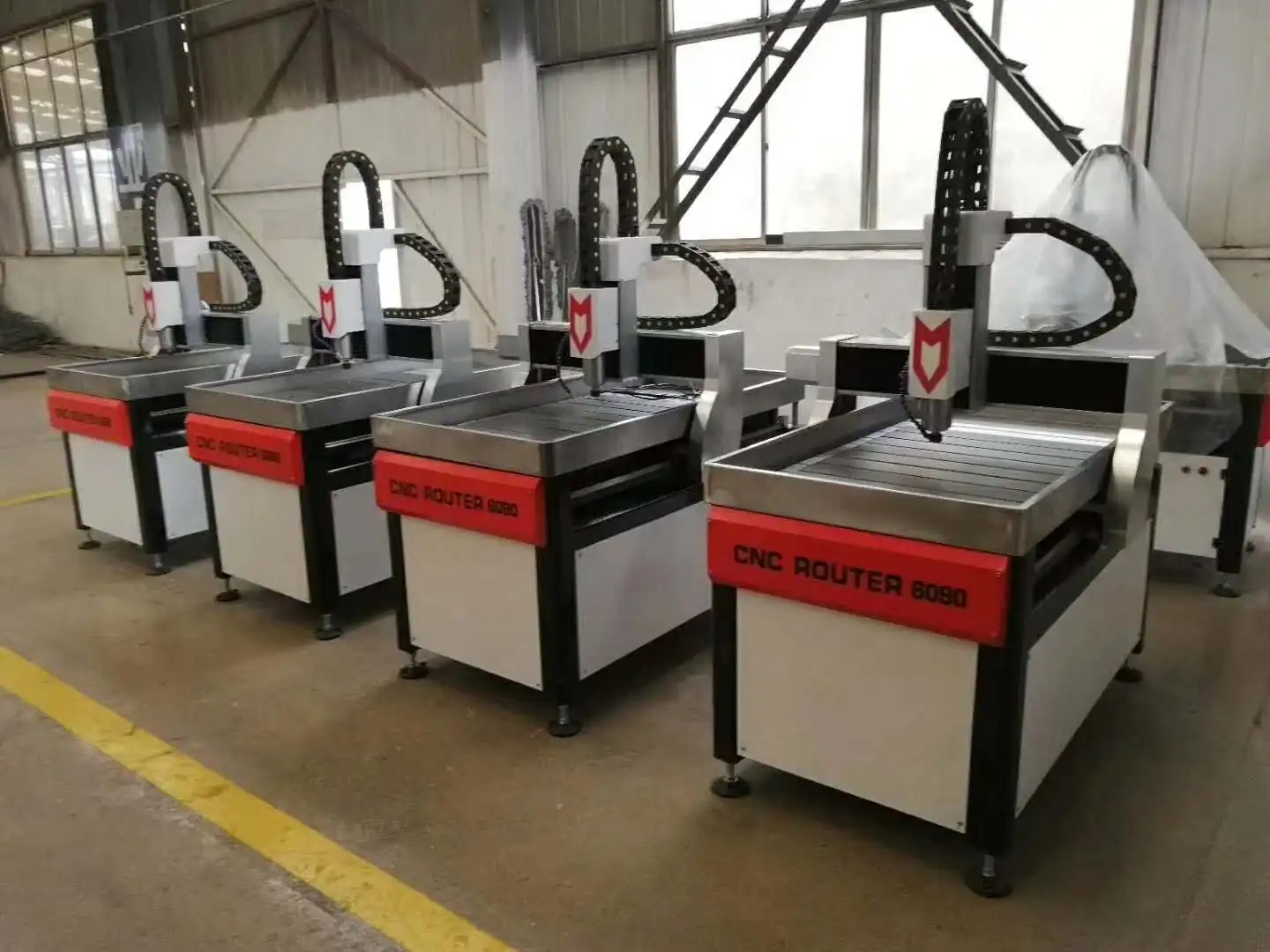

PRODUCT SHOW

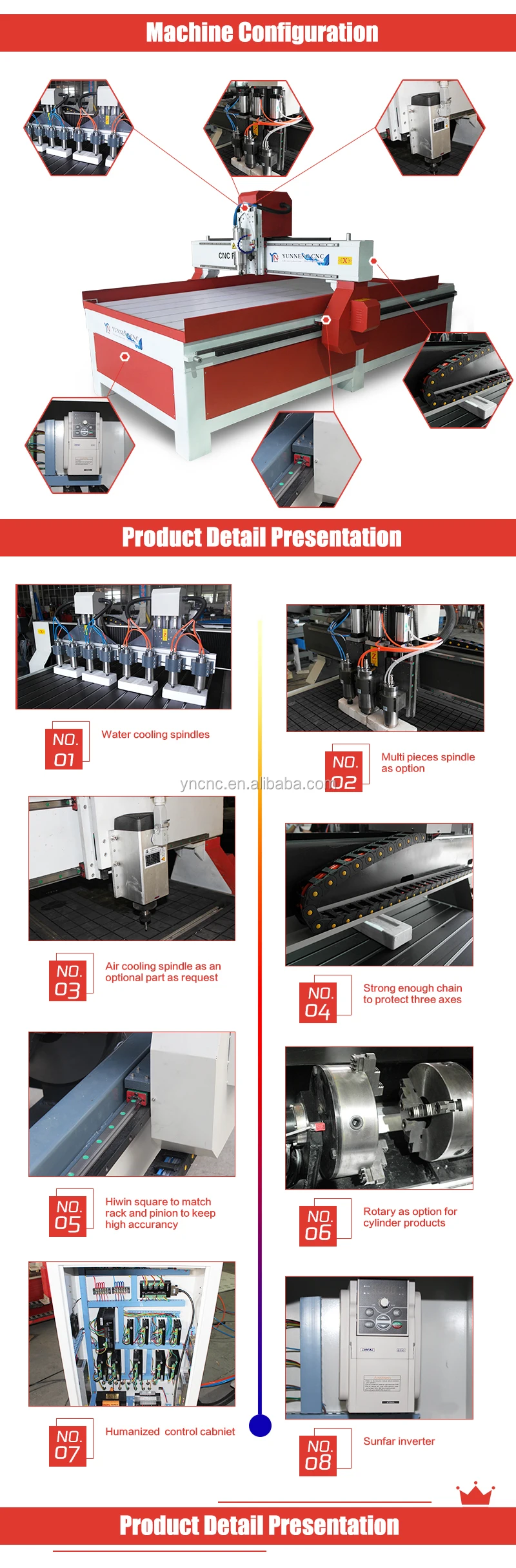

ADVANTAGES



1. Adopt constant power 1.5kw water cooling spindle

   ------- high speed, low noise and long life



2. Taiwan HIWIN square linear guide

     ------- Top brand in china.



3. Popular NC studio control  and DSP control for optiona

   --------It is very easy for every buyer and beginner.



4. Cast iron structure

   --------never deformation



5. Mist water cooling sprayer and flume will cool the cutter

  --------which is necessary when you cut or engrave on Aluminum,copper or other soft metal.

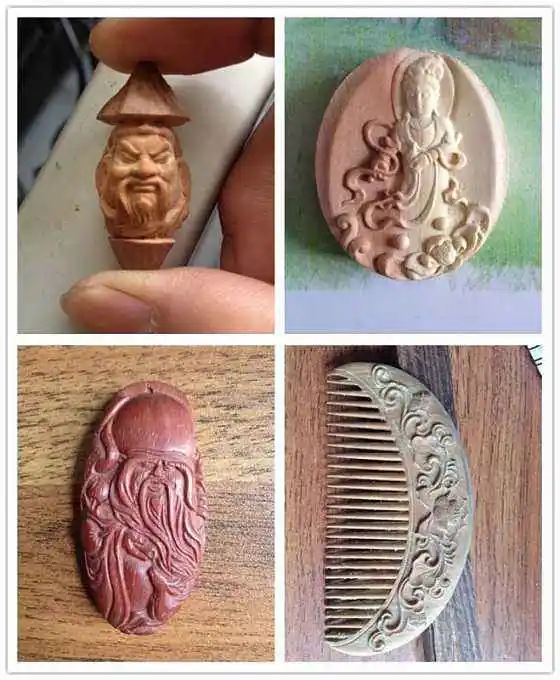

APPLICATIONS



1)advertising field



2)seal field



3)packing field



4)pane making field



5)decorating field



6)art and craft field



7)architecture model field



8)souvenir field, badge field



9). circuitry field and carpentry field



10)it is used to engrave on Acrylic sheet, abs double color sheet, PVC foam sheet, wooden sheet, scagliola, PCB, granite, stone, steel and soft metal etc.





CUSTOMER PRAISE





WHY CHOOSE US





1.18months equipment warranty and maintenance for lifetime.





2.Free installation and test before sending and free training for operators





3.Advice for the solutions best for customers requirements.





4.free training and sample provided





FAQ



1- How is your delivery ?

Any stardard model we have in stock.if you need urgent,can arrange delivery quickly.



2- What about after-sale service?

We have detail English manual can guide you to run machine,if any doubt,our enginner will use Teamview to control your software on your computer,meanwhile chat with you on skype.

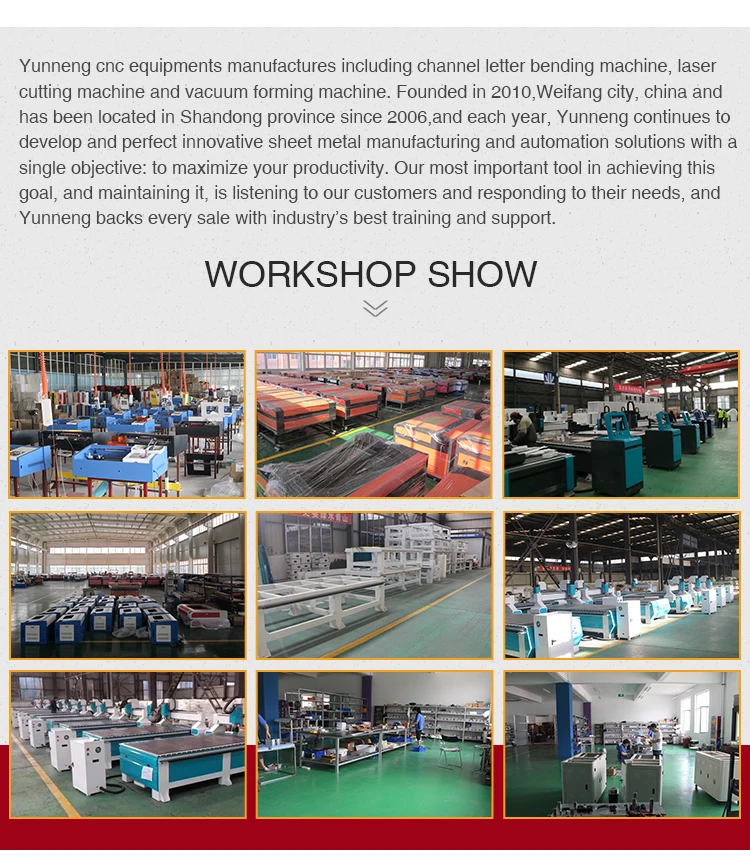

3- I want to see your machine,where is your factory?

Our factory is located in Weifang City,Shandong Province. you can take flight to Weifang Airport.we can pick you up there.
