Name: Hot SalesCheap Similar As GSK CNC Controller Panel 5 Axis Cnc Control System Kit With ATC PLC CNC Lathe Controller
SKU: 1005009180201445
Availability: InStock

High-concerned chemical: None
Type: Hand Tool Parts
Origin: Mainland China
Application: Lathe and Turning Center, LATHE
Condition: New
Applicable Industries: Garment Shops, Manufacturing Plant
Weight: 10
Warranty: 1 Year
Showroom Location: None
Core Components: PLC
Product Name: CNC Controller
AXIS: 5 AXIS
User Store: 128MB
Certification: CE

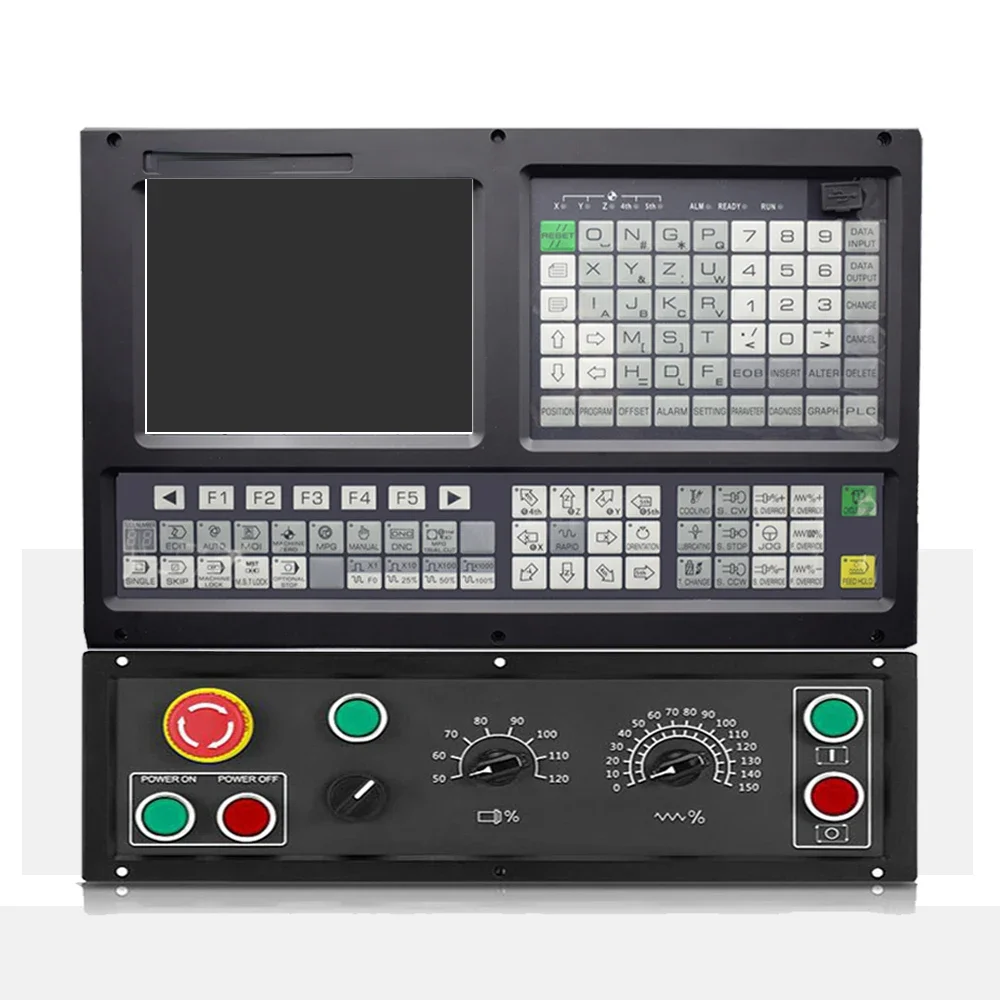

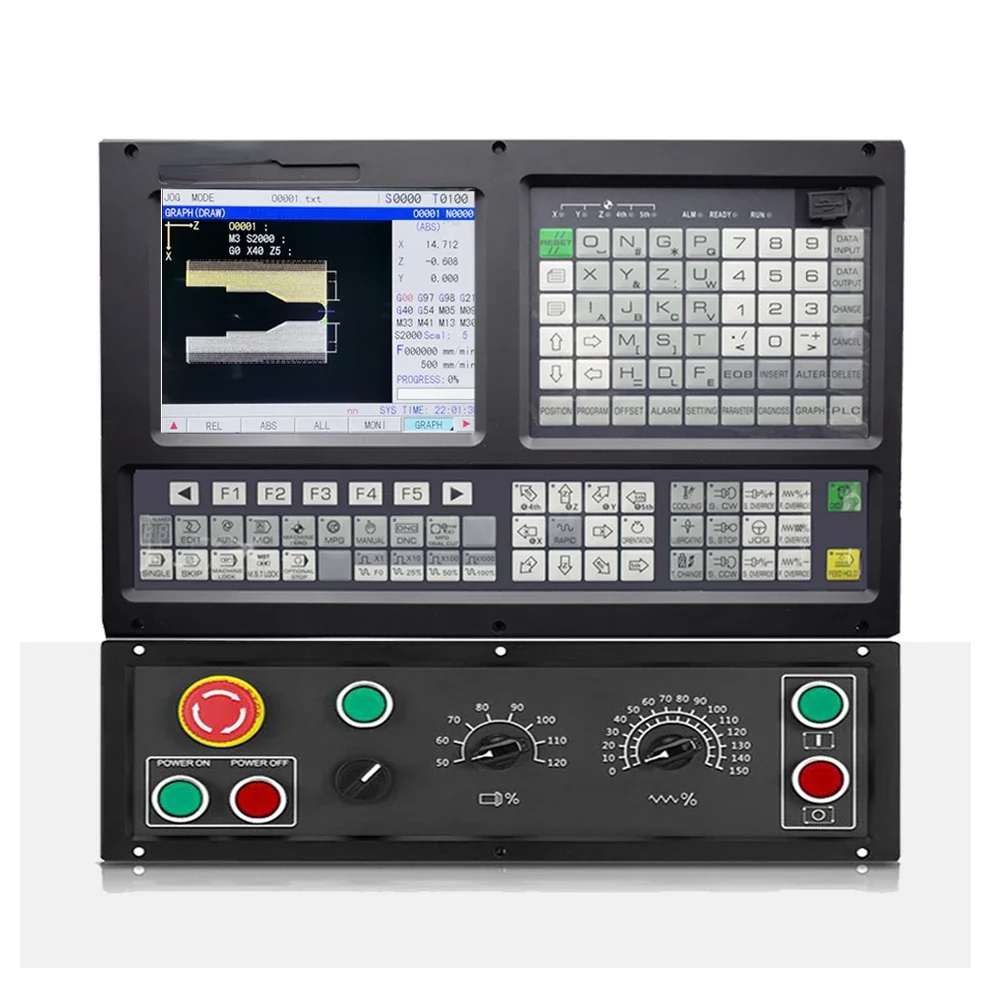

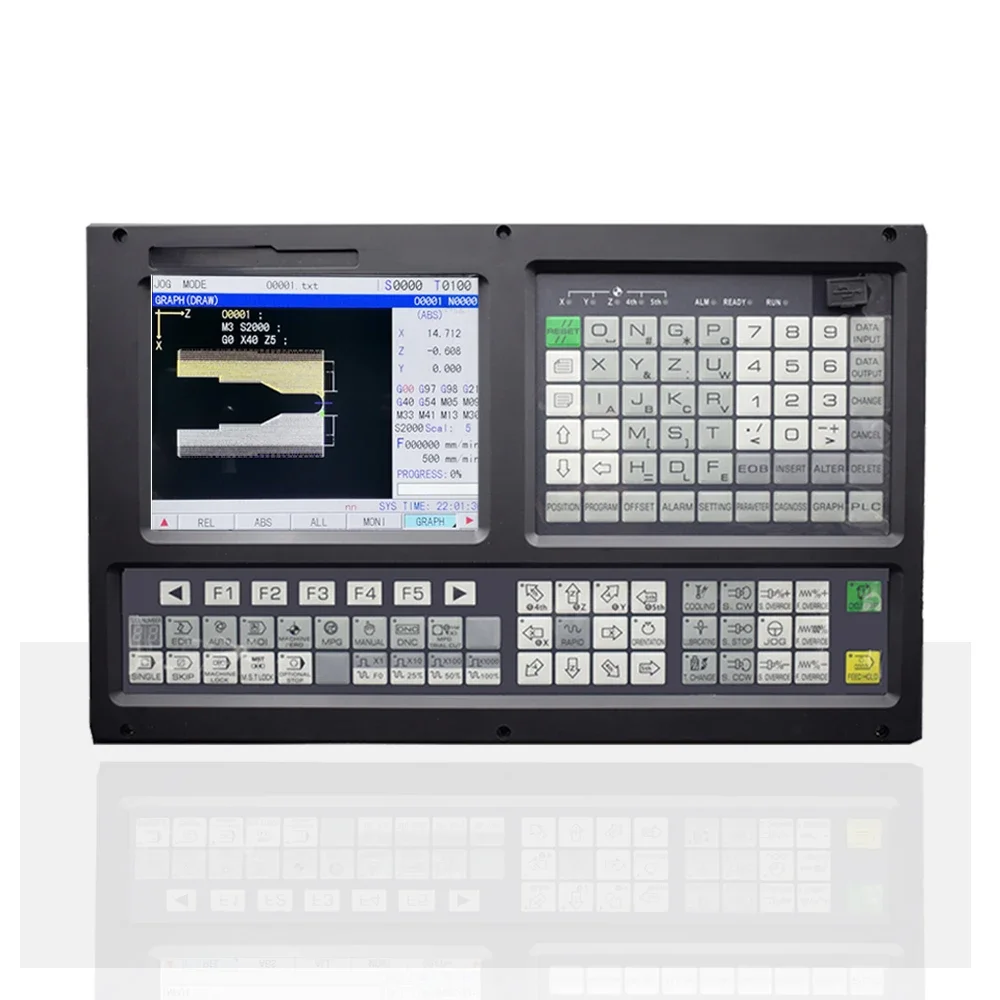

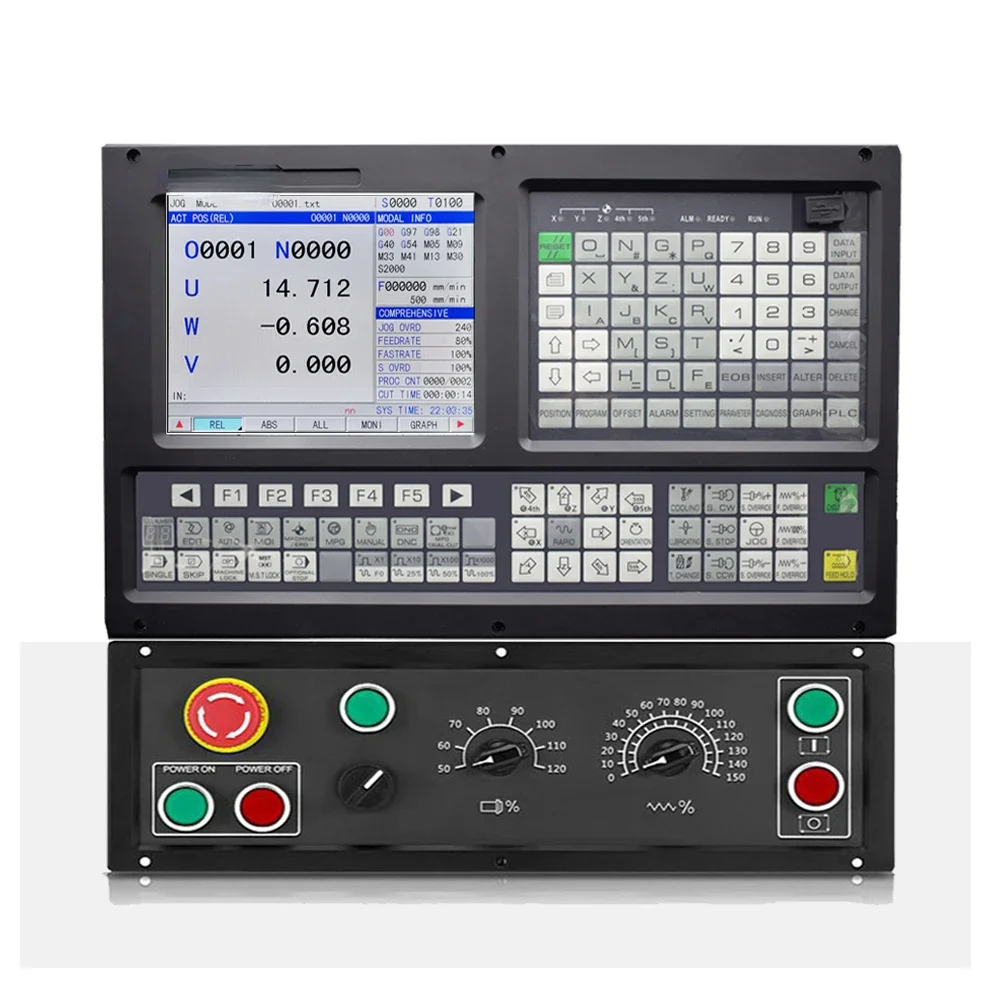

cheap similar as GSK CNC controller panel 5 axis cnc control system kit with ATC+PLC CNC lathe controller

Specifications

Number of Control Axes	3, 4 ,5 Axes (X, Y, Z, A)
Minimum Command Unit	0.001mm
Maximum Coordinate Range	± 99999.999mm
Maximum Rapid Traverse Speed	60m / min
Feeding Speed	0.001-15m / min
Interpolation Types	Linear , Circular, Helical
Tool offset	Length compensation, Nose radius C compensation
Spindle Functions	Gear, Dual analog control, Rigid tapping
MPG Functions	Axis,Speed options, E-stop , Enable Buttons
Screen saver Function	Screen saver function
Communication Function	RS232, U disk interface
Compensation Function	Tool compensation, Wear compensation, Ballscrew pitch compensation, Radius compensation
Program Editing	Metric/Inch, Relative / Absolute programming
Limit Function	Software limit, hardware limit
Pre-reading function	Short line preprocessing 10,000 lines
Password Protection	multi-level password protection
Input and output	32 Input , 32 Output
PLC programming	PLC ladder ,editable
Spindle Encoder	Support
User Macro Program	A Type Macro
Electronic Gear Ratio	1 ~ 65536

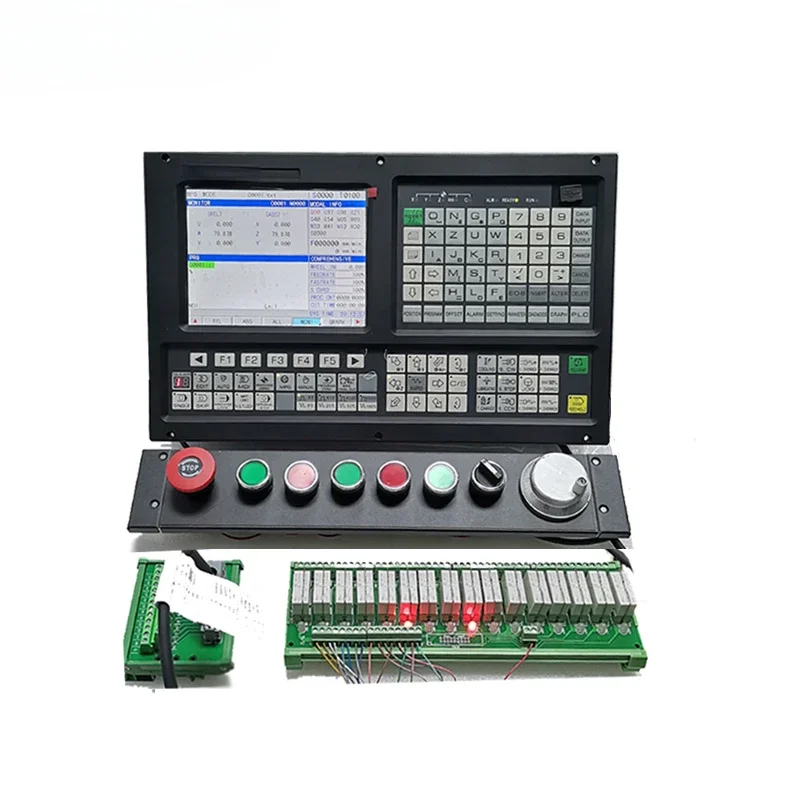

Addtional Panel	A-type panel with hand wheel; B band switch
Applicable machine tools	milling machine, boring machine, drilling machine,VMC

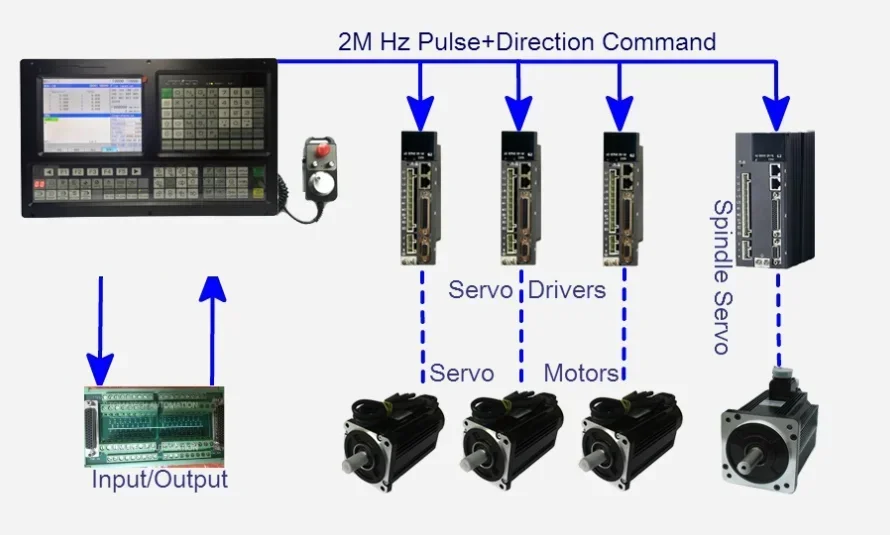

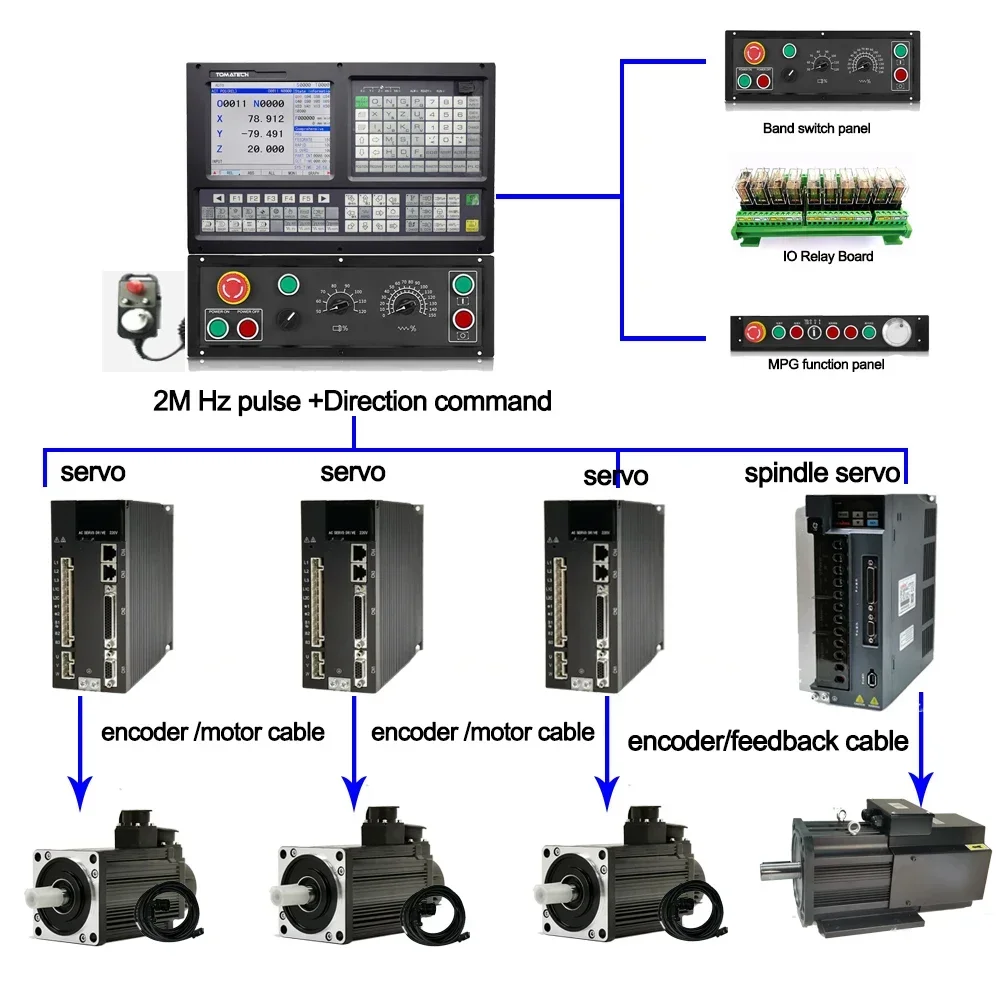

Product display

1. Powerful Macro Function: Easily to do some complicated programming and Logic

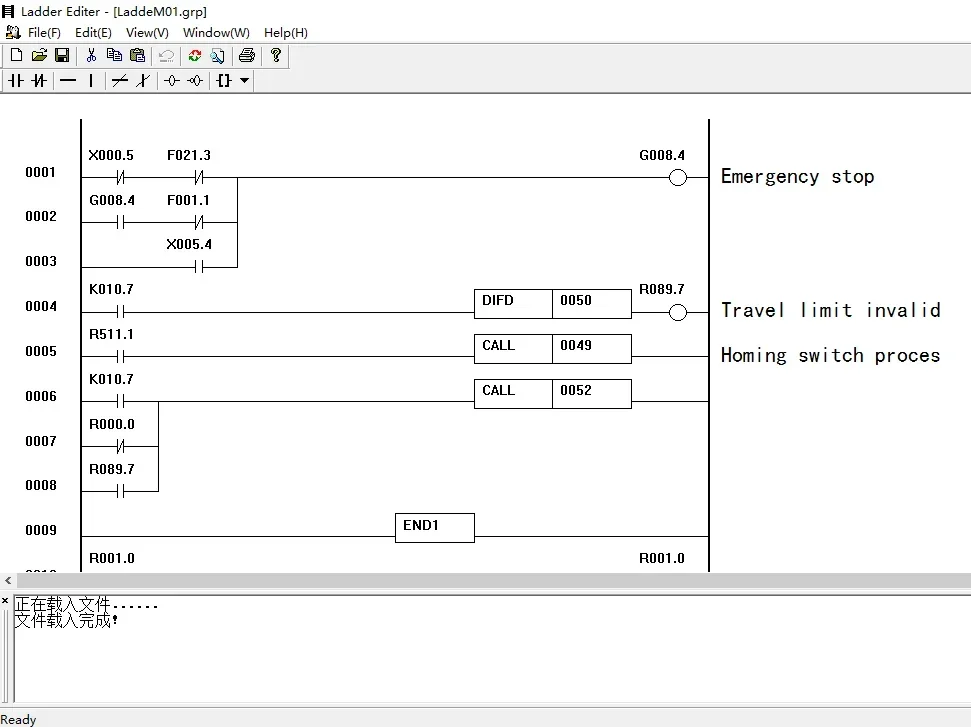

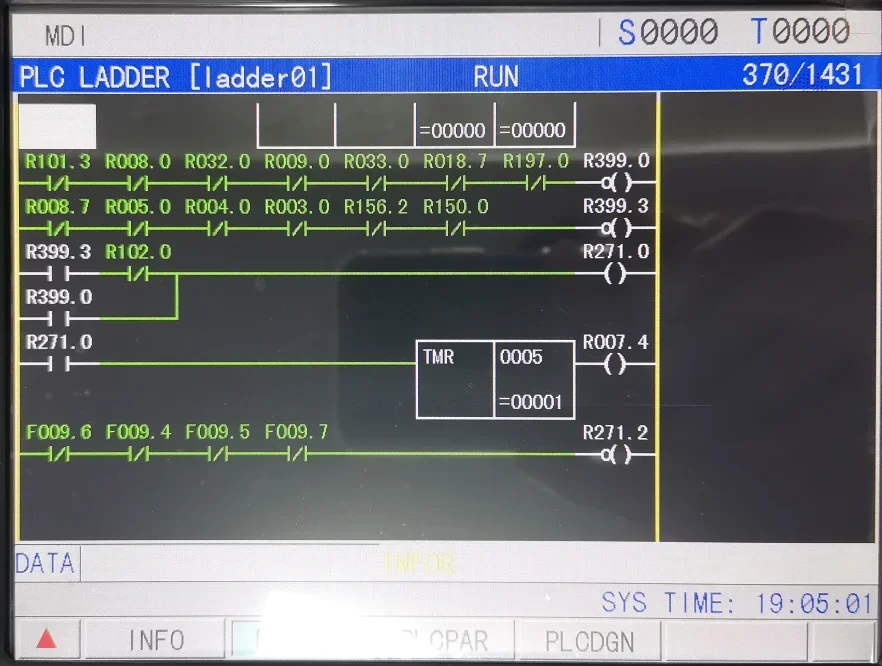

2. PLC Ladder Programming: Possible to use PC software for ladder edition.

3. Servo spindle Rigid Tapping : High speed rigid tapping

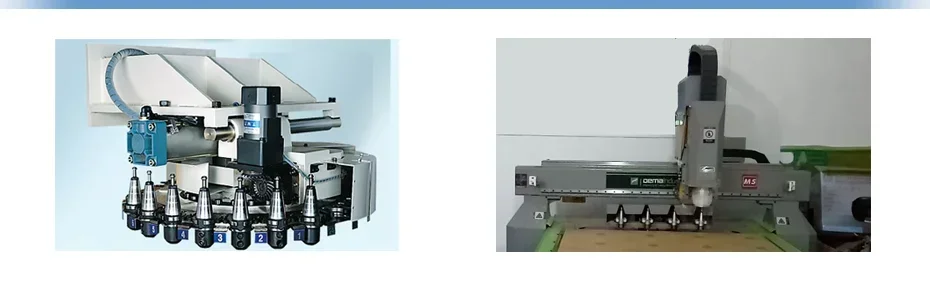

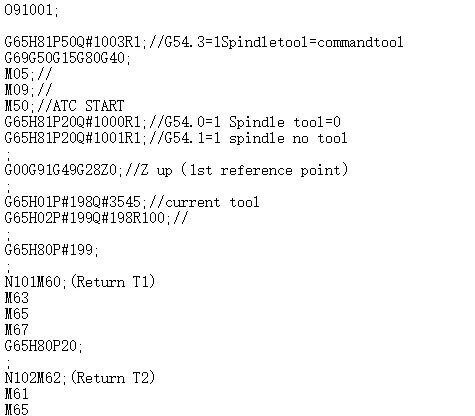

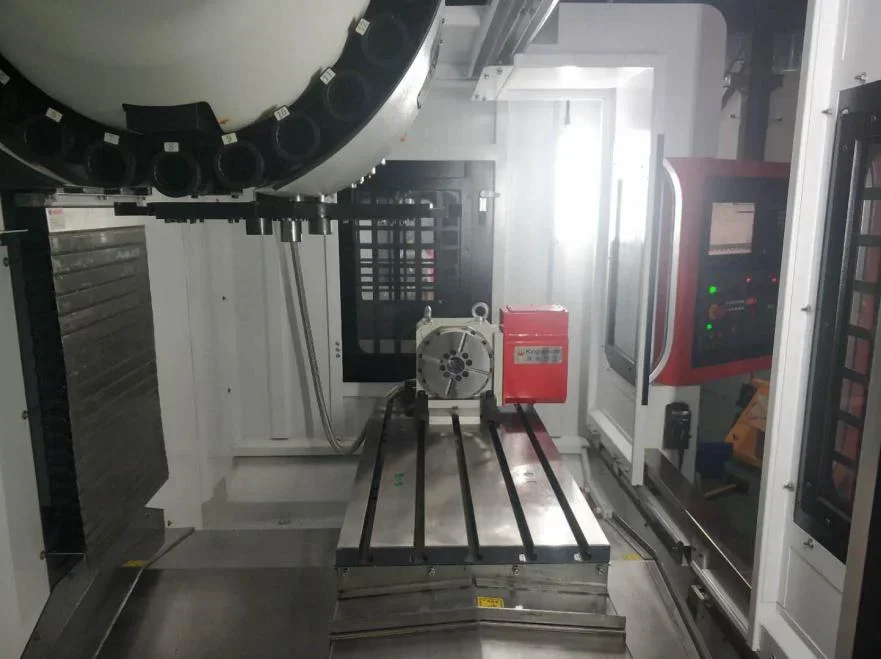

4. ATC Function : Support most of tool changers, possible to customize ATC program.

5. Rotary Axes Control: 4th/ 5thAxes set as rotary axes

Features

Control axis:
* Control axis: 3-5 axis (X, Y, Z,A,B)
* Interpolationaxis: Any 3 axis linear interpolation , any 2 axis circular interpolation
* Position command range:
Metric input (G21) -9999.9999mm ~9999.9999mm, the mininum command unit: 0.0001mm
Inch input (G20): -999.9999inch ~999.9999inch, the mininum command unit: 0.0001inch
* Electronic gear ration: command multiplier 1 ~ 65536, command multiplier1 ~65536
* Rapid traverse speed: maximum 60m/min
* Rapid traverse override: F0, 25%, 50%, 100% four levels real-time tuning
* Cutting feedrate: maximum feeding speed: maximum 15m/min (G94) or 500.00mm/r (G95)
* Feedrate override: 0 ~ 150% sixteen-level real-time tuning
* Manual feedrate: 0 ~ 150% sixteen-level real time tuning
* MPG feeding: 0.001mm, 0.01mm, 0.1mm, 1mm four gears
* Single step feeding: 0.001mm, 0.01mm, 0.1mm, 1mm four gears
* Interpolation mode: linear interpolation, arc interpolation, spiral interpolation and ragid rapping

Spindle axis functions:
* Two channels 0V ~ 10V analog voltage output, support double spindle control
* Spindle encoder: encoder lines can be set (100 p/r ~ 5000p/r)
* Encoder and spindle's transmission ratio: (1 ~ 255):(1 ~ 255)
* Spindle ration: 50% ~ 120% eight stages real-time tunning in total
* Spindle axis constant line speed control
* Tapping circle, rigid tapping

Tool functions:
* Tool length compensation
* Tool point radius compensation (C type)

Precision compensation:
* Thread pitch error compenstation: Compensation points, compensation interval, compensate original position can be set.
* Backlash compensation: can set reverse interval to interpolation machine tool by fixed frequency or lifting speed mode.

PLC functions:
* Two levels PLC programming, operation speed is 1.5μs/ step basic instruction; 4700 steps mostly, the cycle of the first level programming is 8ms.
* Support PLC warning and PLC alarm.
* Support multiply PLC programming (mostly 20), the current PLC programming can be chosen.
* 45 kinds of commands (10 kinds of basic commands, 35 kinds of function commands)
* I/O unit input/output: 32/32

Related products:
1.CNC Controller
2,Axis servo motor &driver
3.Spindle Servo Motor&driver
4,Rotary table

Application

CNC milling machinery; CNC drilling machinery; CNC boring machinery;VMC
