- High-concerned chemical: None
- Origin: Mainland China
- Battery Type: LiFePO4
- Model Number: M16S100BL-V
- Brand Name: Grandtech
- Place of Origin: Guangdong, China
- System Voltage: 48V/51.2V
- Output Power Range: 10-30Kw
- Dimension (L*W*H): 460*380*1000mm
- Weight: 232Kg
- System Type: Wall-Mounted, Floor-standing
- Type: Split
- Communication Port: CAN, RS-232, Wifi, Bluetooth, Rs485
- Protection Class: ip20
- Grid connection: Hybrid grid
- Capacity: 100Ah 200Ah 280AH 300Ah 400Ah 560ah
- Product name: Solar Energy Storage Battery
- Working Temperature: Charge: 0℃~50℃ Discharge: -15℃~60℃
- Communication: RS485 / RS232 / WIFI /Blue Tooth
- Inverter Matched: Widely Brand
- Cell type: A+ Cells
- Model: 48V/51.2V 560Ah
- Application: Solar Energy Storage Systems
- Battery cell: 3.2V 280Ah LiFePO4 Cell
- Warranty: 5 Years
Dear customer, Welcome to my store,We sell all kinds of products. If you have any other items you wish to purchase, please feel free to consult us.There is a discrepancy between the current price and the actual price (configuration and logistics). To obtain product details and more favorable prices, please add WhatsApp for confirmation Manager: Liu Mr WhatsApp:+86 19176692407 Email：1799483840@qq.com

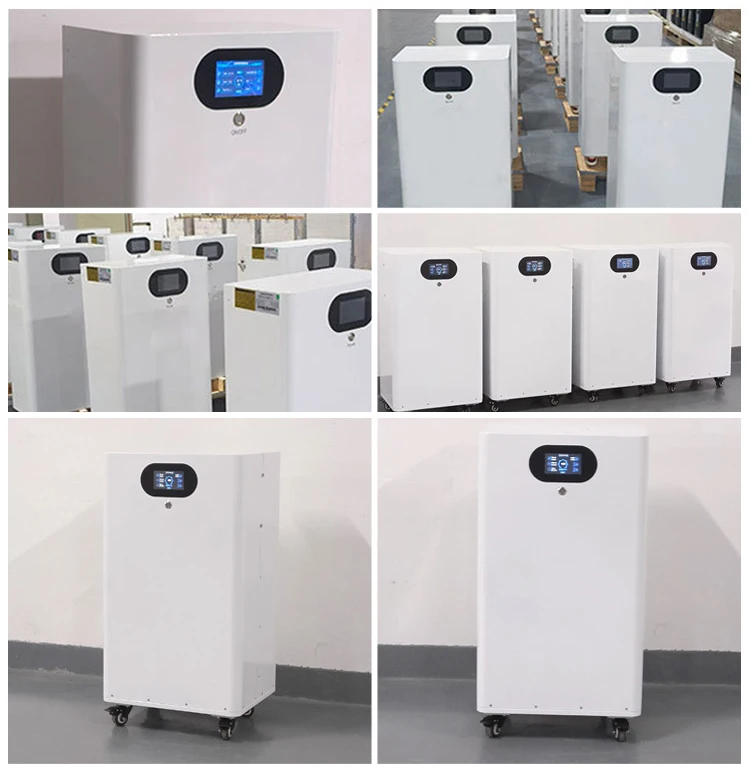

Products Description
Grandtech lithium-ion battery factory specializes in 48V/51.2V energy storage LiFePO4 batteries.Grandtech uses only the highest-quality raw materials from leading manufacturers such as CATL and EVE for the production of 48V/51.2V solar lithium battery packs, ensuring that our batteries achieve a cycle life of over 8,000 times.
Our batteries are equipped with a built-in BMS, enabling seamless communication with top inverter brands like Victron, DEYE,Growatt, SMA, Sofar, Goodwe, Pylontech, Luxpower, Solis, SRNE, Voltronic, and others.Additionally, our batteries feature Bluetooth and computer monitoring functions, allowing real-time health checks of the battery.

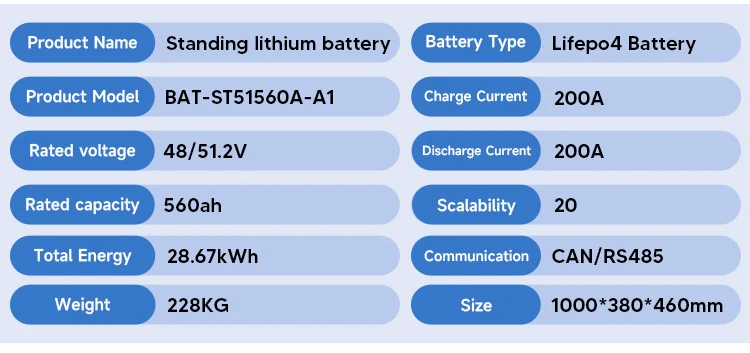

Specification
|
Model
|
BAT-ST48/51560A-A1
|
|
Nominalcapacity(Ah)
|
560
|
|
Nominalenergy(KWh)
|
28.7
|
|
Modulespecifcation
|
28.7KWh|51.2V|247Kg
|
|
Nominalvoltage(V)
|
51.2V
|
|
Workingvoltage(V)
|
46.4V-58.4
|
|
Maxdischargecurent(A)
|
200
|
|
Coninuouschargingcurent(A)
|
200
|
|
Batterytype
|
LiFePO4
|
|

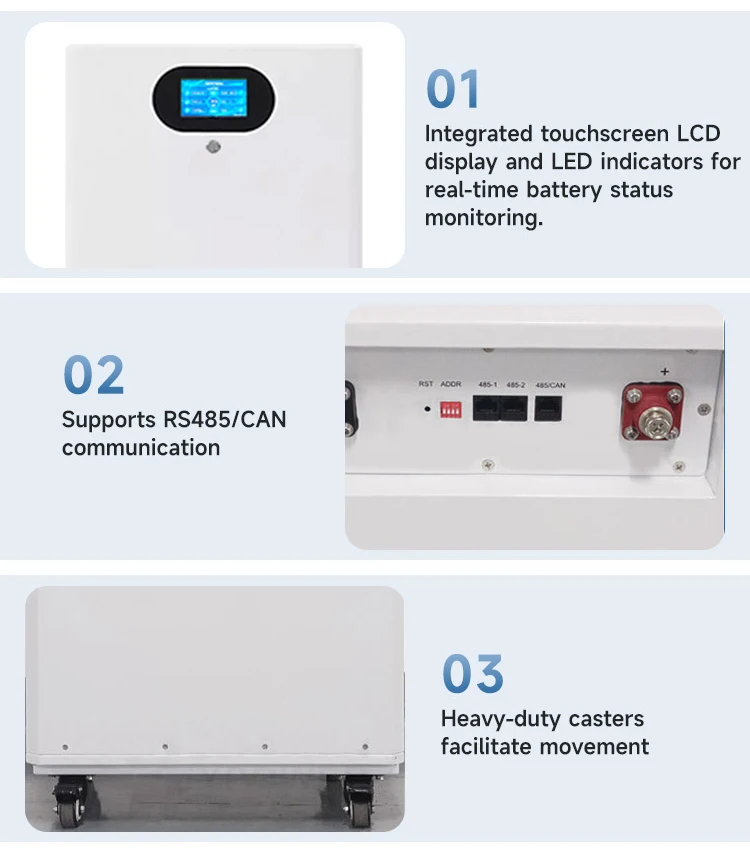

BMScommunicationmode
|
RS485/CAN
|
|
Protection/Security
|
OverchargeProtection/UndervoltageProtection/OvercurrentProtection
|
|
CycleLife
|
CycleLife＞8000Times
|
|
Operatingtemperature
|
-15~60℃
|
|
Dischargeeficiency(%)
|
95
|
|

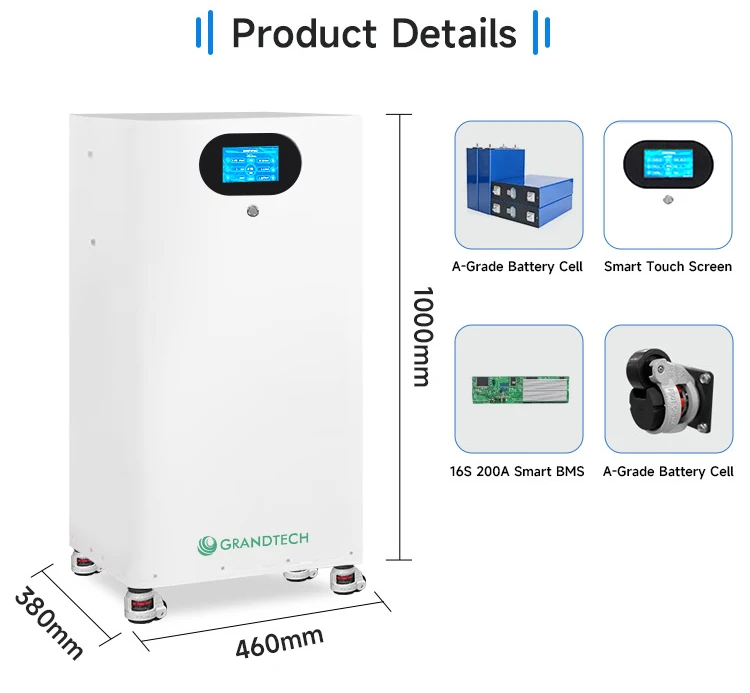

Dimension(LxWxH)(mm)
|
460*380*1000mm
|
|
Weight(KG)
|
228Kg
|
|
Warranty(years)
|
5 Years
|
|
Coolingmode
|
Natural Coooling
|
|
Certifcation
|
CE/UN38.3/RoHS
|
Recommend Products

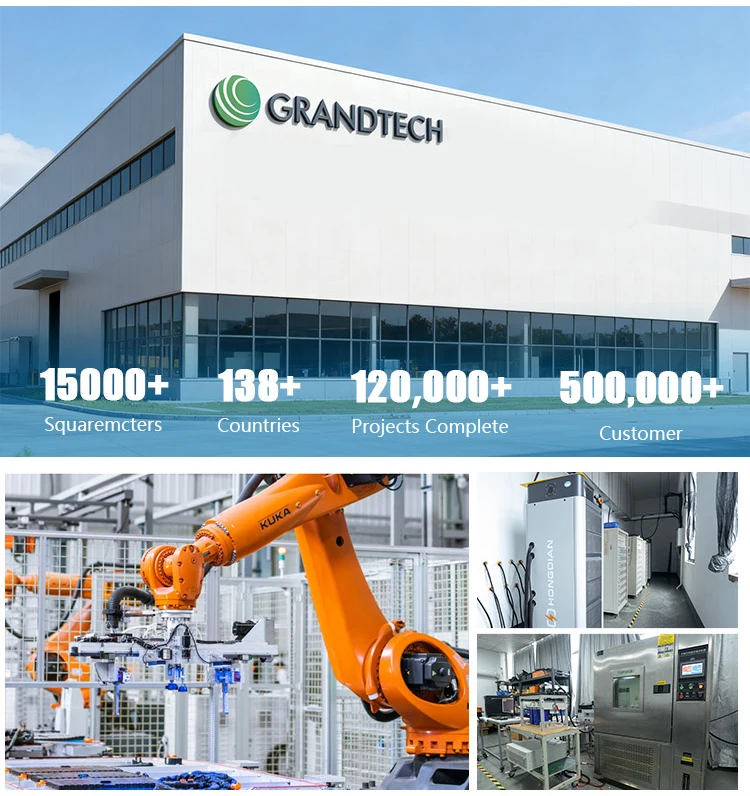

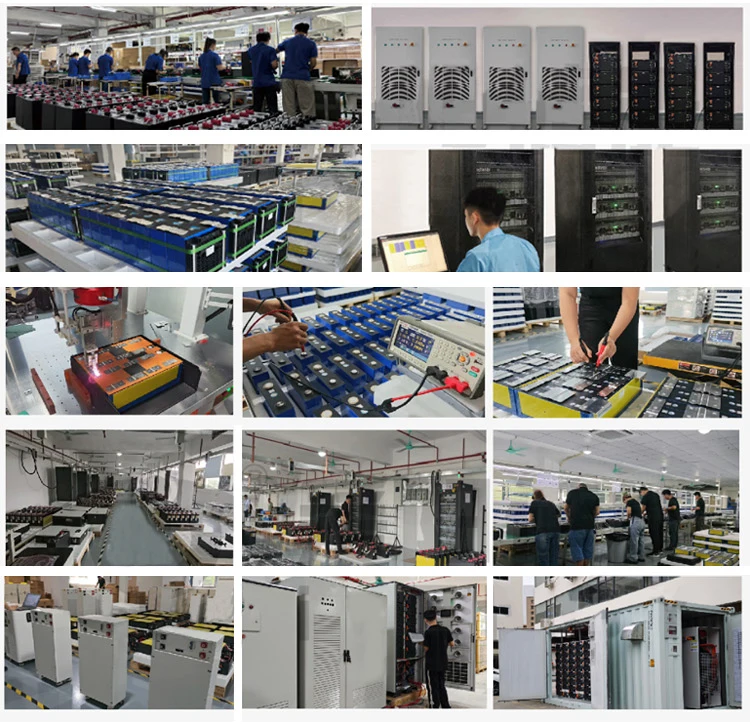

About Us
SICHUAN GRANDTECH NEW ENERGY TECHNOLOGY CO. LTD. is a professional supplier of solar energy storage industry. We are engaged in manufacturing and marketing of high quality solar inverter and storage energy battery, with the certificates of IEC62619,UL1741(SA&SB),
UL1973,UL9540,UL9540A,ETL,ISO etc... We are ability to make the fast delivery to our clients in USA, as we have a warehouse in California, USA. We strive to provide our clients with high quality products, good service, timely delivery and competitive prices and look forward to cooperating with you.
Exhibition
FAQ
Q1: How long do GRANDTECH batteries last?
Up to 8,000 cycles with recommended 80–90% depth of discharge for maximum lifespan.
Q2: Are GRANDTECH batteries safe?
Yes. They use stable LiFePO₄ chemistry and feature a smart BMS that protects against overcharge, over-discharge, short
circuits,and temperature extremes.
Q3: What temperature range do the batteries support?
They operate reliably between –15°C and 60°C. For charging below 0°C, reduced charging current is advised.
Q4: Are these batteries compatible with most inverters?
Yes. Compatible with about 80% of mainstream inverters and charge controllers.
Q5: Can I expand the battery system later?
Yes. Up to 16 battery units can be connected in parallel for easy capacity expansion.
Q6: What are the common applications for GRANDTECH batteries?

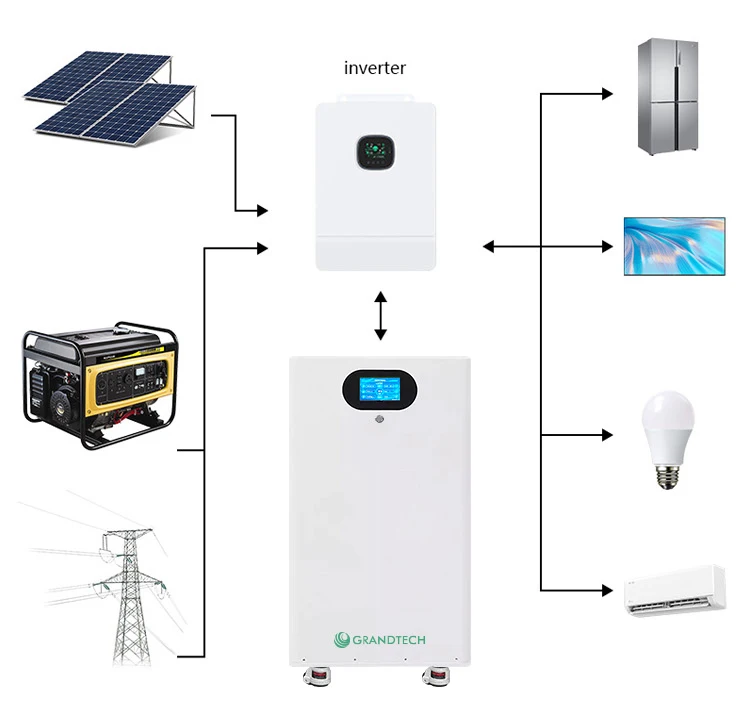

Widely used in off-grid solar, telecom backup, home energy storage, RV/marine power, and data centers.
Q7: Do you offer OEM/ODM services?
Yes, we provide customization options including branding, BMS settings, and packaging.
Q8: What logistics and shipping options are available?
We offer global shipping via air freight, sea freight, and express courier (DHL, FedEx, UPS) with secure packaging.
Up to 8,000 cycles with recommended 80–90% depth of discharge for maximum lifespan.
Q2: Are GRANDTECH batteries safe?
Yes. They use stable LiFePO₄ chemistry and feature a smart BMS that protects against overcharge, over-discharge, short
circuits,and temperature extremes.
Q3: What temperature range do the batteries support?
They operate reliably between –15°C and 60°C. For charging below 0°C, reduced charging current is advised.
Q4: Are these batteries compatible with most inverters?
Yes. Compatible with about 80% of mainstream inverters and charge controllers.
Q5: Can I expand the battery system later?
Yes. Up to 16 battery units can be connected in parallel for easy capacity expansion.
Q6: What are the common applications for GRANDTECH batteries?
Widely used in off-grid solar, telecom backup, home energy storage, RV/marine power, and data centers.
Q7: Do you offer OEM/ODM services?
Yes, we provide customization options including branding, BMS settings, and packaging.
Q8: What logistics and shipping options are available?
We offer global shipping via air freight, sea freight, and express courier (DHL, FedEx, UPS) with secure packaging.
