- Hign-concerned Chemical: None
- Use: Commercial
- Memory Capacity: 8 GB
- Hard Drive Capacity: 128 GB
- Model Number: F7G
- Processor Brand: Intel
- Processor Model: N4120
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Certification: CE
- Type: Mini PC

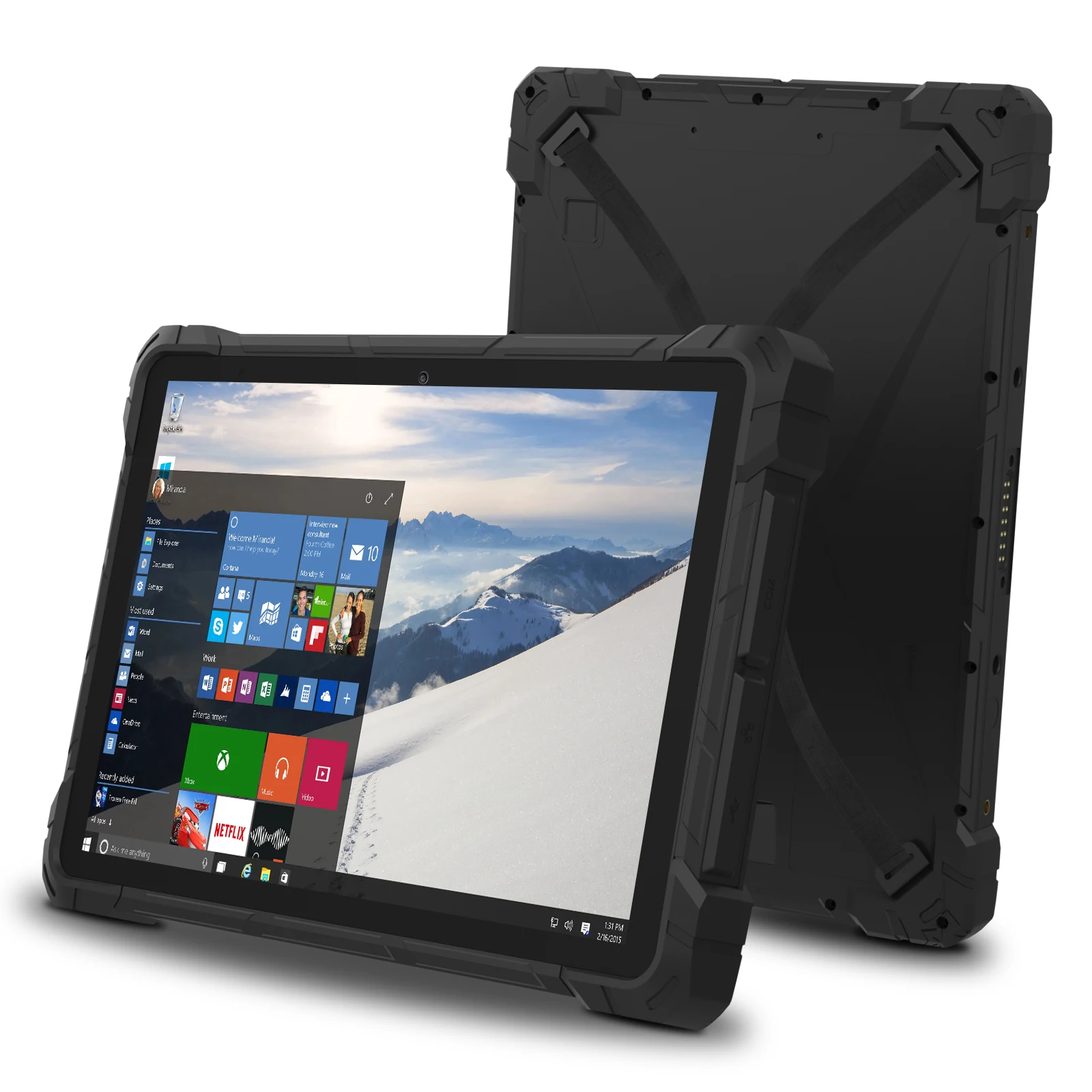

IP67, 10.1" IPS + N4120 +8GB +128GB + WiFi 2.4G&5G Dual band + 1000Mbps + HDMI2.0 + RS-232(DB9)+ USB3.0 + Type-C + support Windows10 Pro
Features & Specification:
System Physical Standard Configuration
1. Product Form
Form Factor：IP67Three Defense Tablet
Dimensions：280×184×26.5mm
Weight：1150 G
2. LCD
Screen Size：10.1"
Screen Resolution：800×1280 (IPS+HD+300lumen) (Standard)
Screen Resolution：HD screen1200×1920 (IPS+FHD+600ANSI)（Optional）
3. Touch Screen：Touch Module G+G multi touch (10 point touch)
4. Battery：
Type：Rechargeable lithium cobalate battery
Capacity：8000mAh/7.6V
Working Time：Over 8h （Full HD local video playback）
System Hardware Configuration
1. CPU
Type：Intel Gemini lake N4120
Speed：1.1GHz ~ 2.6GHz (N4120)
2. GPU：Intel UHD 600 Graphics
3. Memory：8GB LPDDR4
4. Storage
eMMC：128GB
SSD：Optional（Mini PCI-E）
5. Camera
Front：2M
Rear：5M
6. Speaker：Built-in；8Ω/1W*2pcs；waterproof
7. Micphone：Built-in；support
8. G-sensor：Built-in；support
9. Light Sensor：Built-in；optional
Network Connections
1. WIFI
WIFI Module：Intel AC3165
WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band
2. Bluetooth
BT Module：Intel AC3165
Bluetooth4.2
3. 3G/4G LTE：optional
4. QR code scanning：optional
5. GPS
BD2/GPS/GLONASS（hree choose two）（optional）
6. NFC：optional
7. Fingerprint Identification：optional
8. RFID：UHF module（optional）
9. Wired network
RJ-45
1000Mbps Gigabit Lan
Port Configuration
1. Type-C：Type-C 3.1×1pc
2. USB Interface：USB3.0×2pcs
3. SD / TF Card reader：TF Card reader×1pc (up to 512GB)
4. SIM Card Slot：SIM Slot for 3G/4G LTE×1pc
5. Audio Jack：3.5mm standard headphone+Microphone×1pc
6. HDMI：Micro HDMI2.0×1pc（4K@60 frame UHD video）
7. COM：DB9 (RS232)×1pc
Button Switch
1. Power：On/Off
2. Volume：Down/UP
3. Shortcut：QR code scanning shortcut
4. Force restart
Accessories
1. Power adapter：DC 12V/3A
2. User's Manual
3. Handle/strap（optional）
4. Charging base：USB2.0; Power charging; RJ45; RS232（optional）
5. Vehicle mount：USB2.0; Power charging; RJ45; RS232（optional）
Software Configuration
1. Power supply mode
Press the key to power on
power on
timing power on
2. Network Wakeup：Wake up on Lan by RJ45（standard）
3. PXE remote installation：Preboot Execution Environment（standard）
6. Data security：TPM2.0 hardware data encryption（optional）
7. System：Windows 10 Pro or higher（Windows Genuine Key is optional）
Environment
1. Temperature
Operation Temperature：-10°c~ 55°c（1080p or 4K local video display）
Storage Temperature：-20°c~ 70°c (Restore to Operation Temperature 2hr before use)
2. Humidity
35% ~ 80%（relative humidity, Non-condensing）
20% ~ 93%（relative humidity, Non-condensing）
Certification
IP67（support）
CE（support）
MIL-STD-810G（support）
