- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- Brand Name: LanYuXuan
- Origin: Mainland China
- Certification: CE
- Type: VERTICAL
- Range of Spindle Speed(r.p.m): 1 - 8000
- Number of Axes: 3
- Machining Capacity: Heavy Duty
- Spindle Taper: BT40
- Table Travel (X) (mm): 1100
- Table Travel (Y) (mm): 600
- Table Travel (Z) (mm): 600
- Positioning Accuracy (mm): 0.01
- Repeatability (X/Y/Z) (mm): 0.003
- Place of Origin: Shandong, China
- Brand Name: DSMACHINETOOL
- Model Number: VMC1160
- Voltage: Customer Requirement
- Dimension(L*W*H): 2800X2500X2800mm
- CNC Control System: GSK
- Key Selling Points: Automatic
- Weight (KG): 6200
- Spindle Motor Power(kW): 11
- Warranty: 12 Months
- Max. Table Load(kg): 800 kg
- Marketing Type: Hot Product 2019
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- CNC or Not: CNC Machining Center
- Machine Type: Cnc Milling Machine Vertical
- Keyword: VMC Milling Machine
- Function: Vertical Milling Machining
- Usage: Processing Machine

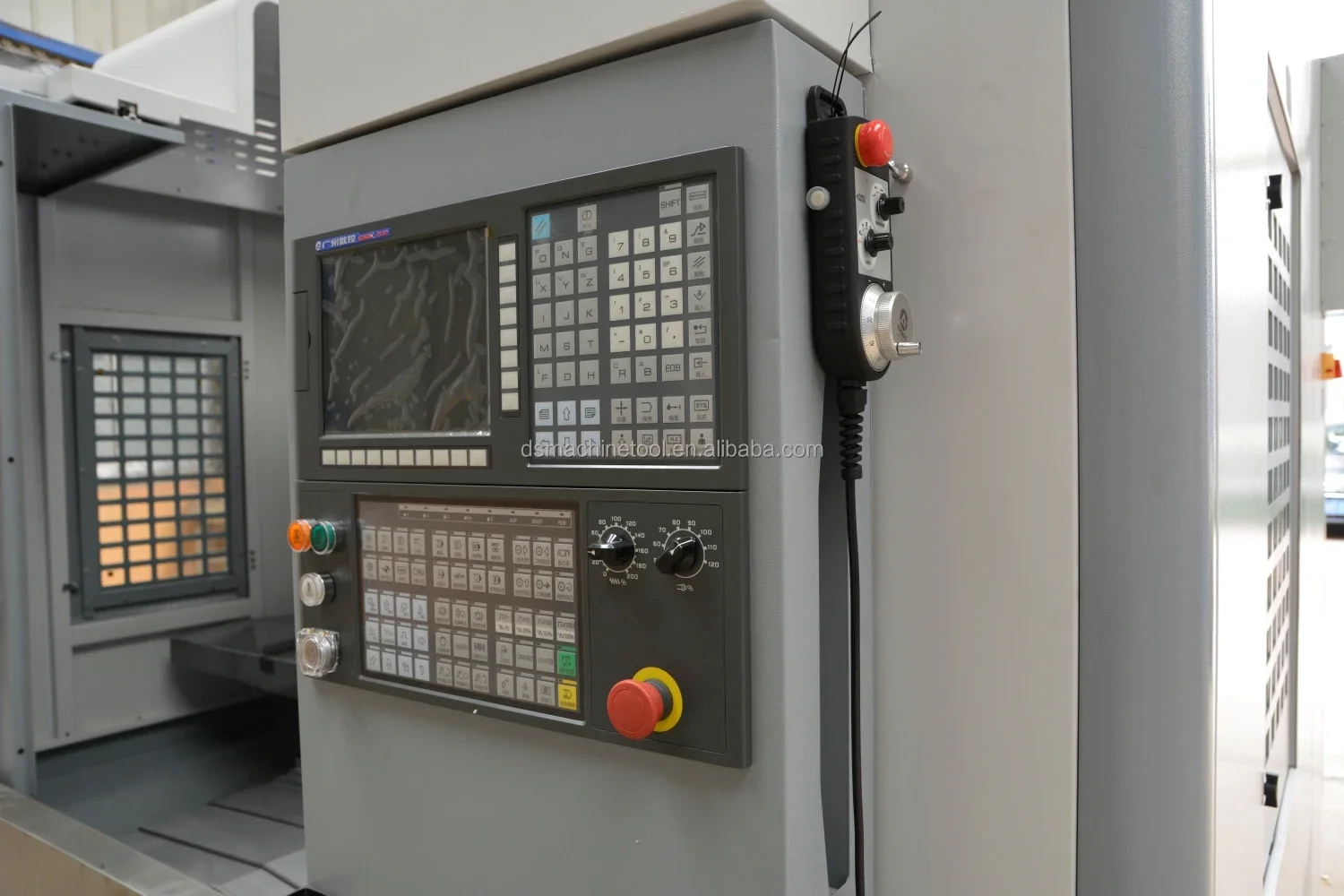

- Control system: KND SYNTEC SIEMENS GSK FANUC (optional)
- After-sales Service Provided: 1 Years After-sales Service
- Other Name: Double Column CNC Machining Center
- Material: Casting Iron Milling Machine
- Application: Metal Machining
- Condition: New
- Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops,
- Showroom Location: None
- Core Components: Bearing, Motor, Gear, Gearbox
- Table Travel (mm): 1000x600x600mm
- Year: 2023
My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! And welcome to add my WHATSAPP (+8618175124931) This product does not include free shipping. Please check the shipping cost with the customer service staff when purchasing. Thank you.
Products Description
Title goes here.
CNC Vertical machining center features:

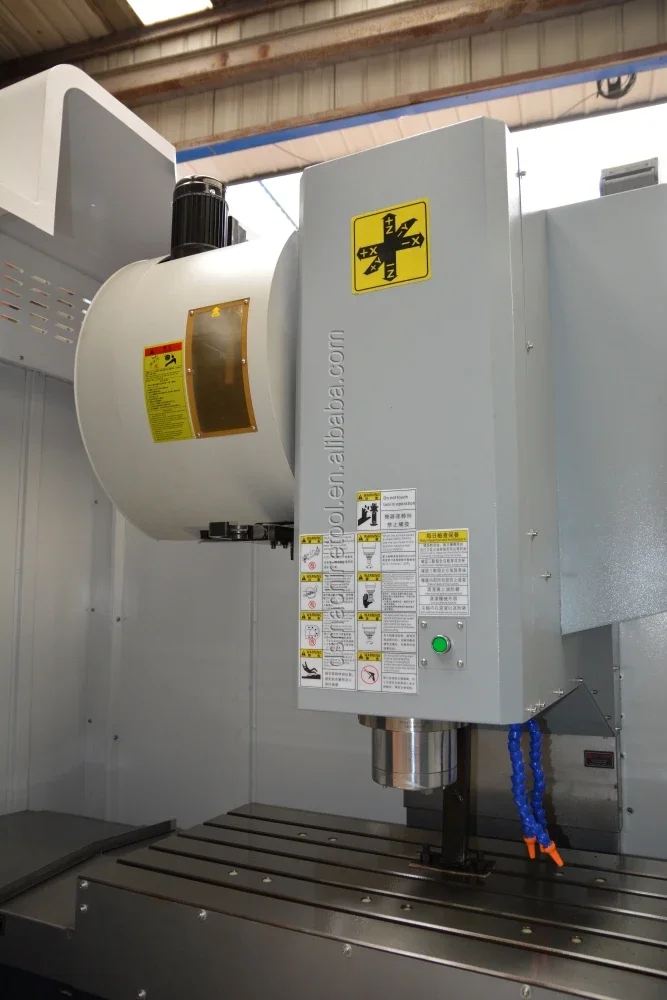

1.Taiwan spindle unit with servo motor can achieve a rotation speed of 8000r/min. Low speed is for gravity cutting, and high
speed is good for precision light cutting.
2. X, Y, Z axis are all use linear guideways, and they are all imported from Germany. The big size of linear guideway can decrease
the gap of different guideway, and it can increase precision meantime.
3. It adopts Taiwan PMI precision ball screw, Taiwan precision locknuts and Japan NSK bearings. It directly connected to flexible
coupling, so that it can achieve a high effectiveness and low backlash.

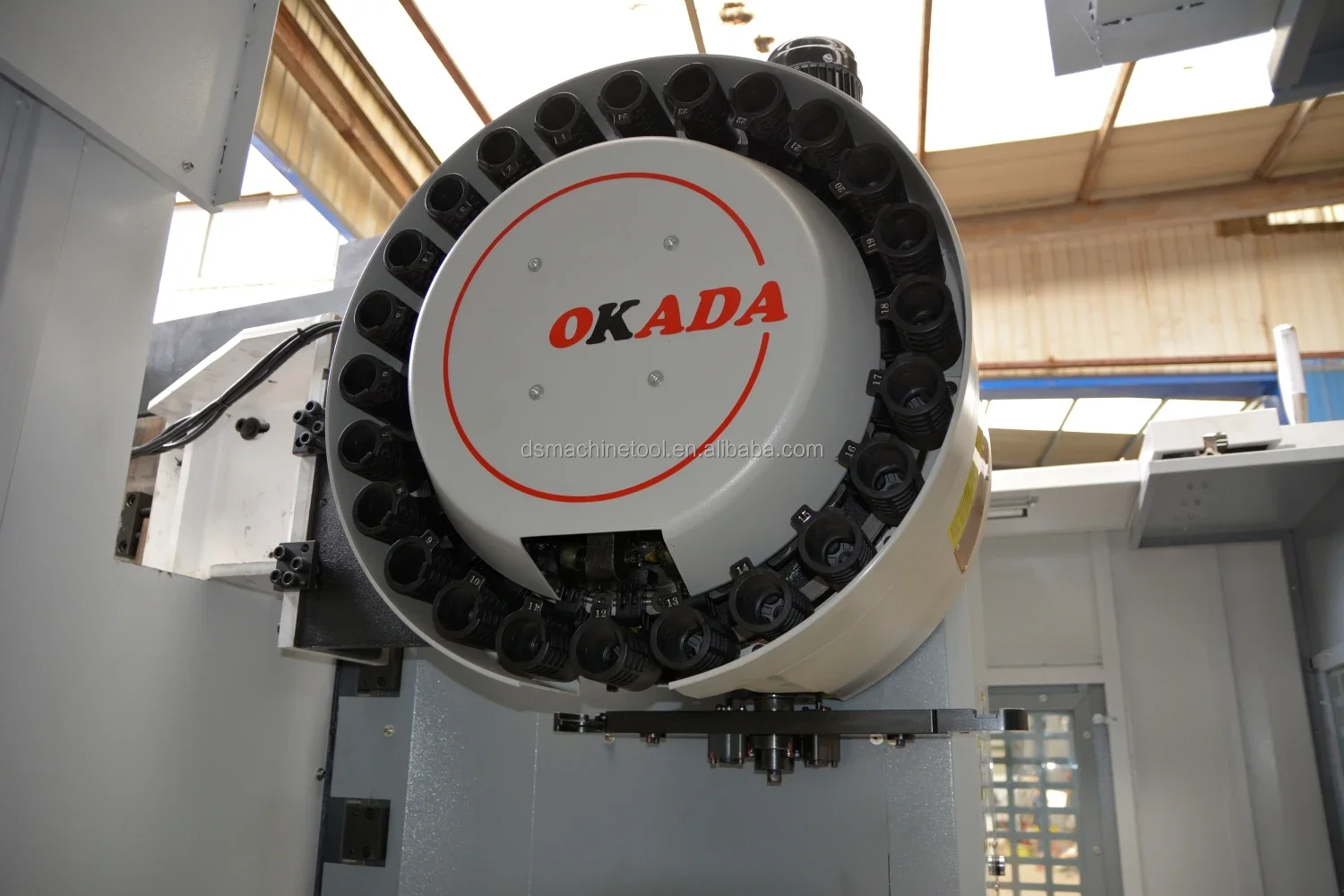

4. It has disc-type tool changer, can load up to 24 tools, and so that it can choose the closest tool and save time.
5. All the transmission shaft pitch is used high-precision laser interferometer to fulfill the adjusting of pitch error and
clearance error, so that the positioning accuracy of each axis is more accurate, and it's more suitable to produce high -
precision parts.
6. It introduced an automatic quantitative clearance centralized lubrication system to lubricate moving parts such as guideway,
ball screw and so on.
1.Taiwan spindle unit with servo motor can achieve a rotation speed of 8000r/min. Low speed is for gravity cutting, and high
speed is good for precision light cutting.
2. X, Y, Z axis are all use linear guideways, and they are all imported from Germany. The big size of linear guideway can decrease
the gap of different guideway, and it can increase precision meantime.
3. It adopts Taiwan PMI precision ball screw, Taiwan precision locknuts and Japan NSK bearings. It directly connected to flexible
coupling, so that it can achieve a high effectiveness and low backlash.
4. It has disc-type tool changer, can load up to 24 tools, and so that it can choose the closest tool and save time.
5. All the transmission shaft pitch is used high-precision laser interferometer to fulfill the adjusting of pitch error and
clearance error, so that the positioning accuracy of each axis is more accurate, and it's more suitable to produce high -
precision parts.
6. It introduced an automatic quantitative clearance centralized lubrication system to lubricate moving parts such as guideway,
ball screw and so on.
|
Specification
|

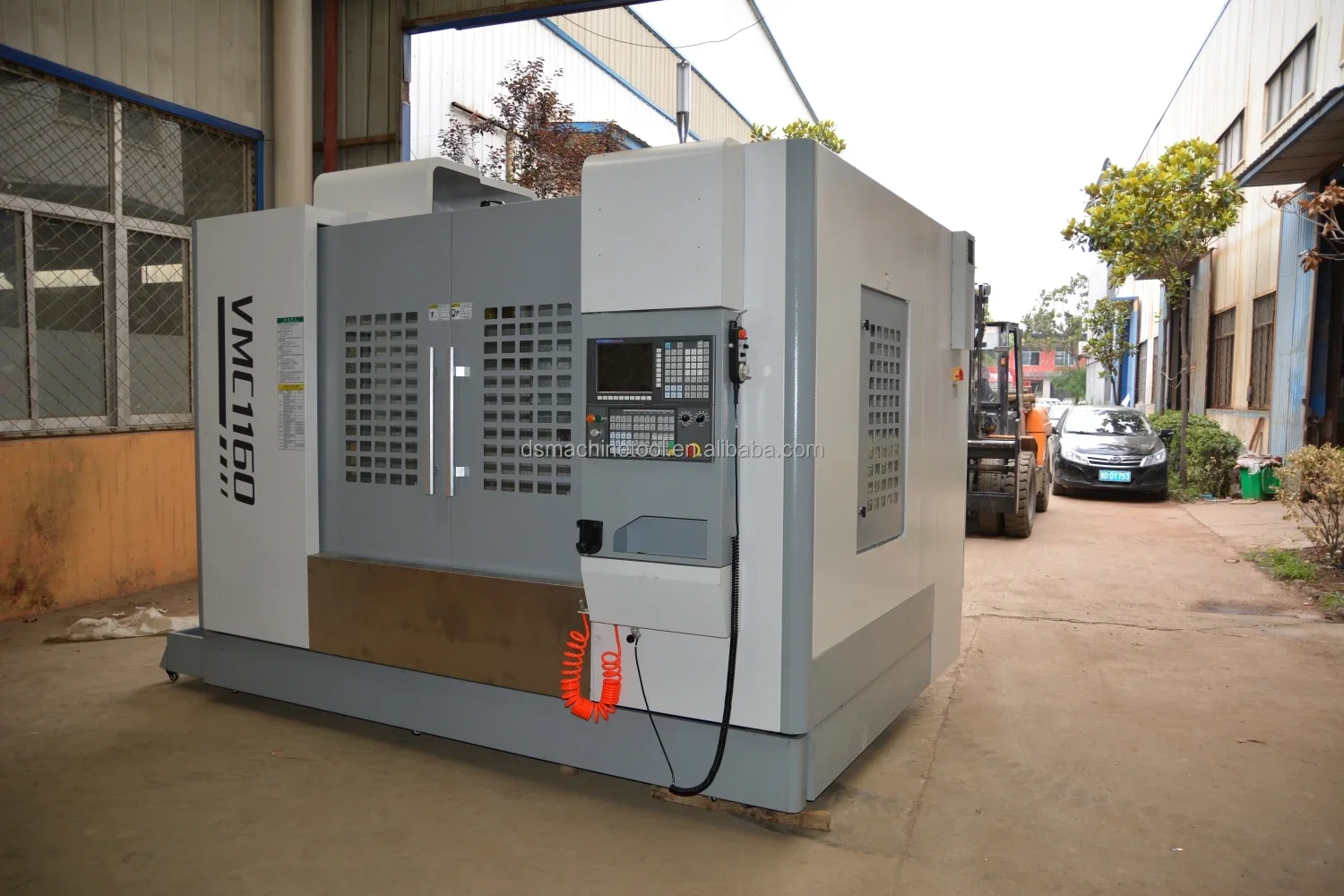

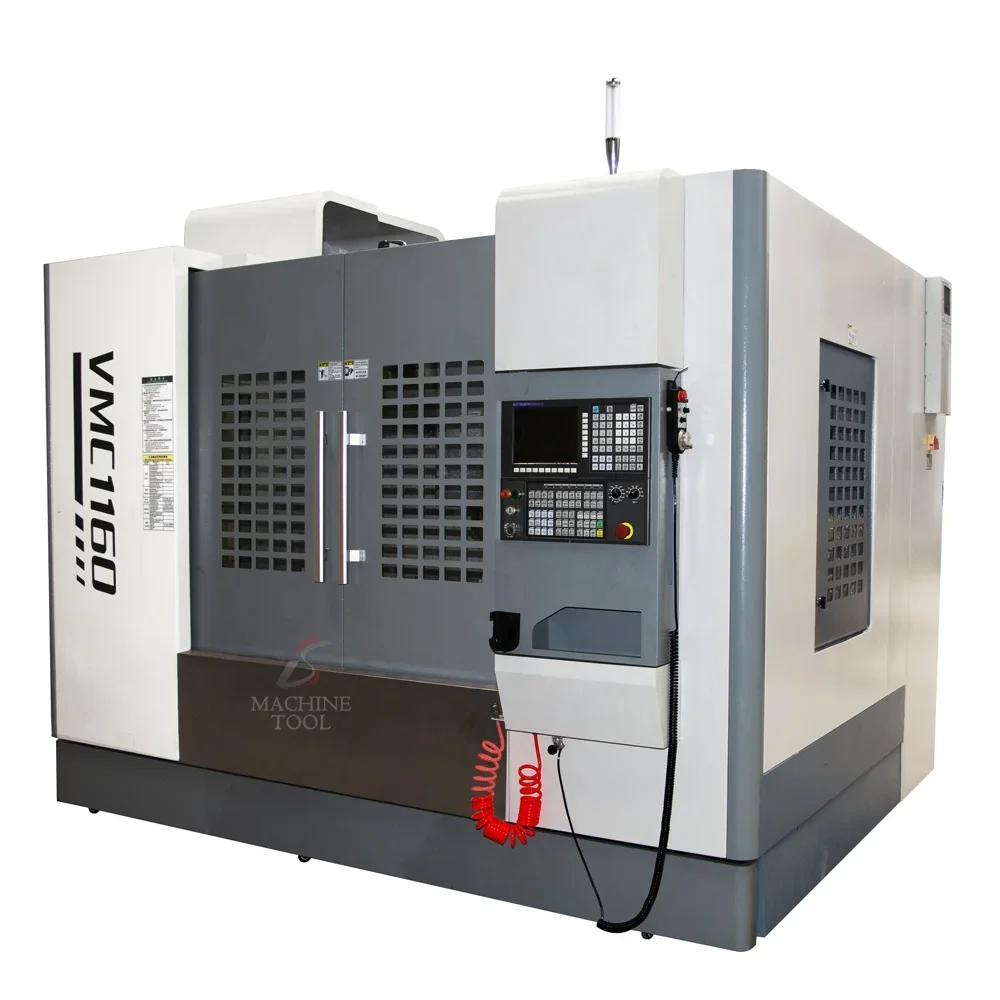

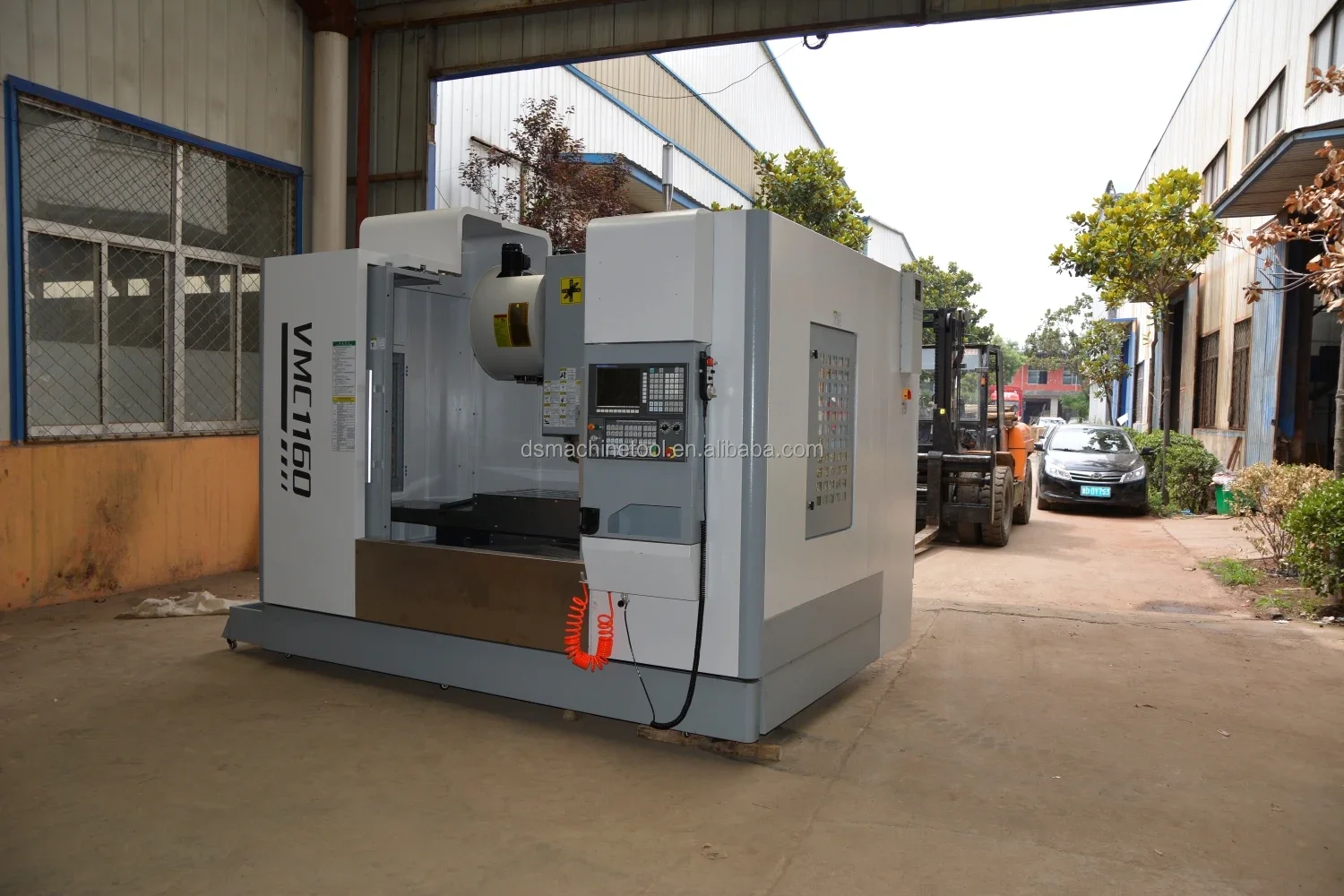

VMC1160
|
|
X-axis Travel
|
1100mm
|
|
Y-axis Travel
|
600mm
|
|
Z-axis Travel
|
600mm
|
|

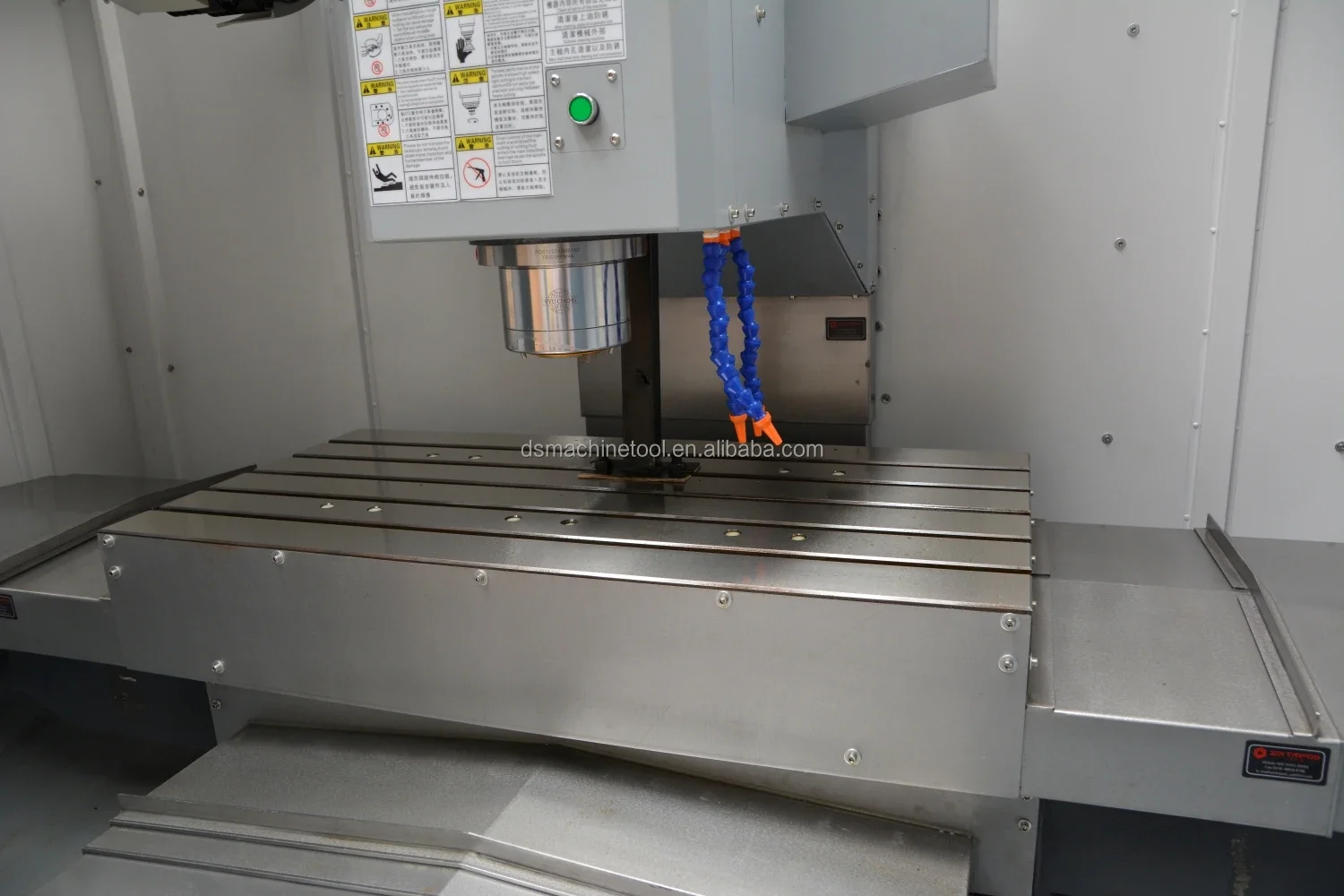

Table size
|
1200x600mm
|
|
Max.Loading
|
800kg
|
|
T-Slot
|
5x18x100mm
|
|
Spindle nose to table surface
|
120-720mm
|
|
Spindle axis to column surface
|
650mm
|
|
Spindle taper
|
BT40
|
|
Spindle speed
|
8000rpm
|
|
Spindle motor
|
11kw
|
|
Max.tool dia.
|
80/150mm
|
|
Max.tool length
|
200mm
|
|
Max.tool weight
|
8kg
|
|
X,Y axis rapid movement rate
|
24000mm/min
|
|
Z axis rapid movement rate
|
20000mm/min
|
|
Cutting feed rate
|
1-10000mm/min
|
|
Position accuracy
|
±0.01mm
|
|
Repeat positioning accucary
|
±0.003/300mm
|
|
Coolant capacity
|
200L
|
|
Coolant power
|
440w
|
|
Dimensions
|
3350x2300x2550 mm
|
|
Net Weight
|
6200kg
|
