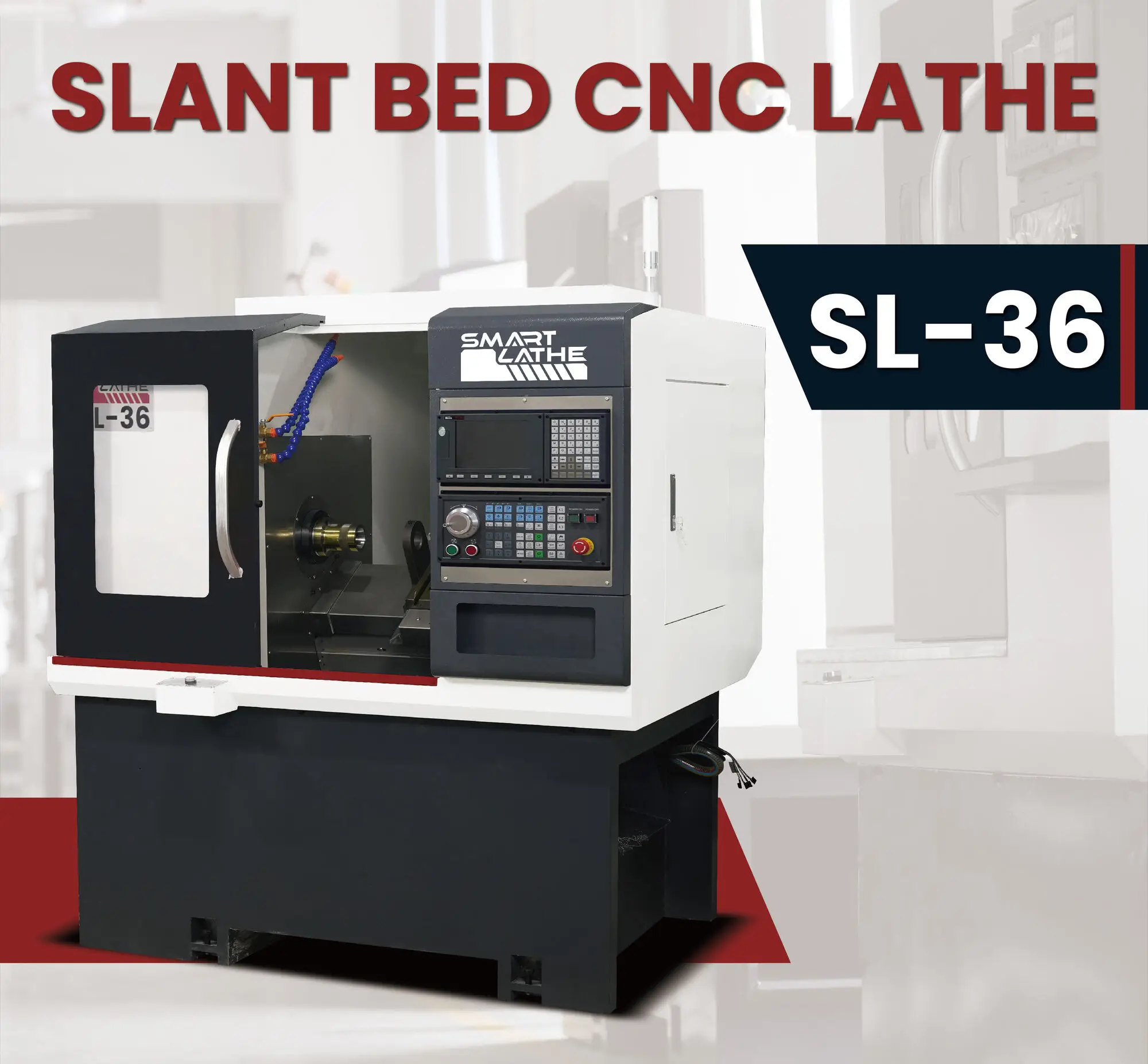

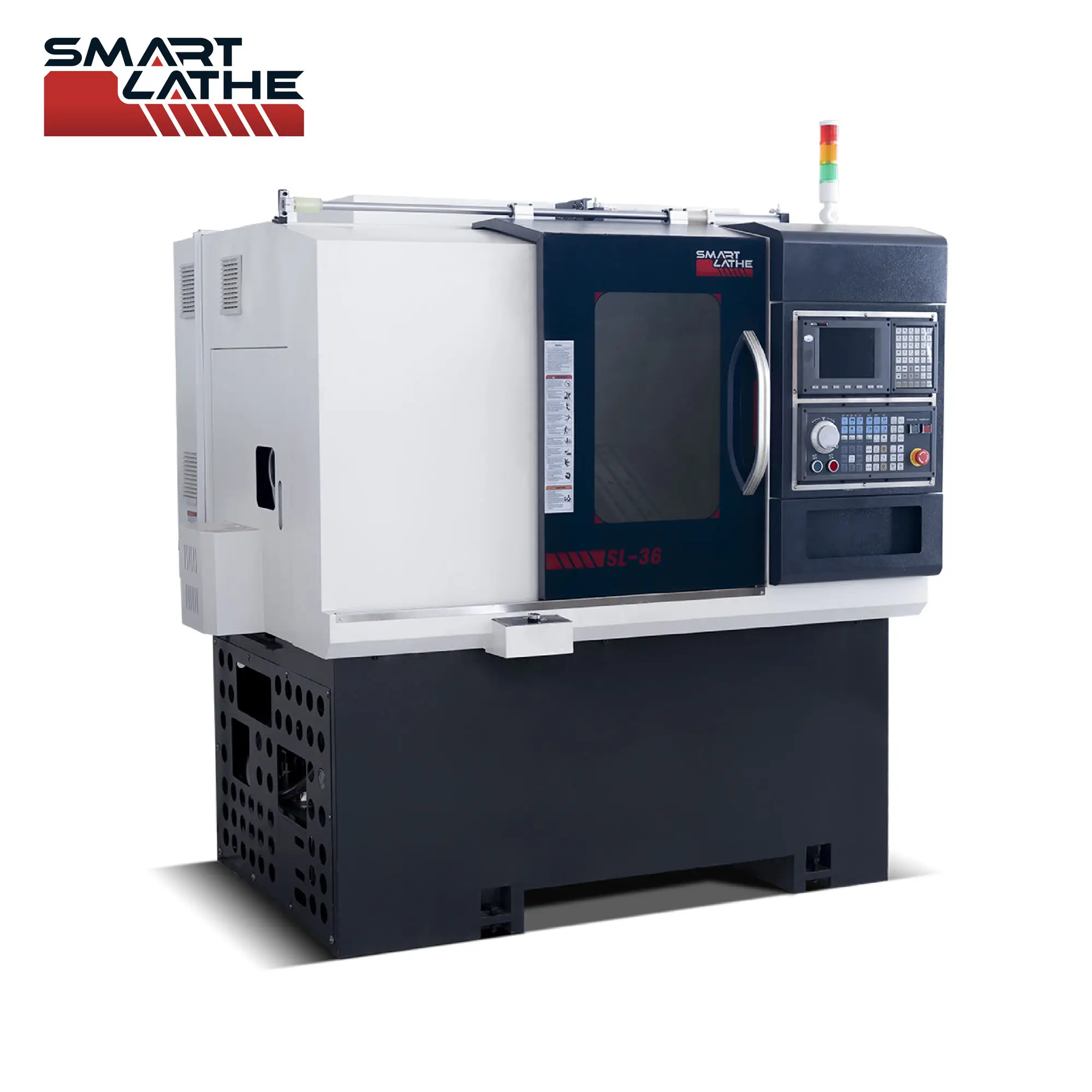

Name: High Efficiency Sl-36 Long Travel Slant Bed Automatic Gang Type CNC Lathe Hine
SKU: 1005008143879536
Availability: InStock

Product Description

Features

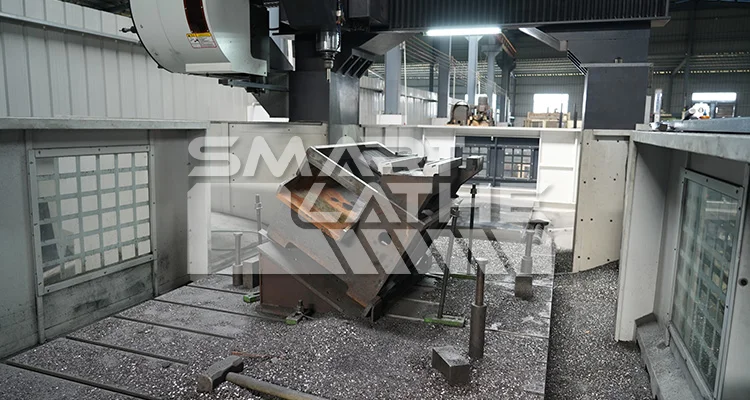

High rigidity body structure, the lathe base is FEM analyzed to ensure the superb rigidity and stability of the lathe.

The patented slant bed design increases the X-axis travel to 600mm and Z-axis to 230mm optimizing the lathe size and stability.

The main spindle has with C-axis function, high speed, high precision, and low vibration which can make the workpiece precise.
Each spindle bearing assembly was tested for dynamic balance before installation to ensure high-speed running stability.

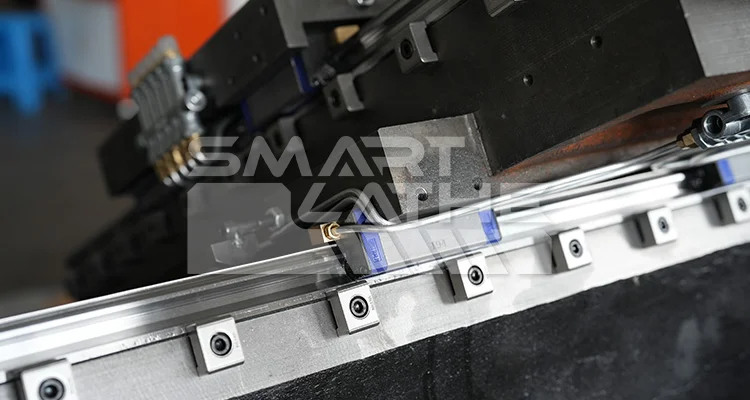

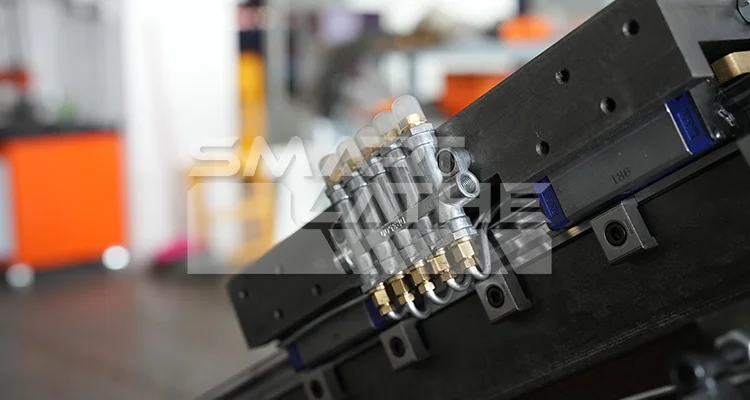

Equips with auto lubrication system to ensure transmission system is smooth and long-lived.

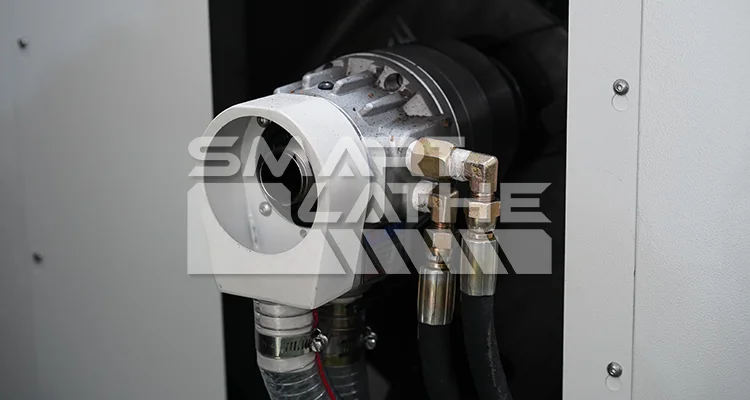

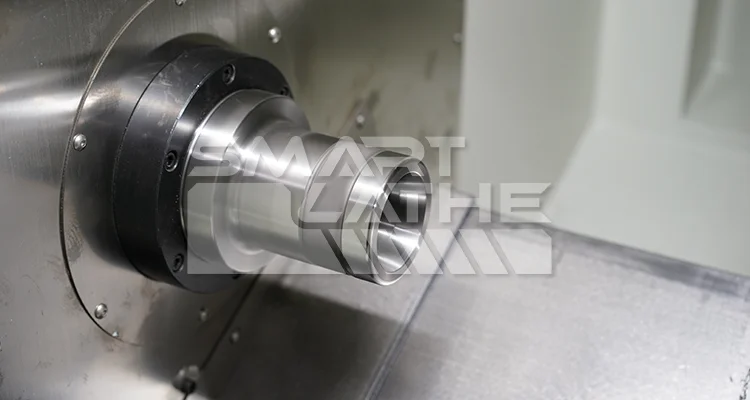

Robust hydraulic collet chuck can hold bars up to φ35mm and single workpieces up to φ280mm.

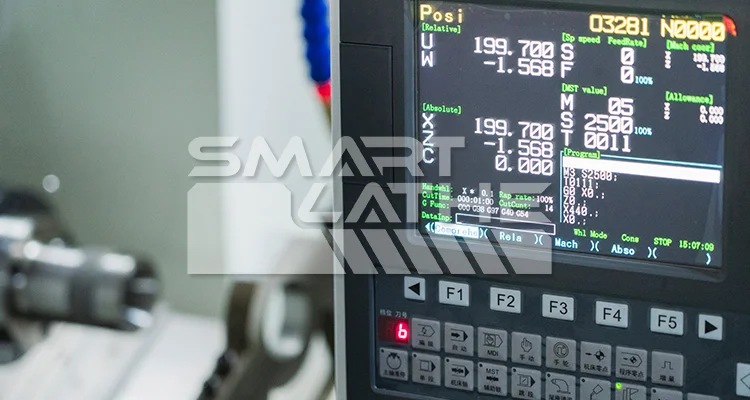

SmartBrain CNC system co-works with quality electrical parts providing operation and durable use.

Standard Configuration

Fully enclosed splash guard with top roof	3KW spindle servo motor
Spindle speed 4000 rpm, A2-4	Automatic lubrication system	Coolant system
CNC Simulation	Hydraulic system	Coolant tank
Oil separator	LED working lamp	Electronic handwheel (MPG)

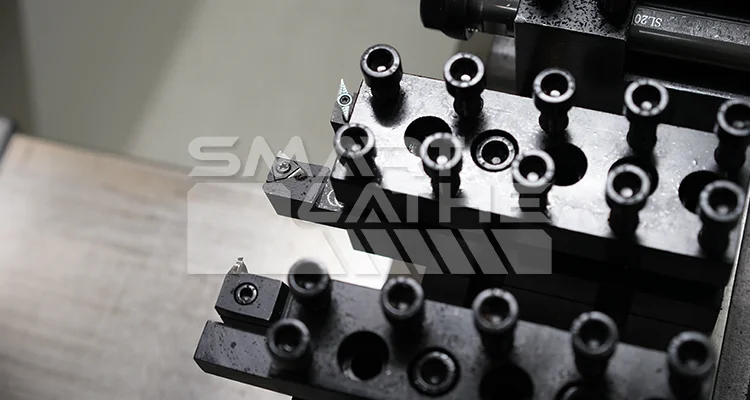

Coolant gun	Toolbox and user manuals	The tool holder(5 Sets)
Collet (1 Set)	C axis

Optional Accessories

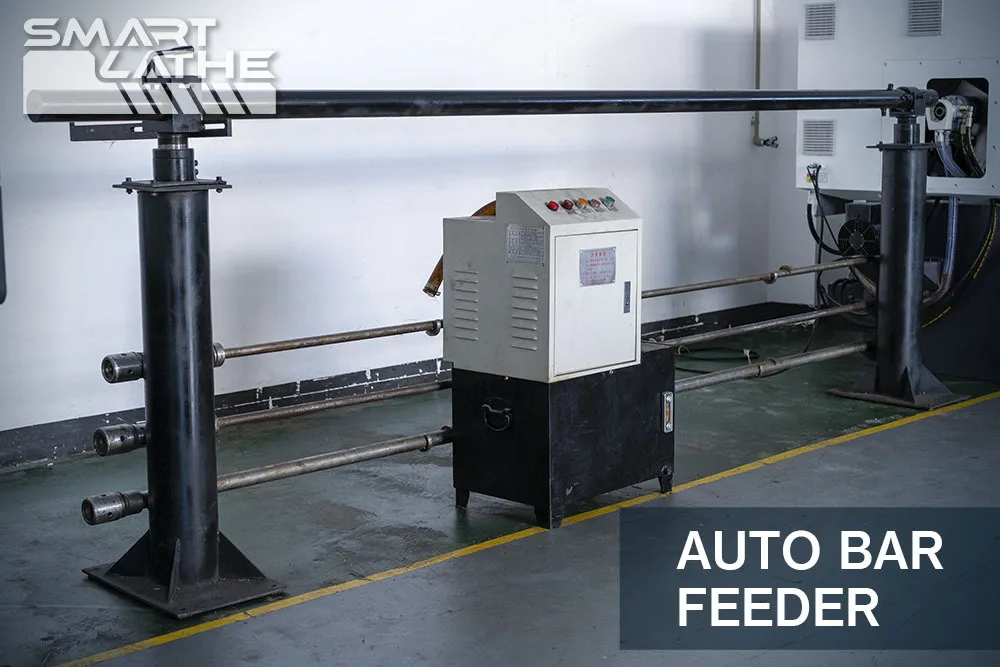

Servo Bar Feeder

Oil Bar Feeder

Follow Rest

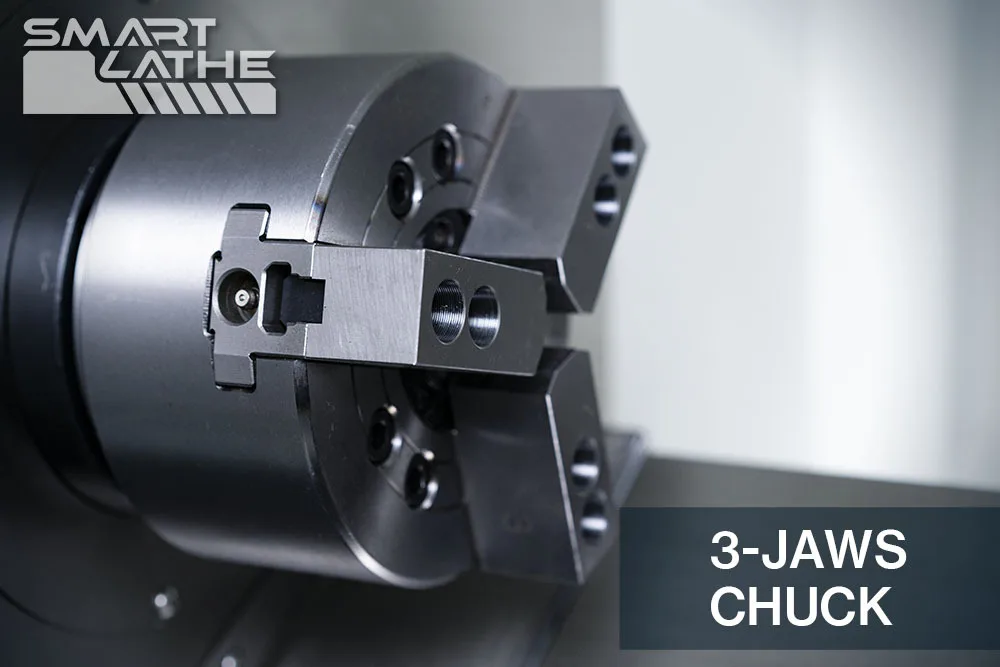

3-Jaw Hydraulic Chuck
with Soft Jaws

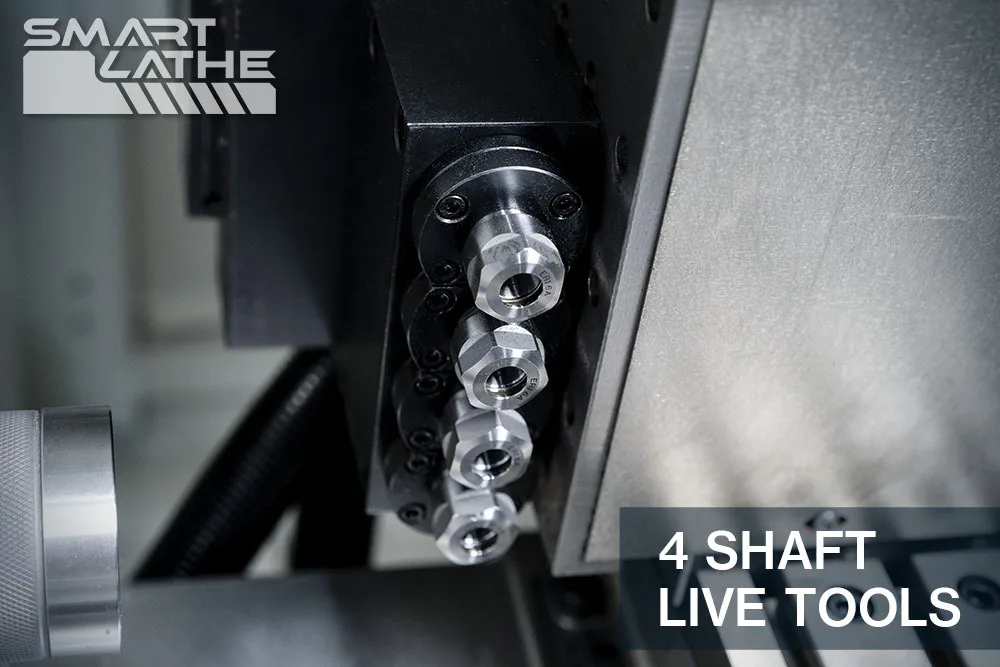

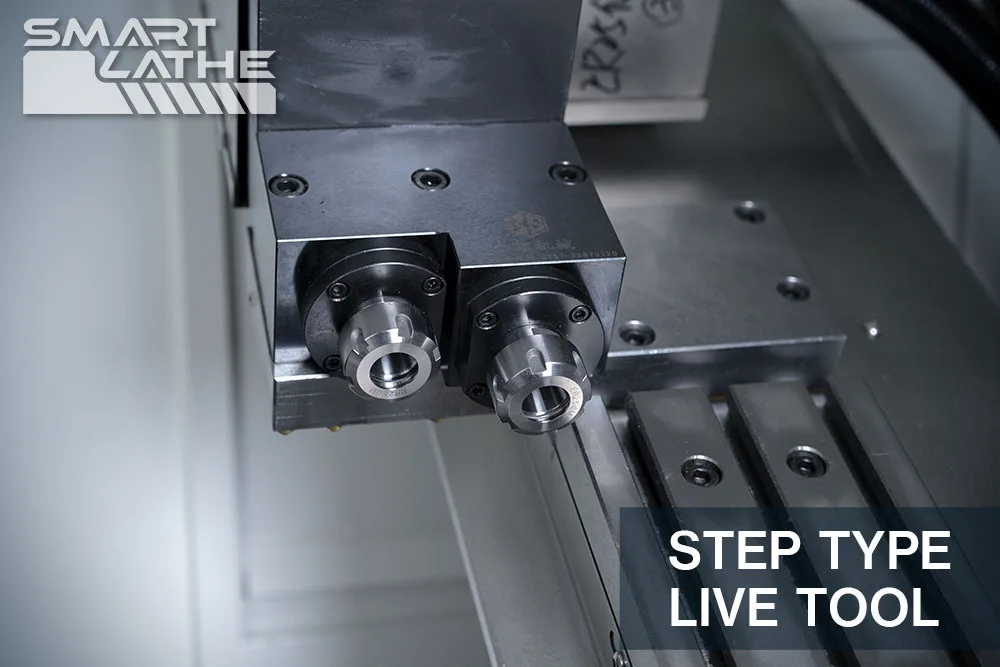

Live Tool Device
(Single or Double-Shaft)

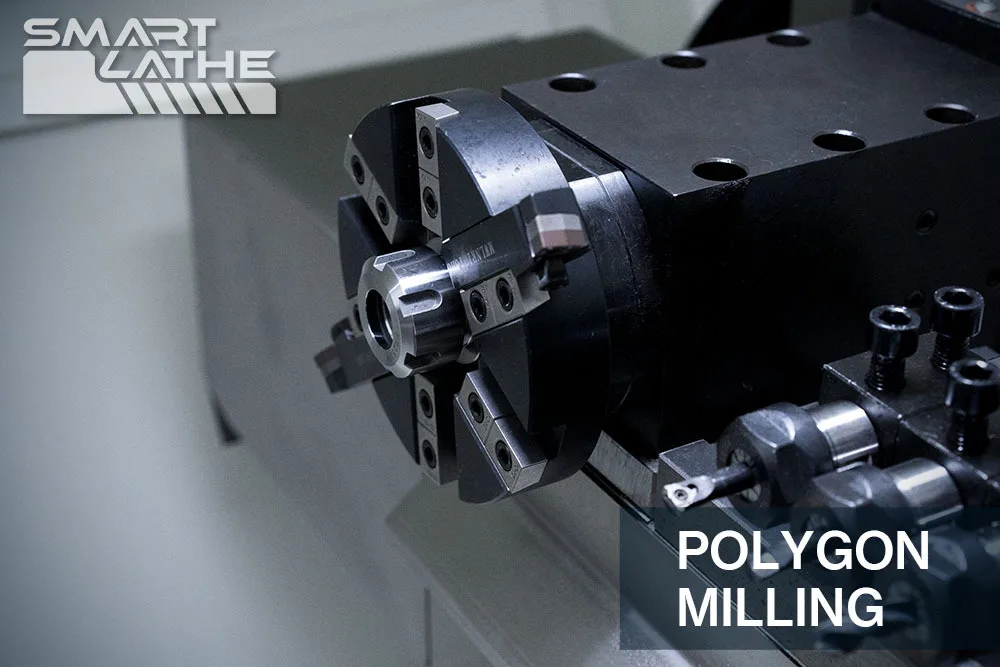

Polygon Turning

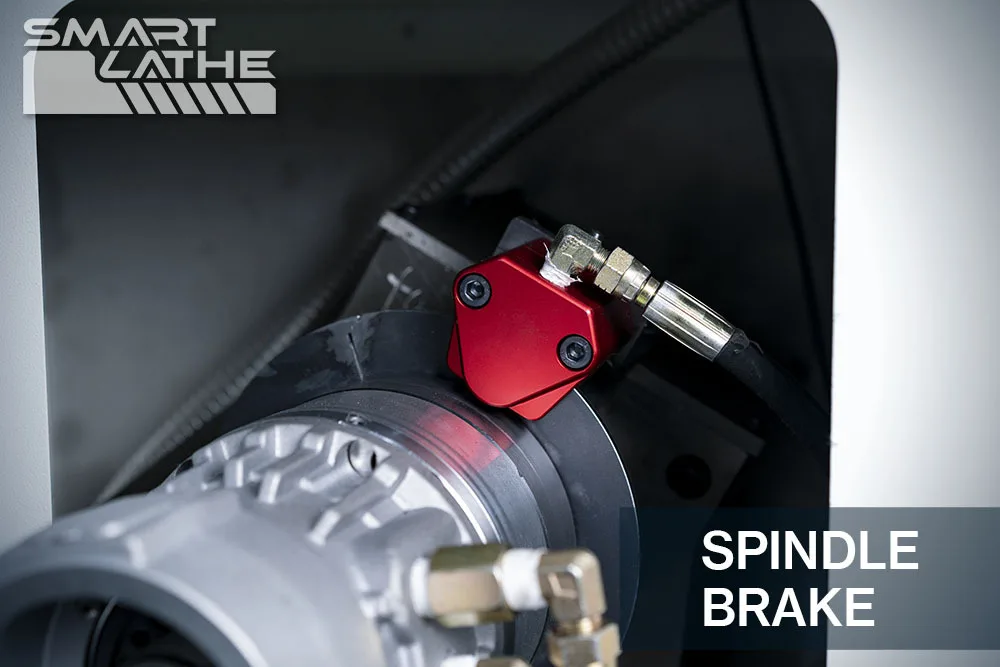

Disk brake device

Part Catcher

Oil Mist Collector

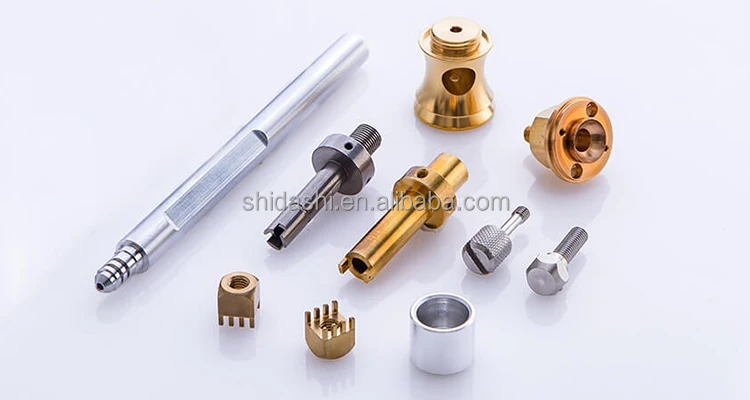

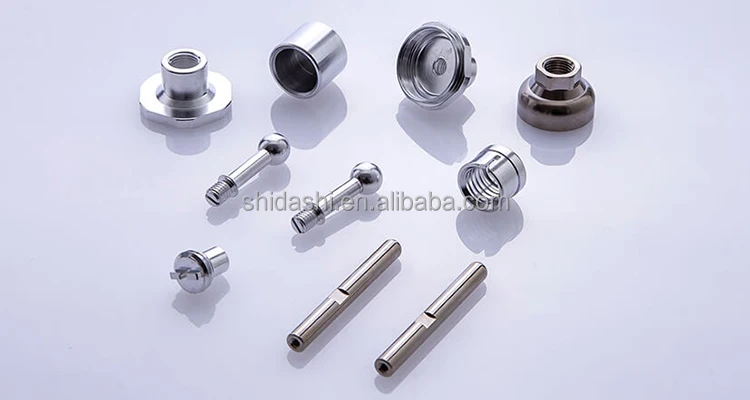

Applications

Demo Services

After-sales Services

FAQ

1: How can I choose machines?
A: for the model selection, please send us the drawing of the turning part, and our engineer will evaluate it and provide the suitable configuration of the CNC lathe fit for your needs.

2: What are the main products of your company?
entry-level business, and the craftsman with a bootstrap budget.

3: Where is our factory located? How can I visit there?

4: What are the Trade & Payment Terms?
A: FOB, CFR, and CIF are all acceptable. T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC at sight.

5: What's the MOQ?
A: 1 set. We will offer you a better price if you order more.

6. What is the delivery time?
A: The full series of standard models are in stock. For a customized one, it depends.

7. Do you have any certificates?
A: Yes, our machine is CE-compliant, and our factory is ISO 9001 accredited.

8. What is the warranty period?
A: The warranty period is generally 13 months after B/L date.

9. Machine installation.
A: SmartLathe could assign the technician to the place for the on-site installation if requested by the purchaser.

10. Technical Support
A: The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.

11. Demo and Testing
A: SmartLathe built a training center for the clients and employees to study the operation of the machine. You are welcome to visit our factory anytime for the machines’ demo. Furthermore, we could demo per your drawing of turning parts.
