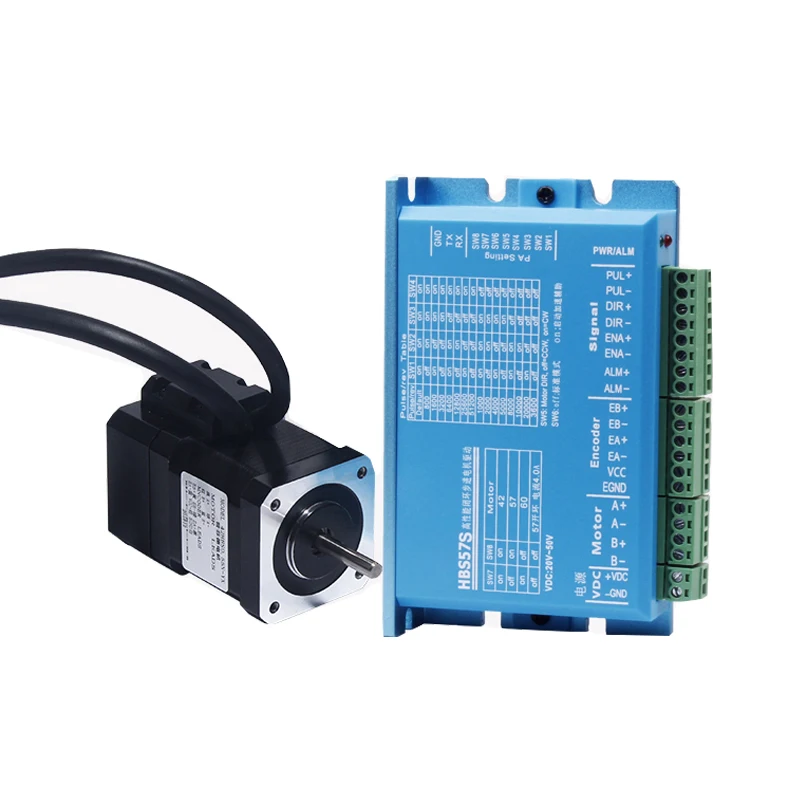

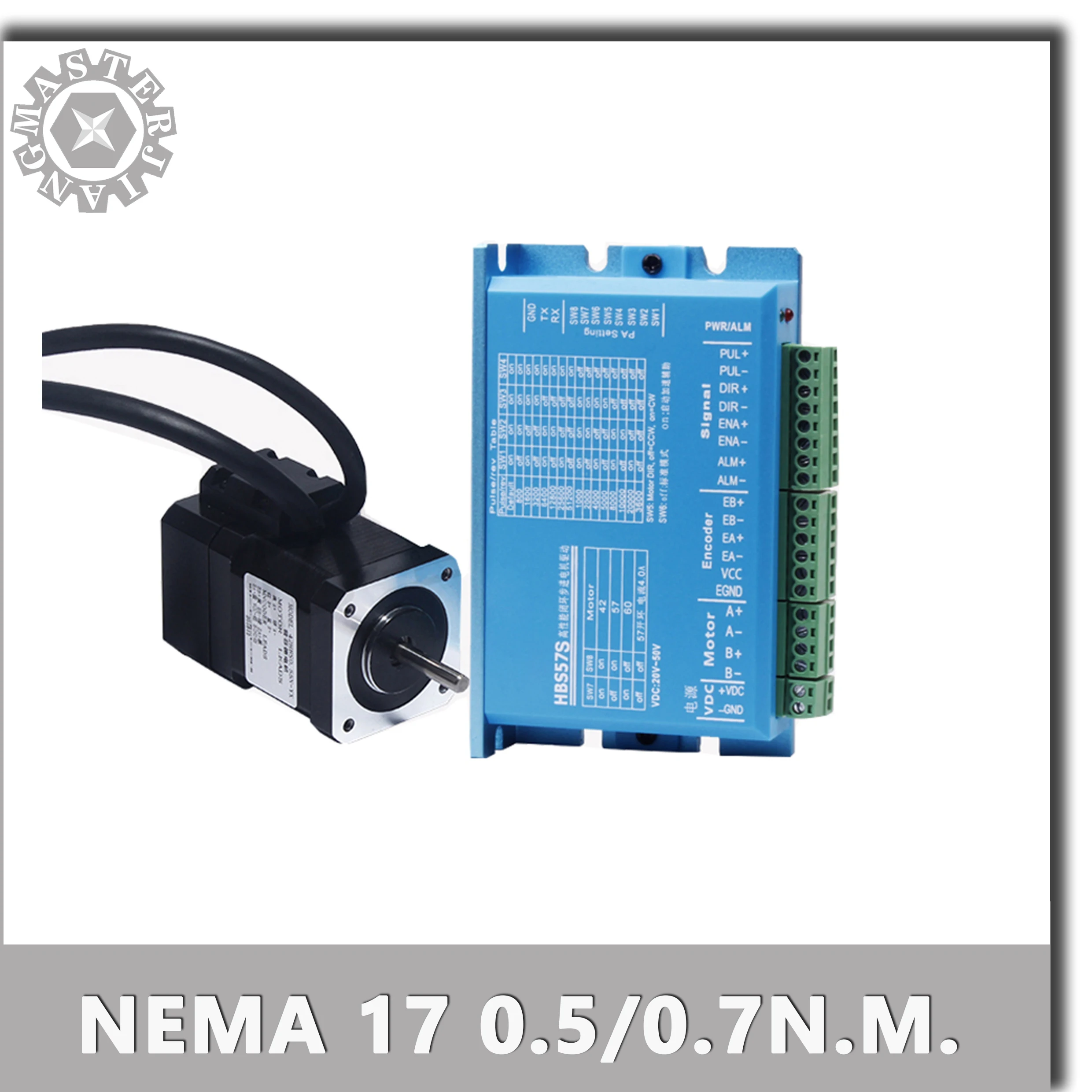

42 Closed-loop stepper motor set 0.55N.M/0.7N.M high speed constant torque closed loop motor 42HBM48/42HBM60 stepping servo motor with HBS57S/HBS57 stepper motordriver
Details of 0.55N.m Motor :
Motor model: 42HBM48
Motor current: 1.7A
Output torque: 0.55N.m
Body length: about 68MM
Shaft diameter: 5MM, no keyway
Outletmode: single output shaft
Rated speed: 1000 rpm (no-load speed: 2000 rpm)
Outlet mode: two-phase four-wire (must be wired according to motor label)
Details of 0.7N.m Motor :
Motor model: 42HBM60
Motor current: 1.7A
Output torque: 0.7N.m
Body length: about 80MM
Shaft diameter: 5MM, no keyway
Outletmode: single output shaft
Rated speed: 1000 rpm (no-load speed: 2000 rpm)
Outlet mode: two-phase four-wire (must be wired according to motor label)

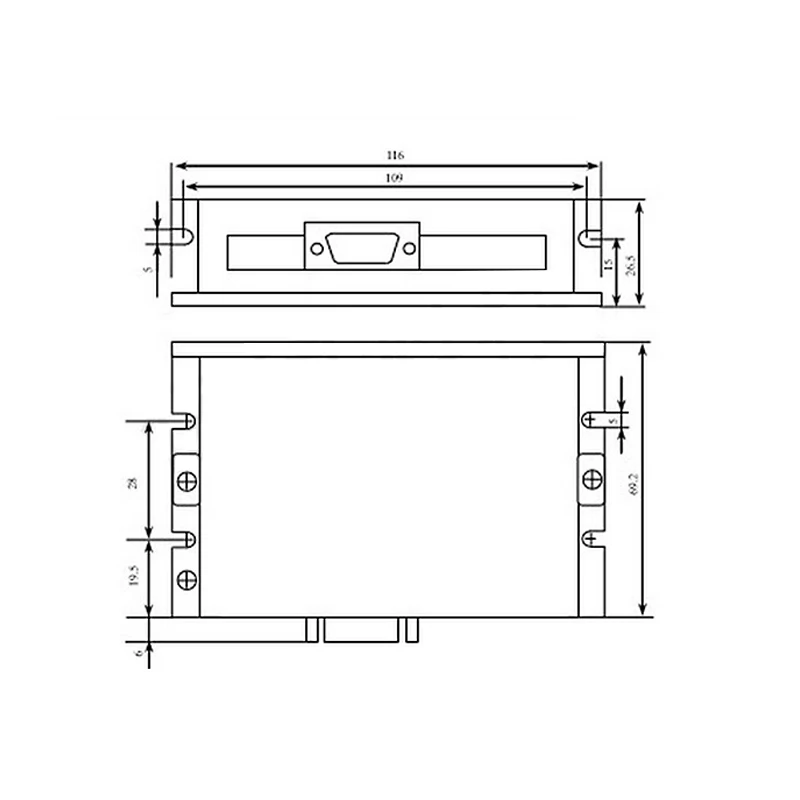

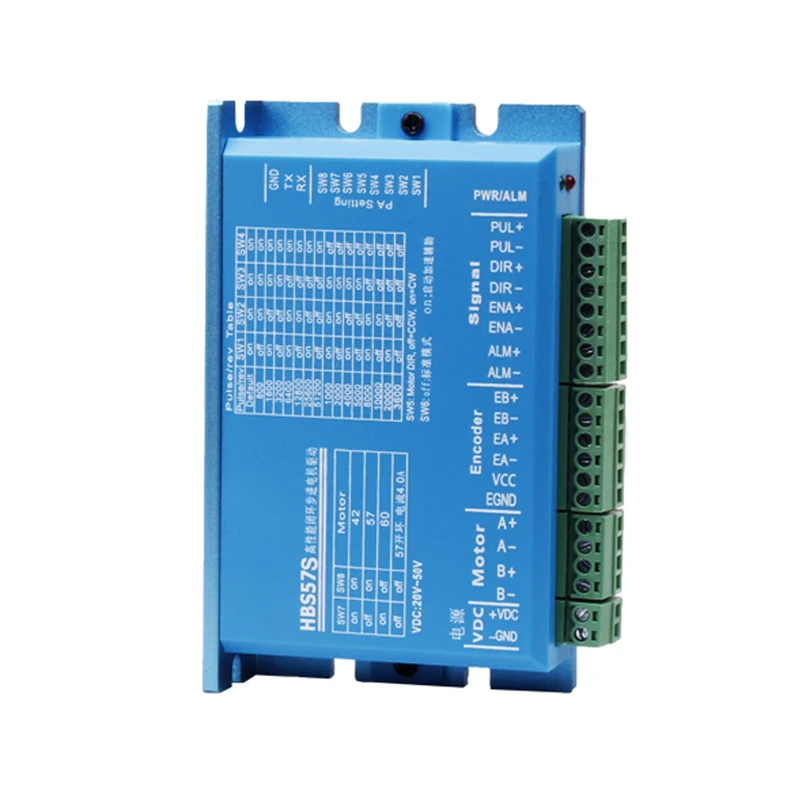

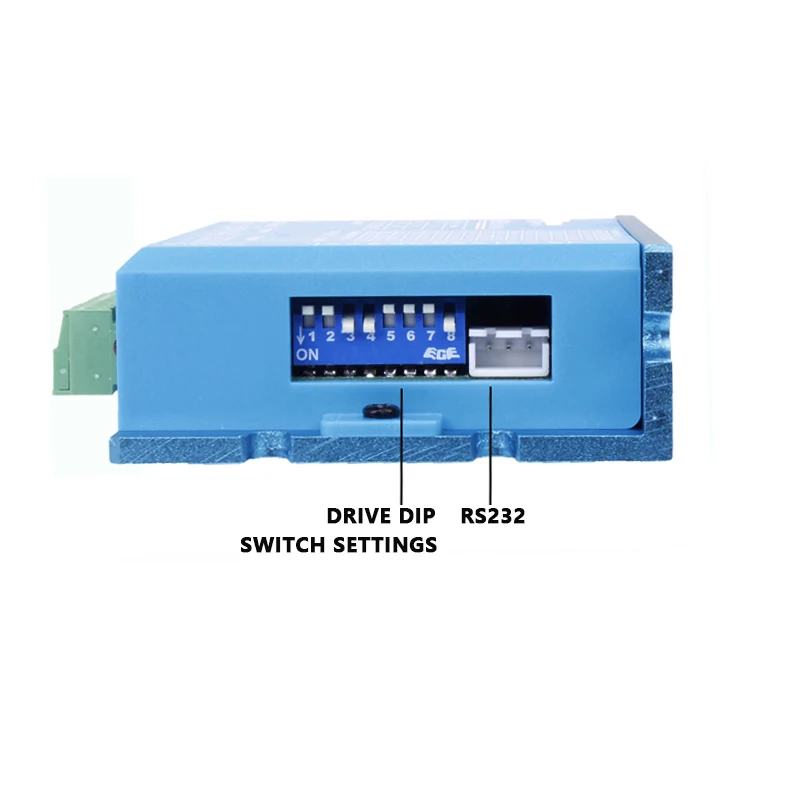

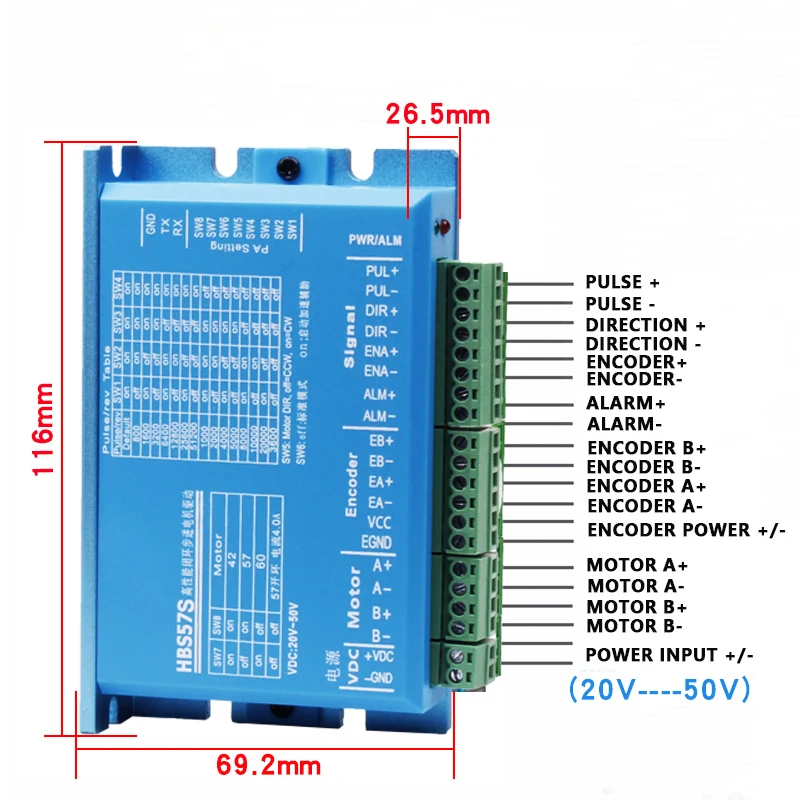

Details of Stepper Drive:
Drive Model: HBS57S/HBS57 (Nema 23, for 42/57 stepper motor/stepper servo motor, sent in random)
Voltage Range: DC24-80V
(recommend working voltage: 36V/48V)
Features:
1. High performance of the motor: combined with DSP high-performance motor control chip and three-phase inverter drive module
2. High precision of the motor: The stepper servo driver adopts the optocoupler to isolate the signal input, the input can be shared with the common yin and the anti-interference ability is strong, and the high-precision positioning can be realized in the harsh environment of the power grid.
3. High torque of the drive: The internal circuit of the drive adopts a circuit similar to the servo control principle. This circuit can make the motor run smoothly and reduce vibration and noise. When the motor is at high speed, the torque is much higher than that of the two-phase and non-phase hybrid stepping motor.
4. The drive does not lose step: the drive uses a high-end dedicated motor control DSP chip and application vector closed-loop control technology to overcome the lost step of the open-loop stepper motor driver.
5. Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine / placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.
Package Included:

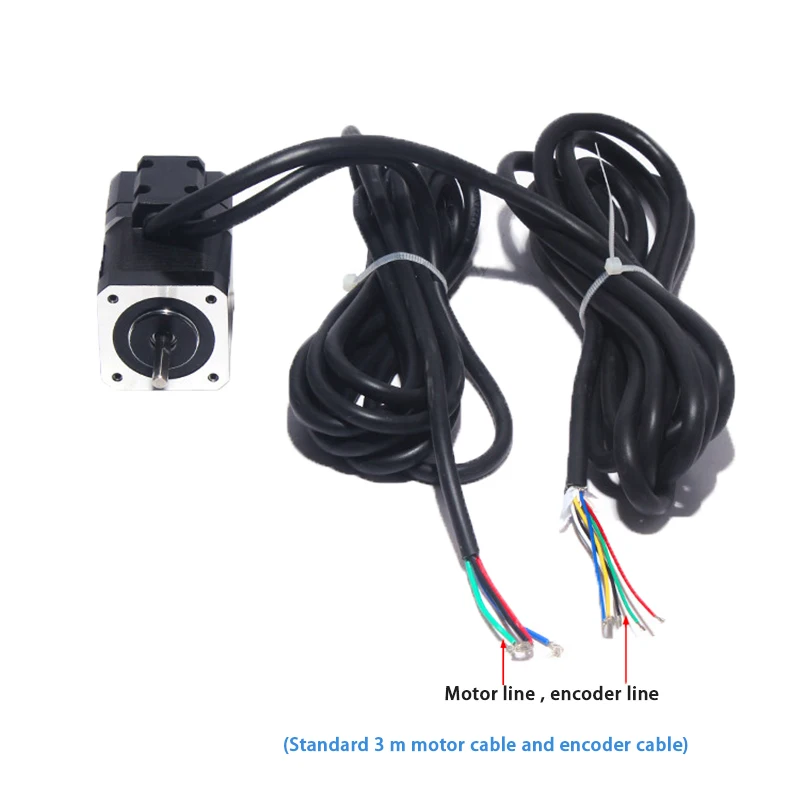

With 42 0.55NM Motor: 1 x HBS57S/HBS57Stepper Motor Drive + 1 x42HBM48 0.55N.M. Motor+ 1 x 3 meters Encoder Cable + 1 x3 meters Motor Cable
With 42 0.7NM Motor: 1 x HBS57S/HBS57Stepper Motor Drive + 1 x42HBM60 0.7N.M. Motor+ 1 x 3 meters Encoder Cable + 1 x3 meters Motor Cable
Note:
Please contact us, if you need:
1. English manuals
2.
to add Longer Cable
3. to add Brake for Motor
Note: HBS57S and HBS57 are the same driver for 42 stepper motor, we'll send the driver in random!
0.55N.M. Motor
0.7N.M. Motor
