Equipment Introduction:

capping machine is mainly used to the screwcap tighten and loosen. Easy to carry, which can be easily used to tighten  or loosen the  cap. Of its adjustable clutch (readjustment) can effectively avoid the cap damage and reduce the wear and tear of the internal plug once the cap is tightened chuck to stop spinning, show that you can be the next cap operation. Capping work applicable to a variety of high strength bottle caps apply to the the cap direct range of 10-50 mm, a single production capacity of up to 30-90 bottles/min.

Technical parameters:

Voltage:   AC 110V - 220V   50-60Hz
Power:   100W
950D model Capping diameter range  : 5-50mm

(Configuration 2 capping head, 9 silicone pad)

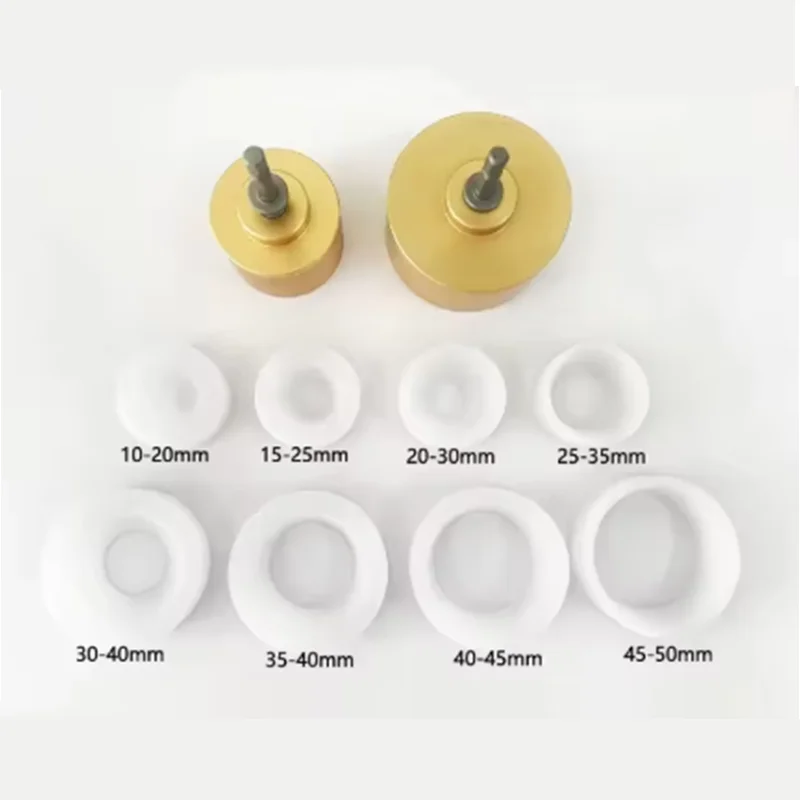

the silicone mat : 10-20mm,15-25mm, 20-30mm, 25-35mm,30-40mm, 35-40mm,40-45mm, 40-50mm,45-50mm

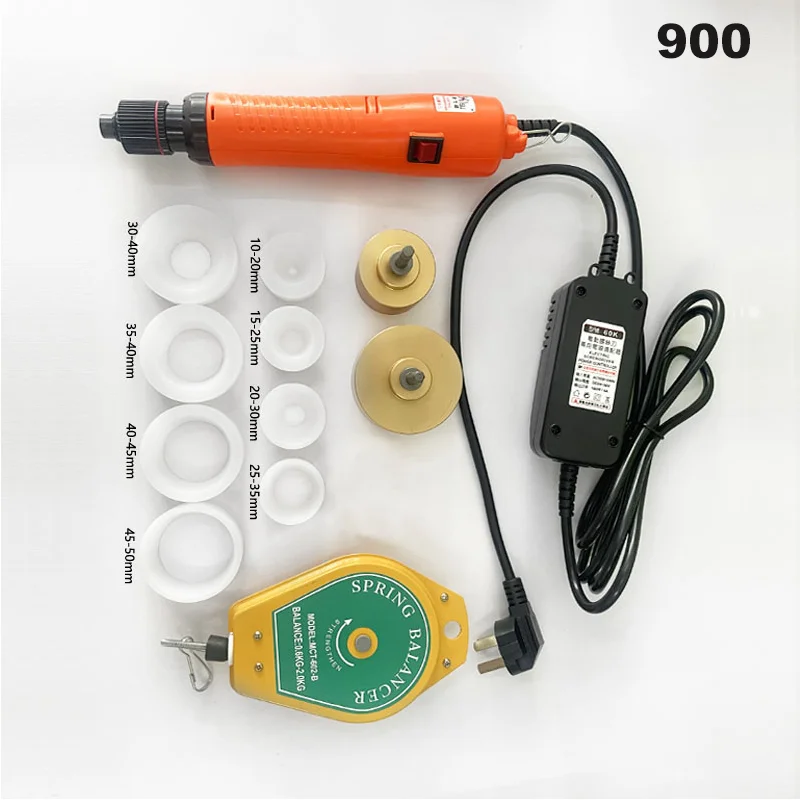

900 model Capping diameter range  : 5-50mm

(Configuration 2 capping head, 8 silicone pad)

the silicone mat : 10-20mm,15-25mm, 20-30mm, 25-35mm,30-40mm, 35-40mm,40-45mm, 45-50mm

Bottle Height:     not limited

Torque :    10-50 kgf. cm
Machine size:  6 × 6 × 30 cm
Total Net Weight:  2kg
