- fonte de alimentação de 50Vac ou 75Vdc ou superior: sim
- Produto Químico de Alta Preocupação: Nenhum
- POE: Nenhum
- Nuvem eletrônica (P2P): Sim
- Áudio bidirecional: Sim
- Tipo de backup: Disco rígido,Mergulhadores de flash USB,cartão SD
- Sistemas operacionais suportados: Microsoft windows xp,Microsoft Windows 7
- Sistemas móveis suportados: sistema operacional iphone,Android
- Modo IP: Endereço IP estático
- Segurança sem fio: WPA2 de
- Protocolo de rede: DHCP,porta de transferência de arquivos
- interface de comunicação: RS232
- Interface de rede: rj45 10/100m,Wi-Fi
- Tamanho do disco rígido: 2.5''
- Tipo de interface do disco rígido: SATA
- Saída de áudio: 8 canais
- Saída de vídeo: 1CH compatível com HDMI 1920X1080 60Hz
- Resolução de vídeo: 5 milhões de pixels
- Padrão de vídeo: NTSCs,PALMILHA
- Entrada de áudio: 8 canais
- Interface de entrada de vídeo: RJ45
- Formato de compressão: h.265
- Tecnologia: Rede
- Número do modelo: Mini NVR For IP Cameras
- Nome da marca: ANLUAN
- Origem: CN (Origem)
- Certificação: CE,FCC,ROHS
- Plataforma de casa inteligente: alexa
8CH Wifi NVR H.265 Network Video Recorder for 8MP Wireless System 2.5''HDD Support Face Detection TF Card Solt Onvif ICsee APP
Main Features:
● 8CH 3M/4CH 5M WIFI video input;
● The kit supports human form detection and face detection(Need to be used with our customized camera);
● Storage management: support local TF card, maximum support up to 128G, automatic loop coverage after full storage;
● Support cloud storage, Network Storage;
● 1*RJ45 1*10/100/1000Mbps Ethernet port;
● Mobile phone remote monitoring (iOS, Android)XMeye and iCSee;
● Plug and play, Support “SYNC” Wireless coding(Press the Reset button to perform SYNC wireless code matching), which is very convenient;
● Support Reset to restore the default (press and hold the Reset button for more than 3 seconds, the device will restore the default);
● Ultra-wide wifi coverage, wifi coverage can reach 50 meters without walls, 10-20 meters with one wall, and 10 meters with two walls;

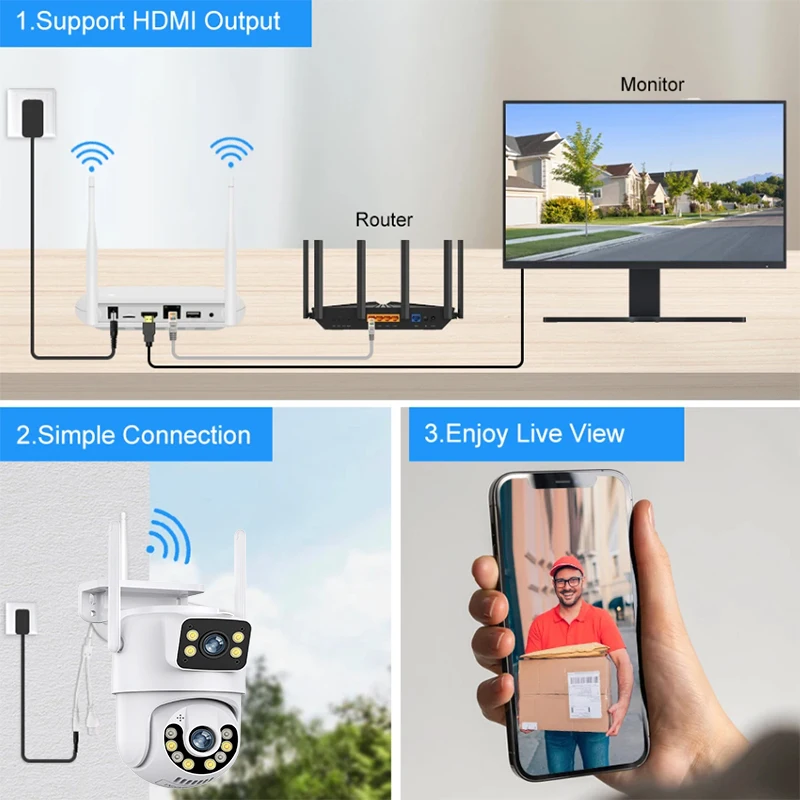

● The NVR has an HDMI port and supports HDMI output to the display;
● The NVR supports 7x24 hours loop recording, motion detection recording, and other recording modes, you can playback the recording to view;
● In addition, you could use the NVR serial number to realize P2P remote viewing of the camera on your mobile phone or computer.
Please note when purchasing.
This price only includes NVR, power supply and manual. (HDD optional)
Please note: Mouse not included ! !
This product does not come in carton packaging. Use bubble bags for packaging.
Details Images
Smart AI Face Detection / Face Record
AI face detection is more easy to catch the detail arround you.When someone invades,security camera can clearly capture the details of the person's face.
(Your Camera Must be support XMEye Face Detection, or will not work.)

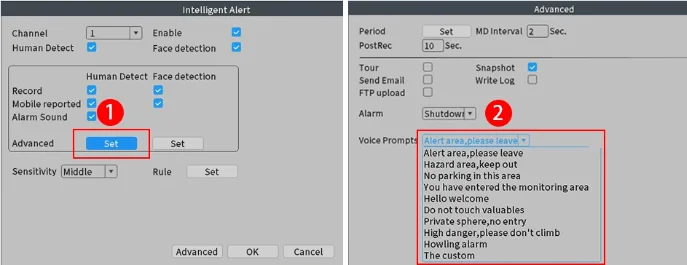

AI Humanoid Motion Detection
Customizable Motion Detection Events,you can create multiple motion detection settings for camera, including Human Body Detection,Line Crossing Detection, Intrusion Detection and Specific Region Detection.
(Your camera must support XM human detection, or will not work)

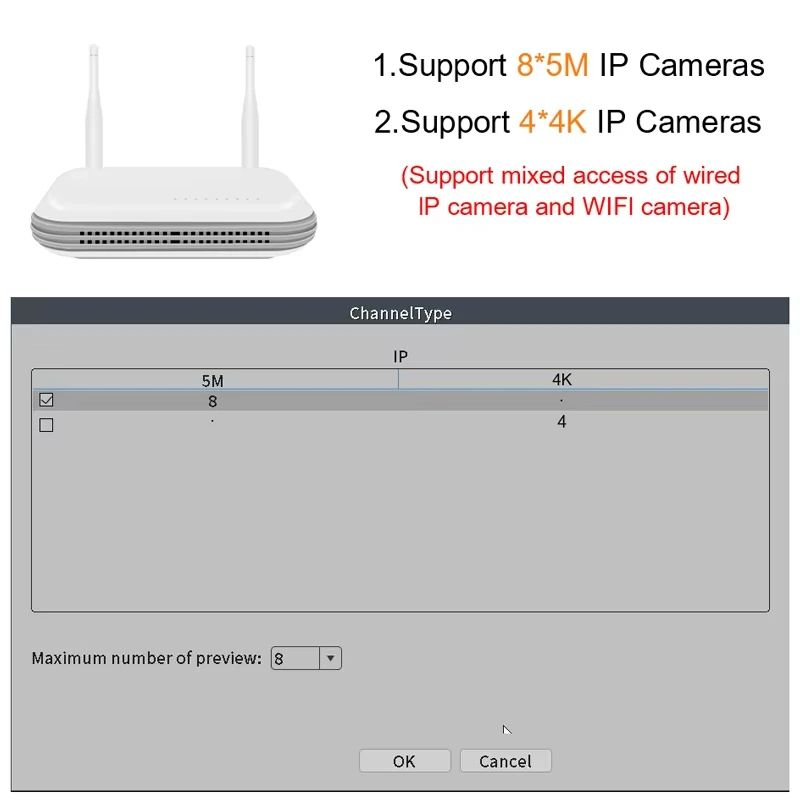

Channel Type of 8CH
Support 8CH 3MP or 4CH 5MP wired /wireless wifi cameras
For wired ip camera : camera must be support onvif protocol,only recommend to use RJ45 cable to connect wifi nvr and router.
For wifi ip camera : this wifi nvr was recommended to work with the wifi camera which application is " icsee " .
if you don't sure , pls contact us before purchasing .
How to check the NVR connect with network successfully?
Note：The NVR can't be connected to WiFi wirelessly at present. it can be only fonnected by network cable.
Two ways to check the network status:
(1) Right Click the mouse- NetDetect- Remote Net Detect- Diagnosis Result, If it shows Test Success, the network is connected.
Multi Languages:
English,Russian,Italian,Portuguese,Spanish,French,Germany.,etc...Total 28 languages

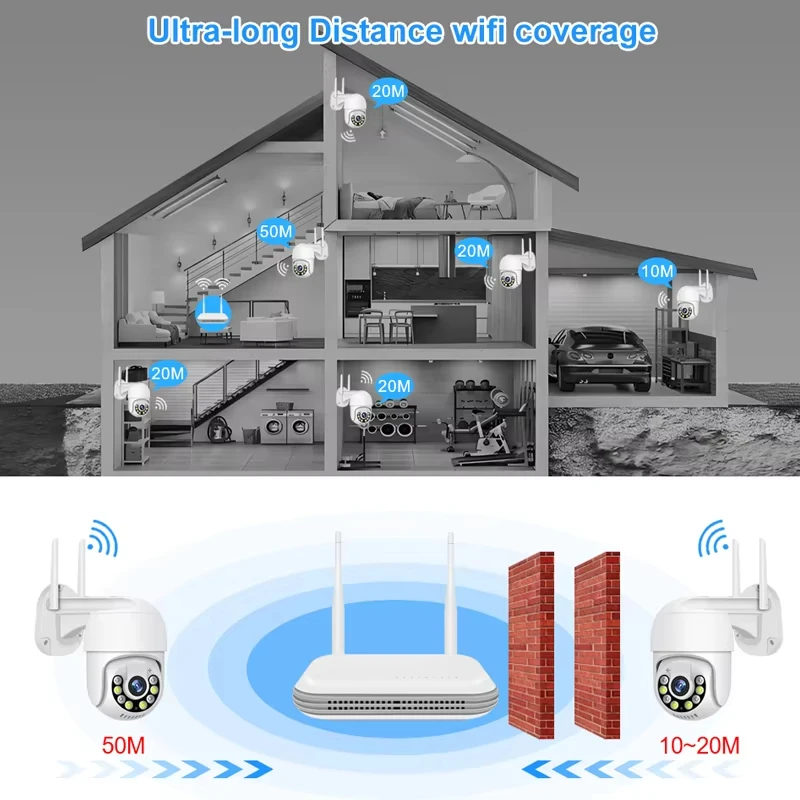

Ultra-long Distance wifi coverage
Wifi coverage can reach 50 meters without walls, 10-20 meters with one wall, and 10 meters with two walls.
Support ONVIF
you can connect any brand's Onvif IP Cameras to our this NVR;
Reminder:
Smar's Video Recorder all support ONVIF and NETIP Protocol;
Netip: It is a Private protocol, only applicable to Network Video Products of XM Scheme；
Onvif: It is an international open network video product standard network interface protocol；
Onvif Advantages:
Onvif likes a communication bridge, It can implement multiple devices(IP Camera and Video Recorder) from different manufacturers connected to each other, mutual Communication.
Onvif Disadvantages:
The standards of onvif protocol are also different for video network products of different manufacturers;
So,Their communication with each other will cause some bad problems, such as: motion detection can not work normally; Audio and video can't be synchronized; Loss of video data, etc......
(Note: We recommend that when you buying the Network Video Recorder, also buying the IP Camera from our store, Because they have perfect private protocol between them, it can fully display products all of the functions.)

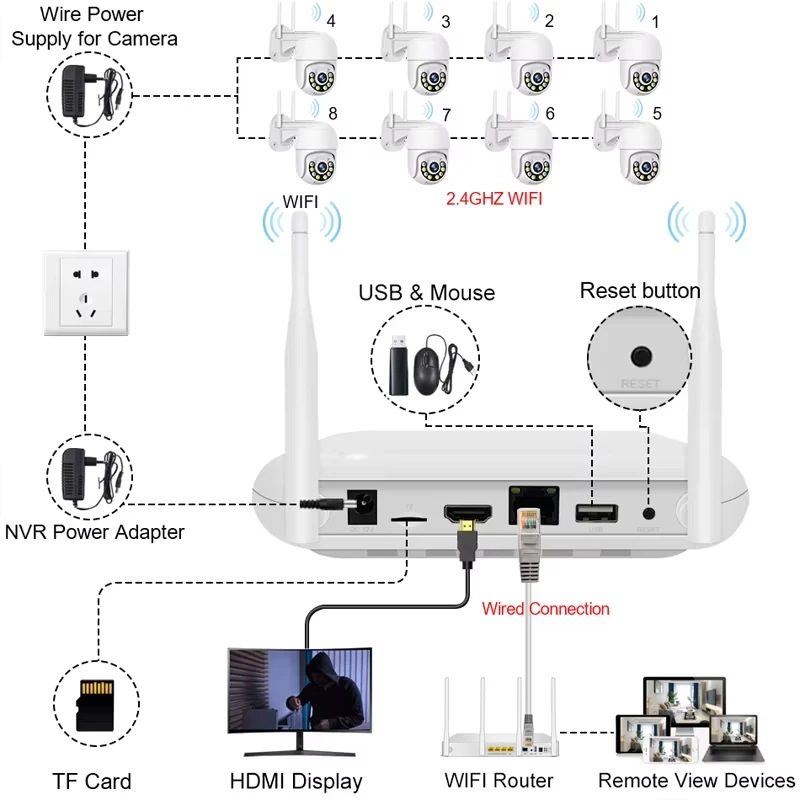

Plug & Play
Can be quickly pair and connect with our smar Wifi cameras,plug and play is more convenient.
(contact us if you need cameras ）
24/7 Loop Record And Playback
Easy access via multi-platform
Support Mobile Phone iOS, Android System，Remote view of mobile phones, any time... any where...
NVR Size and Multi angle display:
Advanced H.265 Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265++ video saves around 70% of the bit rate at the same quality of coding.

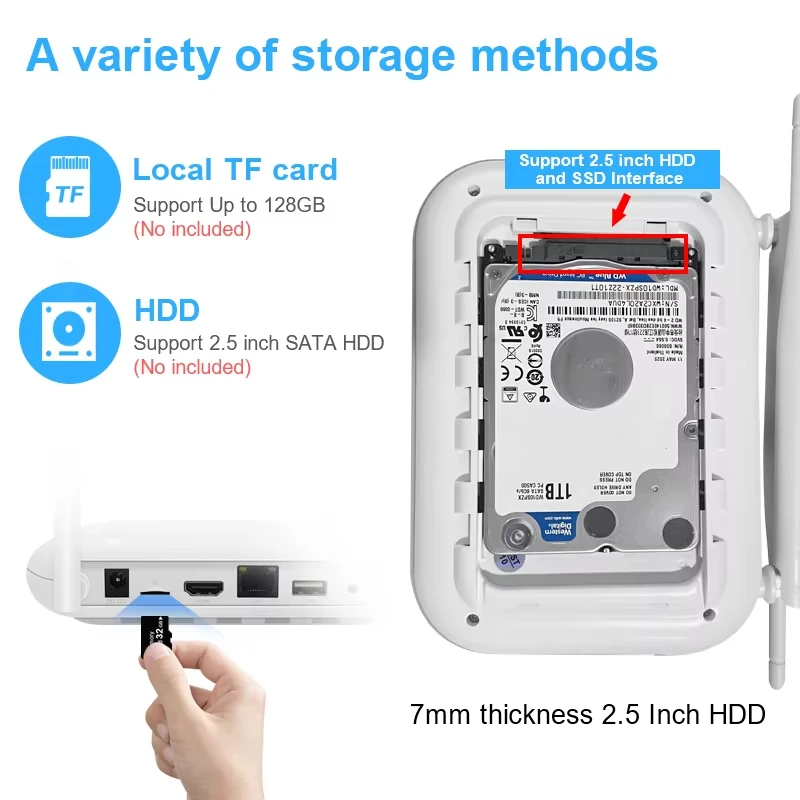

The NVR Support TF Card and HDD
Max support 128G TF Card, and support7mm 2.5 inch SATA HDD and SSD Interface.
How to choose a hard drive ?
Hard disk is necessary for video recording ,thanks to the H.265 High Efficiency Video Coding Technology ,the 1TB Hard disk enables to continuous record about 30 days video footage for 4 cameras 500G can record about 15 days for 4 cameras
How to remote view through Mobile phone?
1. Dowload XMEye Pro Free APP in your mobile phone;
2. Open the software register an account and login.
3. Add devices( Connect the camera to the NVR first)
4. Add successfully, enjoy live video
How to manage the cameras through PC client?
1. Please used your mobile phone to scan the QR code as below, and then click to download；
2. Please install VMS software on your computer, then login VMS Software, Username: admin, Password:admin
3. Please click the Device Manager-IPV4 Search-choose address of IP Camera- ADD-SAVE,Search and Camera successfully;
4. Click t he Live View, then click IP Address of Default Group, then you will can Watching Video.
