- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- Origin: Mainland China
- cnc or not: CNC
- place of origin: Guangdong, China
- brand name: Fundar
- voltage: 220V/110V
- dimension(l*w*h): 715x699x610mm
- weight (kg): 95
- warranty: 3 years
- key selling points: Easy to Operate
- After-sales Service Provided: Engineers available to service machinery overseas, Online support
- Repeat positioning accuracy: 0.01mm
- Processing speed: 0-4000mm/minute
- table maximum load: 15kg
- material: Stainless steel tailgate
- Input Power: 220AC power supply
- Output Current: Drive 4.5A (peak 5A)
- Driven approach: Bipolar constant current PWMdrive output
- Drive motor: 57x78 steper motors, two-phase 4 wire stepper motor
- water-cooled frequency spindle: 1500w
- Applicable Industries: Manufacturing Plant
- Condition: New
- Certification: CE

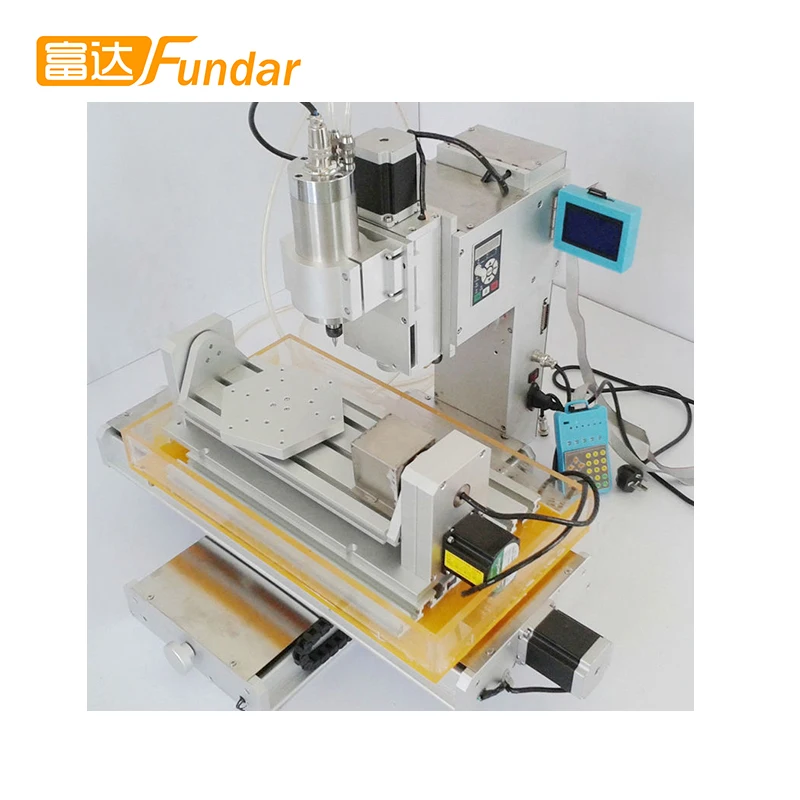

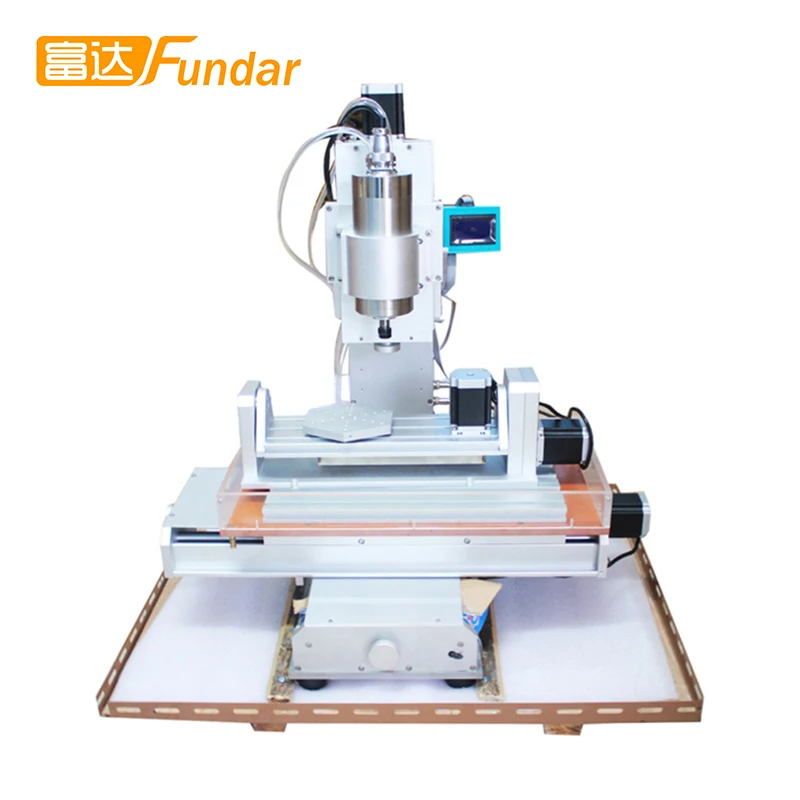

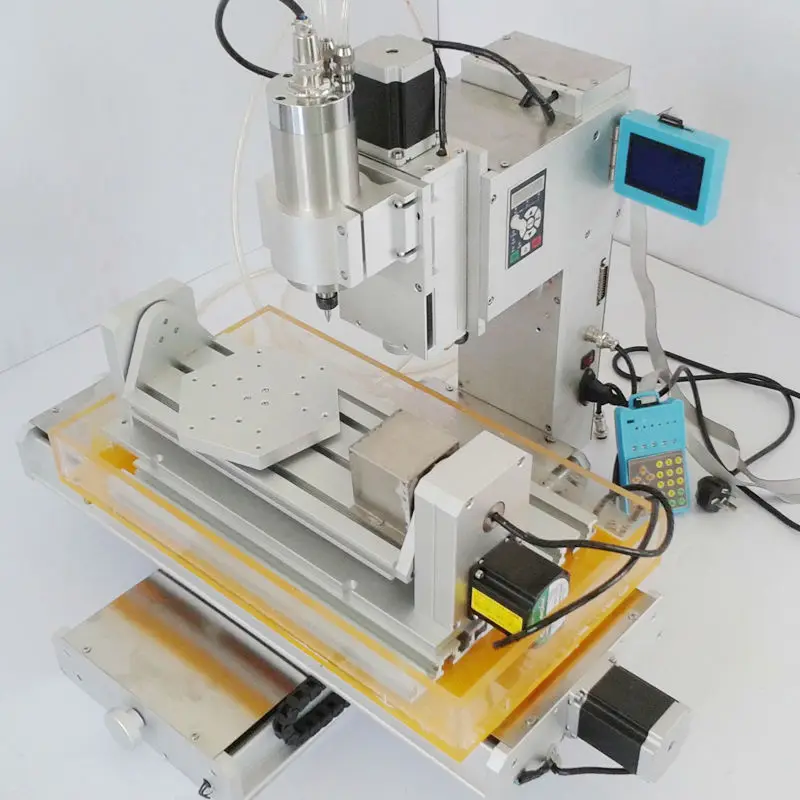

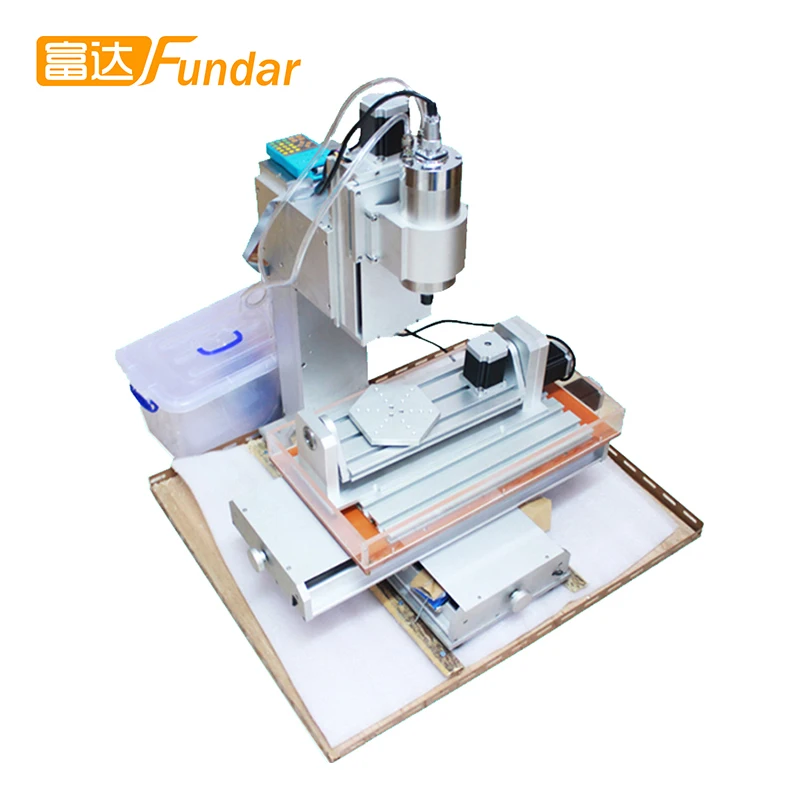

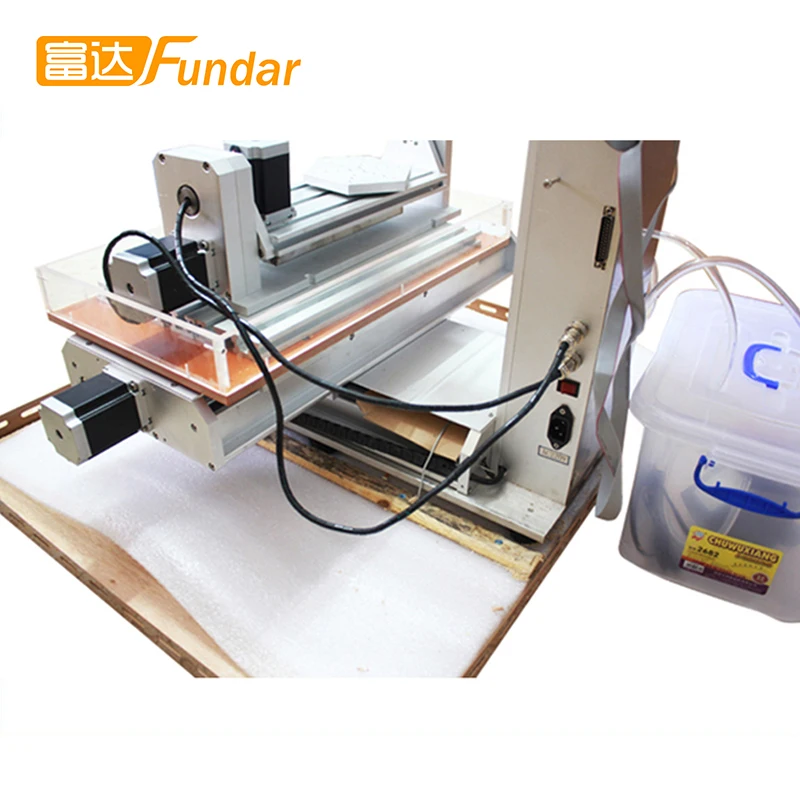

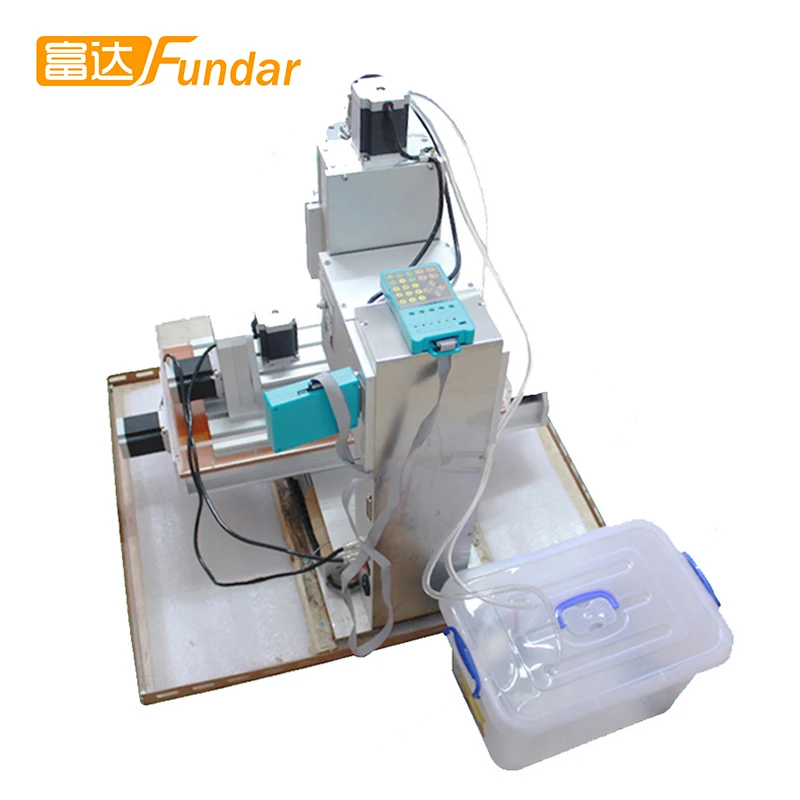

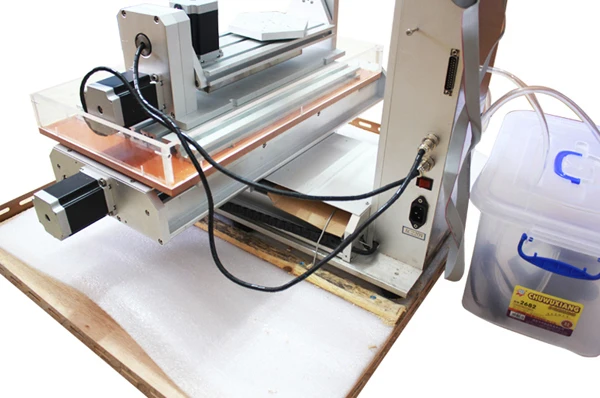

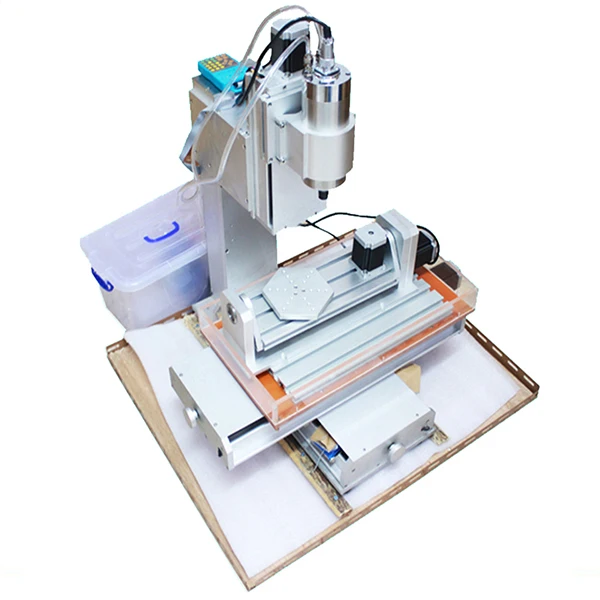

Good Quality 5 Axis HY 3040 Mini Wood Stone Carving CNC Router Milling Machine
Highlight for this Cross Slide Table HY-3040 5 Axis Mini CNC Dual-Stage Signal Processing Wood Woodworking Machine
It can work with 3 axis / 4 axis / 5 axis, just as you like !
1500W/2200W water-cooling spindle
Video supported.
CE approval.

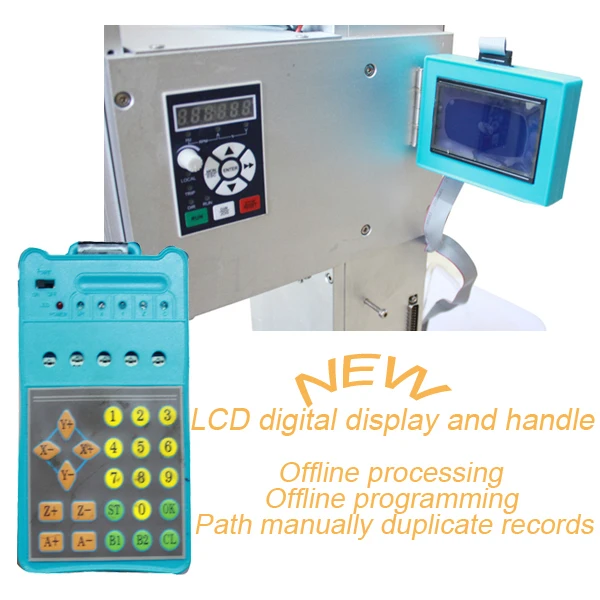

1, Integrated high-speed microcomputer intelligent control chip, can be equipped with external LCD monitor with hands, automatic detection of computer controlled automatic shield handle motion control functions, can simultaneously track digital recording of computer data and handle mobile data control
2,The computer keeps track of the path, you can run once the computer processing of the data record-keeping process automatically repeats offline processing operation.
3, Manually move the processing to save recorded track record, manually move the machine data and automatically reprocessed run manually move the path.
4, Manual data input processing path and enter the path to run automatically.
5, You can automatically complete the XYZ axis or Z axis of the knife, without complicated computer software operation control
6, Max 5A stepper motor drive current, eight-speed adjustable.
7, Up to 16 segments, higher accuracy, run more smoothly.
8, Overload over-current over-temperature protection function, automatic semi-flow control, fully protect your computer and peripherals.
9, Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region.
10, Closed optical isolation, dual-stage signal processing, and fully protect your computers and devices.
It can be widely used as below:
|
Model |
5 Axis CNC Machine |
|

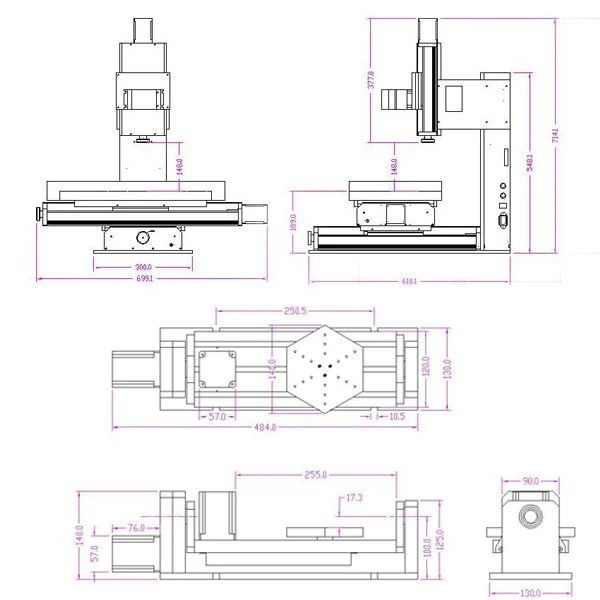

Product demention |
520(H)X660(L)X580(W) mm |
|

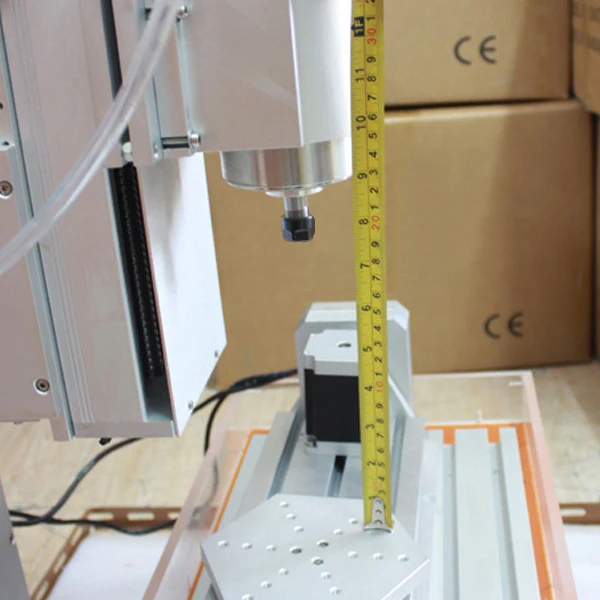

Effective work area |
300x400x(150)mm |
|
Precision ballscrew |
1605 |
|
XYZ rail material |
Hard chrome shaft |
|
XY rail diameter |
20mm |
|
Z rail diameter |
16mm |
|
XYZ axis torque |
57*78 250 OZ/IN (2.2N/CM) |
|

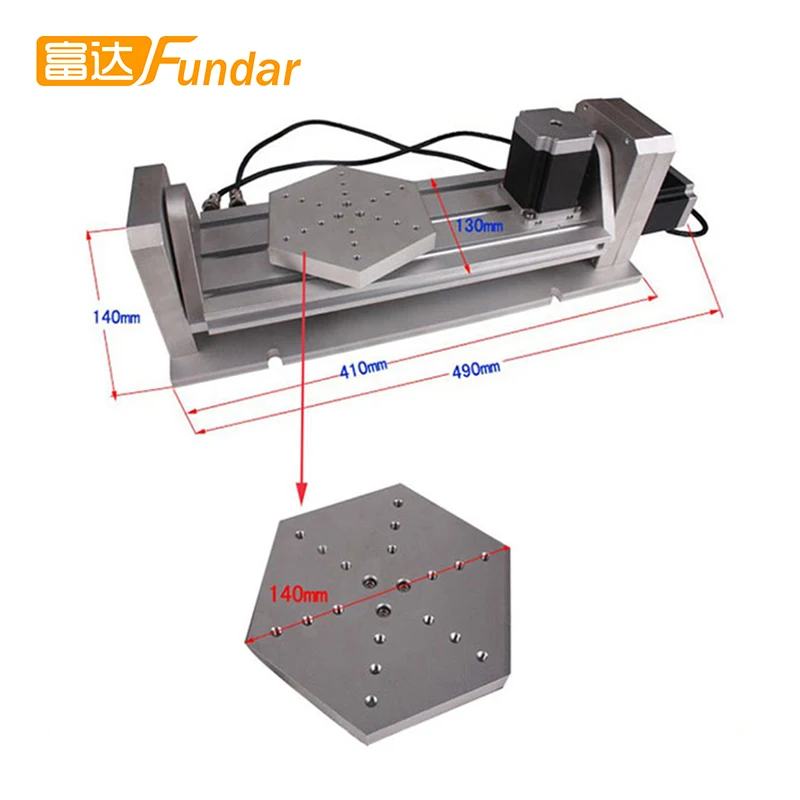

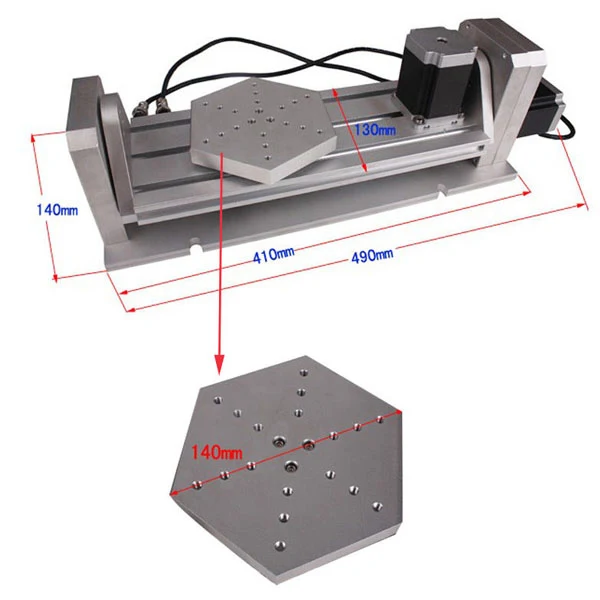

4th and 5th |
57*56 |
|
4th and 5th transmission ratio |
1:6 |
|
Repeat positioning accuracy |
0.01mm |
|
Working precision |
0.02mm |
|
Processing speed |
0-4000 mm/Min |
|
A-axis B-axis rotation speed |
0-180 rpm/min |
|
XY table maximum load |
50kg |
|
XY+A+B axis table maximum load |
15kg |
|
Tailgate material |
Stainless steel |
|
Switching Power Supply |
Integrated 24V 350W |
|
Spindle power |
800 W water-cooled frequency spindle |
|
Spindle converter |
1500w |
|
Input Power |
220V / 110V power supply |
|
Output Current |
Drive 4.5A (peak 5A) |
|
Drive motor |
57*78 stepper motors (two-phase 4 wire) |
|
Net Weight |
50kg |
|
Gross Weight |
95kg |
|
Outside packing |
78*66*82 (cm) |

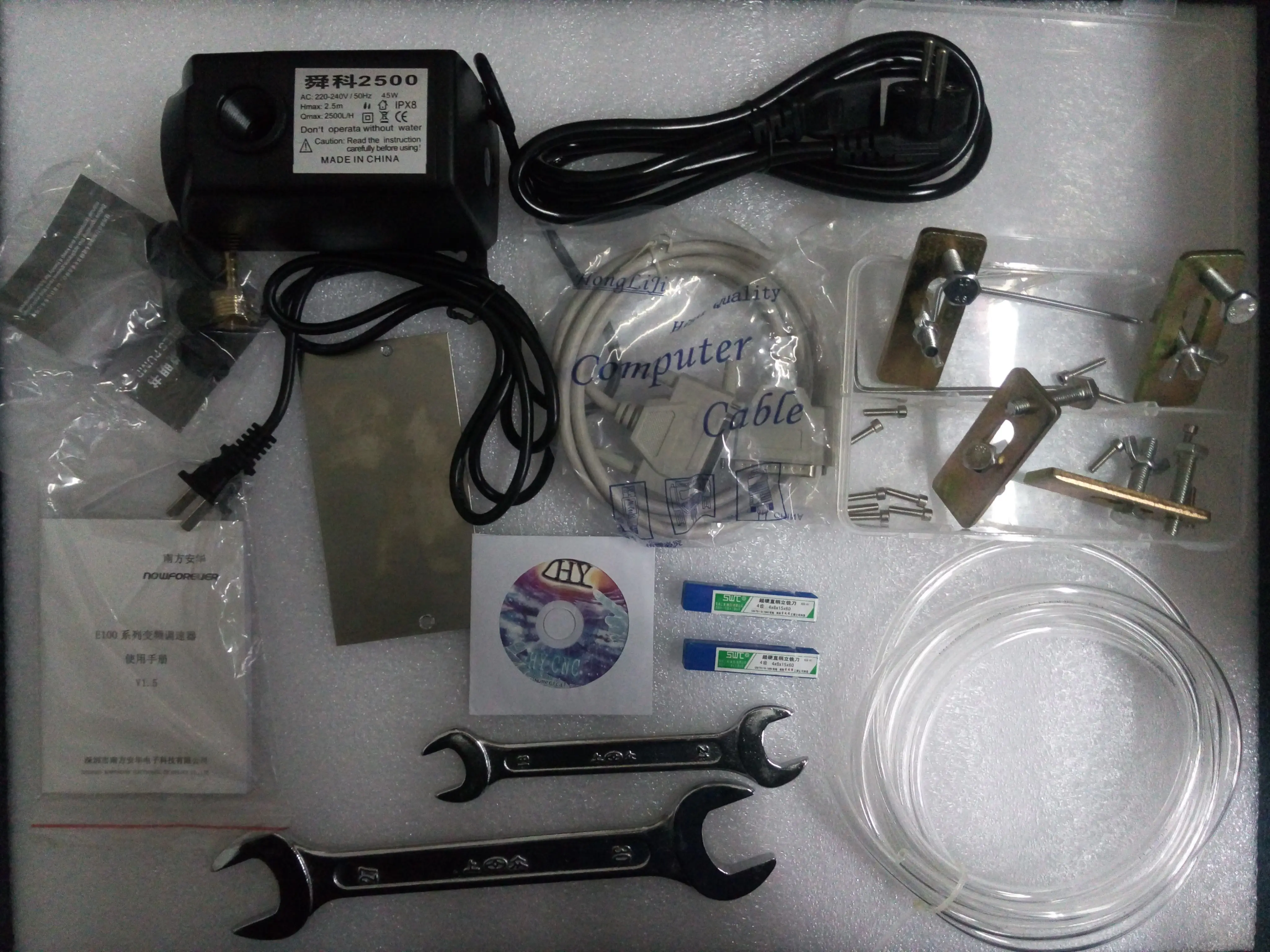

1PCS 5 axis 1500w 30x40 cnc router machine
1PCS data line
1PCS water pump
1PCS CD
