Gerador de turbina eólica de 3 5 lâminas 600W 12V 24V com controlador MPPT Gerador eólico doméstico de alta eficiência para carga de bateria

Special note

1)This product does not include the wind turbine tower pole;

2)Free WT060 controller workable for all type batteries;

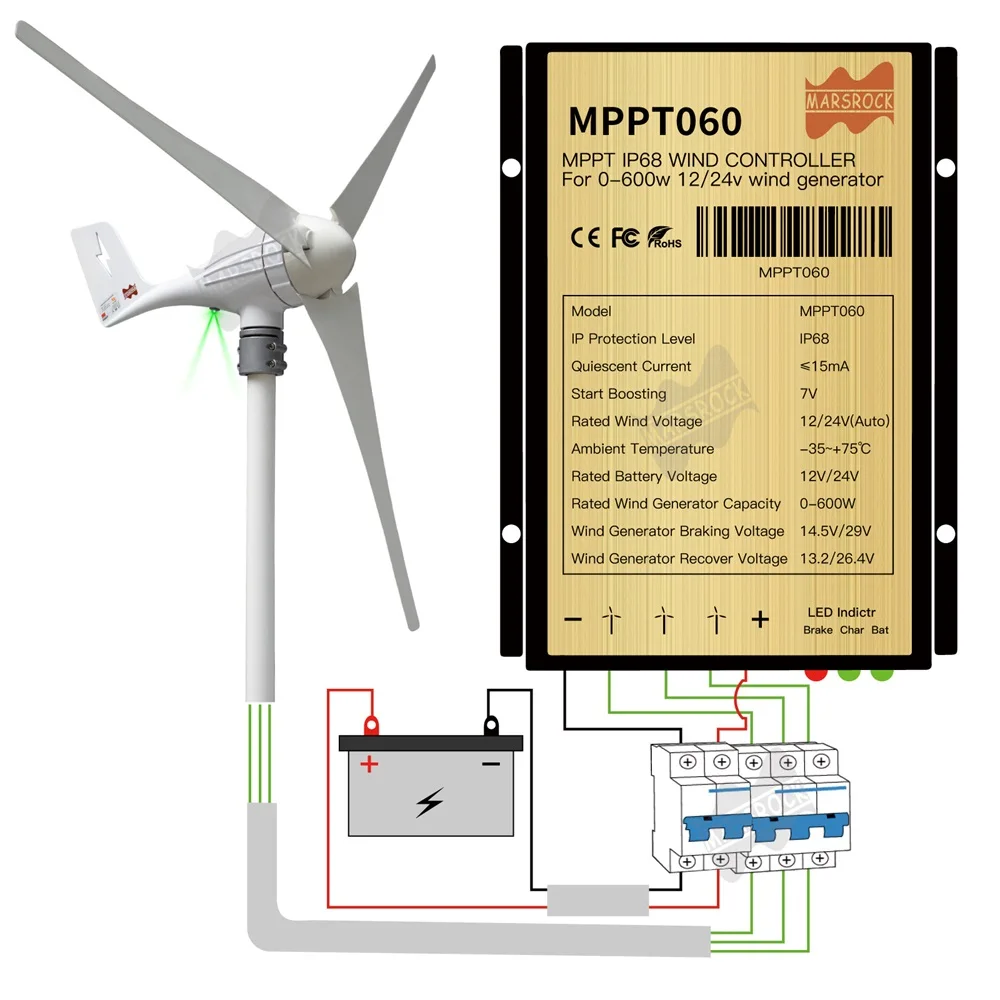

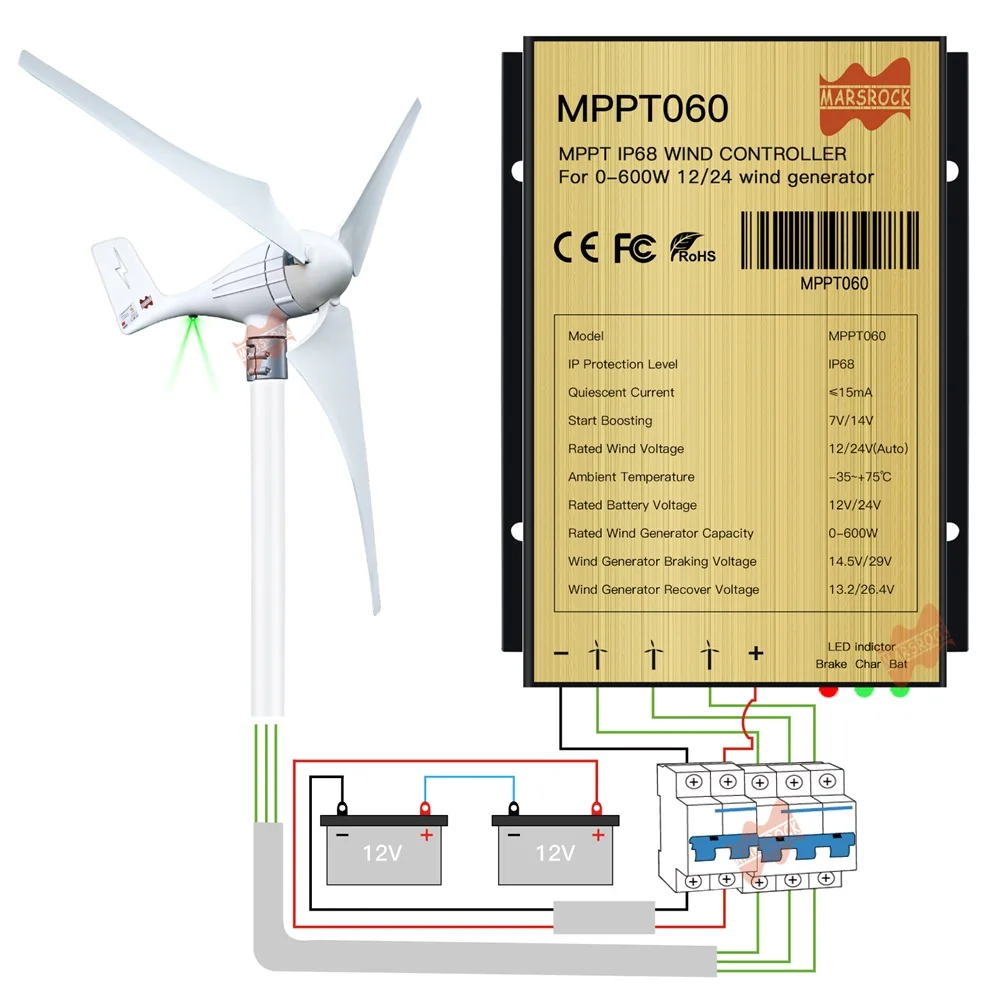

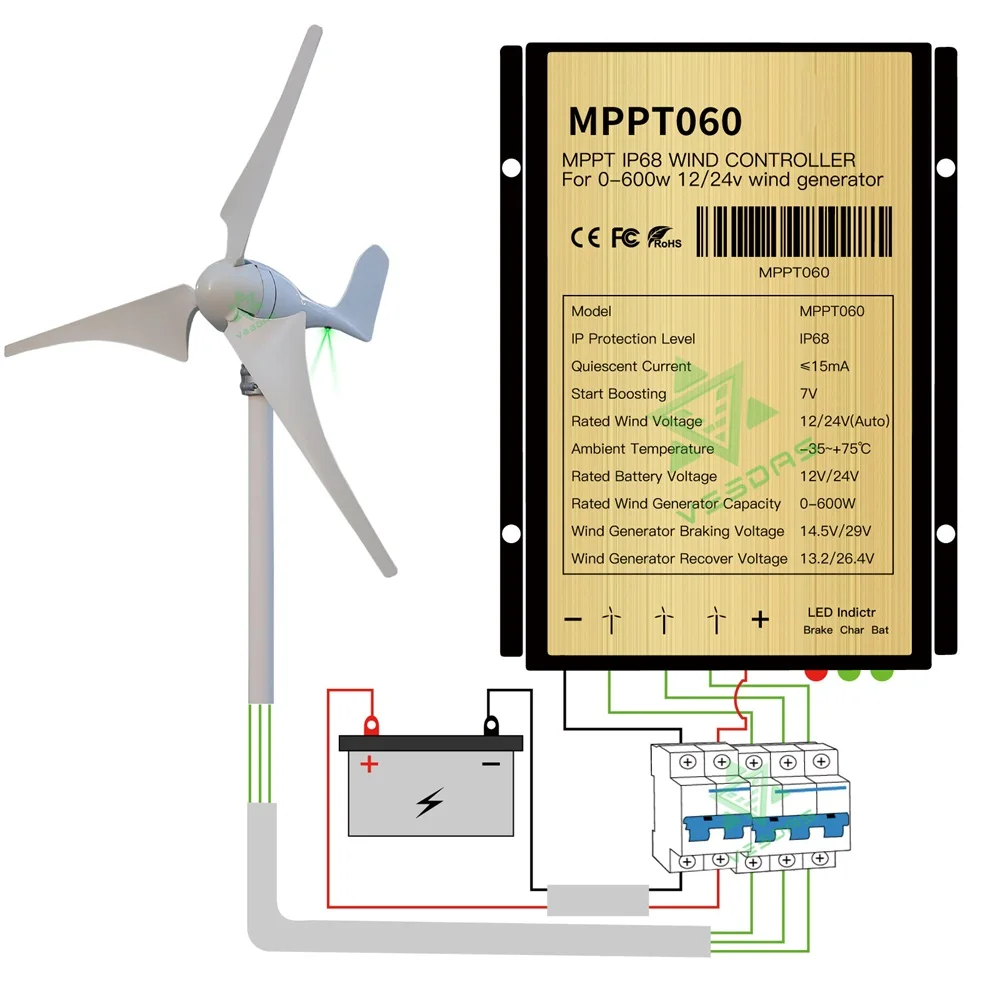

3)It is necessary to install 3P air switch and SPD between wind and controller, and it is necessary to install an air switch between the controller and the battery;

4)In order to better prolong battery life, please install a battery equalizer between 24V batteries.

5)This is an economical and classic design product. In order to obtain a more stable charging effect, please design and install a wind-solar hybrid power generation system.

Package include

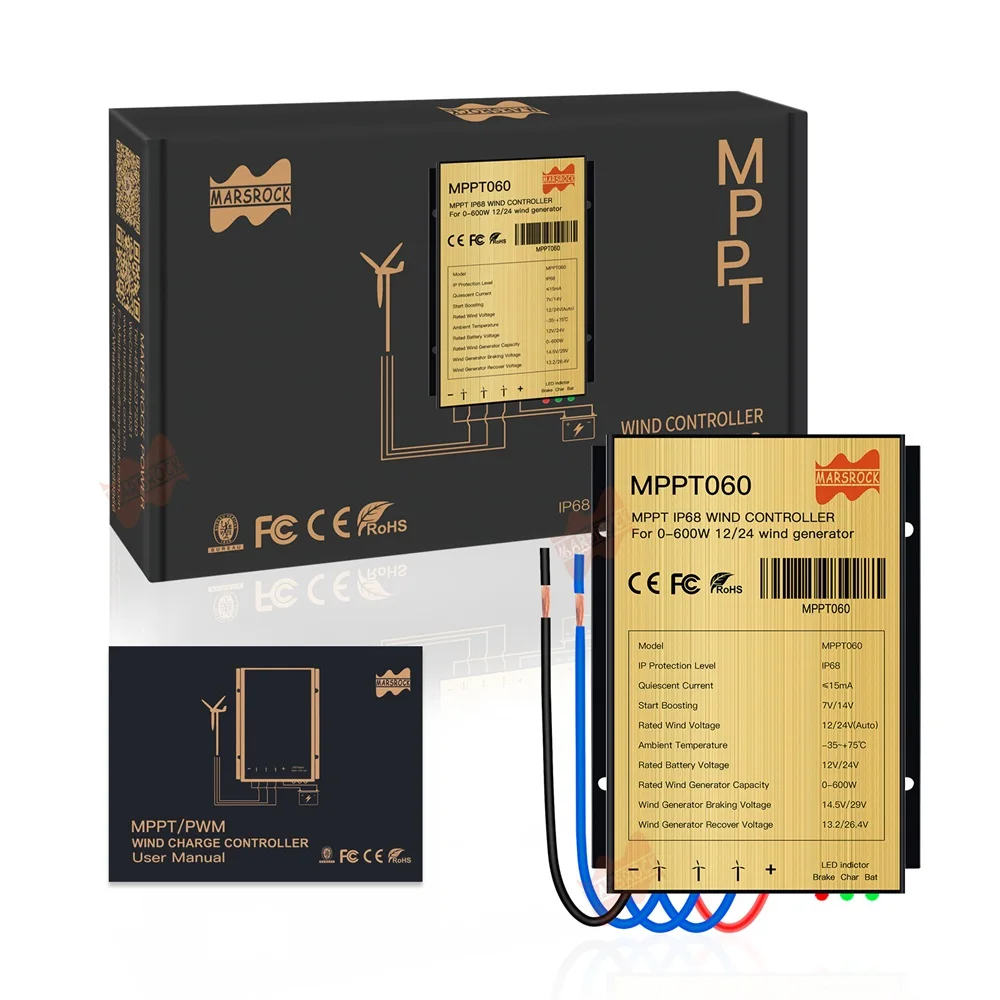

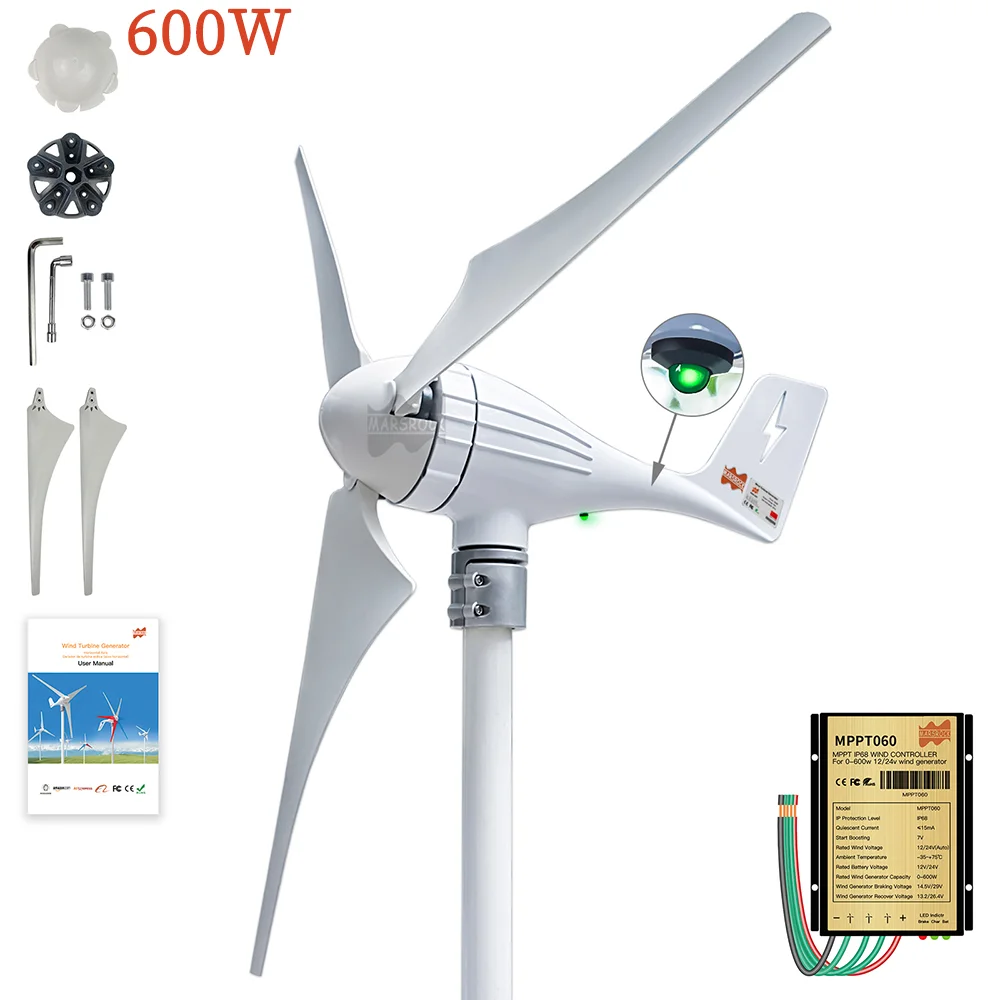

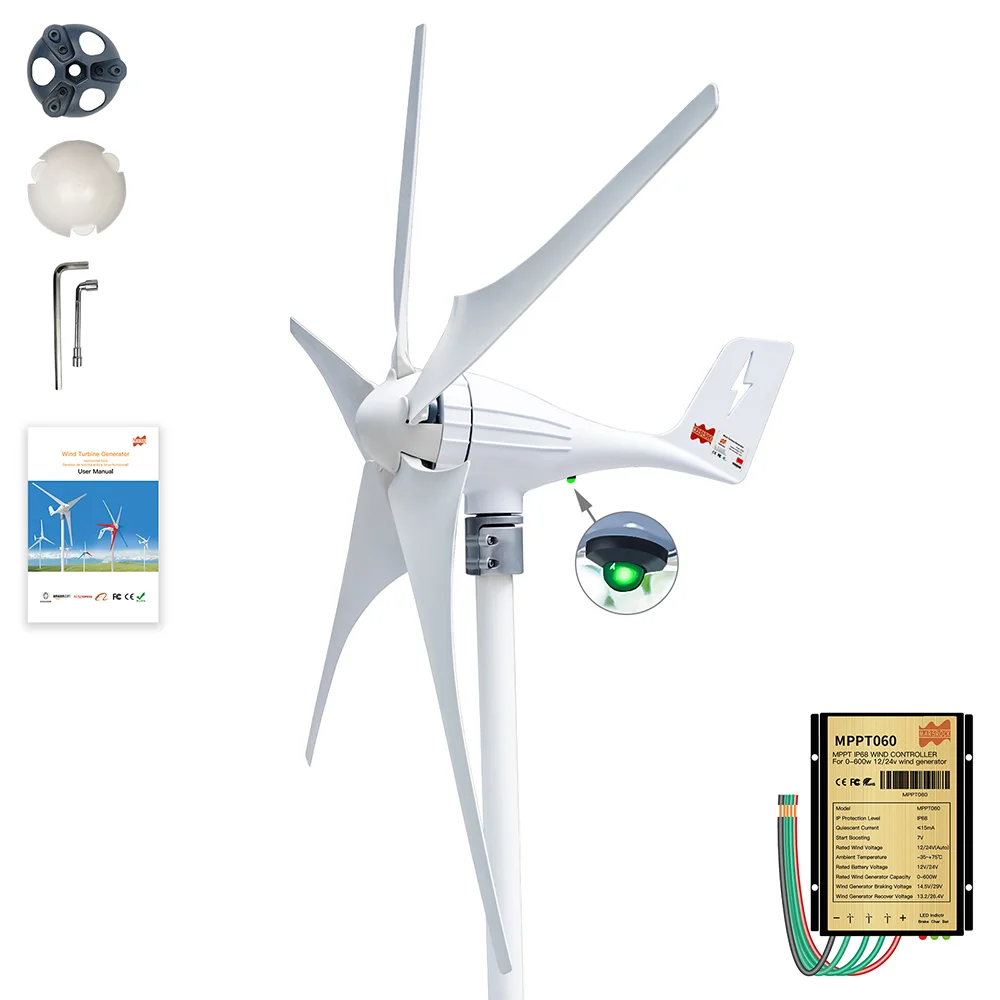

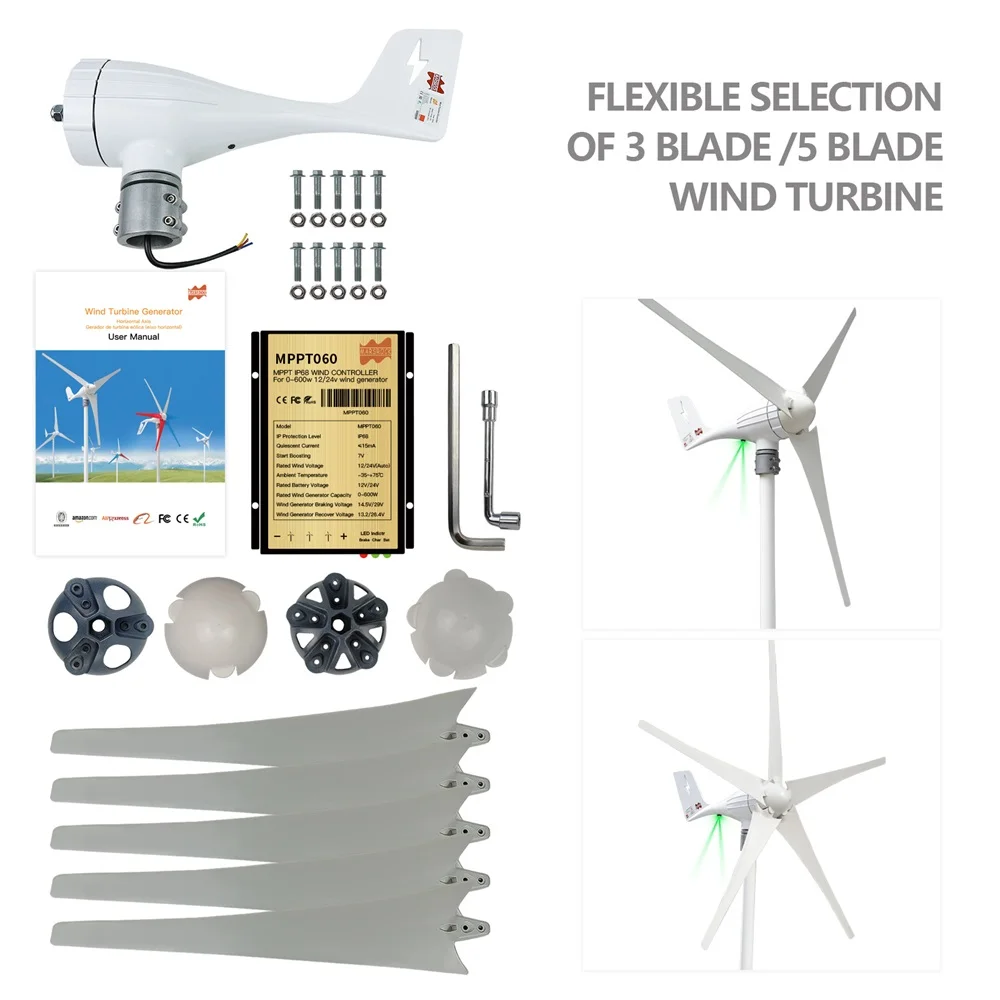

1PCS Wind Turbine Generator，1PCS Wind Charge Controller, 5PCS 63Cm length Blades, 2Sets Hubs & hood, 1PCS User Manual, 1 Set hexagon tools

Description

1.Unique charging indicator design, whether the output current is clear at a glance;

2.Low speed starting up2 meter/s which improves power efficiency; high wind energy utilization; beautiful appearance; low vibration;

3.High-toughness FRP blades 63CM length with the unique delta wing flow linear blade design is more conducive to capturing wind and wind direction, the blades have such advantages: high utilization of wind energy which contributes to the annual energy output;

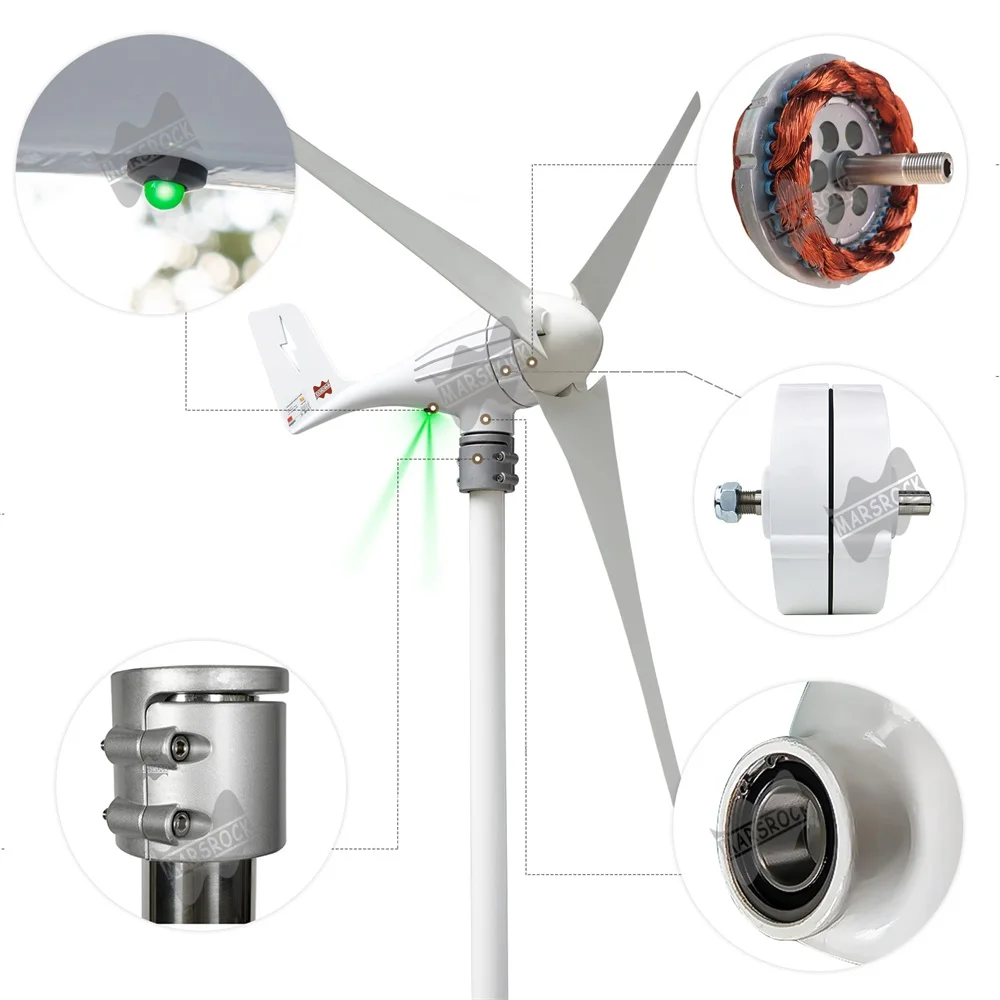

4.High-precision NSK bearings, unique generator automatic spot welding technology of magnetic steel and pure copper winding, magnets made of high-purity rare earths ensure high-efficiency and long-life generator quality;

5.Spend a price can Flexible choice to install a 3-blade or 5-blade wind turbine, At the same time, the hub and hood required for the 3 and 5 blades are presented.

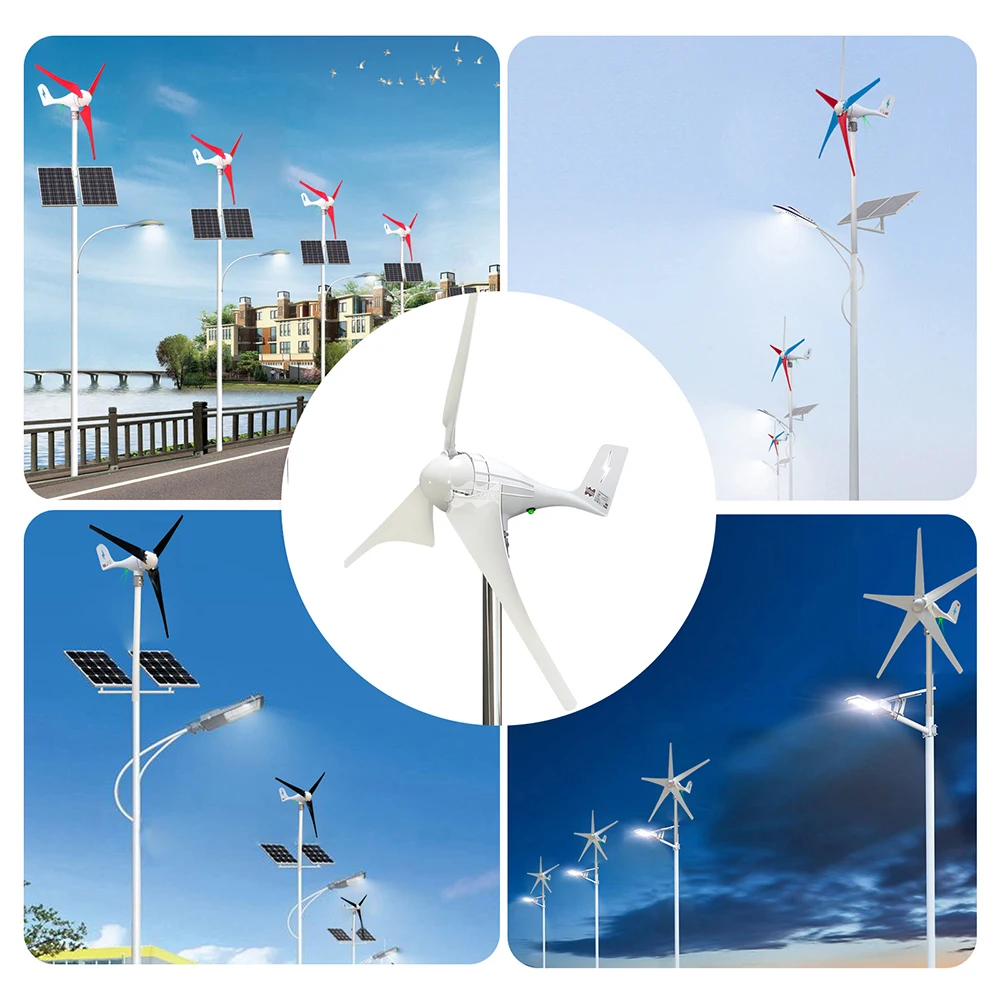

Application

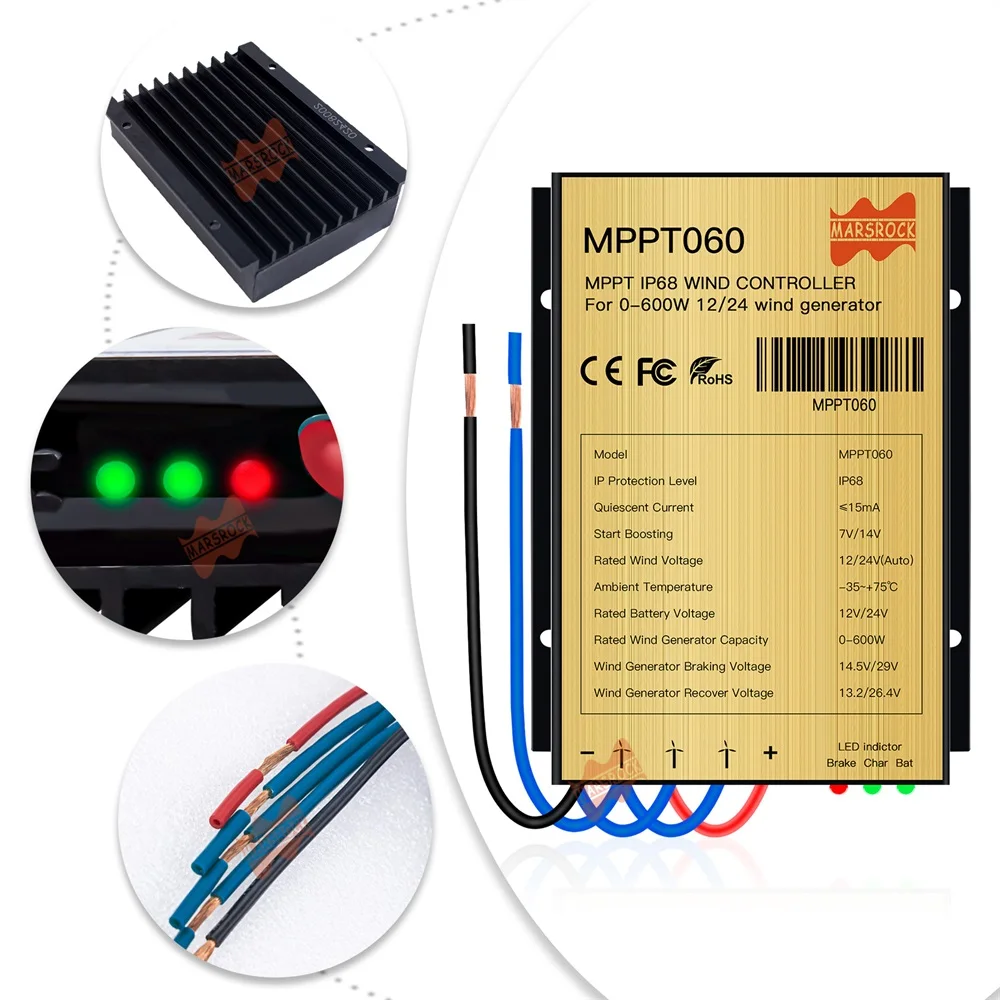

Free With Indicate MPPT Controller

1. this controller can control wind turbines to charge the battery automatically. When the battery is fully charged, brake can be controlled automatically by the interior circuit. When the battery voltage drops to restore voltage level, wind turbine can automatically recover to the battery charging, so as to protect the wind turbine and the battery.

2. Voltage and current limiting are enabled during recharging to ensure the best charging effect. Meanwhile, it provides the maximum protection to the wind turbine and battery.

3. Unique reverse connect protection circuit. For improper operation the positive and negative of battery, don't need to replace the fuse, only to reset the positive and negative in correct point. So the whole system will be more reliable.1.Wind Power: 0~600W

2.Wind Rated Voltage: 12V/24V

3.Wind Brake Voltage: 15V/30V

4.Brakes start current: 25A

5.Wind Recover Voltage: 13.5V/27V

6.MPPT(Boost Up): 7V/14V

7.Lead-Acid GEL Rated: 12V/24V

8.Over Charge: 14.4V/28.8V

9.Charge Current: 25A(Max)

10.LiFePO4 Rated: 3*3.6V/6*3.6V

11.LFP Rated: 4*3.2V/8*3.2V

12.Display: LED

13.Waterproof: IP68

14.Service for: horizontal axis and vertical axis wind turbines

15.Working temperature and humidity range: -35℃ -75℃

16.Approved: CE, ROHS, FCC, ISO9001

17.Package Weight: 0.25kg (0.55lb.)

18.Package Size: 13.5cm x 9.5cm x 3.5cm (5.31in x 3.71in x 1.4in)

Detail Images

Parameter

Wind Generator Data
Power	Rated power	600W	600W	600W	600W
	Maximum power	610W	610W	610W	610W
	Rated voltage	12/24V	12/24V	12/24V	12/24V
	SKU	3S4-600-D	5S4-600-D	3S4-600	5S4-600

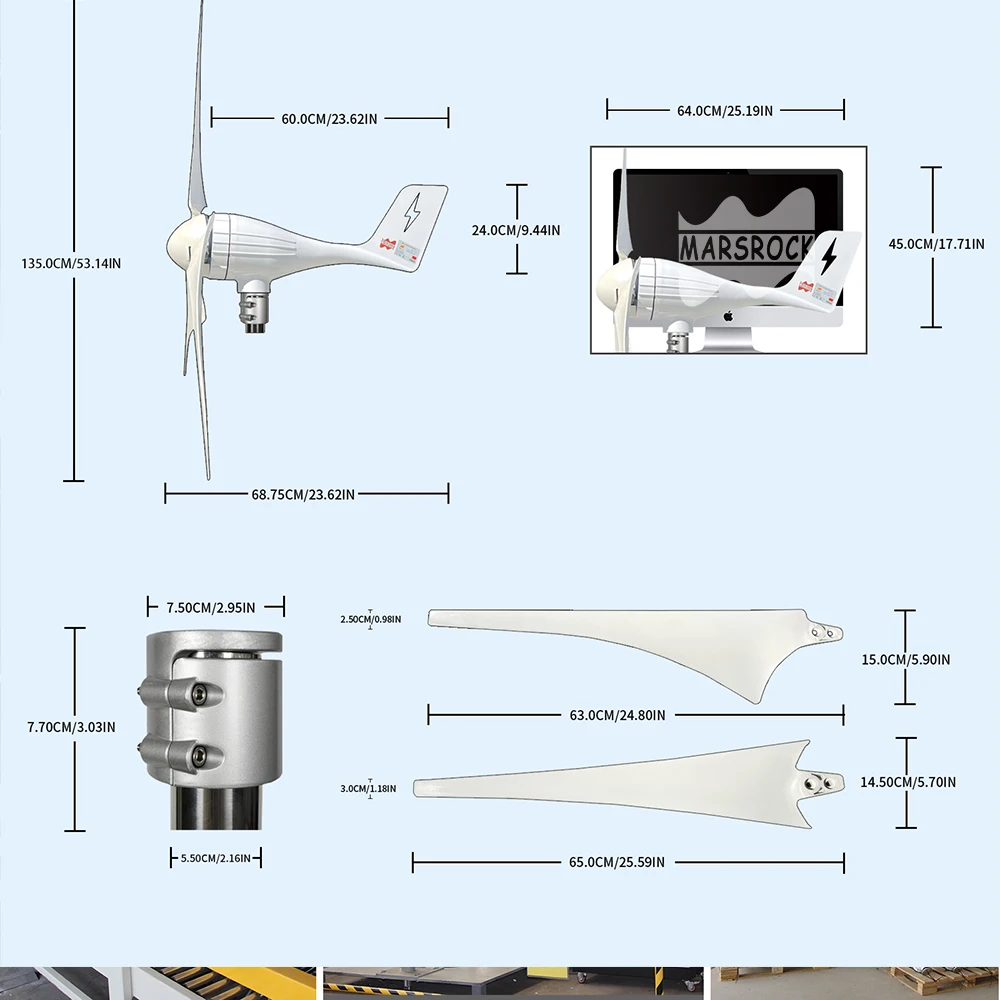

Blades	Blades Length	63cm/25inch		65cm/26inch
	Wheel Diameter	135cm/53inch		140cm/55inch
	Blades material	High-strength nano-fiber glass fiber reinforced plastic material design life 15 years
	Optional colors	White(default)/Black/Blue/Red/Green/Orange/Yellow/mixed colors
	Shape	Delta wing		Ordinary
	Blades QTY	3 PCS	5 PCS	3 PCS	5 PCS
Wind	Start-up	2m/s	1.8m/s	2m/s	1.8m/s
		4.5mph	4mph	4.5mph	4mph
	Rated speed	11m/s	10m/s	11m/s	10m/s
		25mph	22mph	25mph	22mph
	Survival speed	48m/s	45m/s	48m/s	45m/s
		107mph	100mph	107mph	100mph
Generator	Type	3 phase permanent magnet synchronous(NdFeB) AC generator
	Case	Die-casting aluminum
	Control system	Electromagnet
	Speed regulation	Automatically adjust windward direction
	Operation	-40°C- + 80°C

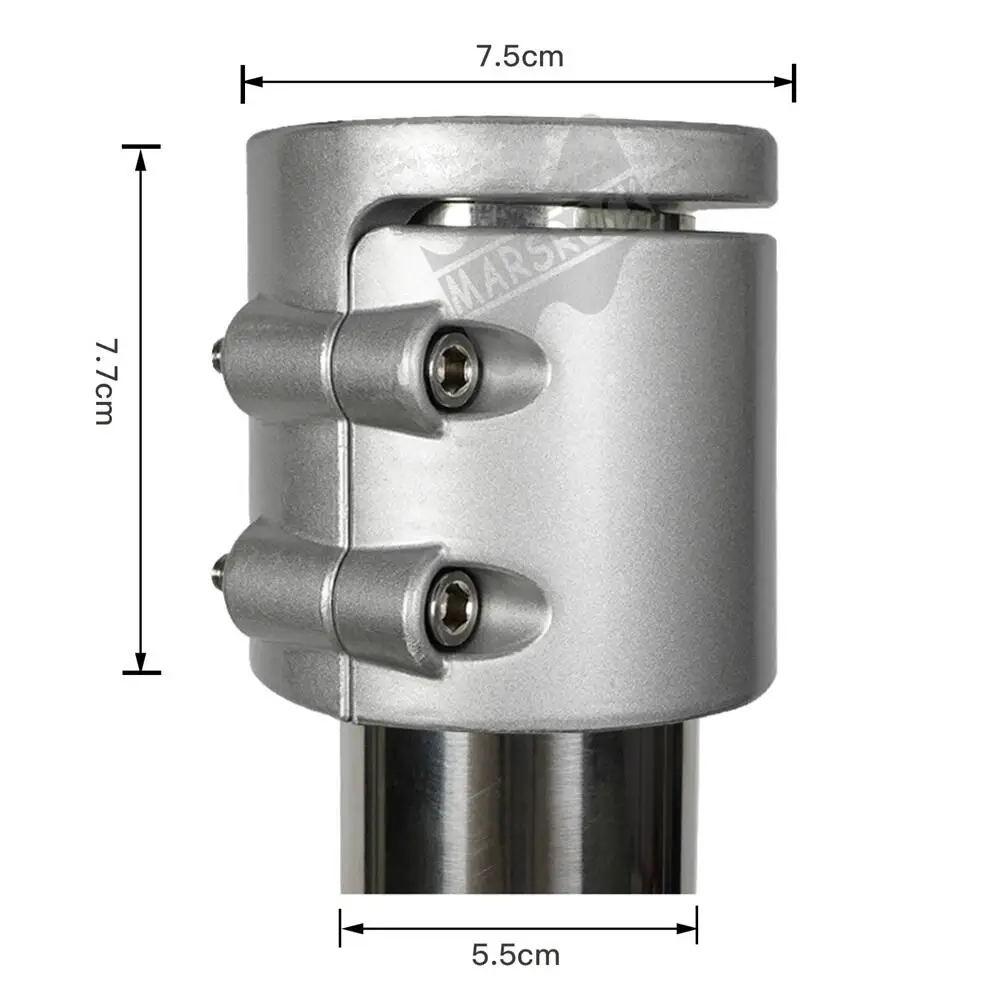

	Connector	Hoop(default), Flange to connect with tower pole
	Design life	20 Years
Suggest	Cables	Copper 3 core wind AC cable, waterproof and UV resistant
	Tower Pole	6 meter hight with Steel cable
Others	Approved	CE, ROHS, FCC, ISO, BIWEI
	SKU	3S4-600-D	5S4-600-D	3S4-600	5S4-600
	G.W	9.5KGS	10.35KGS

Professional Certification

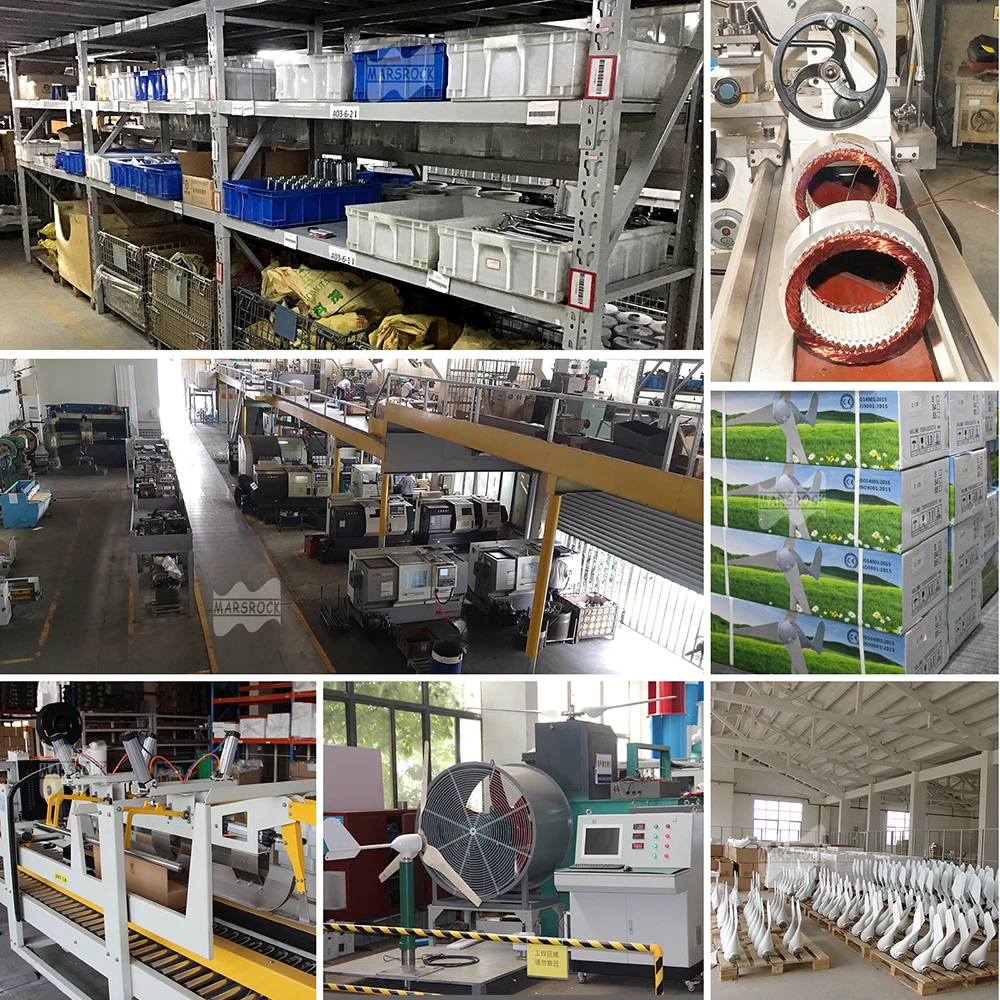

Factory
