- High-concerned chemical: None
- Model Number: 25H100-50-130A/B
- Number of Jaws: 4
- Power: Manual
- Brand Name: XMSJ
- Origin: Mainland China
- Power Source: Electric
- Certification: None
- Center height: 100MM
- Chuck: 3/4 Jaws 130mm Chuck
- Angle: 0.036 degrees/step
- Speed reducing ratio: 50:1
- Stepper motor: NEMA34 86 Stepper Motor
- A Axis Harmonic reducer box: 25-50
- Deceleration method: harmonic gearbox

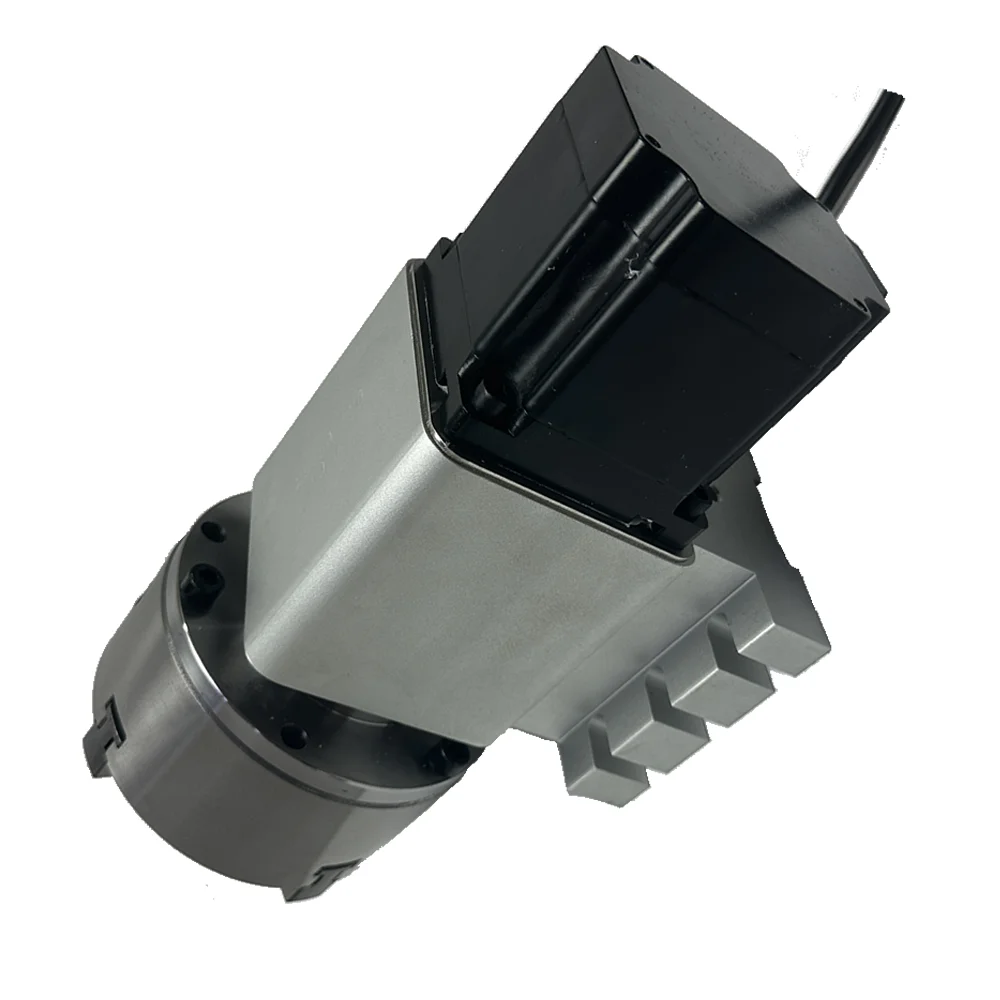

Gapless Harmonic Reducer Gearbox 130MM Chuck 4th Rotary Axis NEMA34 Stepper Motor CNC Dividing Head Reduction Ratio 50:1
Description:

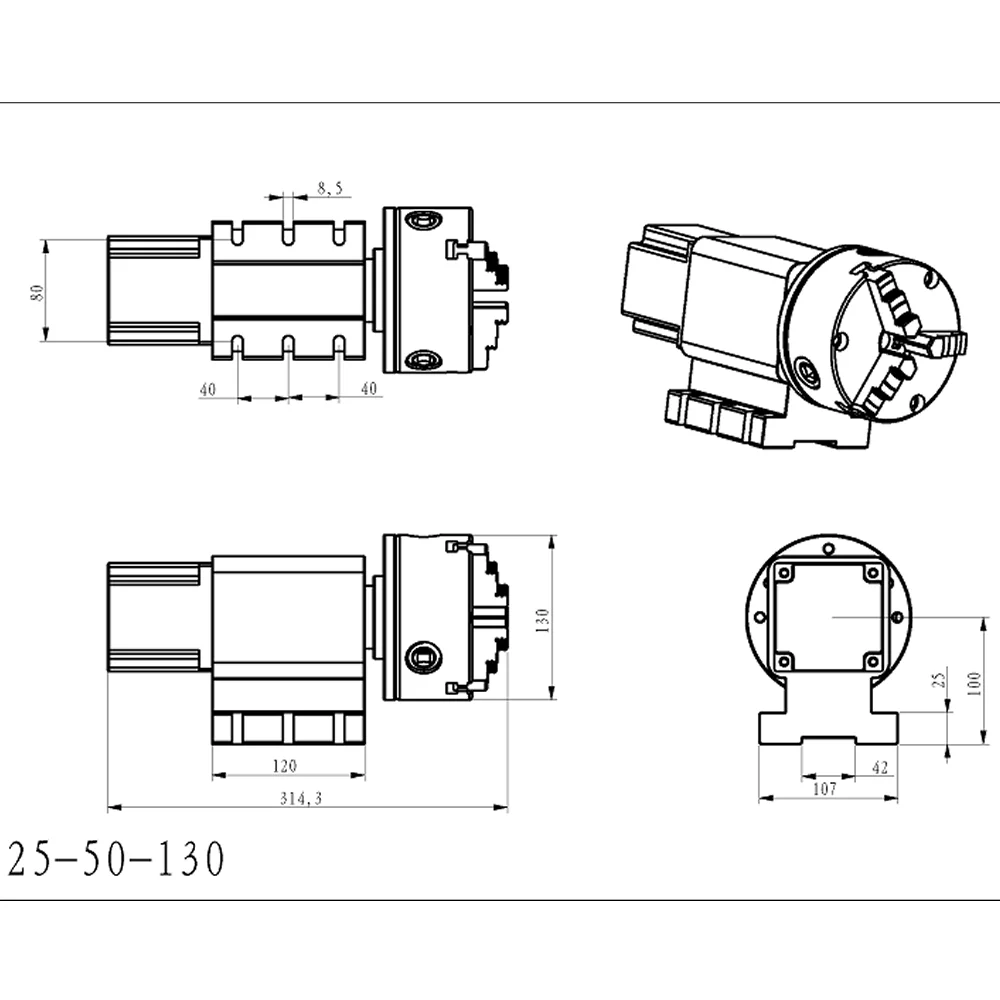

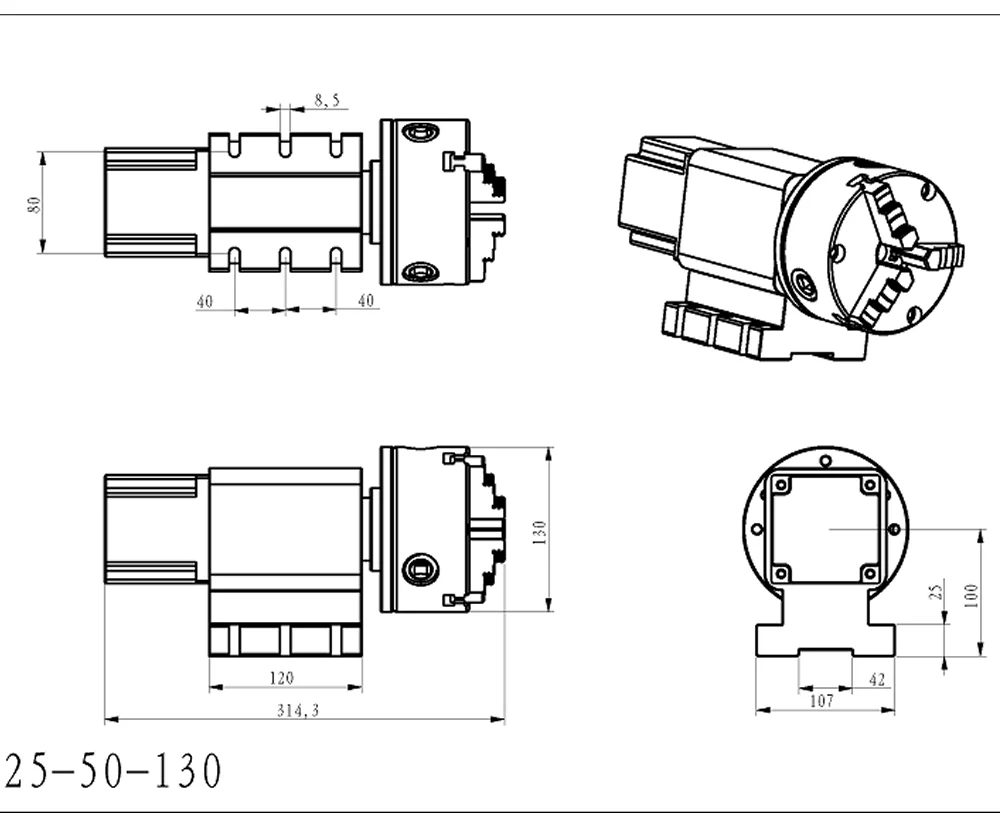

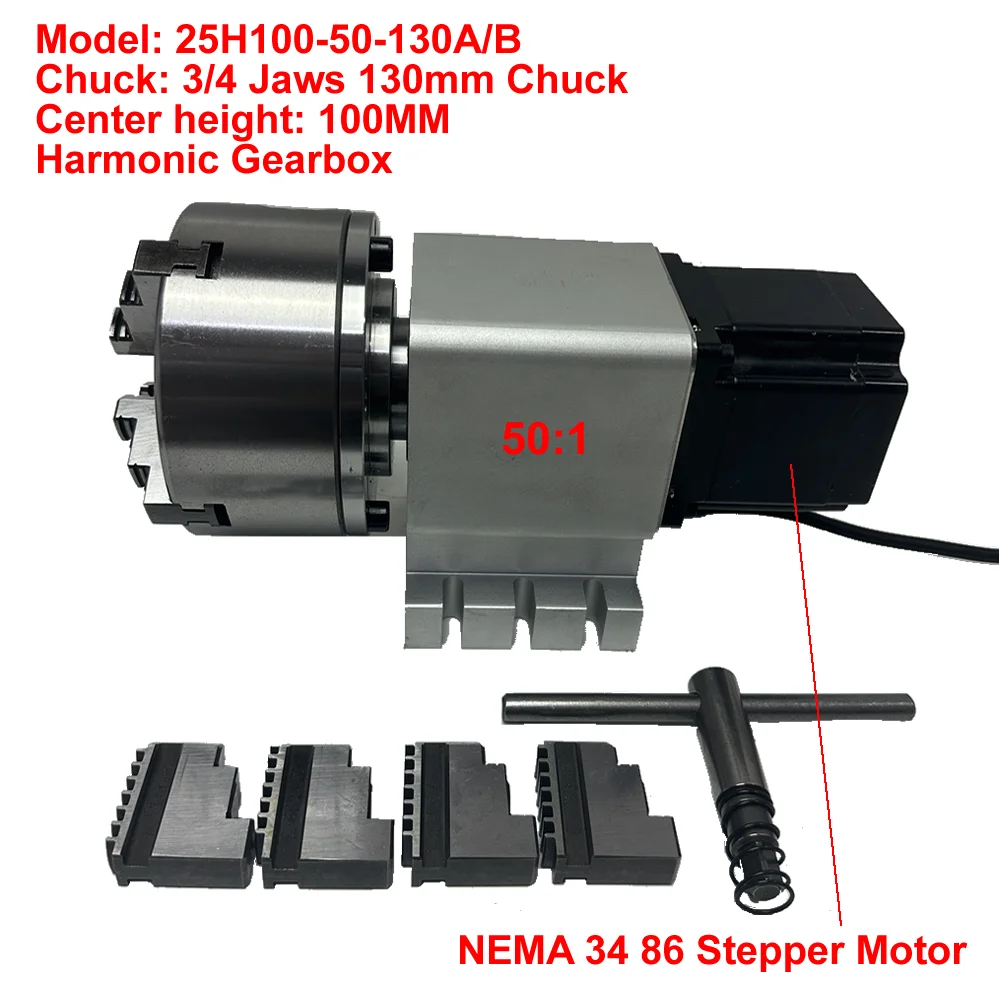

Model: 25H100-50-130A/B
Deceleration method: harmonic gearbox (25-50)

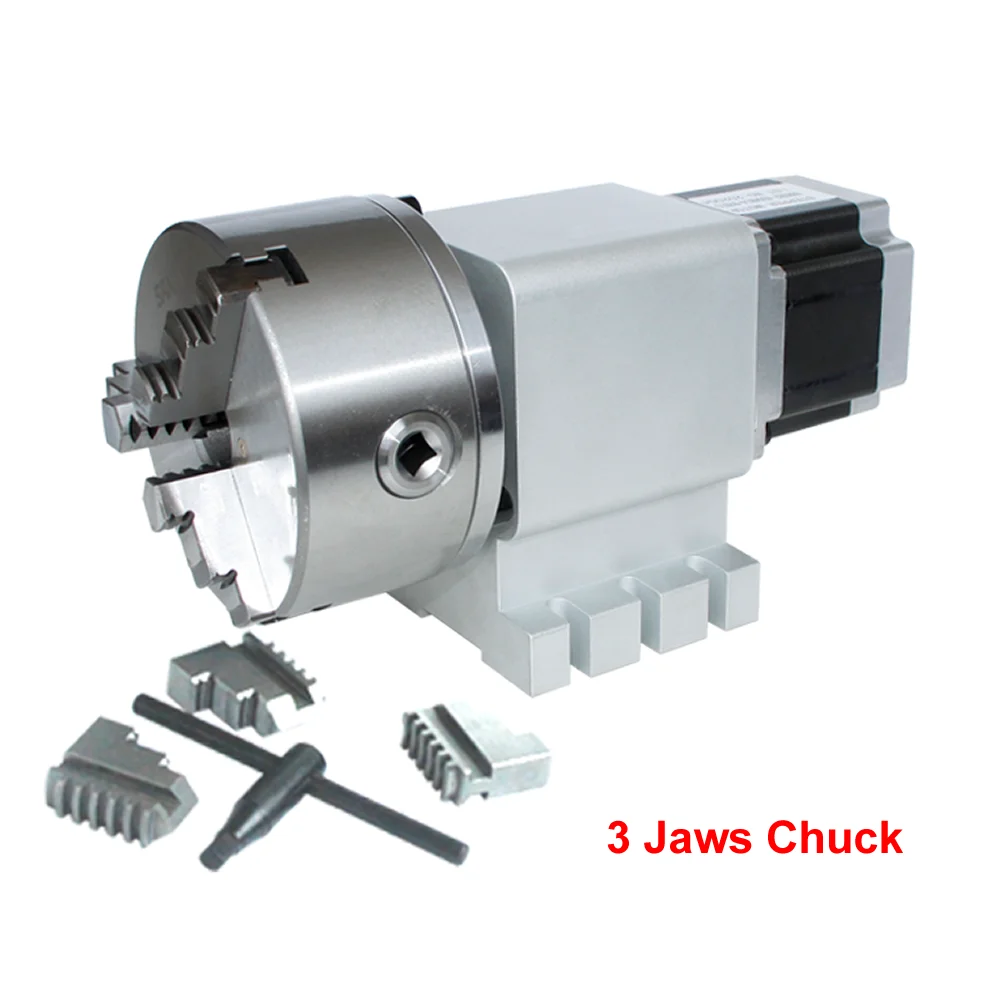

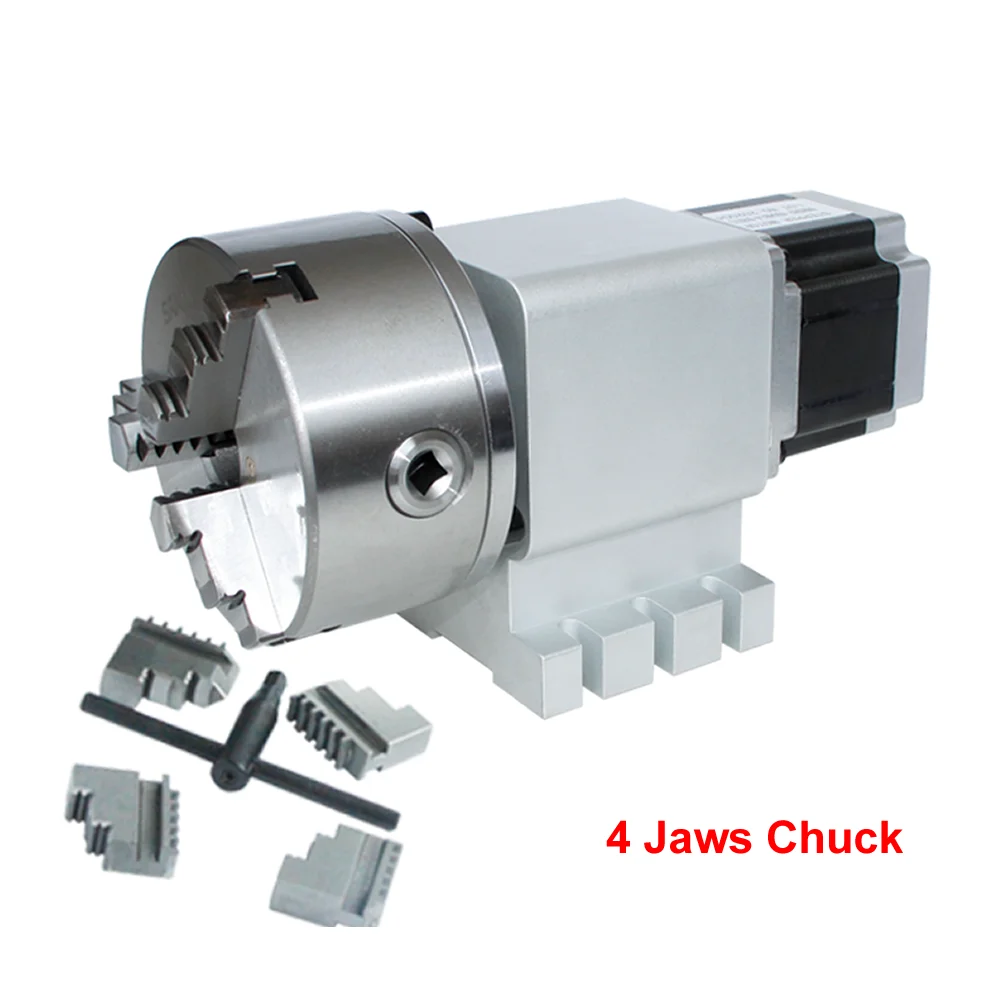

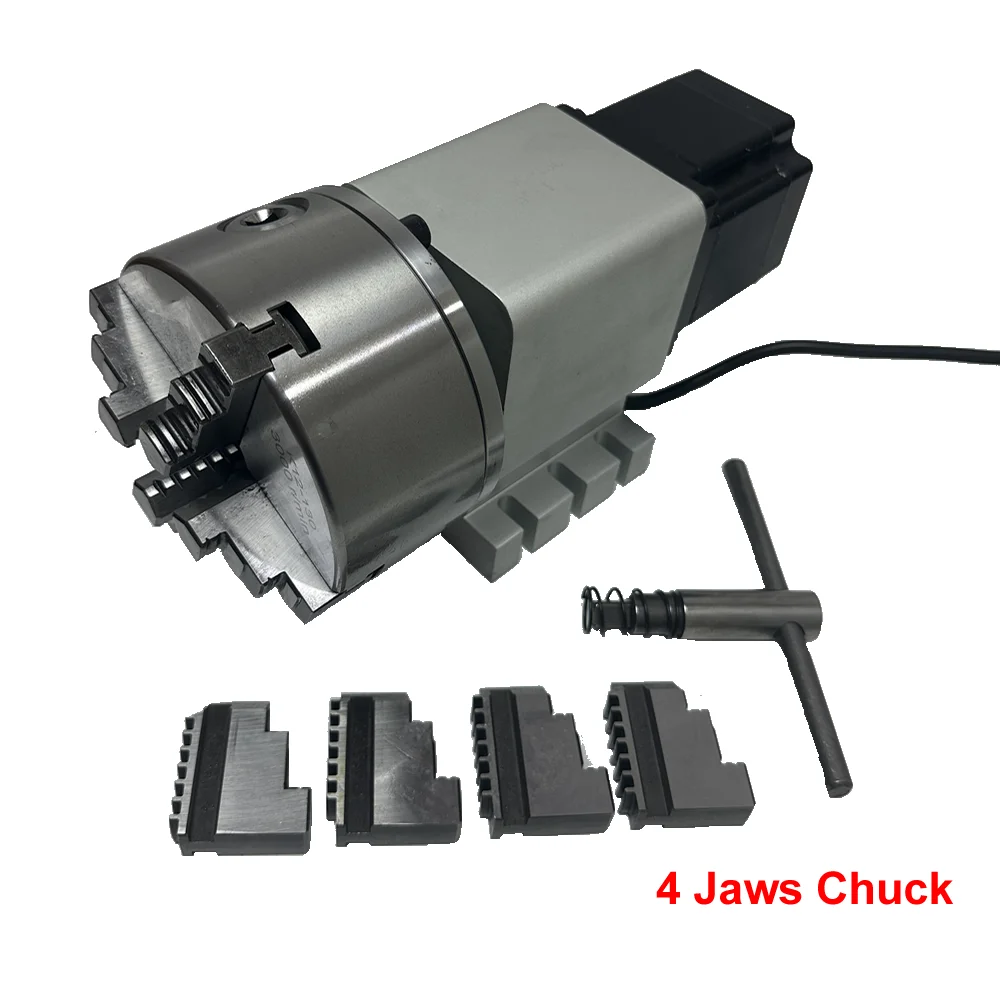

Chuck: 3/4 Jaws 130mm Chuck
Center height: 100MM
Total height: 165MM
Angle: 0.036 degrees/step

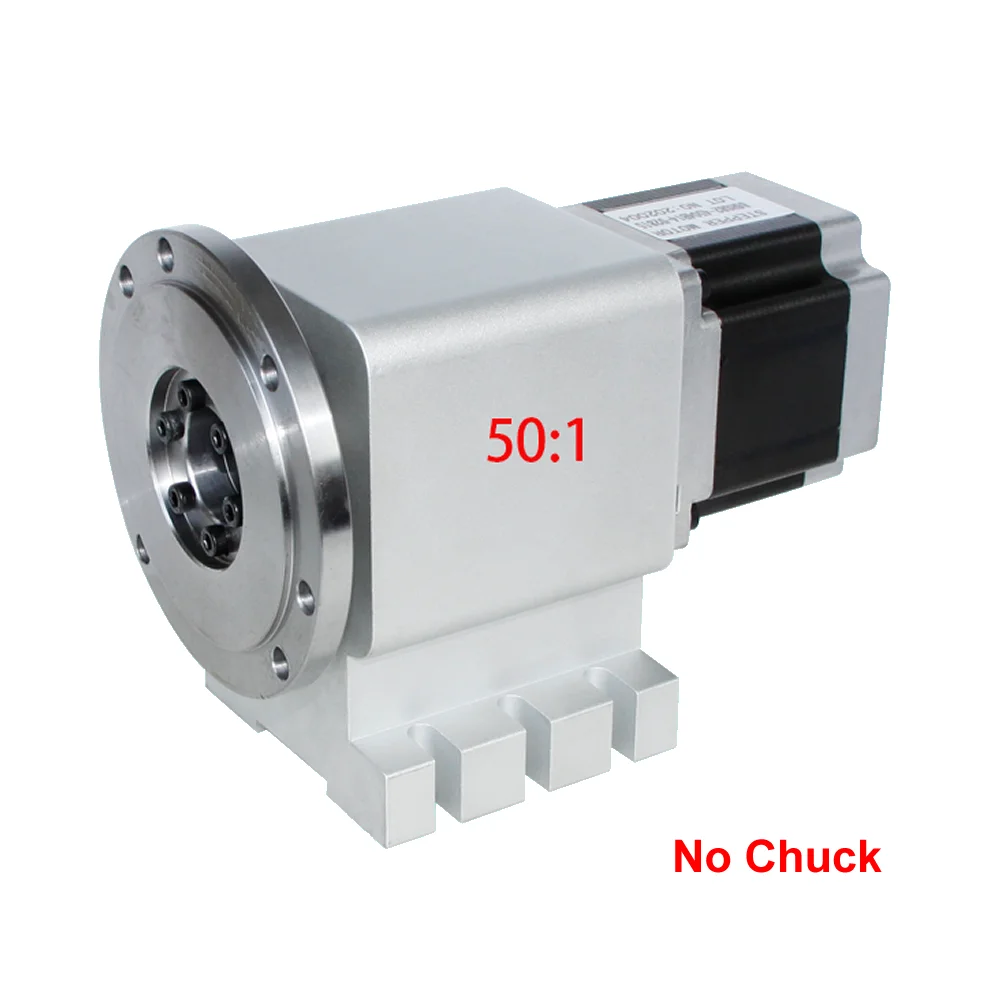

Deceleration ratio: 50:1 (harmonic gearbox)
Stepping motor: two-phase NEMA34 86 stepping motor (4 wires 4.5A)

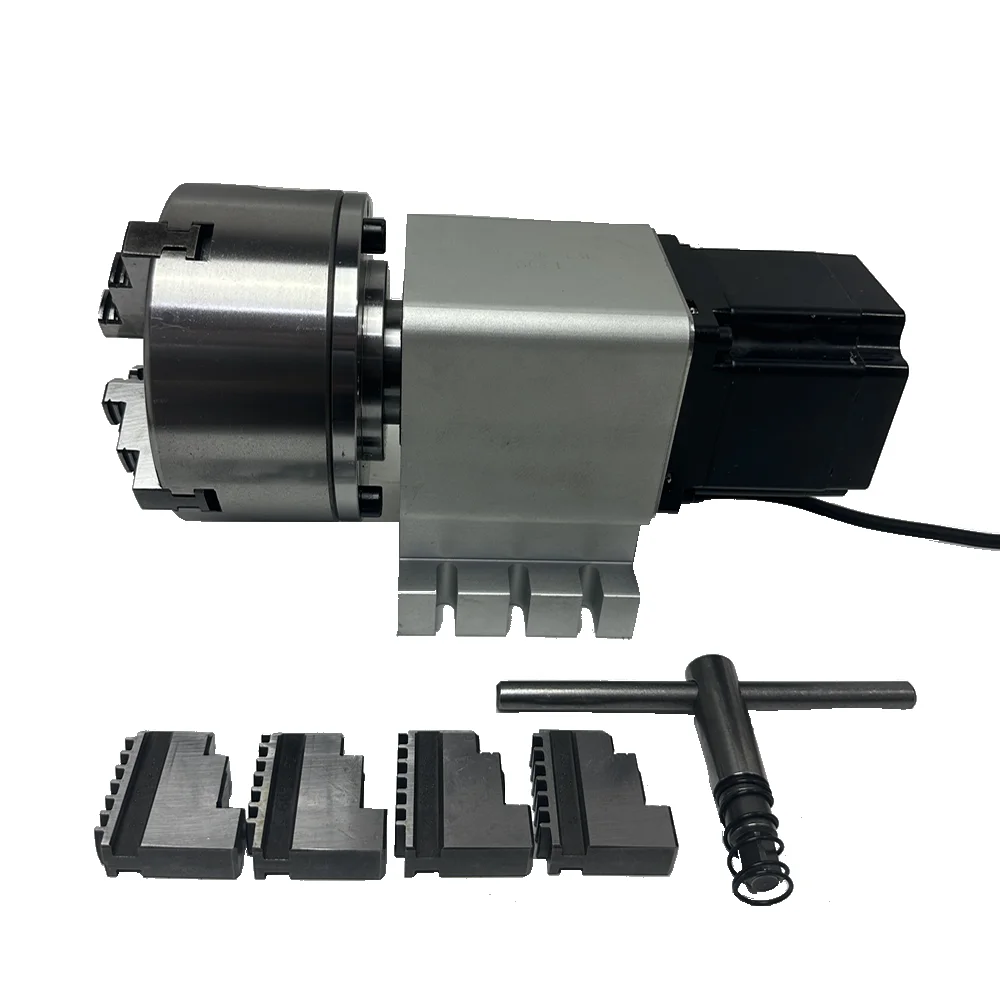

Accessories: a pair of total anti-claw and wrench
Weight: 15KG
