Name: FYSETC HDMI5 HDMI Touch Screen 5INCH DSI Screen MIPI LCD V1.1 Display Voron 3D Printer Parts For Raspberry Pi Board - HFG 3D
SKU: 1005007077612430
Price: 100.70 BRL
Availability: InStock

High-concerned chemical: None
Item Type: Display Screen
Brand Name: FYSETC
Origin: Mainland China

Please note:

If your screen does not work. Please follow these steps:

The Raspberry Pi DSI screen cannot be used due to the Raspberry Pi system update.

Use the voron2.4.r2.pro.350.7z image, and the debian10 system can be used directly.

Use the raspberry34-dsi.img.xz image, and modify the system image to use debian11 to use it directly.

If you are using the latest version of MainsailOS, you can modify it as follows:

Download link: https://github.com/mainsail-crew/MainsailOS/releases/tag/1.3.2

SSH into the system and enter:

sudo nano /boot/config.txt

Change

# Enable DRM VC4 V3D driver

dtoverlay=vc4-fkms-v3d

max_framebuffers=2

to:

# Enable DRM VC4 V3D driver

#dtoverlay=vc4-fkms-v3d

#max_framebuffers=2

or delete

dtoverlay=vc4-fkms-v3d

max_framebuffers=2

these two lines.

Use the Raspberry Pi system to download https://downloads.raspberrypi.com/raspios_armhf/images/raspios_armhf-2023-05-03/

and the Raspberry Pi system images before this link. This method can be used to solve the problem that the Raspberry Pi image cannot be used.

The 5-inch DSI screen is currently not suitable for Raspberry Pi 5.

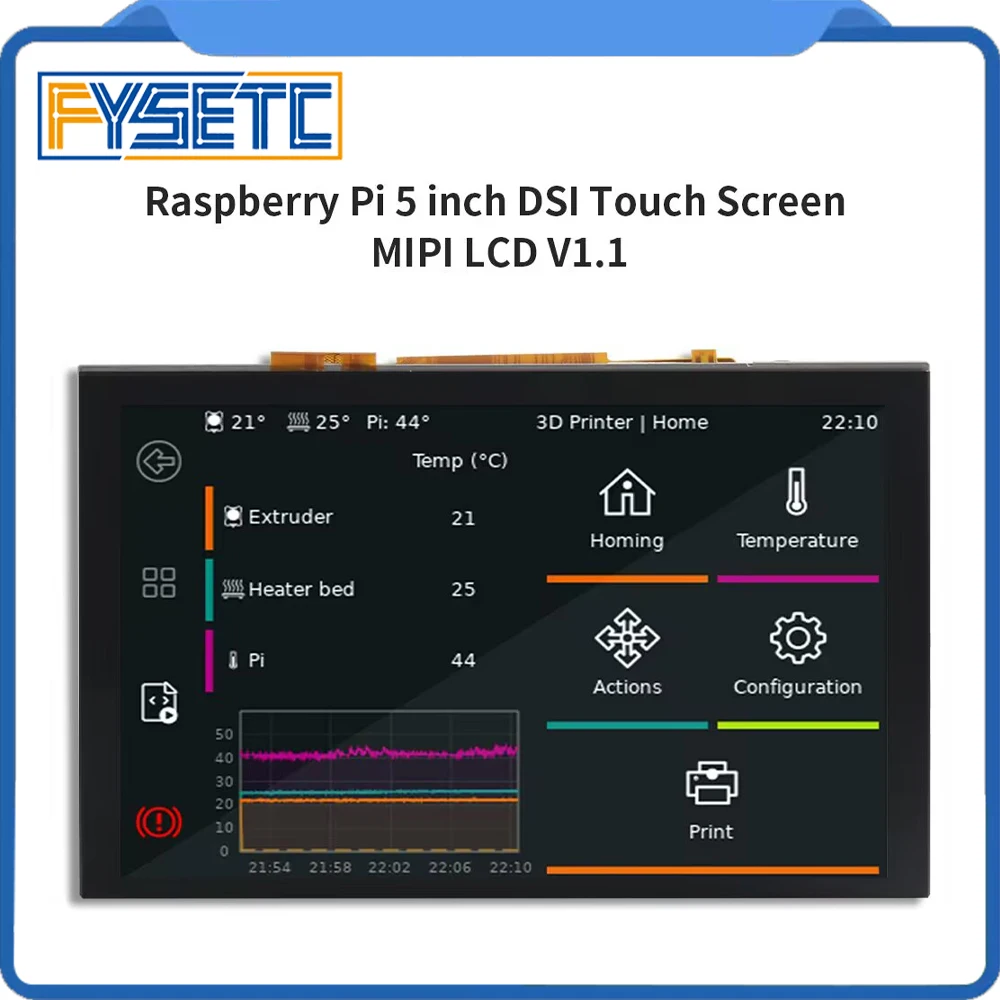

FYSETC HDMI5 HDMI Touch Screen 5INCH DSI Screen MIPI LCD V1.1 Display Voron 3D Printer Parts For Raspberry Pi Board

Introduction

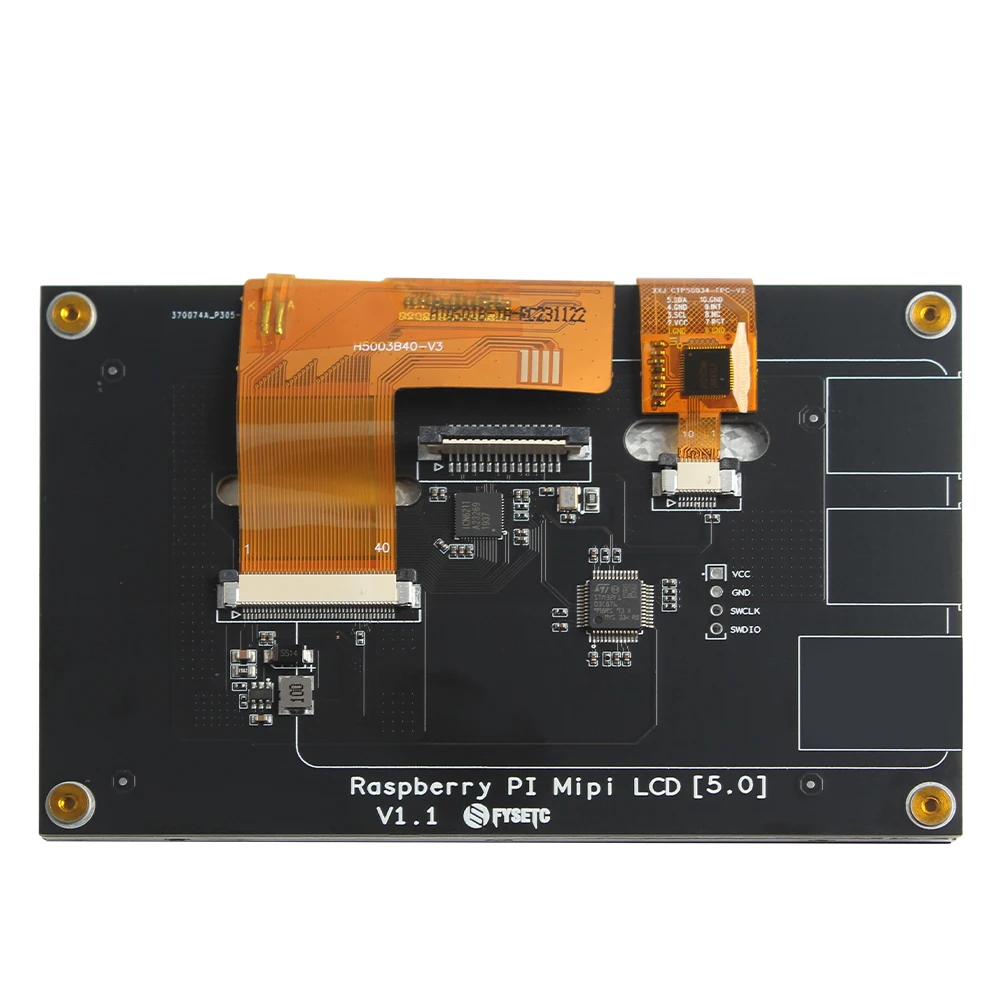

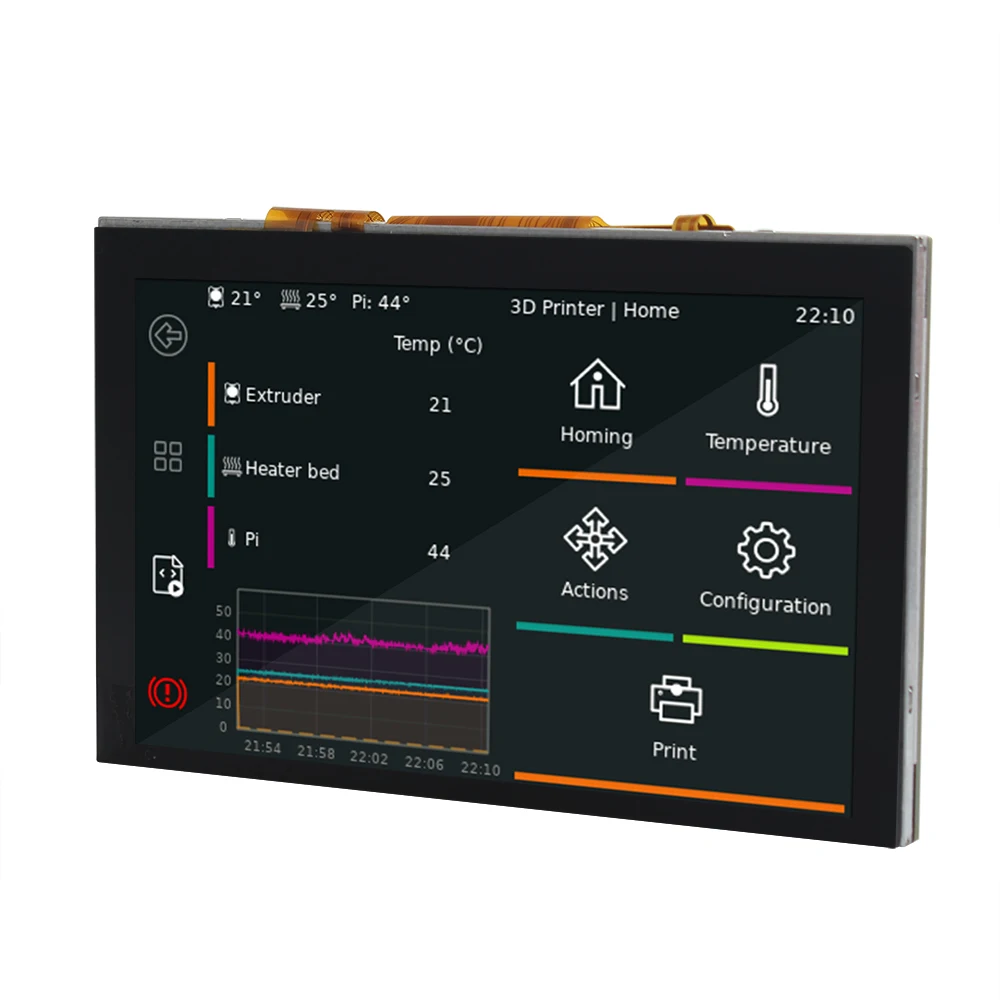

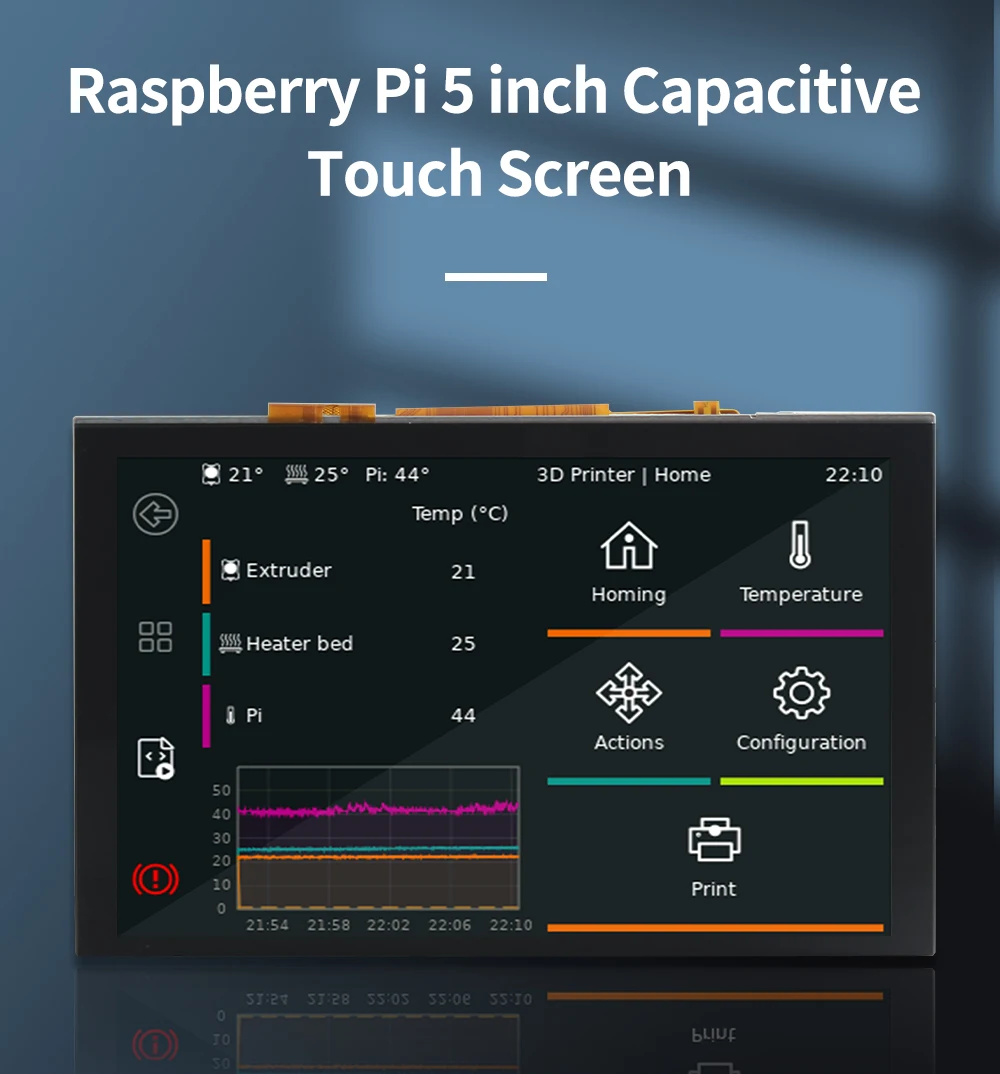

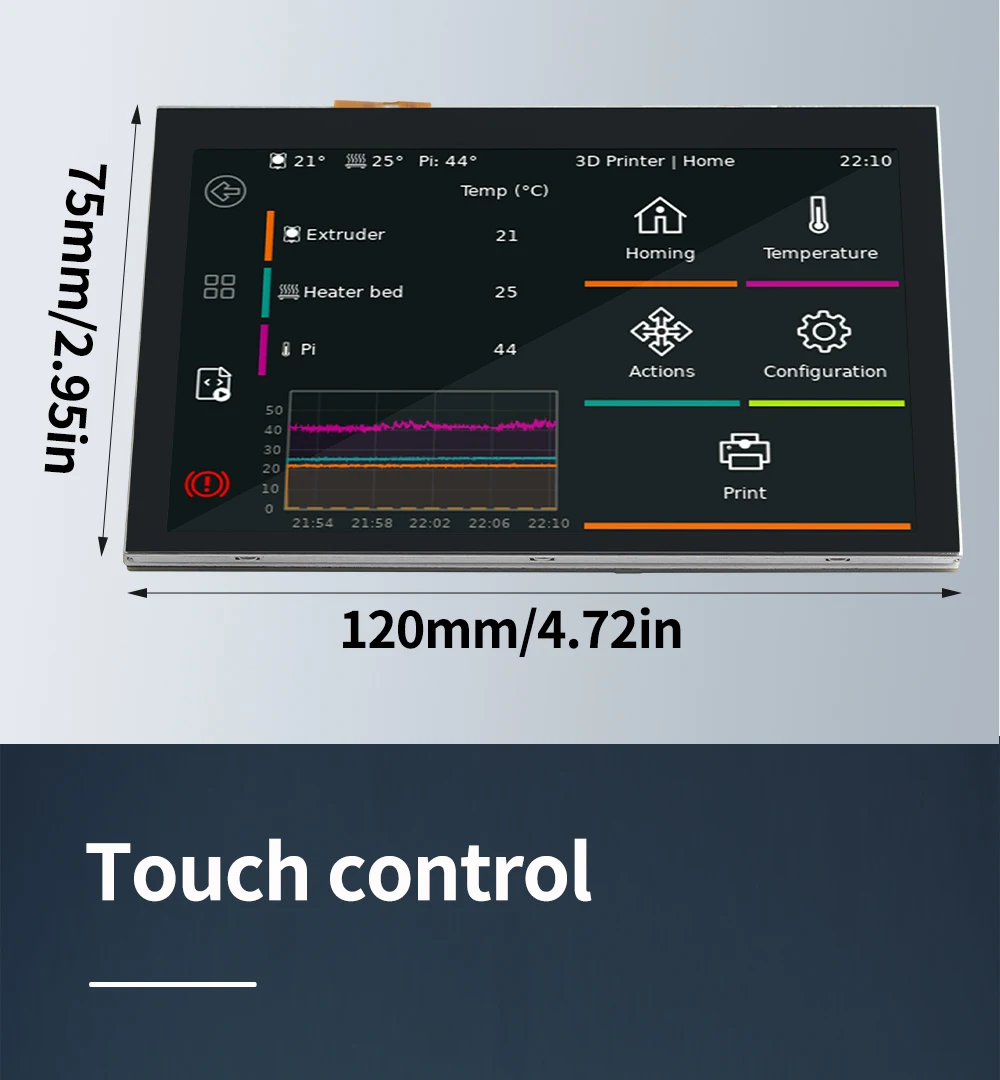

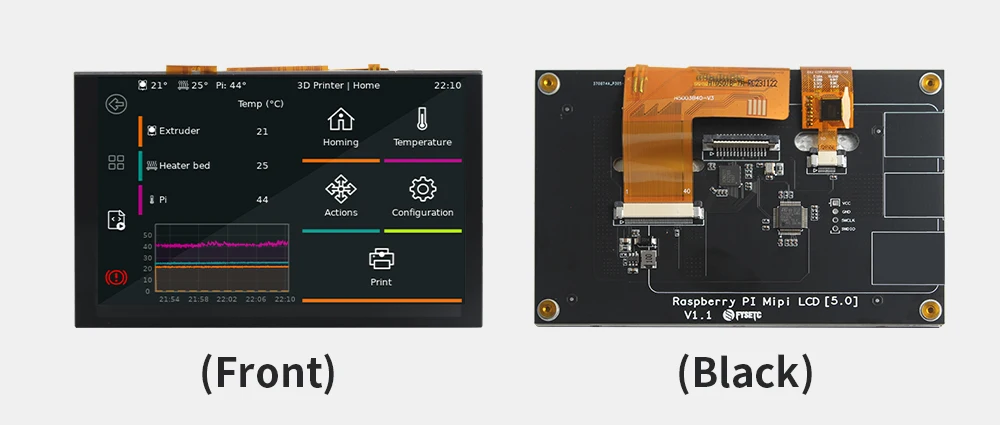

This is a 5" Raspberry Pi LCD touchscreen with 800*480 resolution and 108×64.8mm display area. The product supports Raspberry Pi DSI display interface and comes with a capacitive touch panel on its screen and supports 5 touch points. The special holes design on the back of the screen is convenient to directly install the Raspberry Pi in the product. There is no need to provide external power for the touchscreen as the Raspberry Pi power supply is adopted. In addition, the screen supports hardware backlight adjustment. The function can be realized by turning the potentiometer on the back of the display.

Features：

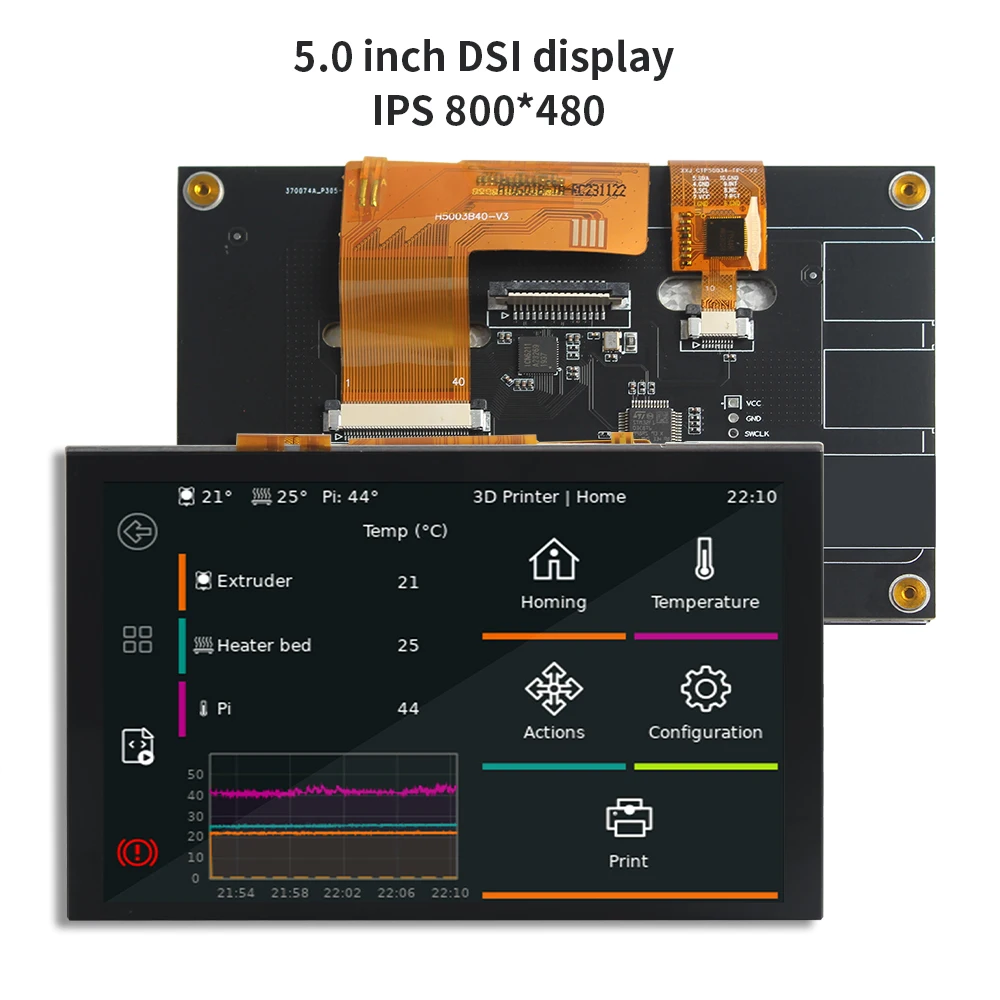

*5-inch capacitive touch screen, hardware resolution is 800 x 480.

*Capacitive touch panel, support 5-point touch.

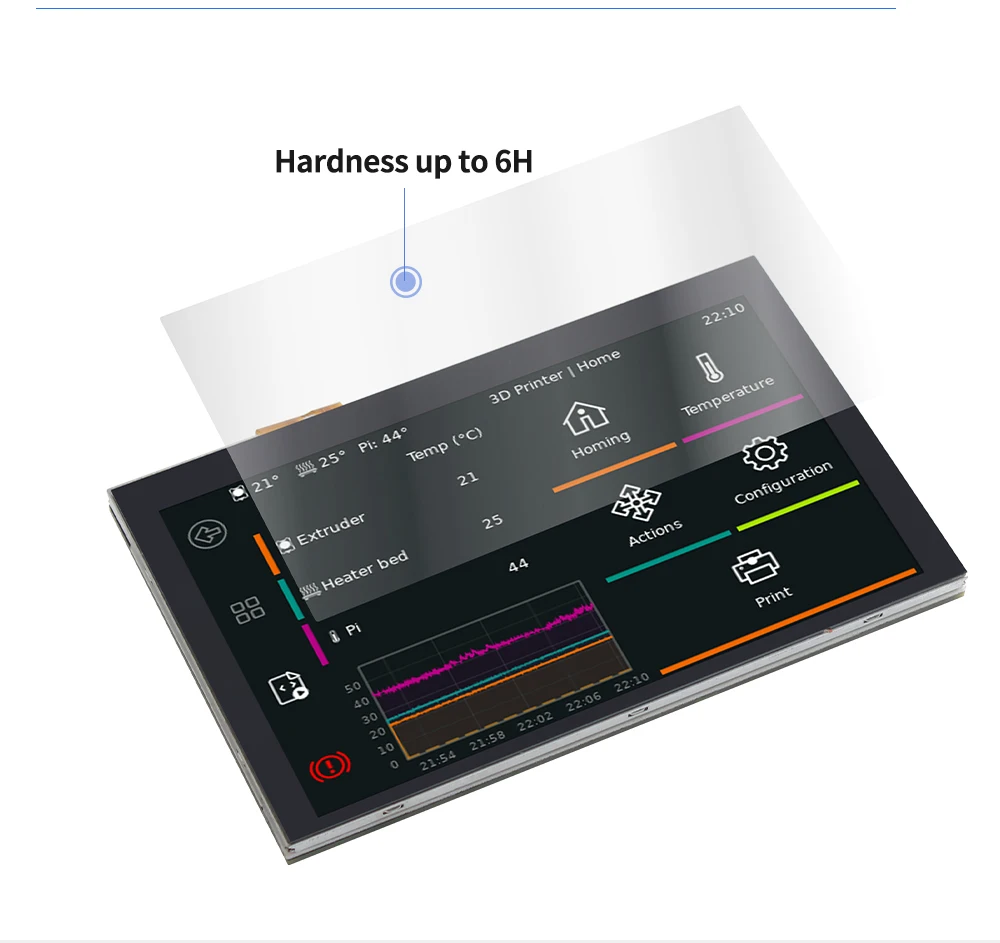

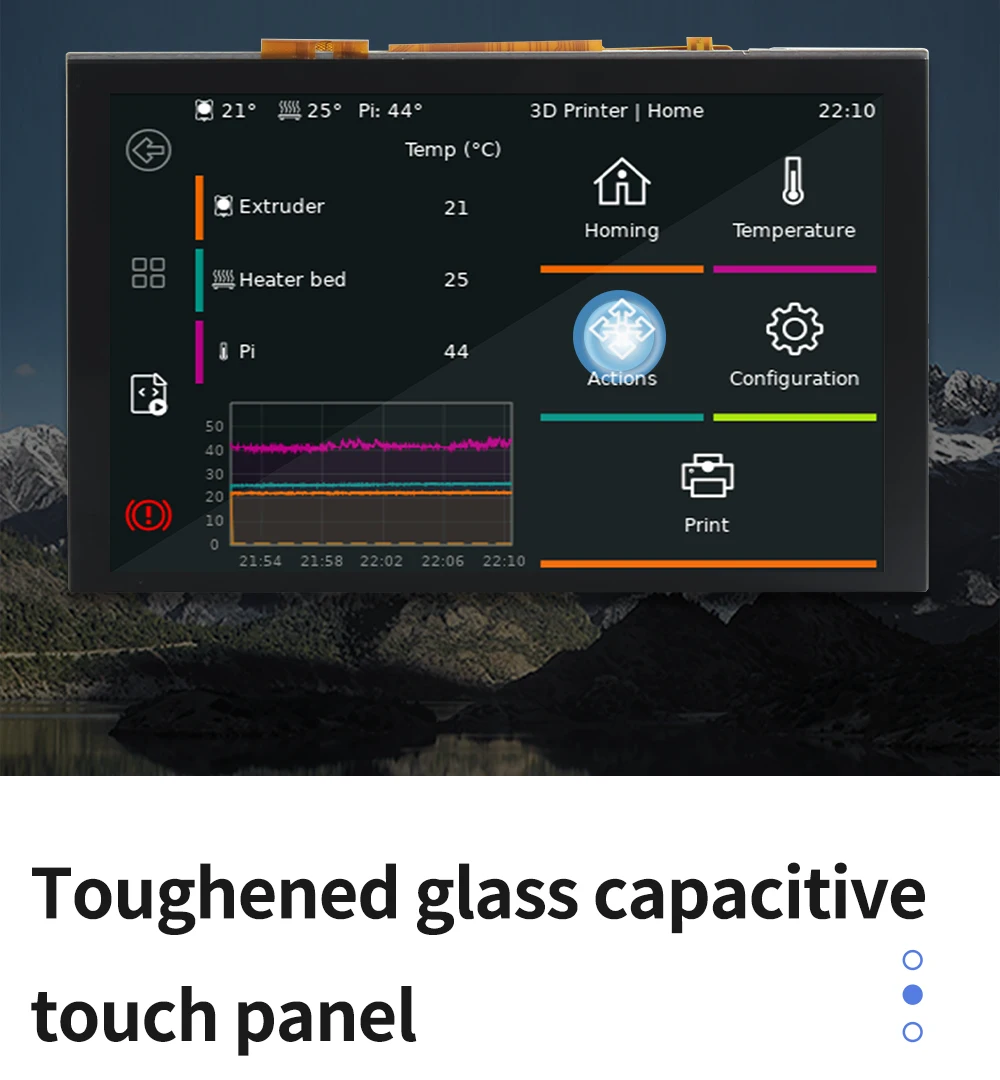

*Toughened glass capacitive touch panel, hardness up to 6H.

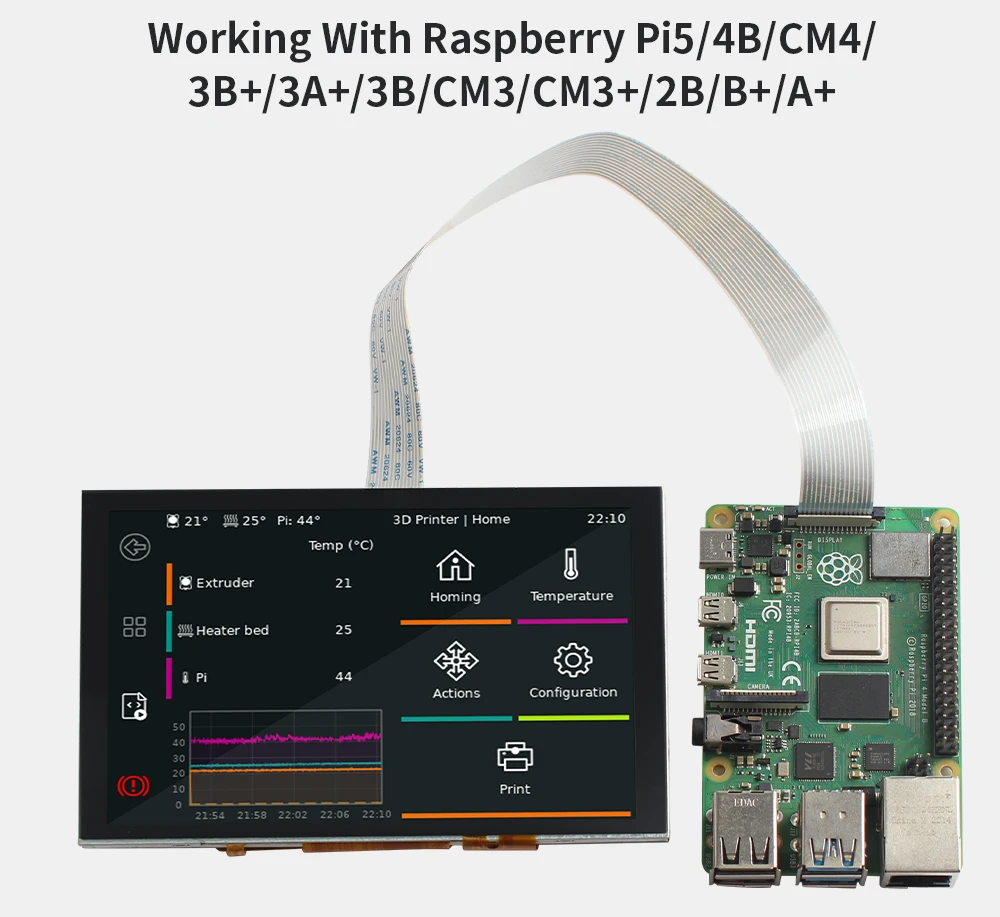

*Supports Pi5/4B/CM4/3B+/3A+/3B/CM3/CM3+/2B/B+/A+.

*Directly drive the LCD by the DSI interface on the Raspberry Pi, with up to 60Hz refreshing rate.

*When working with Raspberry Pi, support Raspberry Pi OS / Ubuntu / Kali and Retropie, driver-free.

*When working with VisionFive, support Debian, single-point control, and driver-free.

*When working with Tinker Board 2, support Linux/Android, five-point control, and driver-free.

*When working with Core3566, support Debian/Ubuntu, five-point control, and driver-free.

*Support brightness adjustable through software control.

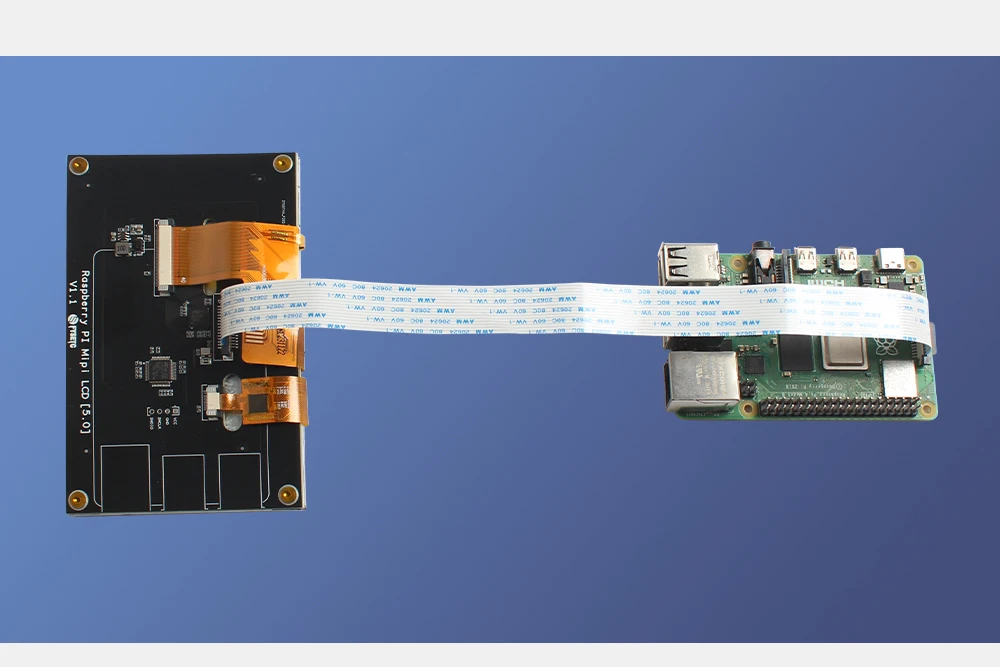

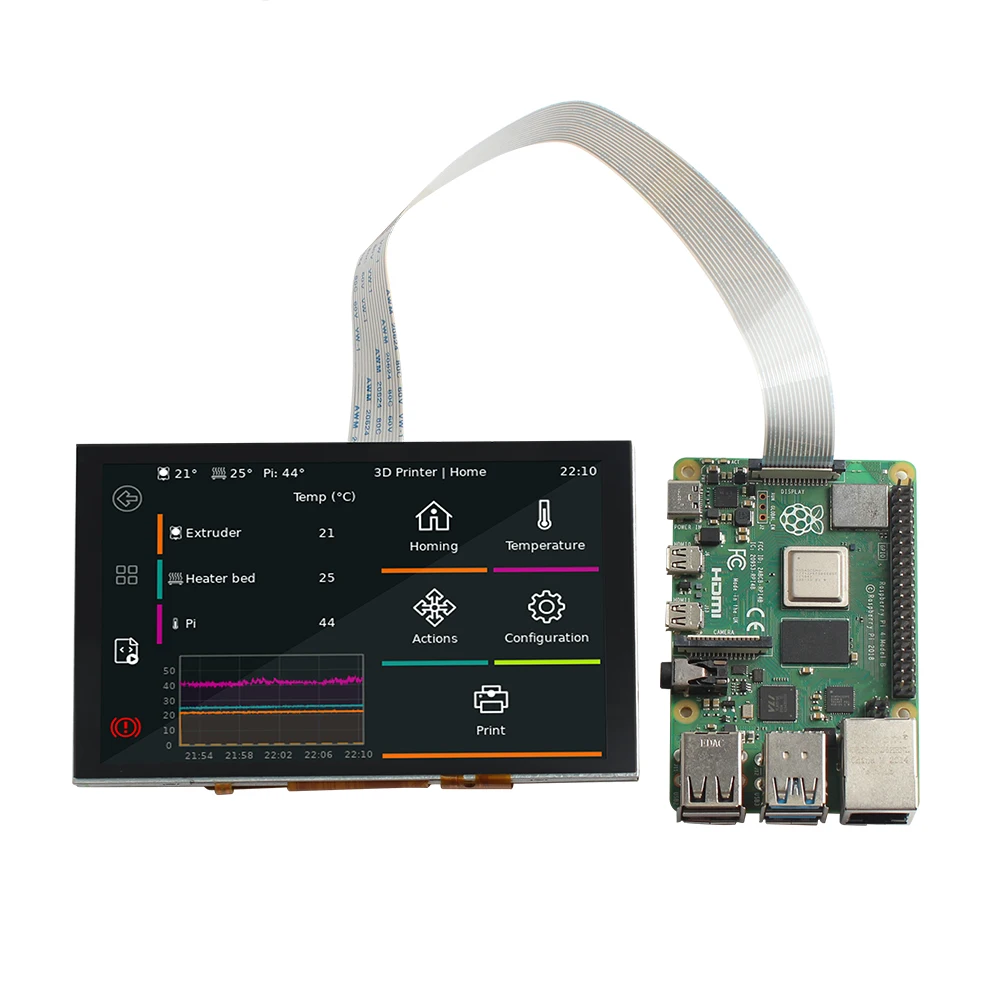

Hardware connection
